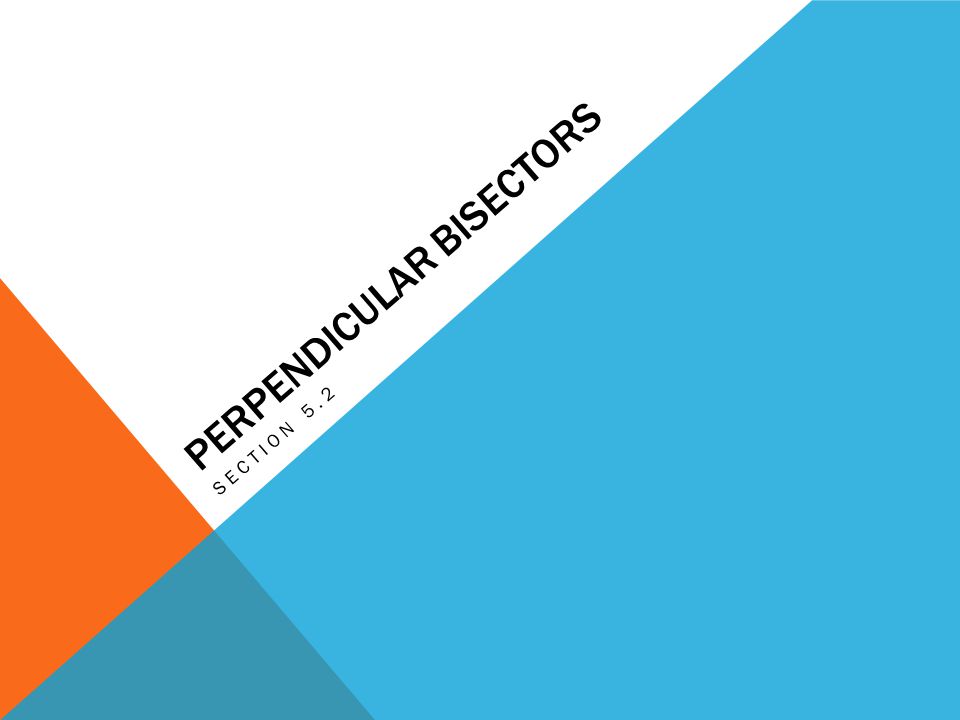

1 PERPENDICULAR BISECTORS SECTION 5.2

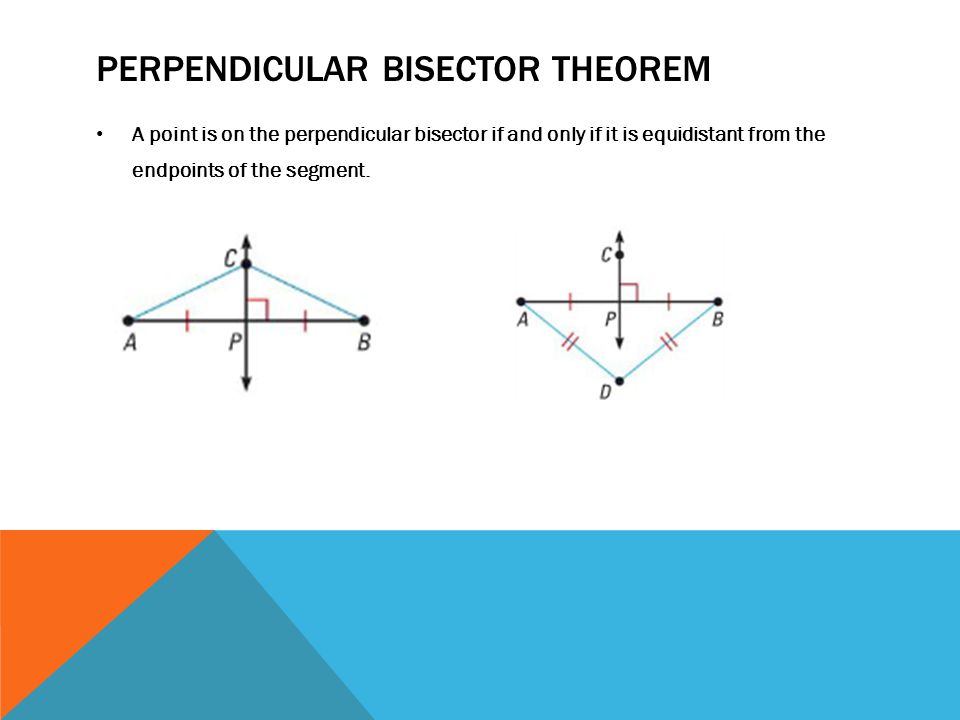

2 PERPENDICULAR BISECTOR THEOREM A point is on the perpendicular bisector if and only if it is equidistant from the endpoints of the segment.

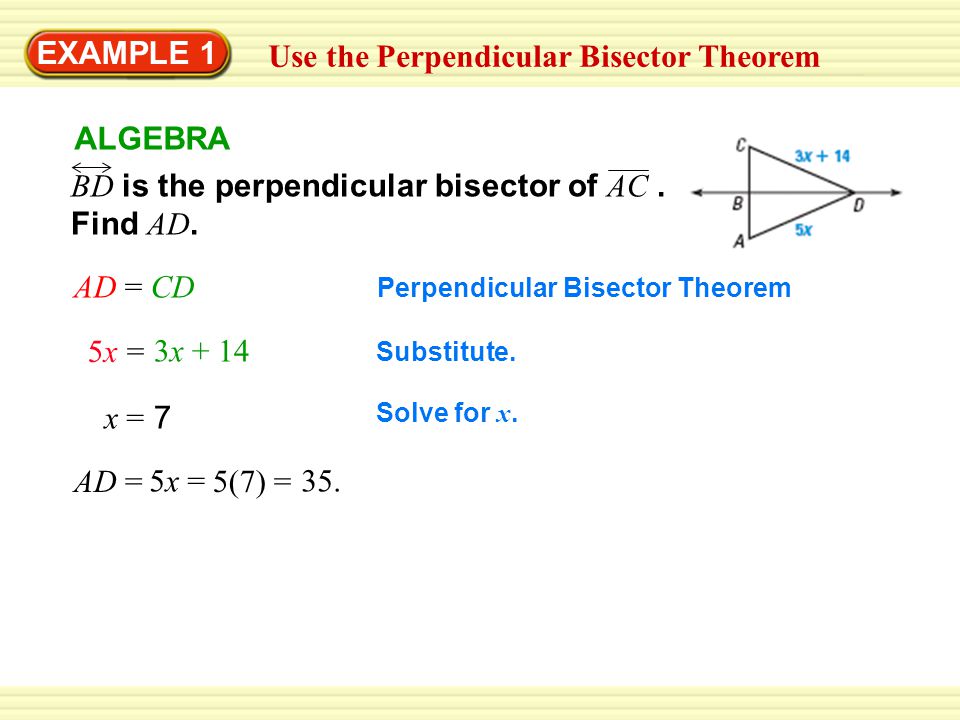

3 EXAMPLE 1 Use the Perpendicular Bisector Theorem AD = CD Perpendicular Bisector Theorem 3x + 14 5x =5x = Substitute. 7 x = Solve for x. BD is the perpendicular bisector of AC. Find AD. AD = 5x = 5(7) = 35. ALGEBRA

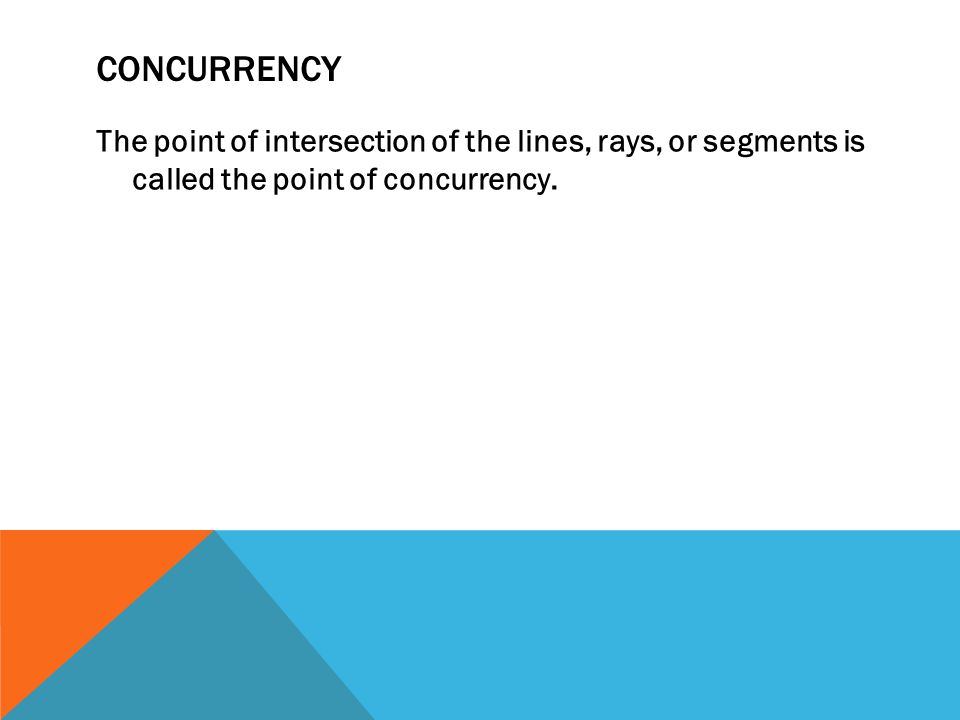

4 CONCURRENCY The point of intersection of the lines, rays, or segments is called the point of concurrency.

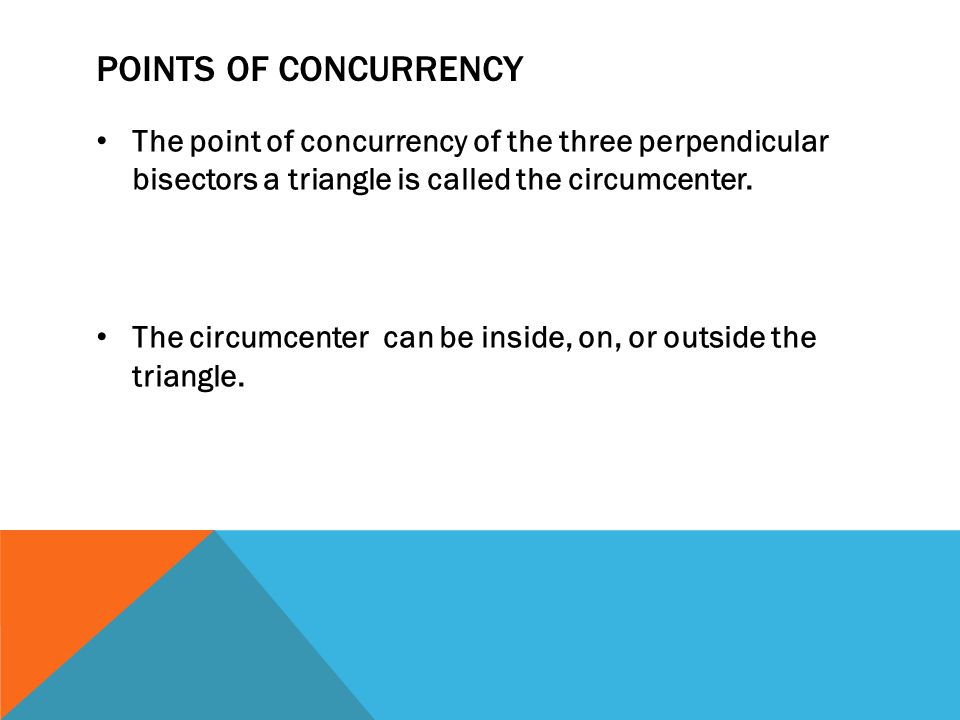

5 POINTS OF CONCURRENCY The point of concurrency of the three perpendicular bisectors a triangle is called the circumcenter. The circumcenter can be inside, on, or outside the triangle.

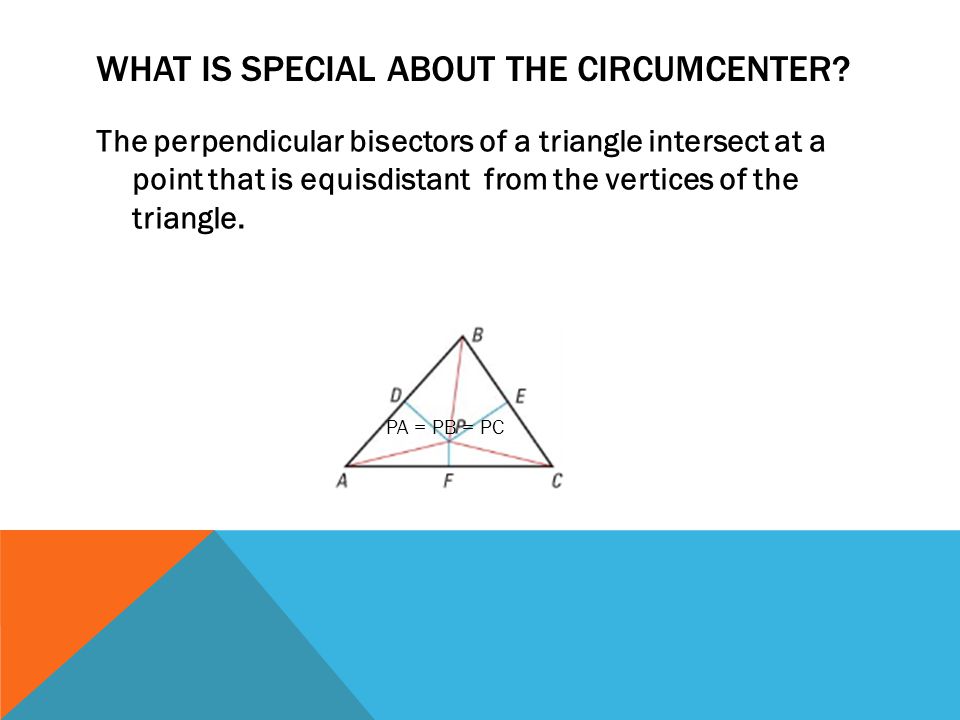

6 WHAT IS SPECIAL ABOUT THE CIRCUMCENTER? The perpendicular bisectors of a triangle intersect at a point that is equisdistant from the vertices of the triangle. PA = PB = PC

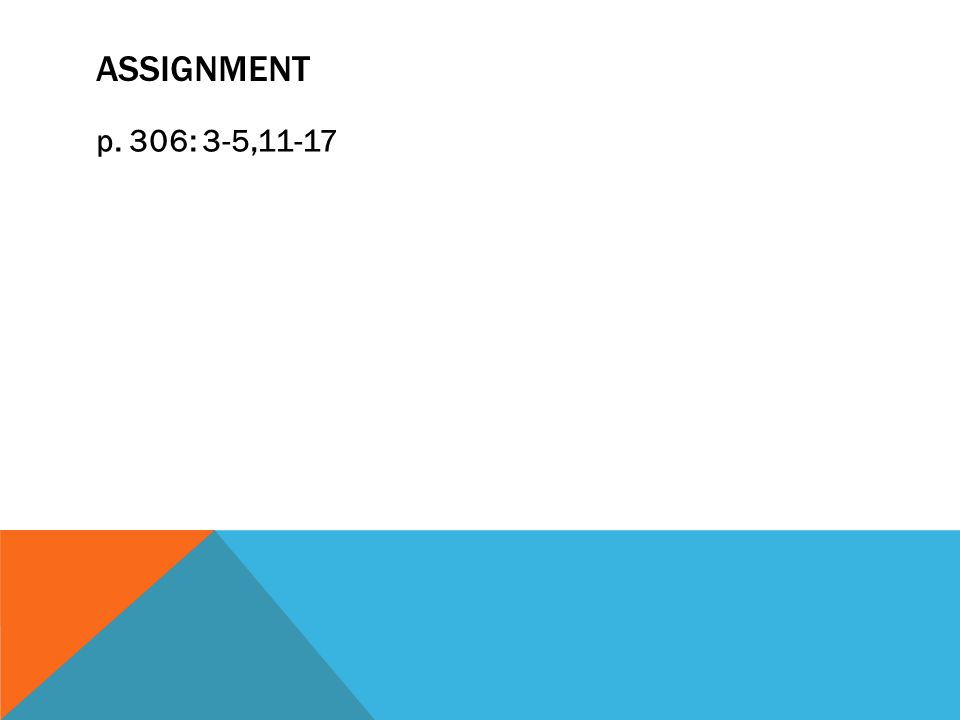

7 ASSIGNMENT p. 306: 3-5,11-17
