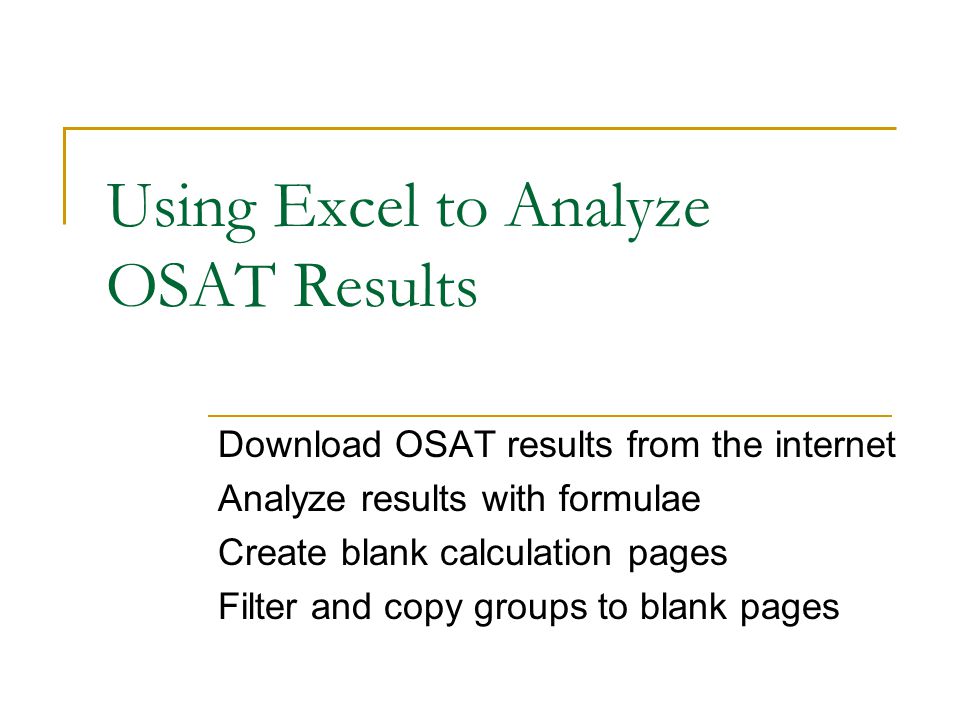

1. Using Excel to Analyze OSAT Results Download OSAT results from the internet Analyze results with formulae Create blank calculation pages Filter and copy groups to blank pages

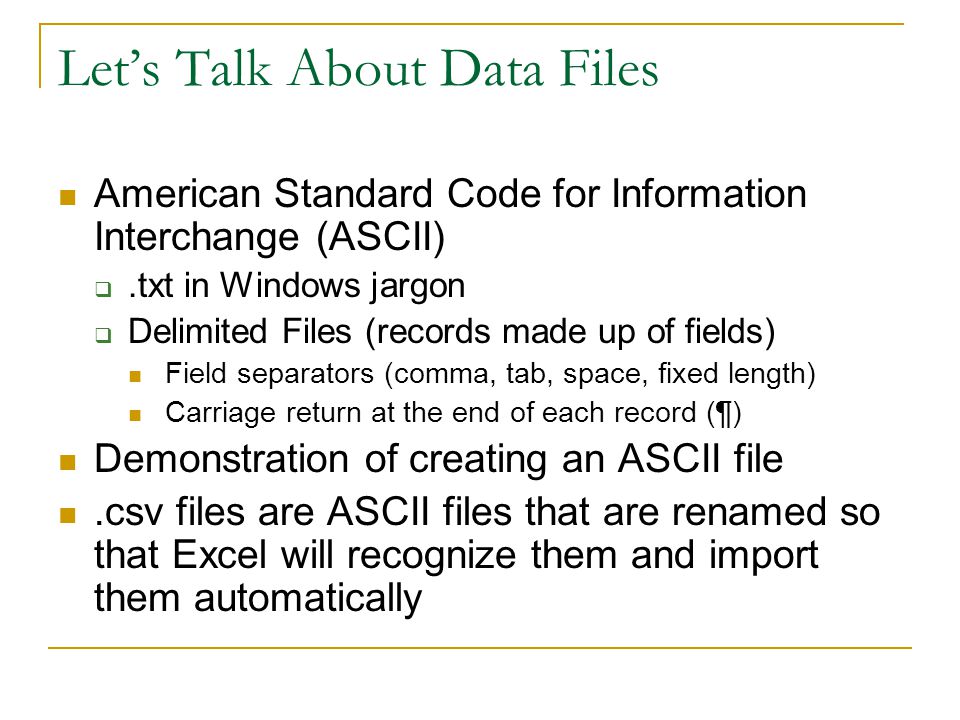

2. Let’s Talk About Data Files American Standard Code for Information Interchange (ASCII) .txt in Windows jargon  Delimited Files (records made up of fields) Field separators (comma, tab, space, fixed length) Carriage return at the end of each record (¶) Demonstration of creating an ASCII file.csv files are ASCII files that are renamed so that Excel will recognize them and import them automatically

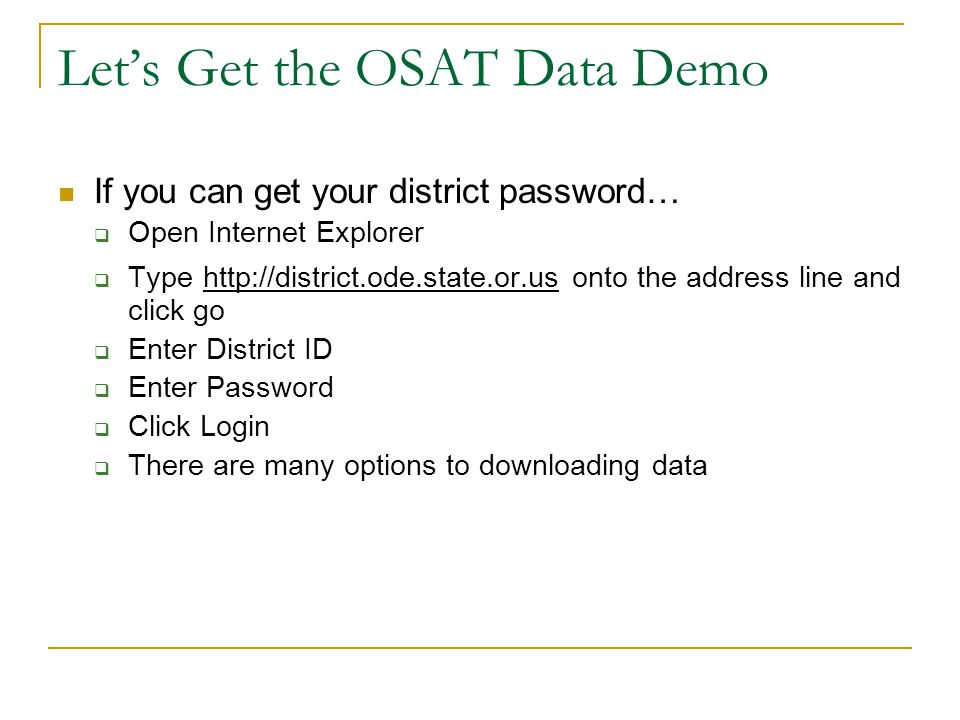

3. Let’s Get the OSAT Data Demo If you can get your district password…  Open Internet Explorer  Type http://district.ode.state.or.us onto the address line and click go  Enter District ID  Enter Password  Click Login  There are many options to downloading data

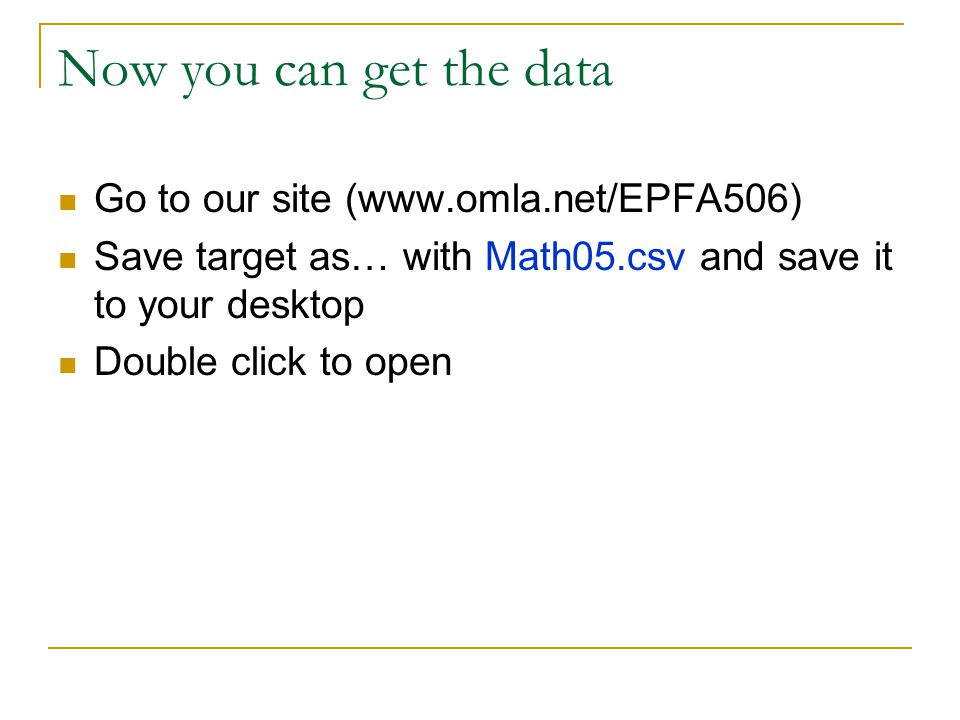

4. Now you can get the data Go to our site (www.omla.net/EPFA506) Save target as… with Math05.csv and save it to your desktop Double click to open

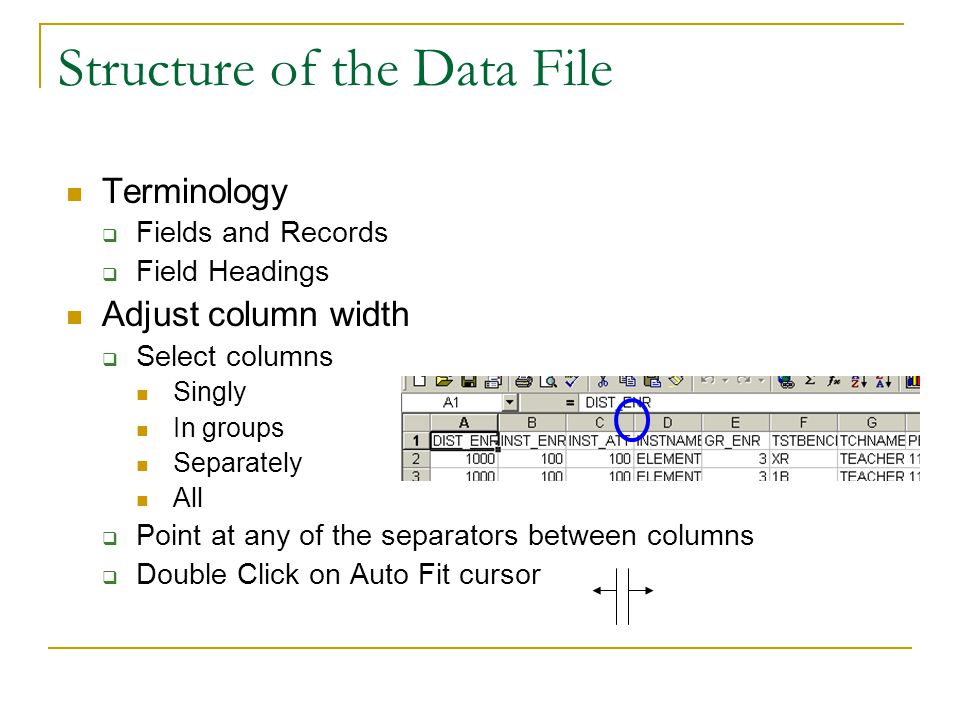

5. Structure of the Data File Terminology  Fields and Records  Field Headings Adjust column width  Select columns Singly In groups Separately All  Point at any of the separators between columns  Double Click on Auto Fit cursor

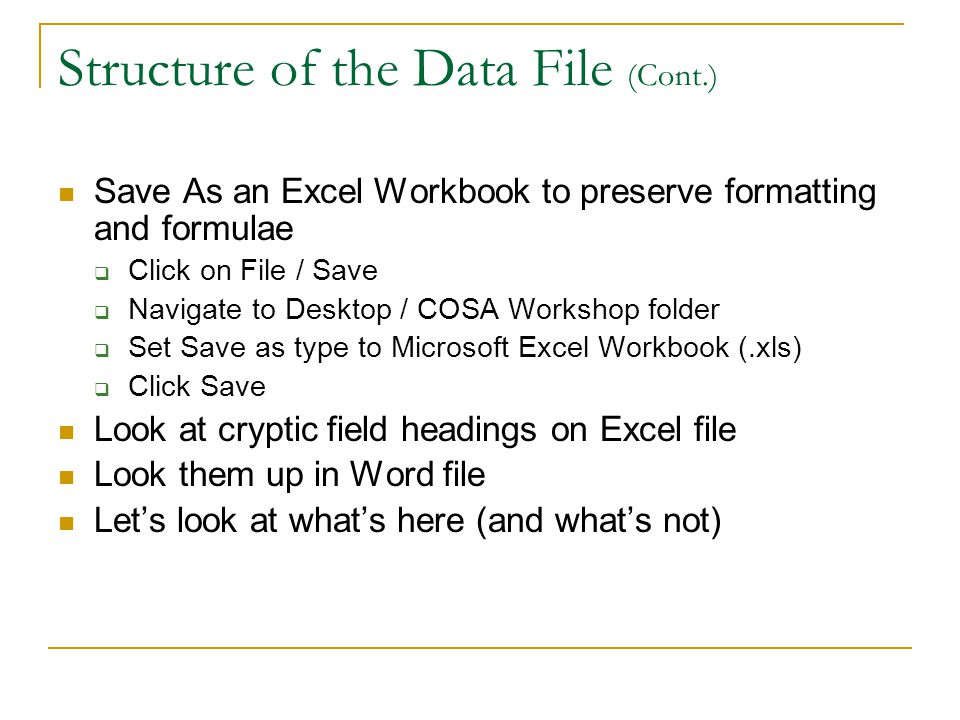

6. Structure of the Data File (Cont.) Save As an Excel Workbook to preserve formatting and formulae  Click on File / Save  Navigate to Desktop / COSA Workshop folder  Set Save as type to Microsoft Excel Workbook (.xls)  Click Save Look at cryptic field headings on Excel file Look them up in Word file Let’s look at what’s here (and what’s not)

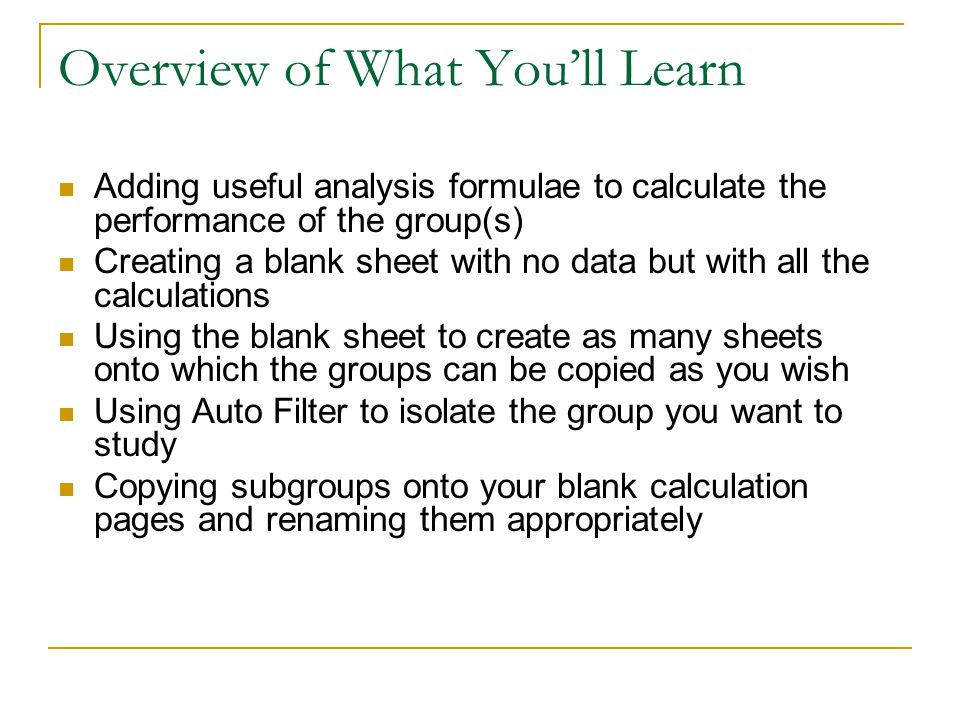

7. Overview of What You’ll Learn Adding useful analysis formulae to calculate the performance of the group(s) Creating a blank sheet with no data but with all the calculations Using the blank sheet to create as many sheets onto which the groups can be copied as you wish Using Auto Filter to isolate the group you want to study Copying subgroups onto your blank calculation pages and renaming them appropriately

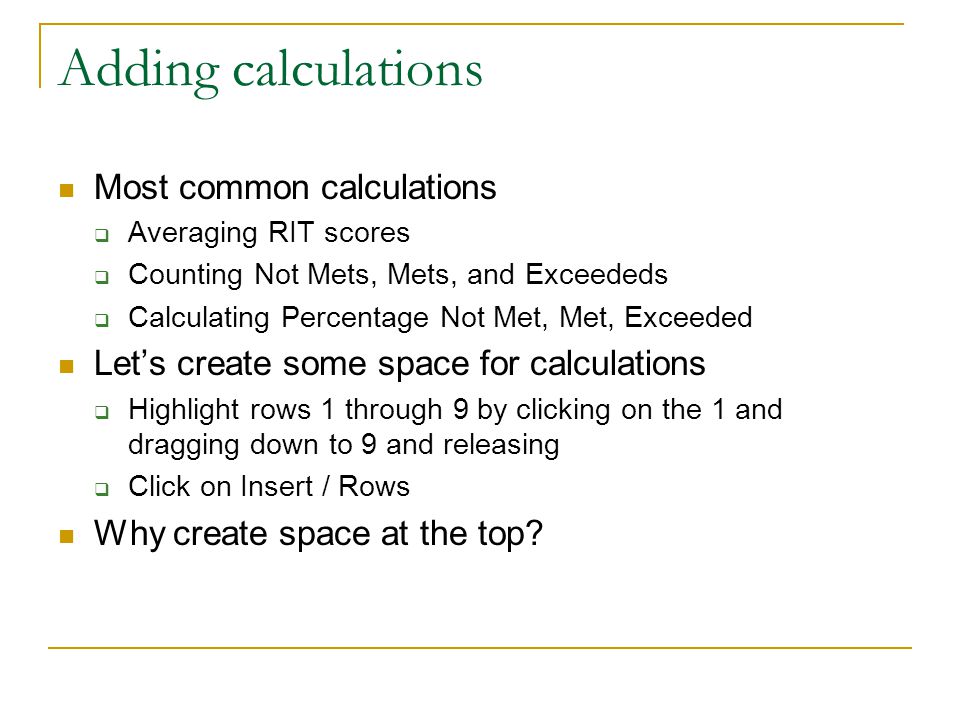

8. Adding calculations Most common calculations  Averaging RIT scores  Counting Not Mets, Mets, and Exceededs  Calculating Percentage Not Met, Met, Exceeded Let’s create some space for calculations  Highlight rows 1 through 9 by clicking on the 1 and dragging down to 9 and releasing  Click on Insert / Rows Why create space at the top?

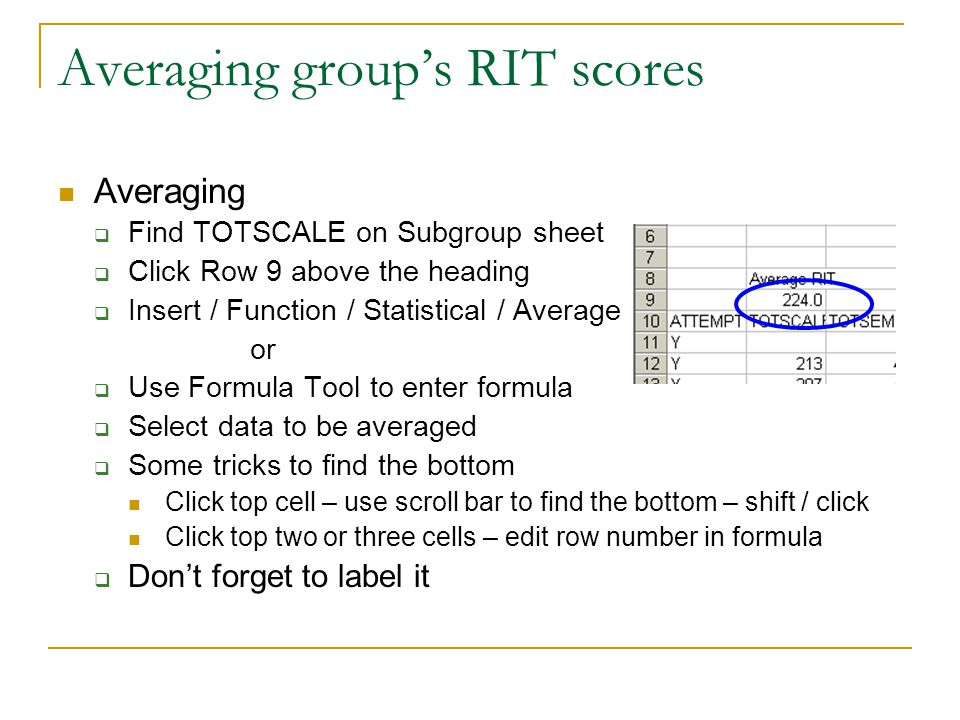

9. Averaging group’s RIT scores Averaging  Find TOTSCALE on Subgroup sheet  Click Row 9 above the heading  Insert / Function / Statistical / Average or  Use Formula Tool to enter formula  Select data to be averaged  Some tricks to find the bottom Click top cell – use scroll bar to find the bottom – shift / click Click top two or three cells – edit row number in formula  Don’t forget to label it

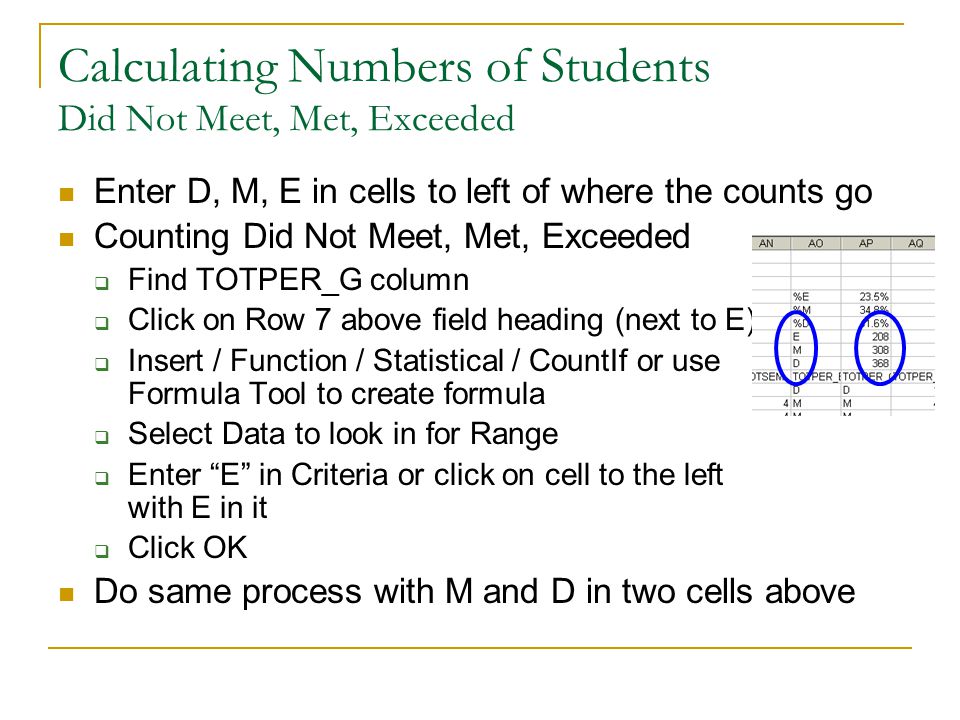

10. Calculating Numbers of Students Did Not Meet, Met, Exceeded Enter D, M, E in cells to left of where the counts go Counting Did Not Meet, Met, Exceeded  Find TOTPER_G column  Click on Row 7 above field heading (next to E)  Insert / Function / Statistical / CountIf or use Formula Tool to create formula  Select Data to look in for Range  Enter “E” in Criteria or click on cell to the left with E in it  Click OK Do same process with M and D in two cells above

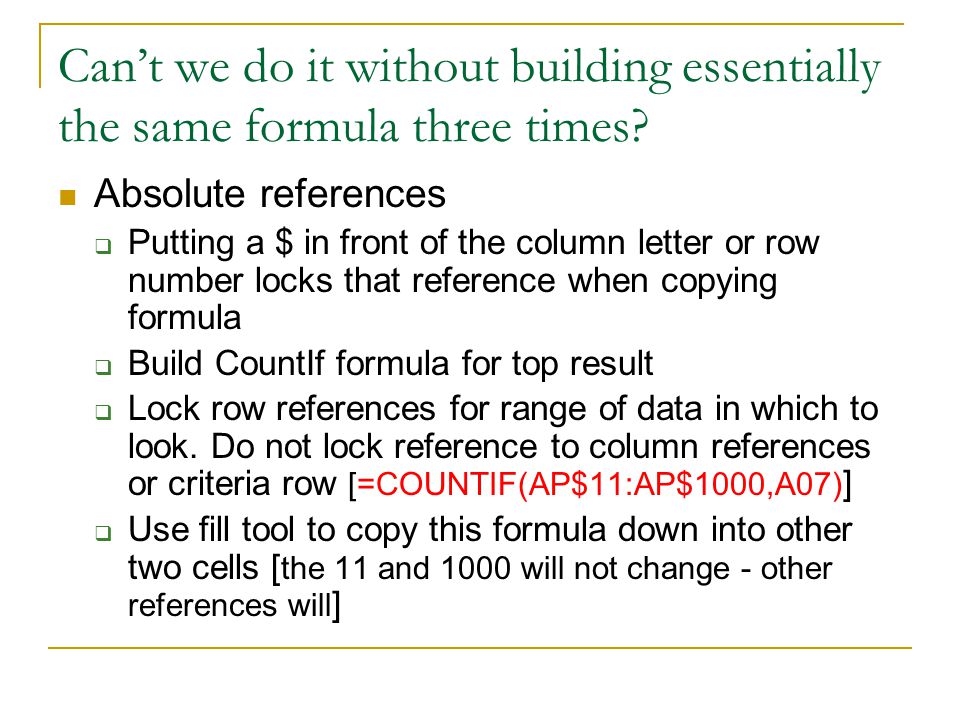

11. Can’t we do it without building essentially the same formula three times? Absolute references  Putting a $ in front of the column letter or row number locks that reference when copying formula  Build CountIf formula for top result  Lock row references for range of data in which to look. Do not lock reference to column references or criteria row [=COUNTIF(AP$11:AP$1000,A07) ]  Use fill tool to copy this formula down into other two cells [ the 11 and 1000 will not change - other references will ]

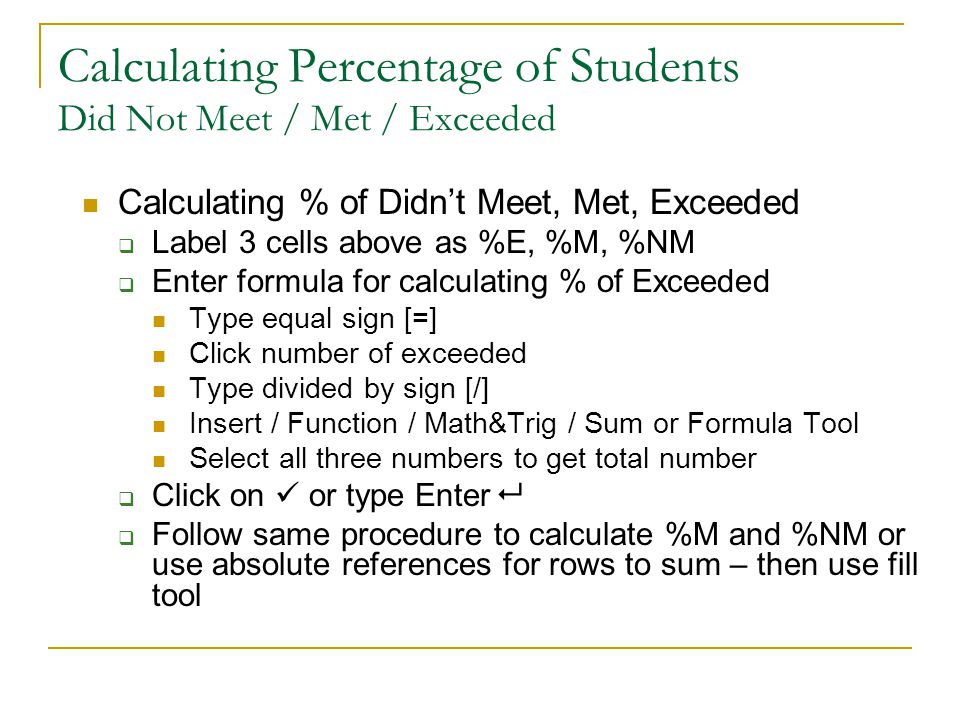

12. Calculating Percentage of Students Did Not Meet / Met / Exceeded Calculating % of Didn’t Meet, Met, Exceeded  Label 3 cells above as %E, %M, %NM  Enter formula for calculating % of Exceeded Type equal sign [=] Click number of exceeded Type divided by sign [/] Insert / Function / Math&Trig / Sum or Formula Tool Select all three numbers to get total number  Click on or type Enter   Follow same procedure to calculate %M and %NM or use absolute references for rows to sum – then use fill tool

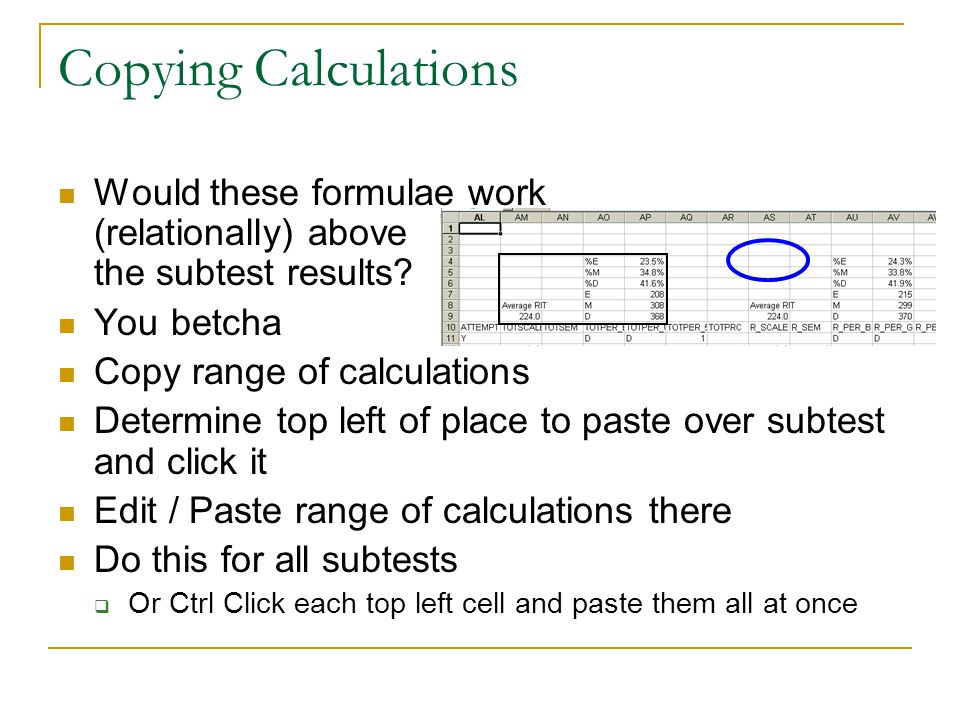

13. Copying Calculations Would these formulae work (relationally) above the subtest results? You betcha Copy range of calculations Determine top left of place to paste over subtest and click it Edit / Paste range of calculations there Do this for all subtests  Or Ctrl Click each top left cell and paste them all at once

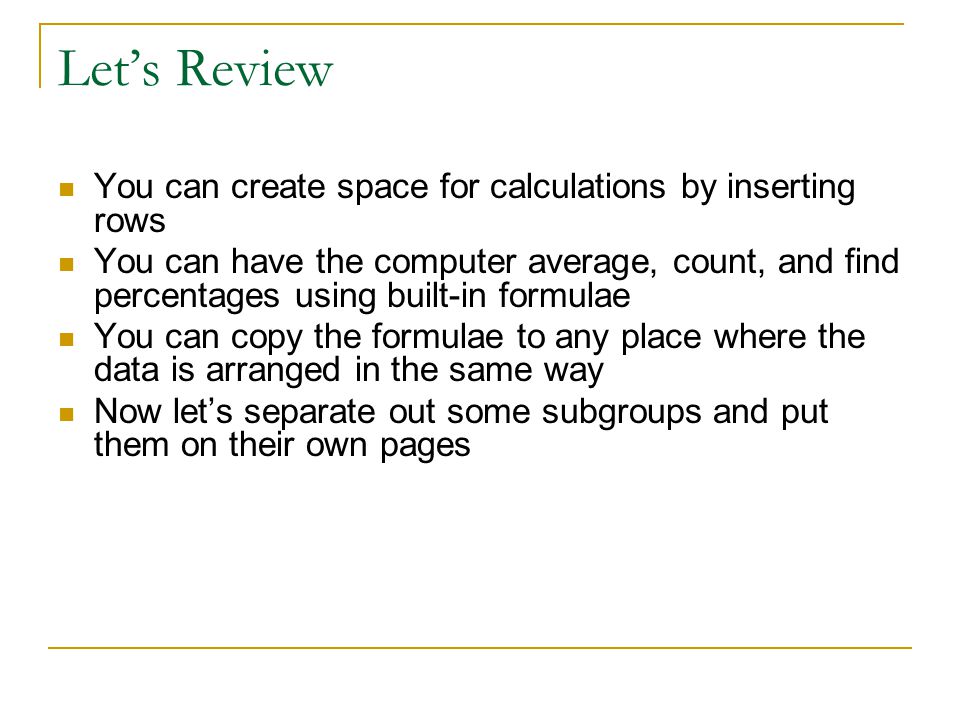

14. Let’s Review You can create space for calculations by inserting rows You can have the computer average, count, and find percentages using built-in formulae You can copy the formulae to any place where the data is arranged in the same way Now let’s separate out some subgroups and put them on their own pages

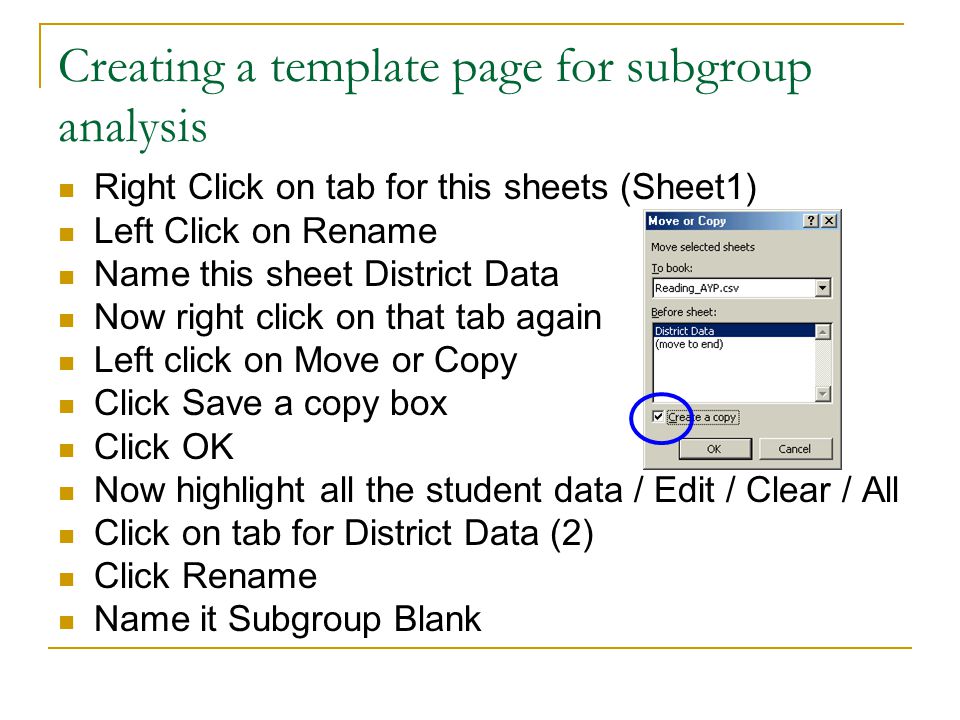

15. Creating a template page for subgroup analysis Right Click on tab for this sheets (Sheet1) Left Click on Rename Name this sheet District Data Now right click on that tab again Left click on Move or Copy Click Save a copy box Click OK Now highlight all the student data / Edit / Clear / All Click on tab for District Data (2) Click Rename Name it Subgroup Blank

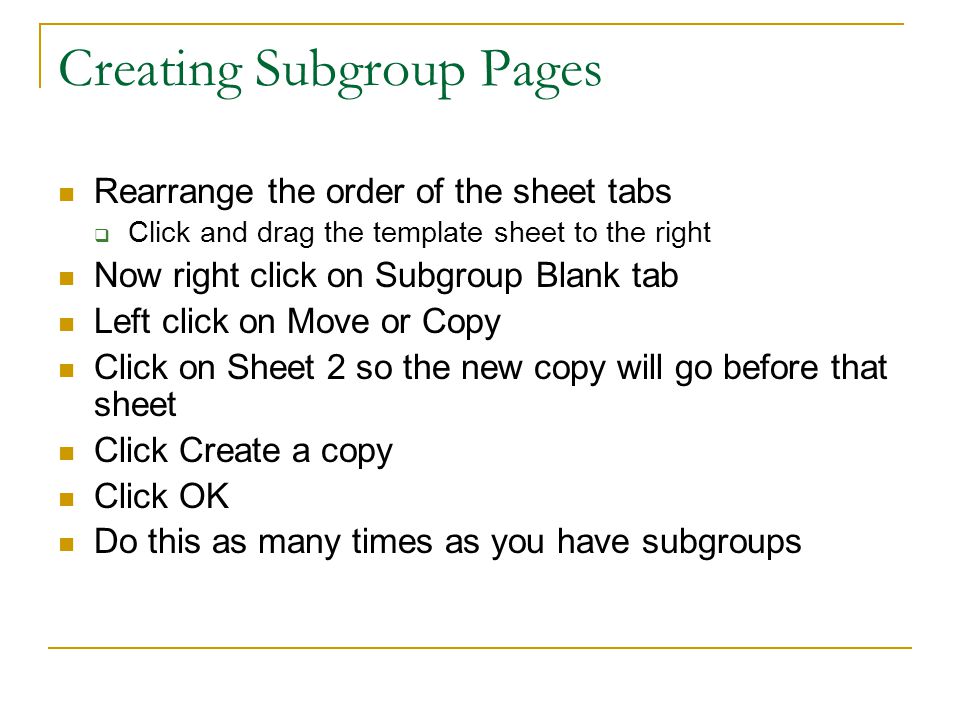

16. Creating Subgroup Pages Rearrange the order of the sheet tabs  Click and drag the template sheet to the right Now right click on Subgroup Blank tab Left click on Move or Copy Click on Sheet 2 so the new copy will go before that sheet Click Create a copy Click OK Do this as many times as you have subgroups

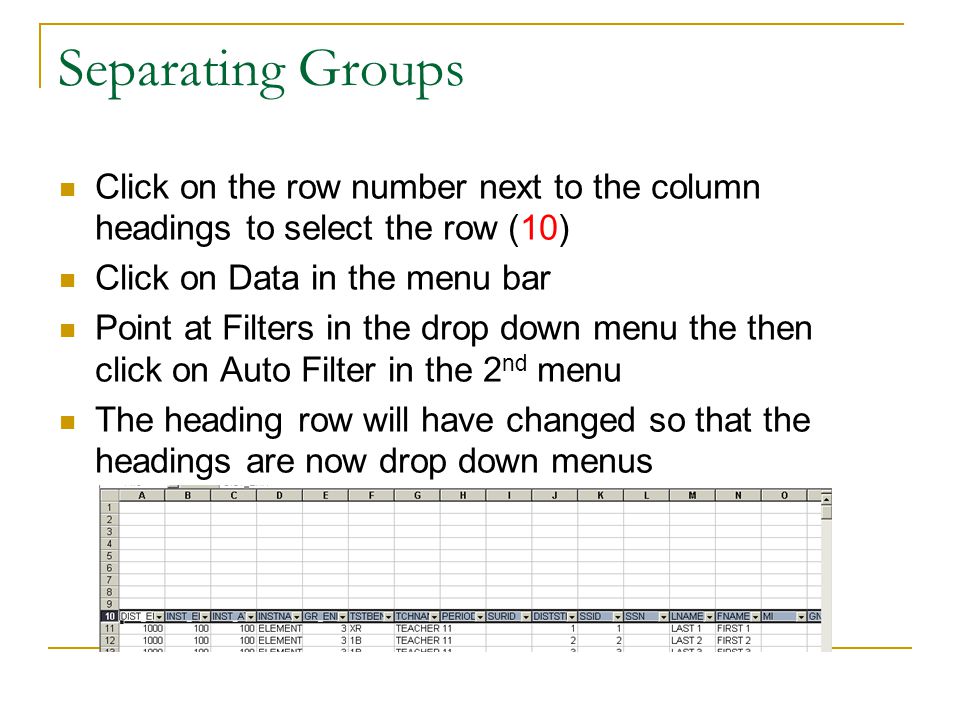

17. Separating Groups Click on the row number next to the column headings to select the row (10) Click on Data in the menu bar Point at Filters in the drop down menu the then click on Auto Filter in the 2 nd menu The heading row will have changed so that the headings are now drop down menus

18. Separating Groups (cont.) Click on the triangle to see the contents of that column – click on the content you’d like to isolate All records that do not contain that content are hidden The other records are still there – only hidden We must copy these unhidden records to another location to do calculations on the subgroup

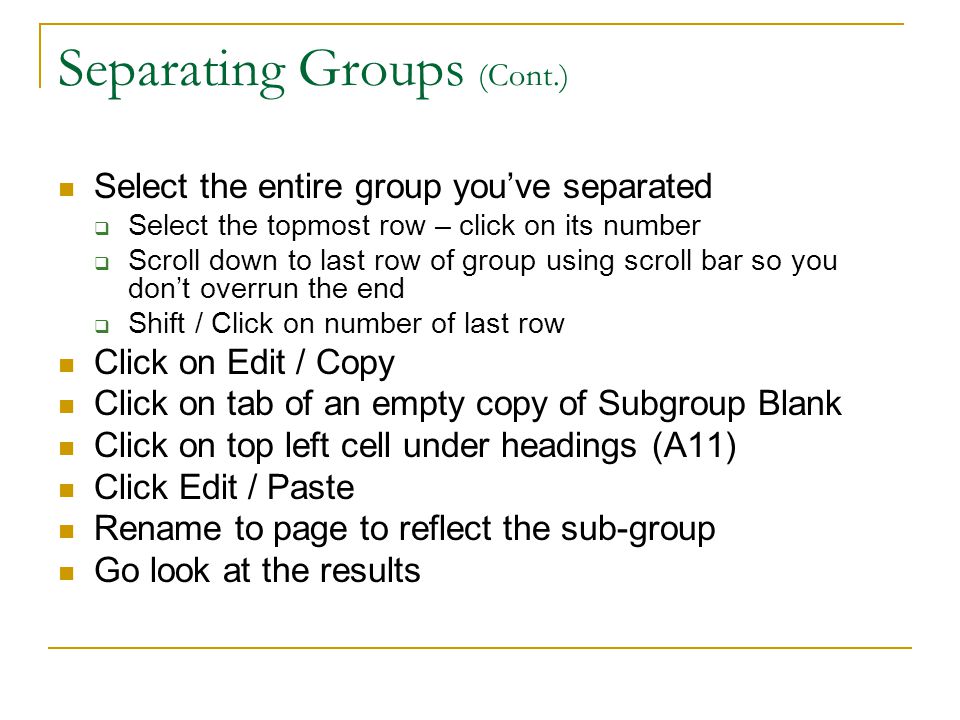

19. Separating Groups (Cont.) Select the entire group you’ve separated  Select the topmost row – click on its number  Scroll down to last row of group using scroll bar so you don’t overrun the end  Shift / Click on number of last row Click on Edit / Copy Click on tab of an empty copy of Subgroup Blank Click on top left cell under headings (A11) Click Edit / Paste Rename to page to reflect the sub-group Go look at the results

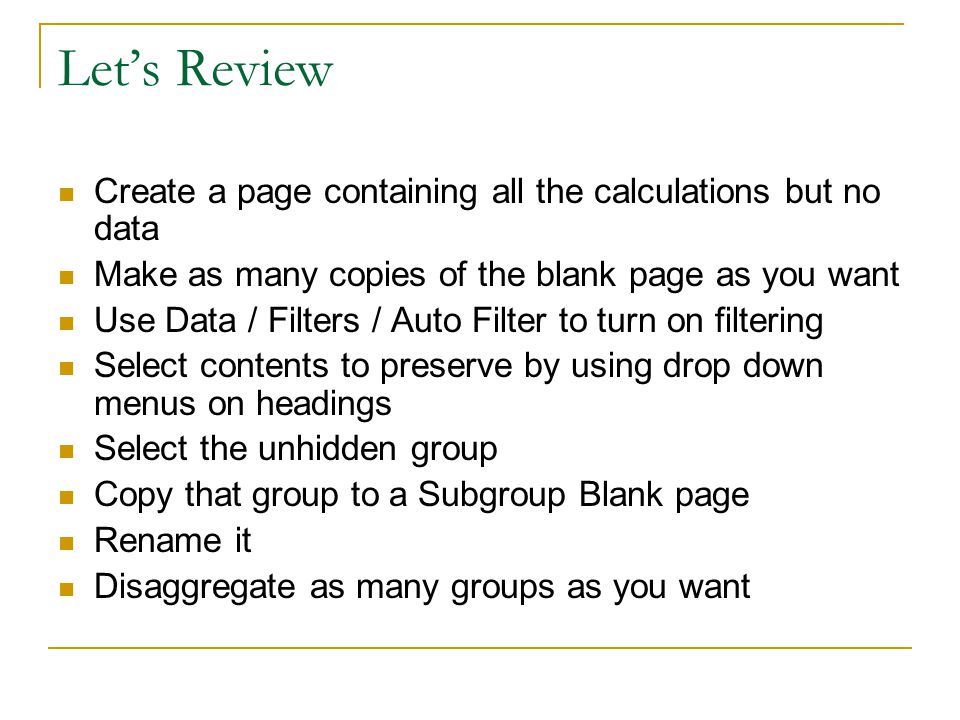

20. Let’s Review Create a page containing all the calculations but no data Make as many copies of the blank page as you want Use Data / Filters / Auto Filter to turn on filtering Select contents to preserve by using drop down menus on headings Select the unhidden group Copy that group to a Subgroup Blank page Rename it Disaggregate as many groups as you want

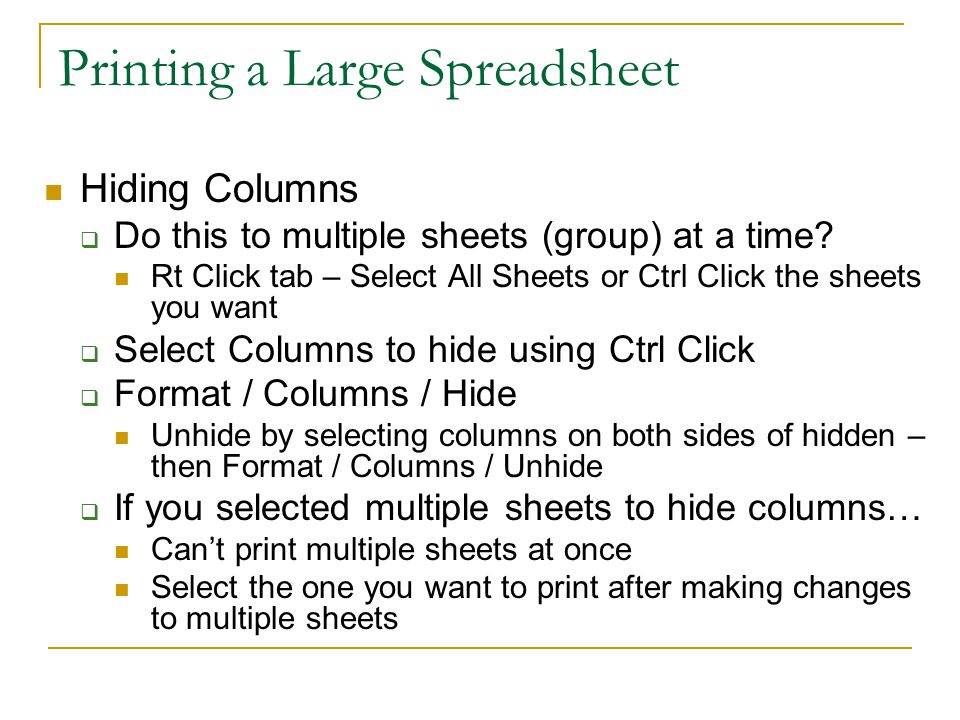

21. Printing a Large Spreadsheet Hiding Columns  Do this to multiple sheets (group) at a time? Rt Click tab – Select All Sheets or Ctrl Click the sheets you want  Select Columns to hide using Ctrl Click  Format / Columns / Hide Unhide by selecting columns on both sides of hidden – then Format / Columns / Unhide  If you selected multiple sheets to hide columns… Can’t print multiple sheets at once Select the one you want to print after making changes to multiple sheets

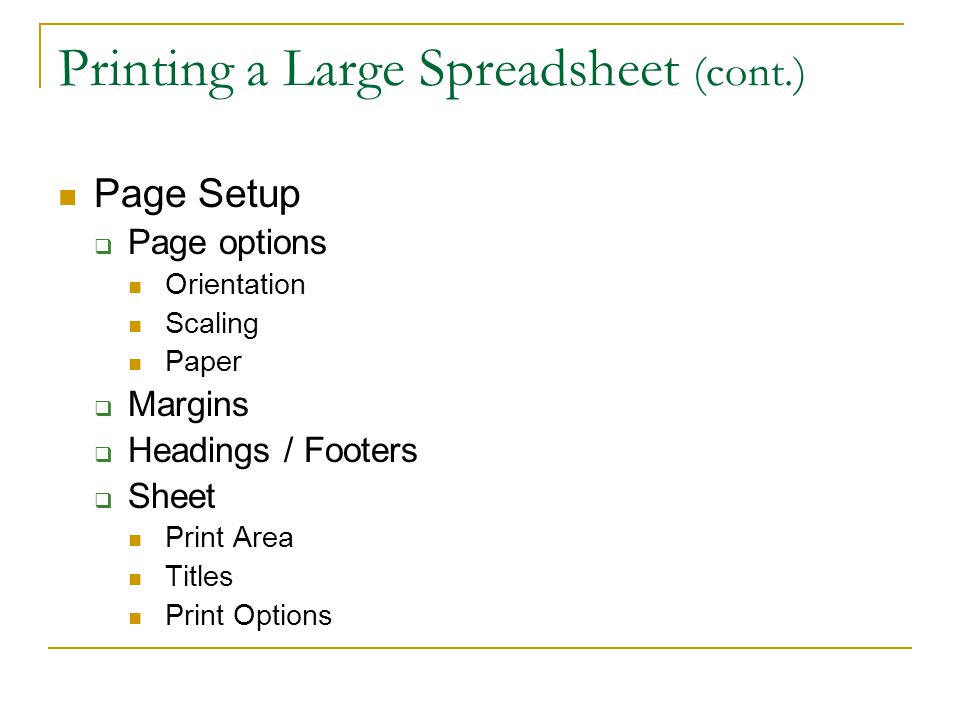

22. Printing a Large Spreadsheet (cont.) Page Setup  Page options Orientation Scaling Paper  Margins  Headings / Footers  Sheet Print Area Titles Print Options

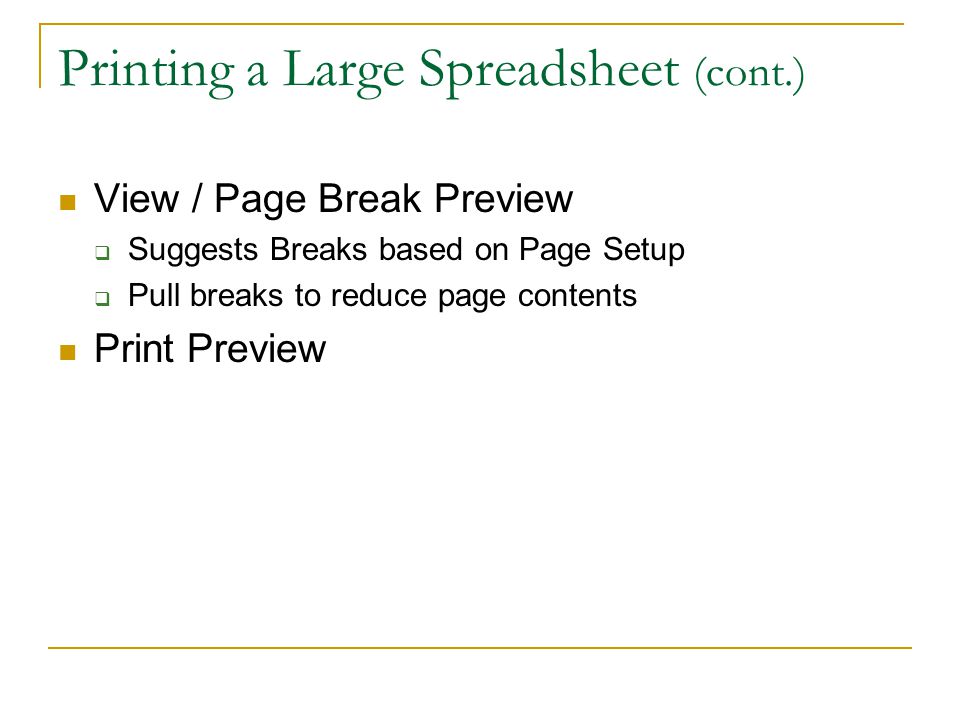

23. Printing a Large Spreadsheet (cont.) View / Page Break Preview  Suggests Breaks based on Page Setup  Pull breaks to reduce page contents Print Preview

24. Saving and Cleaning Up Click File / Save Close Excel

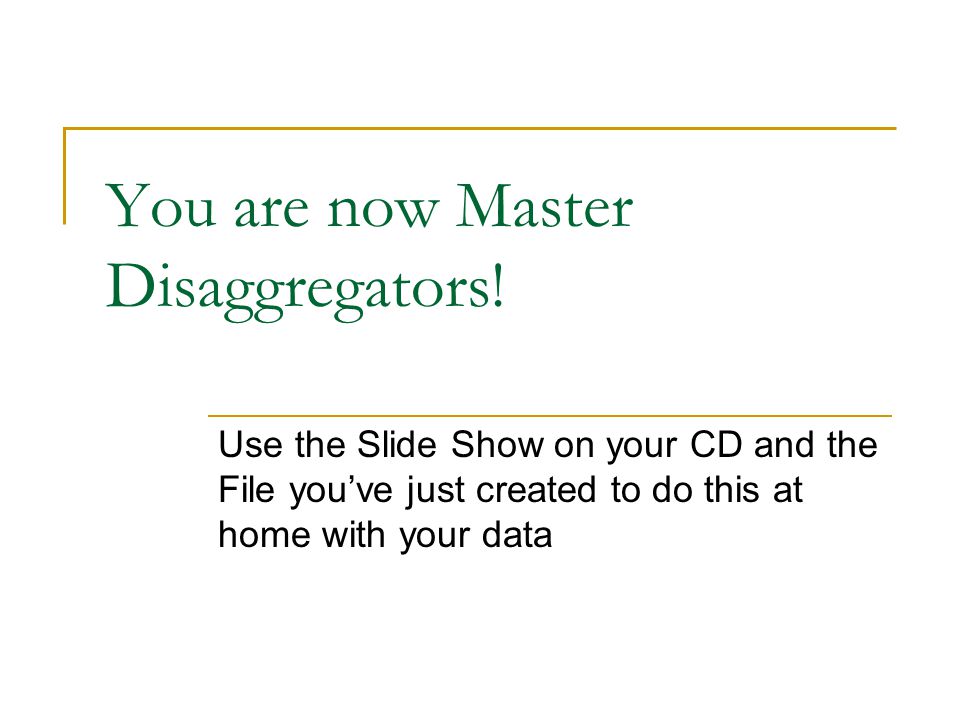

25. You are now Master Disaggregators! Use the Slide Show on your CD and the File you’ve just created to do this at home with your data
