1 TROY ARMORING ARMORED VEHICLES MANUFACTURER CONTACT US: Address: 2435 Duncan Ville Mont Royale QC H4P 2A2 Phone: Sales: 514.502.3720 Management: 514.953.8820 E-mail: General information: Info@troyArmoring.com Sales: Jamar@TroyArmoring.com LG@TroyArmoring.com “UNLESS IT SAYS TROY, DON’T TRUST IT WITH YOUR LIFE”

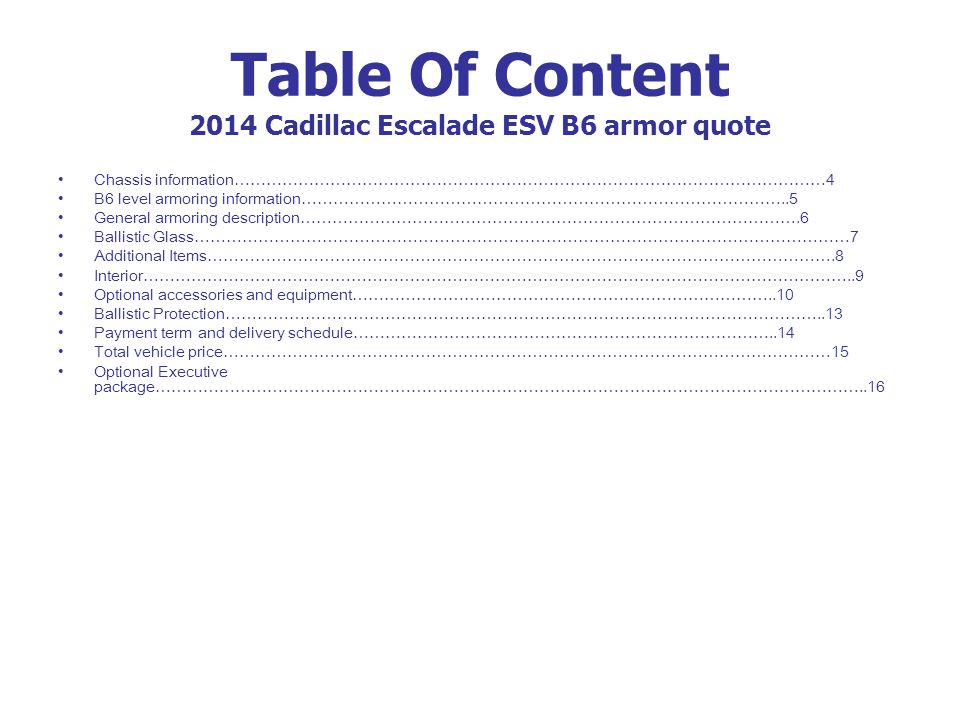

2 Table Of Content 2014 Cadillac Escalade ESV B6 armor quote Chassis information…………………………………………………………………………………………………4 B6 level armoring information………………………………………………………………………………..5 General armoring description………………………………………………………………………………….6 Ballistic Glass……………………………………………………………………………………………………………7 Additional Items……………………………………………………………………………………………………….8 Interior……………………………………………………………………………………………………………………..9 Optional accessories and equipment……………………………………………………………………..10 Ballistic Protection…………………………………………………………………………………………………..13 Payment term and delivery schedule……………………………………………………………………..14 Total vehicle price……………………………………………………………………………………………………15 Optional Executive package……………………………………………………………………………………………………………………..16

3 TROY ARMORING ARMORED VEHICLE SALES QUOTATION

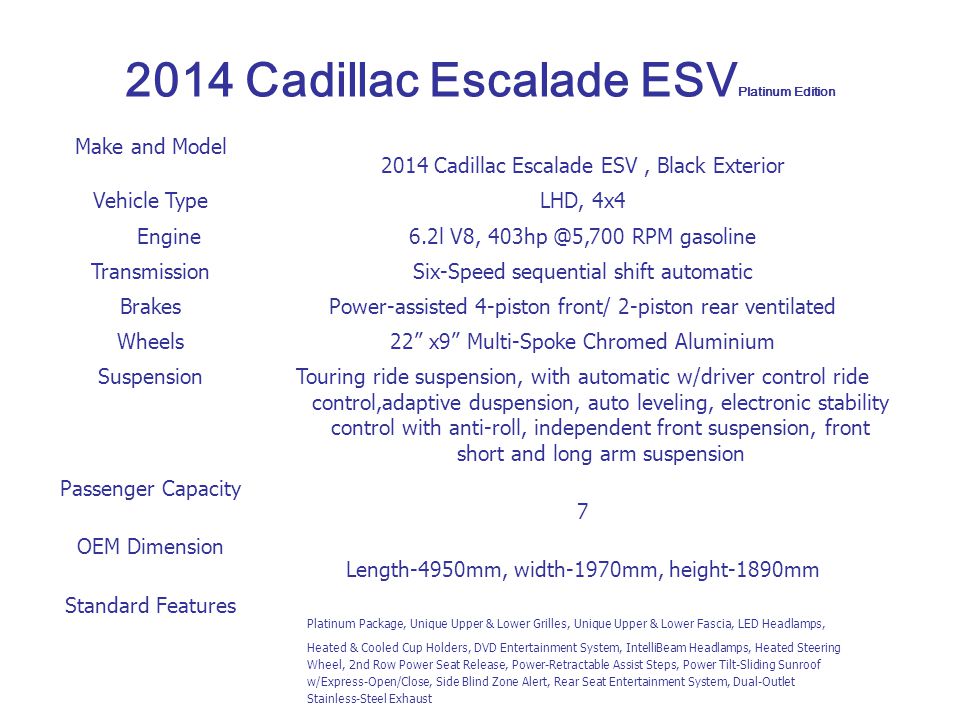

4 Make and Model 2014 Cadillac Escalade ESV, Black Exterior Vehicle Type LHD, 4x4 Engine 6.2l V8, 403hp @5,700 RPM gasoline Transmission Six-Speed sequential shift automatic Brakes Power-assisted 4-piston front/ 2-piston rear ventilated Wheels 22’’ x9’’ Multi-Spoke Chromed Aluminium Suspension Touring ride suspension, with automatic w/driver control ride control,adaptive duspension, auto leveling, electronic stability control with anti-roll, independent front suspension, front short and long arm suspension Passenger Capacity 7 OEM Dimension Length-4950mm, width-1970mm, height-1890mm Standard Features Platinum Package, Unique Upper & Lower Grilles, Unique Upper & Lower Fascia, LED Headlamps, Heated & Cooled Cup Holders, DVD Entertainment System, IntelliBeam Headlamps, Heated Steering Wheel, 2nd Row Power Seat Release, Power-Retractable Assist Steps, Power Tilt-Sliding Sunroof w/Express-Open/Close, Side Blind Zone Alert, Rear Seat Entertainment System, Dual-Outlet Stainless-Steel Exhaust 2014 Cadillac Escalade ESV Platinum Edition

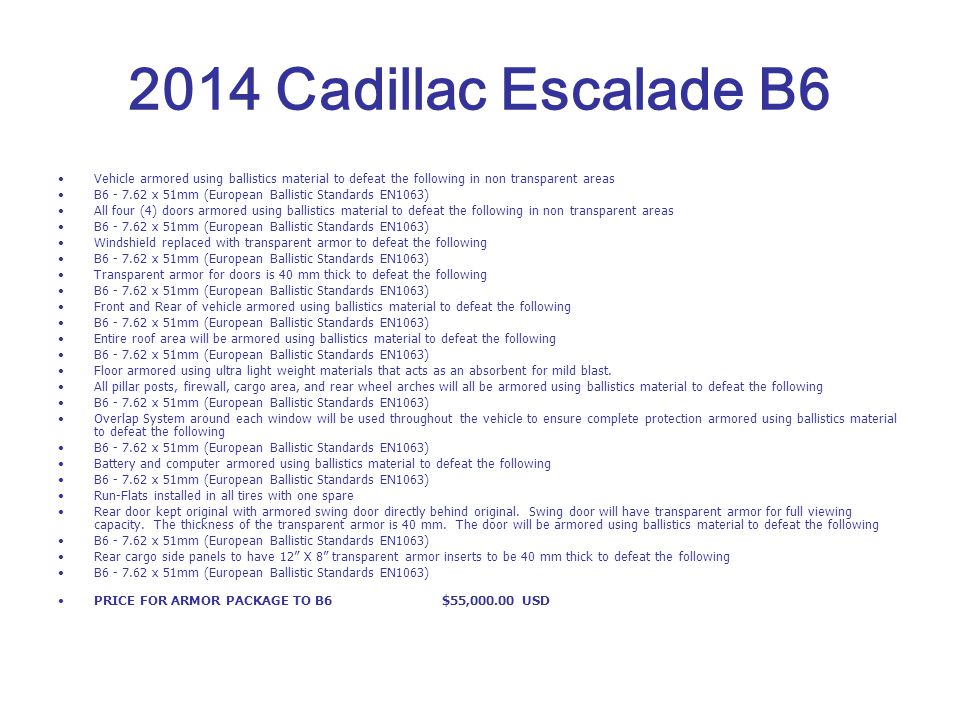

5 2014 Cadillac Escalade B6 Vehicle armored using ballistics material to defeat the following in non transparent areas B6 - 7.62 x 51mm (European Ballistic Standards EN1063) All four (4) doors armored using ballistics material to defeat the following in non transparent areas B6 - 7.62 x 51mm (European Ballistic Standards EN1063) Windshield replaced with transparent armor to defeat the following B6 - 7.62 x 51mm (European Ballistic Standards EN1063) Transparent armor for doors is 40 mm thick to defeat the following B6 - 7.62 x 51mm (European Ballistic Standards EN1063) Front and Rear of vehicle armored using ballistics material to defeat the following B6 - 7.62 x 51mm (European Ballistic Standards EN1063) Entire roof area will be armored using ballistics material to defeat the following B6 - 7.62 x 51mm (European Ballistic Standards EN1063) Floor armored using ultra light weight materials that acts as an absorbent for mild blast. All pillar posts, firewall, cargo area, and rear wheel arches will all be armored using ballistics material to defeat the following B6 - 7.62 x 51mm (European Ballistic Standards EN1063) Overlap System around each window will be used throughout the vehicle to ensure complete protection armored using ballistics material to defeat the following B6 - 7.62 x 51mm (European Ballistic Standards EN1063) Battery and computer armored using ballistics material to defeat the following B6 - 7.62 x 51mm (European Ballistic Standards EN1063) Run-Flats installed in all tires with one spare Rear door kept original with armored swing door directly behind original. Swing door will have transparent armor for full viewing capacity. The thickness of the transparent armor is 40 mm. The door will be armored using ballistics material to defeat the following B6 - 7.62 x 51mm (European Ballistic Standards EN1063) Rear cargo side panels to have 12” X 8” transparent armor inserts to be 40 mm thick to defeat the following B6 - 7.62 x 51mm (European Ballistic Standards EN1063) PRICE FOR ARMOR PACKAGE TO B6$55,000.00 USD

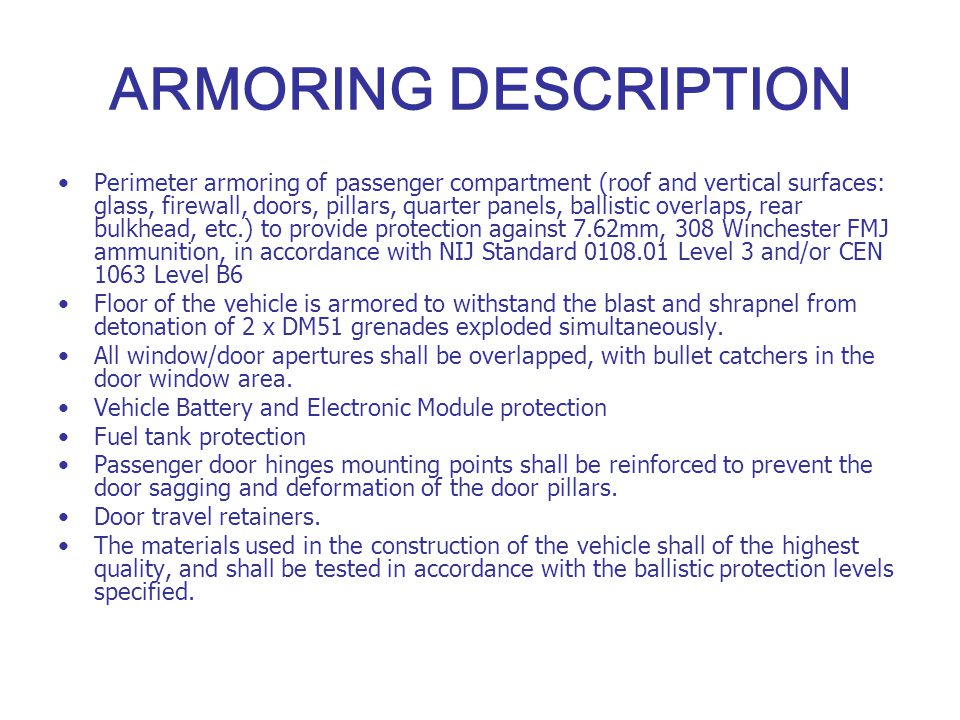

6 ARMORING DESCRIPTION Perimeter armoring of passenger compartment (roof and vertical surfaces: glass, firewall, doors, pillars, quarter panels, ballistic overlaps, rear bulkhead, etc.) to provide protection against 7.62mm, 308 Winchester FMJ ammunition, in accordance with NIJ Standard 0108.01 Level 3 and/or CEN 1063 Level B6 Floor of the vehicle is armored to withstand the blast and shrapnel from detonation of 2 x DM51 grenades exploded simultaneously. All window/door apertures shall be overlapped, with bullet catchers in the door window area. Vehicle Battery and Electronic Module protection Fuel tank protection Passenger door hinges mounting points shall be reinforced to prevent the door sagging and deformation of the door pillars. Door travel retainers. The materials used in the construction of the vehicle shall of the highest quality, and shall be tested in accordance with the ballistic protection levels specified.

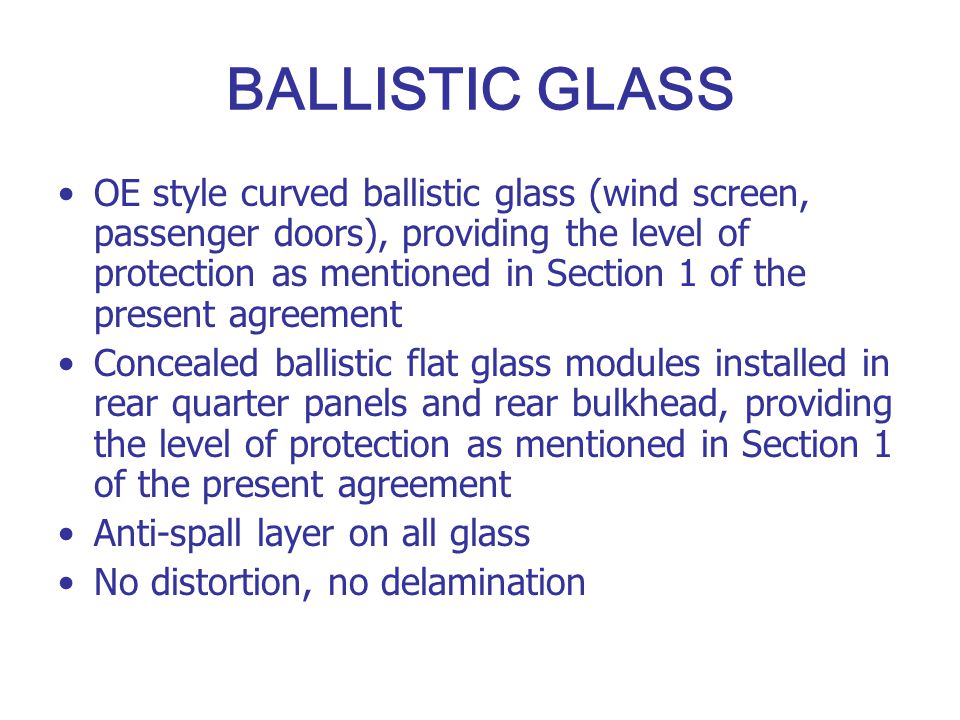

7 BALLISTIC GLASS OE style curved ballistic glass (wind screen, passenger doors), providing the level of protection as mentioned in Section 1 of the present agreement Concealed ballistic flat glass modules installed in rear quarter panels and rear bulkhead, providing the level of protection as mentioned in Section 1 of the present agreement Anti-spall layer on all glass No distortion, no delamination

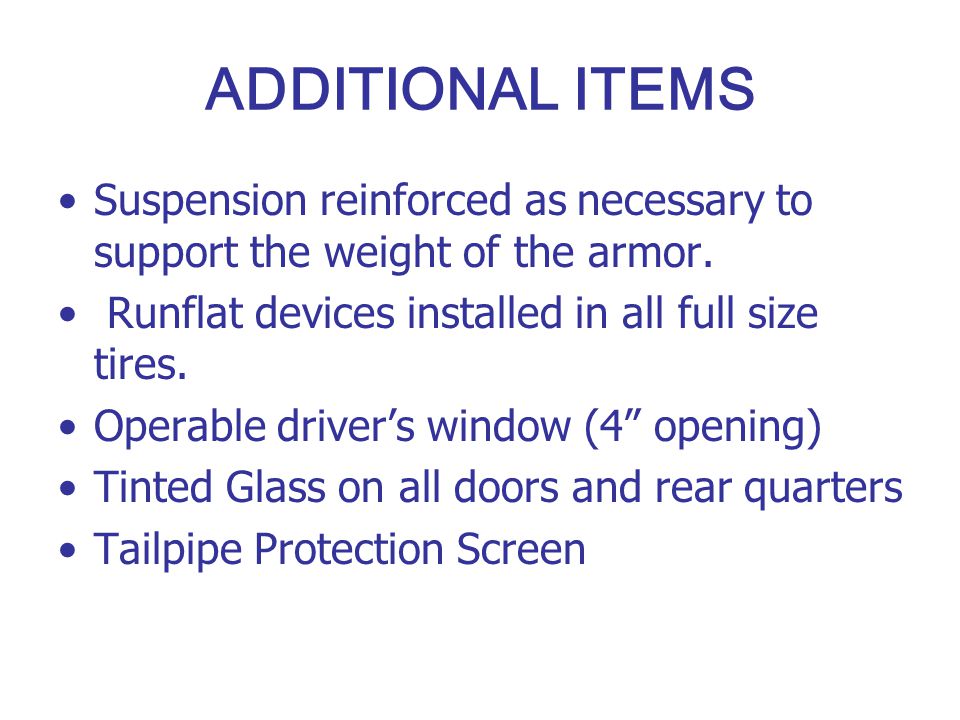

8 ADDITIONAL ITEMS Suspension reinforced as necessary to support the weight of the armor. Runflat devices installed in all full size tires. Operable driver’s window (4” opening) Tinted Glass on all doors and rear quarters Tailpipe Protection Screen

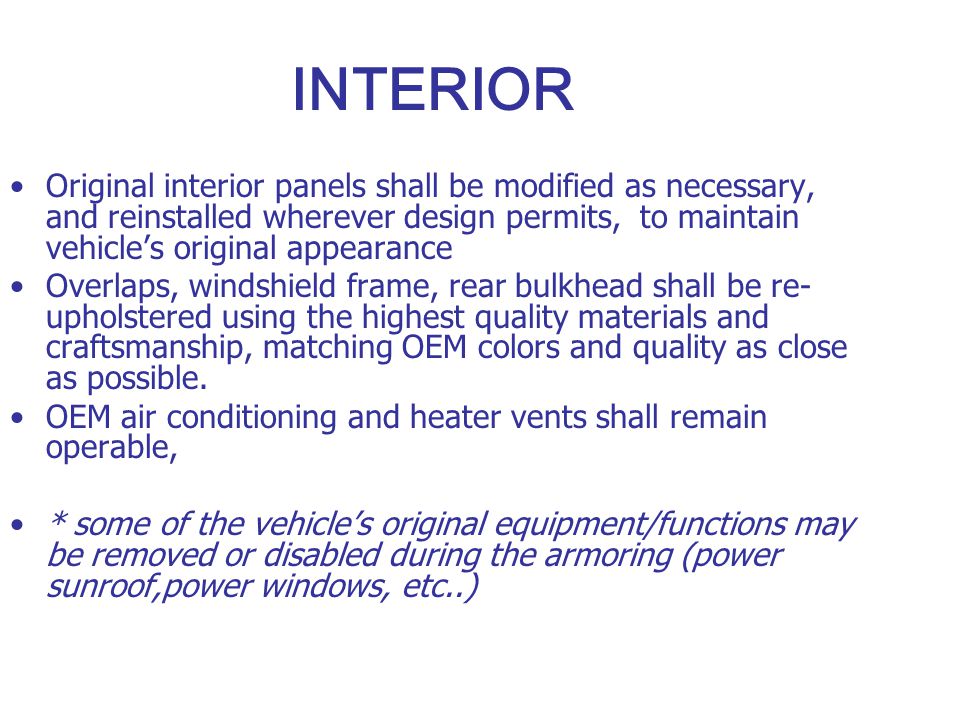

9 INTERIOR Original interior panels shall be modified as necessary, and reinstalled wherever design permits, to maintain vehicle’s original appearance Overlaps, windshield frame, rear bulkhead shall be re- upholstered using the highest quality materials and craftsmanship, matching OEM colors and quality as close as possible. OEM air conditioning and heater vents shall remain operable, * some of the vehicle’s original equipment/functions may be removed or disabled during the armoring (power sunroof,power windows, etc..)

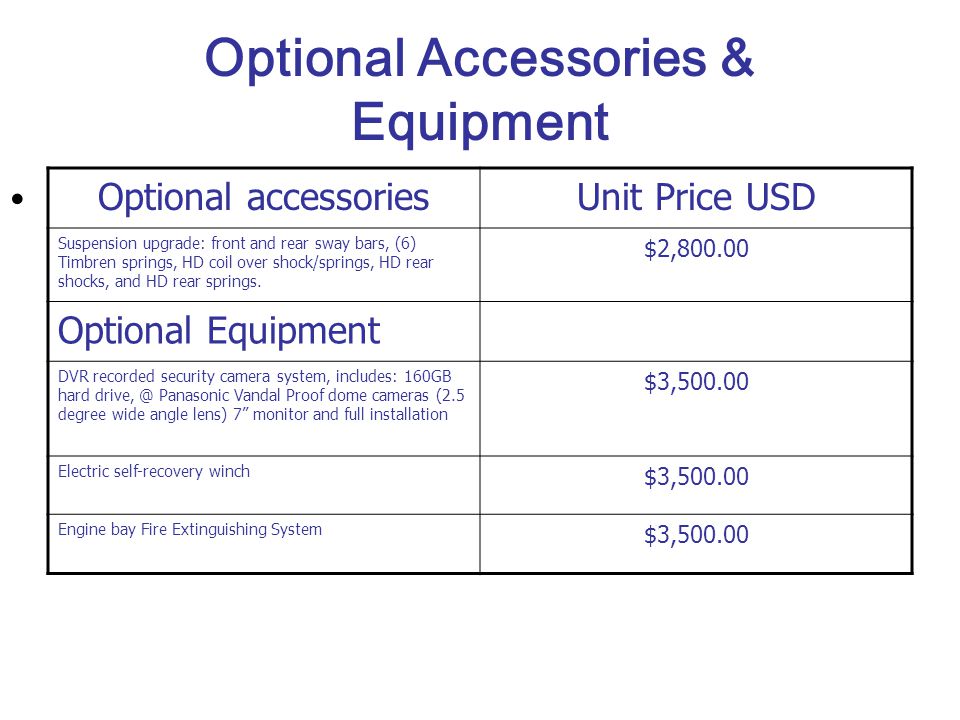

10 Optional Accessories & Equipment Optional accessoriesUnit Price USD Suspension upgrade: front and rear sway bars, (6) Timbren springs, HD coil over shock/springs, HD rear shocks, and HD rear springs. $2,800.00 Optional Equipment DVR recorded security camera system, includes: 160GB hard drive, @ Panasonic Vandal Proof dome cameras (2.5 degree wide angle lens) 7’’ monitor and full installation $3,500.00 Electric self-recovery winch $3,500.00 Engine bay Fire Extinguishing System $3,500.00

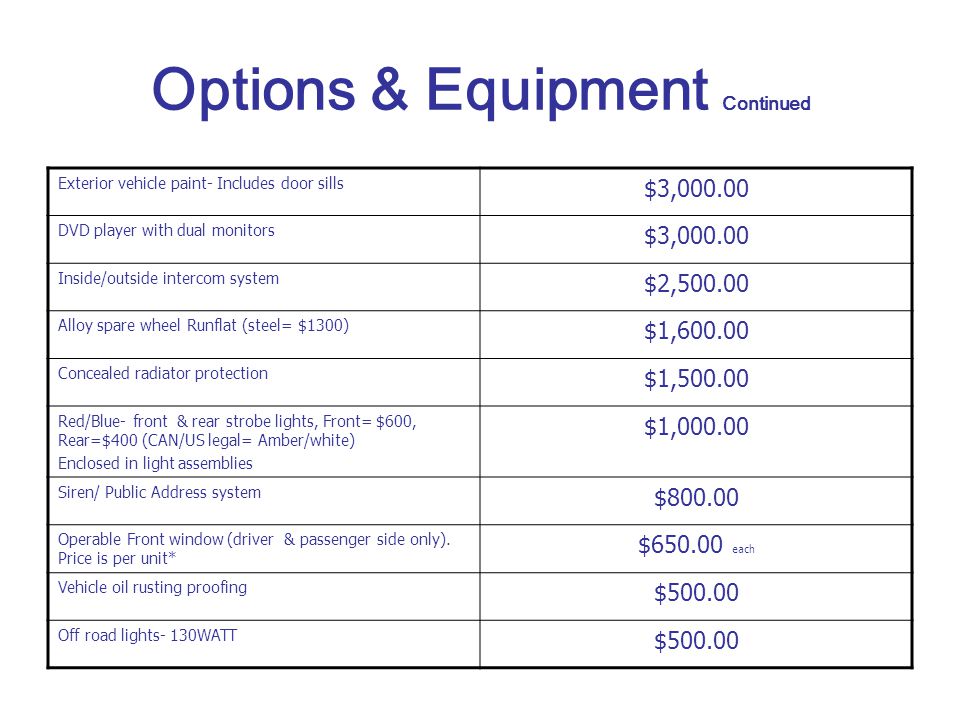

11 Options & Equipment Continued Exterior vehicle paint- Includes door sills $3,000.00 DVD player with dual monitors $3,000.00 Inside/outside intercom system $2,500.00 Alloy spare wheel Runflat (steel= $1300) $1,600.00 Concealed radiator protection $1,500.00 Red/Blue- front & rear strobe lights, Front= $600, Rear=$400 (CAN/US legal= Amber/white) Enclosed in light assemblies $1,000.00 Siren/ Public Address system $800.00 Operable Front window (driver & passenger side only). Price is per unit* $650.00 each Vehicle oil rusting proofing $500.00 Off road lights- 130WATT $500.00

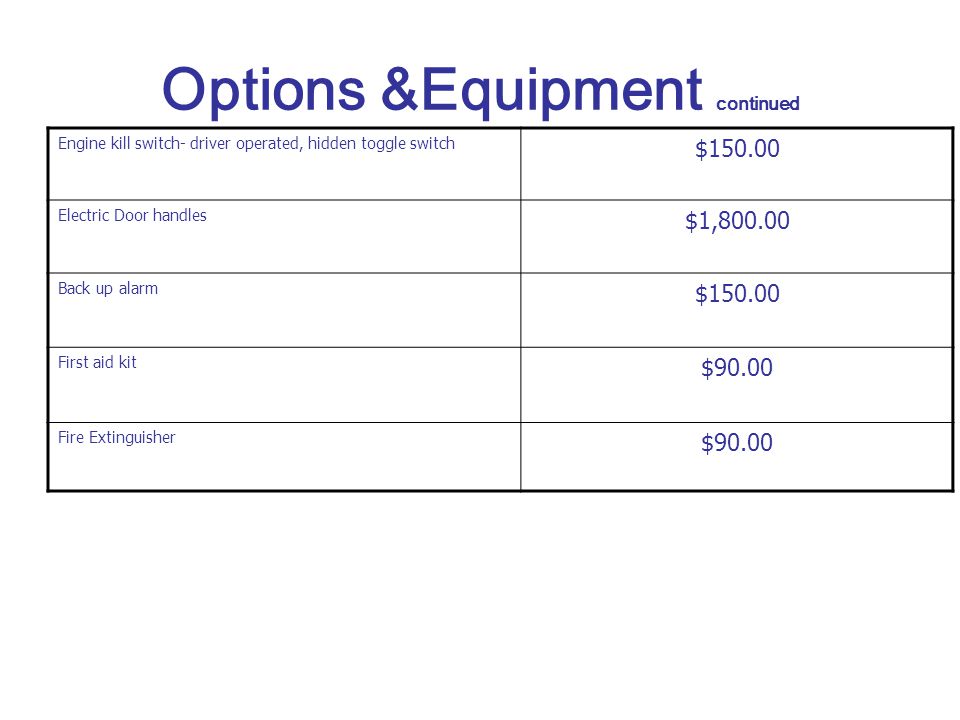

12 Options &Equipment continued Engine kill switch- driver operated, hidden toggle switch $150.00 Electric Door handles $1,800.00 Back up alarm $150.00 First aid kit $90.00 Fire Extinguisher $90.00

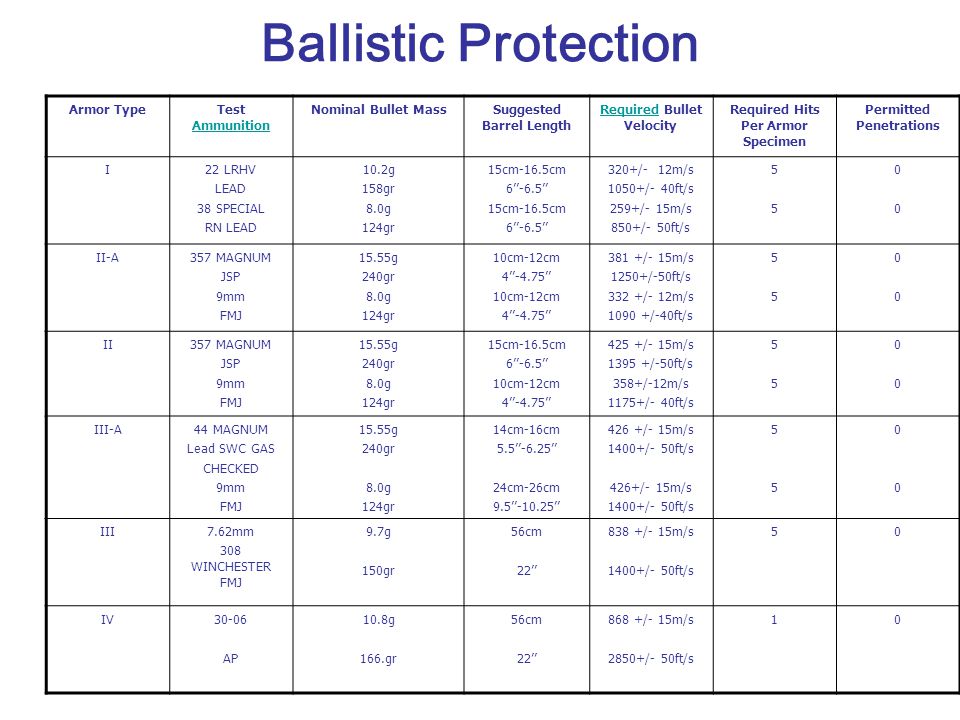

13 Ballistic Protection Armor TypeTest Ammunition Ammunition Nominal Bullet MassSuggested Barrel Length RequiredRequired Bullet Velocity Required Hits Per Armor Specimen Permitted Penetrations I22 LRHV LEAD 38 SPECIAL RN LEAD 10.2g 158gr 8.0g 124gr 15cm-16.5cm 6’’-6.5’’ 15cm-16.5cm 6’’-6.5’’ 320+/- 12m/s 1050+/- 40ft/s 259+/- 15m/s 850+/- 50ft/s 5555 0000 II-A357 MAGNUM JSP 9mm FMJ 15.55g 240gr 8.0g 124gr 10cm-12cm 4’’-4.75’’ 10cm-12cm 4’’-4.75’’ 381 +/- 15m/s 1250+/-50ft/s 332 +/- 12m/s 1090 +/-40ft/s 5555 0000 II357 MAGNUM JSP 9mm FMJ 15.55g 240gr 8.0g 124gr 15cm-16.5cm 6’’-6.5’’ 10cm-12cm 4’’-4.75’’ 425 +/- 15m/s 1395 +/-50ft/s 358+/-12m/s 1175+/- 40ft/s 5555 0000 III-A44 MAGNUM Lead SWC GAS CHECKED 9mm FMJ 15.55g 240gr 8.0g 124gr 14cm-16cm 5.5’’-6.25’’ 24cm-26cm 9.5’’-10.25’’ 426 +/- 15m/s 1400+/- 50ft/s 426+/- 15m/s 1400+/- 50ft/s 5555 0000 III7.62mm 308 WINCHESTER FMJ 9.7g 150gr 56cm 22’’ 838 +/- 15m/s 1400+/- 50ft/s 50 IV30-06 AP 10.8g 166.gr 56cm 22’’ 868 +/- 15m/s 2850+/- 50ft/s 10

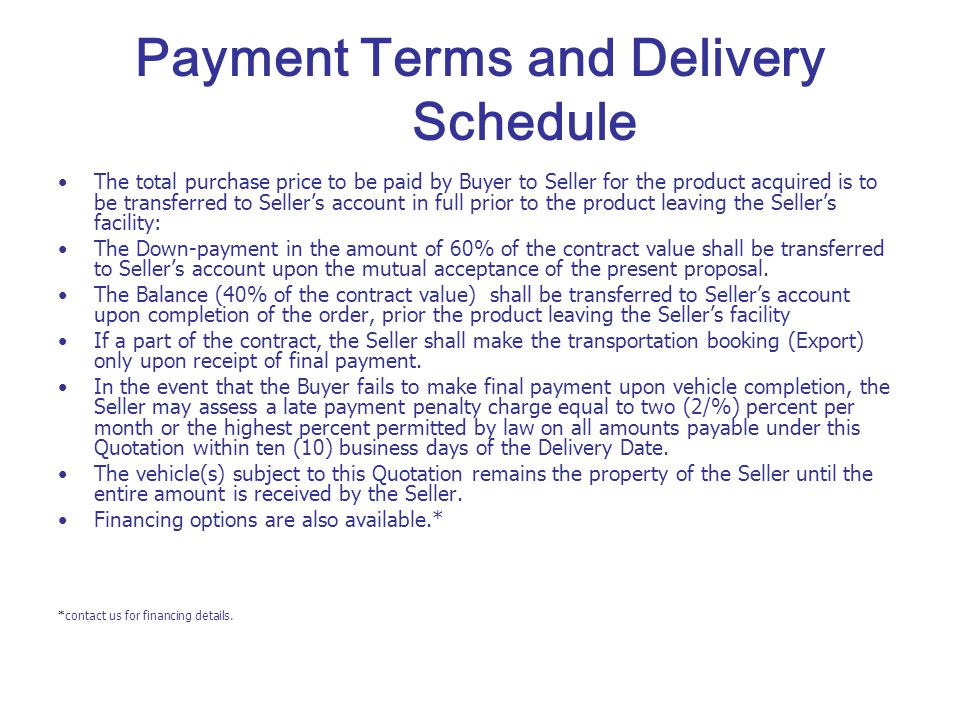

14 Payment Terms and Delivery Schedule The total purchase price to be paid by Buyer to Seller for the product acquired is to be transferred to Seller’s account in full prior to the product leaving the Seller’s facility: The Down-payment in the amount of 60% of the contract value shall be transferred to Seller’s account upon the mutual acceptance of the present proposal. The Balance (40% of the contract value) shall be transferred to Seller’s account upon completion of the order, prior the product leaving the Seller’s facility If a part of the contract, the Seller shall make the transportation booking (Export) only upon receipt of final payment. In the event that the Buyer fails to make final payment upon vehicle completion, the Seller may assess a late payment penalty charge equal to two (2/%) percent per month or the highest percent permitted by law on all amounts payable under this Quotation within ten (10) business days of the Delivery Date. The vehicle(s) subject to this Quotation remains the property of the Seller until the entire amount is received by the Seller. Financing options are also available.* *contact us for financing details.

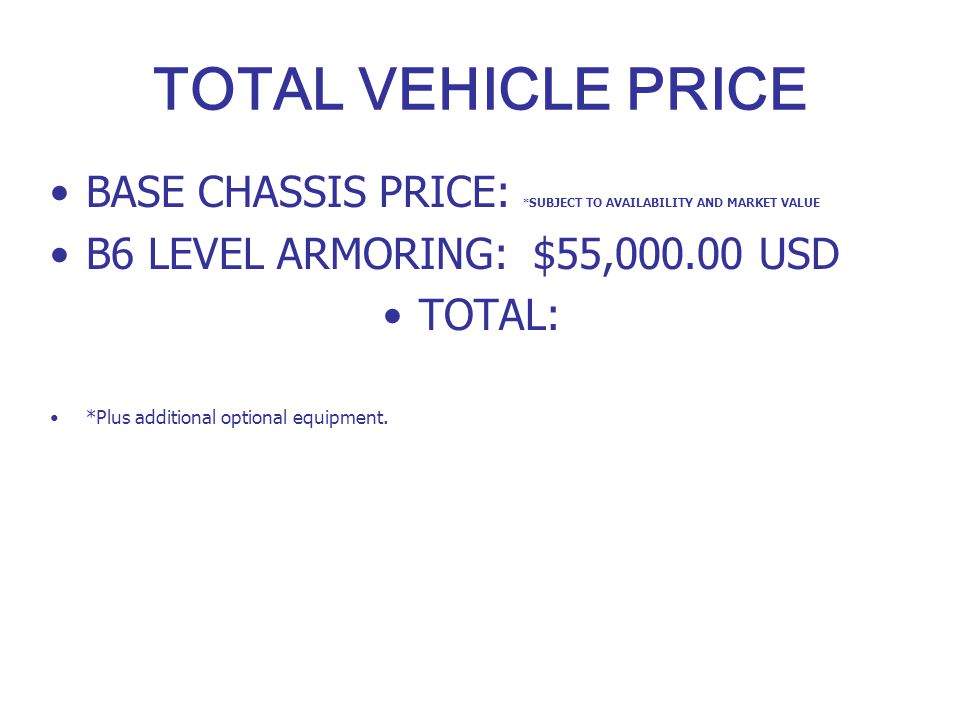

15 TOTAL VEHICLE PRICE BASE CHASSIS PRICE: * SUBJECT TO AVAILABILITY AND MARKET VALUE B6 LEVEL ARMORING: $55,000.00 USD TOTAL: *Plus additional optional equipment.

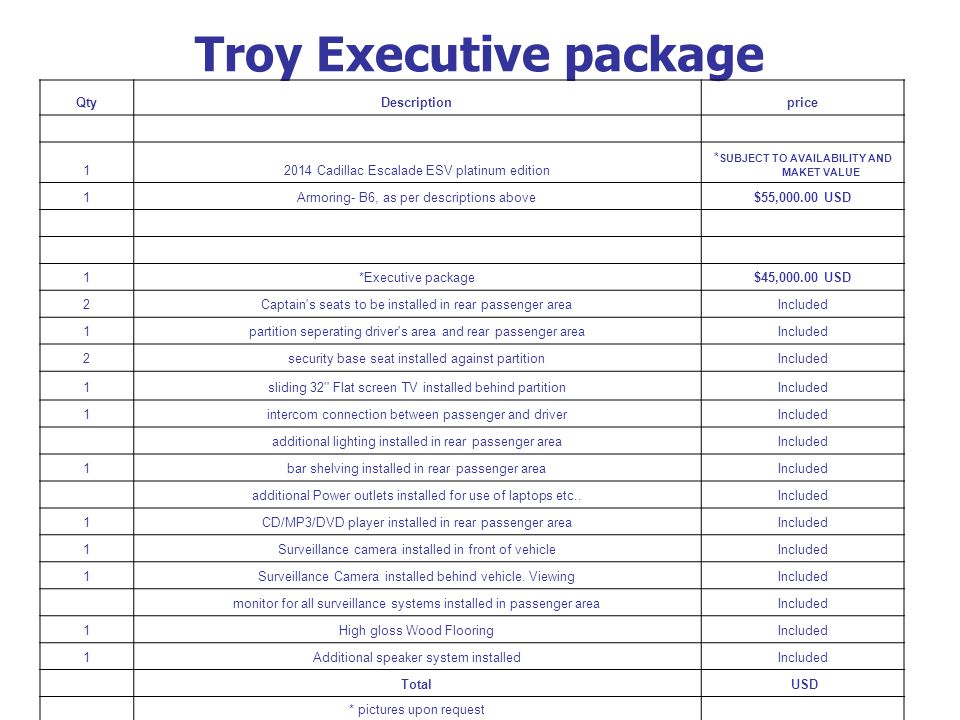

16 Troy Executive package QtyDescriptionprice 12014 Cadillac Escalade ESV platinum edition * SUBJECT TO AVAILABILITY AND MAKET VALUE 1Armoring- B6, as per descriptions above$55,000.00 USD 1*Executive package$45,000.00 USD 2Captain's seats to be installed in rear passenger areaIncluded 1partition seperating driver's area and rear passenger areaIncluded 2security base seat installed against partitionIncluded 1sliding 32'' Flat screen TV installed behind partitionIncluded 1intercom connection between passenger and driverIncluded additional lighting installed in rear passenger areaIncluded 1bar shelving installed in rear passenger areaIncluded additional Power outlets installed for use of laptops etc..Included 1CD/MP3/DVD player installed in rear passenger areaIncluded 1Surveillance camera installed in front of vehicleIncluded 1Surveillance Camera installed behind vehicle. ViewingIncluded monitor for all surveillance systems installed in passenger areaIncluded 1High gloss Wood FlooringIncluded 1Additional speaker system installedIncluded Total USD * pictures upon request
