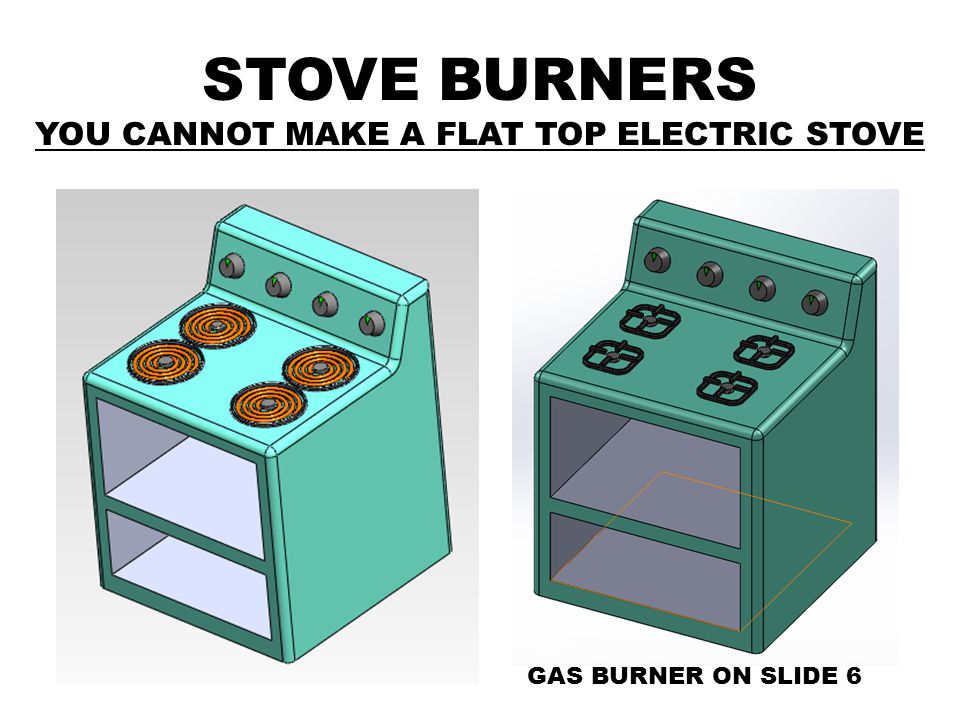

1. STOVE BURNERS YOU CANNOT MAKE A FLAT TOP ELECTRIC STOVE GAS BURNER ON SLIDE 6

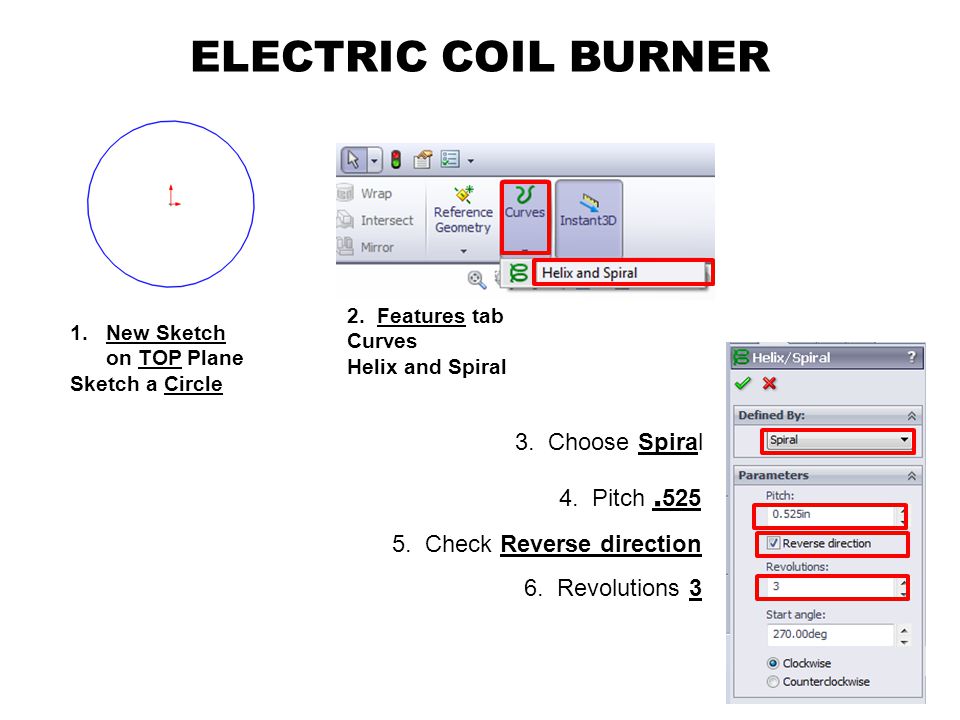

2. 2. Features tab Curves Helix and Spiral 1.New Sketch on TOP Plane Sketch a Circle 3. Choose Spiral 6. Revolutions 3 5. Check Reverse direction ELECTRIC COIL BURNER 4. Pitch. 525

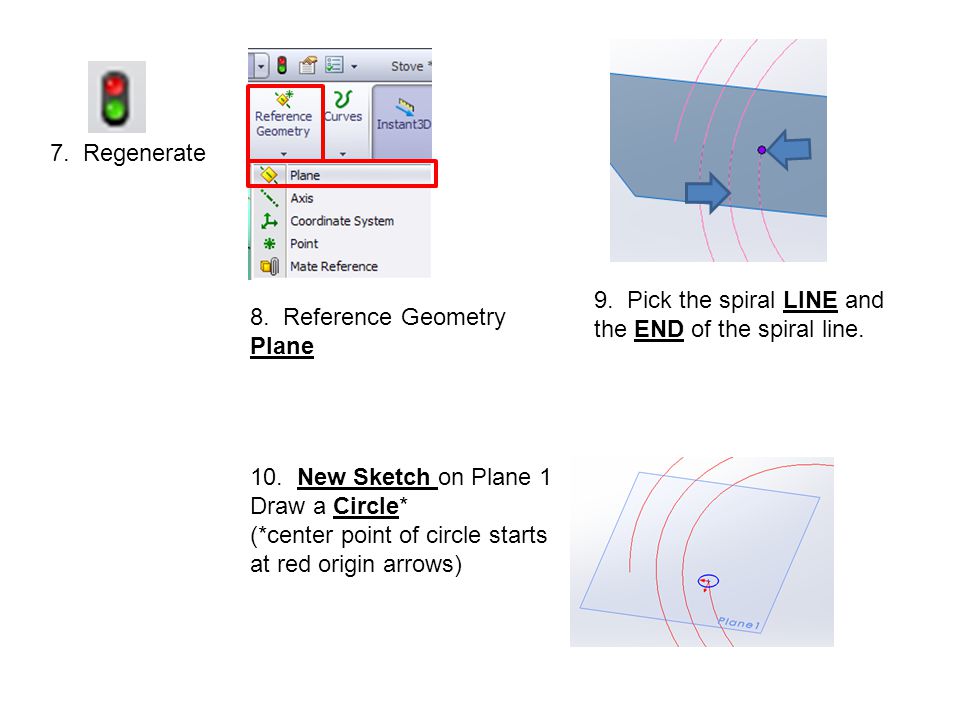

3. 7. Regenerate 8. Reference Geometry Plane 9. Pick the spiral LINE and the END of the spiral line. 10. New Sketch on Plane 1 Draw a Circle* (*center point of circle starts at red origin arrows)

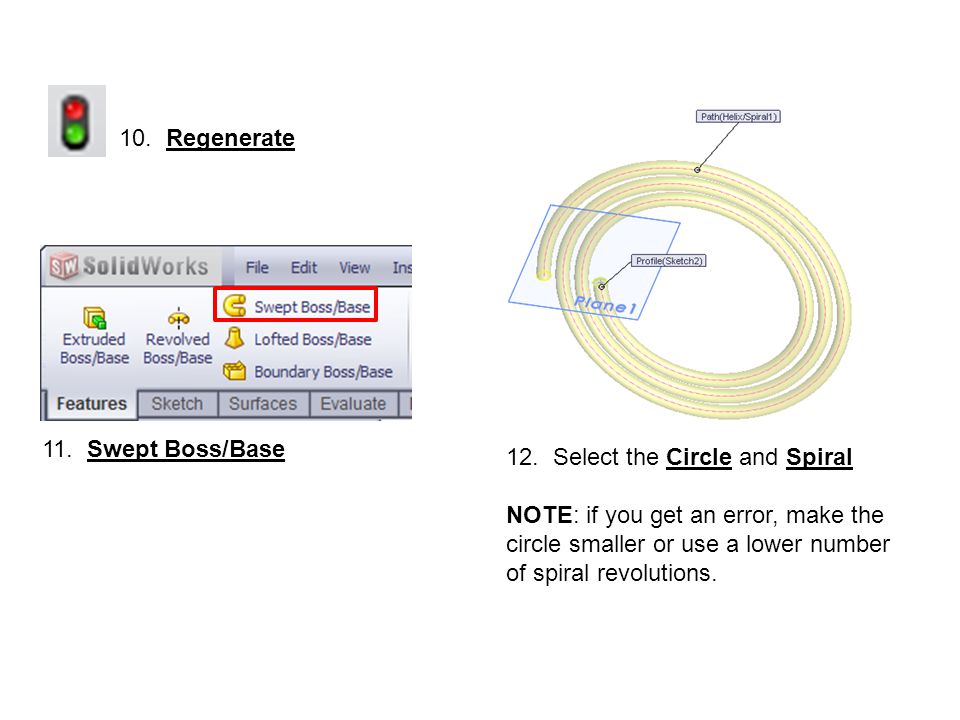

4. 11. Swept Boss/Base 12. Select the Circle and Spiral NOTE: if you get an error, make the circle smaller or use a lower number of spiral revolutions. 10. Regenerate

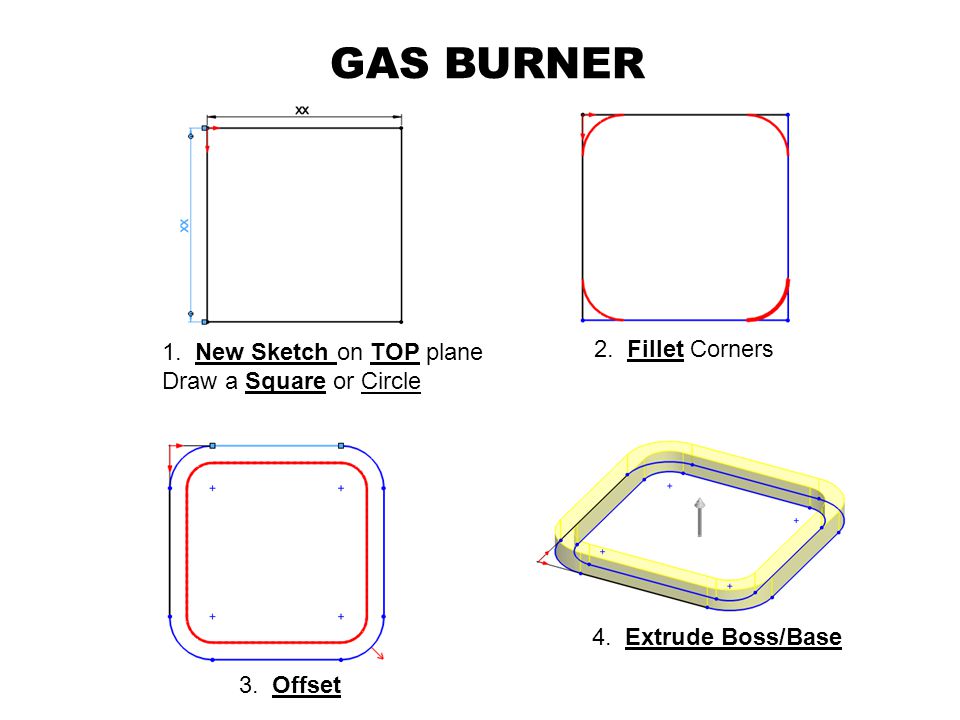

5. 1. New Sketch on TOP plane Draw a Square or Circle 2. Fillet Corners 3. Offset 4. Extrude Boss/Base GAS BURNER

6. 5. New Sketch on Surface 6. Draw a Rectangle 9. Fillet 8. Extrude Boss/Base 7. Circular Pattern 10. Material Appearance
