1. OR-PR 156 Fabricate a Padded Full Calf Cuff

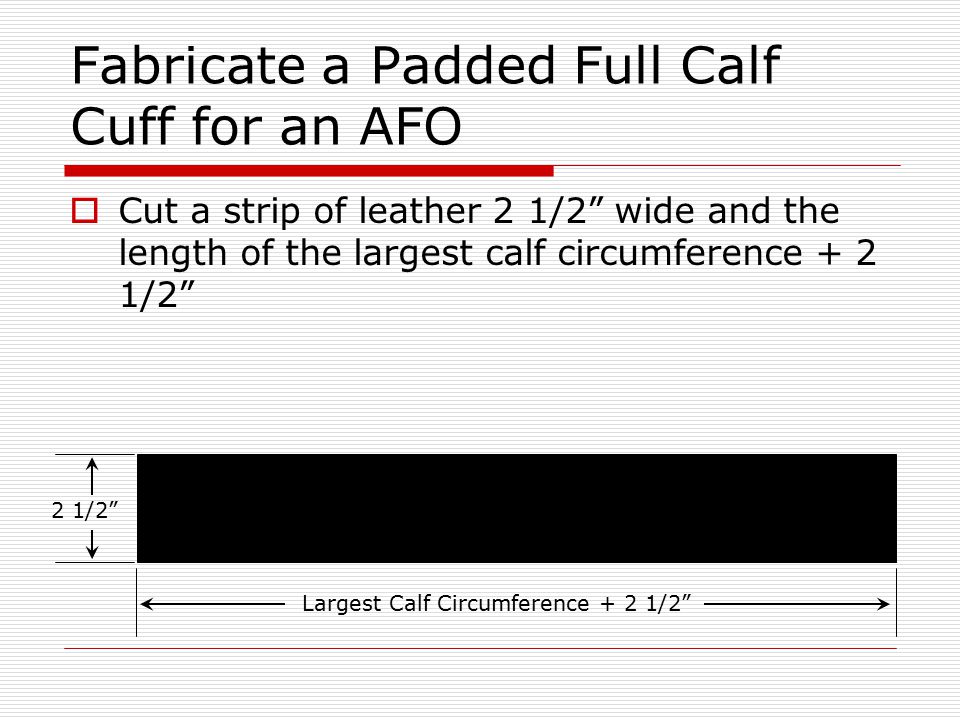

2. Fabricate a Padded Full Calf Cuff for an AFO  Cut a strip of leather 2 1/2” wide and the length of the largest calf circumference + 2 1/2” Largest Calf Circumference + 2 1/2” 2 1/2”

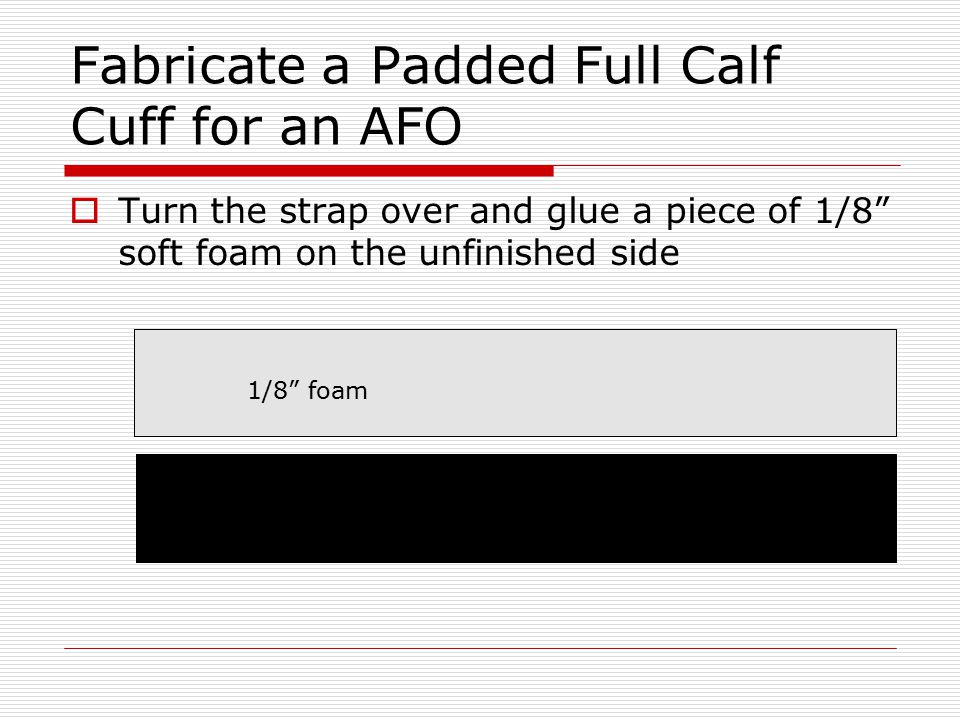

3. Fabricate a Padded Full Calf Cuff for an AFO  Turn the strap over and glue a piece of 1/8” soft foam on the unfinished side 1/8” foam

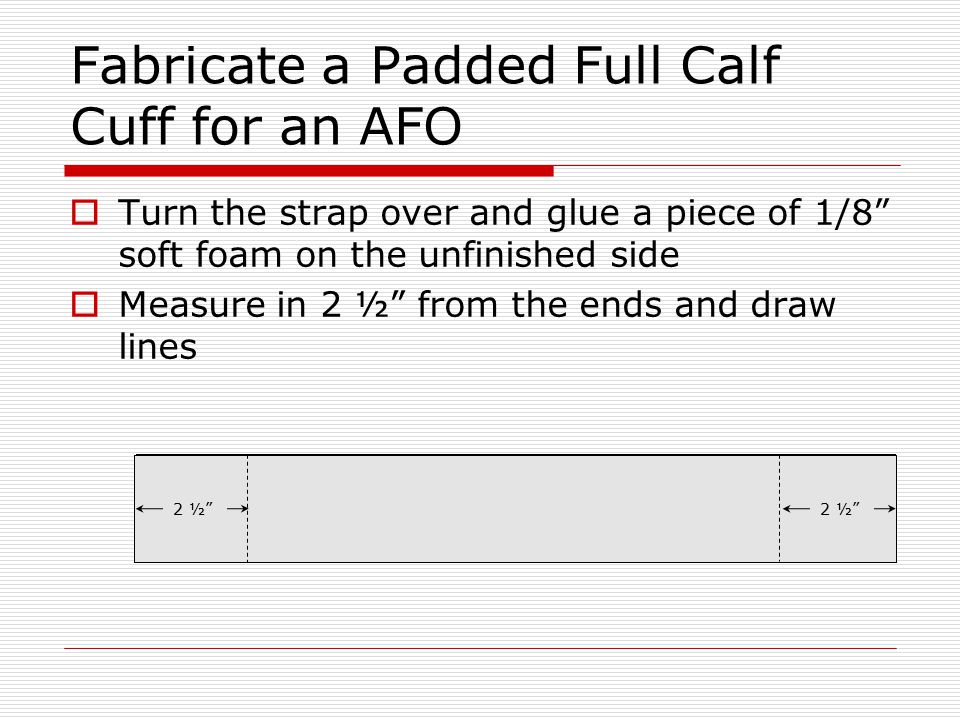

4. Fabricate a Padded Full Calf Cuff for an AFO  Turn the strap over and glue a piece of 1/8” soft foam on the unfinished side  Measure in 2 ½” from the ends and draw lines 2 ½”

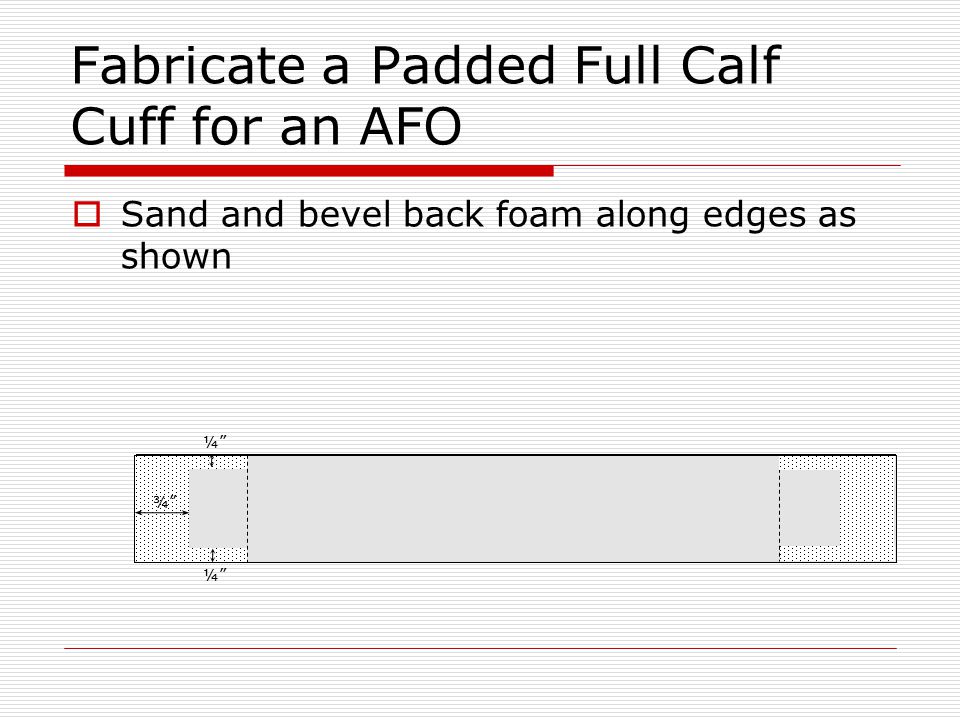

5. Fabricate a Padded Full Calf Cuff for an AFO  Sand and bevel back foam along edges as shown ¼” ¾”

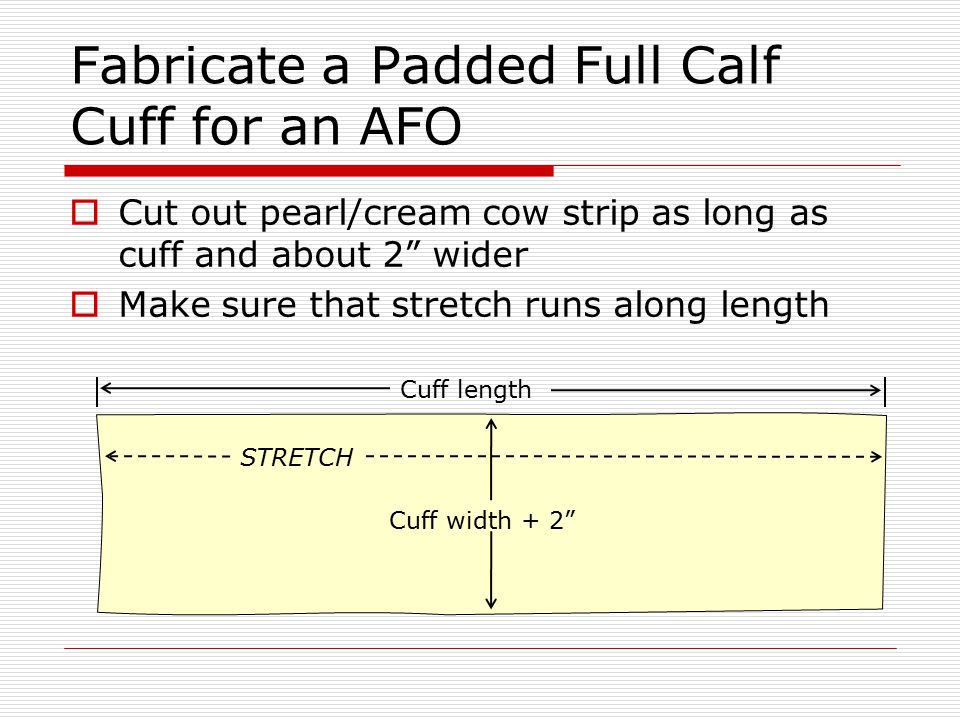

6. Fabricate a Padded Full Calf Cuff for an AFO  Cut out pearl/cream cow strip as long as cuff and about 2” wider  Make sure that stretch runs along length Cuff width + 2” Cuff length STRETCH

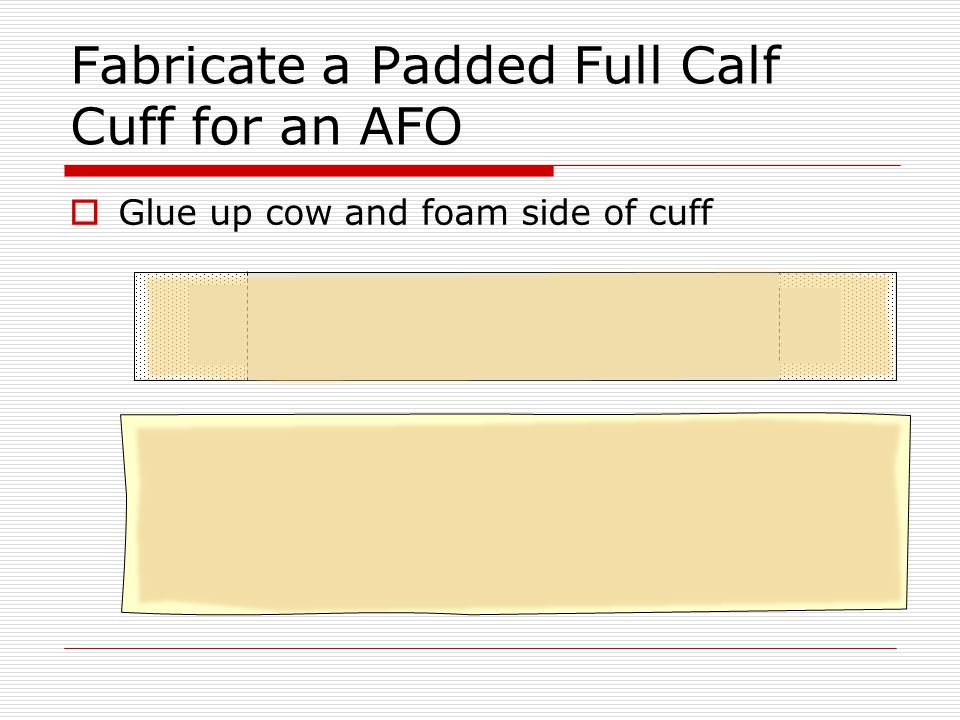

7. Fabricate a Padded Full Calf Cuff for an AFO  Glue up cow and foam side of cuff

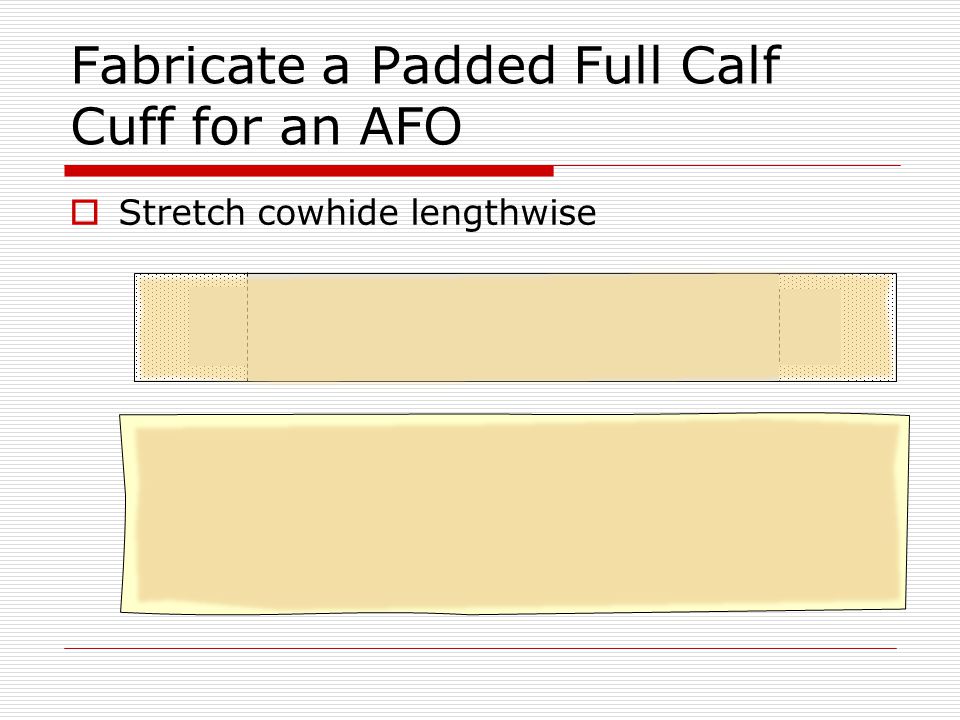

8. Fabricate a Padded Full Calf Cuff for an AFO  Stretch cowhide lengthwise

9. Fabricate a Padded Full Calf Cuff for an AFO  Turn leather strip over, center, and adhere to cowhide strip

10. Fabricate a Padded Full Calf Cuff for an AFO 2 ½”  Measure in 2 1/2 “ from each end and mark top & bottom edges of cuff  Cut cowhide at 45° angles as shown  Glue edges of leather strip within cut lines

11. Fabricate a Padded Full Calf Cuff for an AFO  Fold and glue down cowhide over edges of cuff  Sew around perimeter of cuff, 3/16” from edges

12. Fabricate a Padded Full Calf Cuff for an AFO  Trim away cowhide around perimeter of cuff  Trim folded-over cowhide 1/8” from stitching  Miter corners of cuff slightly

13. Fabricate a Padded Full Calf Cuff for an AFO  Your cuff is now ready to attach to the calf band
