STATUS OF THE HHFW CURRENT DRIVE EXPERIMENT ON NSTX Phil Ryan, Randy Wilson, David Swain, Bob Pinsker March 3, 2004 run date. This XP is focused on CD.

Similar presentations


Presentation on theme: "STATUS OF THE HHFW CURRENT DRIVE EXPERIMENT ON NSTX Phil Ryan, Randy Wilson, David Swain, Bob Pinsker March 3, 2004 run date. This XP is focused on CD."— Presentation transcript:

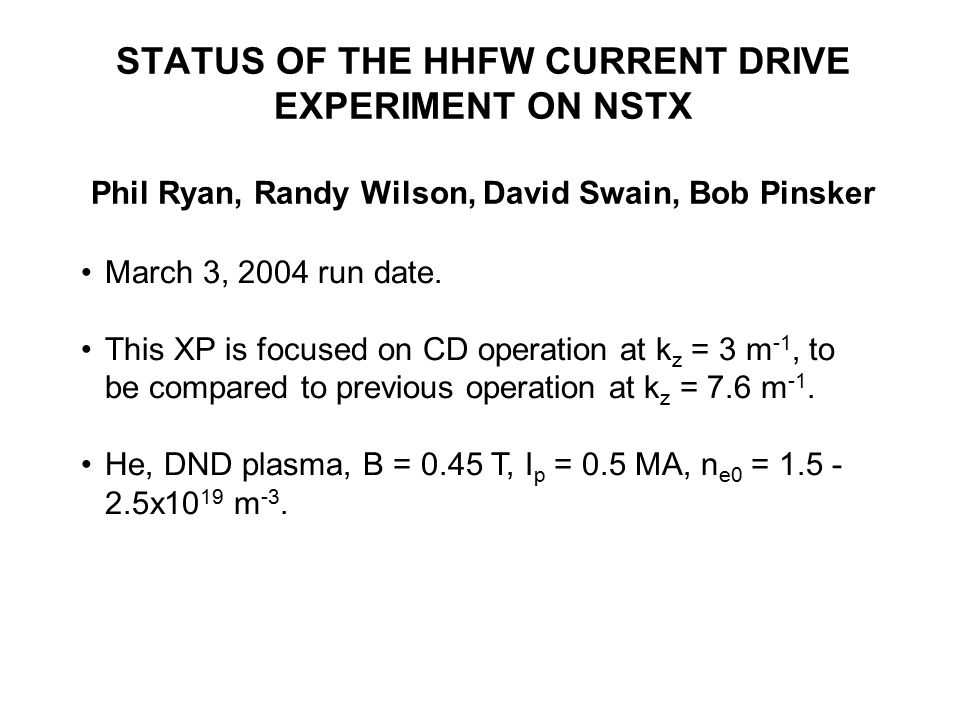

1 STATUS OF THE HHFW CURRENT DRIVE EXPERIMENT ON NSTX Phil Ryan, Randy Wilson, David Swain, Bob Pinsker March 3, 2004 run date. This XP is focused on CD operation at k z = 3 m -1, to be compared to previous operation at k z = 7.6 m -1. He, DND plasma, B = 0.45 T, I p = 0.5 MA, n e0 = 1.5 - 2.5x10 19 m -3.

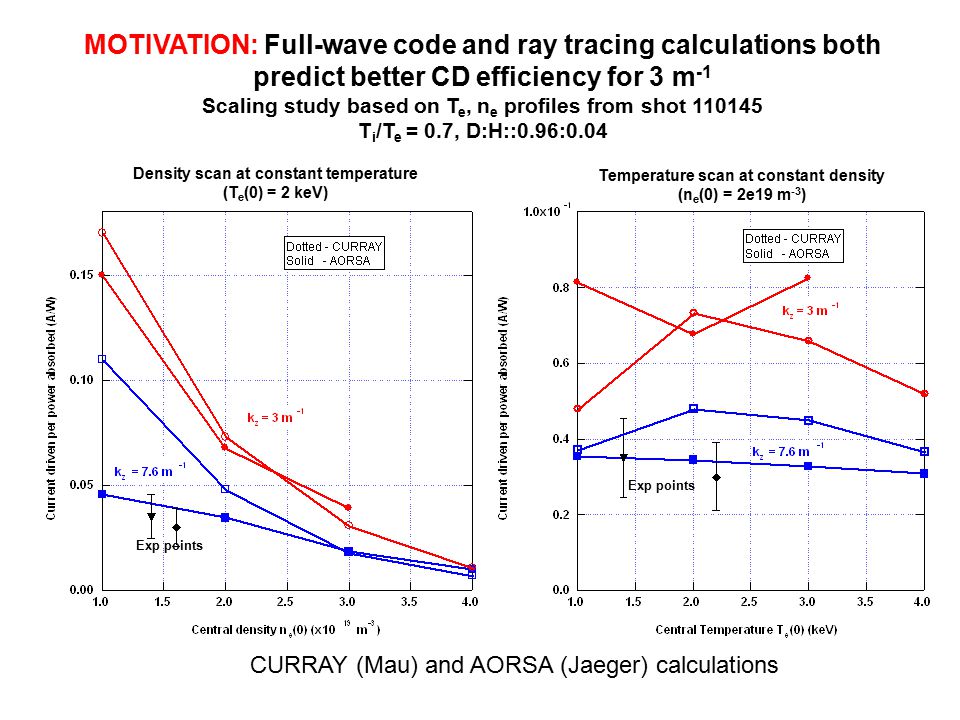

2 Density scan at constant temperature (T e (0) = 2 keV) Temperature scan at constant density (n e (0) = 2e19 m -3 ) CURRAY (Mau) and AORSA (Jaeger) calculations MOTIVATION: Full-wave code and ray tracing calculations both predict better CD efficiency for 3 m -1 Scaling study based on T e, n e profiles from shot 110145 T i /T e = 0.7, D:H::0.96:0.04 Exp points

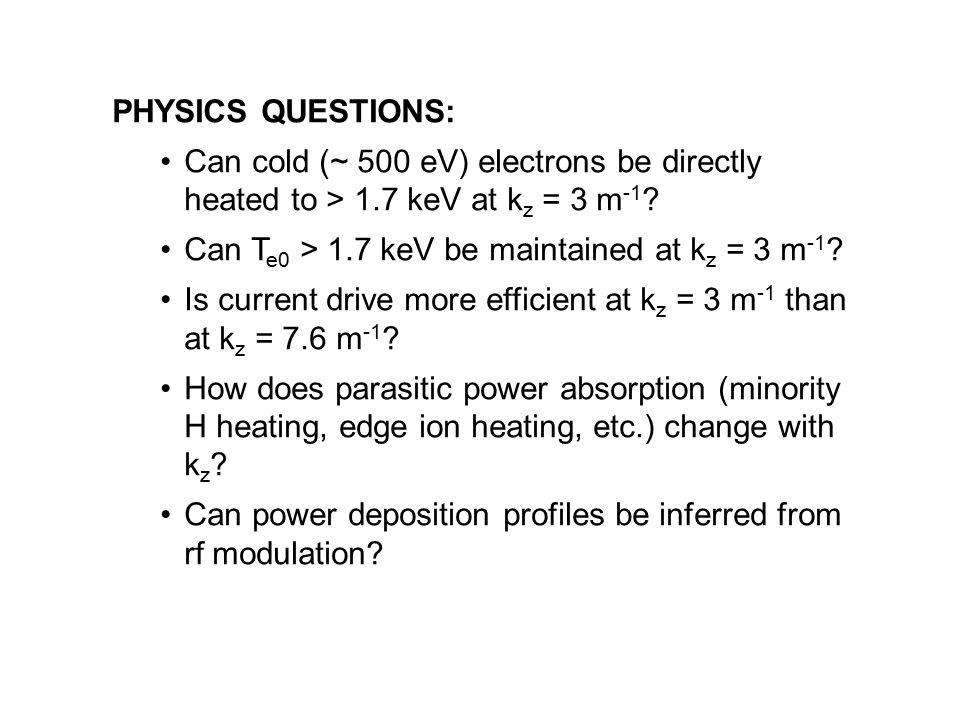

3 PHYSICS QUESTIONS: Can cold (~ 500 eV) electrons be directly heated to > 1.7 keV at k z = 3 m -1 ? Can T e0 > 1.7 keV be maintained at k z = 3 m -1 ? Is current drive more efficient at k z = 3 m -1 than at k z = 7.6 m -1 ? How does parasitic power absorption (minority H heating, edge ion heating, etc.) change with k z ? Can power deposition profiles be inferred from rf modulation?

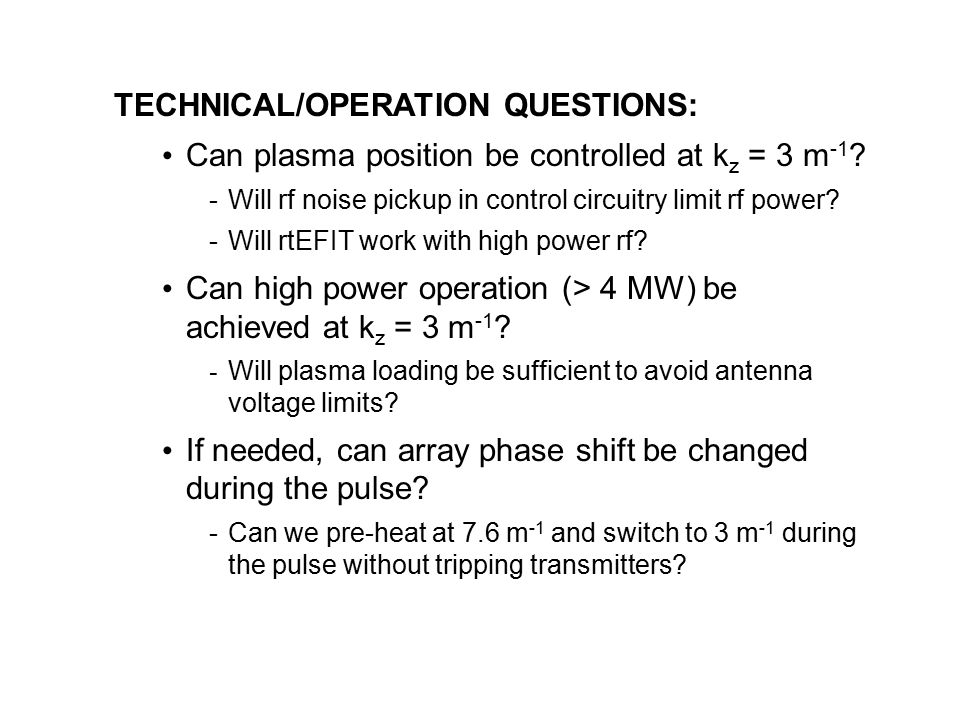

4 TECHNICAL/OPERATION QUESTIONS: Can plasma position be controlled at k z = 3 m -1 ? - -Will rf noise pickup in control circuitry limit rf power? - -Will rtEFIT work with high power rf? Can high power operation (> 4 MW) be achieved at k z = 3 m -1 ? - - Will plasma loading be sufficient to avoid antenna voltage limits? If needed, can array phase shift be changed during the pulse? - -Can we pre-heat at 7.6 m -1 and switch to 3 m -1 during the pulse without tripping transmitters?

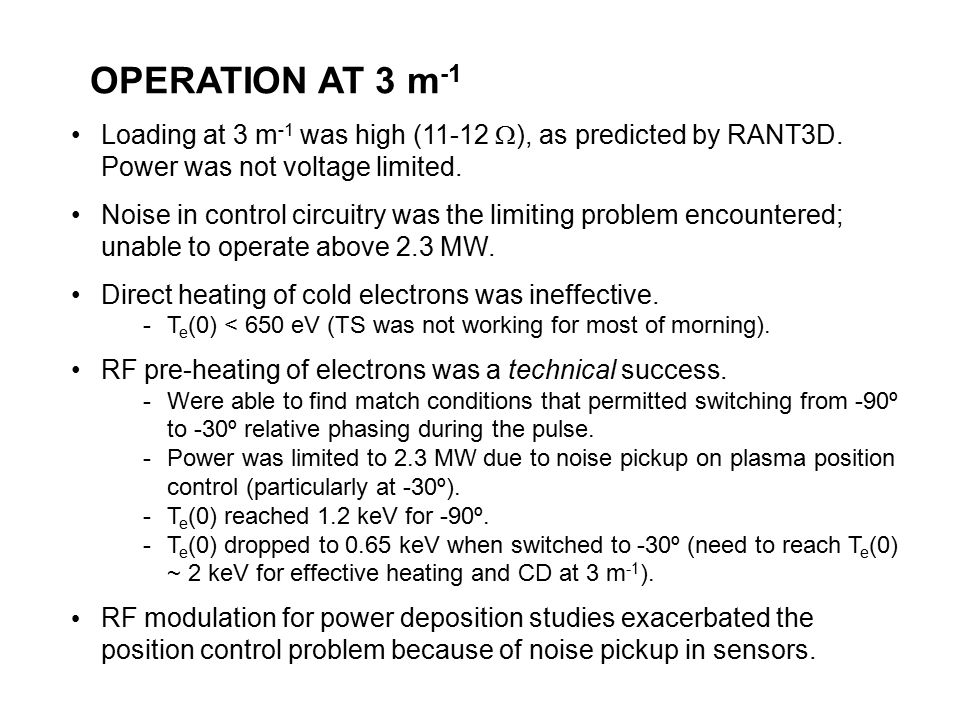

5 Loading at 3 m -1 was high (11-12  ), as predicted by RANT3D. Power was not voltage limited. Noise in control circuitry was the limiting problem encountered; unable to operate above 2.3 MW. Direct heating of cold electrons was ineffective. - -T e (0) < 650 eV (TS was not working for most of morning). RF pre-heating of electrons was a technical success. - -Were able to find match conditions that permitted switching from -90º to -30º relative phasing during the pulse. - -Power was limited to 2.3 MW due to noise pickup on plasma position control (particularly at -30º). - -T e (0) reached 1.2 keV for -90º. - -T e (0) dropped to 0.65 keV when switched to -30º (need to reach T e (0) ~ 2 keV for effective heating and CD at 3 m -1 ). RF modulation for power deposition studies exacerbated the position control problem because of noise pickup in sensors. OPERATION AT 3 m -1

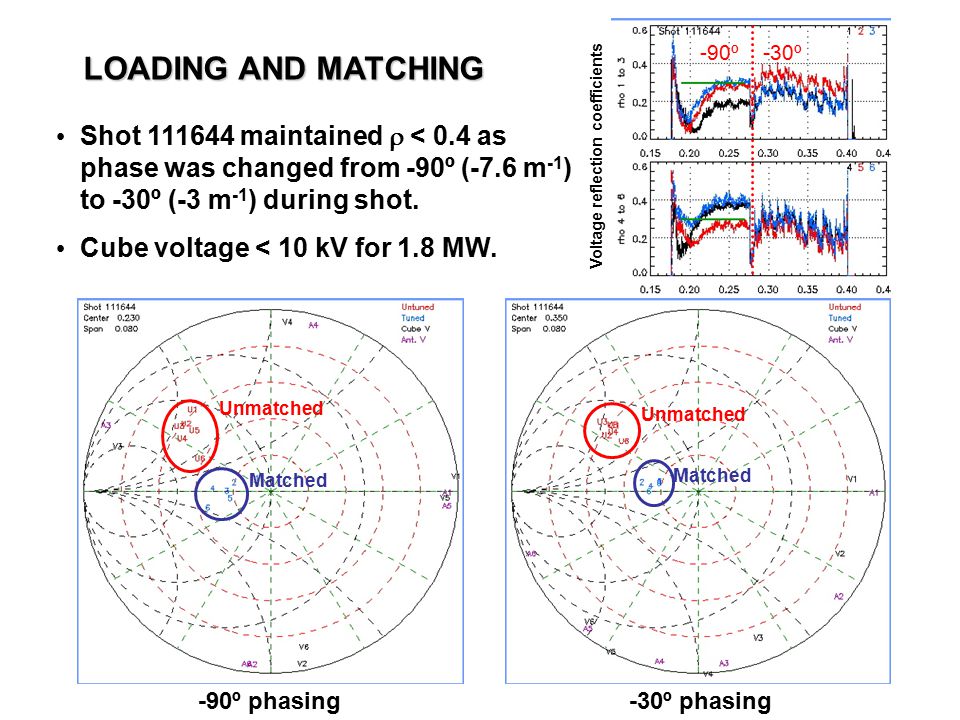

6 -90º phasing Unmatched Matched -90º-30º Voltage reflection coefficients Shot 111644 maintained  < 0.4 as phase was changed from -90º (-7.6 m -1 ) to -30º (-3 m -1 ) during shot. Cube voltage < 10 kV for 1.8 MW. -30º phasing Unmatched Matched LOADING AND MATCHING

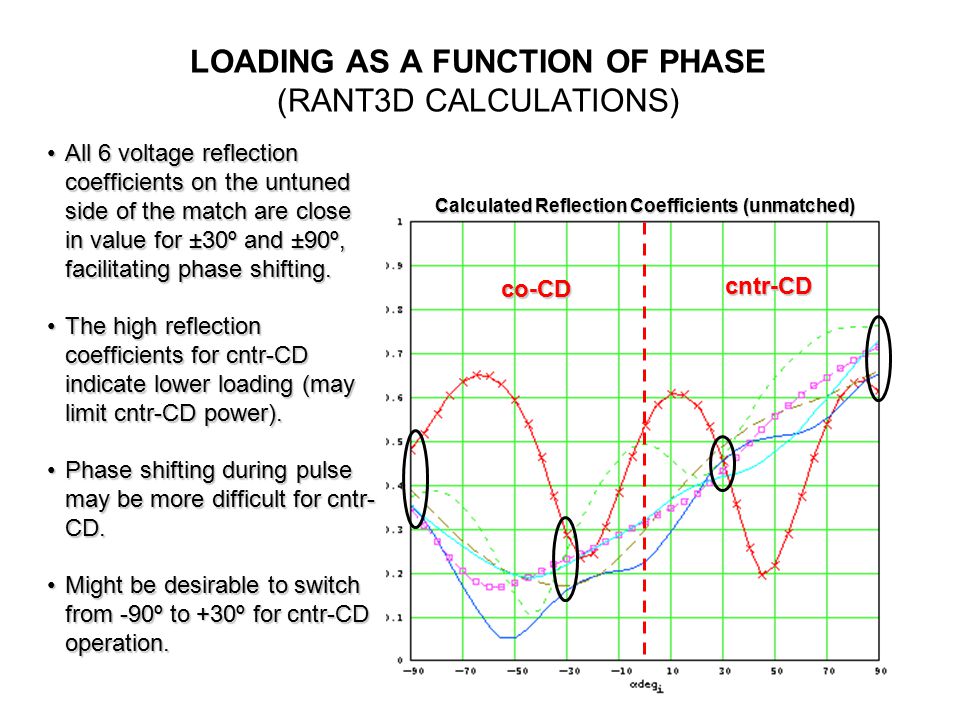

7 LOADING AS A FUNCTION OF PHASE (RANT3D CALCULATIONS) co-CD cntr-CD All 6 voltage reflection coefficients on the untuned side of the match are close in value for ±30º and ±90º, facilitating phase shifting.All 6 voltage reflection coefficients on the untuned side of the match are close in value for ±30º and ±90º, facilitating phase shifting. The high reflection coefficients for cntr-CD indicate lower loading (may limit cntr-CD power).The high reflection coefficients for cntr-CD indicate lower loading (may limit cntr-CD power). Phase shifting during pulse may be more difficult for cntr- CD.Phase shifting during pulse may be more difficult for cntr- CD. Might be desirable to switch from -90º to +30º for cntr-CD operation.Might be desirable to switch from -90º to +30º for cntr-CD operation. Calculated Reflection Coefficients (unmatched)

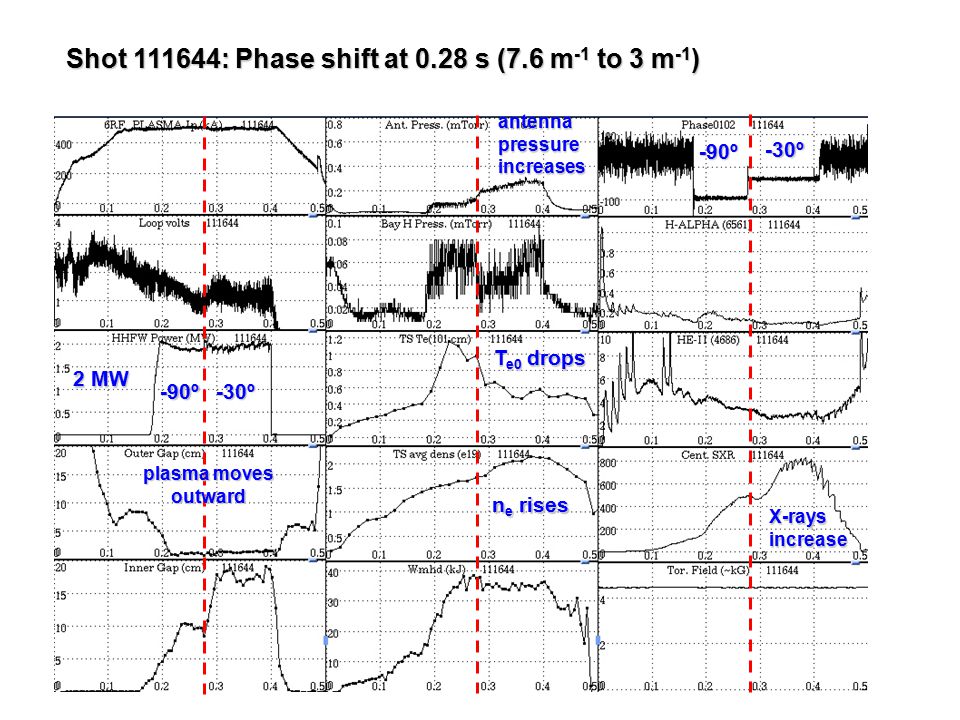

8 Shot 111644: Phase shift at 0.28 s (7.6 m -1 to 3 m -1 ) -90º -30º 2 MW -90º antenna pressure increases T e0 drops plasma moves outward n e rises -30º X-rays increase

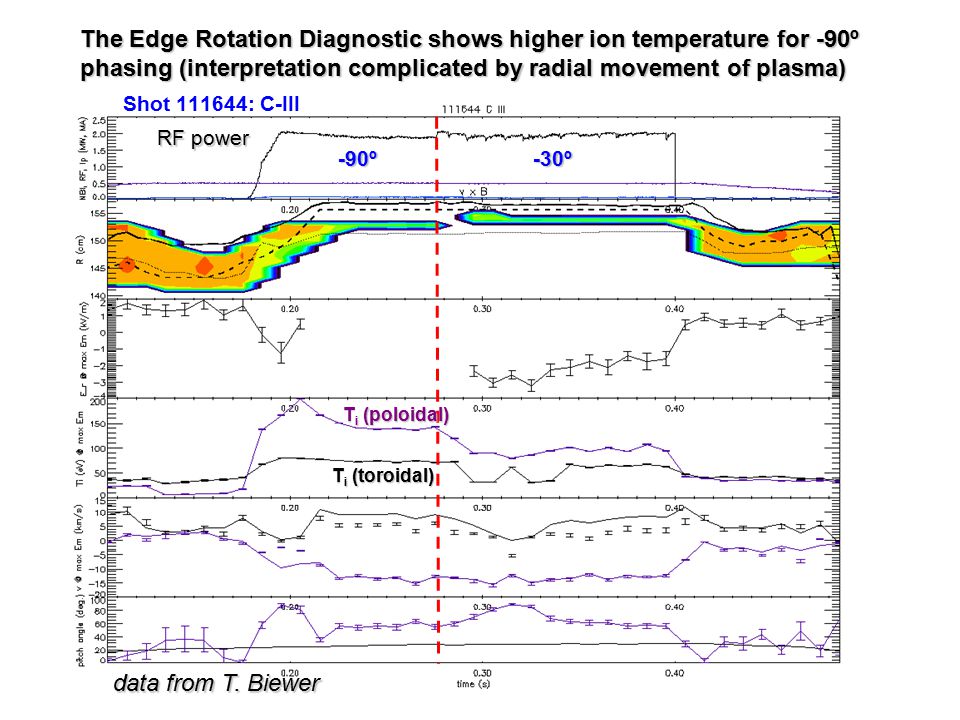

9 Shot 111644: C-III The Edge Rotation Diagnostic shows higher ion temperature for -90º phasing (interpretation complicated by radial movement of plasma) data from T. Biewer RF power T i (poloidal) T i (toroidal) -90º -30º

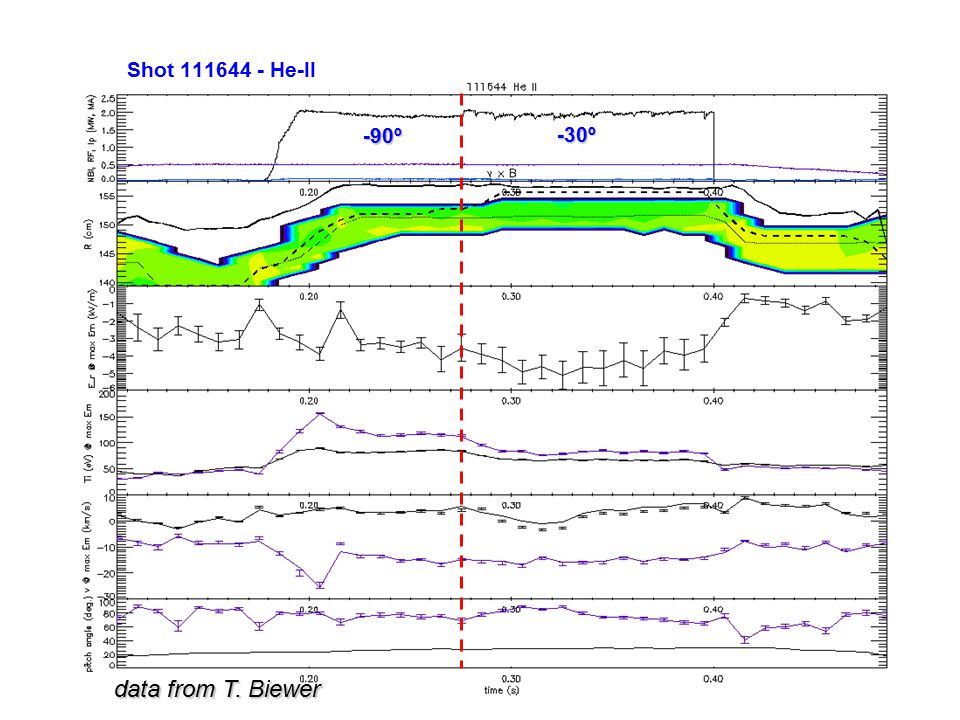

10 data from T. Biewer Shot 111644 - He-II -90º -30º

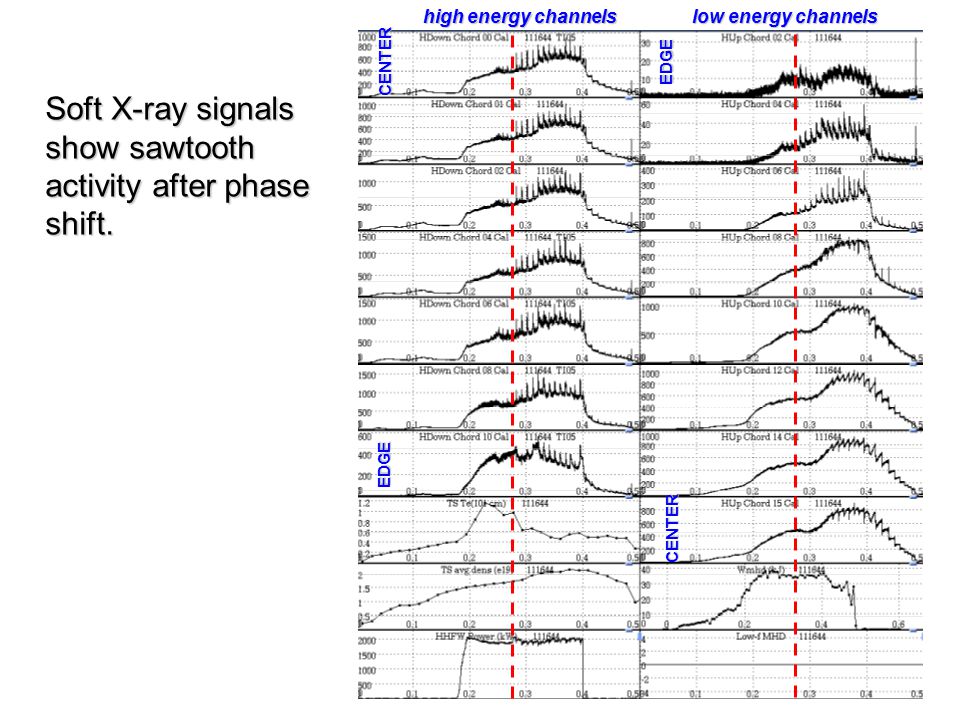

11 Soft X-ray signals show sawtooth activity after phase shift. high energy channels low energy channels CENTER CENTER EDGE EDGE

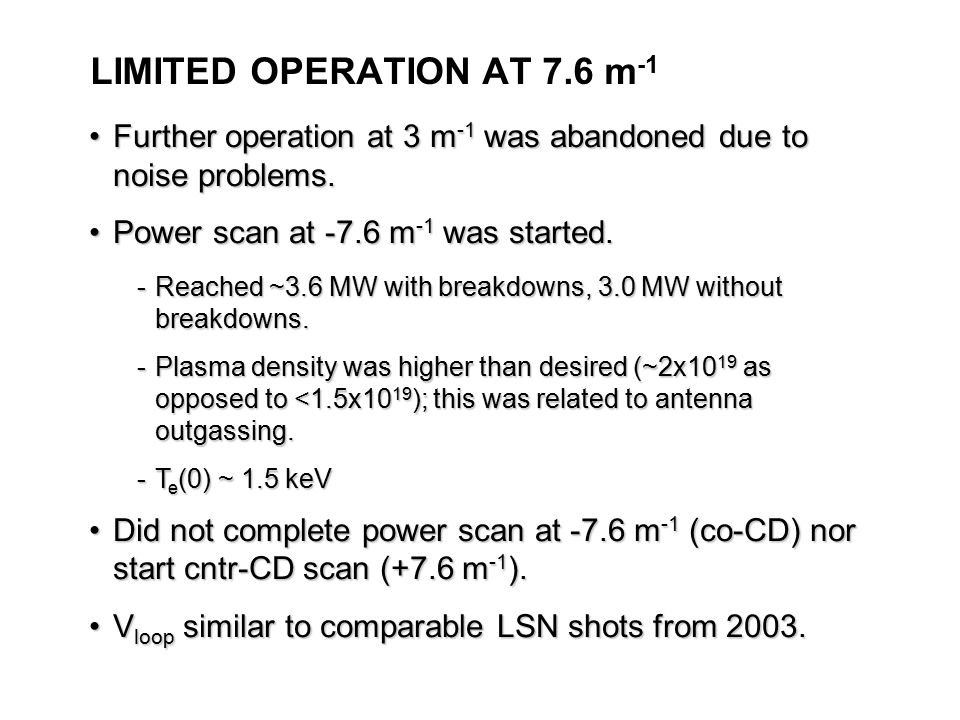

12 LIMITED OPERATION AT 7.6 m -1 Further operation at 3 m -1 was abandoned due to noise problems.Further operation at 3 m -1 was abandoned due to noise problems. Power scan at -7.6 m -1 was started.Power scan at -7.6 m -1 was started. -Reached ~3.6 MW with breakdowns, 3.0 MW without breakdowns. -Plasma density was higher than desired (~2x10 19 as opposed to <1.5x10 19 ); this was related to antenna outgassing. -T e (0) ~ 1.5 keV Did not complete power scan at -7.6 m -1 (co-CD) nor start cntr-CD scan (+7.6 m -1 ).Did not complete power scan at -7.6 m -1 (co-CD) nor start cntr-CD scan (+7.6 m -1 ). V loop similar to comparable LSN shots from 2003.V loop similar to comparable LSN shots from 2003.

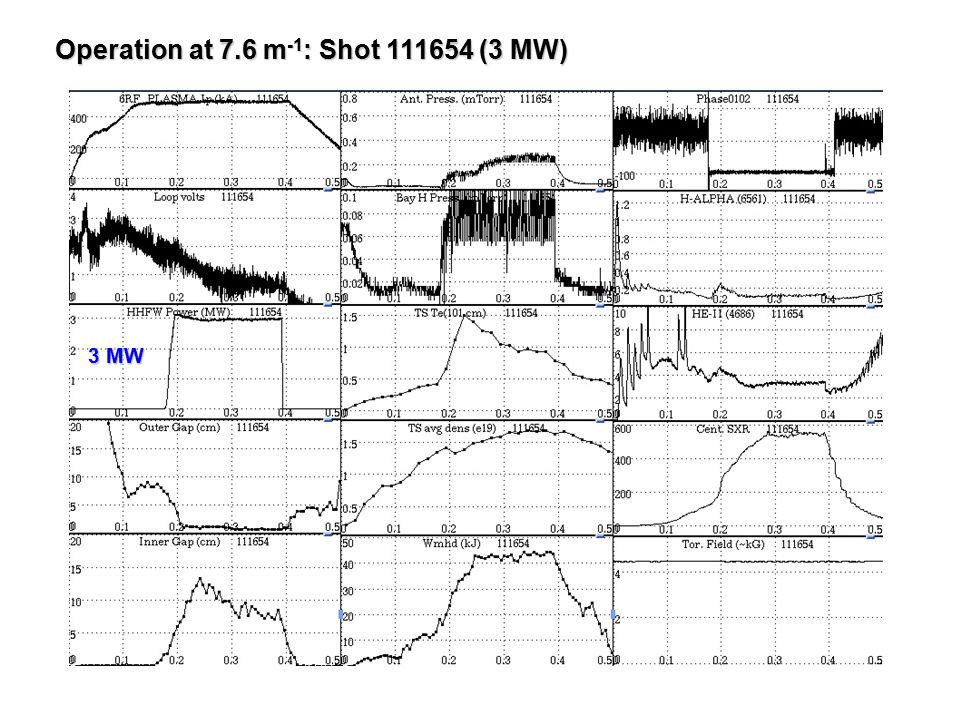

13 Operation at 7.6 m -1 : Shot 111654 (3 MW) 3 MW

14 Need better control of plasma position during rfNeed better control of plasma position during rf -Solve noise pickup problem Need more conditioning of the antennasNeed more conditioning of the antennas -Need to run >4 MW reliably. -Need to limit pressure rise with rf power. Need to develop operational strategy to test CD at 3 m -1 with high T e.Need to develop operational strategy to test CD at 3 m -1 with high T e. -Cannot heat electrons directly with k z = 3 m -1. -Can heat electrons with k z = 7.6 m -1. -Can switch from -7.6 to -3 m -1 (+3 m -1 ?) during pulse; preheating electrons with rf is possible. Need to maintain high T e to test CD efficiency at 3 m -1.Need to maintain high T e to test CD efficiency at 3 m -1. NEXT STEPS FOR XP 403
