1. What lies beneath? Building a semantic web-ready repository for complex collections Louise Corti UKDA Agostina Martinez, Patrick Carmichael, CARET, Cambridge IASSIST 2009

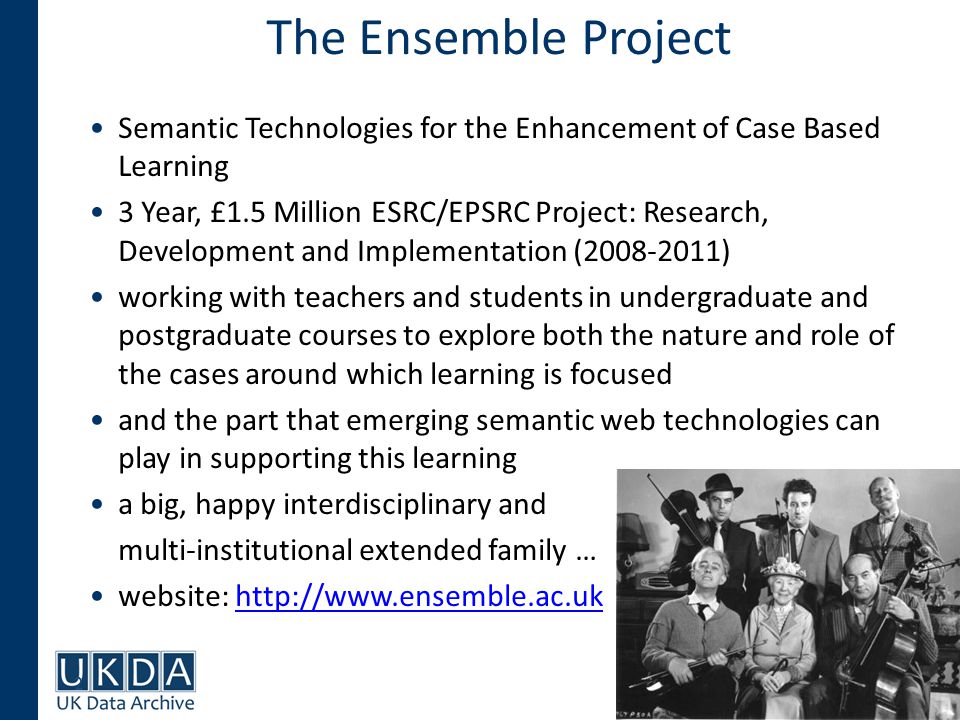

2. The Ensemble Project Semantic Technologies for the Enhancement of Case Based Learning 3 Year, £1.5 Million ESRC/EPSRC Project: Research, Development and Implementation (2008-2011) working with teachers and students in undergraduate and postgraduate courses to explore both the nature and role of the cases around which learning is focused and the part that emerging semantic web technologies can play in supporting this learning a big, happy interdisciplinary and multi-institutional extended family … website: http://www.ensemble.ac.ukhttp://www.ensemble.ac.uk 2

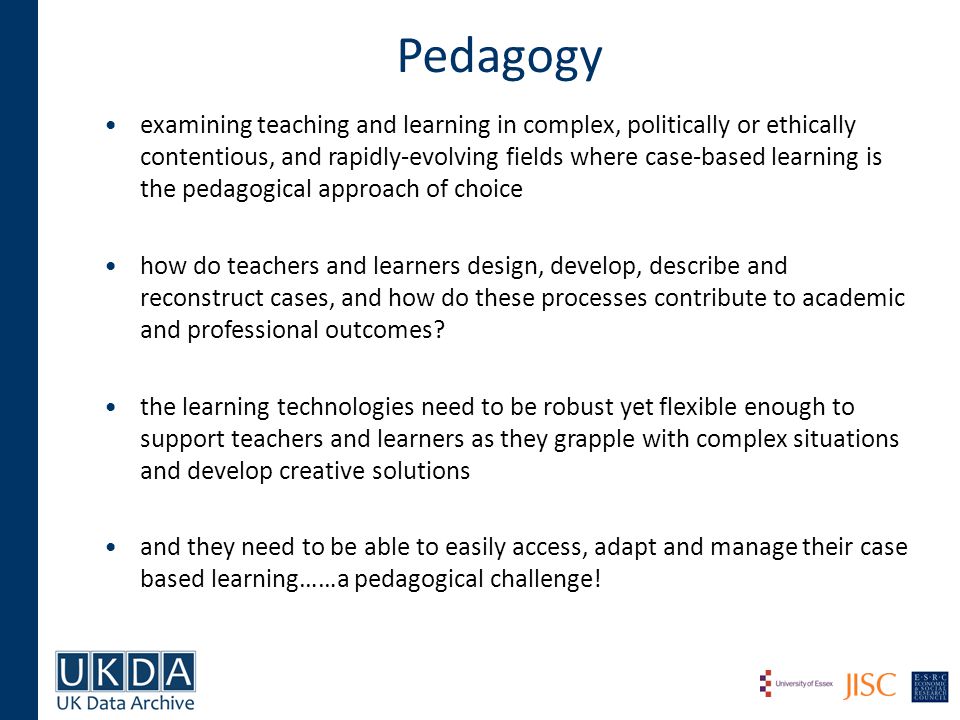

3. Pedagogy examining teaching and learning in complex, politically or ethically contentious, and rapidly-evolving fields where case-based learning is the pedagogical approach of choice how do teachers and learners design, develop, describe and reconstruct cases, and how do these processes contribute to academic and professional outcomes? the learning technologies need to be robust yet flexible enough to support teachers and learners as they grapple with complex situations and develop creative solutions and they need to be able to easily access, adapt and manage their case based learning……a pedagogical challenge!

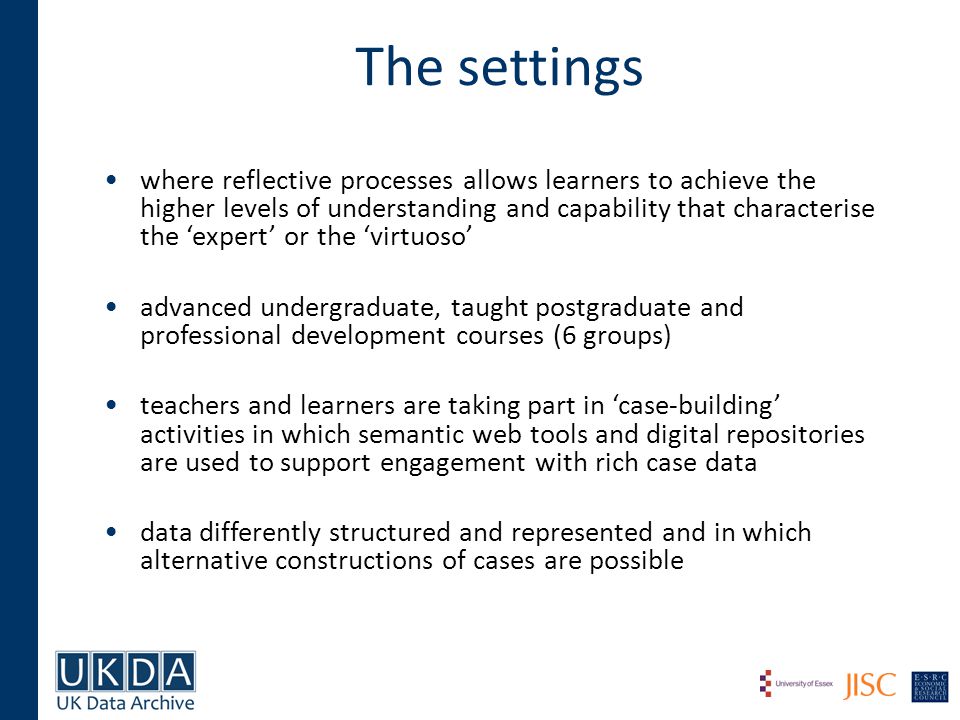

4. The settings where reflective processes allows learners to achieve the higher levels of understanding and capability that characterise the ‘expert’ or the ‘virtuoso’ advanced undergraduate, taught postgraduate and professional development courses (6 groups) teachers and learners are taking part in ‘case-building’ activities in which semantic web tools and digital repositories are used to support engagement with rich case data data differently structured and represented and in which alternative constructions of cases are possible

5. Technical aims repurposing, reconfiguring and enhancing existing repositories and other data sources aims to easily ‘translate’ research data in a Repository for integration into applications which use semantic or 'Web 3.0' technologies: –federated searches –visualisation tools –collaborative working environments allow end-users to engage in flexible discovery, aggregation, representation and visualisation of data using: –topic maps, tag clouds, timelines and maps –VLE's and wikis to share data, interpretation and analysis

6. One Semantic Web Vision Tim Berners Lee’s 2001 ‘vision’ of the SW - personalisation of services through seamless integration of web based systems “At the doctor's office, Lucy instructed her Semantic Web agent through her handheld Web browser. The agent promptly retrieved information about Mom's prescribed treatment from the doctor's agent, looked up several lists of providers, and checked for the ones in-plan for Mom's insurance within a 20- mile radius of her home and with a rating of excellent or very good on trusted rating services. It then began trying to find a match between available appointment times supplied by the agents …” Berners-Lee et al, 2001 The general tone is not unlike that of upbeat 1950’s films about the promise of futuristic kitchens, full of labour saving devices and intelligent fridges Source: Stellman & Greene

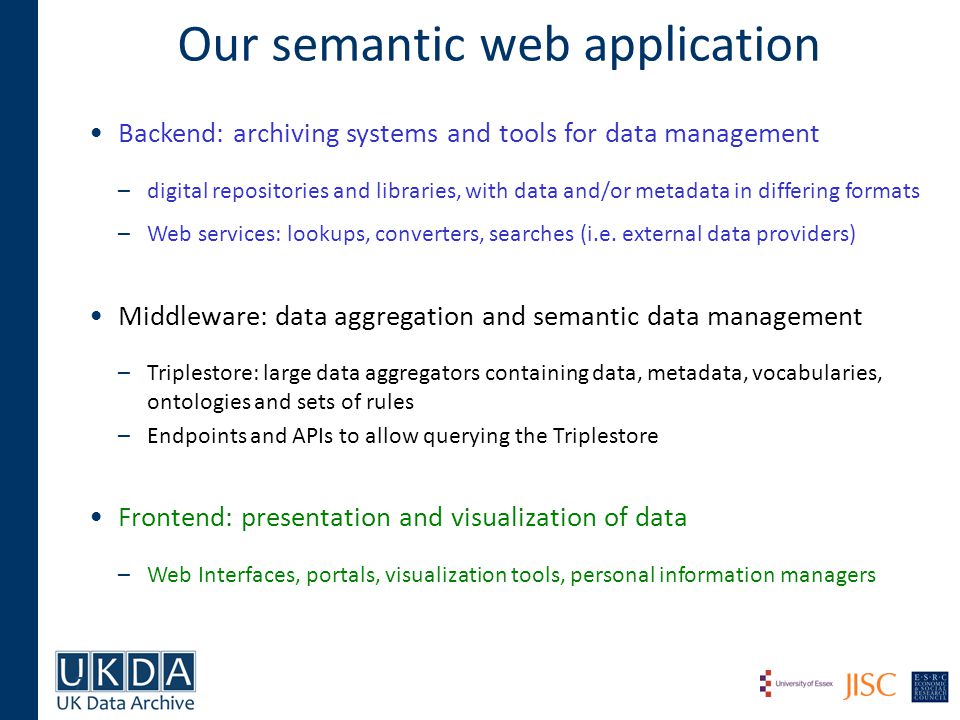

7. Backend: archiving systems and tools for data management –digital repositories and libraries, with data and/or metadata in differing formats –Web services: lookups, converters, searches (i.e. external data providers) Middleware: data aggregation and semantic data management –Triplestore: large data aggregators containing data, metadata, vocabularies, ontologies and sets of rules –Endpoints and APIs to allow querying the Triplestore Frontend: presentation and visualization of data –Web Interfaces, portals, visualization tools, personal information managers 7 Our semantic web application

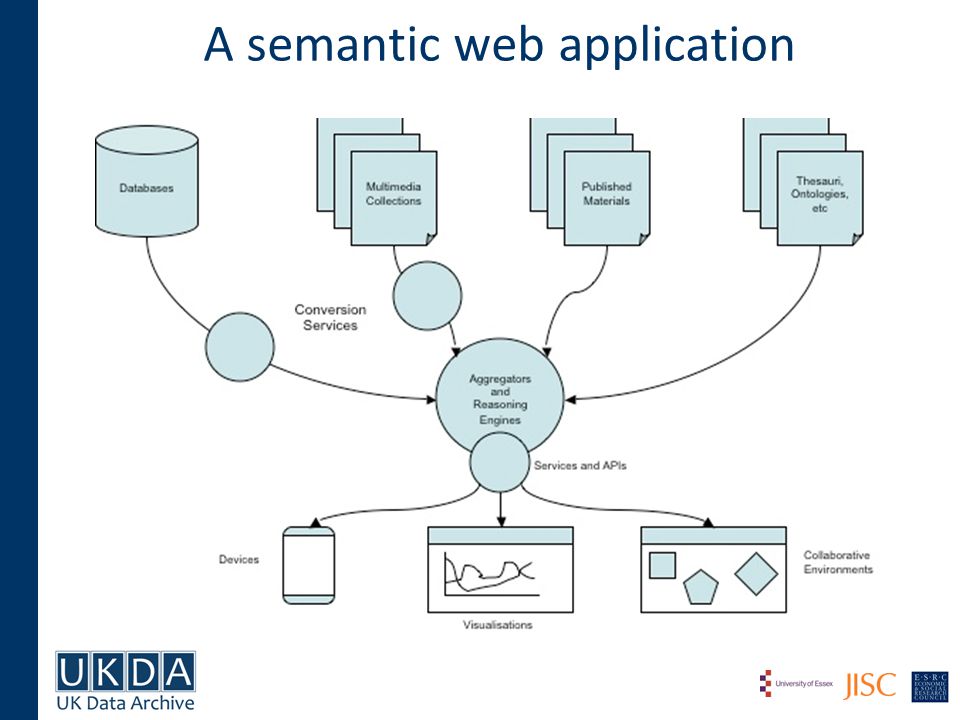

8. A semantic web application

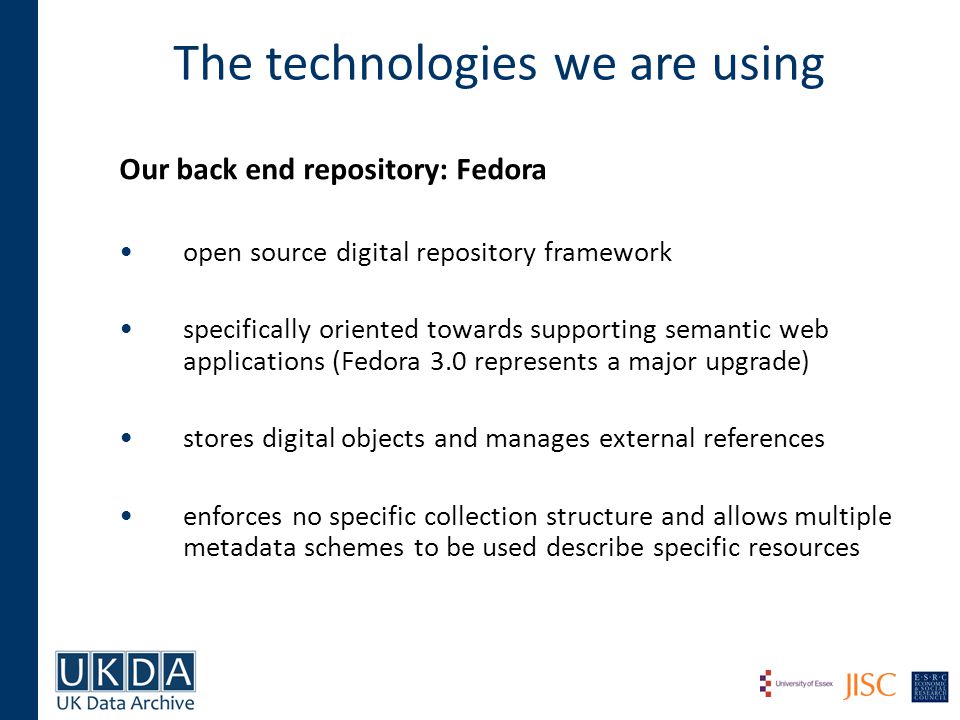

9. The technologies we are using Our back end repository: Fedora open source digital repository framework specifically oriented towards supporting semantic web applications (Fedora 3.0 represents a major upgrade) stores digital objects and manages external references enforces no specific collection structure and allows multiple metadata schemes to be used describe specific resources

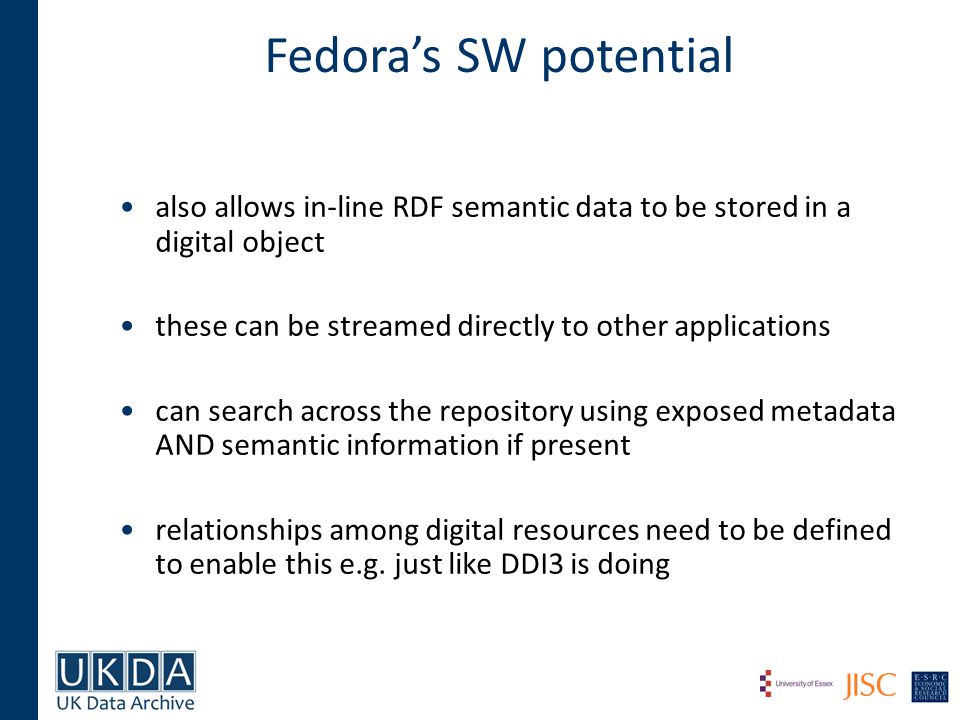

10. Fedora’s SW potential also allows in-line RDF semantic data to be stored in a digital object these can be streamed directly to other applications can search across the repository using exposed metadata AND semantic information if present relationships among digital resources need to be defined to enable this e.g. just like DDI3 is doing

11. Data out convert data to RDF/XML using a RDFizer –Triplify or RDF123 –Eg Excel to RDF, PDF to RDF and so on metadata record (in RDF/XML) accompanies data – with permanent address to dataset using the Fedora Resource Index module to index relationships among objects (contained in the inline RDF datastreams - RDF/XML) now available to aggregators, triplestores, reasoners we storing and syncronizing the metadata in every object into a Mulgara Triplestore

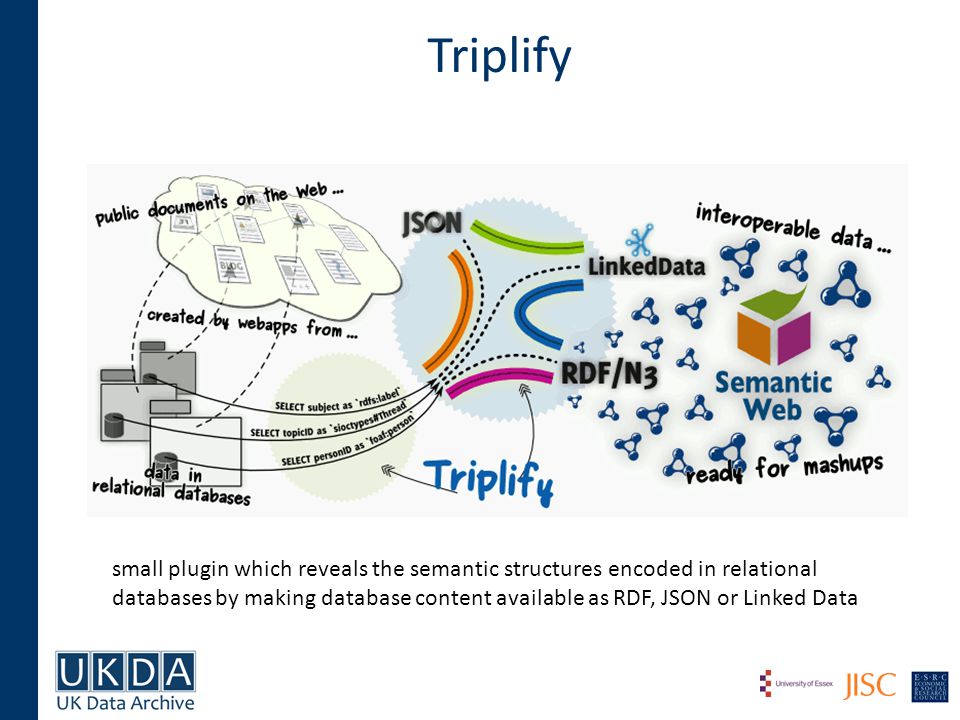

12. Triplify small plugin which reveals the semantic structures encoded in relational databases by making database content available as RDF, JSON or Linked Data

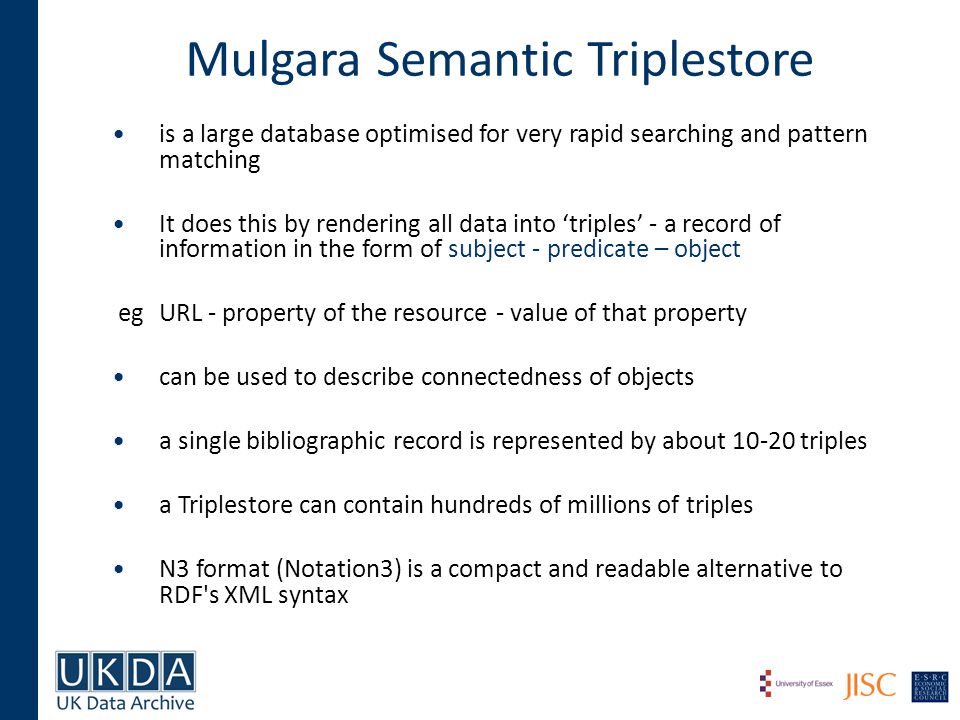

13. Mulgara Semantic Triplestore is a large database optimised for very rapid searching and pattern matching It does this by rendering all data into ‘triples’ - a record of information in the form of subject - predicate – object egURL- property of the resource- value of that property can be used to describe connectedness of objects a single bibliographic record is represented by about 10-20 triples a Triplestore can contain hundreds of millions of triples N3 format (Notation3) is a compact and readable alternative to RDF's XML syntax

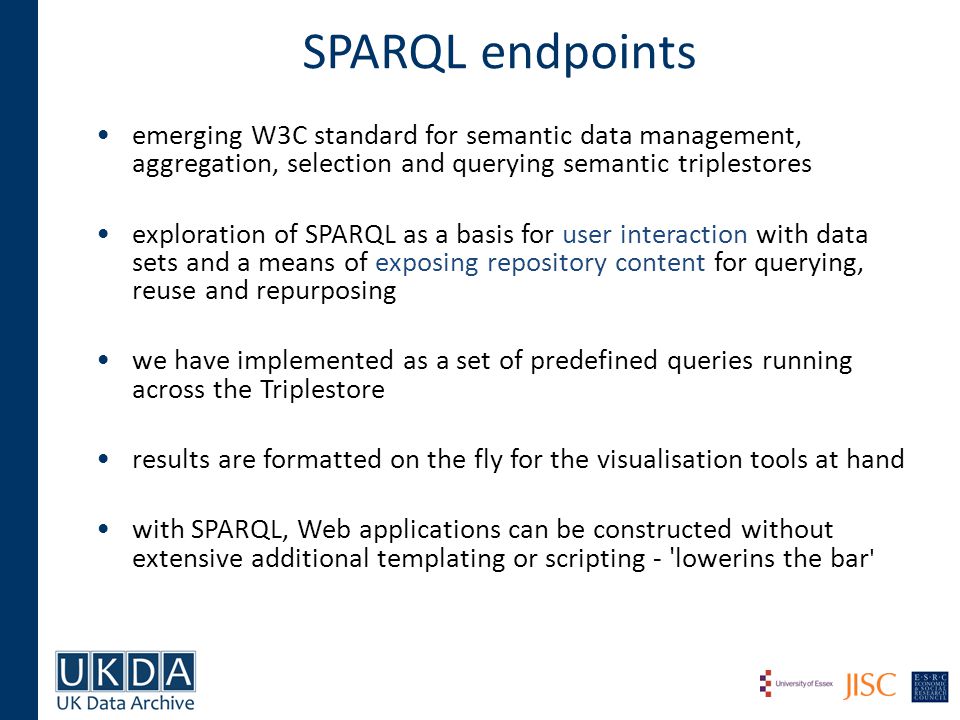

14. SPARQL endpoints emerging W3C standard for semantic data management, aggregation, selection and querying semantic triplestores exploration of SPARQL as a basis for user interaction with data sets and a means of exposing repository content for querying, reuse and repurposing we have implemented as a set of predefined queries running across the Triplestore results are formatted on the fly for the visualisation tools at hand with SPARQL, Web applications can be constructed without extensive additional templating or scripting - 'lowerins the bar '

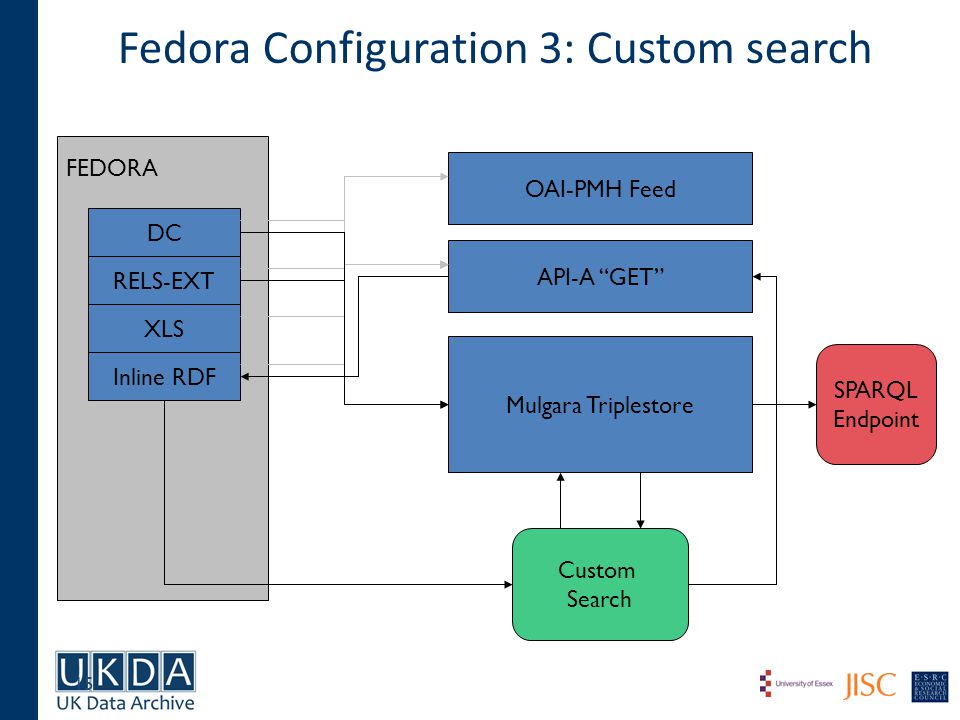

15. Fedora Configuration 3: Custom search FEDORA API-A “GET” OAI-PMH Feed DC RELS-EXT XLS Inline RDF Mulgara Triplestore Custom Search SPARQL Endpoint 15

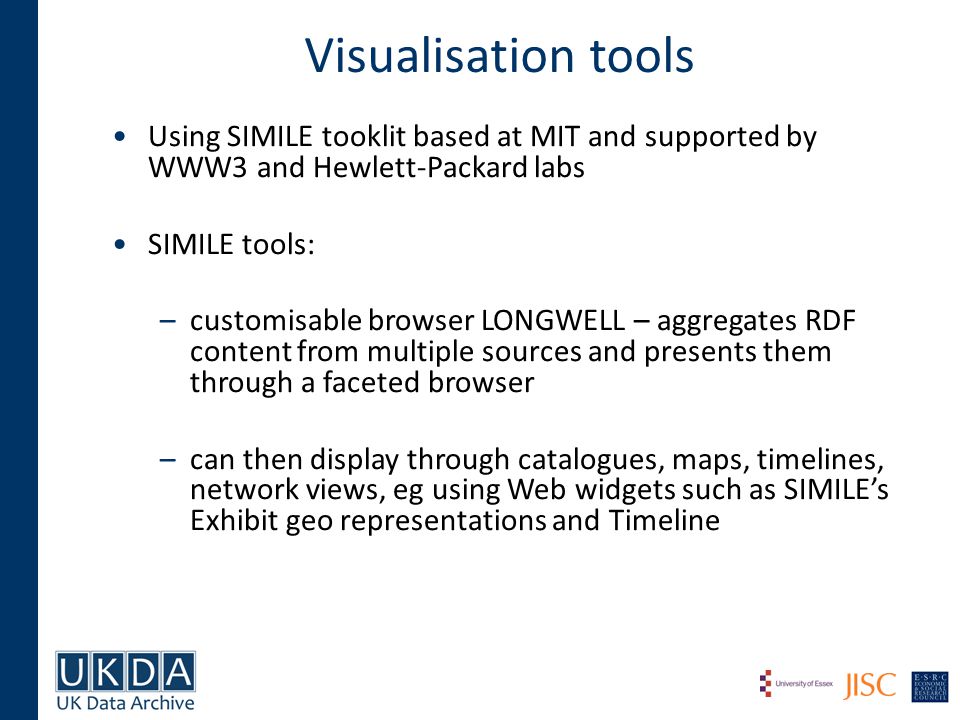

16. Visualisation tools Using SIMILE tooklit based at MIT and supported by WWW3 and Hewlett-Packard labs SIMILE tools: –customisable browser LONGWELL – aggregates RDF content from multiple sources and presents them through a faceted browser –can then display through catalogues, maps, timelines, network views, eg using Web widgets such as SIMILE’s Exhibit geo representations and Timeline

18. What Kinds of Questions? What is the latin name for Aleppo Pine? What does an Aleppo Pine look like? How do Aleppo Pines reproduce? Show me a map of their distribution? Is this a picture of an Aleppo Pine? Tell me about Aleppo Pines? Show me examples of plants which frequently inhabit the same environment as Aleppo Pines What insect life do Aleppo Pines support? What do people from Aleppo call Aleppo Pines? Source: PlantWiki

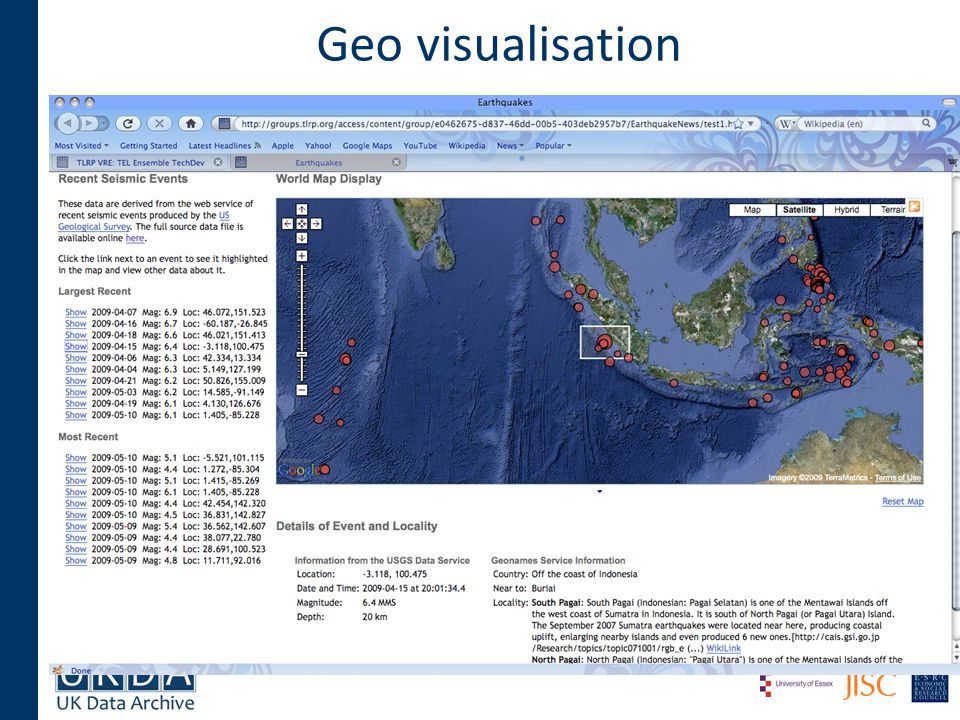

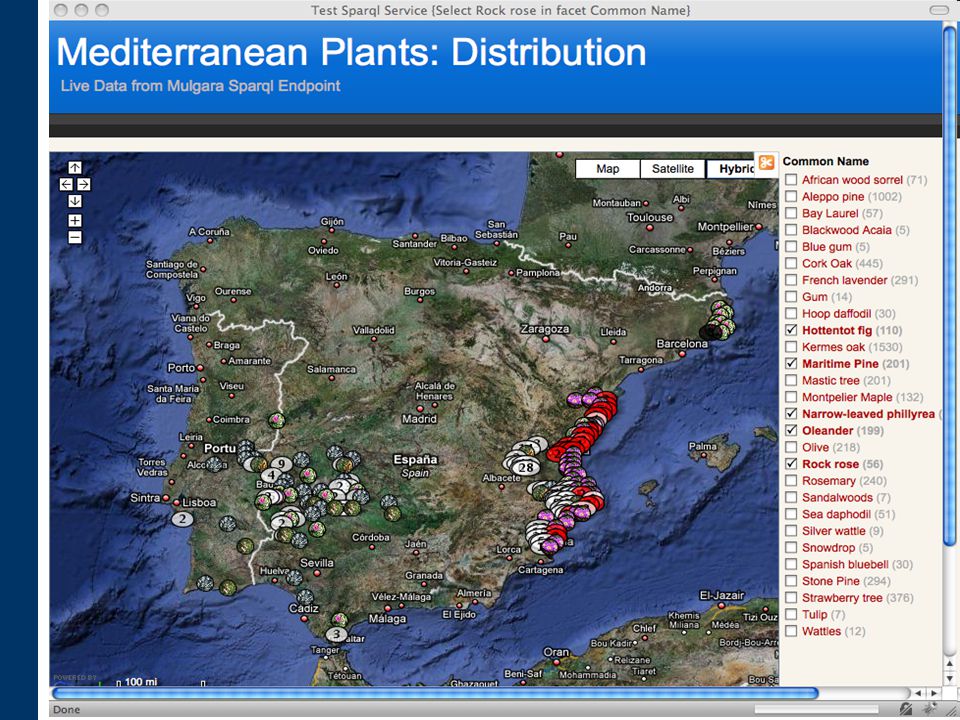

19. Geo visualisation

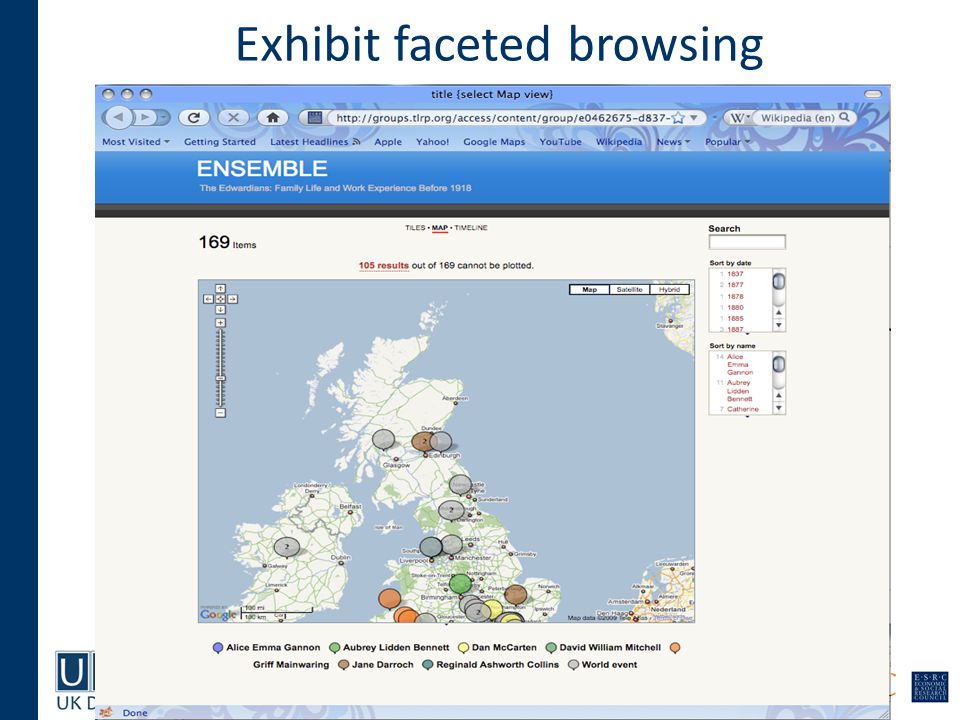

20. Exhibit faceted browsing

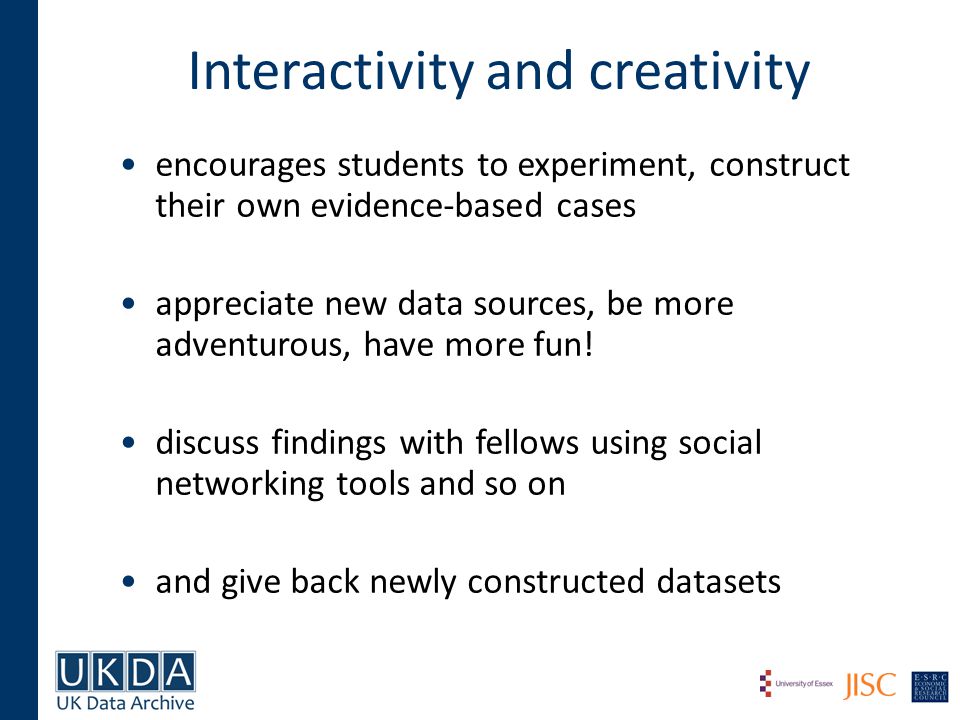

21. Interactivity and creativity encourages students to experiment, construct their own evidence-based cases appreciate new data sources, be more adventurous, have more fun! discuss findings with fellows using social networking tools and so on and give back newly constructed datasets

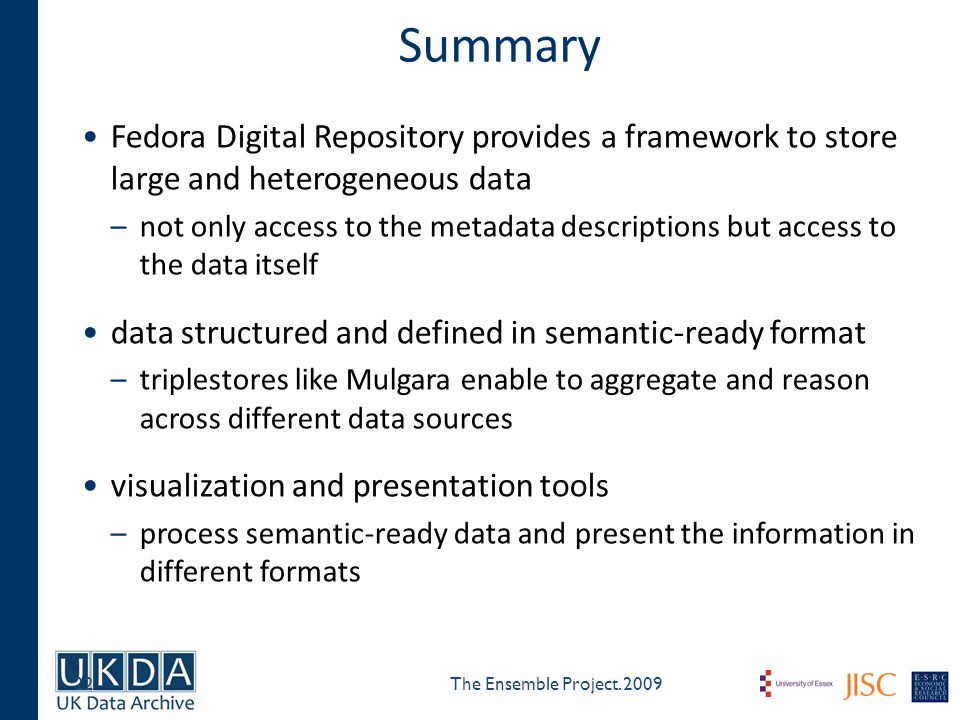

22. Summary Fedora Digital Repository provides a framework to store large and heterogeneous data –not only access to the metadata descriptions but access to the data itself data structured and defined in semantic-ready format –triplestores like Mulgara enable to aggregate and reason across different data sources visualization and presentation tools –process semantic-ready data and present the information in different formats 22The Ensemble Project. 2009

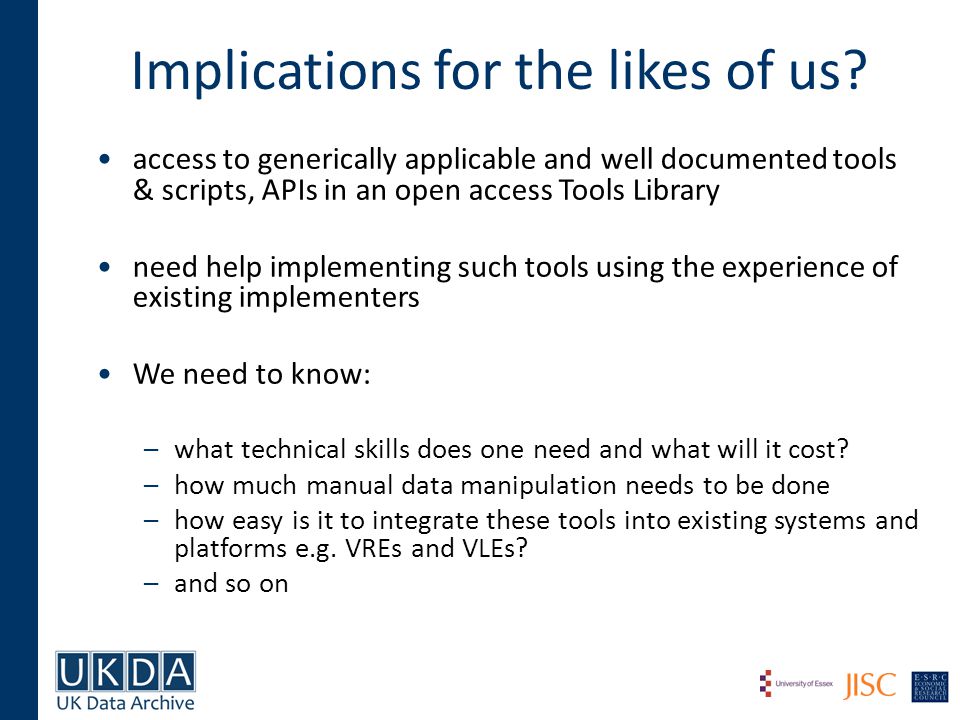

23. Implications for the likes of us? access to generically applicable and well documented tools & scripts, APIs in an open access Tools Library need help implementing such tools using the experience of existing implementers We need to know: –what technical skills does one need and what will it cost? –how much manual data manipulation needs to be done –how easy is it to integrate these tools into existing systems and platforms e.g. VREs and VLEs? –and so on
