1. Exceed 10 Slides Databank

2. Forewords

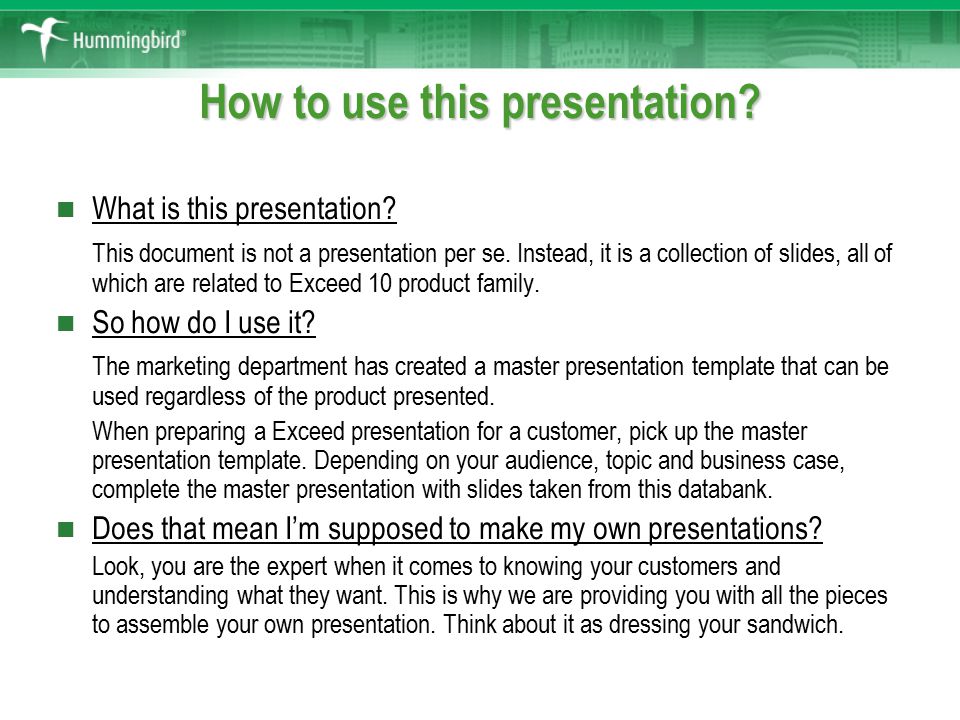

3. How to use this presentation? What is this presentation? This document is not a presentation per se. Instead, it is a collection of slides, all of which are related to Exceed 10 product family. So how do I use it? The marketing department has created a master presentation template that can be used regardless of the product presented. When preparing a Exceed presentation for a customer, pick up the master presentation template. Depending on your audience, topic and business case, complete the master presentation with slides taken from this databank. Does that mean I’m supposed to make my own presentations? Look, you are the expert when it comes to knowing your customers and understanding what they want. This is why we are providing you with all the pieces to assemble your own presentation. Think about it as dressing your sandwich.

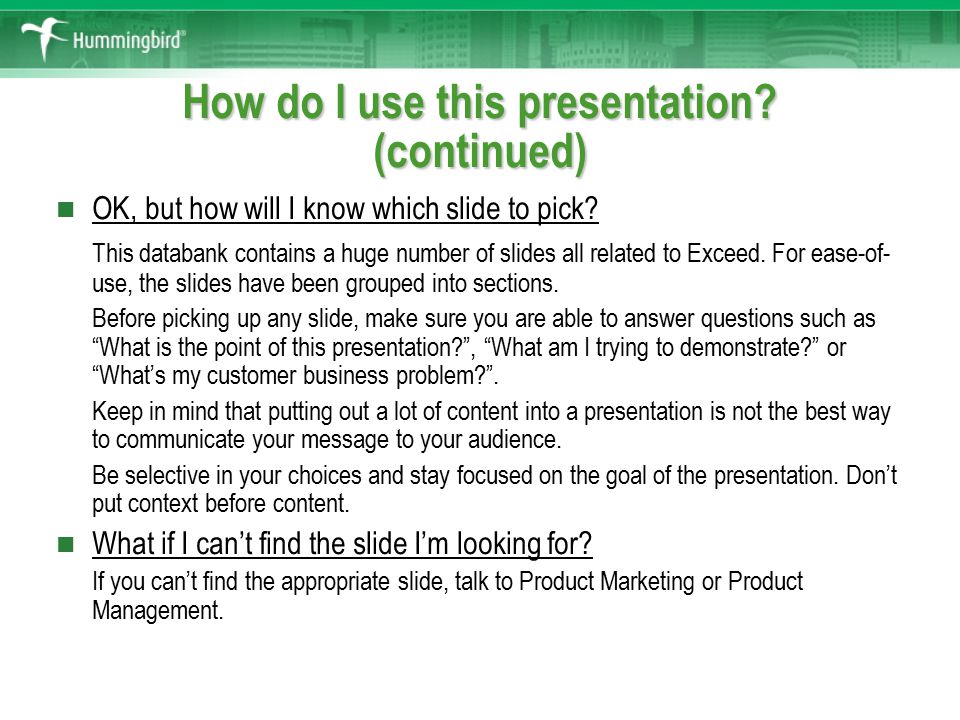

4. How do I use this presentation? (continued) OK, but how will I know which slide to pick? This databank contains a huge number of slides all related to Exceed. For ease-of- use, the slides have been grouped into sections. Before picking up any slide, make sure you are able to answer questions such as “What is the point of this presentation?”, “What am I trying to demonstrate?” or “What’s my customer business problem?”. Keep in mind that putting out a lot of content into a presentation is not the best way to communicate your message to your audience. Be selective in your choices and stay focused on the goal of the presentation. Don’t put context before content. What if I can’t find the slide I’m looking for? If you can’t find the appropriate slide, talk to Product Marketing or Product Management.

5. Exceed Overview

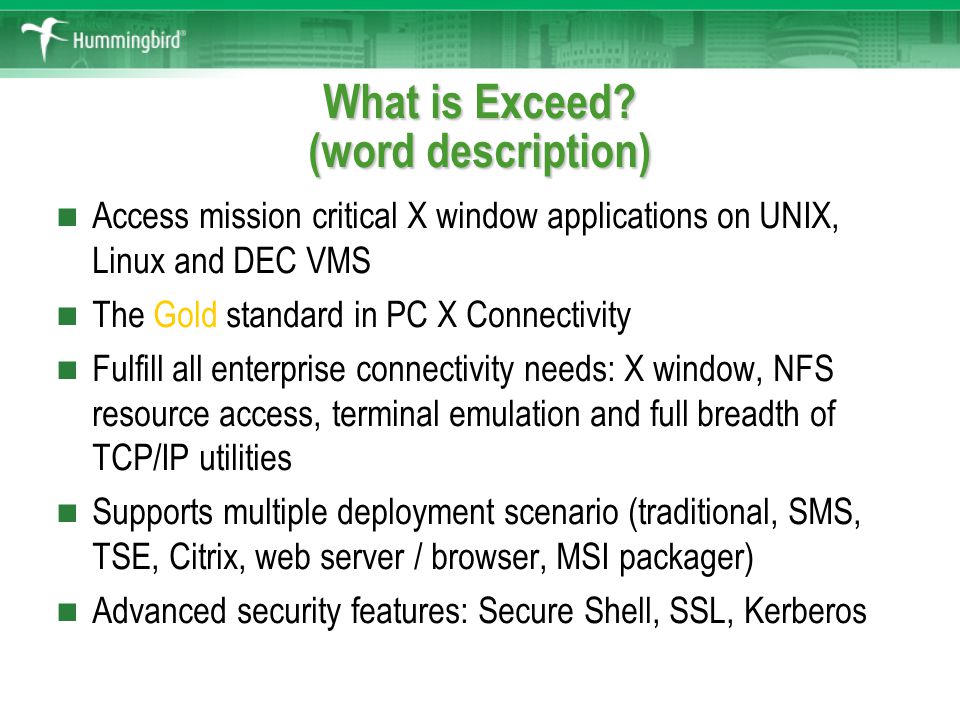

6. What is Exceed? (word description) Access mission critical X window applications on UNIX, Linux and DEC VMS The Gold standard in PC X Connectivity Fulfill all enterprise connectivity needs: X window, NFS resource access, terminal emulation and full breadth of TCP/IP utilities Supports multiple deployment scenario (traditional, SMS, TSE, Citrix, web server / browser, MSI packager) Advanced security features: Secure Shell, SSL, Kerberos

7. What is Exceed? (graphic description)

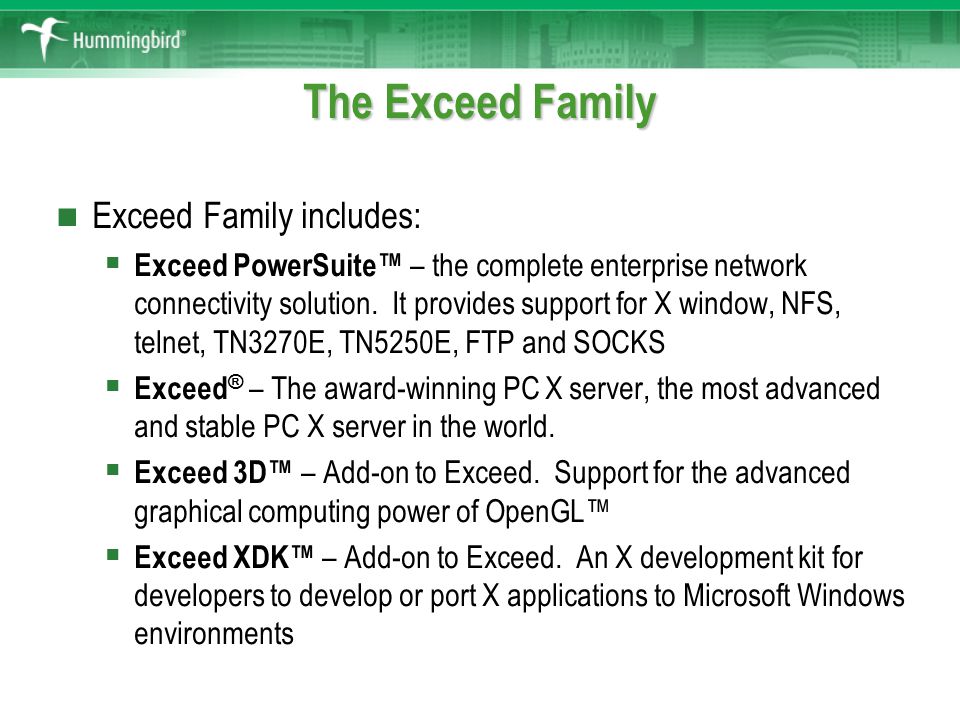

8. The Exceed Family Exceed Family includes:  Exceed PowerSuite™ – the complete enterprise network connectivity solution. It provides support for X window, NFS, telnet, TN3270E, TN5250E, FTP and SOCKS  Exceed ® – The award-winning PC X server, the most advanced and stable PC X server in the world.  Exceed 3D™ – Add-on to Exceed. Support for the advanced graphical computing power of OpenGL™  Exceed XDK™ – Add-on to Exceed. An X development kit for developers to develop or port X applications to Microsoft Windows environments

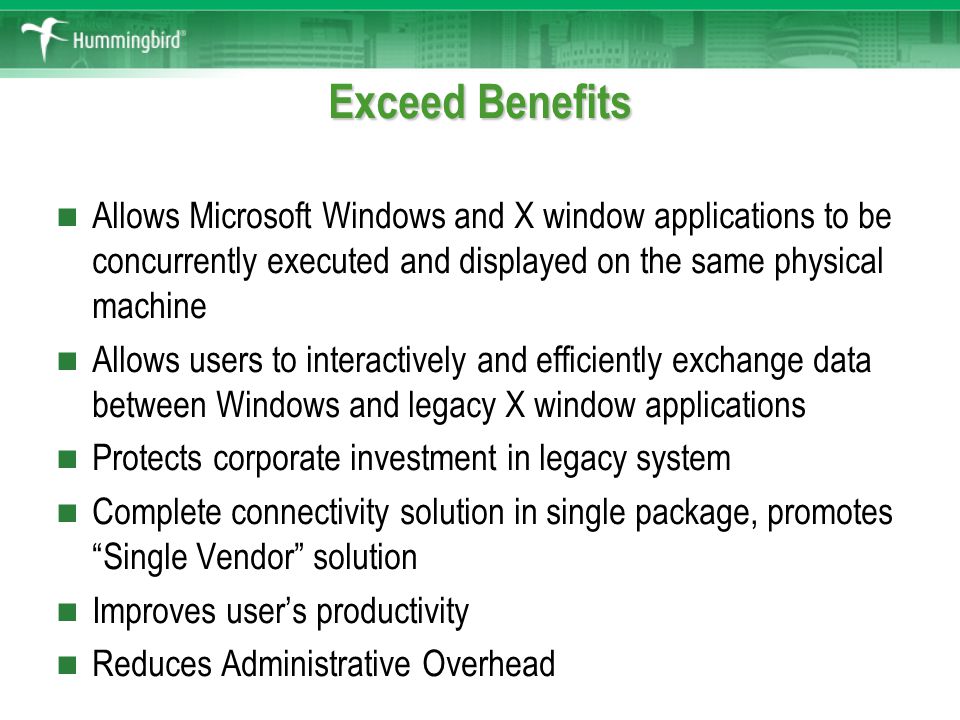

9. Exceed Benefits Allows Microsoft Windows and X window applications to be concurrently executed and displayed on the same physical machine Allows users to interactively and efficiently exchange data between Windows and legacy X window applications Protects corporate investment in legacy system Complete connectivity solution in single package, promotes “Single Vendor” solution Improves user’s productivity Reduces Administrative Overhead

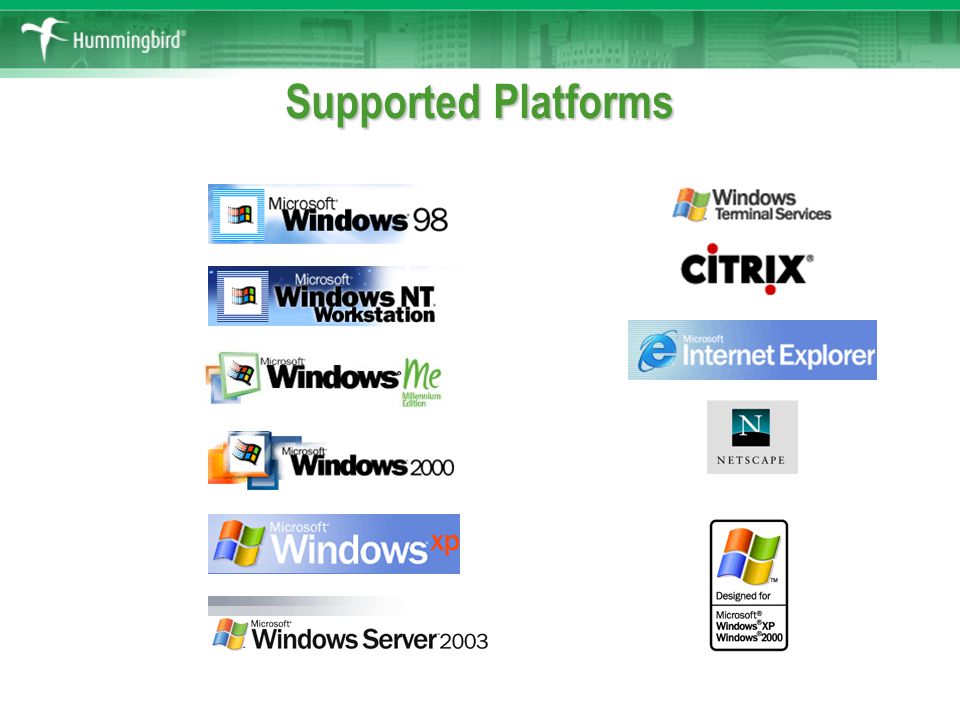

10. Supported Platforms

11. What’s New in version 10 ?

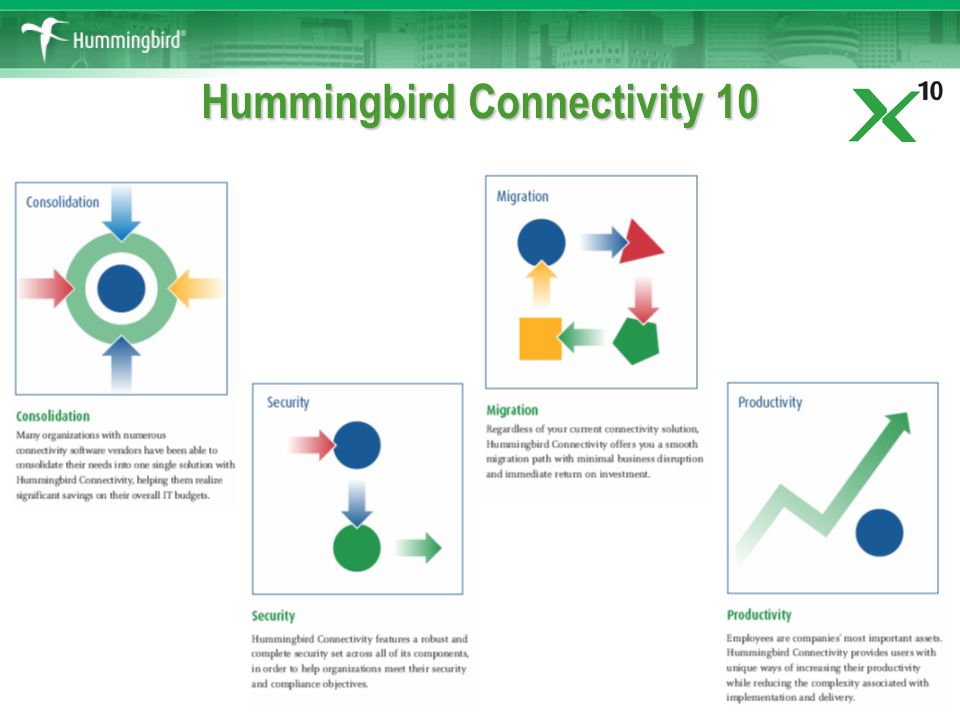

12. Hummingbird Connectivity 10

13. Consolidation World renown “Gold Standard” of PC X server Credited with 71.5% of the market share by IDC Satisfies most corporate connectivity needs by providing  X11  TN3270, TN5250, VT  NFS Client  FTP Supports any Microsoft 32-bit and 64- bit operating system and Citrix Metaframe

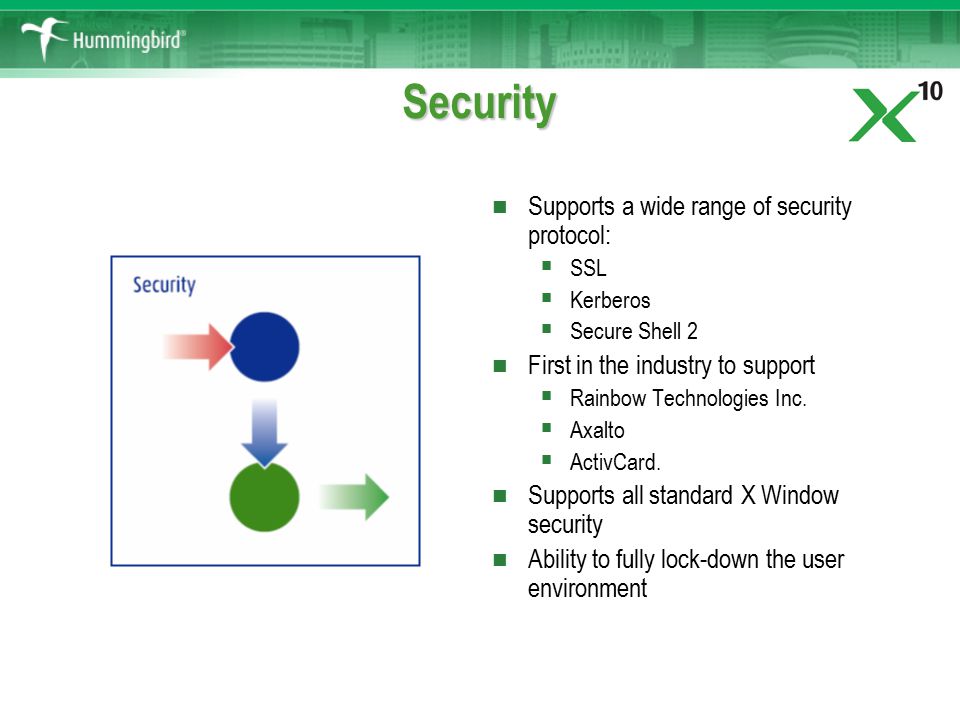

14. Security Supports a wide range of security protocol:  SSL  Kerberos  Secure Shell 2 First in the industry to support  Rainbow Technologies Inc.  Axalto  ActivCard. Supports all standard X Window security Ability to fully lock-down the user environment

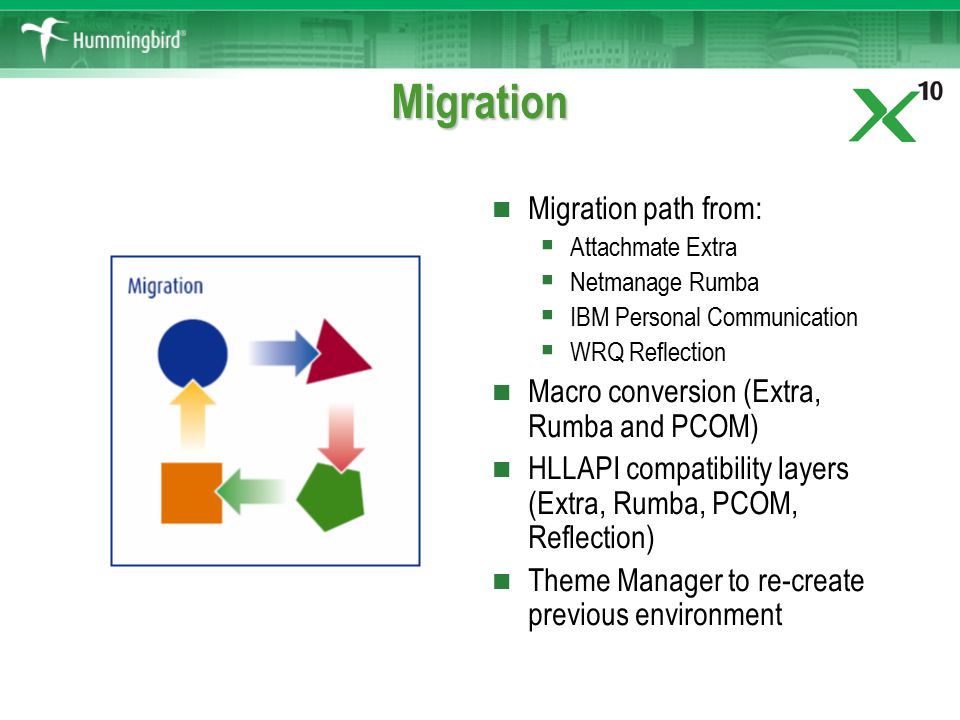

15. Migration Migration path from:  Attachmate Extra  Netmanage Rumba  IBM Personal Communication  WRQ Reflection Macro conversion (Extra, Rumba and PCOM) HLLAPI compatibility layers (Extra, Rumba, PCOM, Reflection) Theme Manager to re-create previous environment

16. Productivity Xweb Wizard: a new, wizard- driven utility that helps users publish X clients on the web Exceed Connection Manager provides a bird-eye view of everything there is to know about Exceed configuration Xstart and Xsession have been redesigned to improve the usability

17. Features Overview

18. New Features Summary FeaturesSummary Xweb Wizard This new application guides the user step-by-step to create web pages that launch X applications in embedded mode (embedded in web browsers) or in stand-alone mode, through various start methods, including REXEC, RLOGIN and Secure Shell. Expanded Smart Card Support Exceed 10 now supports smartcard solutions from Axalto (formerly known as Schlumberger) and Rainbow Technologies Inc. Smart Card ManagerA companion application that allows users to load or store the credentials to the smart card devices. Xstart and Xsession Redesign Simpler, sleeker and slimmer! The new Xstart and Xsession user interfaces are easier and more intuitive to use, while maintaining 100% backward compatibility with the configuration files created by the previous versions. Exceed Connection Manager This is a new and powerful application that provides users a single point of access to all Exceed-related configuration files and dramatically improves productivity. Improved Secure Shell Integration Exceed 10 promotes enhanced out-of-the-box experience, just install and run. Secure Shell tunnels are automatically created without requiring further configuration.

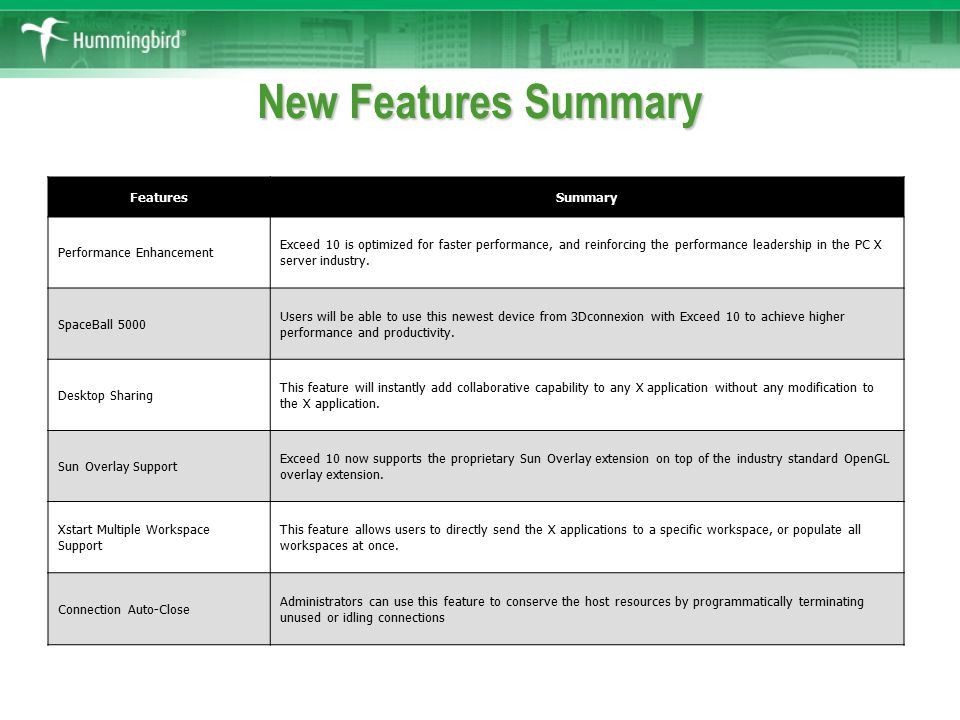

19. New Features Summary FeaturesSummary Performance Enhancement Exceed 10 is optimized for faster performance, and reinforcing the performance leadership in the PC X server industry. SpaceBall 5000 Users will be able to use this newest device from 3Dconnexion with Exceed 10 to achieve higher performance and productivity. Desktop Sharing This feature will instantly add collaborative capability to any X application without any modification to the X application. Sun Overlay Support Exceed 10 now supports the proprietary Sun Overlay extension on top of the industry standard OpenGL overlay extension. Xstart Multiple Workspace Support This feature allows users to directly send the X applications to a specific workspace, or populate all workspaces at once. Connection Auto-Close Administrators can use this feature to conserve the host resources by programmatically terminating unused or idling connections

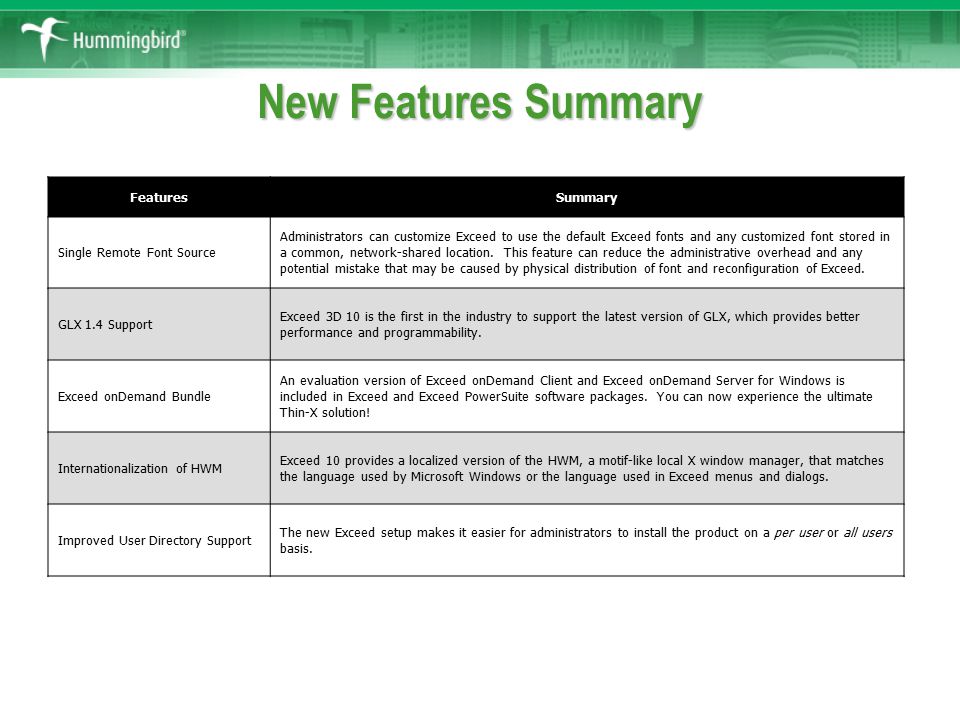

20. New Features Summary FeaturesSummary Single Remote Font Source Administrators can customize Exceed to use the default Exceed fonts and any customized font stored in a common, network-shared location. This feature can reduce the administrative overhead and any potential mistake that may be caused by physical distribution of font and reconfiguration of Exceed. GLX 1.4 Support Exceed 3D 10 is the first in the industry to support the latest version of GLX, which provides better performance and programmability. Exceed onDemand Bundle An evaluation version of Exceed onDemand Client and Exceed onDemand Server for Windows is included in Exceed and Exceed PowerSuite software packages. You can now experience the ultimate Thin-X solution! Internationalization of HWM Exceed 10 provides a localized version of the HWM, a motif-like local X window manager, that matches the language used by Microsoft Windows or the language used in Exceed menus and dialogs. Improved User Directory Support The new Exceed setup makes it easier for administrators to install the product on a per user or all users basis.

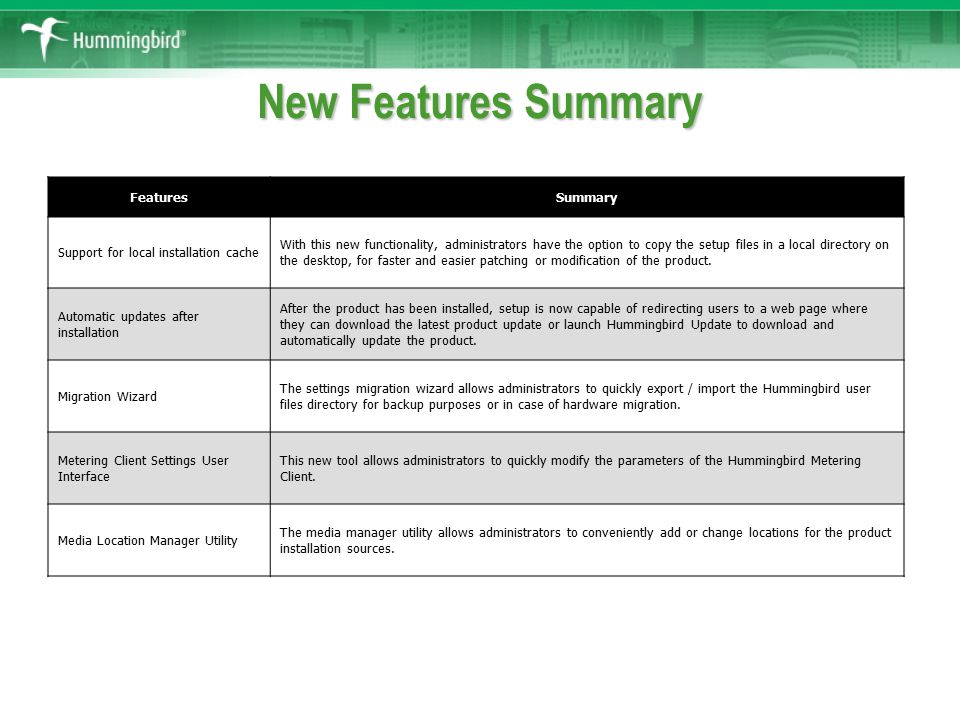

21. New Features Summary FeaturesSummary Support for local installation cache With this new functionality, administrators have the option to copy the setup files in a local directory on the desktop, for faster and easier patching or modification of the product. Automatic updates after installation After the product has been installed, setup is now capable of redirecting users to a web page where they can download the latest product update or launch Hummingbird Update to download and automatically update the product. Migration Wizard The settings migration wizard allows administrators to quickly export / import the Hummingbird user files directory for backup purposes or in case of hardware migration. Metering Client Settings User Interface This new tool allows administrators to quickly modify the parameters of the Hummingbird Metering Client. Media Location Manager Utility The media manager utility allows administrators to conveniently add or change locations for the product installation sources.

22. General Features

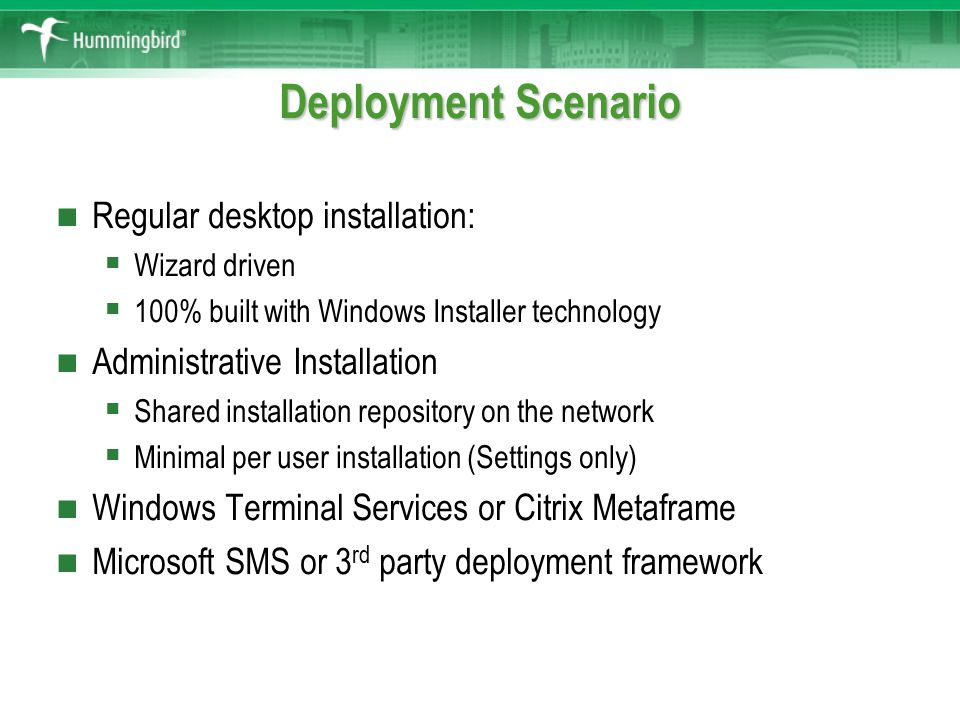

23. Deployment Scenario Regular desktop installation:  Wizard driven  100% built with Windows Installer technology Administrative Installation  Shared installation repository on the network  Minimal per user installation (Settings only) Windows Terminal Services or Citrix Metaframe Microsoft SMS or 3 rd party deployment framework

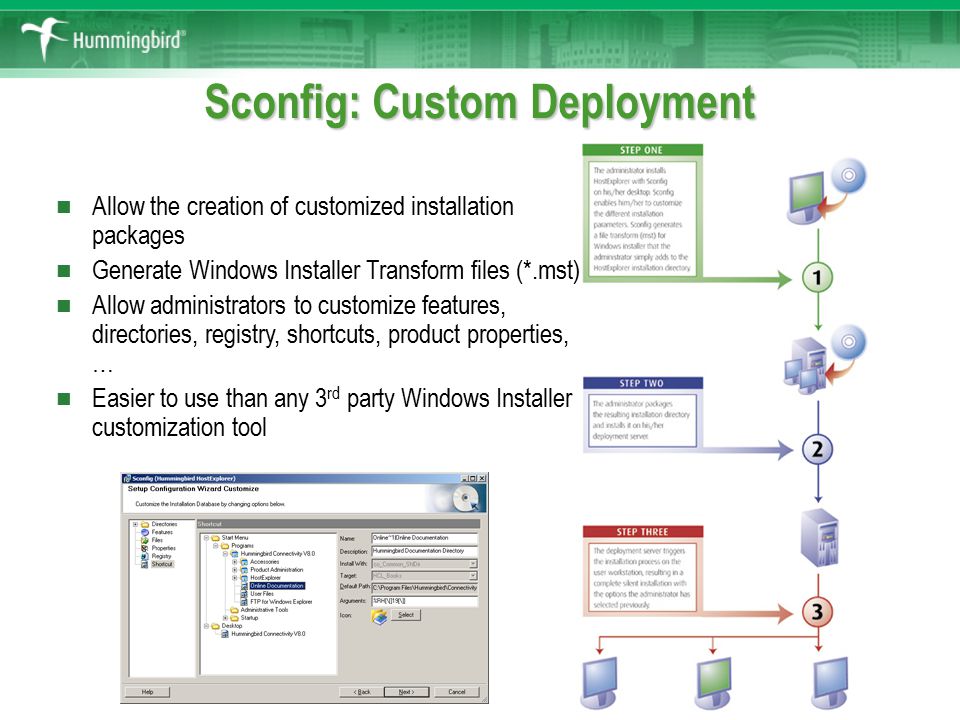

24. Sconfig: Custom Deployment Allow the creation of customized installation packages Generate Windows Installer Transform files (*.mst) Allow administrators to customize features, directories, registry, shortcuts, product properties, … Easier to use than any 3 rd party Windows Installer customization tool

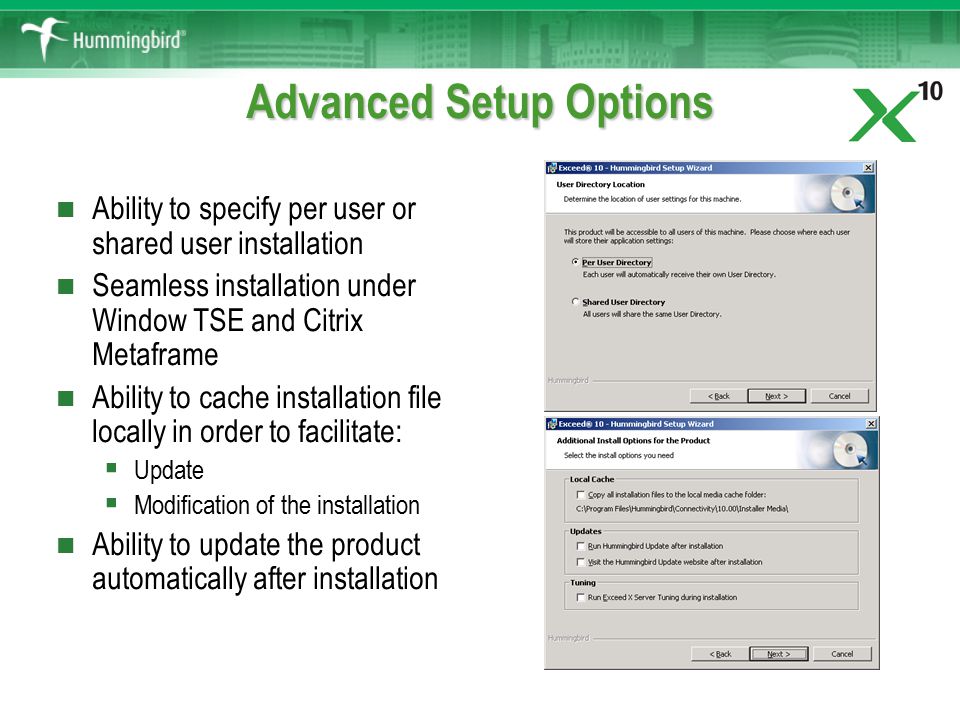

25. Advanced Setup Options Ability to specify per user or shared user installation Seamless installation under Window TSE and Citrix Metaframe Ability to cache installation file locally in order to facilitate:  Update  Modification of the installation Ability to update the product automatically after installation

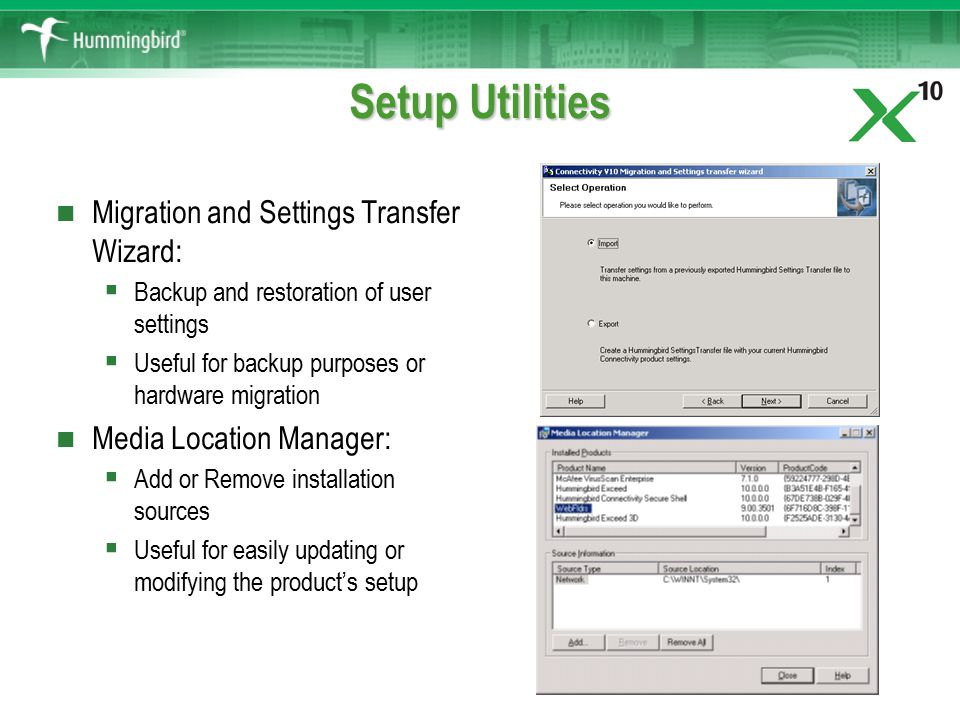

26. Setup Utilities Migration and Settings Transfer Wizard:  Backup and restoration of user settings  Useful for backup purposes or hardware migration Media Location Manager:  Add or Remove installation sources  Useful for easily updating or modifying the product’s setup

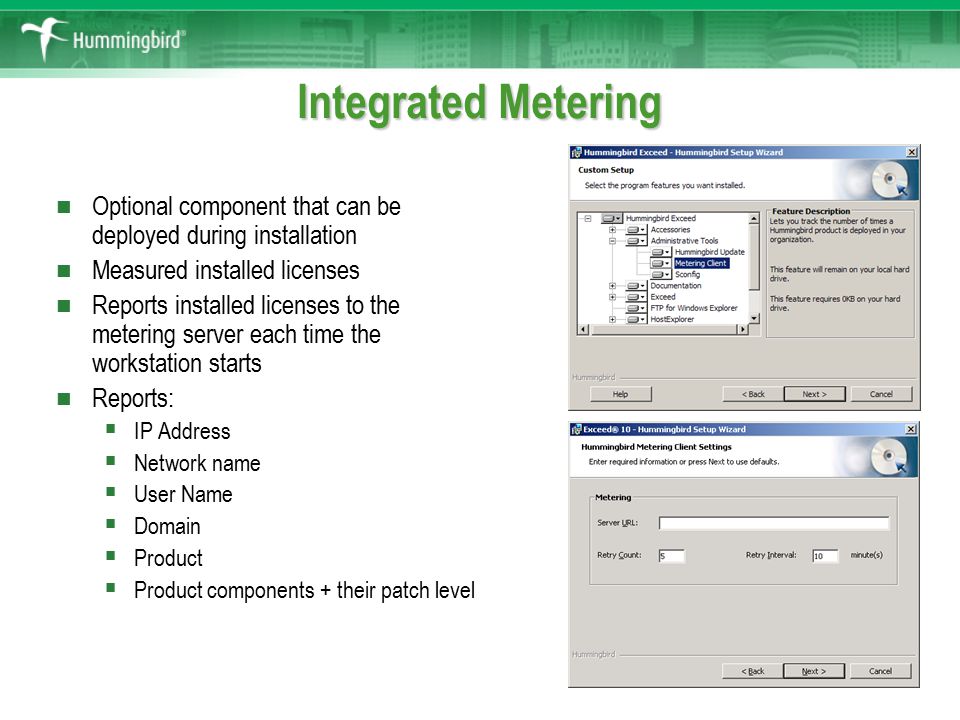

27. Integrated Metering Optional component that can be deployed during installation Measured installed licenses Reports installed licenses to the metering server each time the workstation starts Reports:  IP Address  Network name  User Name  Domain  Product  Product components + their patch level

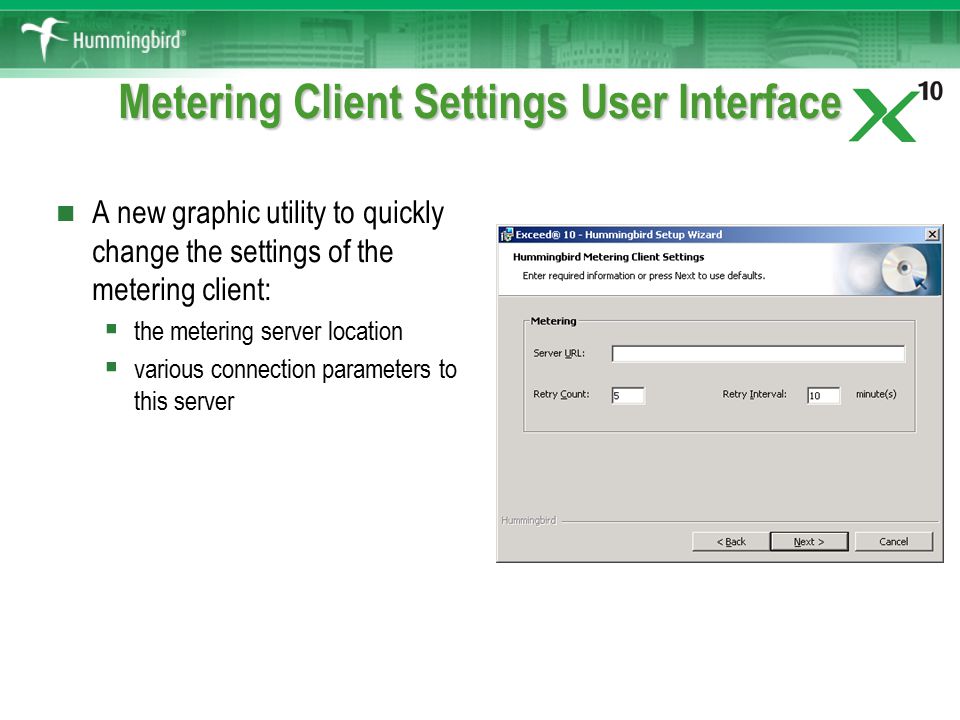

28. Metering Client Settings User Interface A new graphic utility to quickly change the settings of the metering client:  the metering server location  various connection parameters to this server

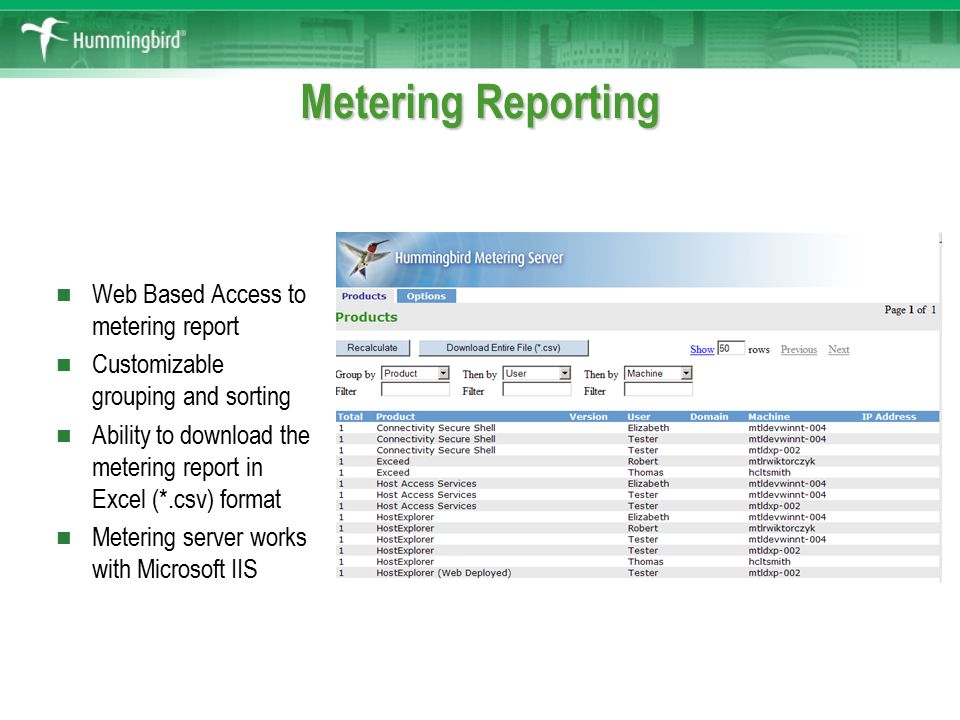

29. Metering Reporting Web Based Access to metering report Customizable grouping and sorting Ability to download the metering report in Excel (*.csv) format Metering server works with Microsoft IIS

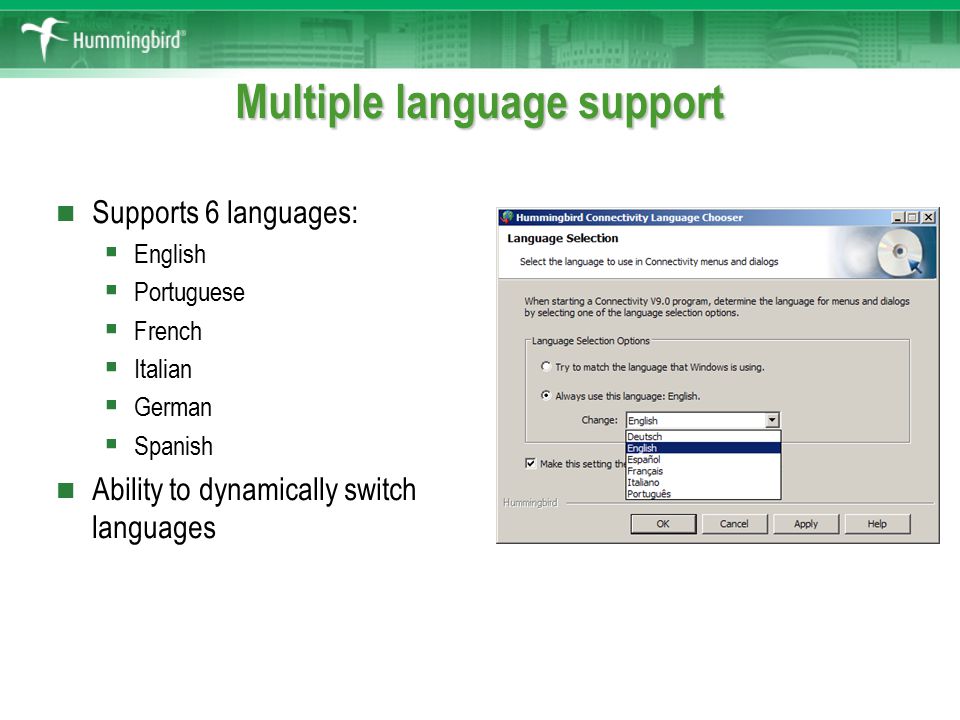

30. Multiple language support Supports 6 languages:  English  Portuguese  French  Italian  German  Spanish Ability to dynamically switch languages

31. Consolidation

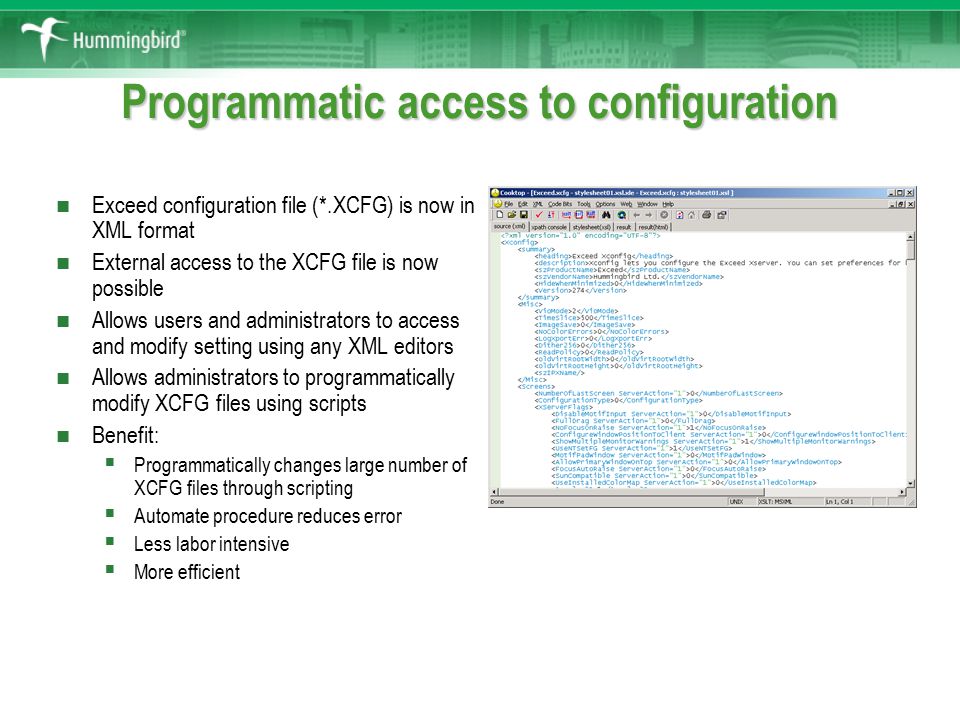

32. Programmatic access to configuration Exceed configuration file (*.XCFG) is now in XML format External access to the XCFG file is now possible Allows users and administrators to access and modify setting using any XML editors Allows administrators to programmatically modify XCFG files using scripts Benefit:  Programmatically changes large number of XCFG files through scripting  Automate procedure reduces error  Less labor intensive  More efficient

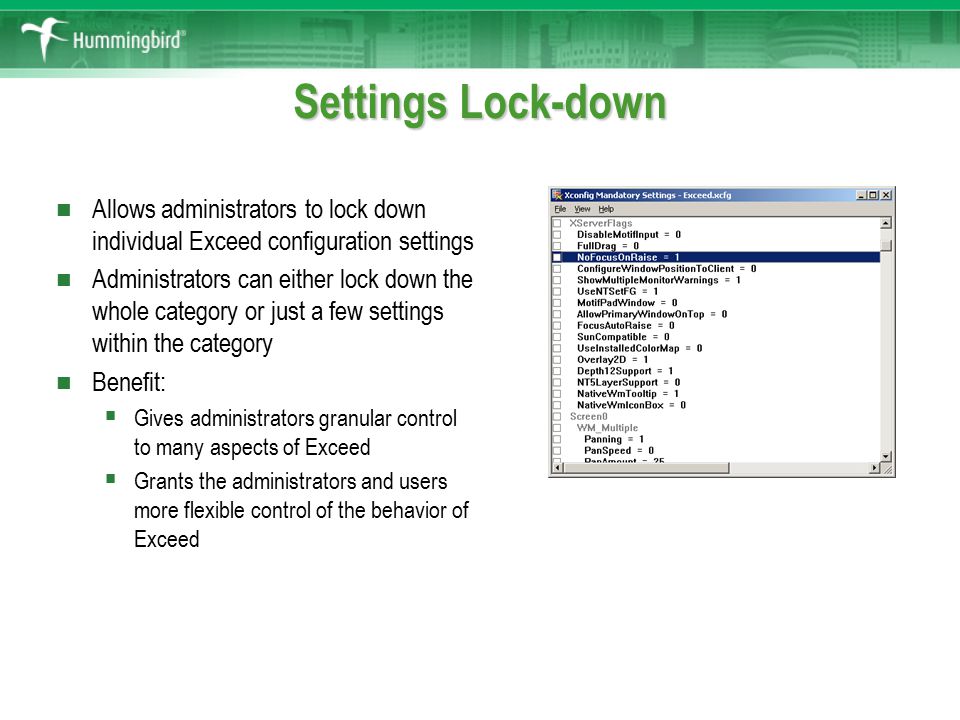

33. Settings Lock-down Allows administrators to lock down individual Exceed configuration settings Administrators can either lock down the whole category or just a few settings within the category Benefit:  Gives administrators granular control to many aspects of Exceed  Grants the administrators and users more flexible control of the behavior of Exceed

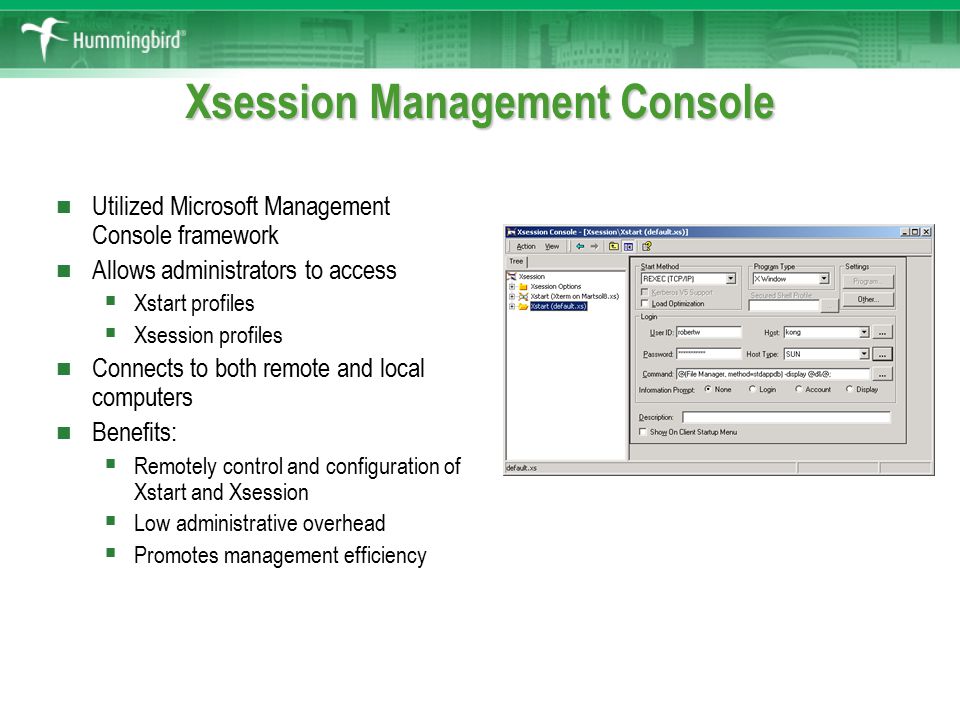

34. Xsession Management Console Utilized Microsoft Management Console framework Allows administrators to access  Xstart profiles  Xsession profiles Connects to both remote and local computers Benefits:  Remotely control and configuration of Xstart and Xsession  Low administrative overhead  Promotes management efficiency

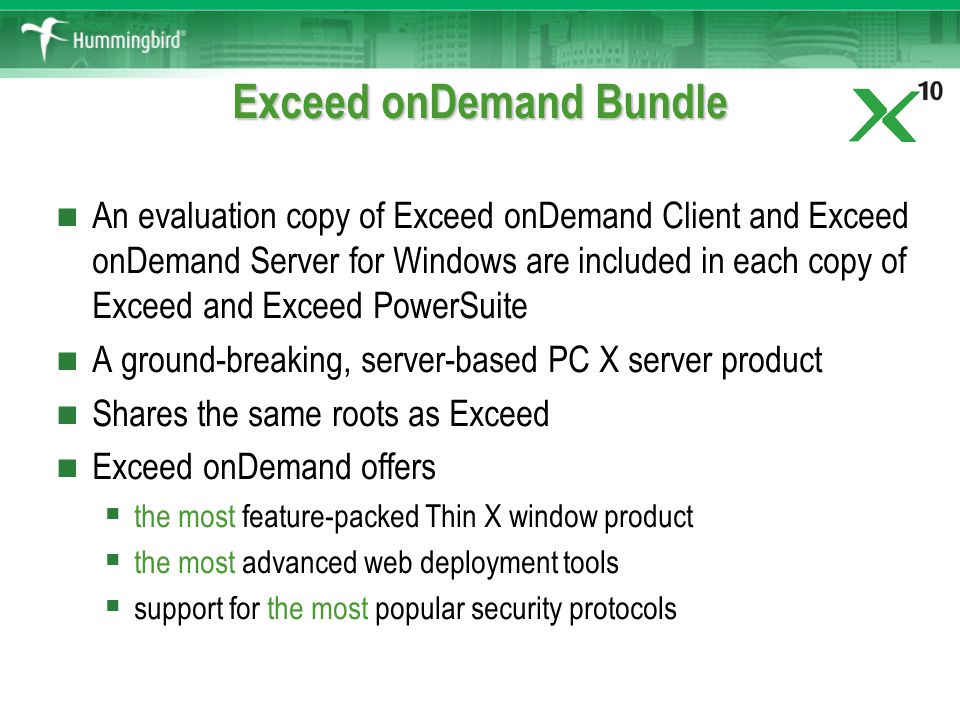

35. Exceed onDemand Bundle An evaluation copy of Exceed onDemand Client and Exceed onDemand Server for Windows are included in each copy of Exceed and Exceed PowerSuite A ground-breaking, server-based PC X server product Shares the same roots as Exceed Exceed onDemand offers  the most feature-packed Thin X window product  the most advanced web deployment tools  support for the most popular security protocols

36. Security

37. Hummingbird Security Overview

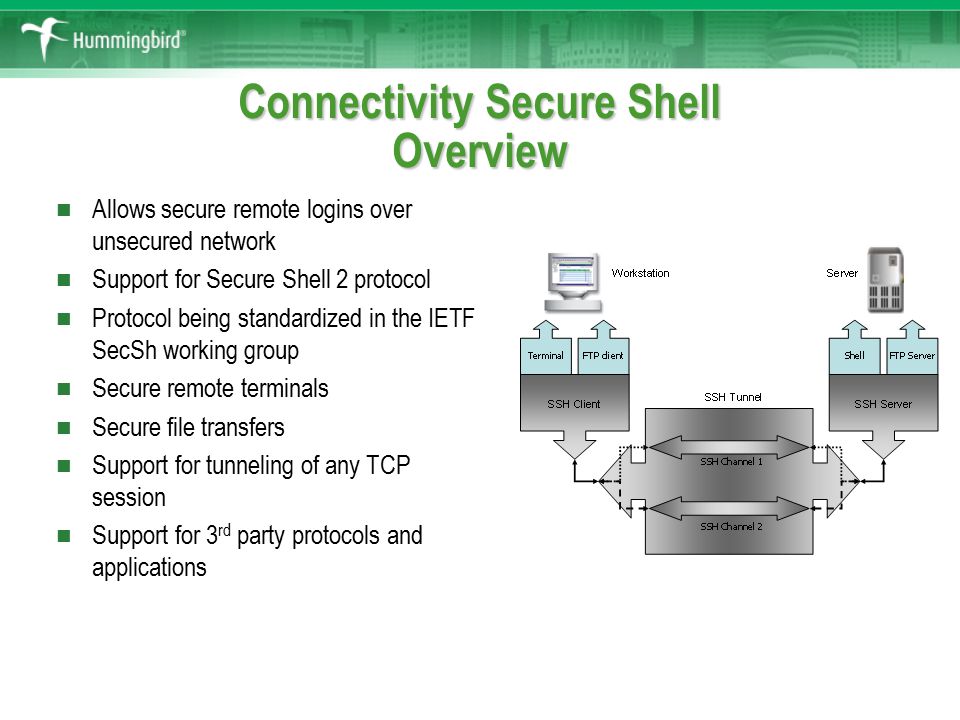

38. Connectivity Secure Shell Overview Allows secure remote logins over unsecured network Support for Secure Shell 2 protocol Protocol being standardized in the IETF SecSh working group Secure remote terminals Secure file transfers Support for tunneling of any TCP session Support for 3 rd party protocols and applications

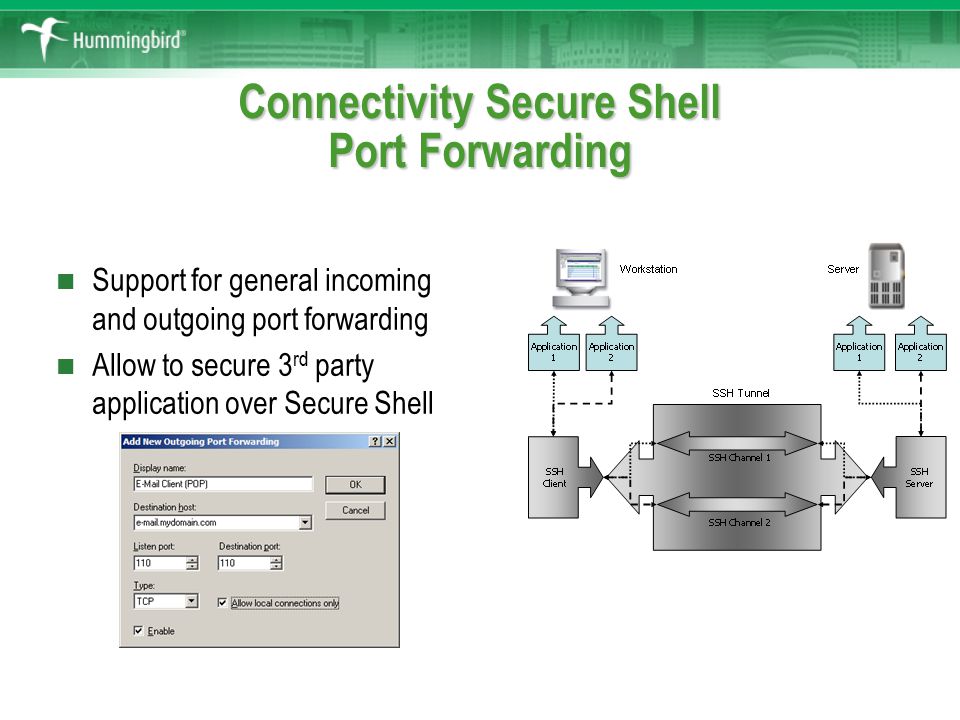

39. Connectivity Secure Shell Port Forwarding Support for general incoming and outgoing port forwarding Allow to secure 3 rd party application over Secure Shell

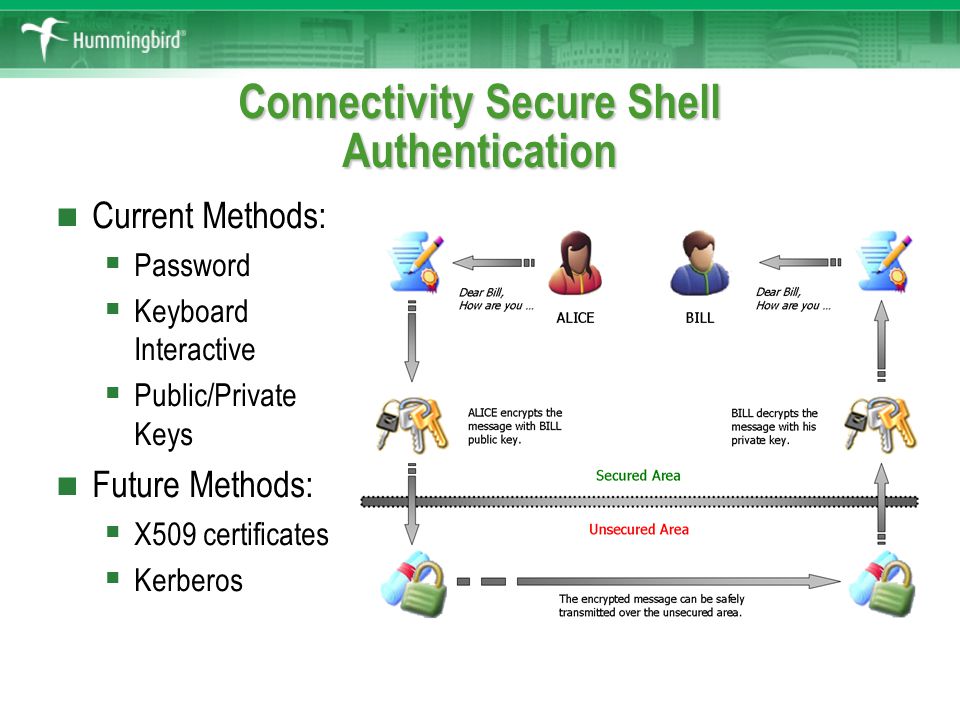

40. Connectivity Secure Shell Authentication Current Methods:  Password  Keyboard Interactive  Public/Private Keys Future Methods:  X509 certificates  Kerberos

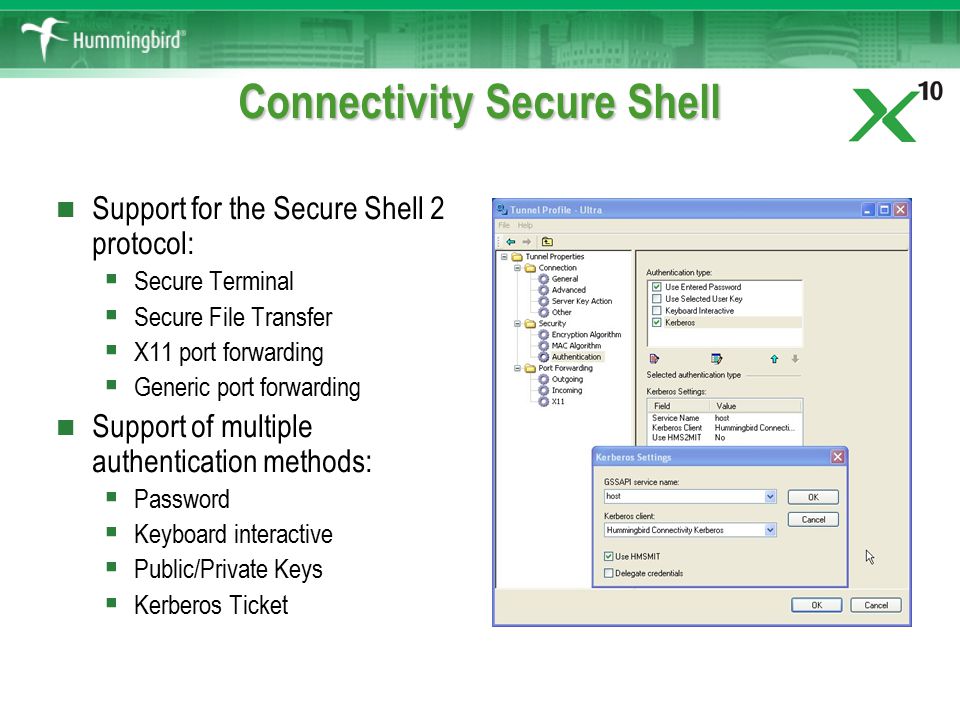

41. Connectivity Secure Shell Support for the Secure Shell 2 protocol:  Secure Terminal  Secure File Transfer  X11 port forwarding  Generic port forwarding Support of multiple authentication methods:  Password  Keyboard interactive  Public/Private Keys  Kerberos Ticket

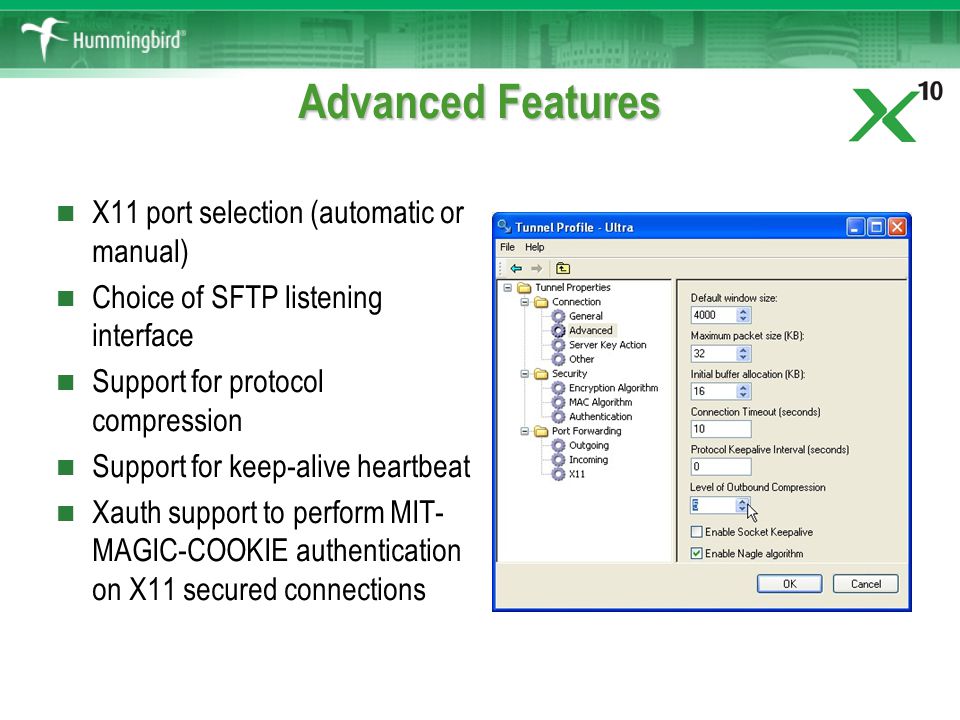

42. Advanced Features X11 port selection (automatic or manual) Choice of SFTP listening interface Support for protocol compression Support for keep-alive heartbeat Xauth support to perform MIT- MAGIC-COOKIE authentication on X11 secured connections

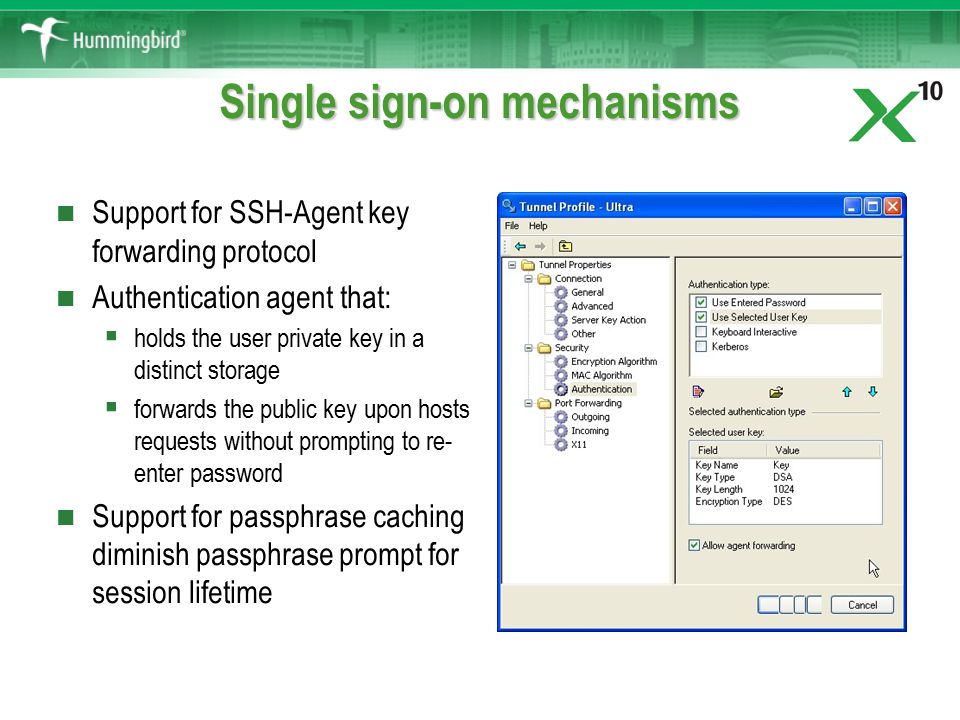

43. Single sign-on mechanisms Support for SSH-Agent key forwarding protocol Authentication agent that:  holds the user private key in a distinct storage  forwards the public key upon hosts requests without prompting to re- enter password Support for passphrase caching diminish passphrase prompt for session lifetime

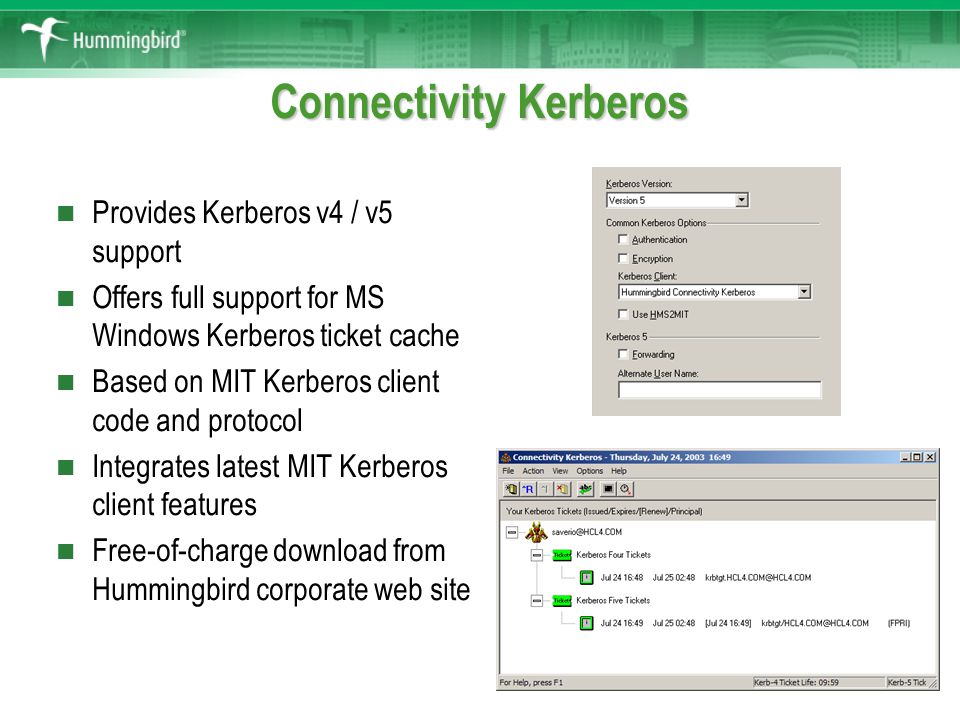

44. Connectivity Kerberos Provides Kerberos v4 / v5 support Offers full support for MS Windows Kerberos ticket cache Based on MIT Kerberos client code and protocol Integrates latest MIT Kerberos client features Free-of-charge download from Hummingbird corporate web site

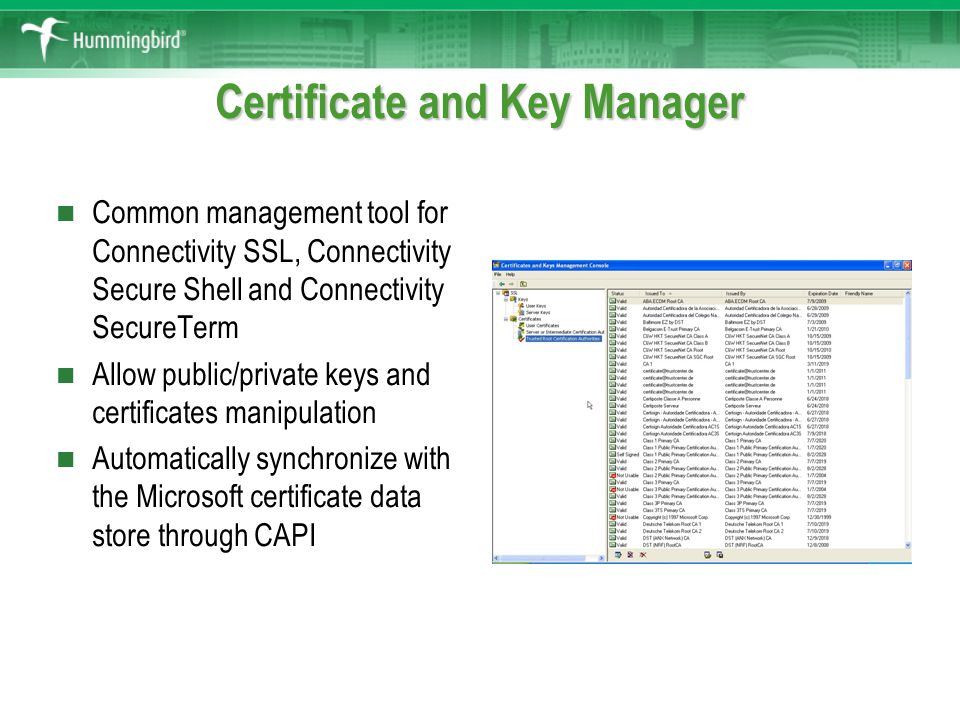

45. Certificate and Key Manager Common management tool for Connectivity SSL, Connectivity Secure Shell and Connectivity SecureTerm Allow public/private keys and certificates manipulation Automatically synchronize with the Microsoft certificate data store through CAPI

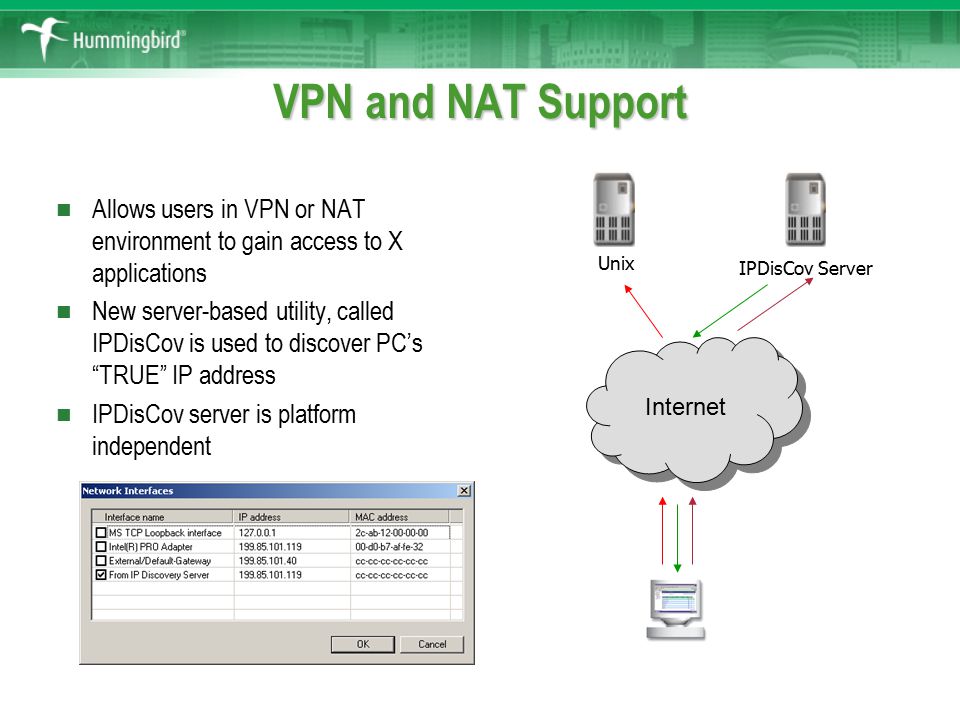

46. VPN and NAT Support Allows users in VPN or NAT environment to gain access to X applications New server-based utility, called IPDisCov is used to discover PC’s “TRUE” IP address IPDisCov server is platform independent Unix IPDisCov Server Internet

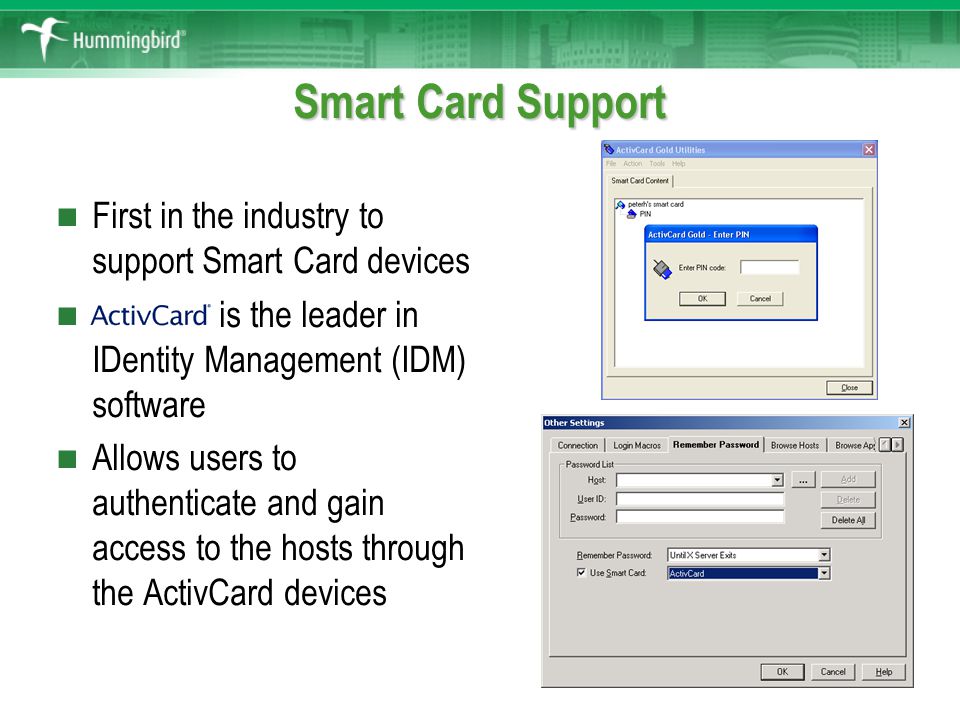

47. Smart Card Support First in the industry to support Smart Card devices is the leader in IDentity Management (IDM) software Allows users to authenticate and gain access to the hosts through the ActivCard devices

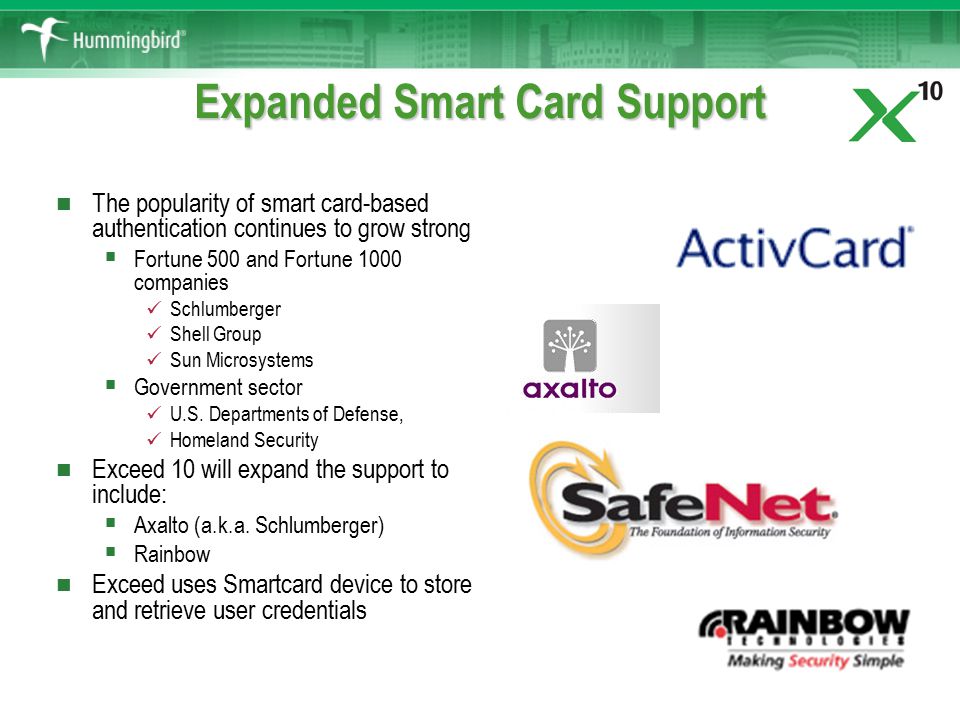

48. Expanded Smart Card Support The popularity of smart card-based authentication continues to grow strong  Fortune 500 and Fortune 1000 companies Schlumberger Shell Group Sun Microsystems  Government sector U.S. Departments of Defense, Homeland Security Exceed 10 will expand the support to include:  Axalto (a.k.a. Schlumberger)  Rainbow Exceed uses Smartcard device to store and retrieve user credentials

49. Smart Card Manager A companion utility to manage the credentials stored in the smart cards Allows users to maintain host and passwords that are securely stored on a smart card Users can use the same smartcard device to log in to Microsoft Windows as well as launching X applications

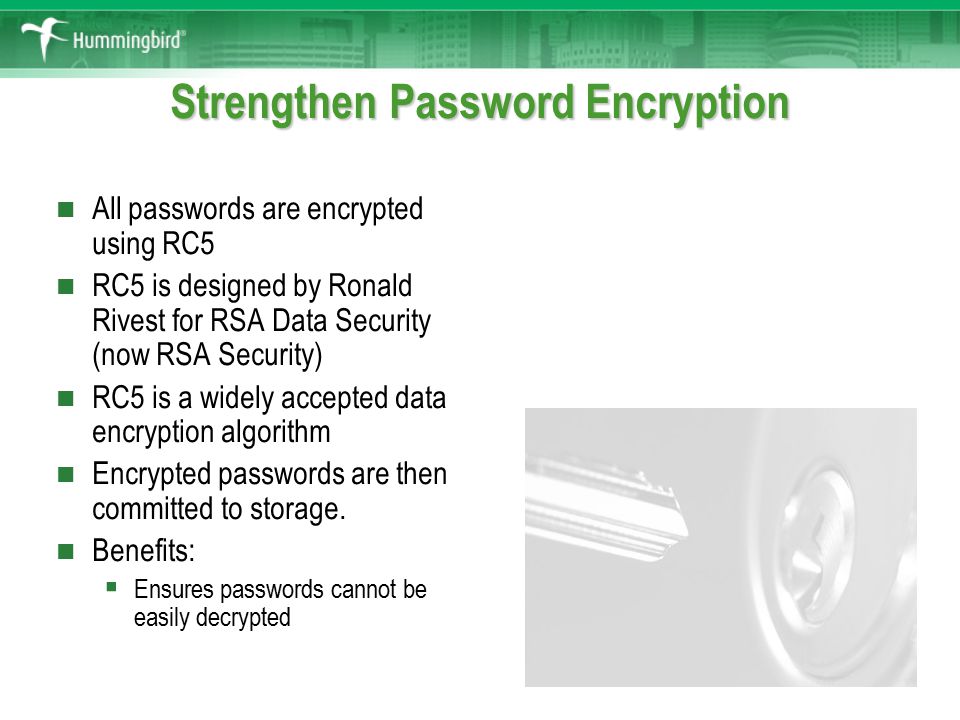

50. Strengthen Password Encryption All passwords are encrypted using RC5 RC5 is designed by Ronald Rivest for RSA Data Security (now RSA Security) RC5 is a widely accepted data encryption algorithm Encrypted passwords are then committed to storage. Benefits:  Ensures passwords cannot be easily decrypted

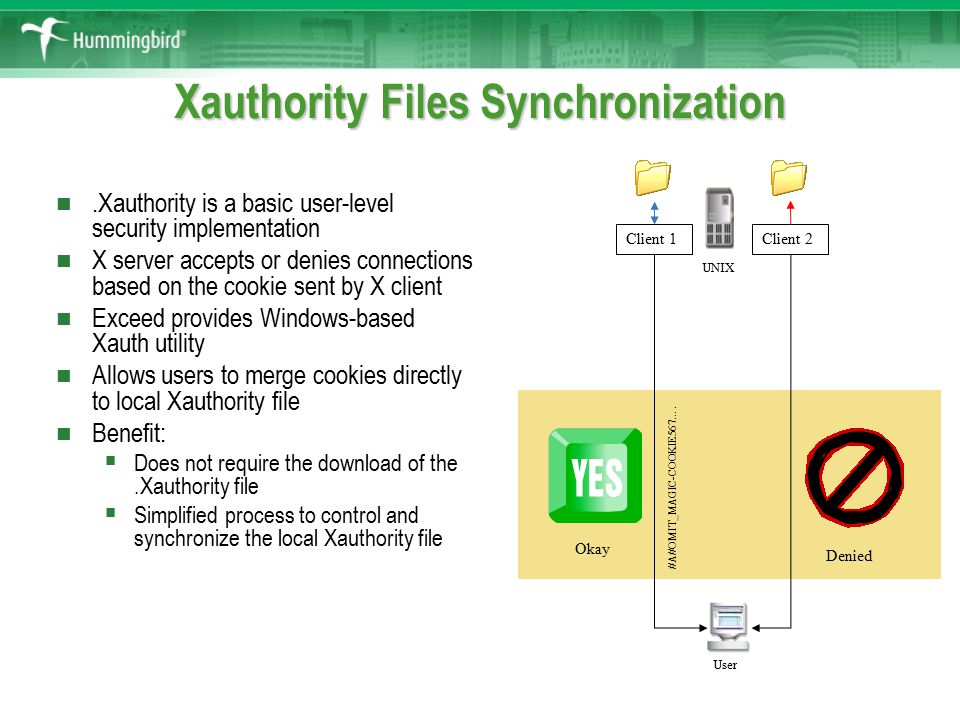

51. Xauthority Files Synchronization.Xauthority is a basic user-level security implementation X server accepts or denies connections based on the cookie sent by X client Exceed provides Windows-based Xauth utility Allows users to merge cookies directly to local Xauthority file Benefit:  Does not require the download of the.Xauthority file  Simplified process to control and synchronize the local Xauthority file User UNIX Client 2Client 1 Denied #A#OMIT_MAGIC-COOKIE567…. Okay

52. Productivity

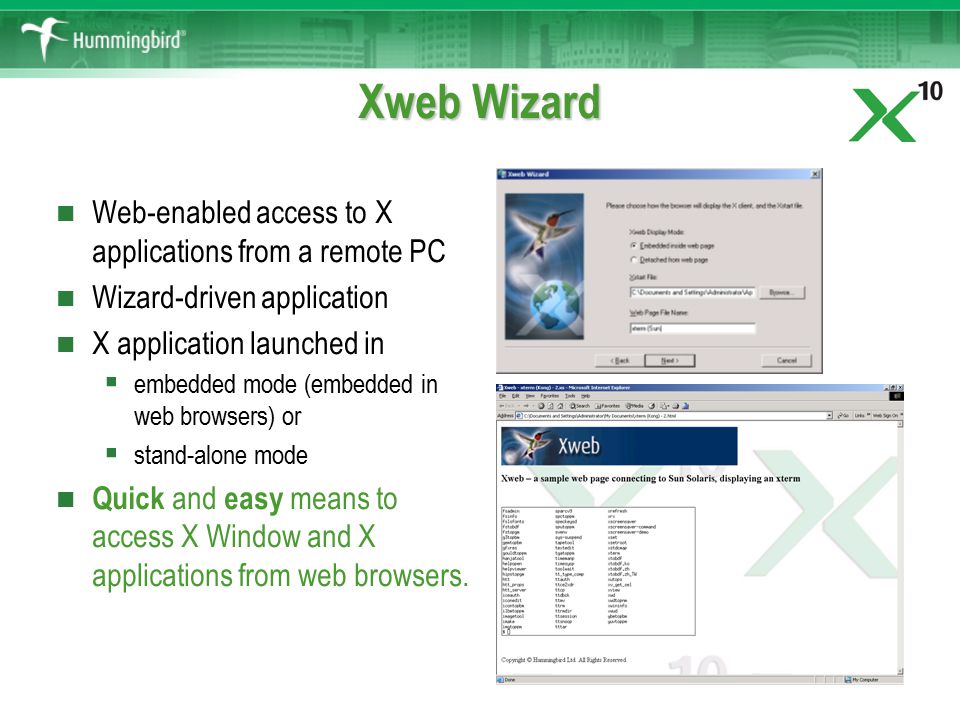

53. Xweb Wizard Web-enabled access to X applications from a remote PC Wizard-driven application X application launched in  embedded mode (embedded in web browsers) or  stand-alone mode Quick and easy means to access X Window and X applications from web browsers.

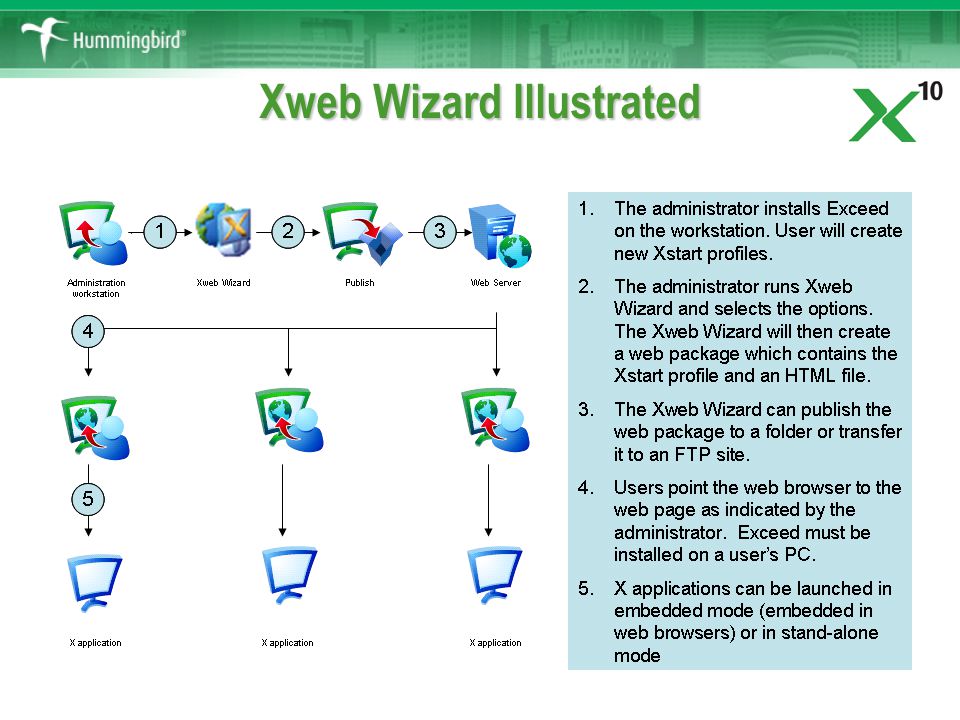

54. Xweb Wizard Illustrated

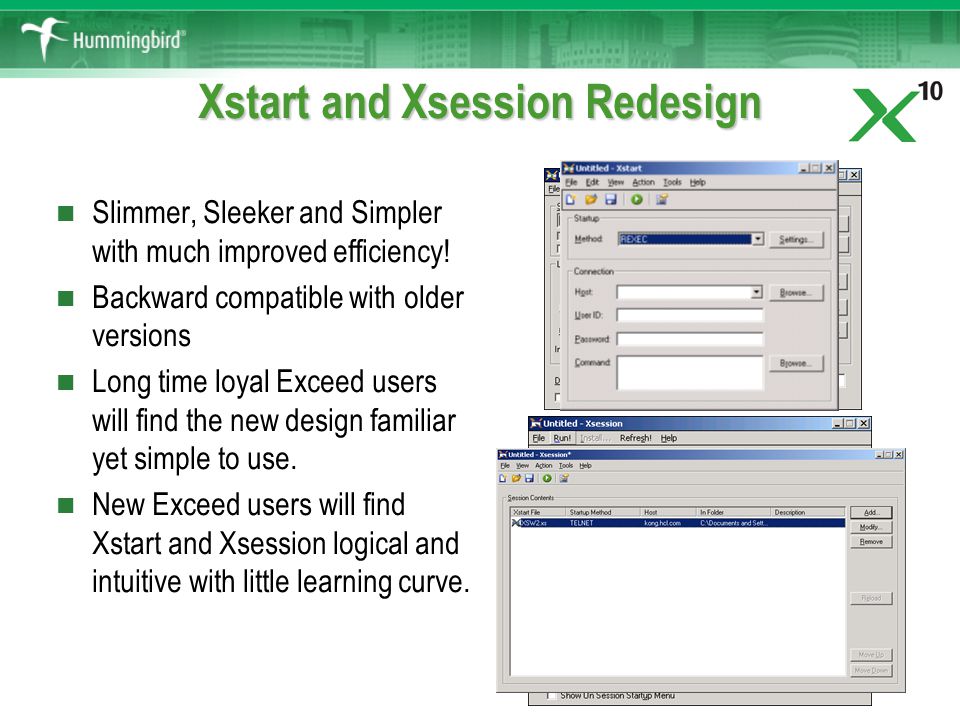

55. Xstart and Xsession Redesign Slimmer, Sleeker and Simpler with much improved efficiency! Backward compatible with older versions Long time loyal Exceed users will find the new design familiar yet simple to use. New Exceed users will find Xstart and Xsession logical and intuitive with little learning curve.

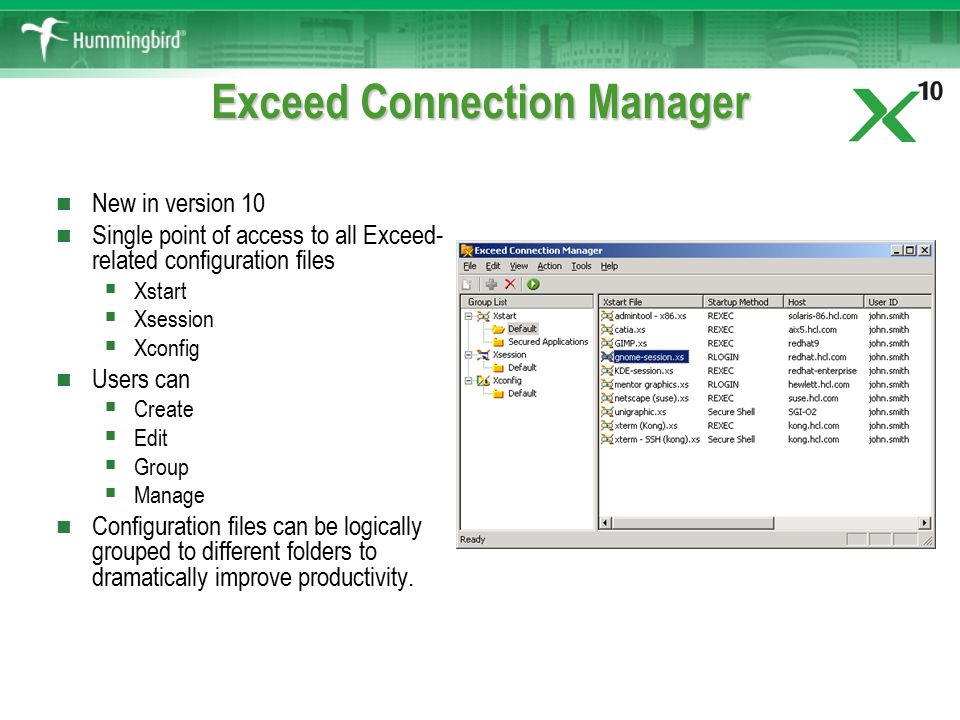

56. Exceed Connection Manager New in version 10 Single point of access to all Exceed- related configuration files  Xstart  Xsession  Xconfig Users can  Create  Edit  Group  Manage Configuration files can be logically grouped to different folders to dramatically improve productivity.

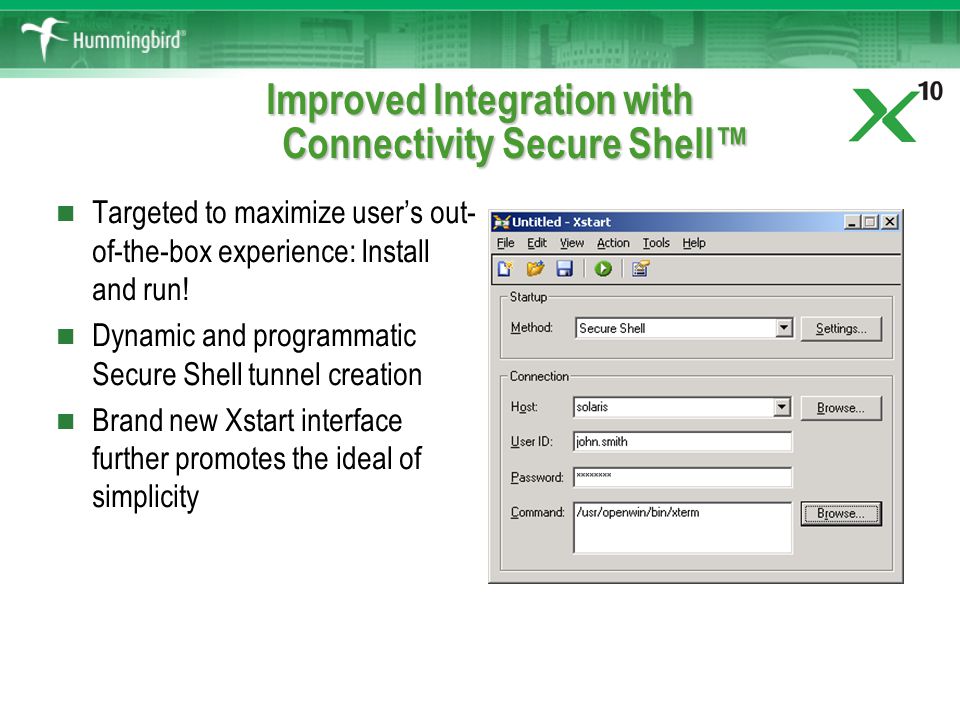

57. Improved Integration with Connectivity Secure Shell™ Targeted to maximize user’s out- of-the-box experience: Install and run! Dynamic and programmatic Secure Shell tunnel creation Brand new Xstart interface further promotes the ideal of simplicity

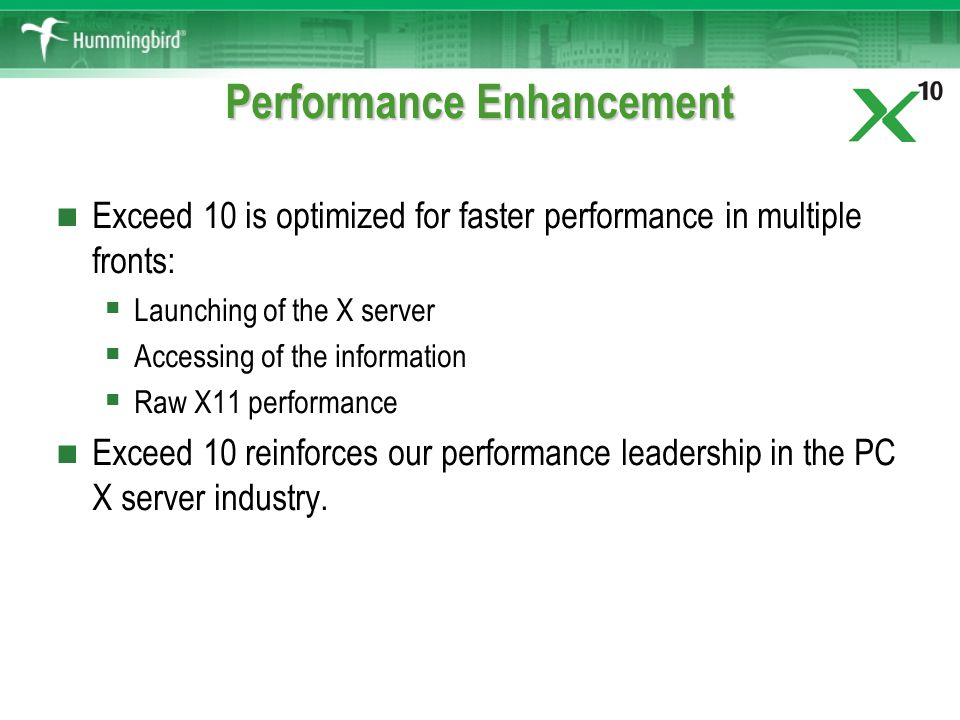

58. Performance Enhancement Exceed 10 is optimized for faster performance in multiple fronts:  Launching of the X server  Accessing of the information  Raw X11 performance Exceed 10 reinforces our performance leadership in the PC X server industry.

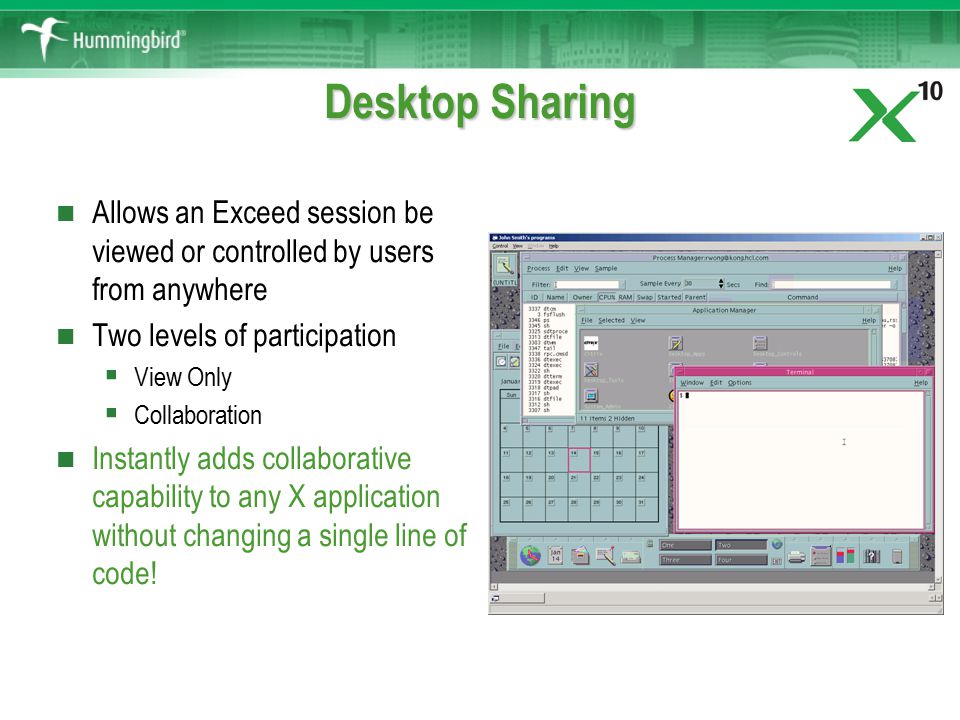

59. Desktop Sharing Allows an Exceed session be viewed or controlled by users from anywhere Two levels of participation  View Only  Collaboration Instantly adds collaborative capability to any X application without changing a single line of code!

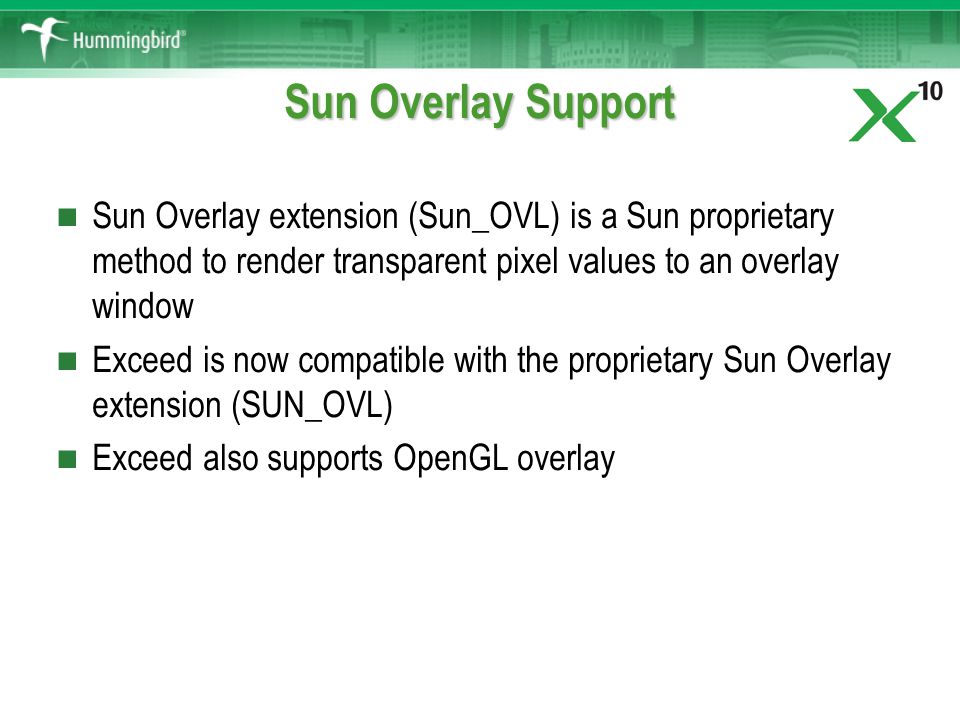

60. Sun Overlay Support Sun Overlay extension (Sun_OVL) is a Sun proprietary method to render transparent pixel values to an overlay window Exceed is now compatible with the proprietary Sun Overlay extension (SUN_OVL) Exceed also supports OpenGL overlay

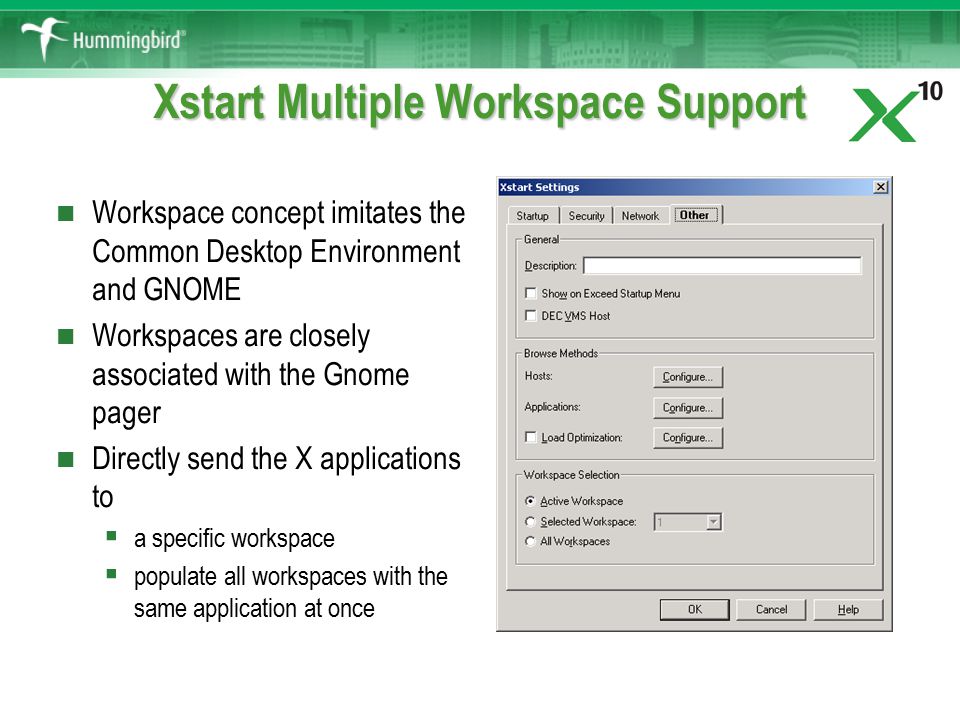

61. Xstart Multiple Workspace Support Workspace concept imitates the Common Desktop Environment and GNOME Workspaces are closely associated with the Gnome pager Directly send the X applications to  a specific workspace  populate all workspaces with the same application at once

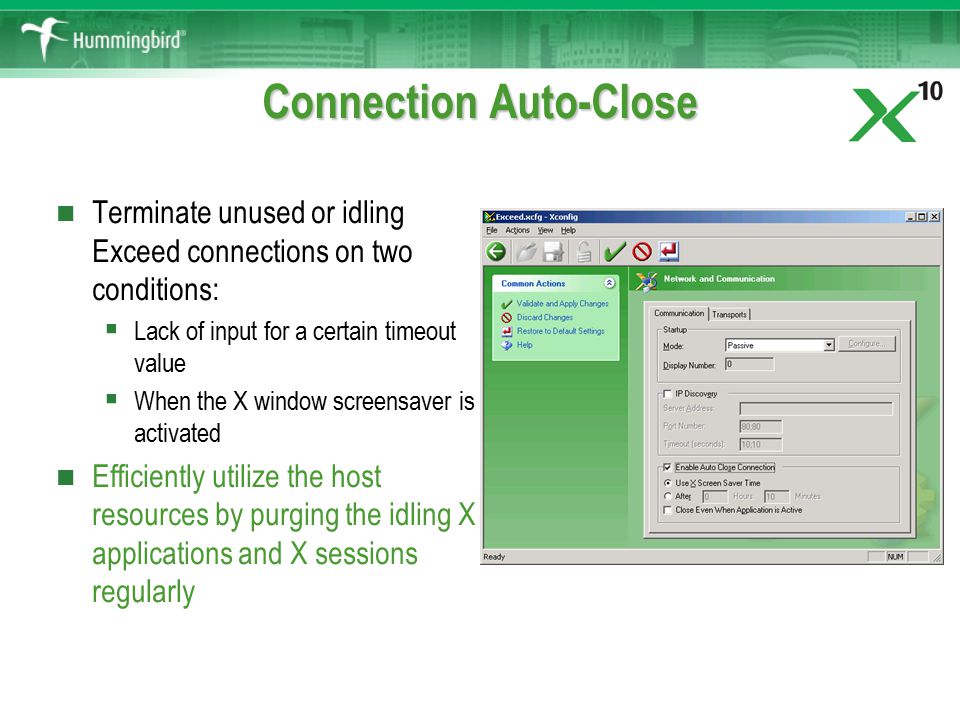

62. Connection Auto-Close Terminate unused or idling Exceed connections on two conditions:  Lack of input for a certain timeout value  When the X window screensaver is activated Efficiently utilize the host resources by purging the idling X applications and X sessions regularly

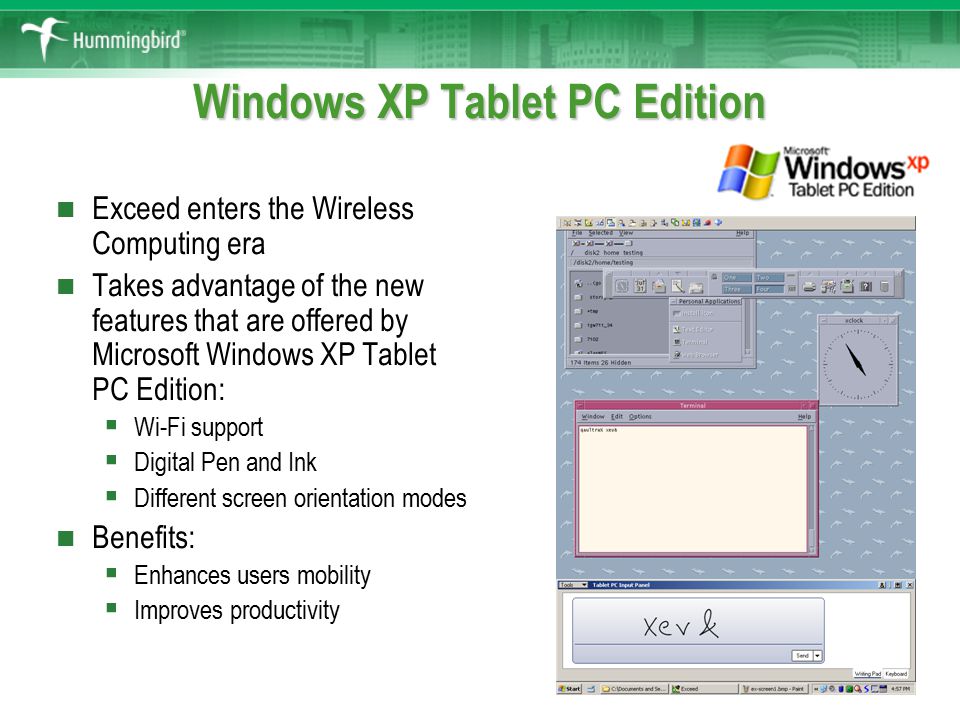

63. Windows XP Tablet PC Edition Exceed enters the Wireless Computing era Takes advantage of the new features that are offered by Microsoft Windows XP Tablet PC Edition:  Wi-Fi support  Digital Pen and Ink  Different screen orientation modes Benefits:  Enhances users mobility  Improves productivity

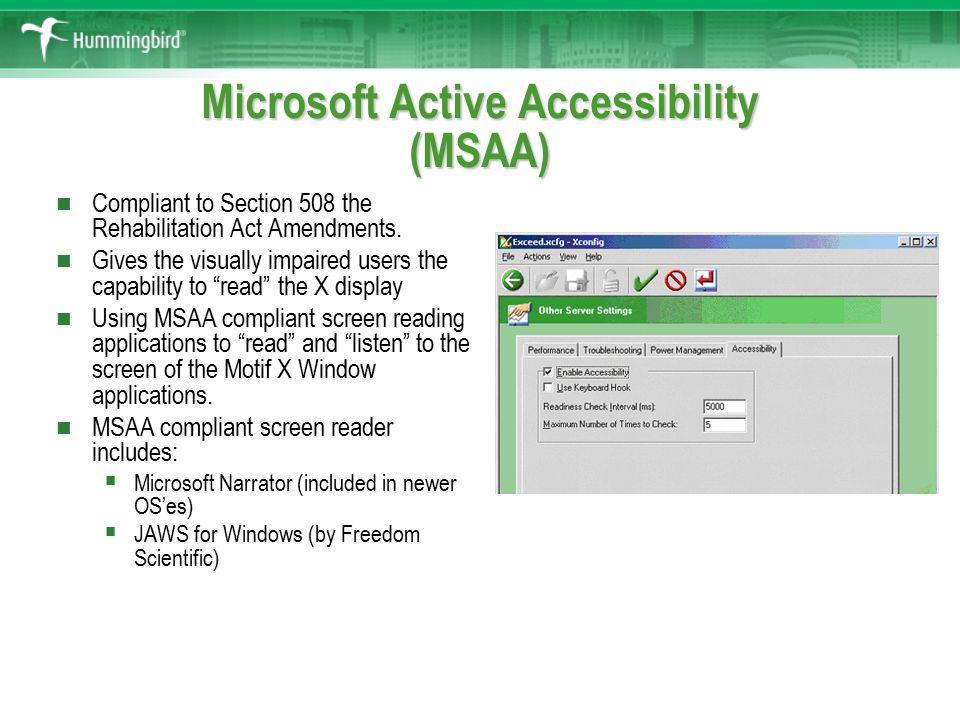

64. Microsoft Active Accessibility (MSAA) Compliant to Section 508 the Rehabilitation Act Amendments. Gives the visually impaired users the capability to “read” the X display Using MSAA compliant screen reading applications to “read” and “listen” to the screen of the Motif X Window applications. MSAA compliant screen reader includes:  Microsoft Narrator (included in newer OS’es)  JAWS for Windows (by Freedom Scientific)

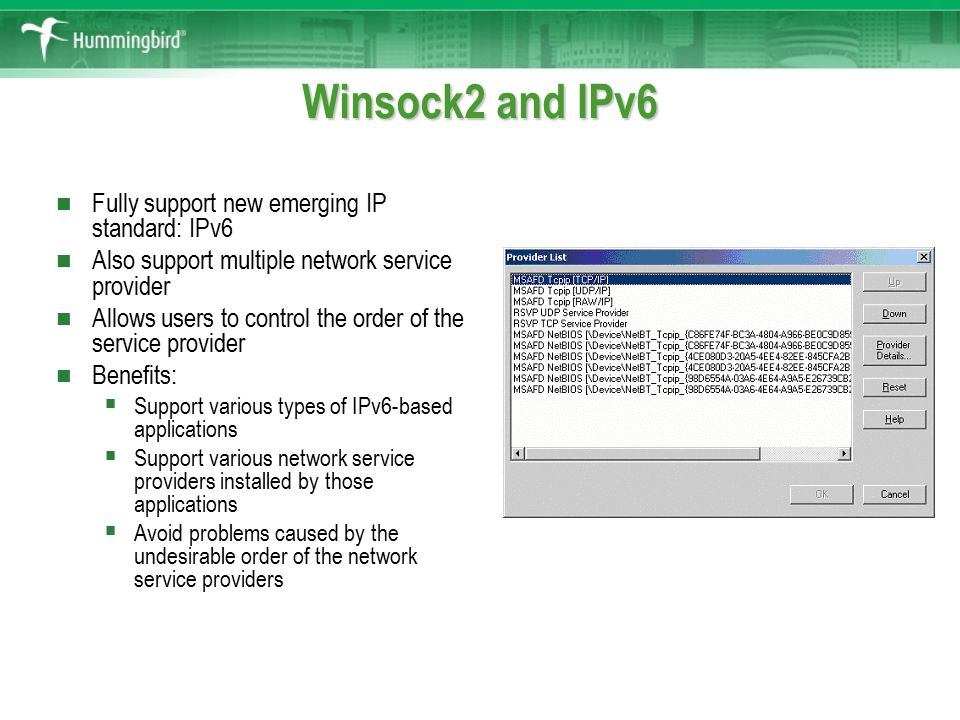

65. Winsock2 and IPv6 Fully support new emerging IP standard: IPv6 Also support multiple network service provider Allows users to control the order of the service provider Benefits:  Support various types of IPv6-based applications  Support various network service providers installed by those applications  Avoid problems caused by the undesirable order of the network service providers

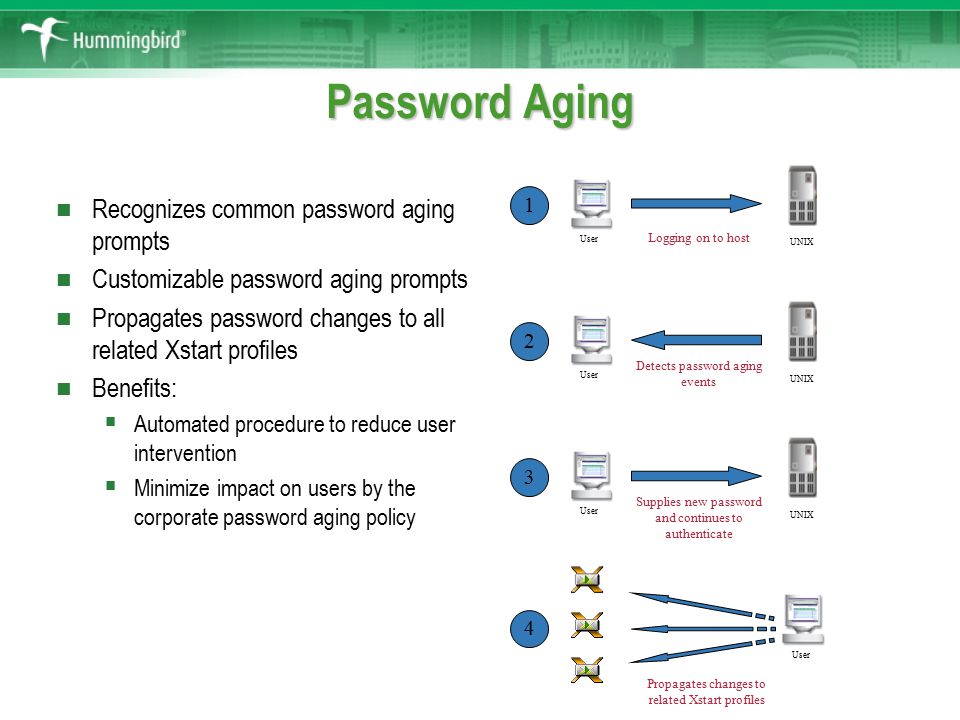

66. Password Aging Recognizes common password aging prompts Customizable password aging prompts Propagates password changes to all related Xstart profiles Benefits:  Automated procedure to reduce user intervention  Minimize impact on users by the corporate password aging policy User UNIX User UNIX User UNIX User Logging on to host Detects password aging events Supplies new password and continues to authenticate Propagates changes to related Xstart profiles 1 2 3 4

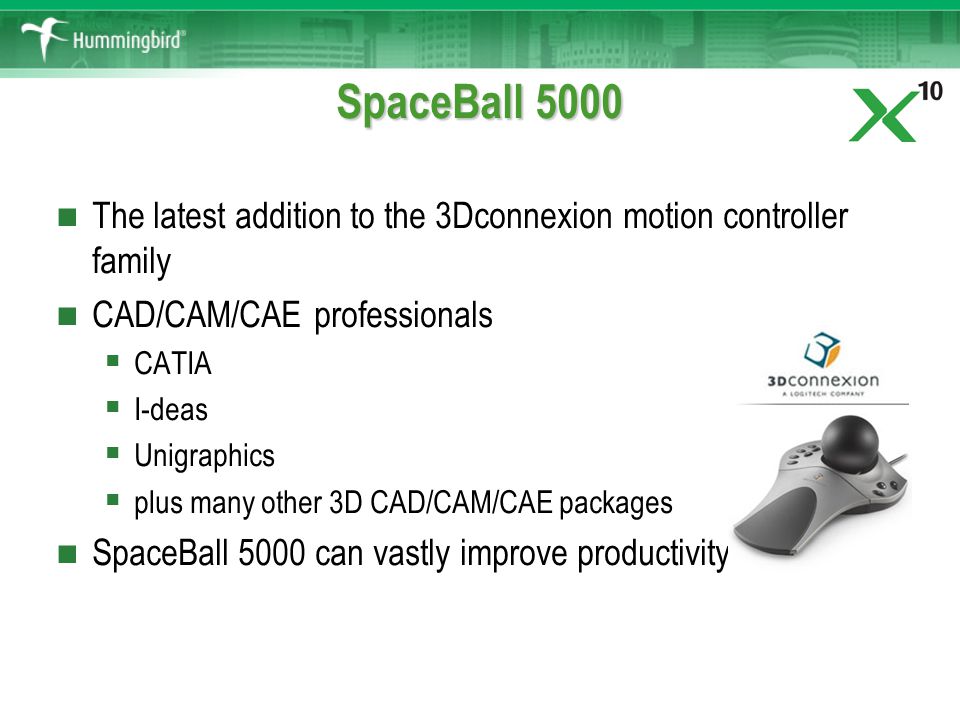

67. SpaceBall 5000 The latest addition to the 3Dconnexion motion controller family CAD/CAM/CAE professionals  CATIA  I-deas  Unigraphics  plus many other 3D CAD/CAM/CAE packages SpaceBall 5000 can vastly improve productivity.

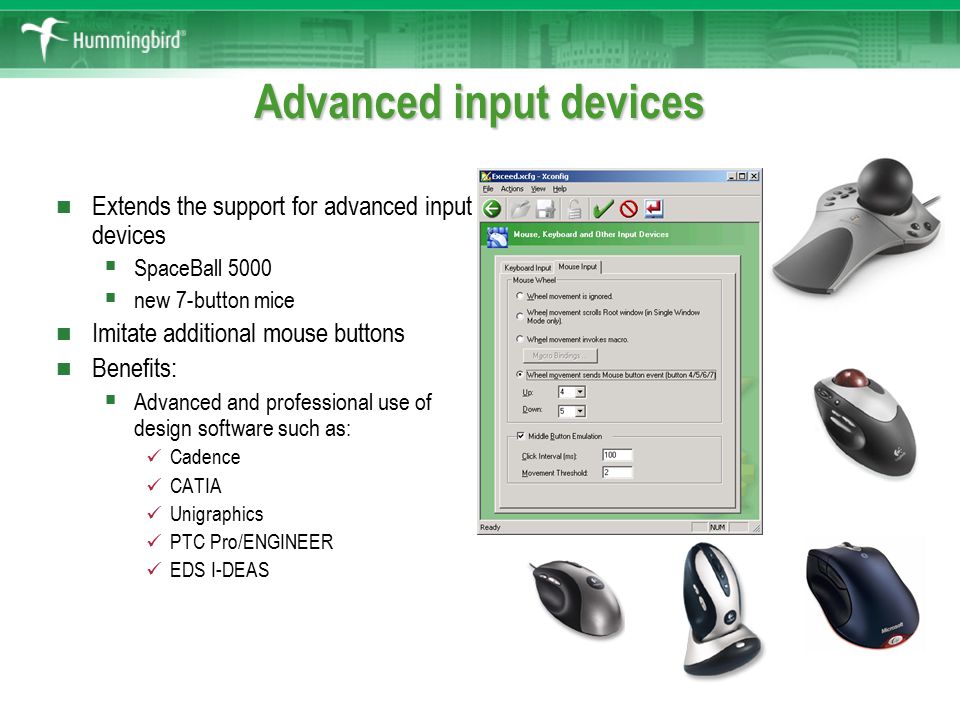

68. Advanced input devices Extends the support for advanced input devices  SpaceBall 5000  new 7-button mice Imitate additional mouse buttons Benefits:  Advanced and professional use of design software such as: Cadence CATIA Unigraphics PTC Pro/ENGINEER EDS I-DEAS

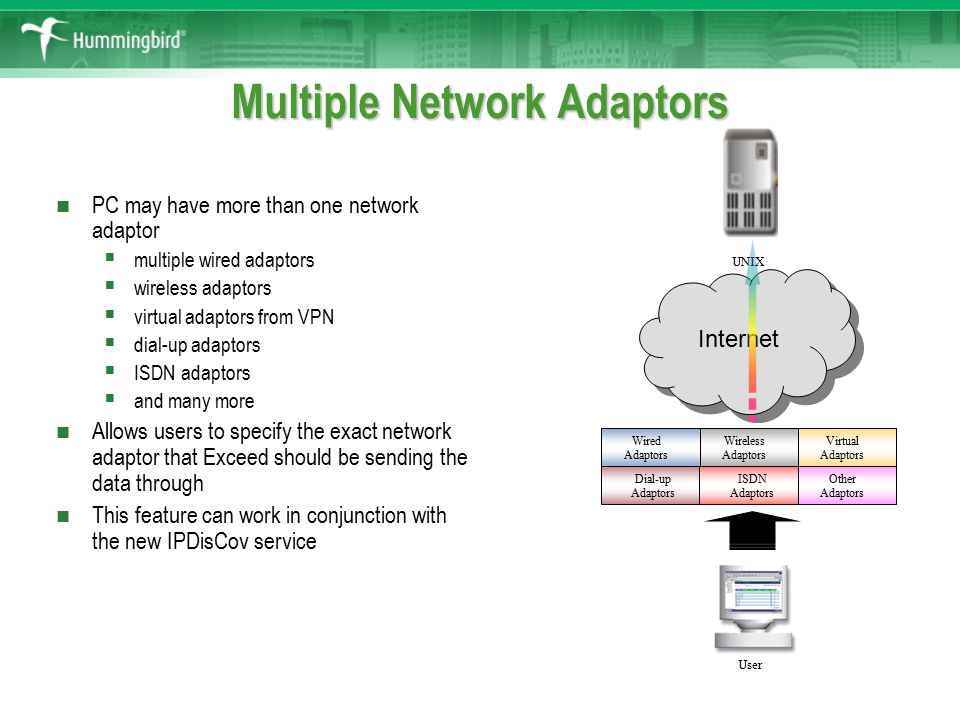

69. Multiple Network Adaptors PC may have more than one network adaptor  multiple wired adaptors  wireless adaptors  virtual adaptors from VPN  dial-up adaptors  ISDN adaptors  and many more Allows users to specify the exact network adaptor that Exceed should be sending the data through This feature can work in conjunction with the new IPDisCov service Internet User UNIX Wired Adaptors Wireless Adaptors Virtual Adaptors Dial-up Adaptors ISDN Adaptors Other Adaptors

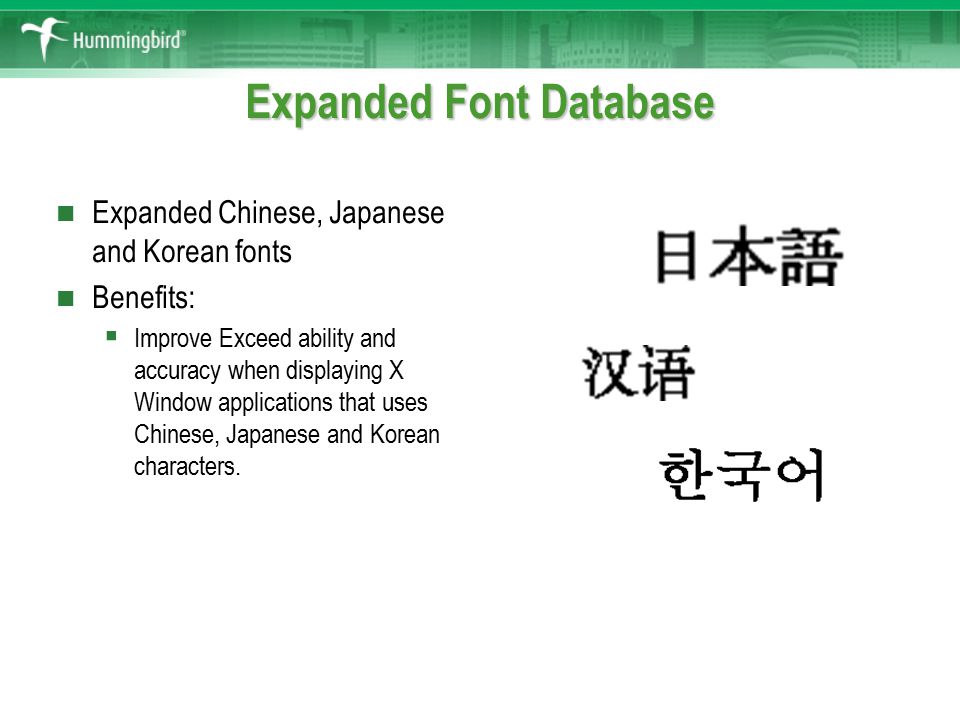

70. Expanded Font Database Expanded Chinese, Japanese and Korean fonts Benefits:  Improve Exceed ability and accuracy when displaying X Window applications that uses Chinese, Japanese and Korean characters.

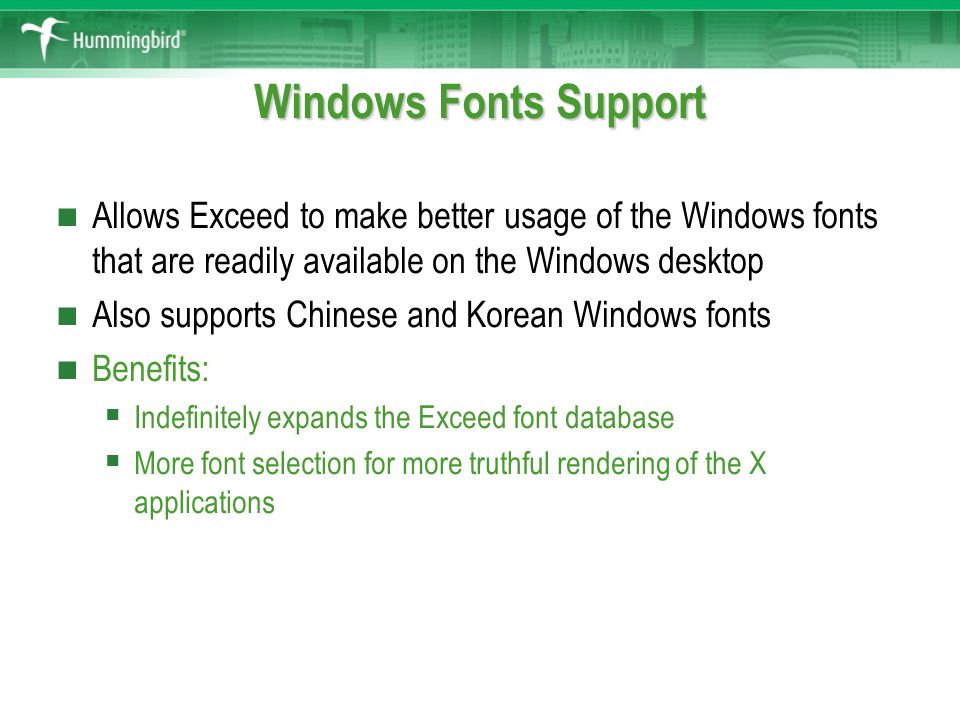

71. Windows Fonts Support Allows Exceed to make better usage of the Windows fonts that are readily available on the Windows desktop Also supports Chinese and Korean Windows fonts Benefits:  Indefinitely expands the Exceed font database  More font selection for more truthful rendering of the X applications

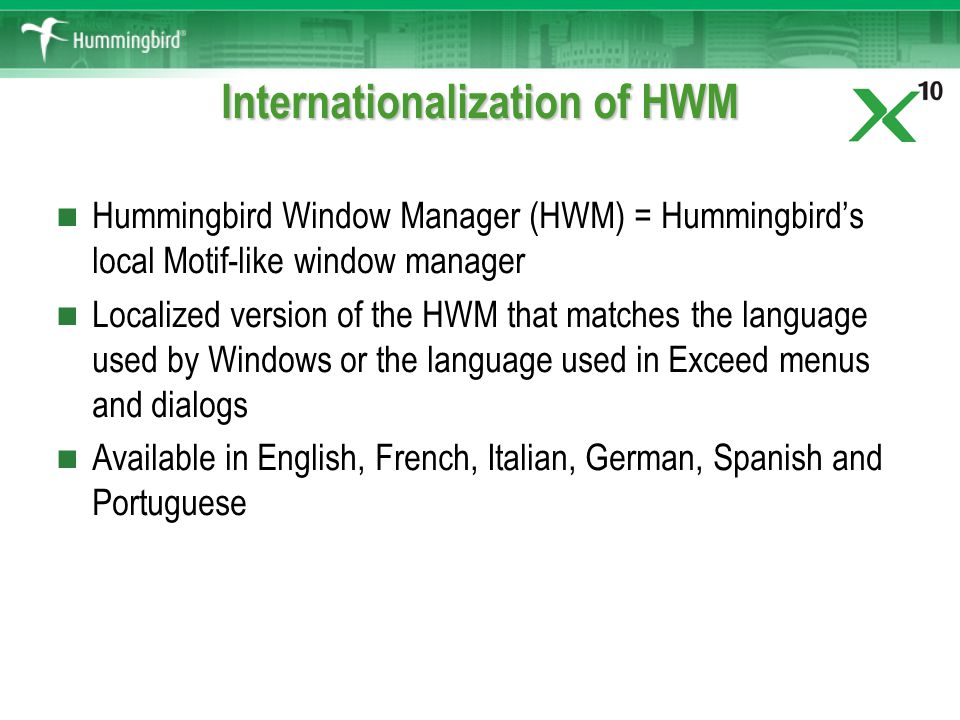

72. Internationalization of HWM Hummingbird Window Manager (HWM) = Hummingbird’s local Motif-like window manager Localized version of the HWM that matches the language used by Windows or the language used in Exceed menus and dialogs Available in English, French, Italian, German, Spanish and Portuguese

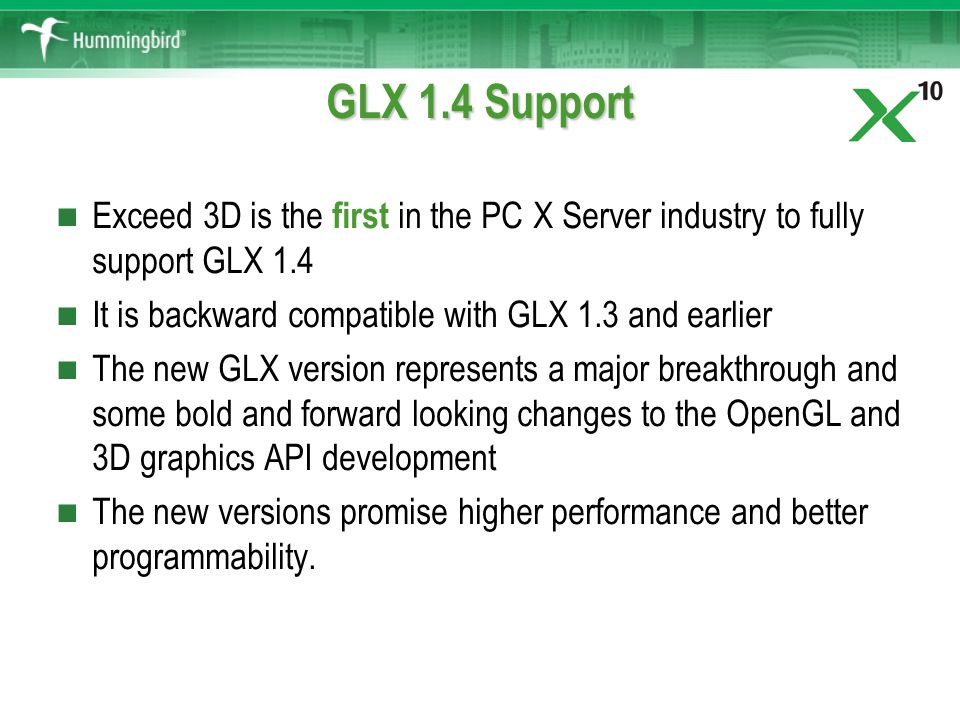

73. GLX 1.4 Support Exceed 3D is the first in the PC X Server industry to fully support GLX 1.4 It is backward compatible with GLX 1.3 and earlier The new GLX version represents a major breakthrough and some bold and forward looking changes to the OpenGL and 3D graphics API development The new versions promise higher performance and better programmability.
