1 Run Time Monitoring of Reactive System Models Mikhail Auguston Naval Postgraduate School maugusto@nps.edu Mark Trakhtenbrot Holon Academic Institute of Technology marktr@openu.ac.il

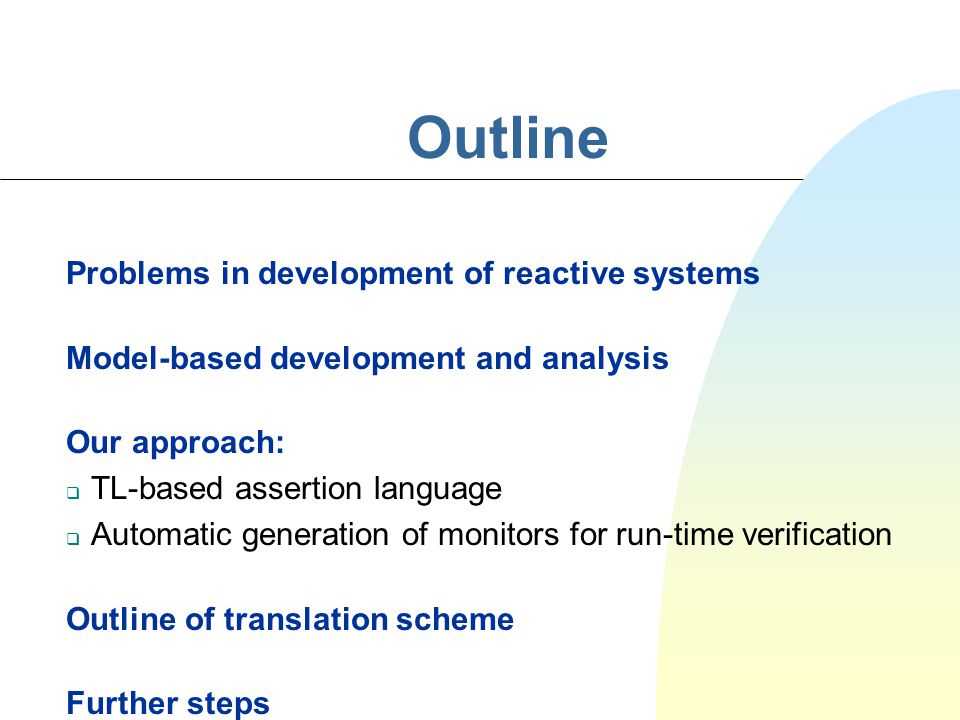

2 Outline Problems in development of reactive systems Model-based development and analysis Our approach:  TL-based assertion language  Automatic generation of monitors for run-time verification Outline of translation scheme Further steps

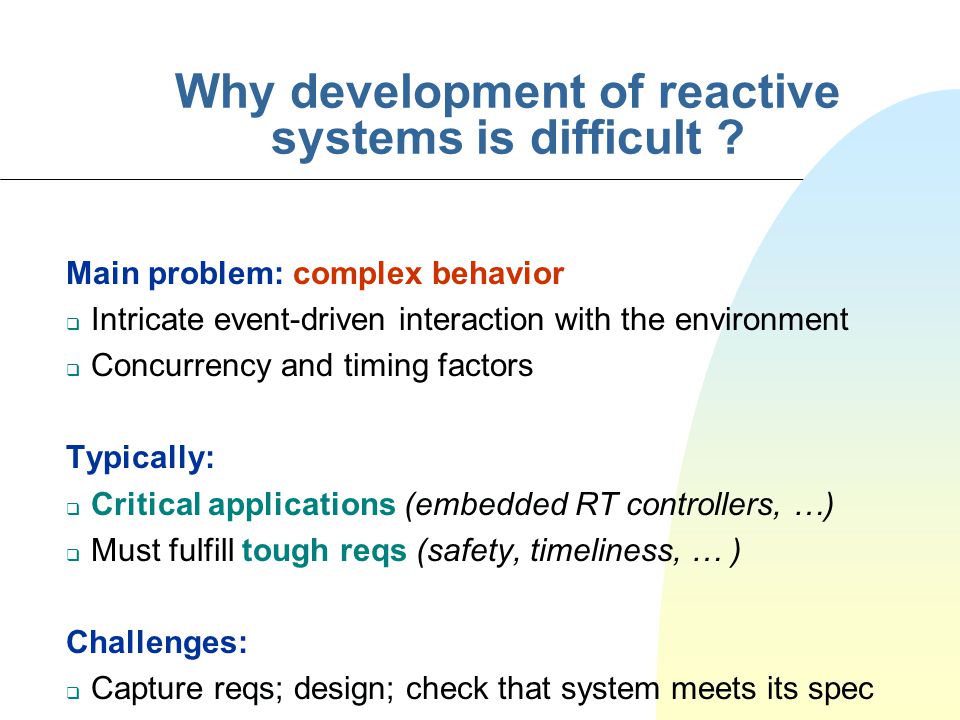

3 Why development of reactive systems is difficult? Main problem: complex behavior  Intricate event-driven interaction with the environment  Concurrency and timing factors Typically:  Critical applications (embedded RT controllers, …)  Must fulfill tough reqs (safety, timeliness, … ) Challenges:  Capture reqs; design; check that system meets its spec

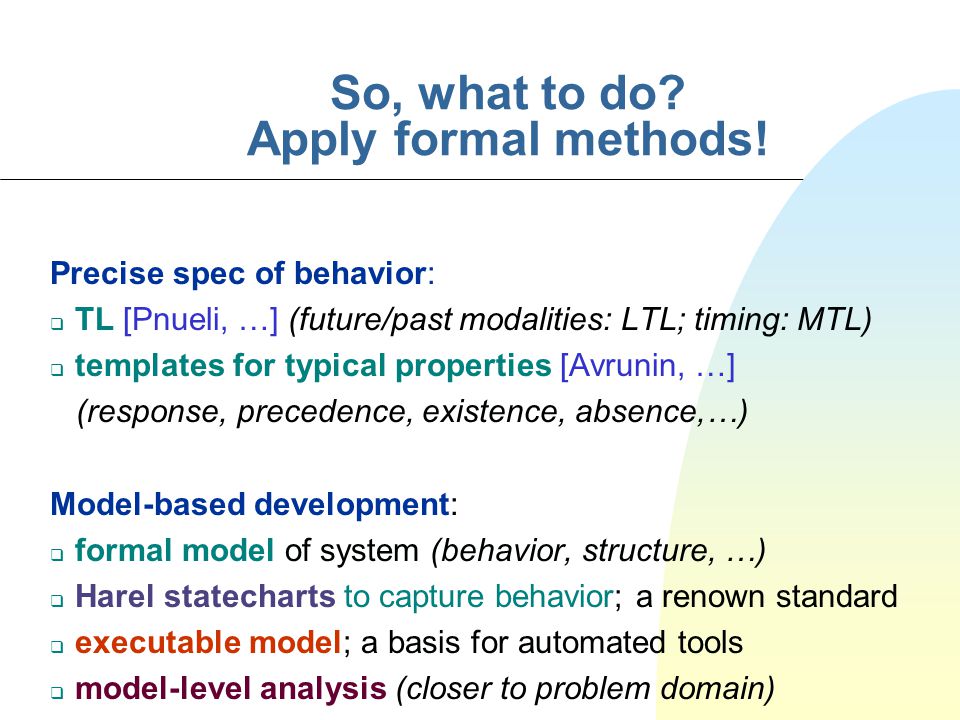

4 So, what to do? Apply formal methods! Precise spec of behavior:  TL [Pnueli, …] (future/past modalities: LTL; timing: MTL)  templates for typical properties [Avrunin, …] (response, precedence, existence, absence,…) Model-based development:  formal model of system (behavior, structure, …)  Harel statecharts to capture behavior; a renown standard  executable model; a basis for automated tools  model-level analysis (closer to problem domain)

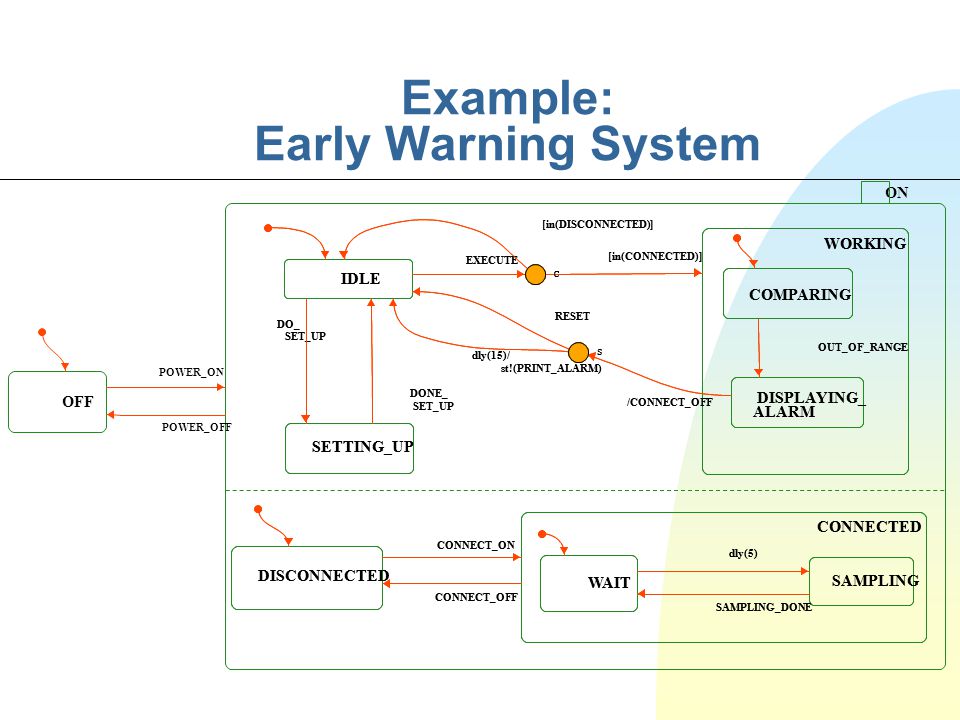

5 Example: Early Warning System

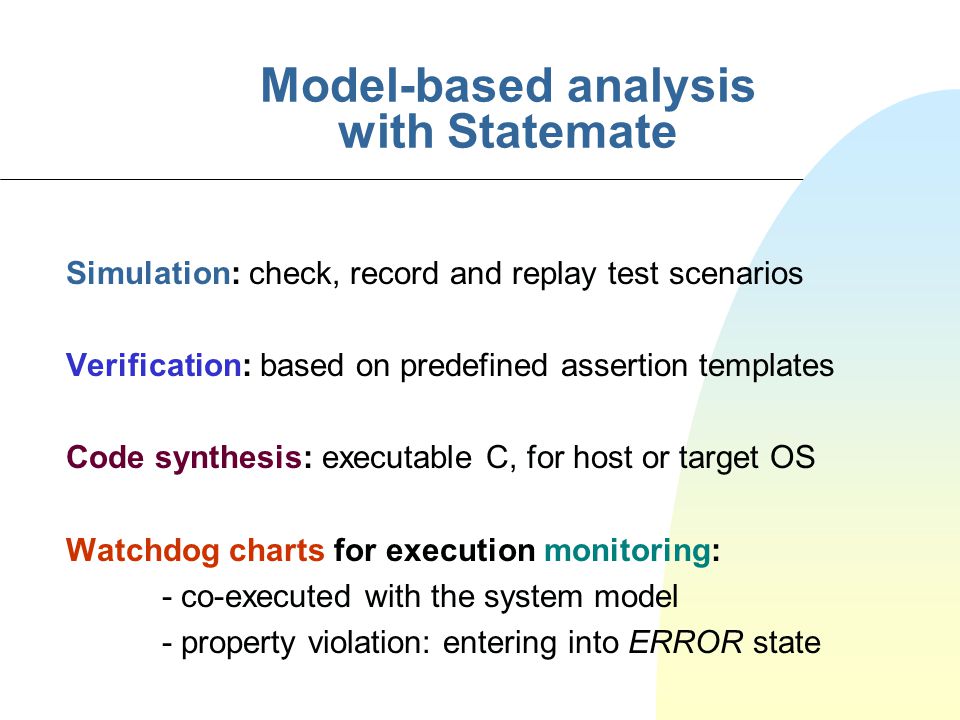

6 Model-based analysis with Statemate Simulation: check, record and replay test scenarios Verification: based on predefined assertion templates Code synthesis: executable C, for host or target OS Watchdog charts for execution monitoring: - co-executed with the system model - property violation: entering into ERROR state

7 Sample monitor chart Assertion: Processing of a request must be accomplished - within 5 seconds - before receiving the next request WaitProcessError Request Processing Done Request or Timeout(5) /Violation Notification

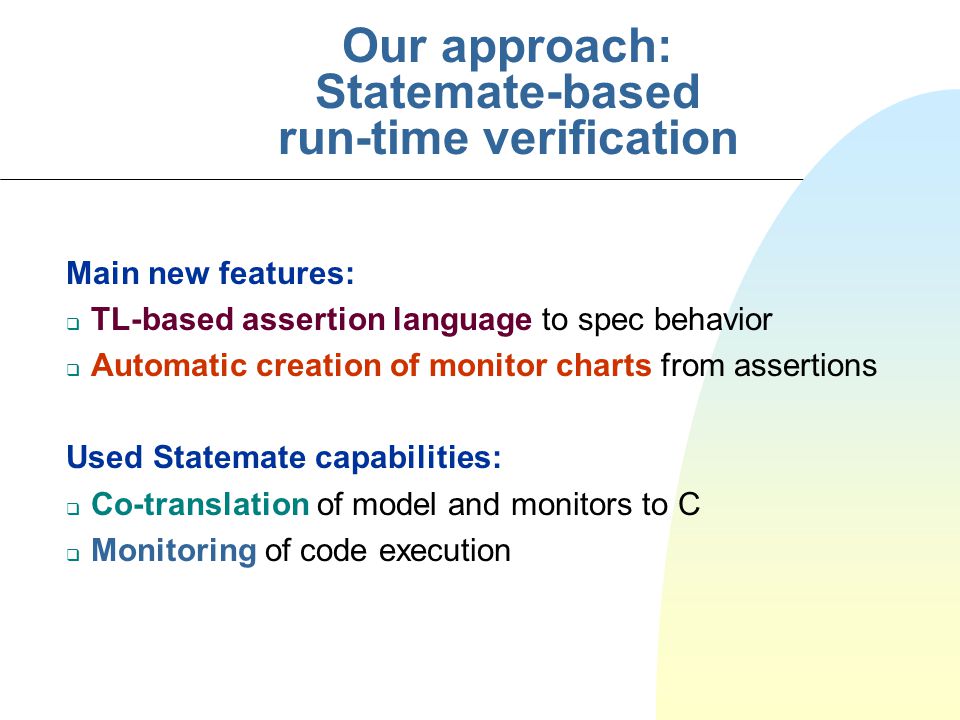

8 Our approach: Statemate-based run-time verification Main new features:  TL-based assertion language to spec behavior  Automatic creation of monitor charts from assertions Used Statemate capabilities:  Co-translation of model and monitors to C  Monitoring of code execution

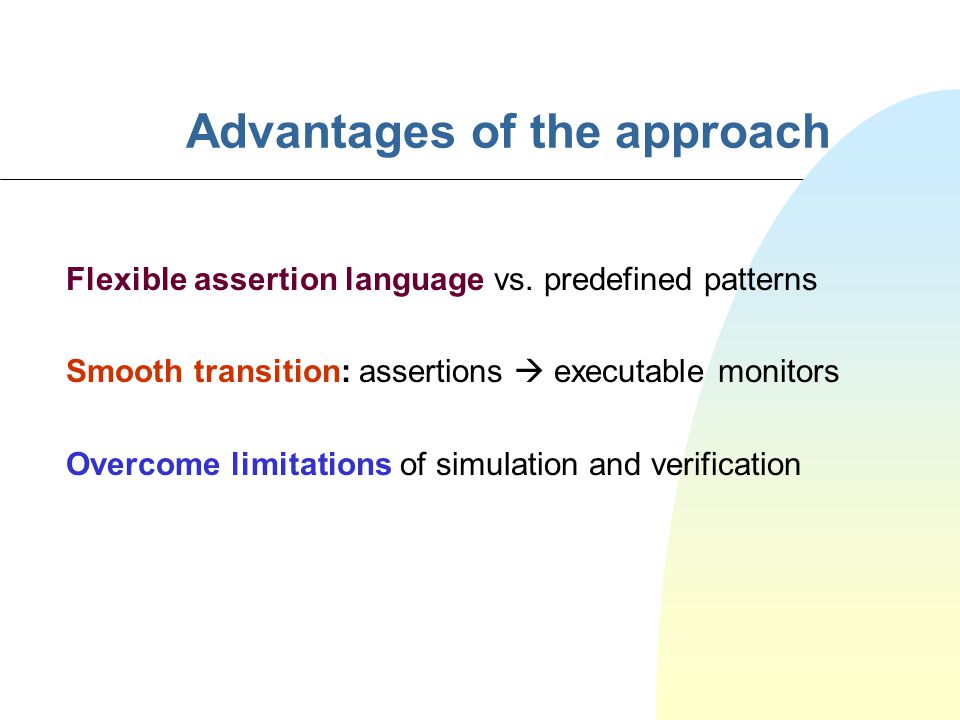

9 Advantages of the approach Flexible assertion language vs. predefined patterns Smooth transition: assertions  executable monitors Overcome limitations of simulation and verification

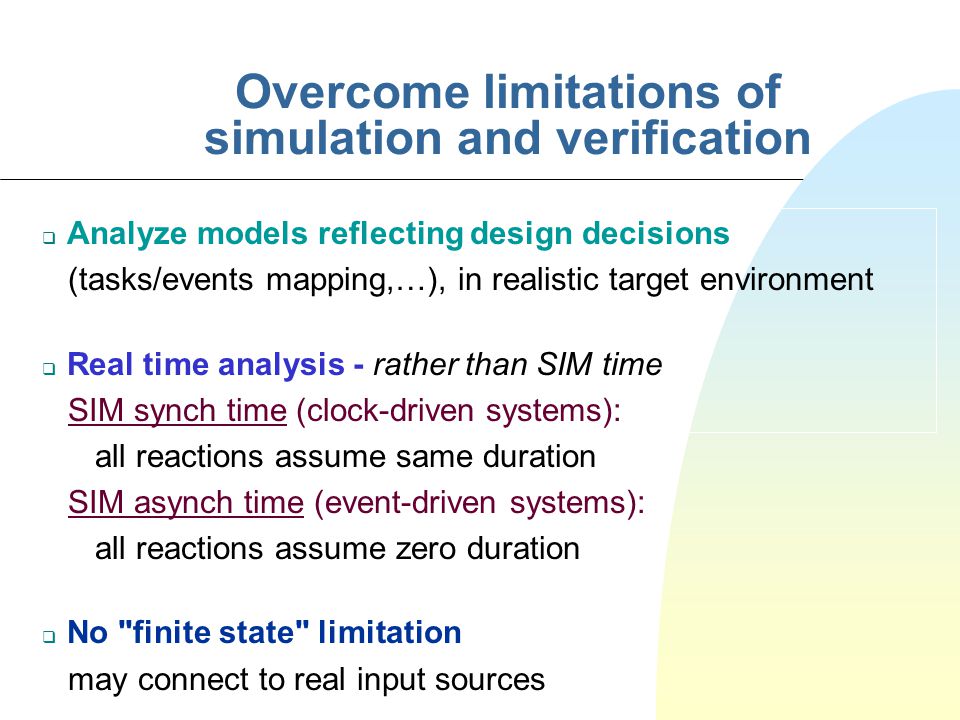

10  Analyze models reflecting design decisions (tasks/events mapping,…), in realistic target environment  Real time analysis - rather than SIM time SIM synch time (clock-driven systems): all reactions assume same duration SIM asynch time (event-driven systems): all reactions assume zero duration  No "finite state" limitation may connect to real input sources

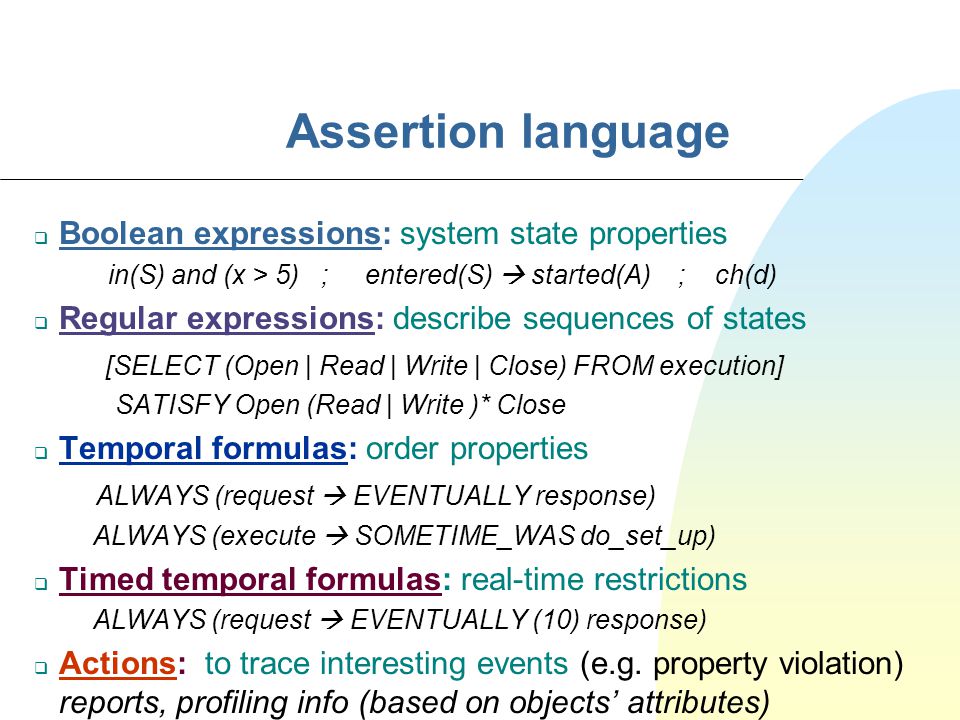

11 Assertion language  Boolean expressions: system state properties in(S) and (x > 5) ; entered(S)  started(A) ; ch(d)  Regular expressions: describe sequences of states [SELECT (Open | Read | Write | Close) FROM execution] SATISFY Open (Read | Write )* Close  Temporal formulas: order properties ALWAYS (request  EVENTUALLY response) ALWAYS (execute  SOMETIME_WAS do_set_up)  Timed temporal formulas: real-time restrictions ALWAYS (request  EVENTUALLY (10) response)  Actions: to trace interesting events (e.g. property violation) reports, profiling info (based on objects’ attributes)

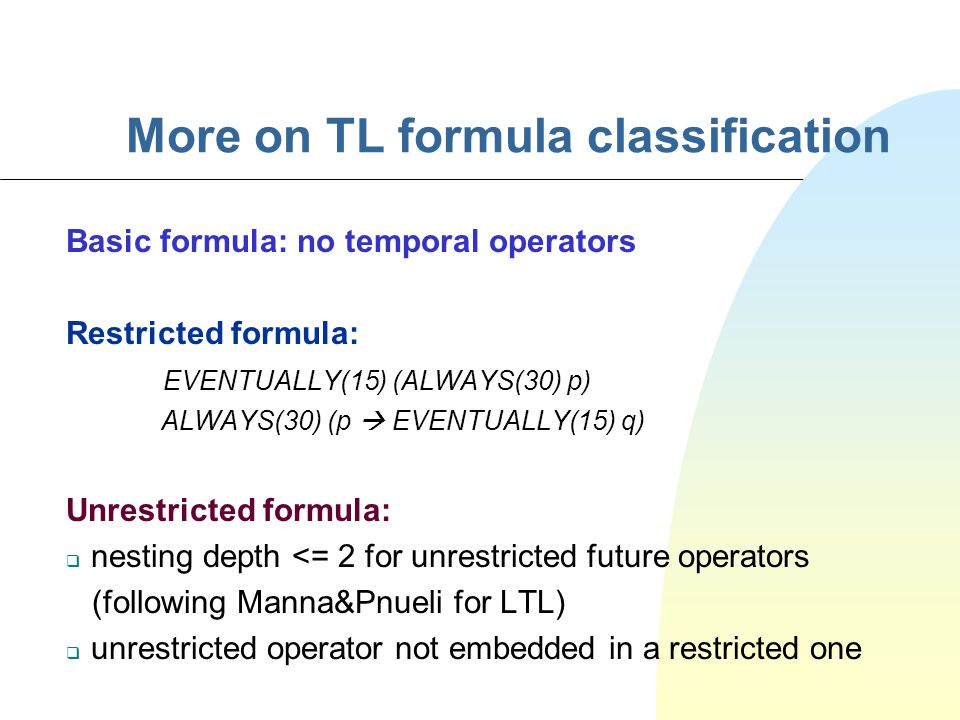

12 More on TL formula classification Basic formula: no temporal operators Restricted formula: EVENTUALLY(15) (ALWAYS(30) p) ALWAYS(30) (p  EVENTUALLY(15) q) Unrestricted formula:  nesting depth <= 2 for unrestricted future operators (following Manna&Pnueli for LTL)  unrestricted operator not embedded in a restricted one

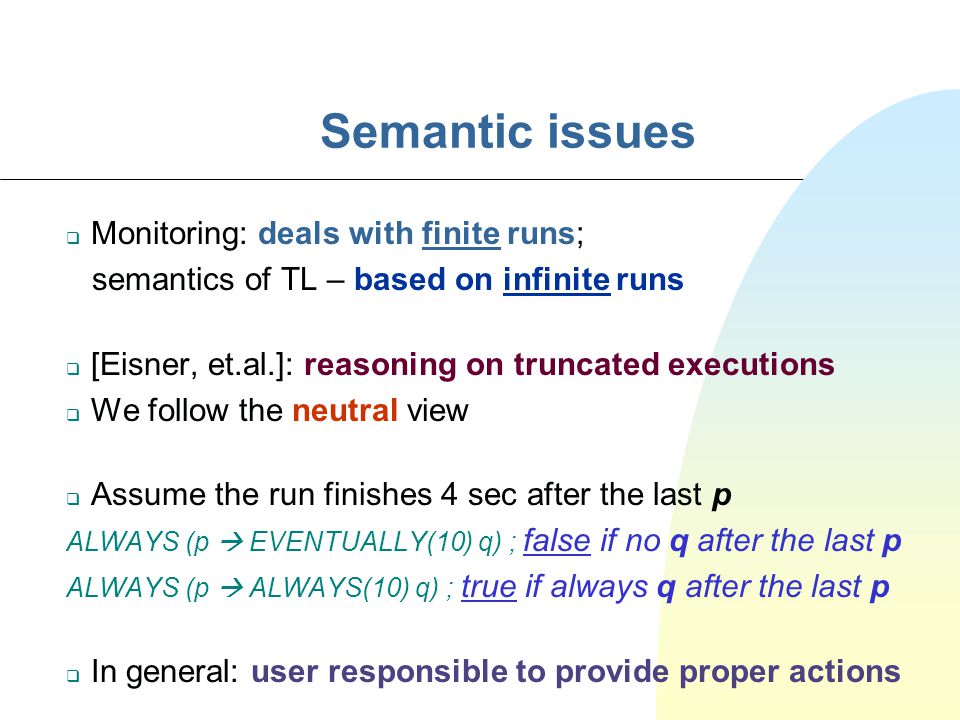

13 Semantic issues  Monitoring: deals with finite runs; semantics of TL – based on infinite runs  [Eisner, et.al.]: reasoning on truncated executions  We follow the neutral view  Assume the run finishes 4 sec after the last p ALWAYS (p  EVENTUALLY(10) q) ; false if no q after the last p ALWAYS (p  ALWAYS(10) q) ; true if always q after the last p  In general: user responsible to provide proper actions

14 Example - assertion for EWS ALWAYS (OUT_OF_RANGE  EVENTUALLY (15) (RESET or started(PRINT_ALARM))) ON_FAIL [printf(“Violation after occurrence of OUT_OF_RANGE at time %f “, OUT_OF_RANGE.occur_time)]

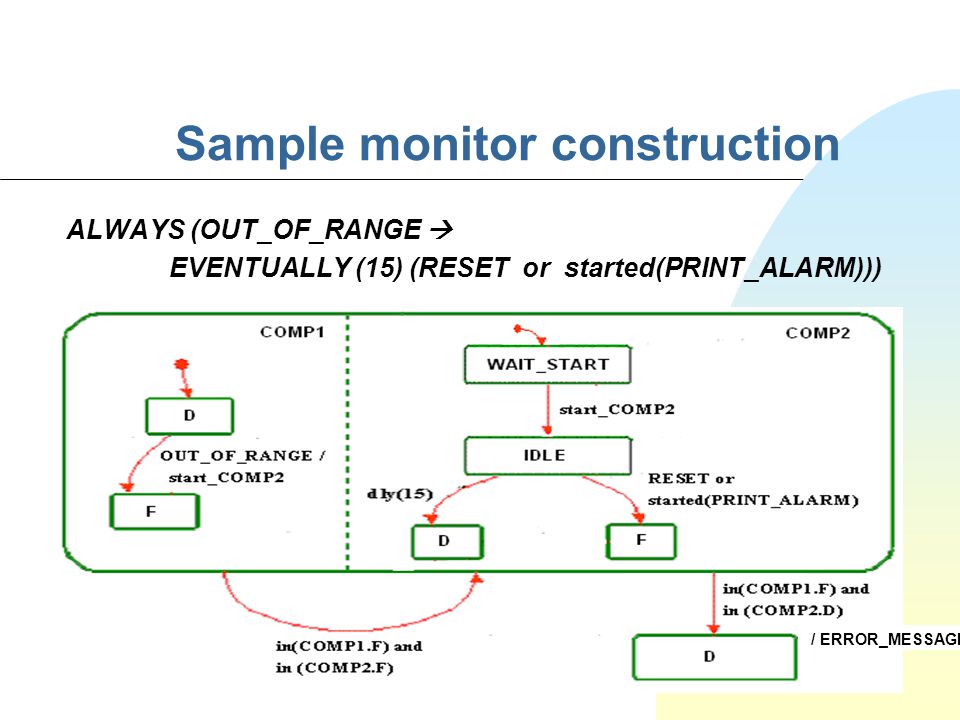

15 Sample monitor construction ALWAYS (OUT_OF_RANGE  EVENTUALLY (15) (RESET or started(PRINT_ALARM))) / ERROR_MESSAGE

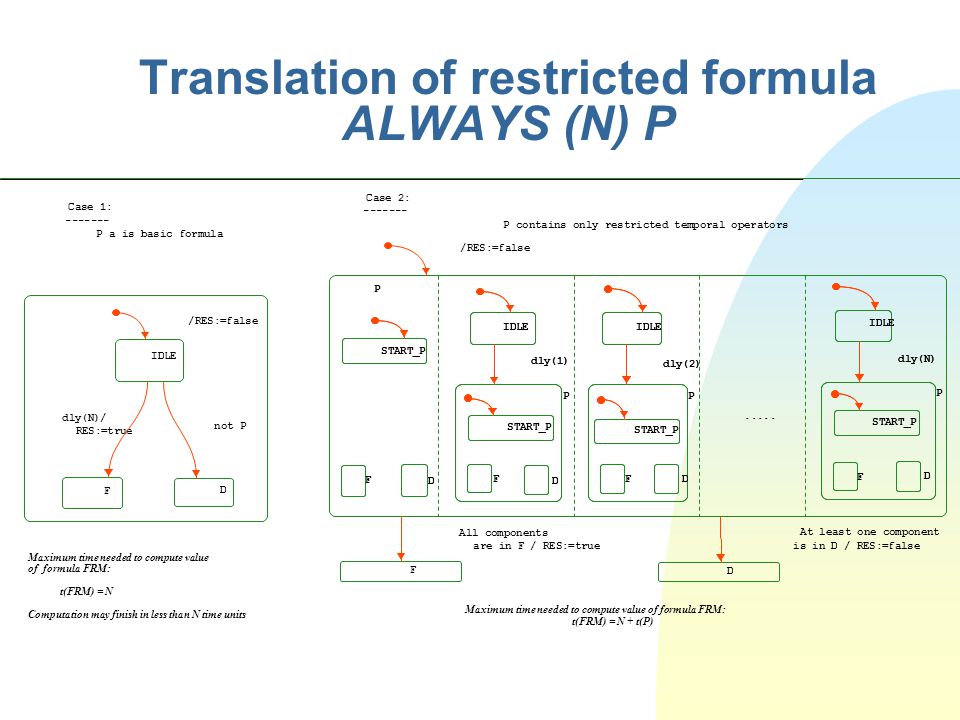

16 Translation of restricted formula ALWAYS (N) P

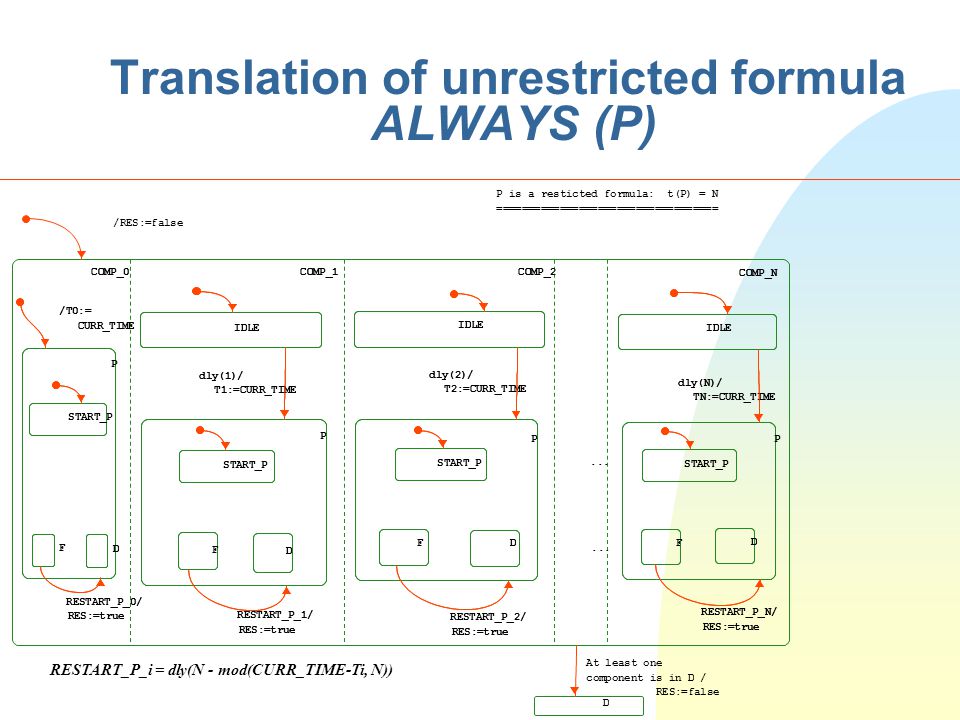

17 Translation of unrestricted formula ALWAYS (P)

18 Further steps Implementation:  done - experiments with manually created monitors  next step – actual implementation A more friendly assertion language  e.g. combine English with formulas Optimized translation for certain types of assertions Apply to other design paradigms using statecharts  e.g. in OO: monitor systems with dynamically created objects (problematic for model checking)

19 Run Time Monitoring of Reactive System Models Thanks for your attention

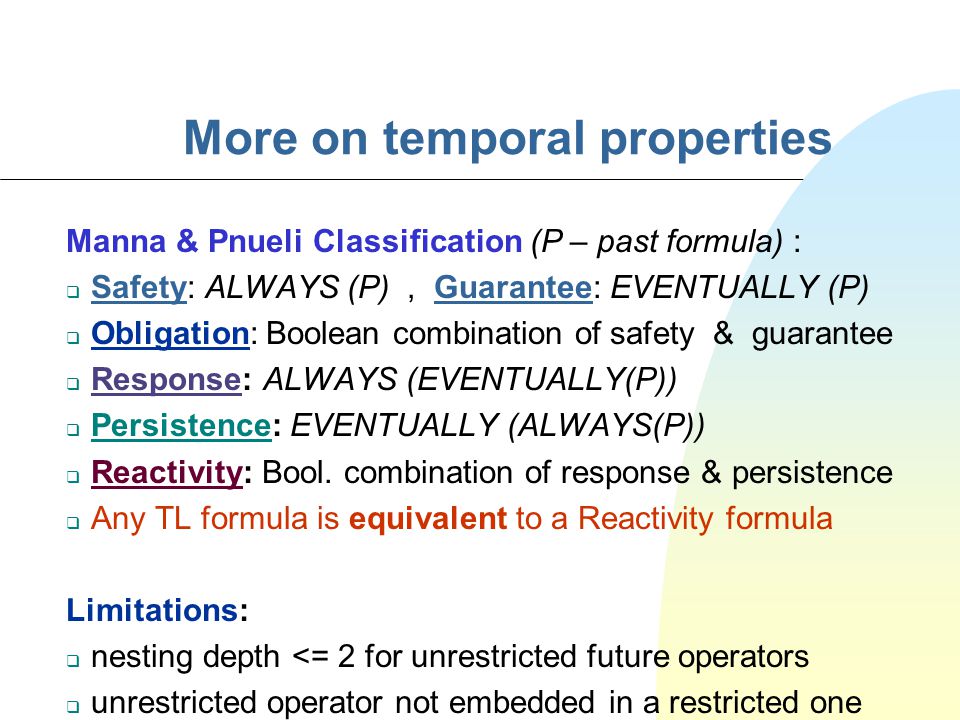

20 More on temporal properties Manna & Pnueli Classification (P – past formula) :  Safety: ALWAYS (P), Guarantee: EVENTUALLY (P)  Obligation: Boolean combination of safety & guarantee  Response: ALWAYS (EVENTUALLY(P))  Persistence: EVENTUALLY (ALWAYS(P))  Reactivity: Bool. combination of response & persistence  Any TL formula is equivalent to a Reactivity formula Limitations:  nesting depth <= 2 for unrestricted future operators  unrestricted operator not embedded in a restricted one
