1

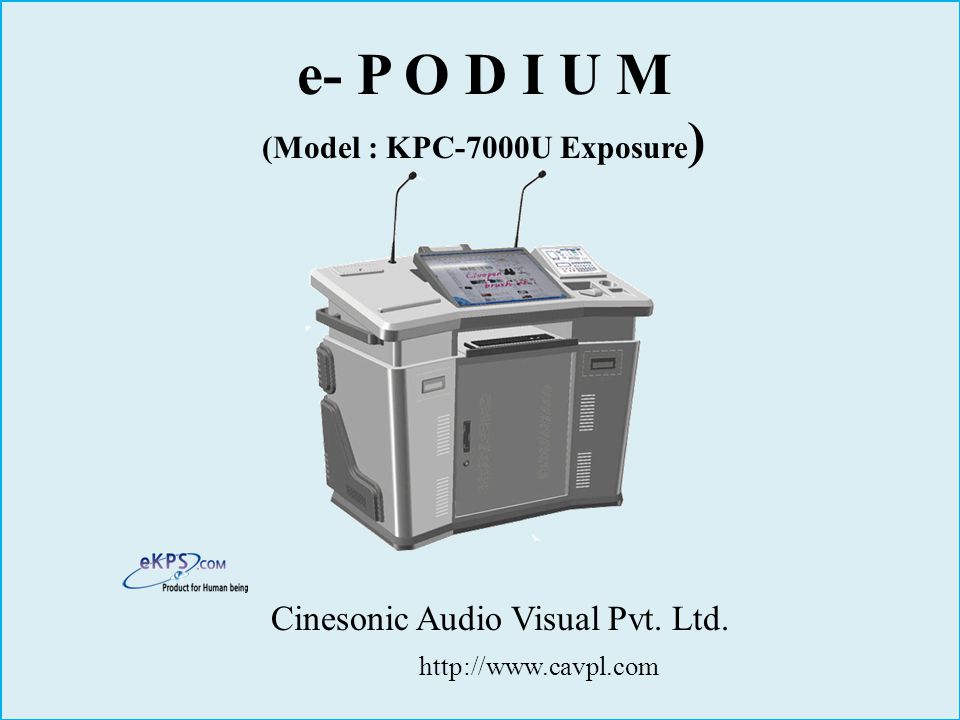

e- P O D I U M (Model : KPC-7000U Exposure ) Cinesonic Audio Visual Pvt. Ltd. http://www.cavpl.com
2

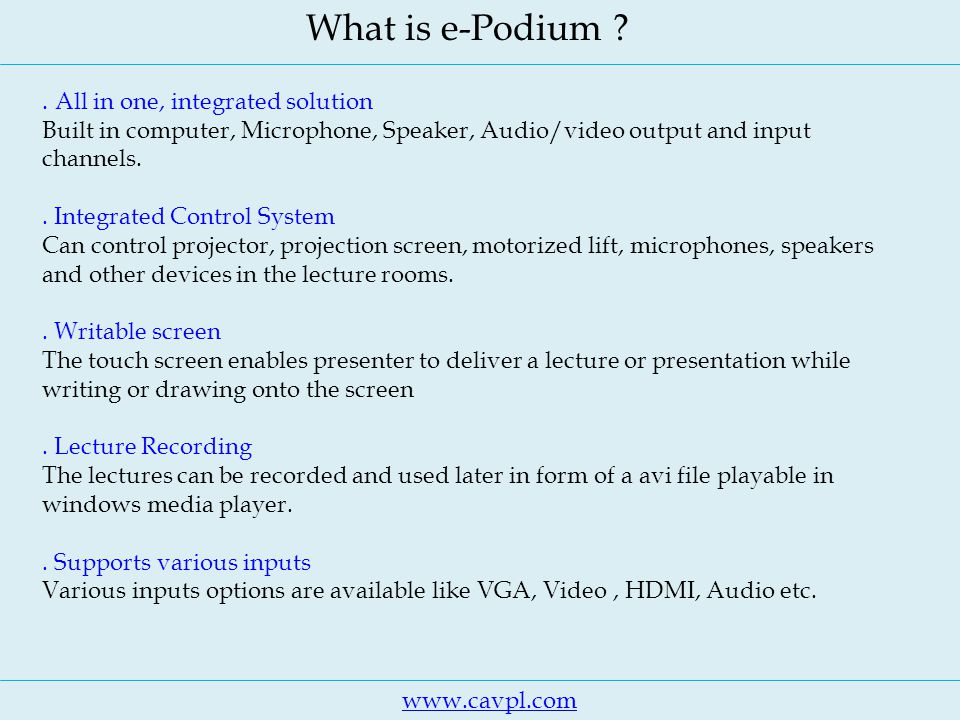

www.cavpl.com What is e-Podium ?. All in one, integrated solution Built in computer, Microphone, Speaker, Audio/video output and input channels.. Integrated Control System Can control projector, projection screen, motorized lift, microphones, speakers and other devices in the lecture rooms.. Writable screen The touch screen enables presenter to deliver a lecture or presentation while writing or drawing onto the screen. Lecture Recording The lectures can be recorded and used later in form of a avi file playable in windows media player.. Supports various inputs Various inputs options are available like VGA, Video, HDMI, Audio etc.
3
www.cavpl.com AMP / DVD Electric Screen Projector PC/ Dual Display On Screen Writing (Tablet Monitor ) Laptop PC IP Camera Speaker USB/ Mike Lights/ Curtain Document Camera E-Podium What is e-Podium ?
4

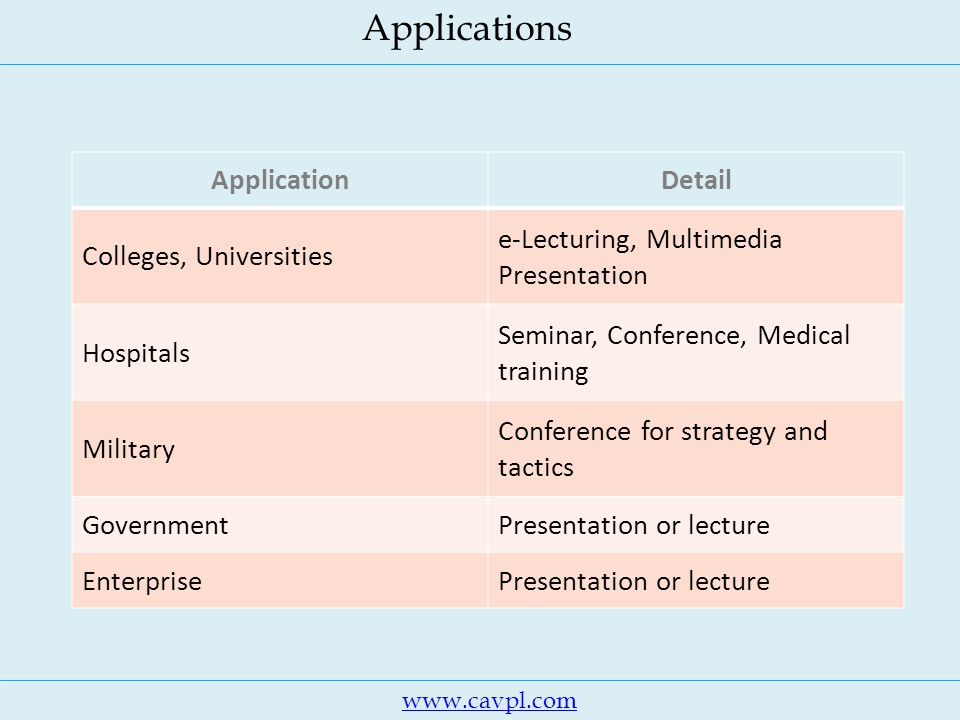

www.cavpl.com Applications ApplicationDetail Colleges, Universities e-Lecturing, Multimedia Presentation Hospitals Seminar, Conference, Medical training Military Conference for strategy and tactics GovernmentPresentation or lecture EnterprisePresentation or lecture
5

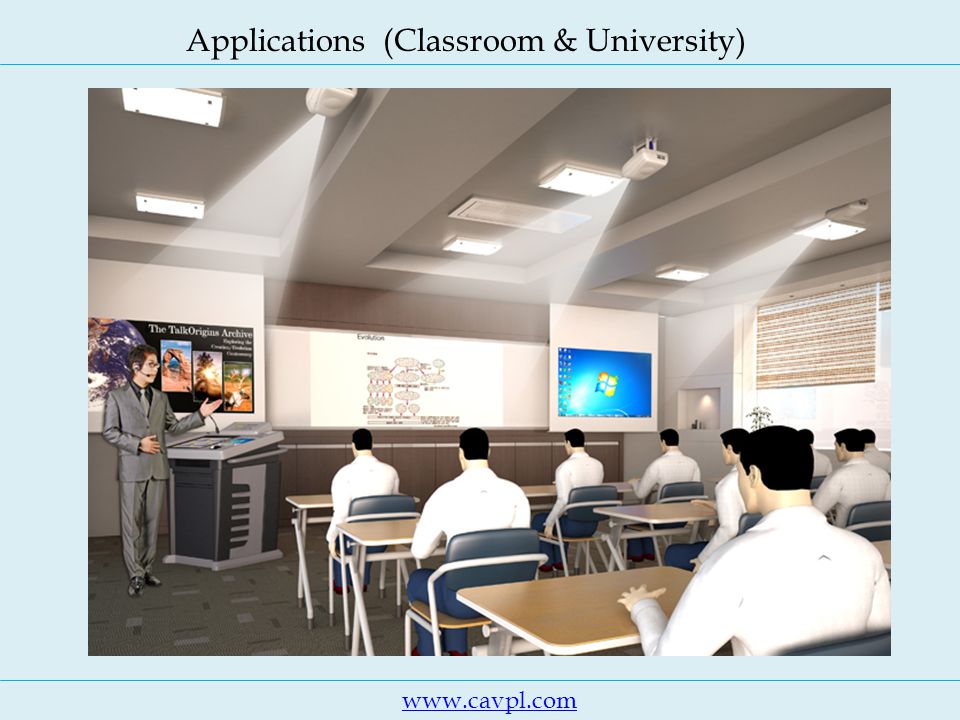

www.cavpl.com Applications (Classroom & University)
6

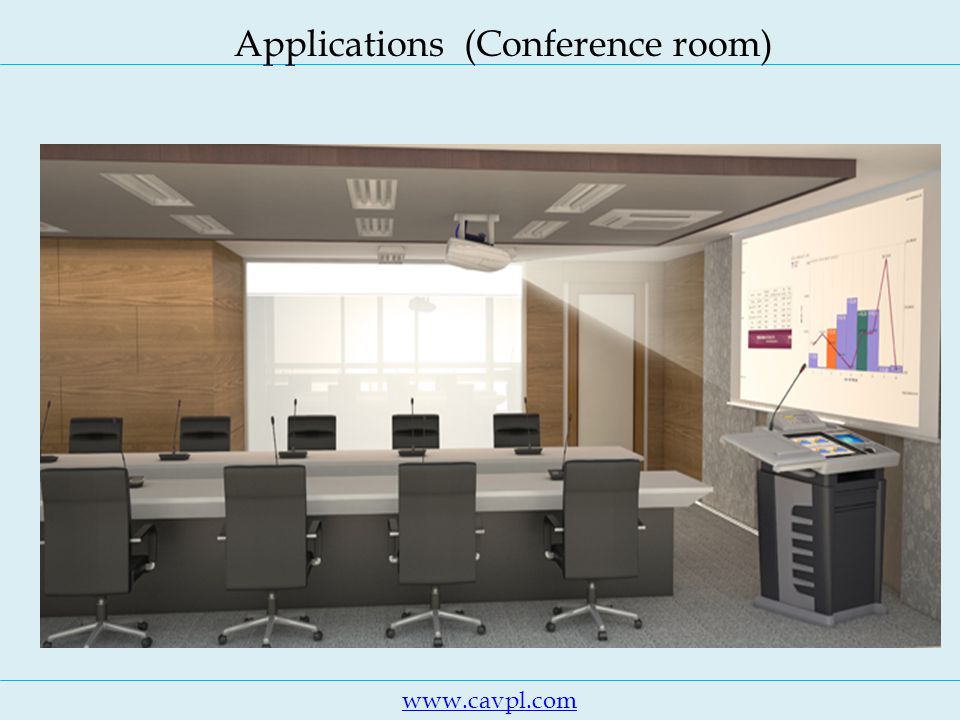

www.cavpl.com Applications (Conference room)
7

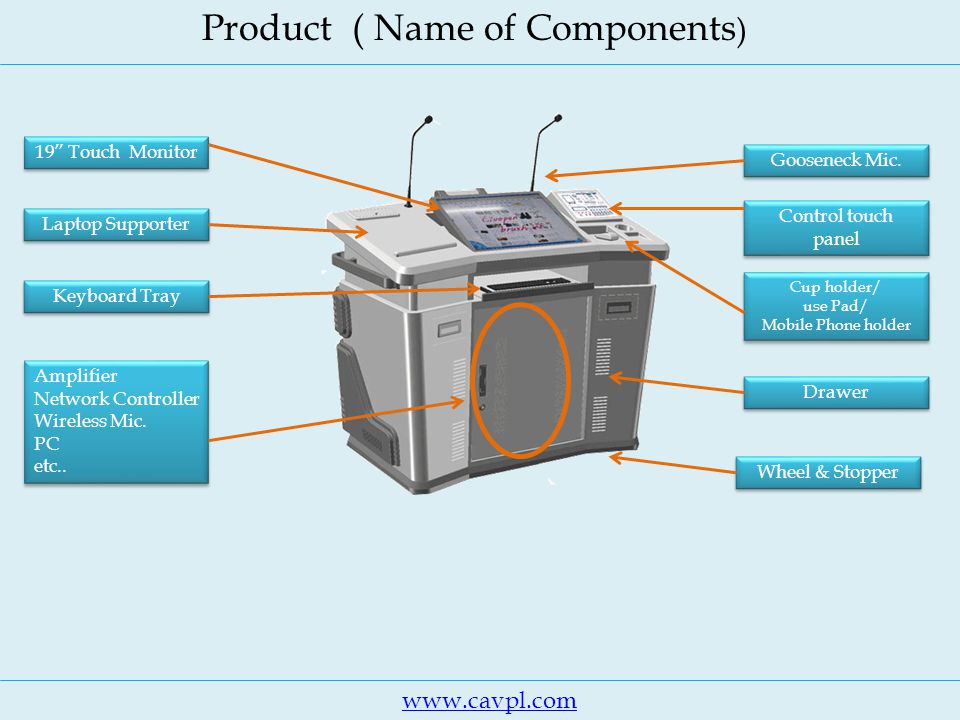

www.cavpl.com Product ( Name of Components ) Gooseneck Mic. 19” Touch Monitor Laptop Supporter Cup holder/ use Pad/ Mobile Phone holder Cup holder/ use Pad/ Mobile Phone holder Keyboard Tray Wheel & Stopper Drawer Control touch panel Amplifier Network Controller Wireless Mic. PC etc.. Amplifier Network Controller Wireless Mic. PC etc..
8

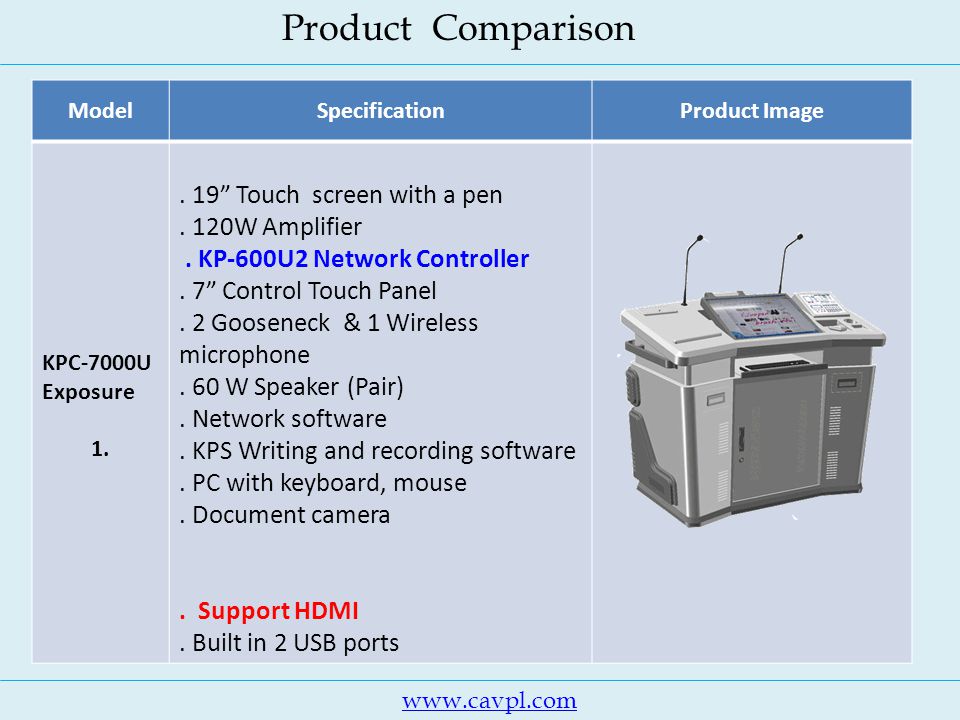

www.cavpl.com ModelSpecificationProduct Image KPC-7000U Exposure 1.. 19” Touch screen with a pen. 120W Amplifier. KP-600U2 Network Controller. 7” Control Touch Panel. 2 Gooseneck & 1 Wireless microphone. 60 W Speaker (Pair). Network software. KPS Writing and recording software. PC with keyboard, mouse. Document camera. Support HDMI. Built in 2 USB ports Product Comparison

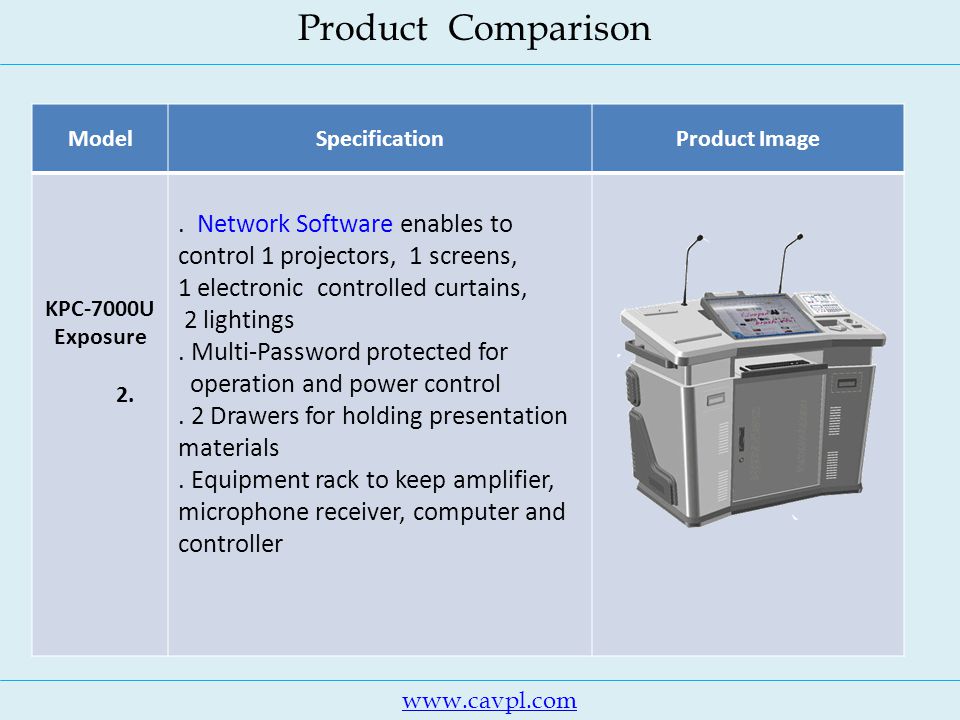

9
www.cavpl.com ModelSpecificationProduct Image KPC-7000U Exposure 2.. Network Software enables to control 1 projectors, 1 screens, 1 electronic controlled curtains, 2 lightings. Multi-Password protected for operation and power control. 2 Drawers for holding presentation materials. Equipment rack to keep amplifier, microphone receiver, computer and controller Product Comparison
10

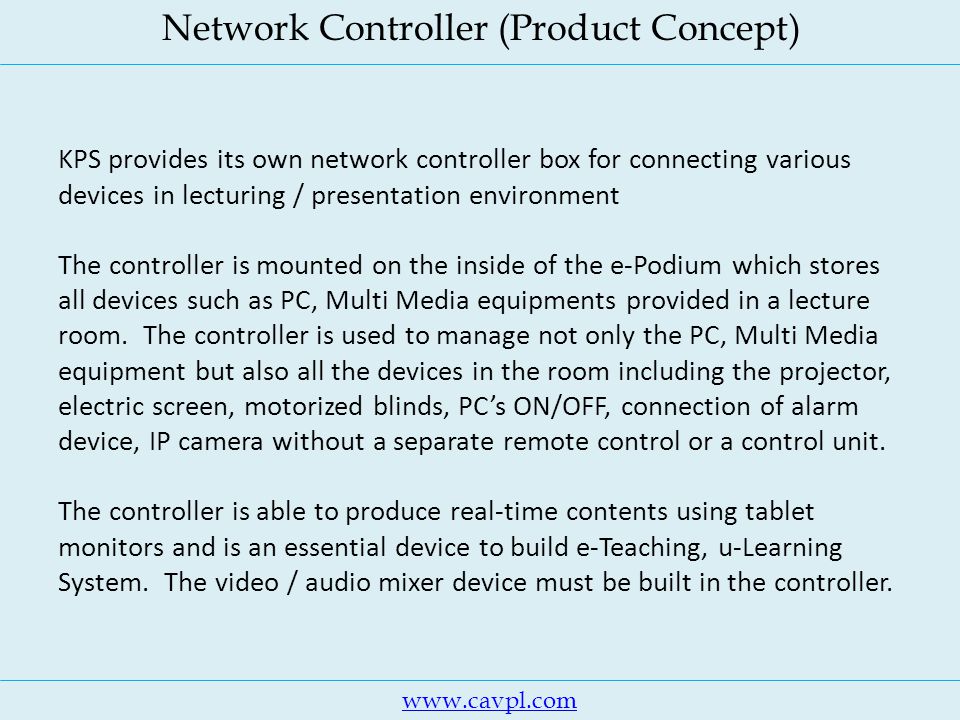

www.cavpl.com Network Controller (Product Concept) KPS provides its own network controller box for connecting various devices in lecturing / presentation environment The controller is mounted on the inside of the e-Podium which stores all devices such as PC, Multi Media equipments provided in a lecture room. The controller is used to manage not only the PC, Multi Media equipment but also all the devices in the room including the projector, electric screen, motorized blinds, PC’s ON/OFF, connection of alarm device, IP camera without a separate remote control or a control unit. The controller is able to produce real-time contents using tablet monitors and is an essential device to build e-Teaching, u-Learning System. The video / audio mixer device must be built in the controller.
11

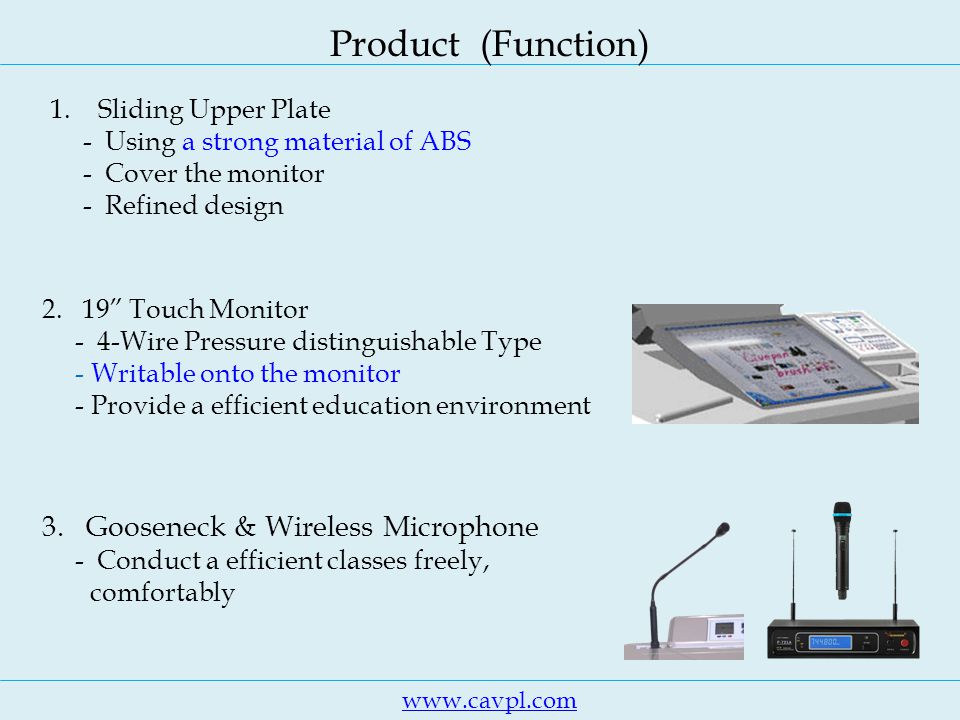

www.cavpl.com Product (Function) 1.Sliding Upper Plate - Using a strong material of ABS - Cover the monitor - Refined design 2. 19” Touch Monitor - 4-Wire Pressure distinguishable Type - Writable onto the monitor - Provide a efficient education environment 3. Gooseneck & Wireless Microphone - Conduct a efficient classes freely, comfortably
12

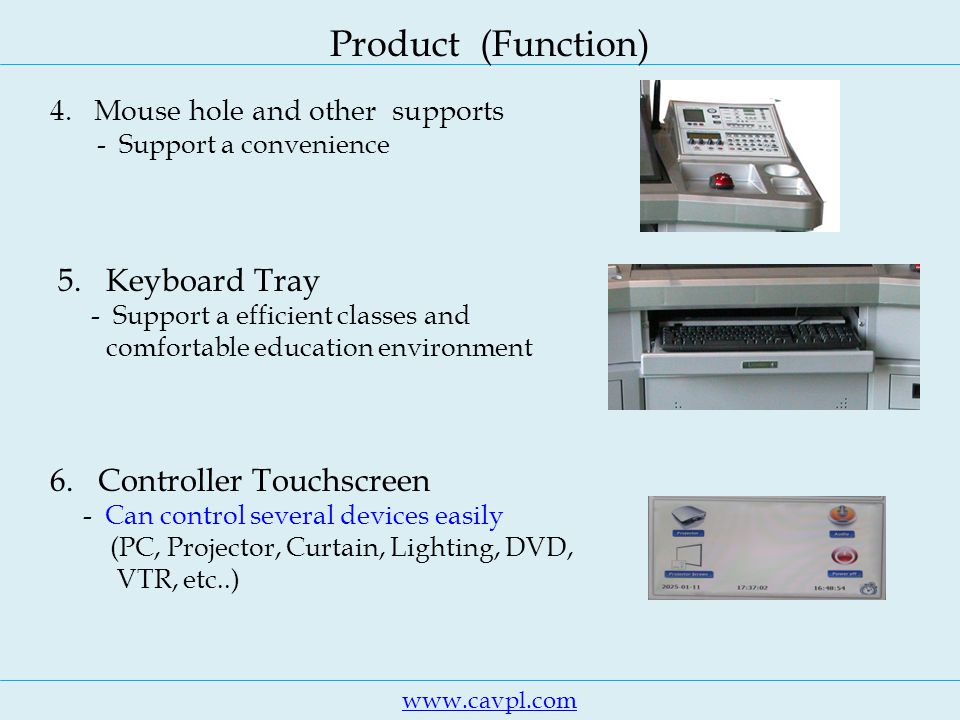

www.cavpl.com Product (Function) 4. Mouse hole and other supports - Support a convenience 5. Keyboard Tray - Support a efficient classes and comfortable education environment 6. Controller Touchscreen - Can control several devices easily (PC, Projector, Curtain, Lighting, DVD, VTR, etc..)
13

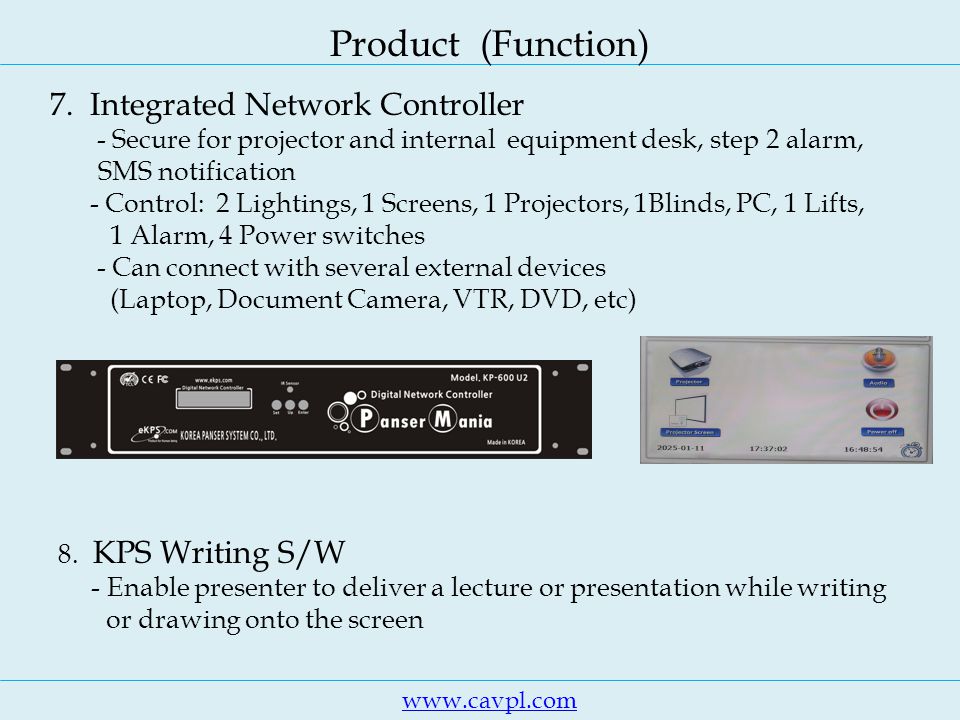

www.cavpl.com Product (Function) 7. Integrated Network Controller - Secure for projector and internal equipment desk, step 2 alarm, SMS notification - Control: 2 Lightings, 1 Screens, 1 Projectors, 1Blinds, PC, 1 Lifts, 1 Alarm, 4 Power switches - Can connect with several external devices (Laptop, Document Camera, VTR, DVD, etc) 8. KPS Writing S/W - Enable presenter to deliver a lecture or presentation while writing or drawing onto the screen
14

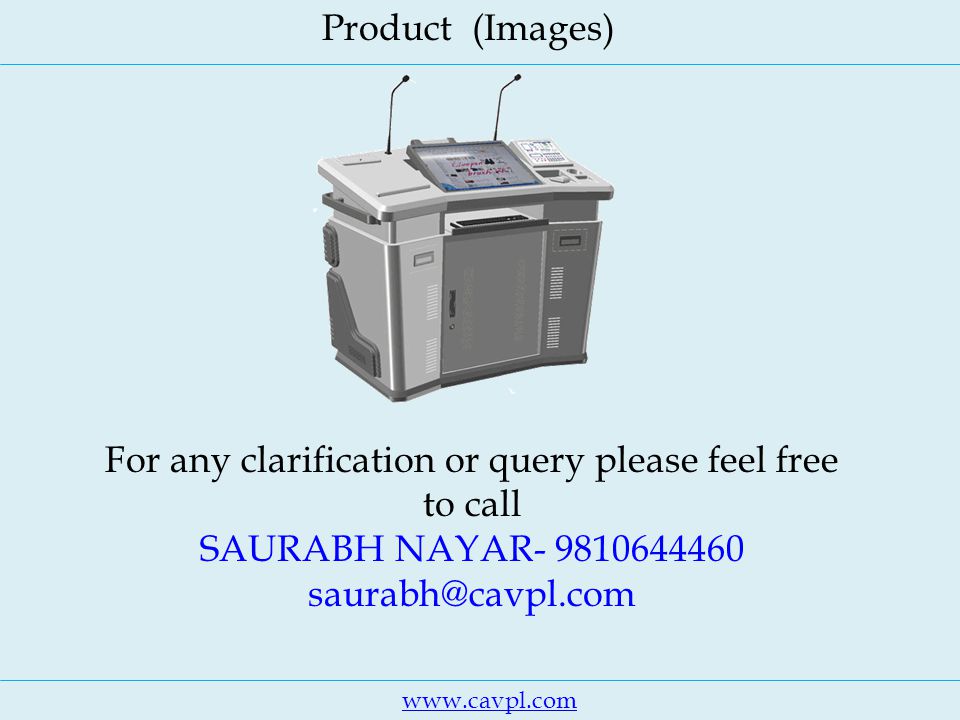

www.cavpl.com Product (Images) For any clarification or query please feel free to call SAURABH NAYAR- 9810644460 saurabh@cavpl.com
