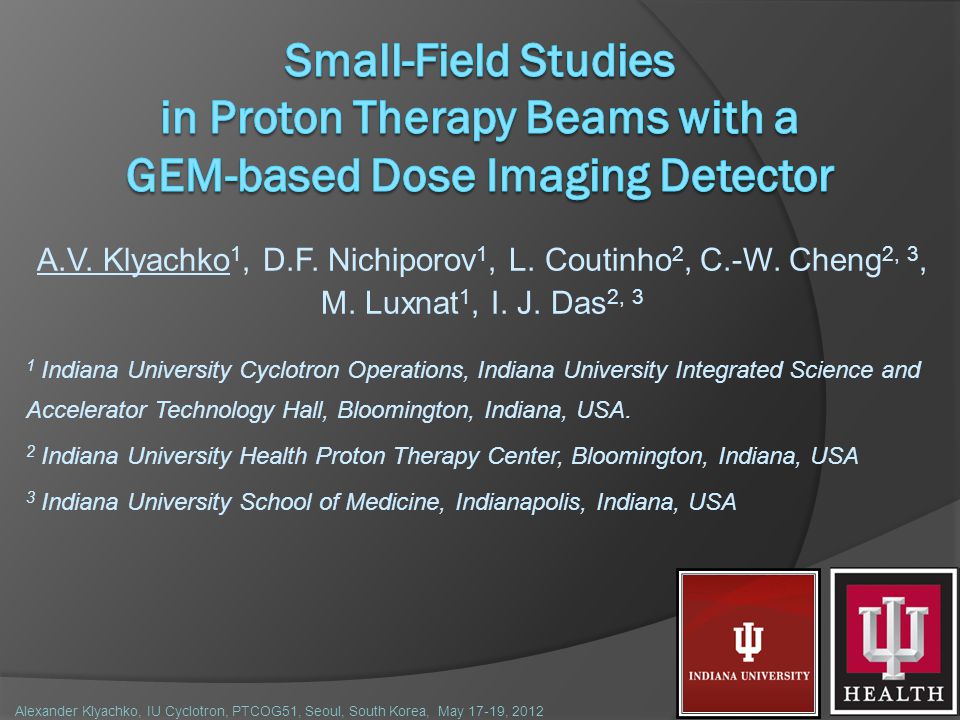

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 A.V. Klyachko 1, D.F. Nichiporov 1, L. Coutinho 2, C.-W. Cheng 2, 3, M. Luxnat 1, I. J. Das 2, 3 1 Indiana University Cyclotron Operations, Indiana University Integrated Science and Accelerator Technology Hall, Bloomington, Indiana, USA. 2 Indiana University Health Proton Therapy Center, Bloomington, Indiana, USA 3 Indiana University School of Medicine, Indianapolis, Indiana, USA
2

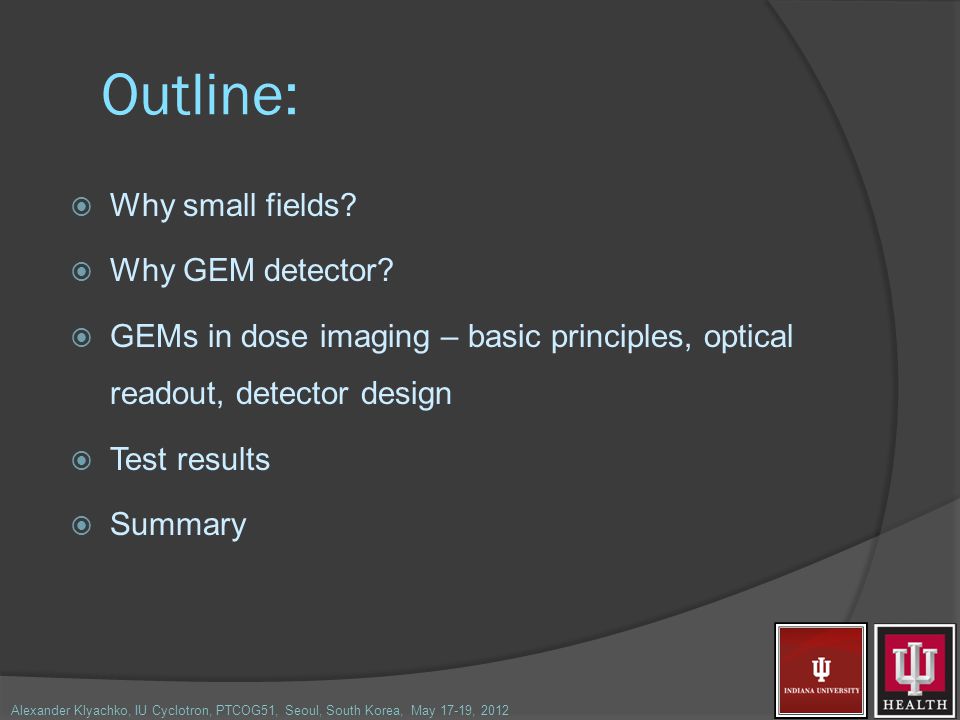

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 Outline: Why small fields? Why GEM detector? GEMs in dose imaging – basic principles, optical readout, detector design Test results Summary
3

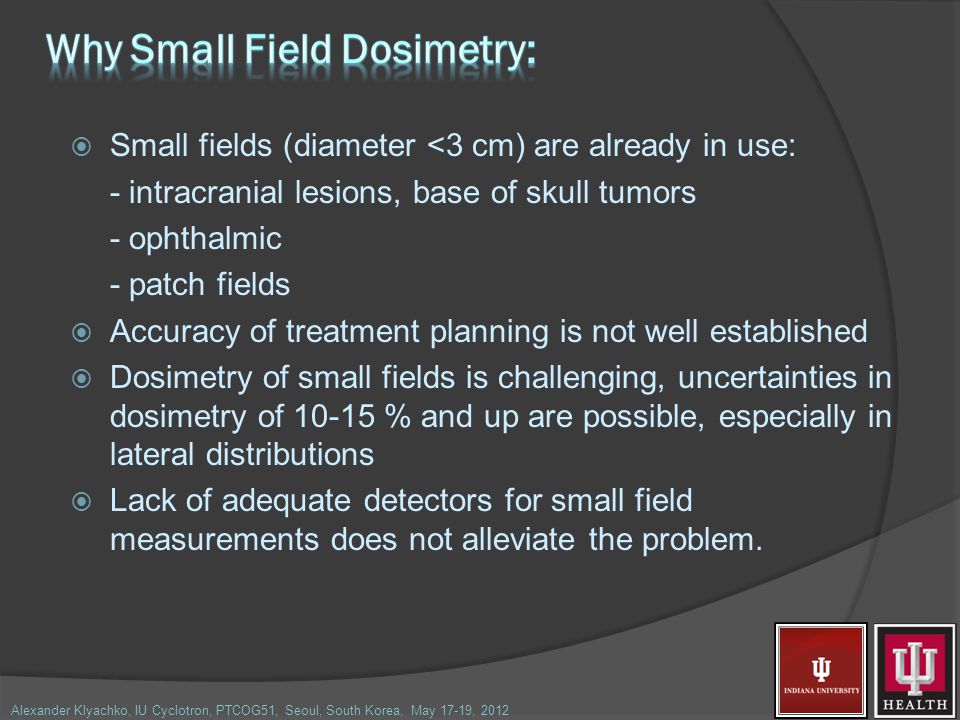

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 Small fields (diameter <3 cm) are already in use: - intracranial lesions, base of skull tumors - ophthalmic - patch fields Accuracy of treatment planning is not well established Dosimetry of small fields is challenging, uncertainties in dosimetry of 10-15 % and up are possible, especially in lateral distributions Lack of adequate detectors for small field measurements does not alleviate the problem.
4

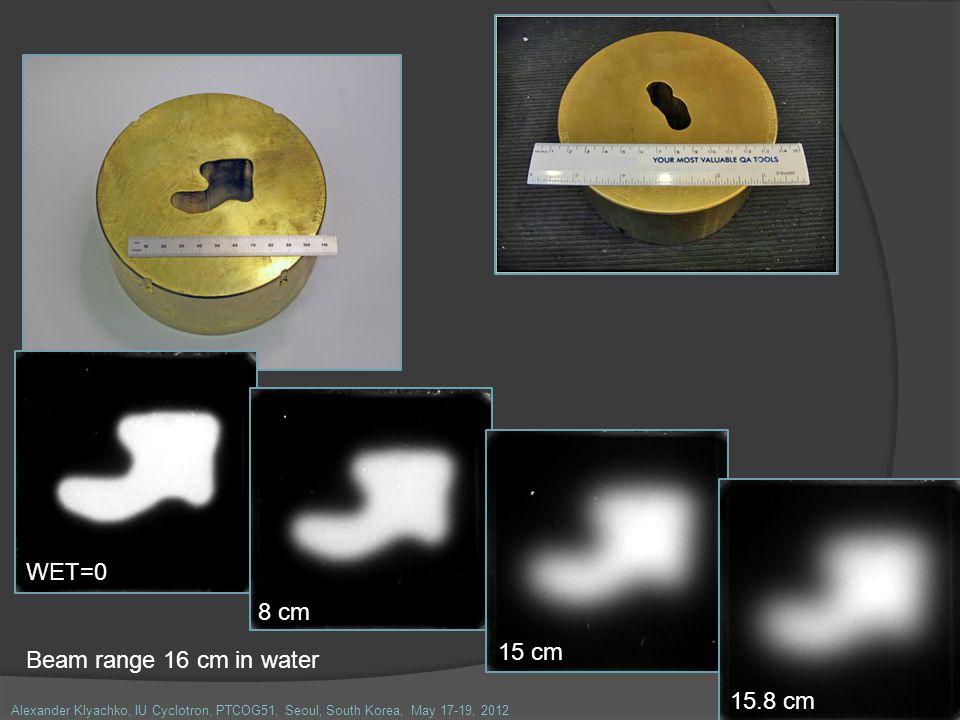

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 WET=0 Beam range 16 cm in water 8 cm 15 cm 15.8 cm
5

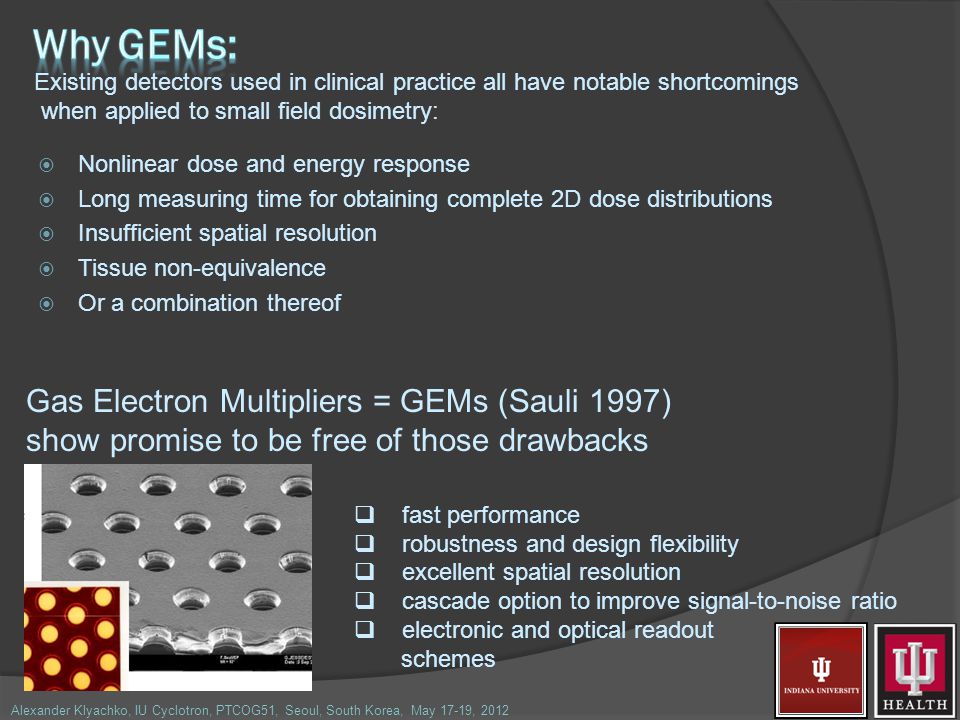

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 Gas Electron Multipliers = GEMs (Sauli 1997) show promise to be free of those drawbacks Nonlinear dose and energy response Long measuring time for obtaining complete 2D dose distributions Insufficient spatial resolution Tissue non-equivalence Or a combination thereof Existing detectors used in clinical practice all have notable shortcomings when applied to small field dosimetry: fast performance robustness and design flexibility excellent spatial resolution cascade option to improve signal-to-noise ratio electronic and optical readout schemes
6

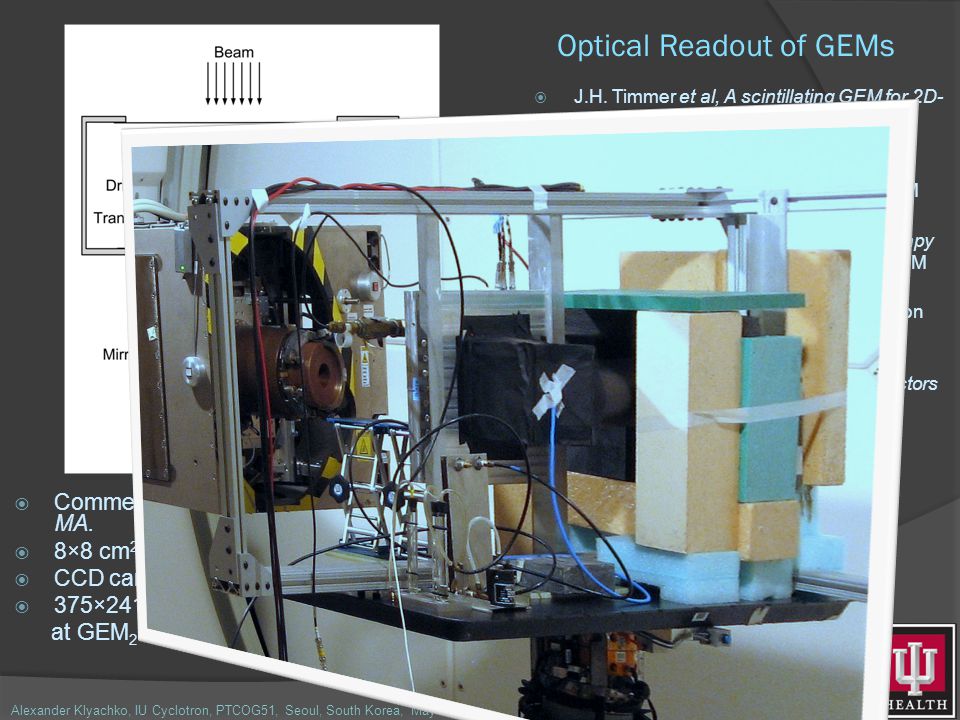

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 Optical Readout of GEMs J.H. Timmer et al, A scintillating GEM for 2D- dosimetry in radiation therapy. NIM A478 (2002) 98 F.A.F. Fraga et al, Luminescence and imaging with gas electron multipliers. NIM A513 (2003) 379 S. Fetal et al, Dose imaging in radiotherapy with an Ar-CF 4 filled scintillating GEM. NIM A513 (2003) 42 E. Seravalli et al, 2D dosimetry in a proton beam with a scintillating GEM detector. Phys. Med. Biol. 54 (2009) 3755 A.V. Klyachko et al, Dose imaging detectors for radiotherapy based on gas electron multipliers. NIM A628 (2011) 434 Commercial 10×10 cm 2 GEM foils, 50 μm /140 μm, from Tech-Etch Corp, Plymouth, MA. 8×8 cm 2 sensitive area CCD camera - low noise SBIG ST-6 with thermoelectric Peltier cooling to -30ºC 375×241 pixels, pixel size translates to 0.375×0.375 mm 2 at GEM 2 location Sensitive Volume
7
Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 Optimized for high light yield Somewhat non-tissue-equivalent - underestimation of Bragg peak by ~5% Worth trying He-CF 4 gas mixture – stopping power is close to air Emission spectra matches CCD’s quantum efficiency curve Smaller signal – by a factor of ≈3 – but sufficient for dose imaging
8

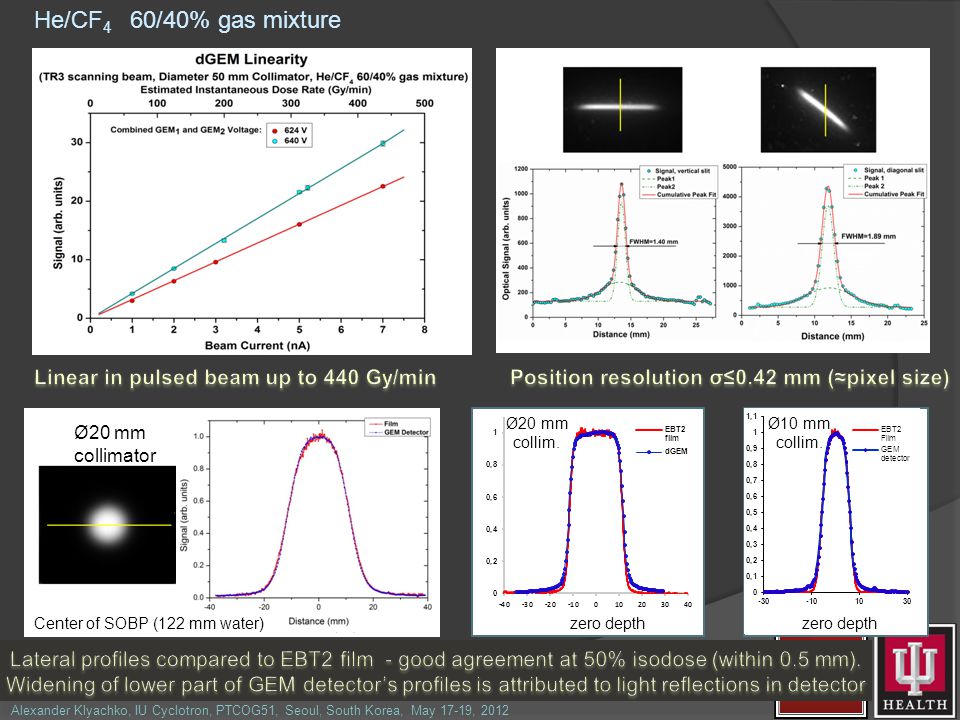

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 Center of SOBP (122 mm water) Ø20 mm collimator zero depth Ø20 mm collim. zero depth Ø10 mm collim. zero depth He/CF 4 60/40% gas mixture
9

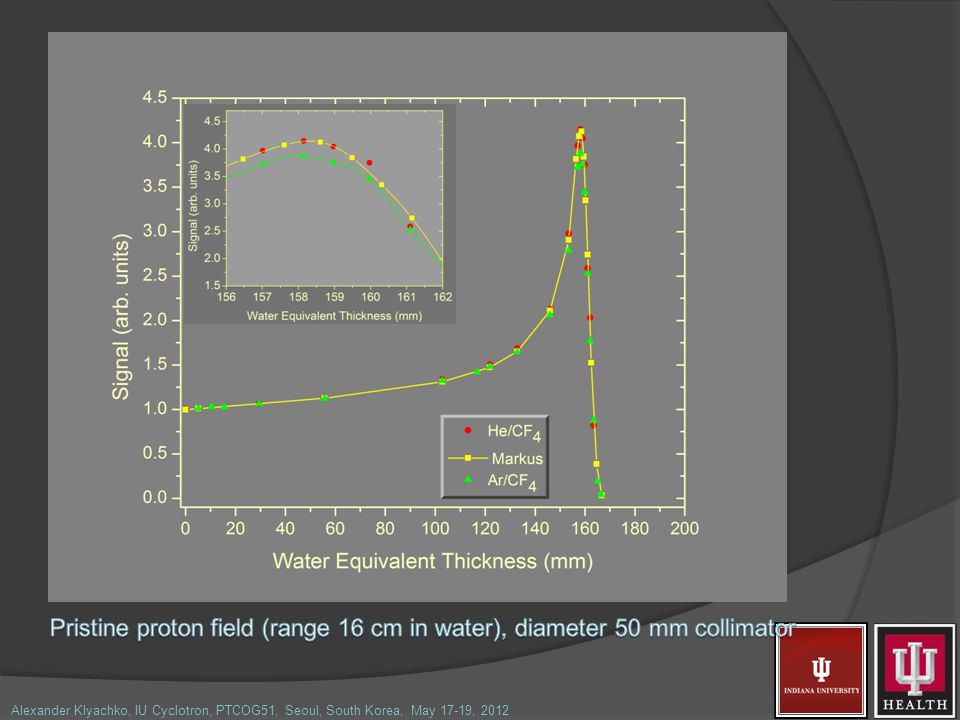

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012
10

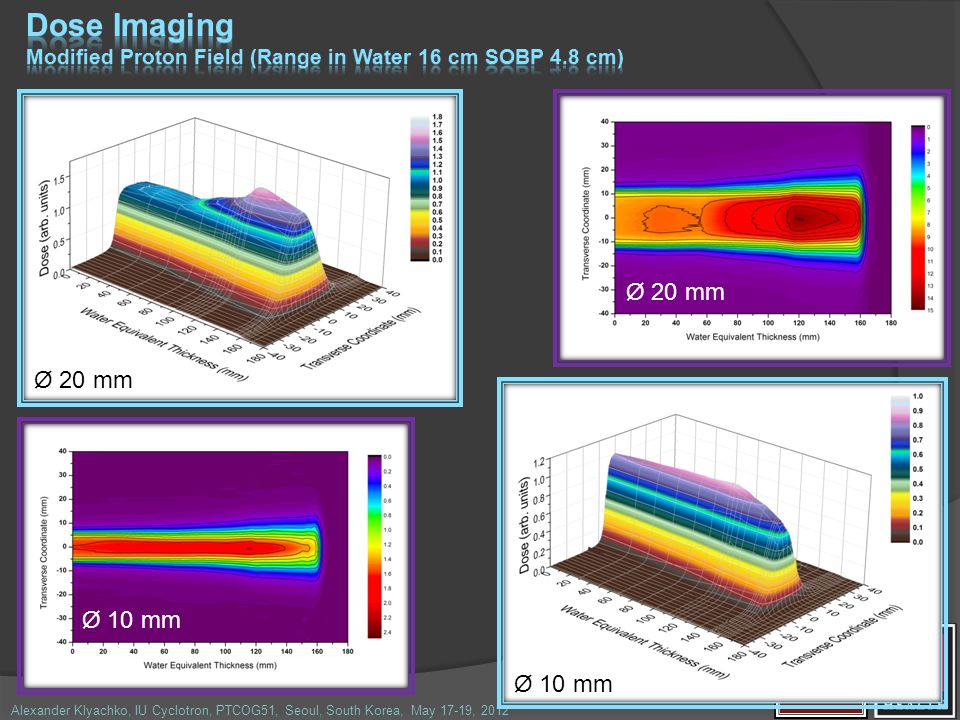

Ø 20 mm Ø 10 mm Ø 20 mmØ 10 mm
11

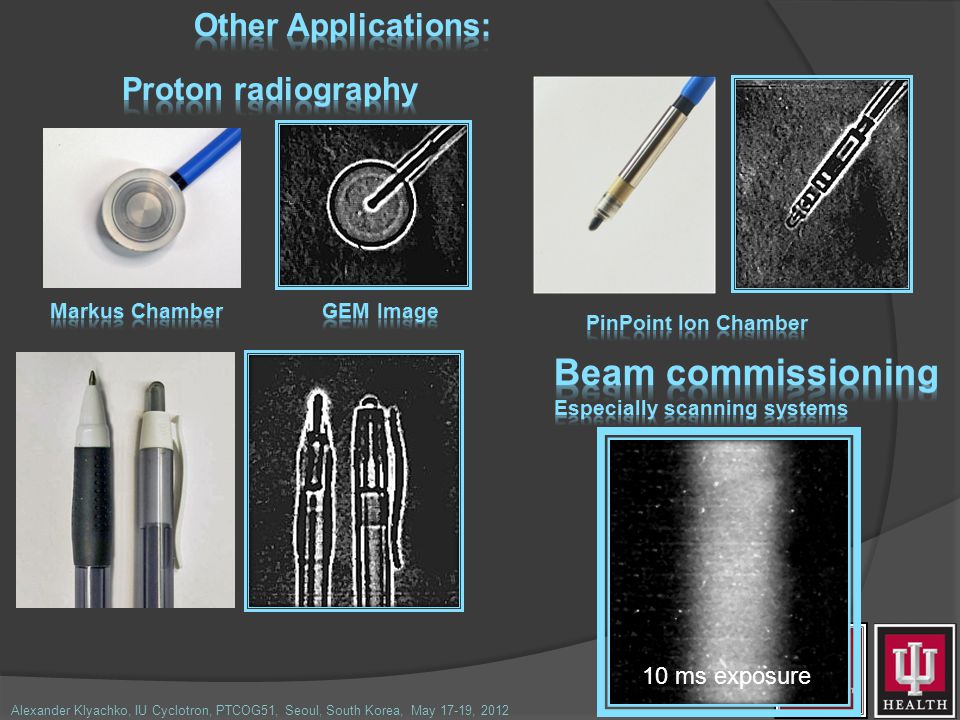

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 10 ms exposure
12

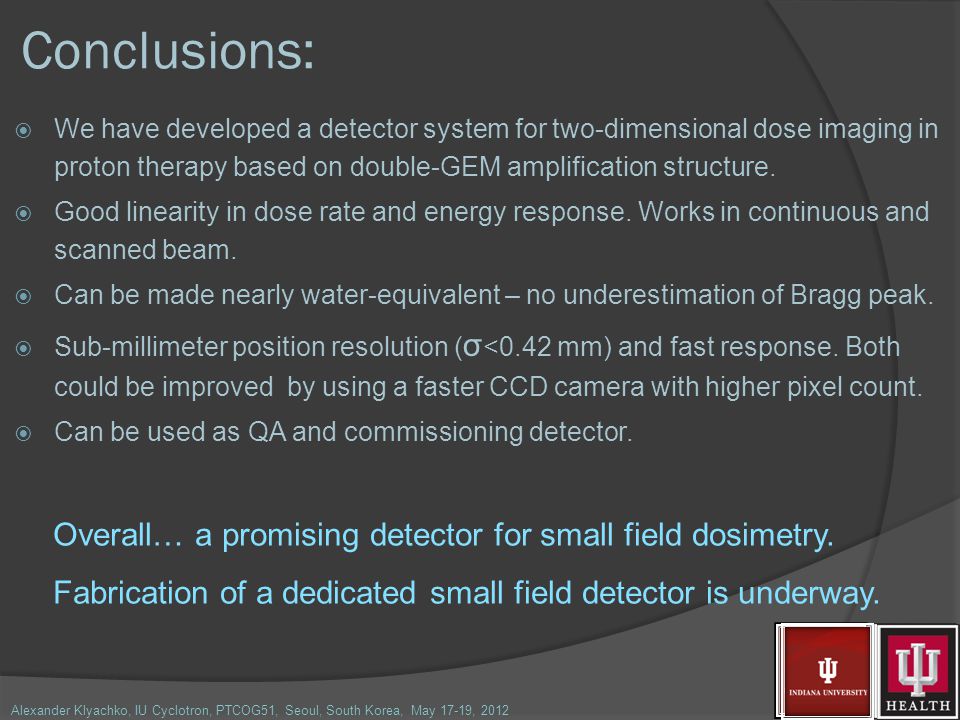

Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 Conclusions: We have developed a detector system for two-dimensional dose imaging in proton therapy based on double-GEM amplification structure. Good linearity in dose rate and energy response. Works in continuous and scanned beam. Can be made nearly water-equivalent – no underestimation of Bragg peak. Sub-millimeter position resolution ( σ <0.42 mm) and fast response. Both could be improved by using a faster CCD camera with higher pixel count. Can be used as QA and commissioning detector. Overall… a promising detector for small field dosimetry. Fabrication of a dedicated small field detector is underway.
13
Alexander Klyachko, IU Cyclotron, PTCOG51, Seoul, South Korea, May 17-19, 2012 Thank you
