1. Berkeley Data Analytics Stack
Prof. Harold Liu
15 December 2014

2. 2017/4/15
Data Processing Goals
Low latency (interactive) queries on historical data: enable faster decisions
E.g., identify why a site is slow and fix it
Low latency queries on live data (streaming): enable decisions on real-time data
E.g., detect & block worms in real-time (a worm may infect 1mil hosts in 1.3sec)
Sophisticated data processing: enable “better” decisions
E.g., anomaly detection, trend analysis
So what does this mean?
Well, this means that we want low response-time on historical data since the faster we can make a decision the better.
We want the ability to perform queries on live data since decisions on real-time data are better than on stale data.
Finally, we want to perform sophisticated processing on massive data as, in principle, processing more data will lead to better decisions. 2

3. Today’s Open Analytics Stack…
2017/4/15
Today’s Open Analytics Stack…
..mostly focused on large on-disk datasets: great for batch but slow
Data Processing
Application
Storage
Today’s open analytics stack is mostly focused on large on-disk datasets. As a result, it provides sophisticated processing on massive data but it is slow..
This stack consists of roughly four layers…
Except Google, Microsoft, and at some extend Amazon, this is the de-facto standarrd stack for data analysis today, and it is used by Yahoo!, Facebook, Twitter, to name a few.
Infrastructure 3

4. Goals Batch Interactive Streaming One stack to rule them all!
Easy to combine batch, streaming, and interactive computations
Easy to develop sophisticated algorithms
Compatible with existing open source ecosystem (Hadoop/HDFS)

5. Support Interactive and Streaming Comp.
Aggressive use of memory
Why?
1. Memory transfer rates >> disk or SSDs
2. Many datasets already fit into memory
Inputs of over 90% of jobs in Facebook, Yahoo!, and Bing clusters fit into memory
e.g., 1TB = 1 billion 1KB each
3. Memory density (still) grows with Moore’s law
RAM/SSD hybrid memories at horizon
High end datacenter node
10Gbps GB
40-60GB/s
16 cores
0.2-1GB/s
(x10 disks)
1-4GB/s
(x4 disks)
What do people use big data for?
First, they use it to generate reports to track and better understand business processes, ransactions
Second, they use it to diagnose and answer questions such as Why the user engagement dropping?, why is the system slow? Or to detect spam, worms, or DDoS attacks
But most importantly they use it to make decisions, such us improving the business process, deciding what features to add to the product, deciding what ad to show, or, once it identifies a spam, to block it.
Thus, the development of the BDAS stack is driven by the believe that “data is as useful as the decisions you can take based on that data”
10-30TB
1-4TB 5

6. Support Interactive and Streaming Comp.
Increase parallelism
Why?
Reduce work per node  improve latency
Techniques:
Low latency parallel scheduler that achieve high locality
Optimized parallel communication patterns (e.g., shuffle, broadcast)
Efficient recovery from failures and straggler mitigation
result T
What do people use big data for?
First, they use it to generate reports to track and better understand business processes, ransactions
Second, they use it to diagnose and answer questions such as Why the user engagement dropping?, why is the system slow? Or to detect spam, worms, or DDoS attacks
But most importantly they use it to make decisions, such us improving the business process, deciding what features to add to the product, deciding what ad to show, or, once it identifies a spam, to block it.
Thus, the development of the BDAS stack is driven by the believe that “data is as useful as the decisions you can take based on that data”
result
Tnew (< T) 6

7. Support Interactive and Streaming Comp.
Trade between result accuracy and response times
Why?
In-memory processing does not guarantee interactive query processing
e.g., ~10’s sec just to scan 512 GB RAM!
Gap between memory capacity and transfer rate increasing
Challenges:
accurately estimate error and running time for…
… arbitrary computations GB
16 cores
40-60GB/s
doubles every 18 months
doubles every 36 months
What do people use big data for?
First, they use it to generate reports to track and better understand business processes, ransactions
Second, they use it to diagnose and answer questions such as Why the user engagement dropping?, why is the system slow? Or to detect spam, worms, or DDoS attacks
But most importantly they use it to make decisions, such us improving the business process, deciding what features to add to the product, deciding what ad to show, or, once it identifies a spam, to block it.
Thus, the development of the BDAS stack is driven by the believe that “data is as useful as the decisions you can take based on that data” 7

8. Berkeley Data Analytics Stack (BDAS)
New apps: AMP-Genomics, Carat, …
Application
Application
in-memory processing
trade between time, quality, and cost
Data Processing
Data Processing
Data Management
Storage
Efficient data sharing across frameworks
… in two fundamental aspects… At the application layer we build new, real applications such a AMP-Genomics a genomics pipeline, and Carat, an application I’m going to talk about soon. Building real applications allows us to drive the features and design of the lower layers.
Infrastructure
Resource Management
Share infrastructure across frameworks
(multi-programming for datacenters) 8

9. AMP Berkeley AMPLab Algorithms Machines People
“Launched” January 2011: 6 Year Plan
8 CS Faculty
~40 students
3 software engineers
Organized for collaboration:

10. Berkeley AMPLab Funding: XData, CISE Expedition Grant
Industrial, founding sponsors
18 other sponsors, including
Goal: Next Generation of Analytics Data Stack for Industry & Research:
Berkeley Data Analytics Stack (BDAS)
Release as Open Source

11. Berkeley Data Analytics Stack (BDAS)
Existing stack components….
Data Management
Data Processing
Resource Management
HDFS
MPI …
Resource
Mgmnt.
Data
Processing
Hadoop
HIVE
Pig
HBase
Storm
Our instantiation of the resource management is Mesos 11

12. Mesos
Management platform that allows multiple framework to share cluster
Compatible with existing open analytics stack
Deployed in production at Twitter on 3,500+ servers
HIVE
Pig
HBase
Storm
MPI …
Data
Processing
Hadoop
Our instantiation of the resource management is Mesos
HDFS
Data
Mgmnt.
Mesos
Resource
Mgmnt. 12

13. Spark In-memory framework for interactive and iterative computations
Resilient Distributed Dataset (RDD): fault-tolerance, in-memory storage abstraction
Scala interface, Java and Python APIs
HIVE
Pig
Storm
MPI
Data
Processing …
Spark
Hadoop
Our instantiation of the resource management is Mesos
HDFS
Data
Mgmnt.
Mesos
Resource
Mgmnt. 13

14. Spark Streaming [Alpha Release]
Large scale streaming computation
Ensure exactly one semantics
Integrated with Spark  unifies batch, interactive, and streaming computations!
Spark
Streaming
HIVE
Pig
Storm
MPI
Data
Processing …
Spark
Hadoop
Our instantiation of the resource management is Mesos
HDFS
Data
Mgmnt.
Mesos
Resource
Mgmnt. 14

15. Shark  Spark SQL
HIVE over Spark: SQL-like interface (supports Hive 0.9)
up to 100x faster for in-memory data, and 5-10x for disk
In tests on hundreds node cluster at
Spark
Streaming
HIVE
Pig
Storm
MPI
Data
Processing
Shark …
Spark
Hadoop
Our instantiation of the resource management is Mesos
HDFS
Data
Mgmnt.
Mesos
Resource
Mgmnt. 15

16. Tachyon High-throughput, fault-tolerant in-memory storage
Interface compatible to HDFS
Support for Spark and Hadoop
Spark
Streaming
HIVE
Pig
Storm
MPI
Data
Processing
Shark …
Spark
Hadoop
Our instantiation of the resource management is Mesos
HDFS
Tachyon
Data
Mgmnt.
Resource
Mgmnt.
Mesos 16

17. BlinkDB Large scale approximate query engine
Allow users to specify error or time bounds
Preliminary prototype starting being tested at Facebook
Spark
Streaming
BlinkDB
Pig
Storm
MPI
Data
Processing
Shark
HIVE …
Spark
Hadoop
Our instantiation of the resource management is Mesos
HDFS
Tachyon
Data
Mgmnt.
Mesos
Resource
Mgmnt. 17

18. SparkGraph GraphLab API and Toolkits on top of Spark
Fault tolerance by leveraging Spark
Spark
Streaming
Spark
Graph
BlinkDB
Pig
Storm
MPI
Data
Processing
Shark
HIVE …
Spark
Hadoop
HDFS
Our instantiation of the resource management is Mesos
Tachyon
Data
Mgmnt.
Resource
Mgmnt.
Mesos 18

19. MLlib Declarative approach to ML Develop scalable ML algorithms
Make ML accessible to non-experts
Spark
Streaming
Spark
Graph
MLbase
BlinkDB
Pig
Storm
MPI
Data
Processing
Shark
HIVE …
Spark
Hadoop
Our instantiation of the resource management is Mesos
HDFS
Tachyon
Data
Mgmnt.
Resource
Mgmnt.
Mesos 19

20. Compatible with Open Source Ecosystem
Support existing interfaces whenever possible
GraphLab API
Hive Interface and Shell
Spark
Streaming
Spark
Graph
MLbase
BlinkDB
Pig
Storm
MPI
Data
Processing
Shark
HIVE …
Spark
Hadoop
HDFS
Our instantiation of the resource management is Mesos
Tachyon
Compatibility layer for Hadoop, Storm, MPI, etc to run over Mesos
Data
Mgmnt.
HDFS API
Resource
Mgmnt.
Mesos 20

21. Compatible with Open Source Ecosystem
Use existing interfaces whenever possible
Accept inputs from Kafka, Flume, Twitter,
TCP Sockets, …
Support Hive API
Spark
Streaming
Spark
Graph
MLbase
BlinkDB
Pig
Storm
MPI
Data
Processing
Shark
HIVE …
Support HDFS API, S3 API, and Hive metadata
Spark
Hadoop
Our instantiation of the resource management is Mesos
HDFS
Tachyon
Data
Mgmnt.
Resource
Mgmnt.
Mesos 21

22. Summary Support interactive and streaming computations
In-memory, fault-tolerant storage abstraction, low-latency scheduling,...
Easy to combine batch, streaming, and interactive computations
Spark execution engine supports all comp. models
Easy to develop sophisticated algorithms
Scala interface, APIs for Java, Python, Hive QL, …
New frameworks targeted to graph based and ML algorithms
Compatible with existing open source ecosystem
Open source (Apache/BSD) and fully committed to release high quality software
Three-person software engineering team lead by Matt Massie (creator of Ganglia, 5th Cloudera engineer)
Batch
Interactive
Streaming
Spark

23. In-Memory Cluster Computing for Iterative and Interactive Applications
Spark
In-Memory Cluster Computing for
Iterative and Interactive Applications
UC Berkeley 23

24. Background
Commodity clusters have become an important computing platform for a variety of applications
In industry: search, machine translation, ad targeting, …
In research: bioinformatics, NLP, climate simulation, …
High-level cluster programming models like MapReduce power many of these apps
Theme of this work: provide similarly powerful abstractions for a broader class of applications
Explain that trends in data collection rates vs processor and IO speeds are driving this 24

25. Motivation
Current popular programming models for clusters transform data flowing from stable storage to stable storage
e.g., MapReduce:
Map
Reduce
Input
Output
Also applies to Dryad, SQL, etc
Benefits: easy to do fault tolerance and 25

26. Motivation
Acyclic data flow is a powerful abstraction, but is not efficient for applications that repeatedly reuse a working set of data:
Iterative algorithms (many in machine learning)
Interactive data mining tools (R, Excel, Python)
Spark makes working sets a first-class concept to efficiently support these apps

27. Spark Goal
Provide distributed memory abstractions for clusters to support apps with working sets
Retain the attractive properties of MapReduce:
Fault tolerance (for crashes & stragglers)
Data locality
Scalability
RDDs = first-class way to manipulate and persist intermediate datasets
Solution: augment data flow model with “resilient distributed datasets” (RDDs) 27

28. Programming Model Resilient distributed datasets (RDDs)
Immutable collections partitioned across cluster that can be rebuilt if a partition is lost
Created by transforming data in stable storage using data flow operators (map, filter, group-by, …)
Can be cached across parallel operations
Parallel operations on RDDs
Reduce, collect, count, save, …
Restricted shared variables
Accumulators, broadcast variables
You write a single program  similar to DryadLINQ
Distributed data sets with parallel operations on them are pretty standard; the new thing is that they can be reused across ops
Variables in the driver program can be used in parallel ops; accumulators useful for sending information back, cached vars are an optimization
Mention cached vars useful for some workloads that won’t be shown here
Mention it’s all designed to be easy to distribute in a fault-tolerant fashion 28

29. Example: Log Mining
Load error messages from a log into memory, then interactively search for various patterns
Base RDD
Cache 1
Transformed RDD
lines = spark.textFile(“hdfs://...”)
errors = lines.filter(_.startsWith(“ERROR”))
messages = errors.map(_.split(‘\t’)(2))
cachedMsgs = messages.cache()
Worker
Driver
results
tasks
Block 1
Cached RDD
Parallel operation
cachedMsgs.filter(_.contains(“foo”)).count
cachedMsgs.filter(_.contains(“bar”)).count
Cache 2
. . .
Cache 3
Block 2
Result: full-text search of Wikipedia in <1 sec (vs 20 sec for on-disk data)
Block 3 29

30. RDDs in More Detail
An RDD is an immutable, partitioned, logical collection of records
Need not be materialized, but rather contains information to rebuild a dataset from stable storage
Partitioning can be based on a key in each record (using hash or range partitioning)
Built using bulk transformations on other RDDs
Can be cached for future reuse

32. RDD Operations
Transformations (define a new RDD)
map filter sample union groupByKey reduceByKey join
cache …

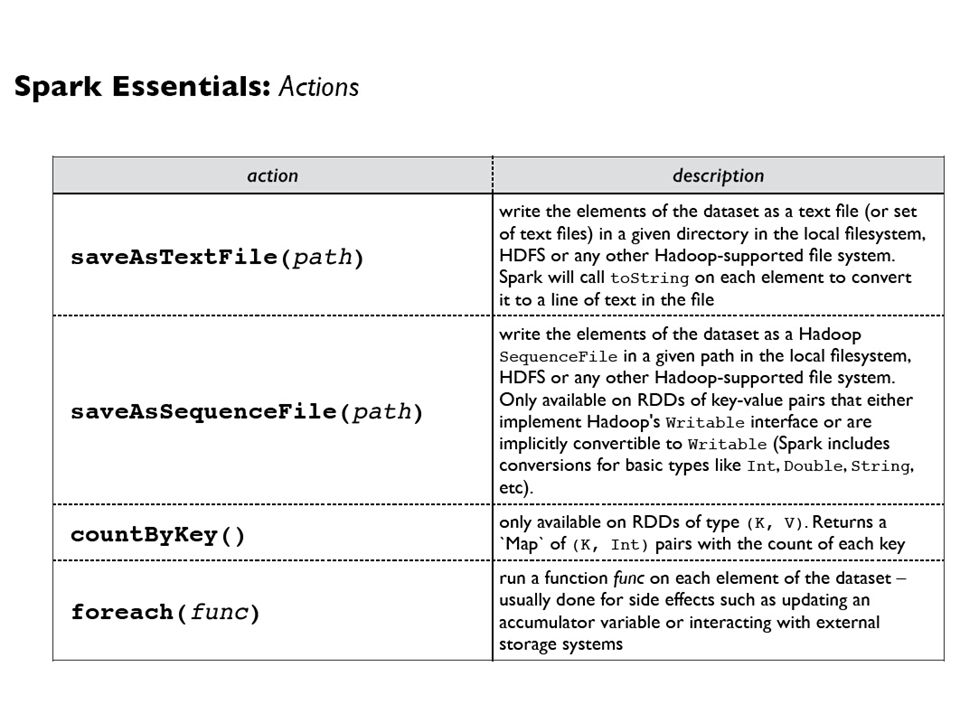

Parallel operations (Actions) (return a result to driver)
reduce collect count save
lookupKey …

38. RDD Fault Tolerance
RDDs maintain lineage information that can be used to reconstruct lost partitions
e.g.:
cachedMsgs = textFile(...).filter(_.contains(“error”))
.map(_.split(‘\t’)(2))
.cache()
HdfsRDD
path: hdfs://…
FilteredRDD
func: contains(...)
MappedRDD
func: split(…)
CachedRDD 38

39. Example 1: Logistic Regression
Goal: find best line separating two sets of points
random initial line + + + + + + – + + –
Note that dataset is reused on each gradient computation – – + + – – – – – –
target 39

40. Logistic Regression Code
val data = spark.textFile(...).map(readPoint).cache()
var w = Vector.random(D)
for (i <- 1 to ITERATIONS) {
val gradient = data.map(p =>
(1 / (1 + exp(-p.y*(w dot p.x))) - 1) * p.y * p.x
).reduce(_ + _)
w -= gradient }
println("Final w: " + w) 40

41. Logistic Regression Performance
127 s / iteration
first iteration 174 s
further iterations 6 s
This is for a 29 GB dataset on 20 EC2 m1.xlarge machines (4 cores each) 41

42. Example 2: MapReduce Or with combiners:
MapReduce data flow can be expressed using RDD transformations
res = data.flatMap(rec => myMapFunc(rec))
.groupByKey()
.map((key, vals) => myReduceFunc(key, vals))
Or with combiners:
res = data.flatMap(rec => myMapFunc(rec))
.reduceByKey(myCombiner)
.map((key, val) => myReduceFunc(key, val)) 42

43. Example 3 43

46. Other Spark Applications
Twitter spam classification (Justin Ma)
EM alg. for traffic prediction (Mobile Millennium)
K-means clustering
Alternating Least Squares matrix factorization
In-memory OLAP aggregation on Hive data
SQL on Spark (future work)

48. Conclusion
By making distributed datasets a first-class primitive, Spark provides a simple, efficient programming model for stateful data analytics
RDDs provide:
Lineage info for fault recovery and debugging
Adjustable in-memory caching
Locality-aware parallel operations
We plan to make Spark the basis of a suite of batch and interactive data analysis tools 48
