1. 3 Radiant Light Films

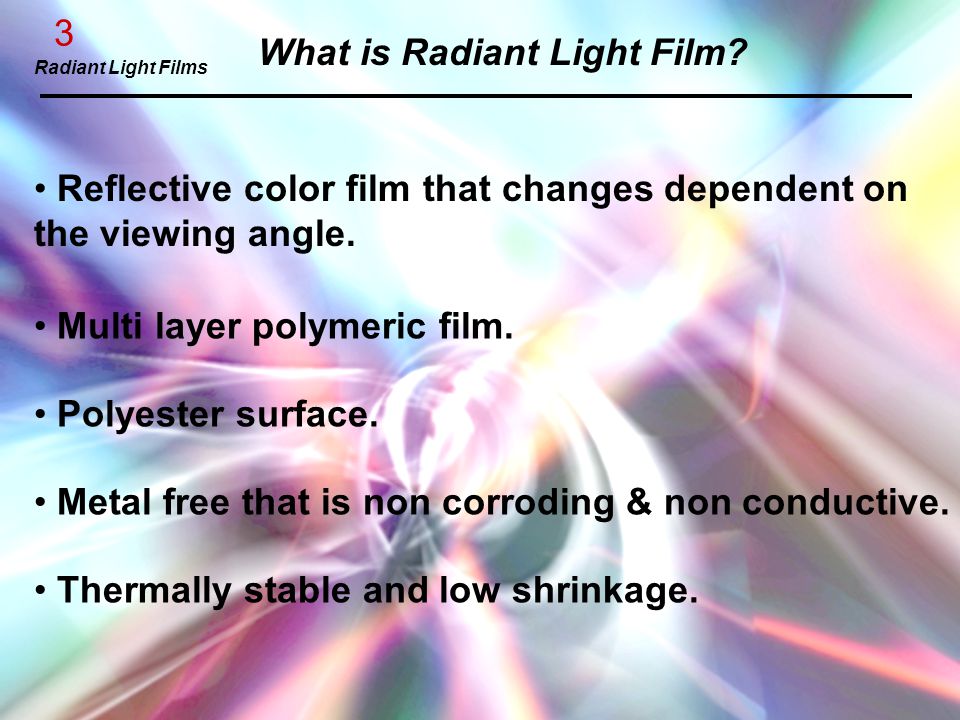

2. 3 What is Radiant Light Film? Reflective color film that changes dependent on the viewing angle. Multi layer polymeric film. Polyester surface. Metal free that is non corroding & non conductive. Thermally stable and low shrinkage.

3. 3 Radiant Light Films Radiant Light Film Product Offering CMT592 Printable Topcoat CMT500 Printable Topcoat CML592 Printable Topcoat Adhesive CML500 Printable Topcoat Adhesive 50lb paper liner 54” 557 linear yards CM500 Blue/Magenta/Gold 1.15 mils CM592 Cyan/Blue/Magenta 1.3 mils 54” 557 linear yards 28” & 56” 3000 linear yards 28” & 56” 3000 linear yards 2.05 mils 2.2 mils 50lb paper liner 1.15 mils 1.3 mils

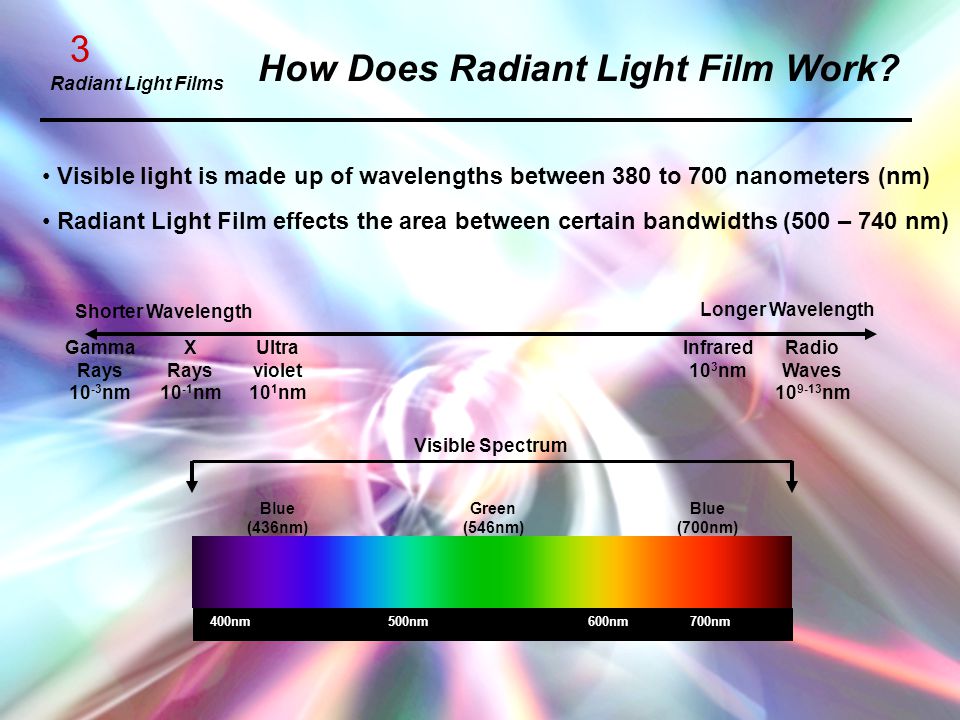

4. 3 Radiant Light Films How Does Radiant Light Film Work? Visible light is made up of wavelengths between 380 to 700 nanometers (nm) Radiant Light Film effects the area between certain bandwidths (500 – 740 nm) 400nm500nm600nm700nm Blue (436nm) Green (546nm) Blue (700nm) Visible Spectrum Gamma Rays 10 -3 nm X Rays 10 -1 nm Ultra violet 10 1 nm Infrared 10 3 nm Radio Waves 10 9-13 nm Shorter Wavelength Longer Wavelength

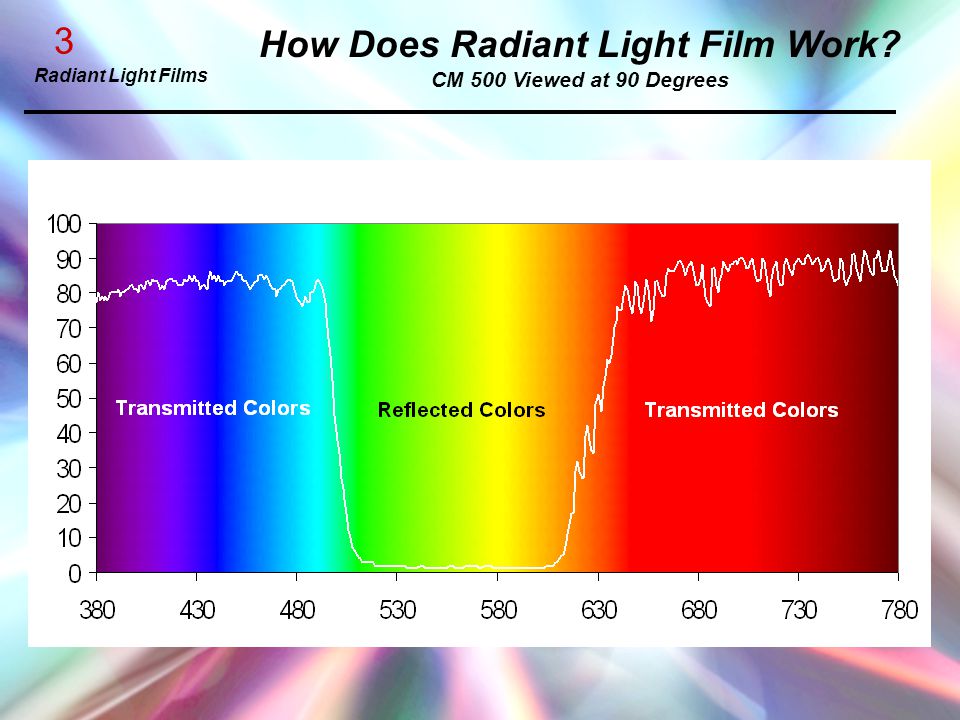

5. 3 Radiant Light Films How Does Radiant Light Film Work? CM 500 Viewed at 90 Degrees

6. 3 Radiant Light Films How Does Radiant Light Film Work? CM 500 Viewed at 60 Degrees

7. 3 Radiant Light Films How Does Radiant Light Film Work? CM 592 Viewed at 90 Degrees

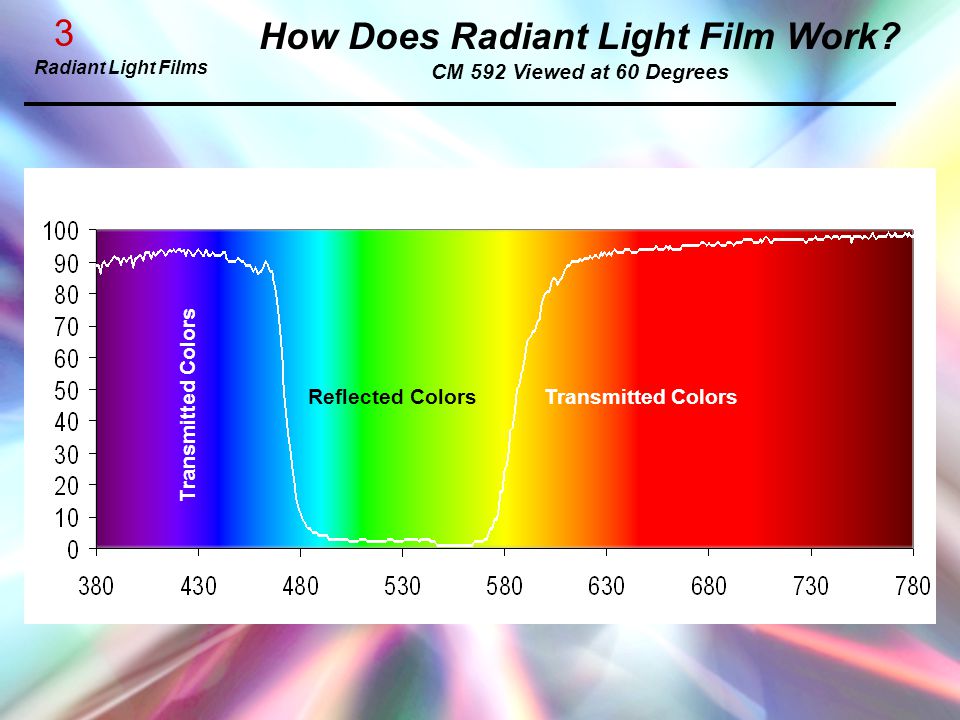

8. 3 Radiant Light Films How Does Radiant Light Film Work? CM 592 Viewed at 60 Degrees Transmitted Colors Reflected Colors

9. 3 Radiant Light Films How Does Radiant Light Film Work? Radiant Films are multilayer optical constructions The films consist of over 200 layers that affect light rays Multilayer reflectors amplify this effect. Each boundary between layers reflects a fraction of the incoming light. By controlling the thickness of each layer, researchers can determine how these light waves will interfere and thus which colors of light will be reflected. 1 2 1 2 Reflected waves Incident wave

10. 3 Radiant Light Films Radiant Light Film Uses Textiles Packaging Decorative In-mold Point of Purchase Primary Drivers Branding Price Material Stiffness Primary Drivers Thinner Film Vibrancy / Bi-directional Differentiation Primary Drivers Deep draw Differentiation New product Primary Drivers Reflectivity Process Capability Workability Labels Primary Drivers Printability Differentiation Non-metallic

11. 3 Radiant Light Films Applications of Radiant Light Film - Packaging -

12. 3 Radiant Light Films Applications of Radiant Light Film - Labeling -

13. 3 Radiant Light Films Applications of Radiant Light Film - Decorative Molding -

14. 3 Radiant Light Films Applications of Radiant Light Film - Textiles -

15. 3 Radiant Light Films Applications of Radiant Light Film - Point Of Purchase -

16. 3 Radiant Light Films Why use Radiant Light Film in your design? Build a visual world for your brand or product. Your design is important to notice! Consumers see colors, shapes and symbols before seeing words It helps to design your product to address the “five second sweet spot” marketers seek for their products. “During the first one to two seconds, a brand’s colors are seen. Symbols and words are elaborated in the next three to five seconds.” Packaging colors and shapes can target the consumer’s subconscious. A design can enhance consumer “recall” of your product.

17. 3 Radiant Light Films Radiant Light Film Features PropertyTypical value Constructions available Bare Film stock Topcoated stock Label stock Thickness 1.15 mils (Bare and topcoated stock) 2.05 mils (Label stock) Tensile Strength> 20 lb/inch Heat Shrinkage< 1.5% (@ 150 o C, 15 min) Density 13.9 yd 2 /lb (CM500) 11.8 yd 2 /lb (CM592) Maximum Use Temperature125 o C Roll Configuration Maximum widths - Bare Film - 56” and 28” - Topcoated and Label - 54” Maximum length - 3000 linear yards Core - 6” paper Splices - 2 per roll

18. 3 Radiant Light Films What Inks Work With Radiant Light Film?

19. 3 Radiant Light Films What Ribbons Work With Radiant Light Film?

20. 3 Radiant Light Films Supportive Collateral Radiant Light Film Folder - 70-0713-4474-4 Radiant Light Application Pages - Labeling - 70-0713-4470-2 - Packaging - 70-0713-4471-0 - Textiles - 70-0713-4473-6 - Decorative in-mold - 70-0713-4472-8 Radiant Light Data Pages - CM500/CMT500/CML500 - 70-0713-4453-8 - CM592/CMT500/CMT592 - 70-0713-4454-6 Radiant Light Samples - CM500 8.5” x 11” sheet - 70-0064-1681-5 - CM592 8.5” x 11” sheet - 70-0064-1682-3 - CM500 12” x 50’ roll - 70-4000-0144-5 - CM500 24” x 100’ roll - 70-4000-0145-2 - CM592 12” x 50’ roll - 70-4000-0324-3 - CM592 24” x 100’ roll - 70-4000-0325-0 - CMT/CML 500/592 – Contact a Medina ADS
