1. Virtualization Technology Trends Intel Corporation 21 July 2008

2. Agenda Virtualization Technology evolution VMMs –Hybrid virtualization –Open Virtualization Format Specification –Virtual Machine Interface Usages evolution

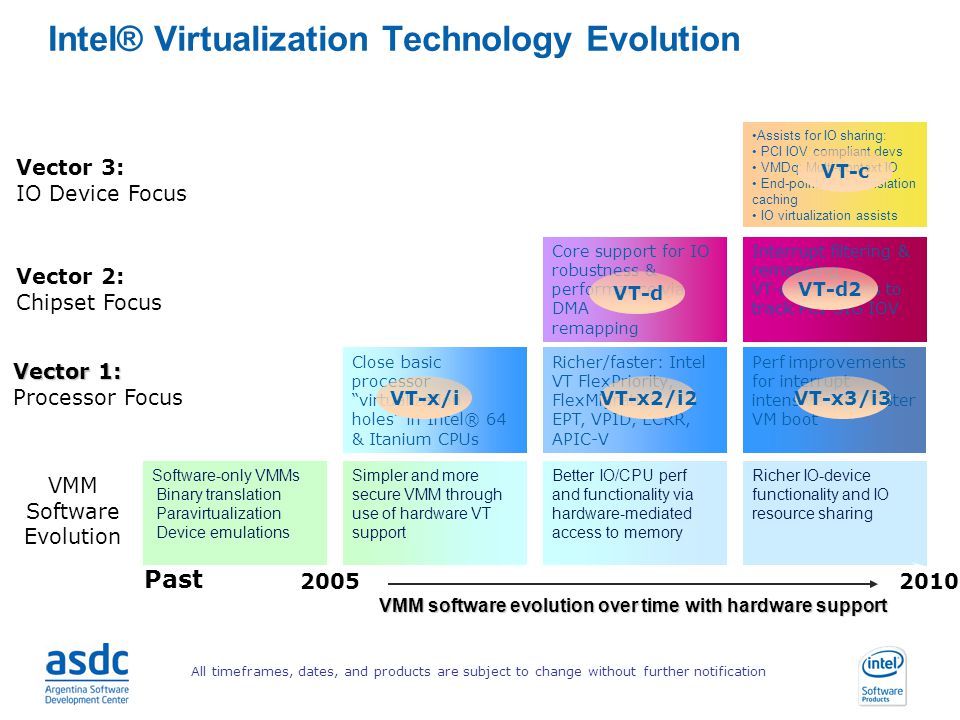

3. Intel® Virtualization Technology Evolution Software-only VMMs Binary translation Paravirtualization Device emulations Simpler and more secure VMM through use of hardware VT support Better IO/CPU perf and functionality via hardware-mediated access to memory Assists for IO sharing: PCI IOV compliant devs VMDq: Multi-context IO End-point DMA translation caching IO virtualization assists Richer IO-device functionality and IO resource sharing Core support for IO robustness & performance via DMA remapping Richer/faster: Intel VT FlexPriority, FlexMigration EPT, VPID, ECRR, APIC-V Close basic processor “virtualization holes” in Intel® 64 & Itanium CPUs Perf improvements for interrupt intensive env, faster VM boot Interrupt filtering & remapping VT-d extensions to track PCI-SIG IOV VT-x/iVT-x2/i2 VT-d VT-x3/i3 VT-d2 VT-c VMM software evolution over time with hardware support VMM Software Evolution Vector 3: IO Device Focus Vector 1: Vector 1: Processor Focus Vector 2: Chipset Focus Past 20052010 All timeframes, dates, and products are subject to change without further notification

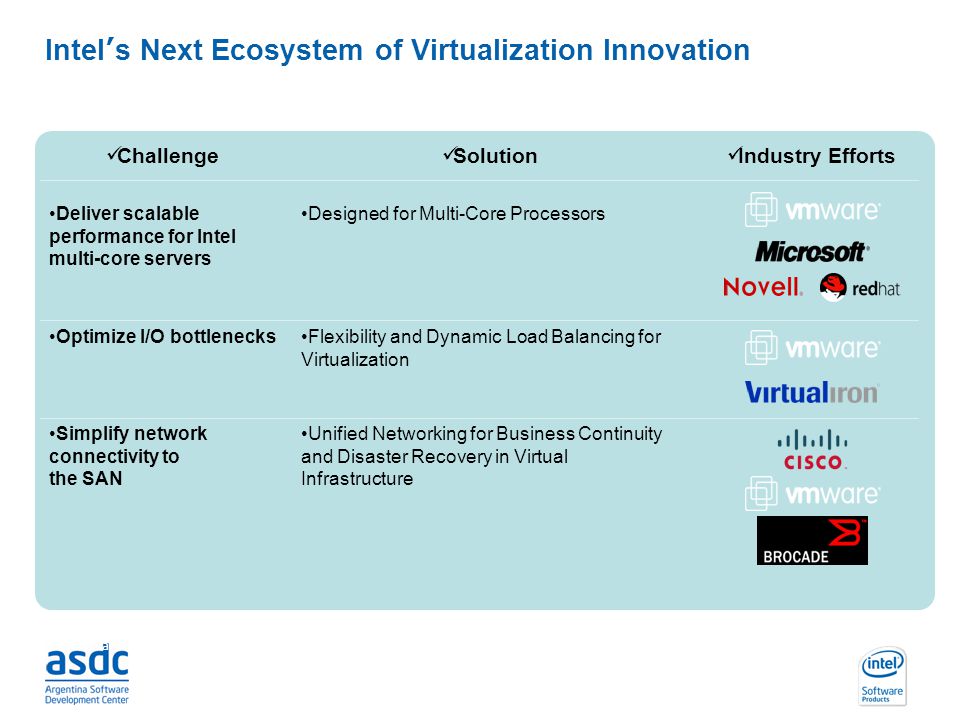

4. Intel ’ s Next Ecosystem of Virtualization Innovation *Other names and brands may be claimed as the property of others. Designed for Multi-Core Processors Solution Deliver scalable performance for Intel multi-core servers Challenge Industry Efforts Flexibility and Dynamic Load Balancing for Virtualization Optimize I/O bottlenecks Unified Networking for Business Continuity and Disaster Recovery in Virtual Infrastructure Simplify network connectivity to the SAN

5. What’s Coming Gigabit Virtualization Evolution: Next Generation Usage Models Through Virtualization Innovation Throughput (Rx) 0.0 2.0 4.0 6.0 10.0 w/o VMDqw/ MNDqw/ VMDq JF* 8.0 9.5 9.2 4.0 Source: Intel Today’s Networking NIC VMM Layer 2 Software Switch MAC/PHY LAN Layer 2 Sorter … VM 1 vNIC VM 2 vNIC VM n vNIC … w/ VMDq Wire Speed Rx Side Performance With VMDq on Intel ® 82598 10 Gigabit Ethernet Controller

6. Virtualization Performance Robust Tick Tock Roadmap 55% 70% 100% 85% 45nm Intel® Core™ uArchitecture (Penryn) Virtualization SW Overhead 2007 / 2008 VMDq Intel® VT-d 2008 / 2009 55% 70% 100% 85% 45nm Next generation Intel uArchitecture (Nehalem) Virtualization SW Overhead EPT, VPID, VMDq2 55% 70% 100% 85% Quad-Core Intel® Xeon® Processors Intel Xeon 5100, 5300, 7300 Virtualization SW Overhead 2006 / 2007 Intel® VT-x, FlexPriorit y Roadmap will continue to deliver higher raw performance (Moore’s Law), and architectural enhancements to improve efficiency in virtualized environments All timeframes, dates, and products are subject to change without further notification

7. Intel virtualization in embedded devices

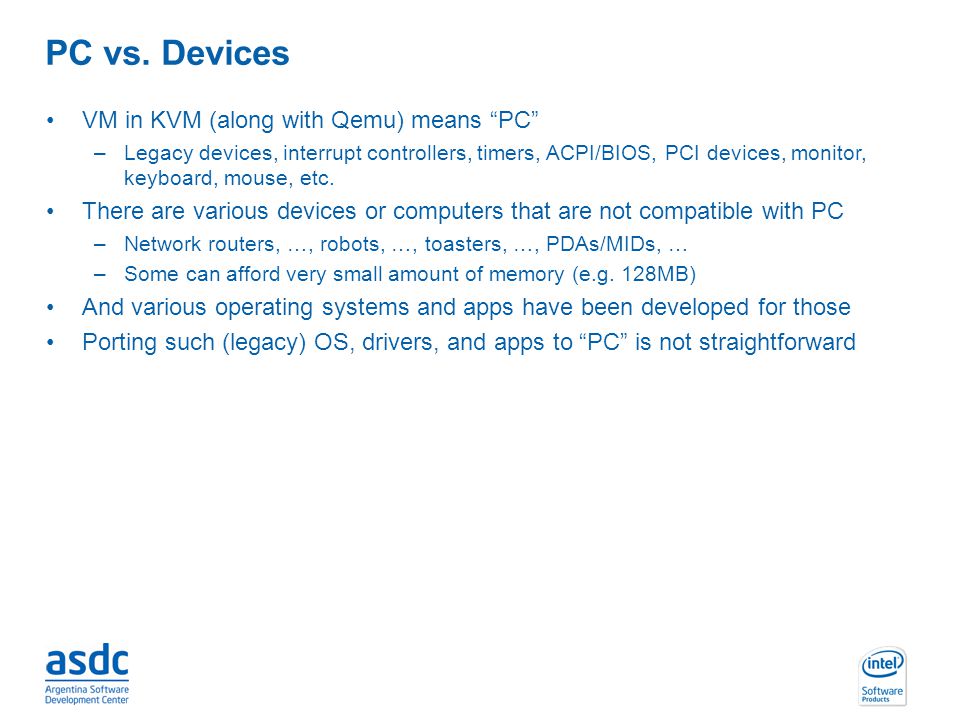

8. All timeframes, dates, and products are subject to change without further notification PC vs. Devices VM in KVM (along with Qemu) means “PC” –Legacy devices, interrupt controllers, timers, ACPI/BIOS, PCI devices, monitor, keyboard, mouse, etc. There are various devices or computers that are not compatible with PC –Network routers, …, robots, …, toasters, …, PDAs/MIDs, … –Some can afford very small amount of memory (e.g. 128MB) And various operating systems and apps have been developed for those Porting such (legacy) OS, drivers, and apps to “PC” is not straightforward

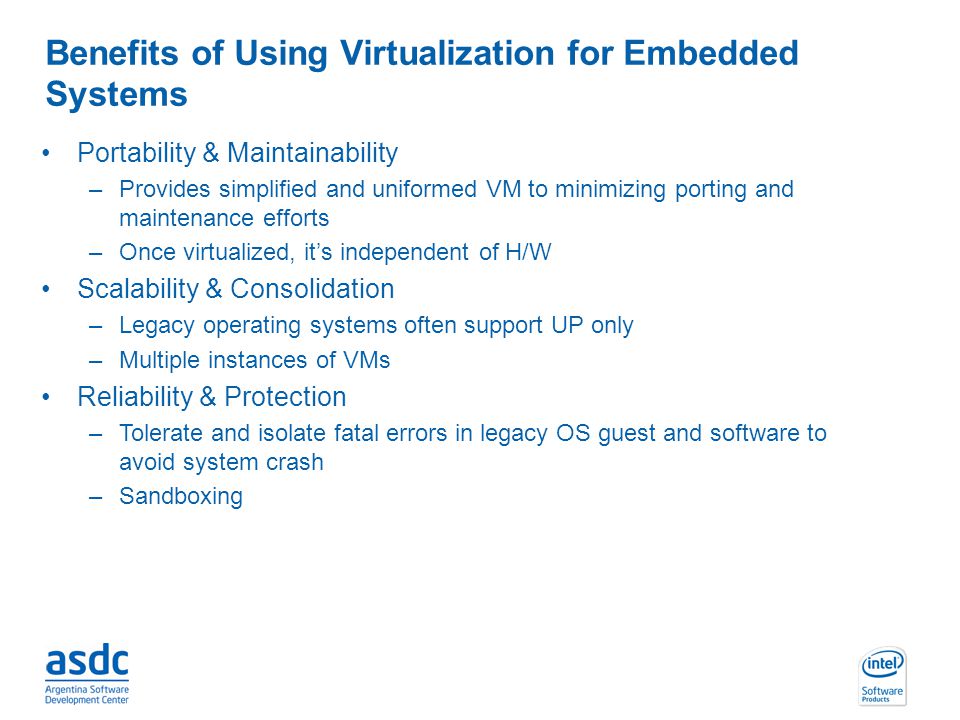

9. All timeframes, dates, and products are subject to change without further notification Benefits of Using Virtualization for Embedded Systems Portability & Maintainability –Provides simplified and uniformed VM to minimizing porting and maintenance efforts –Once virtualized, it’s independent of H/W Scalability & Consolidation –Legacy operating systems often support UP only –Multiple instances of VMs Reliability & Protection –Tolerate and isolate fatal errors in legacy OS guest and software to avoid system crash –Sandboxing

10. All timeframes, dates, and products are subject to change without further notification What’s Mini-VM and Why? Bare minimum and simple VM –CPU(s), memory, abstracted (PV) devices Timer, front-end devices (or virtio) –Start from protected (or 64-bit) mode with paging enabled; no real mode; No BIOS Protected execution environment by H/W –Run under H/W-assisted virtualization –Allow Ring-0 operations, eliminating burden of para-virtualizingCPU Low virtualization overheads –Use hybrid virtualization (PV + H/W-assisted virtualization) –Real-time (e.g. direct paging mode) Check at the Mini-VM project…

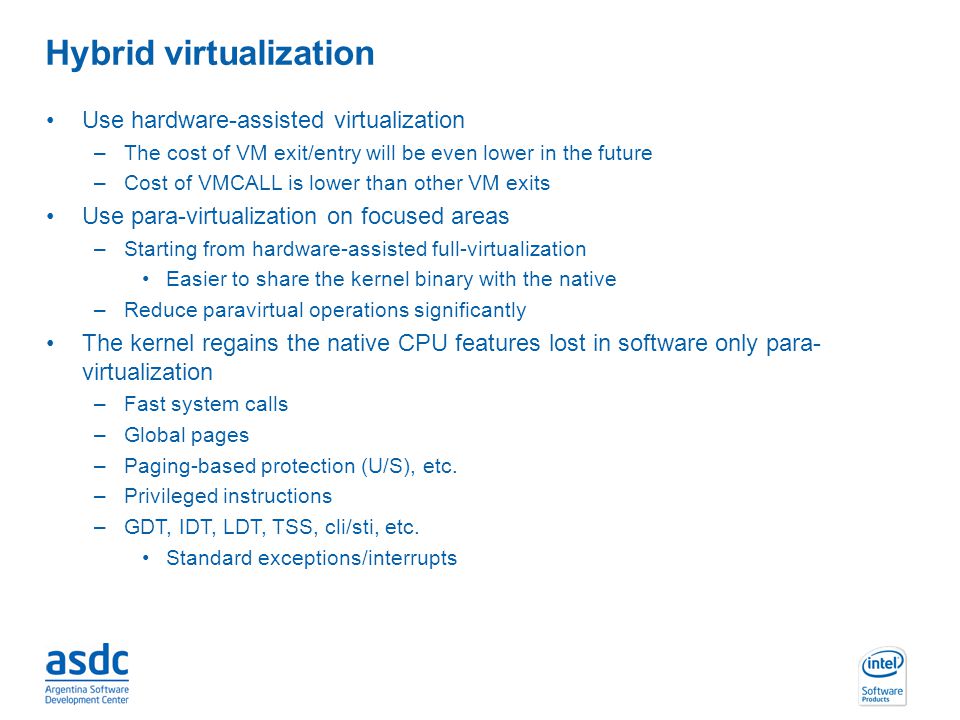

11. Hybrid virtualization Use hardware-assisted virtualization –The cost of VM exit/entry will be even lower in the future –Cost of VMCALL is lower than other VM exits Use para-virtualization on focused areas –Starting from hardware-assisted full-virtualization Easier to share the kernel binary with the native –Reduce paravirtual operations significantly The kernel regains the native CPU features lost in software only para- virtualization –Fast system calls –Global pages –Paging-based protection (U/S), etc. –Privileged instructions –GDT, IDT, LDT, TSS, cli/sti, etc. Standard exceptions/interrupts

12. Focus areas for hybrid virtualization Timer Scheduling –Idle handling Interrupt controllers MMU –Memory overcommit –Or hardware-assisted (i.e. EPT or NPT) Inter VMs communication

13. Usage trends Business continuity –High availability support through the synchronization of VMs –Reduction of unplanned downtime Seamless management of resources –Livemigration –Service Oriented Architectures leveraged by Virtualization Beginning of growth curve-expansion for desktop and application virtualization –Increased focus on security –Licensing issues/changing Virtual Machines mobility –Open Virtualization Format Specification –Virtual Machines Interface –Live migration Graphics virtualization –From a paravirtualization to a direct access approach

14. The future of Virtualization

15. Cloud computing Cloud computing relates to the underlying architecture in which the services are designed Applications run somewhere on the “cloud” we don’t care where Big news is for application developers and IT operations. –develop, deploy and run applications that can easily grow capacity (scalability), work fast (performance), and never — or at least rarely — fail (reliability) Infrastructures should have these characteristics: –Self-healing: hot backup application –SLA-driven –Multi-tenancy: built in a way that allows shared infrastructure –Service-oriented –Virtualized –Linearly Scalable: The system shall be predictable and efficient in growing the application –Data management

16. Desktop/App virtualization Market expansion According to a recent tracker study on the Asia/Pacific excluding Japan (APEJ) thin client market, total sales of thin clients in 1H 2007 reached 282,667 units, representing an increase of 37.3% over the previous year. Revenue likewise increased 29.2% over the same period Across the various verticals, the predominant role of thin clients across the region has shifted away from government/education segment to financial services as the leading vertical of thin client adoption from 1H 2006 onwards

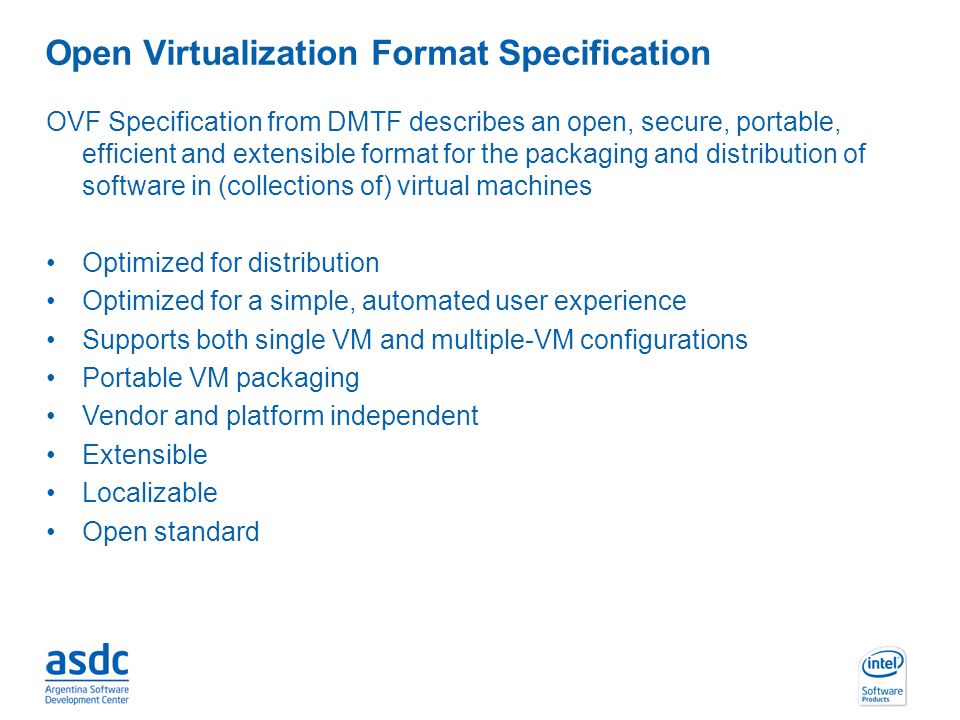

17. Open Virtualization Format Specification OVF Specification from DMTF describes an open, secure, portable, efficient and extensible format for the packaging and distribution of software in (collections of) virtual machines Optimized for distribution Optimized for a simple, automated user experience Supports both single VM and multiple-VM configurations Portable VM packaging Vendor and platform independent Extensible Localizable Open standard

18. OVF Packages package.ovf -> metadata descriptor (required) package.mf -> manifest (optional) containing the SHA-1 digests of individual files in the package package.cert -> signature of the digest (optional) along with the base64-encoded X.509 certificate de-DE-resources.xml -> OVF Envelope describes VMS metadata vmdisk1.vmdk -> no specific disk format to be used is required vmdisk2.vmdk resource.iso -> (optional) Distribution –OVF package can be made available as a set of files –OVF package can be stored as a single file using the TAR format. The extension should be.ova (open virtual appliance or application)

19. Virtual Machine Interface In 2005, VMware proposed a paravirtualization interface, the Virtual Machine Interface (VMI), as a communication mechanism between the guest operating system and the hypervisor An implementation of this standard was merged in the main Linux kernel version 2.6.21 Motivations Portability: it should be easy to port a guest OS to use the API High performance: the API must not obstruct a high performance hypervisor implementation Maintainability: it should be easy to maintain and upgrade the guest OS Extensibility: it should be possible for future expansion of the API No considerable adoption of the proposed VMI architecture, although a pending need to be satisfied (considering HVM additions as new x86 support) What about proposing an interface from the platform?

20. Wrap up Virtualization Technology Introduction –Beginnings of Virtualization Technology in x86 –Approaches to server and client virtualization Virtualization Usages in Servers –IT business needs behind Virtualization Technology VMMs / Hypervisors –Deep dive in the open source Xen hypervisor –Overview of KVM, VMware, OpenVZ Hardware assisted Virtualization –Software solution for x86 virtualization –Enhancements through hardware assisted virtualization –Intel VT features Virtualization Technology trends –VMMs standardization and VMs mobility –Virtualization in every platform

21. How to start… Do I need virtualization? –Consider the server side Lab in the University Data Center consolidation Environments for server applications development –Consider the clients side VMs for each student VMs for users with low processing power needs Which do I choose? –Open source for teaching/learning purposes Choose the right one for your needs –Commercial solutions for highly dynamic data centers Can I do some research in the area? –Several open source projects in the software side with pending topics –Standards to integrate virtualization through manageability

22. Gracias! Thank You!

23. Backup

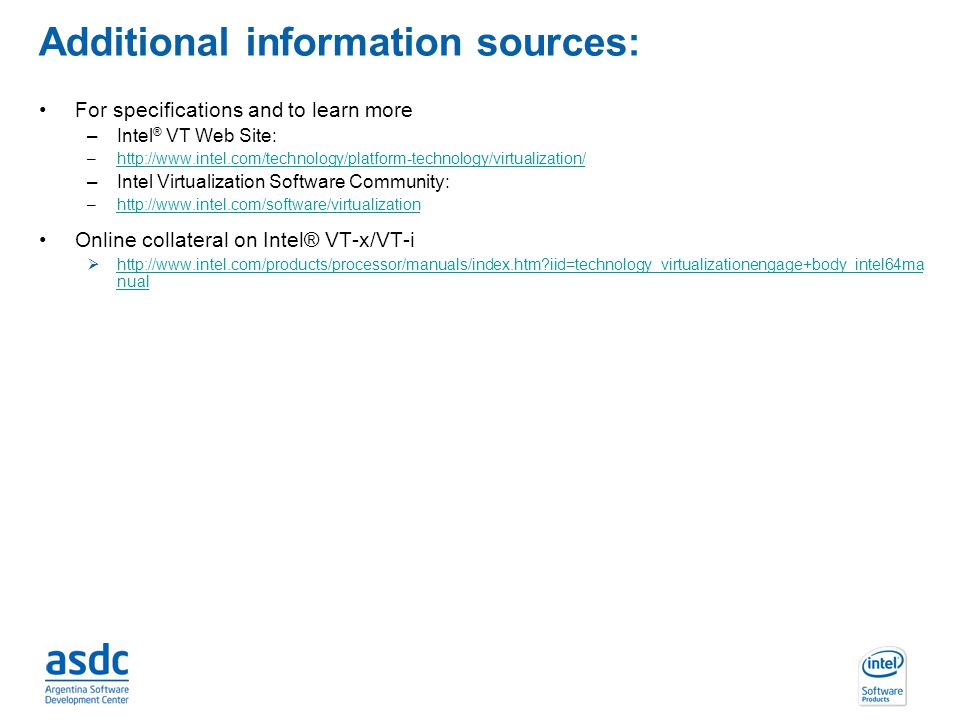

24. Additional information sources: For specifications and to learn more –Intel ® VT Web Site: –http://www.intel.com/technology/platform-technology/virtualization/http://www.intel.com/technology/platform-technology/virtualization/ –Intel Virtualization Software Community: –http://www.intel.com/software/virtualizationhttp://www.intel.com/software/virtualization Online collateral on Intel® VT-x/VT-i  http://www.intel.com/products/processor/manuals/index.htm?iid=technology_virtualizationengage+body_intel64ma nual http://www.intel.com/products/processor/manuals/index.htm?iid=technology_virtualizationengage+body_intel64ma nual

25. References http://www.dmtf.org/standards/published_documents/DSP0243_1.0.0.pdf http://www.vmware.com/pdf/vmi_specs.pdf http://www.vmware.com/interfaces/ http://lists.xensource.com/archives/html/xen-merge/2005-08/msg00076.html http://download.microsoft.com/download/a/f/d/afdfd50d-6eb9-425e-84e1- b4085a80e34e/SYS-T312_WH07.pptxhttp://download.microsoft.com/download/a/f/d/afdfd50d-6eb9-425e-84e1- b4085a80e34e/SYS-T312_WH07.pptx http://wiki.xensource.com/xenwiki/Open_Topics_For_Discussion?action=Attach File&do=get&target=XenLoop_+A+Transparent+High+Performance+Inter- VM+pdfhttp://wiki.xensource.com/xenwiki/Open_Topics_For_Discussion?action=Attach File&do=get&target=XenLoop_+A+Transparent+High+Performance+Inter- VM+pdf http://wiki.xensource.com/xenwiki/Open_Topics_For_Discussion?action=Attach File&do=get&target=Memory+Overcommit.pdfhttp://wiki.xensource.com/xenwiki/Open_Topics_For_Discussion?action=Attach File&do=get&target=Memory+Overcommit.pdf

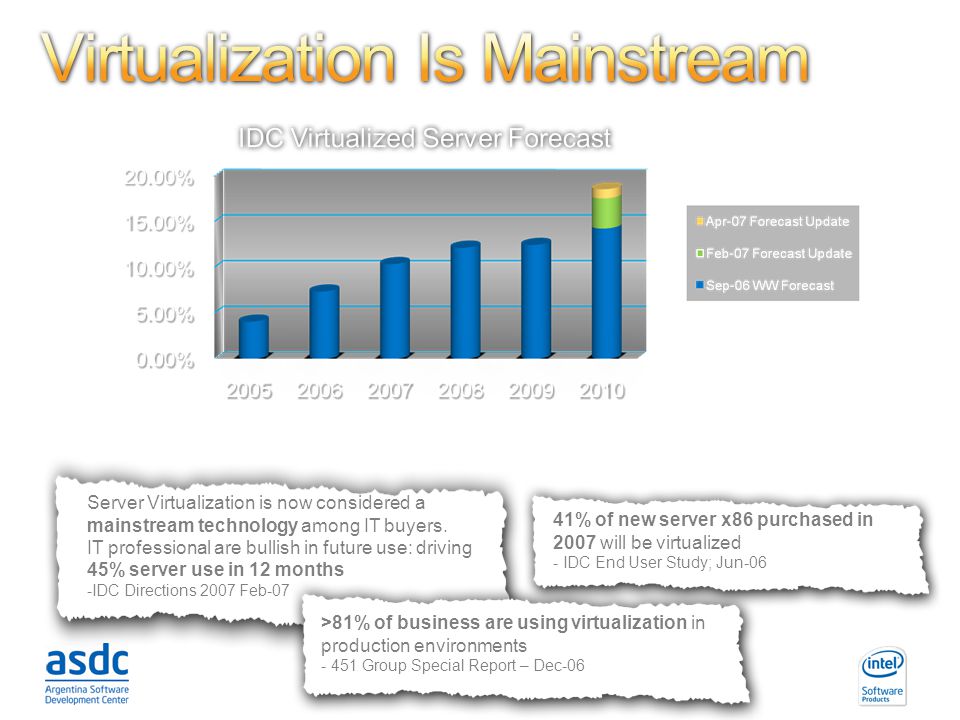

26. 41% of new server x86 purchased in 2007 will be virtualized - IDC End User Study; Jun-06 Server Virtualization is now considered a mainstream technology among IT buyers. IT professional are bullish in future use: driving 45% server use in 12 months -IDC Directions 2007 Feb-07 >81% of business are using virtualization in production environments - 451 Group Special Report – Dec-06

27. Traditional benchmarking covers Performance, Power, ScalabilityTraditional benchmarking covers Performance, Power, Scalability –Metrics: Throughput (MB/s), Response time, #users, etc –Micro-architecture focus: cache sizing, frequency, bandwidth, etc. New technology requires new areas of analysis and metricsNew technology requires new areas of analysis and metrics –Areas of focus driven by use models. E.g., VM migration time, VM utilizationE.g., VM migration time, VM utilization –Need to measure how Intel ® Virtualization technology benefits end-users and ISVs

28. Virtualization presents unique challengesVirtualization presents unique challenges –Which configurations to focus on Homogeneous or heterogeneous OSHomogeneous or heterogeneous OS Number Virtual MachinesNumber Virtual Machines Configuration of individual VMs (CPU, Memory, NIC, HBA, HDD)Configuration of individual VMs (CPU, Memory, NIC, HBA, HDD) –Measuring performance Virtual clock accuracy induces platform dependent errorVirtual clock accuracy induces platform dependent error Availability of performance monitoring capabilitiesAvailability of performance monitoring capabilities Consolidation use case adds additional testing challengesConsolidation use case adds additional testing challenges –Synchronicity: Use automation scripts –Utilization: Avoid harmonic bottlenecks –Steady State: Easy, repeatable measurements Only way to overcome the challenges is to develop the benchmarksOnly way to overcome the challenges is to develop the benchmarks –Tier consolidation using SAP SD –vConsolidate: a server application consolidation benchmark

29. DescriptionDescription – Benchmark that represents predominant use case -> server application consolidation – Application types selected for consolidation guided by market data vConsolidate providesvConsolidate provides – A methodology for measuring performance in a consolidated environment – A means for fellow travelers to publish virtualization performance proof points – The ability to analyze performance across VMMs and hardware platforms Knowledge obtained  SPEC virtualization workloadKnowledge obtained  SPEC virtualization workload

30. 5 Virtual Machines5 Virtual Machines 3 Clients: Controller, Mail, and Web3 Clients: Controller, Mail, and Web

31. *Other names and brands may be claimed as the property of others

32. Consolidation Stack Unit – (CSU)Consolidation Stack Unit – (CSU) Smallest granule in vConSmallest granule in vCon Consist of 5 Virtual MachinesConsist of 5 Virtual Machines –Database –Commercial Mail –Web Server –Java Application Server –Idle Each CSU represents single scoreEach CSU represents single score Final score is aggregate of the individual CSU scoresFinal score is aggregate of the individual CSU scores

34. Running vConsolidate Running vConsolidate –Controller application Starts the tests via helper scripts; Runs for 30 minutesStarts the tests via helper scripts; Runs for 30 minutes Stops the test and reports scoreStops the test and reports score –Time measured in “Controller Client”  external timer Scoring Scoring –The “Controller” application calculates final score –SpecJBB, Sysbench and Loadsim - transactions/ second –WebBench – throughput CSU Final Score = GEOMEAN (VM Relative Perf[i])CSU Final Score = GEOMEAN (VM Relative Perf[i])

35. Seeding Industry with Benchmark Workloads Seeding Industry with Benchmark Workloads – vConsolidate– Consolidated stack of business workloads consisting of Server Side Java, Commercial Database, Commercial Mail, Commercial Web Server on 4 VMs Collaborating with Virtualization leaders Collaborating with Virtualization leaders – Microsoft and OEMs - consolidation workloads, methodology & metrics – VMware – VMmark* consolidation stack Establishing benchmarks with ISV/OSVs Establishing benchmarks with ISV/OSVs Contributing to standard benchmarks through SPEC (long term) Contributing to standard benchmarks through SPEC (long term) *Other names and brands may be claimed as the property of others.
