ARCHITTECTUAL DRAFTING II and III ARCHITECTUAL STYLES.

Similar presentations


Presentation on theme: "ARCHITTECTUAL DRAFTING II and III ARCHITECTUAL STYLES."— Presentation transcript:

1

2 ARCHITTECTUAL DRAFTING II and III ARCHITECTUAL STYLES

3 EUROPEAN CONTRIBUTION TO EARLY AMERICAN ARCHITECTURE  EUROPEAN CONTRIBUTIONS INCLUDE  COLUMNS  POST AND LINTEL  ARCHES

4 COLUMNS  SEEN IN THE FEDERAL AND GREEK REVIVAL STYLE HOMES  PROVIDE VERTICAL LINES WHICH GIVE THEM HEIGHT  PROVIDES THE FEELING OF STRENGTH AND STABILITY

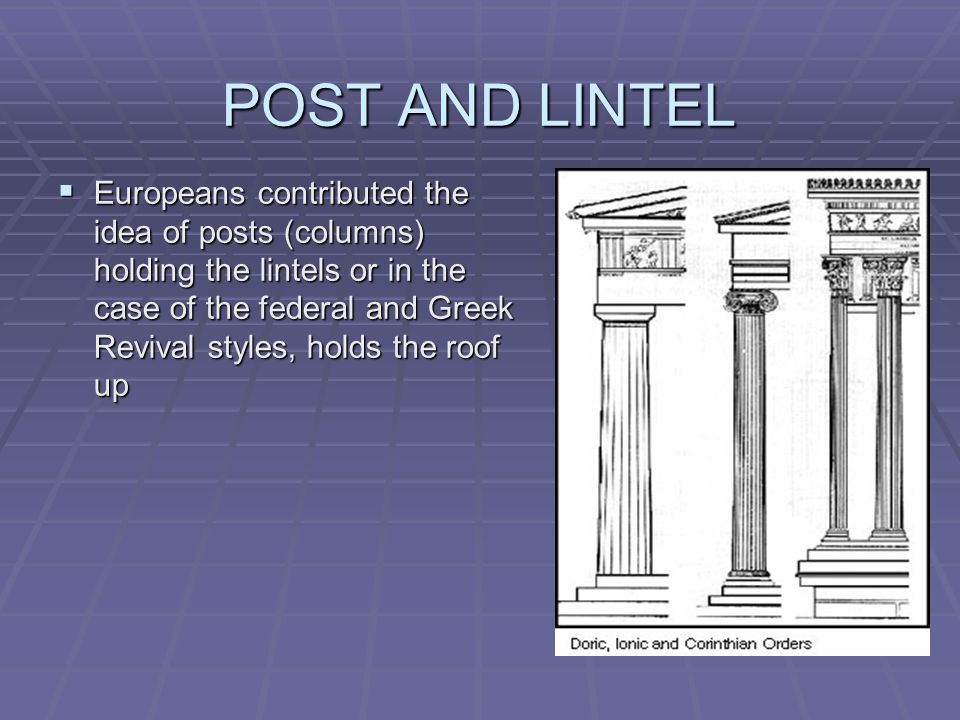

5 POST AND LINTEL  Europeans contributed the idea of posts (columns) holding the lintels or in the case of the federal and Greek Revival styles, holds the roof up

6 ARCHES  SEEN IN SPANISH, FRENCH, CONTEMPORARY, VICTORIAN, AND IN SOME CASES RANCH STYLE HOMES

7 ARCHITECHTURAL STYLES  STYLES COVERED  GEORGIAN  SALTBOX  GARRISON  CAPE COD  FEDERAL  GREEK REVIVAL  SOUTHERN COLONIAL  ENGLISH TUDOR  DUTCH  FRENCH  SPANISH  VICTORIAN  FARMHOUSE  RANCH  CONTEMPORARY

8 GEORGIAN  7984 WITTY ROAD, SUMMERFIELD  VERY SYMETRICAL  DENTIL MOLDING  DROMERS AND WINDOWS BASED OFF AN IMAGINARY CENTERLINE  HIP STYLE ROOF

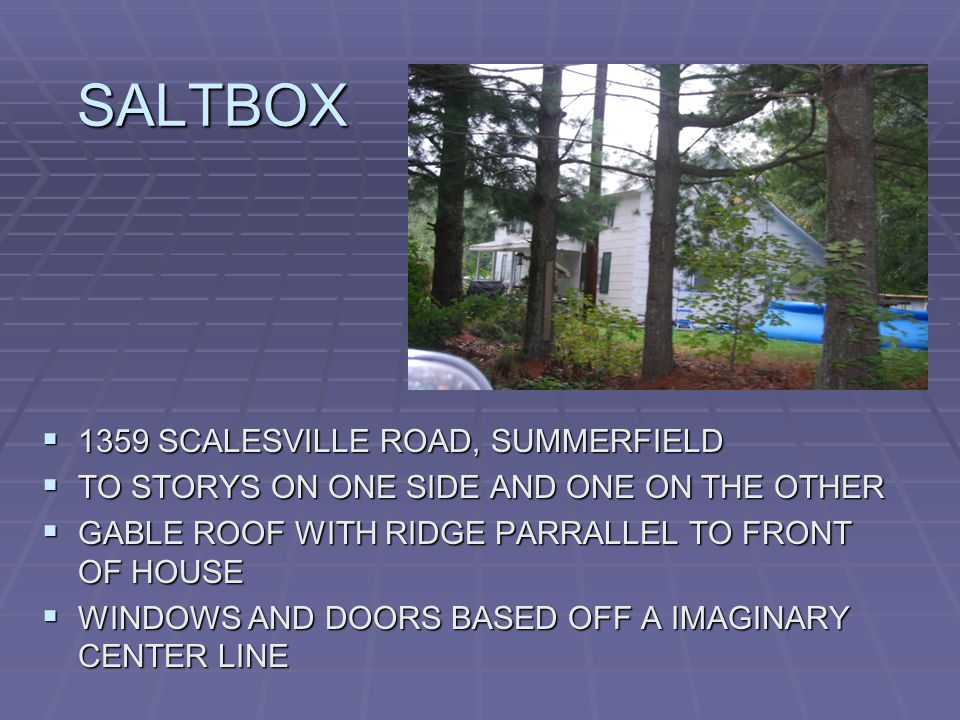

9 SALTBOX  1359 SCALESVILLE ROAD, SUMMERFIELD  TO STORYS ON ONE SIDE AND ONE ON THE OTHER  GABLE ROOF WITH RIDGE PARRALLEL TO FRONT OF HOUSE  WINDOWS AND DOORS BASED OFF A IMAGINARY CENTER LINE

10 GARRISON  202 SOUTH CHERRY STREET, KERNERSVILLE  SECOND STORY OVER HANGS FIRST LEVEL  SYMETRICAL  STEEP GABLE ROOFS

11 CAPE COD  1451 SCALESVILLE ROAD, SUMMERFIELD  ONE LEVEL HOME  STEEP GABLE ROOF WITH DORMERS  CENTRAL CHIMNEY

12 FEDERAL  301 COUNTRY CLUB ROAD, GREENSBORO  DIGNIFIED FEELING  BUILT WITH BRICK  LOW SLOPED ROOFS WITH DENTIL MOLDING BELOW THE EAVES  SYMETRICAL

13 GREEK REVIVAL  597 SUNSET DRIVE, GREENSBORO  FRONT DOOR TOPPED WITH A TRANSOM WINDOW OR CAPPED BY A PROMINENT CORNICE  COLUMNS COVERING A TWO STORY HIGH PORTICO  LARGE AND RECTANGULAR

14 SOUTHERN COLONIAL  409 SUNSET DRIVE, GREENSBORO  PLANTATION STYLE  SYMETRICAL  LOW SLOPED GABLE ROOF

15 ENGLISH TUDOR  611 SUNSET DRIVE, GREENSBORO  COMBINATION OF HALF-TIMBER WITH BRICK, STONE, AND PLASTER

16 DUTCH  607 SUNSET DRIVE, GREENSBORO  GAMBREL ROOF  ROOF SERVES AS WALLS FOR SECOND STORY

17 FRENCH NORMANDY  6360 LAKE BRANDT, SUMMERFIELD  FRENCH NORMANDY  SILO IN FRONT OF HOUSE ACTS AS LIVING AREA OR ENTRANCE  SILO IS USUALLY CENTERED IN THE HOUSE

18 SPANISH  801 WOODLAND DRIVE, GREENSBORO  TILED ROOFS  ENCLOSED COURTYARD  ARCHES

19 VICTORIAN  7857 ALCORN ROAD, OAK RIDGE  QUENNE ANNE  ORNATE TRIM  COMPLICATED ROOF LINE  USUALLY HAVE A ROUND TOWER OR TURRET

20 VICTORIAN  6845 SPENCER DIXON ROAD, SUMMERFIELD  FOLK VICTORIAN  SIMPLER STYLE RATHER THAN EXTREMLEY ORNATE  PORCH ADORNED WITH SPINDLE WORK AND WRAPPED THE HOUSE

21 FARMHOUSE  1444 SCALESVILLE ROAD, SUMMERFIELD  WRAP AROUND PORCH  GABLE ROOF WITH RIDGE LINE PARRALLEL TO FRONT OF HOUSE  ROOF IS USUALLY FAIRLY STEEP

22 RANCH  1121 SCALESVILLE ROAD, SUMMERFIELD  ONE STORY, RAMBLING LAYOUT  LARGE OVER HANG TO COVER THE ORCH FROM THE SUN  USUALLY RECTANGULAR, L- SHAPED, OR U-SHAPED PLAN

23 CONTEMPORY  4406 LIGURIA COURT, SUMMERFIELD  USE OF GEOMETRIC SHAPES  SIMPLE, BOLD LINES  NEW MATERIALS AND FEATURES
