1. ALLUVIAL/FLUVIAL

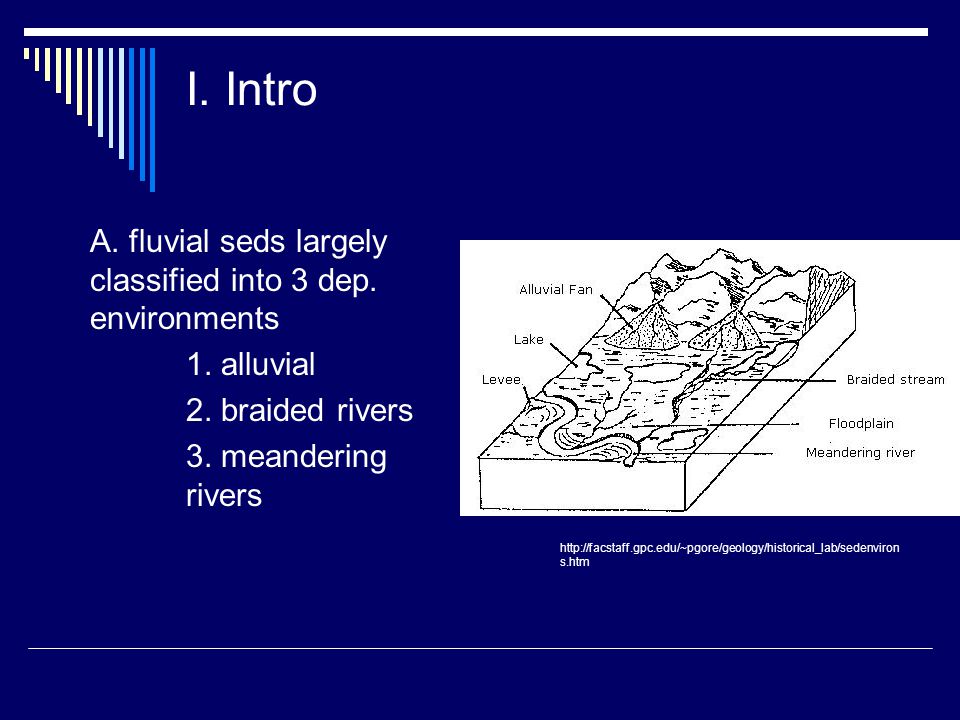

2. I. Intro A. fluvial seds largely classified into 3 dep. environments 1. alluvial 2. braided rivers 3. meandering rivers http://facstaff.gpc.edu/~pgore/geology/historical_lab/sedenviron s.htm

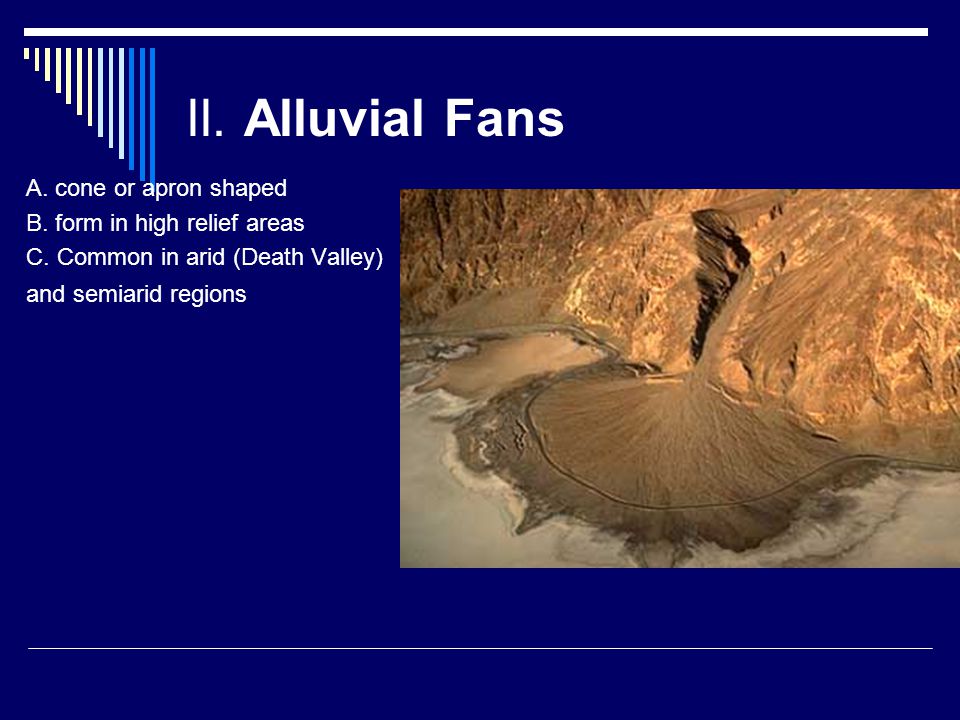

3. II. Alluvial Fans A. cone or apron shaped B. form in high relief areas C. Common in arid (Death Valley) and semiarid regions

4. D. alluvial from Latin "to wash against" vs. fluvial (Latin "river") E. Bajada = a group of coalesced fans. F. Role of flow expansion - flow unrestricted coming out of canyon, it widens leading to shallowing of flow which reduces velocity. Sedimentation occurs http://www.agc.army.mil/research/products/desert_guide/lsmsheet/lsbajad.htm

5. Note Main Alluival Channel French Pyrenees, decreased velocities as channel mouth widens lead to deposition

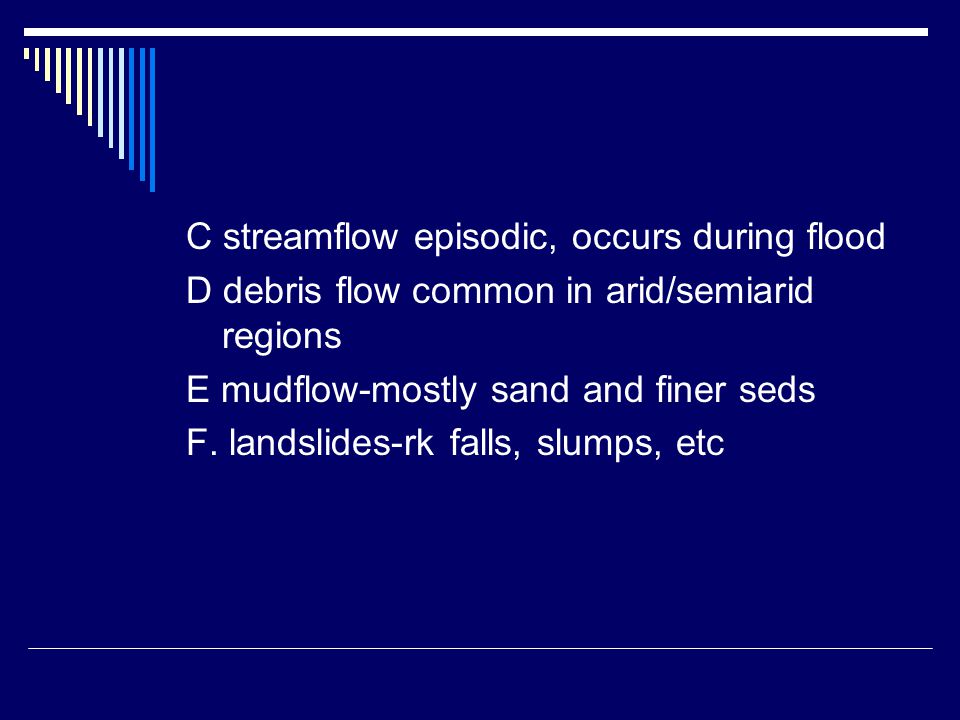

6. C streamflow episodic, occurs during flood D debris flow common in arid/semiarid regions E mudflow-mostly sand and finer seds F. landslides-rk falls, slumps, etc

7. III. Depositional processes A debris flow, mudflow, landslides, streamflow B streamflow dominates; deposits 1.elongate channels, coarse. & p. sorted 2. sheet flood- thin, w. sorted, structureless/ or laminated gravel, sand or silt 3. Sieve deposits-gravel lobes; clay

8. Streamflow southern border of the Taklamakan Desert in Xinjiang. NASATaklamakan DesertXinjiang

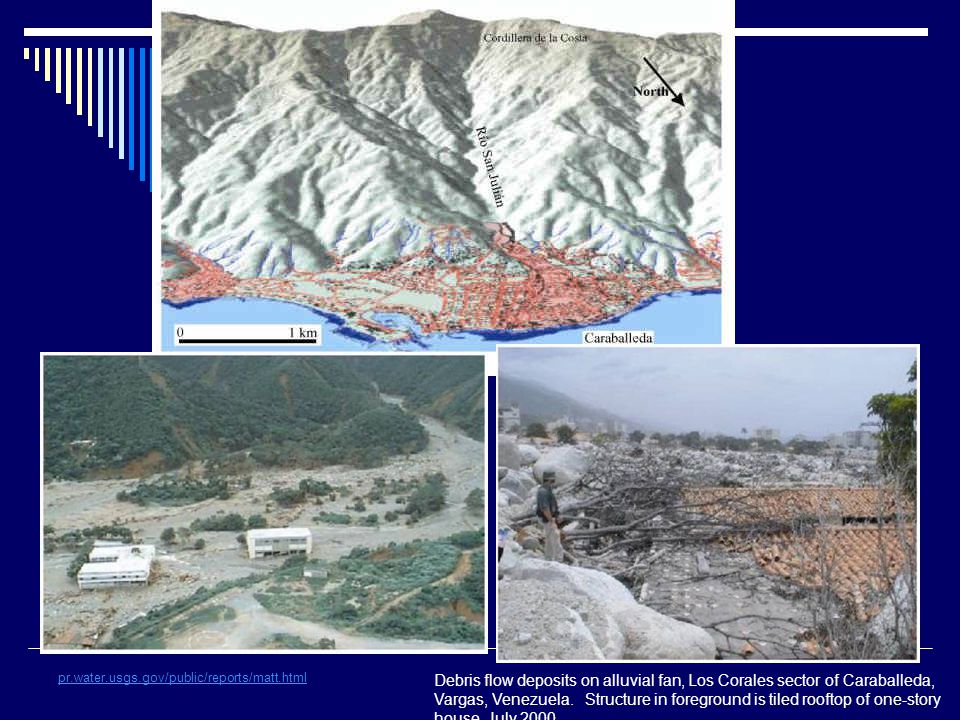

9. Debris flow deposits on alluvial fan, Los Corales sector of Caraballeda, Vargas, Venezuela. Structure in foreground is tiled rooftop of one-story house, July 2000 pr.water.usgs.gov/public/reports/matt.html

10. Debris flow deposit A little scarp cut into the surface of the debris flow shows the finer grained material that makes up the bulk of the debris flow. The coarsening of the material at the surface of the fan is probably in part due to post-depositional winnowing of fine grains as well as some original coarse-tail coarsening in the original debris flow. usgs http://faculty.gg.uwyo.edu/heller/

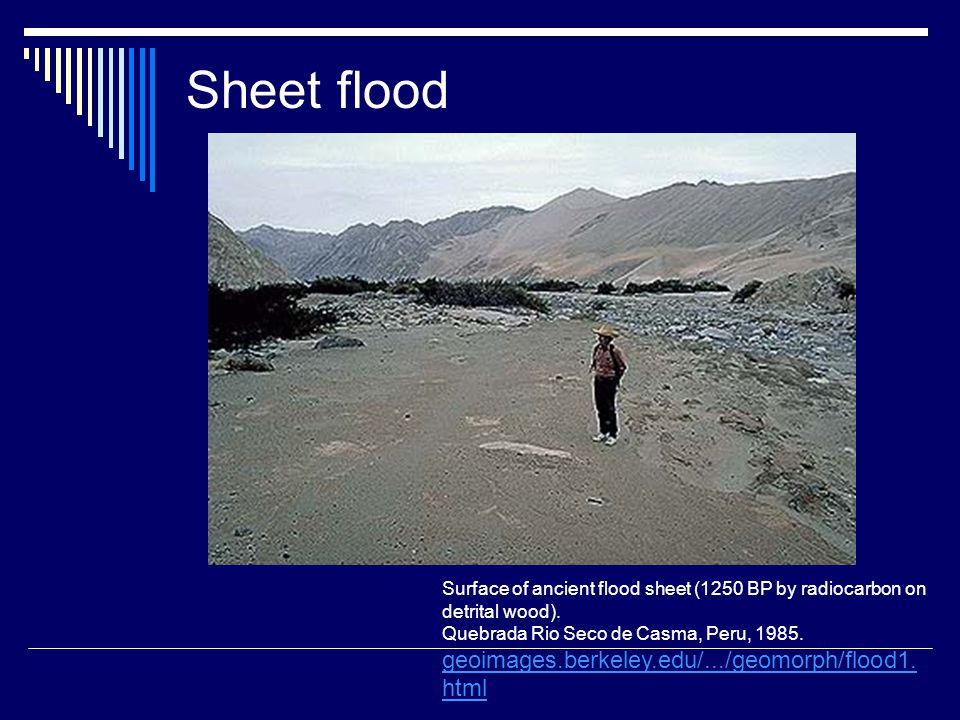

11. Sheet flood Surface of ancient flood sheet (1250 BP by radiocarbon on detrital wood). Quebrada Rio Seco de Casma, Peru, 1985. geoimages.berkeley.edu/.../geomorph/flood1. html geoimages.berkeley.edu/.../geomorph/flood1. html

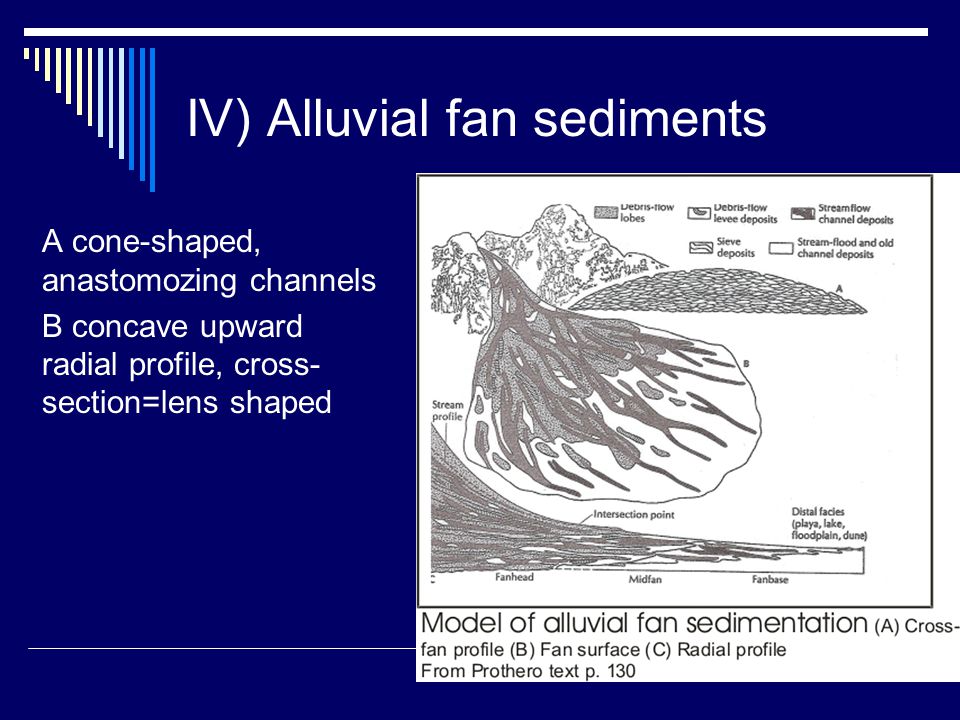

12. IV) Alluvial fan sediments A cone-shaped, anastomozing channels B concave upward radial profile, cross- section=lens shaped

13. C fan consists of: 1. upper fan or proximal fan-steep, coarse seds, entrenched channels, debris flows 2. mid fan-less gradient, seds fine, branching shallow channels 3. distal fan- low gradients, fine seds, poorly defined channels

14. Fan Terminology geology.cwru.edu/~huwig/catalog/catalog.ht ml PROXIMALMEDIALDISTAL Most gravity flows deposited (matrix- supported etc) River channels cut down into head of the fan, develops a single large channel cut. Coarsest grained, most poorly sorted deposits Fewer gravity flows deposited Channels start splitting farther down the fan Fewest gravity flows reach this area Several small, shallow channels Finest grained, best sorted deposits http://faculty.gg.uwyo.edu/heller/

15. V. Mid Fan A. Has a lower slope gradient B. Sediment is intermediate in size and typically better sorted C. Sediments are well stratified and show some cross bedding D. Contains many small shallow braided channels surrounding one main (axial) channel (see photo on right)

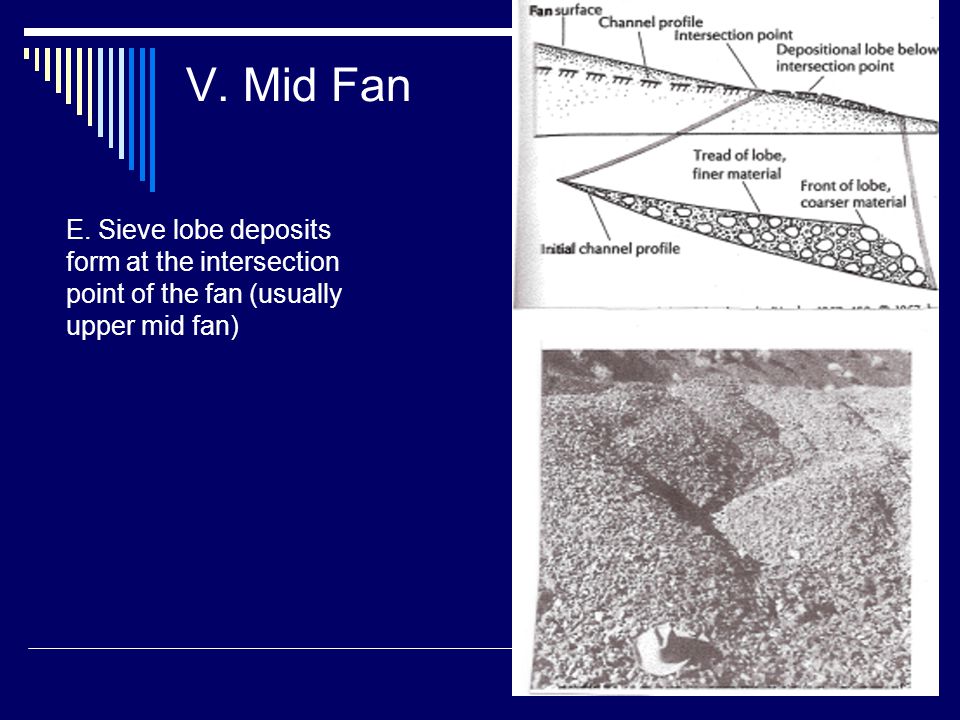

16. V. Mid Fan E. Sieve lobe deposits form at the intersection point of the fan (usually upper mid fan)

17. VI. Distal Fan A.Gentle slope gradient B.Deposition of finer grained sediments C Deposits merge with sediments on basin floor D. More development of sedimentary structures

18. Where on Fan? Interior of an alluvial fan

19. Distal Fan These deposits exhibit better sorting and may show low angle cross stratification and/or trough stratification Fining upward sequences frequently indicate inactivity of depositional processes Fining upward sequence in an alluvial fan

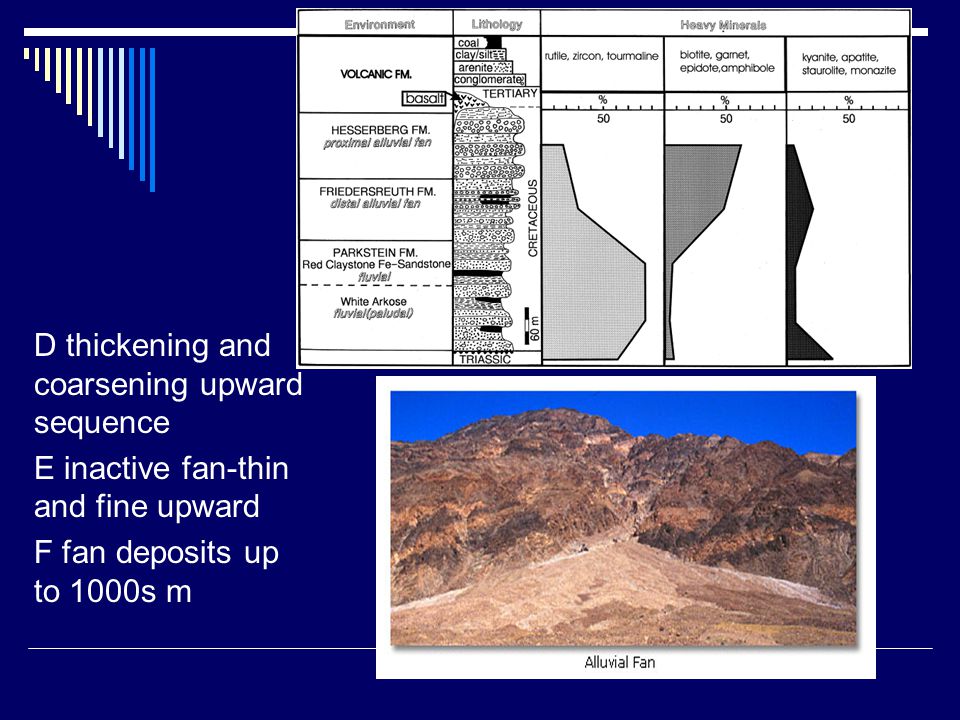

20. D thickening and coarsening upward sequence E inactive fan-thin and fine upward F fan deposits up to 1000s m

21. I) Rivers A. 4 types: 1. braided 2. anastomosing 3. straight to near straight 4. meandering

22. www.gly.uga.edu/railsback/1121Lxr28.html

23. I) Meandering Rivers A. higher sinuosity, B. less gradients, finer seds C elements 1. main channel 2. pt. bars 3. levees 4. floodplain 5. oxbow lake 6. abandoned meander cut-off Allen, 1964

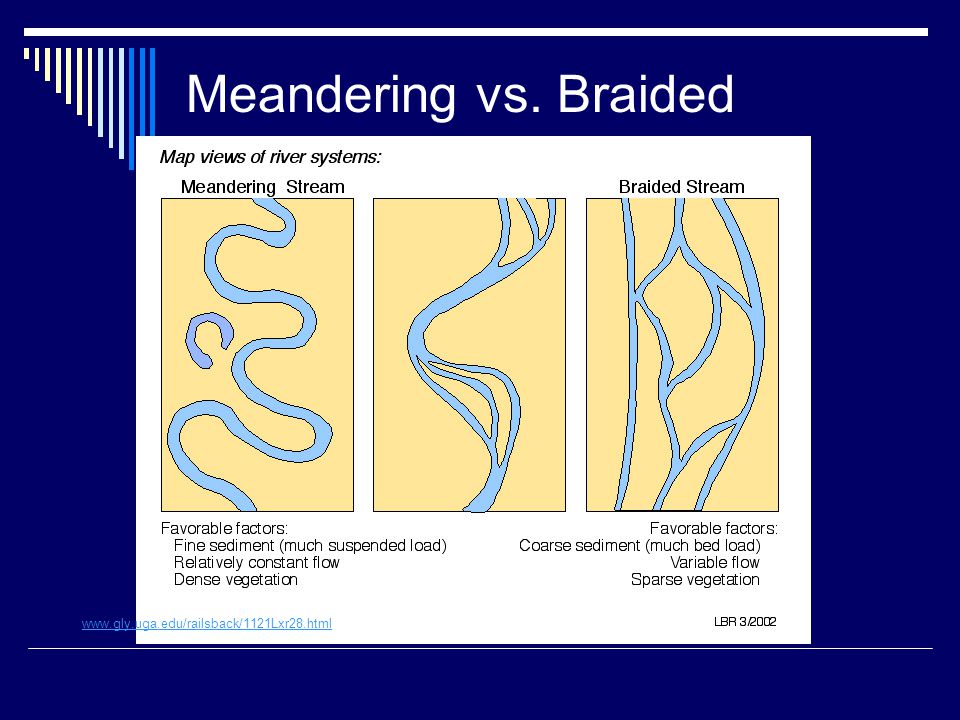

24. Meandering vs. Braided www.gly.uga.edu/railsback/1121Lxr28.html

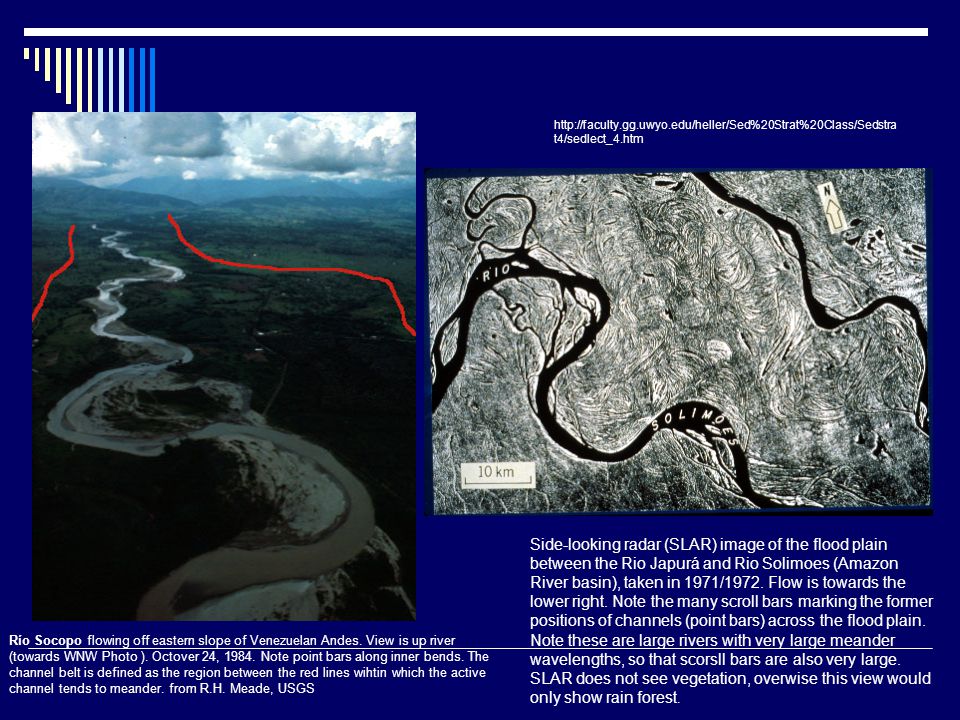

25. http://faculty.gg.uwyo.edu/heller/Sed%20Strat%20Class/Sedstra t4/sedlect_4.htm Río Socopo flowing off eastern slope of Venezuelan Andes. View is up river (towards WNW Photo ). Octover 24, 1984. Note point bars along inner bends. The channel belt is defined as the region between the red lines wihtin which the active channel tends to meander. from R.H. Meade, USGS Side-looking radar (SLAR) image of the flood plain between the Rio Japurá and Rio Solimoes (Amazon River basin), taken in 1971/1972. Flow is towards the lower right. Note the many scroll bars marking the former positions of channels (point bars) across the flood plain. Note these are large rivers with very large meander wavelengths, so that scorsll bars are also very large. SLAR does not see vegetation, overwise this view would only show rain forest.

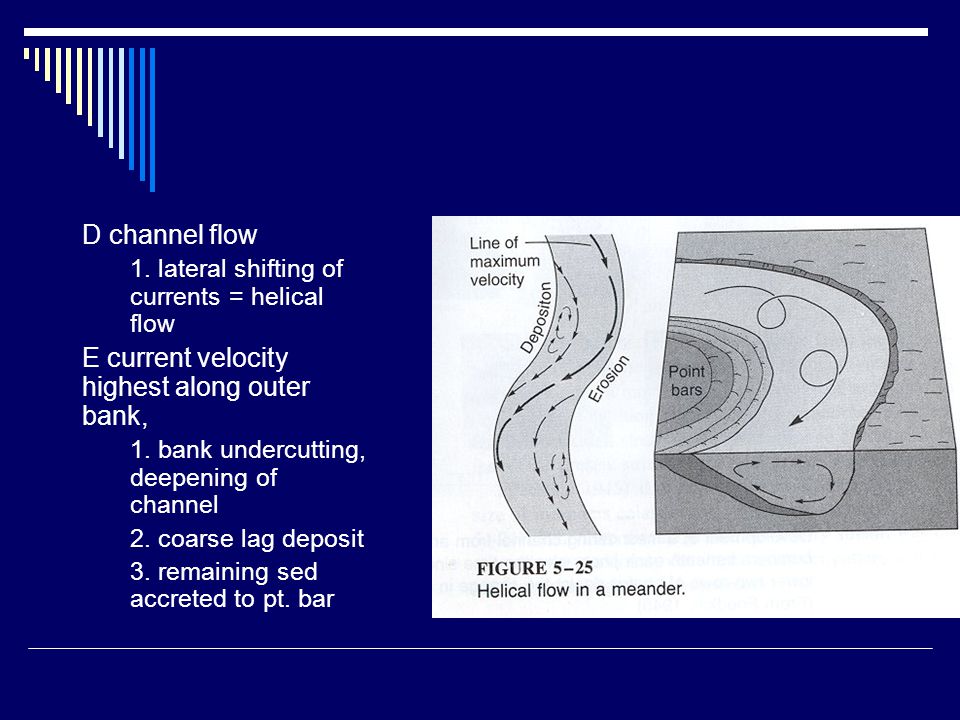

26. D channel flow 1. lateral shifting of currents = helical flow E current velocity highest along outer bank, 1. bank undercutting, deepening of channel 2. coarse lag deposit 3. remaining sed accreted to pt. bar

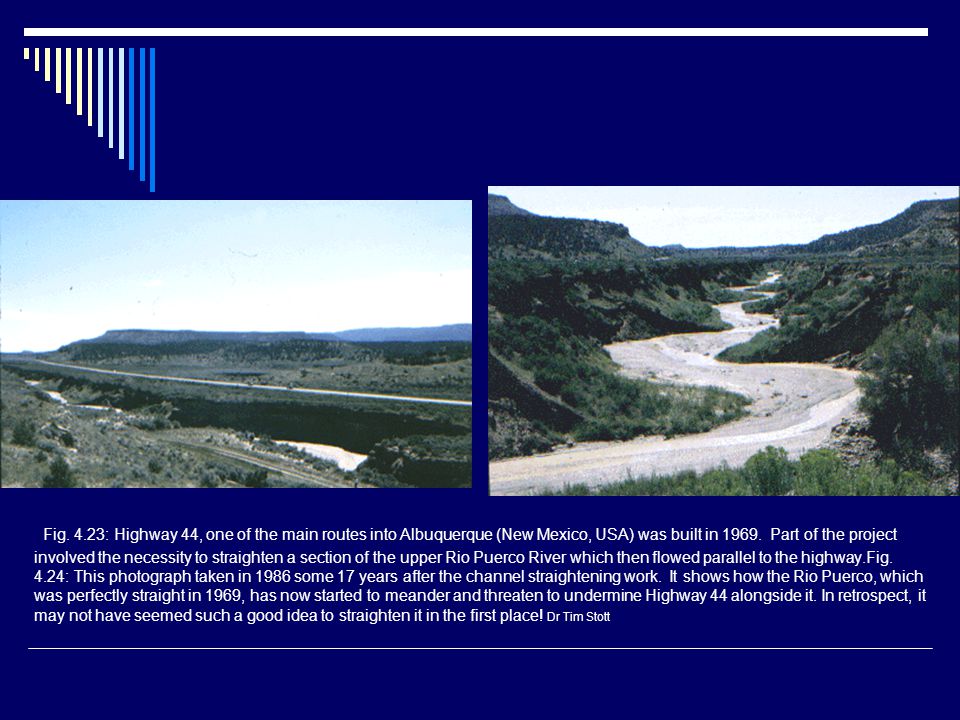

27. Fig. 4.23: Highway 44, one of the main routes into Albuquerque (New Mexico, USA) was built in 1969. Part of the project involved the necessity to straighten a section of the upper Rio Puerco River which then flowed parallel to the highway.Fig. 4.24: This photograph taken in 1986 some 17 years after the channel straightening work. It shows how the Rio Puerco, which was perfectly straight in 1969, has now started to meander and threaten to undermine Highway 44 alongside it. In retrospect, it may not have seemed such a good idea to straighten it in the first place! Dr Tim Stott

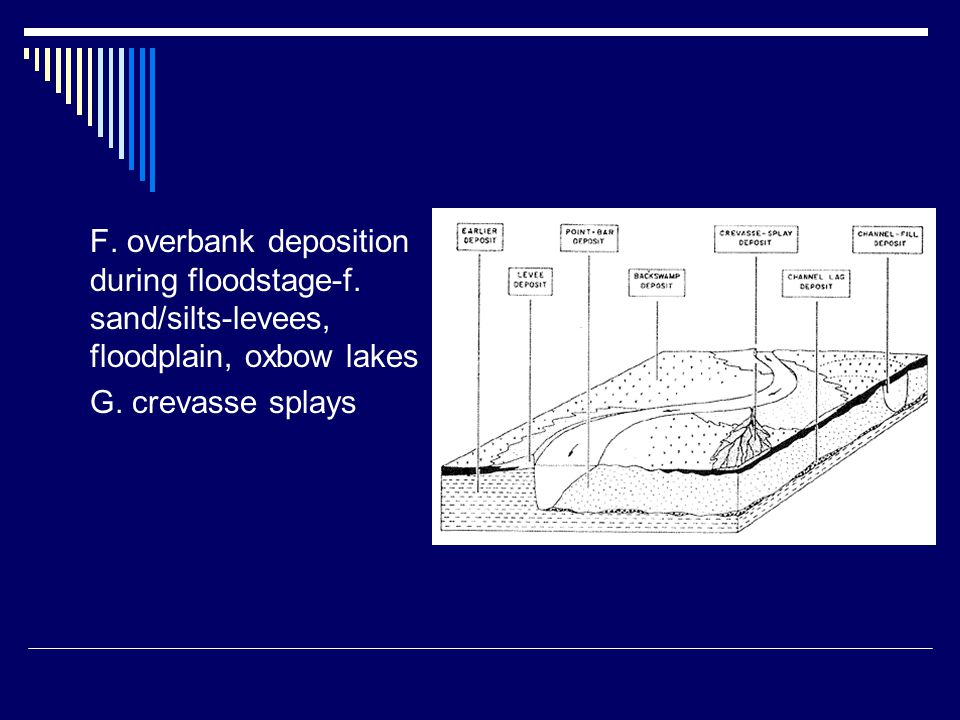

28. F. overbank deposition during floodstage-f. sand/silts-levees, floodplain, oxbow lakes G. crevasse splays

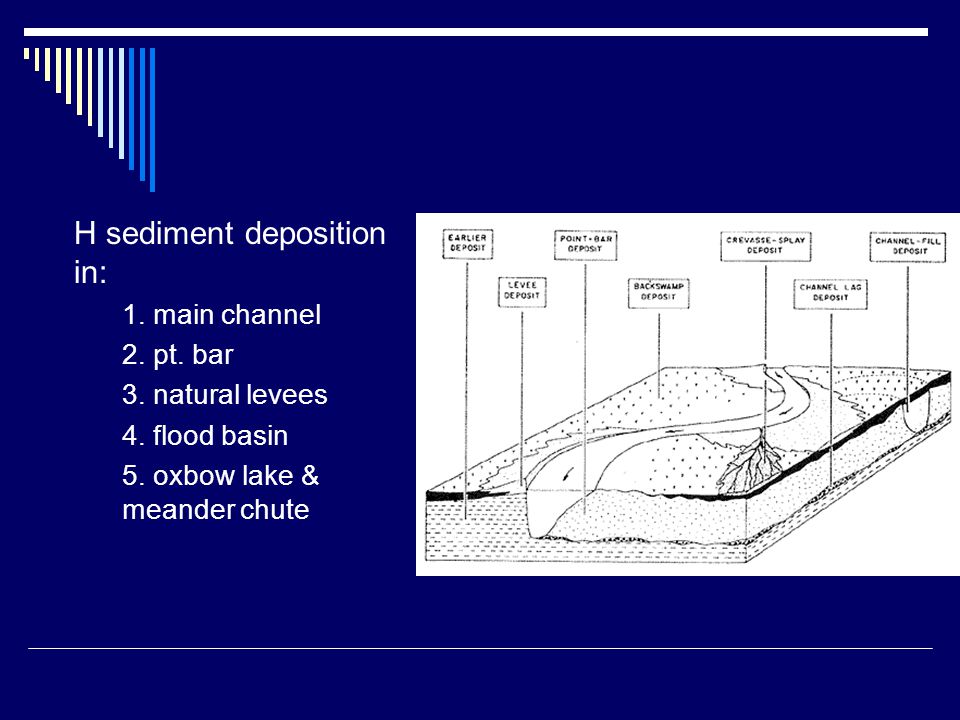

29. H sediment deposition in: 1. main channel 2. pt. bar 3. natural levees 4. flood basin 5. oxbow lake & meander chute

30. I channel deposits 1. coarse lag material deposited during flood stage 2. gravels and mud chunks 3. indistinct bedding, thin and discontinuous deposits

31. J pt. bar deposits 1. sand over gravels 2. w/helical flow & flood stage, water & sed transported up pt. bar 3. velocity decrease up pt. bar, therefore, coarse seds at lower pt. bars, finer grains in upper part 4. dune bed forms in lower portion, ripples in upper portion 5. trough x-beds 6. x-beds have variable dip but altogether dip downstream

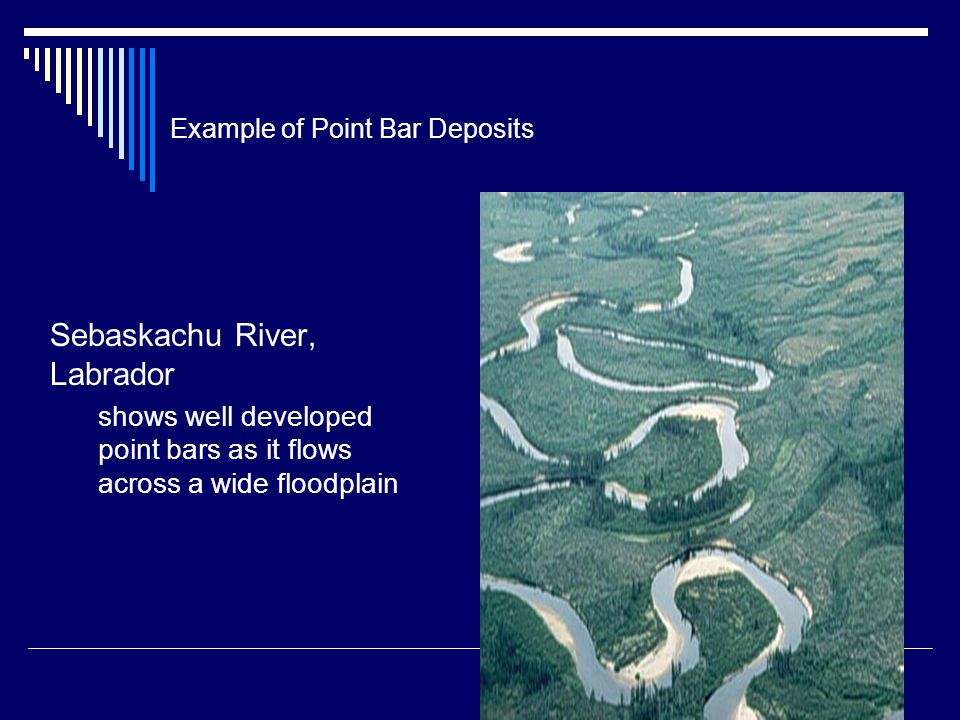

32. Example of Point Bar Deposits Sebaskachu River, Labrador shows well developed point bars as it flows across a wide floodplain

33. Chutes and Lateral Accretion Surfaces

35. www.searchanddiscovery.net/.../images/chptr3.htm

37. http://faculty.gg.uwyo.edu/heller/Sed%20Strat%20Class/Sedstrat4/sedlect_4.htm

38. Point Bar Sequence O shifting of river, get stacked lateral environments P lag deposits overlain by fining upward pt. bar sequence Lynn S. Fichter

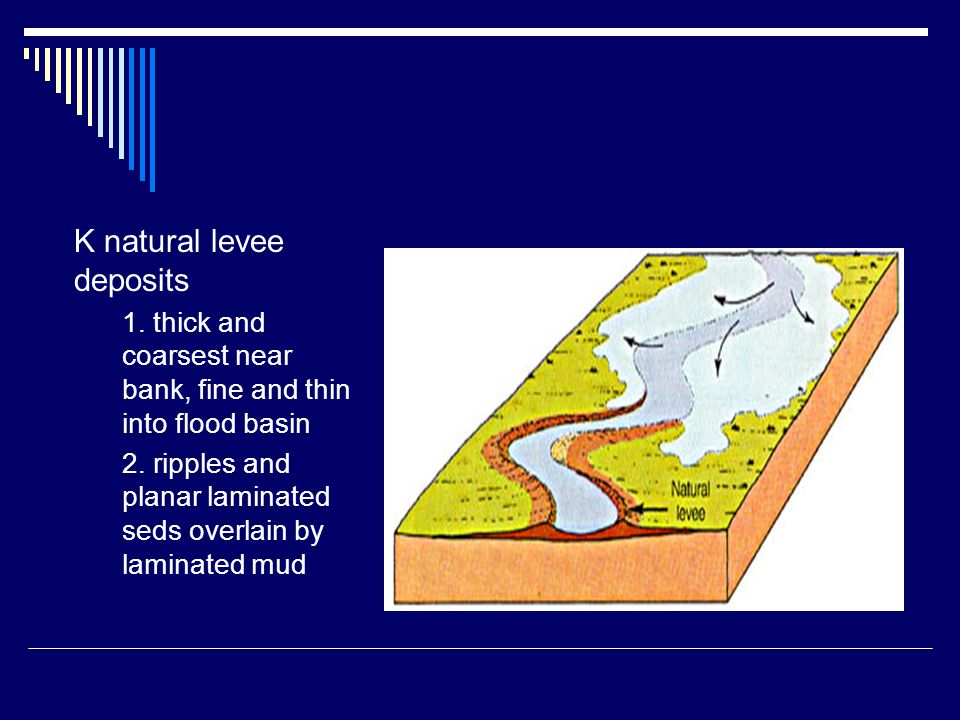

40. K natural levee deposits 1. thick and coarsest near bank, fine and thin into flood basin 2. ripples and planar laminated seds overlain by laminated mud

41. L flood plain deposits 1. fines settling from suspension, plant debris, may be bioturbated M crevasse splay 1. traction and suspension deposition, may be graded N oxbow lake deposits 1. infilled by silt and mud through overbank deposition,laminated, ostracods and fresh water molluscs

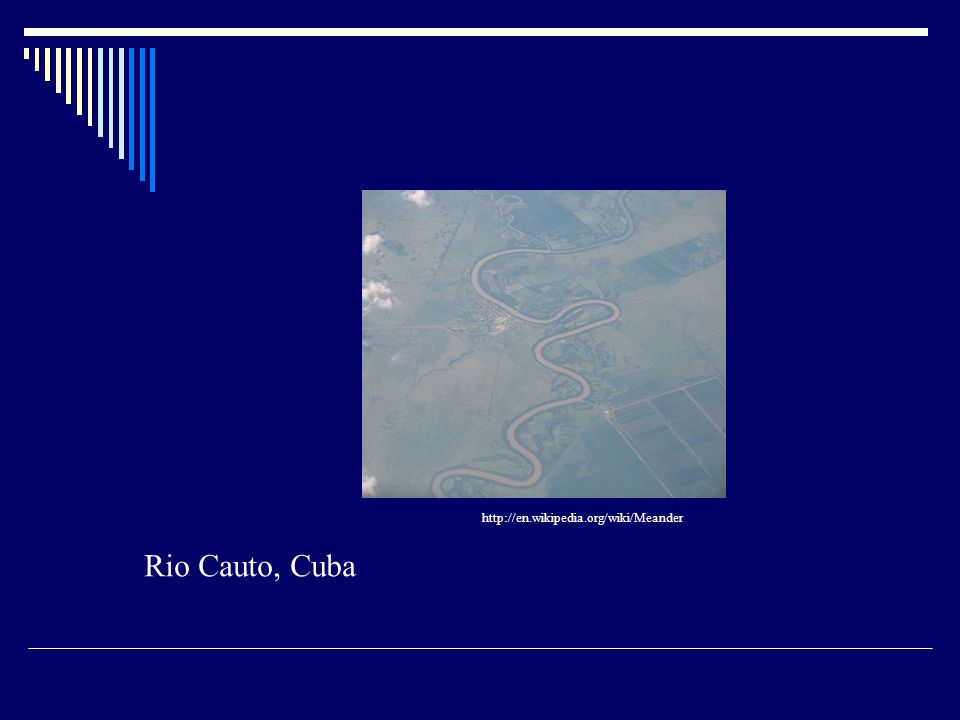

42. Rio Cauto, Cuba http://en.wikipedia.org/wiki/Meander

43. Crevasse splay deposits Lobate in shape Deposit sand and silt Sed from traction and suspension Get coarse bedload and fines forming graded beds Lobes spread onto floodplain with fingers of sand extending beyond the main lobe Deep crevasses may tap into lower levels of main channel allows coarser sediment to escape on floodplain http://faculty.gg.uwyo.edu/heller Bryants Creek, MO

45. Flood Plain Deposits Composed of: Predominately fine grain material Which escape through flooding Plant debris and bioturbation

46. Modern Overbank Sands, Mississippi

47. Oxbow Lakes Sections of the channel become cut-off Silt and mud from channel during overbank flood Laminated with plant debris

48. Formation of an Ox-bow Lake

49. II) Ancient example A) lower part of Devonian Old Red S.S. of Wales and England

50. Meander Sequence http://www.geo.umn.edu/courses/4602/Spring01/Slide_List_2.html Tertiary Caspe Formation, SpainDevonian Catskill Fm, NY

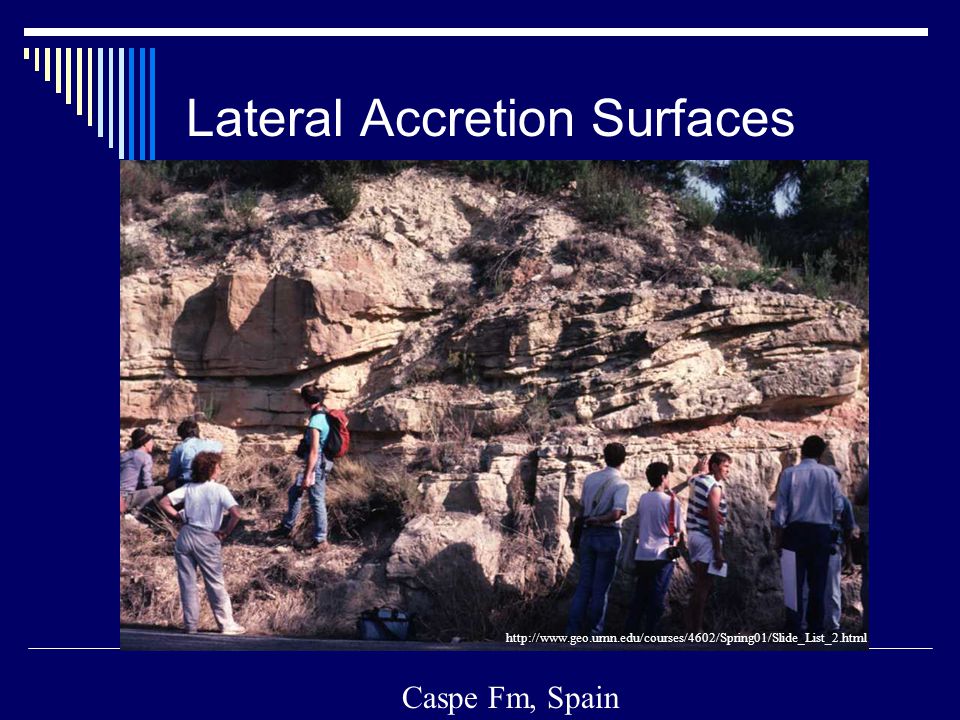

51. Lateral Accretion Surfaces Caspe Fm, Spain http://www.geo.umn.edu/courses/4602/Spring01/Slide_List_2.html

52. Overbank Deposits Jurassic, Scalby Fm, Enlgand http://www.geo.umn.edu/courses/4602/Spring01/Slide_List_2.html

53. IX) Geometry A Braided-sheet s.s. of congl w/thin beds or lenses of shales, enclosed in thicker seds B meandering-shoe string sand bodies elongate in direction of river and enclosed by overbank fines
