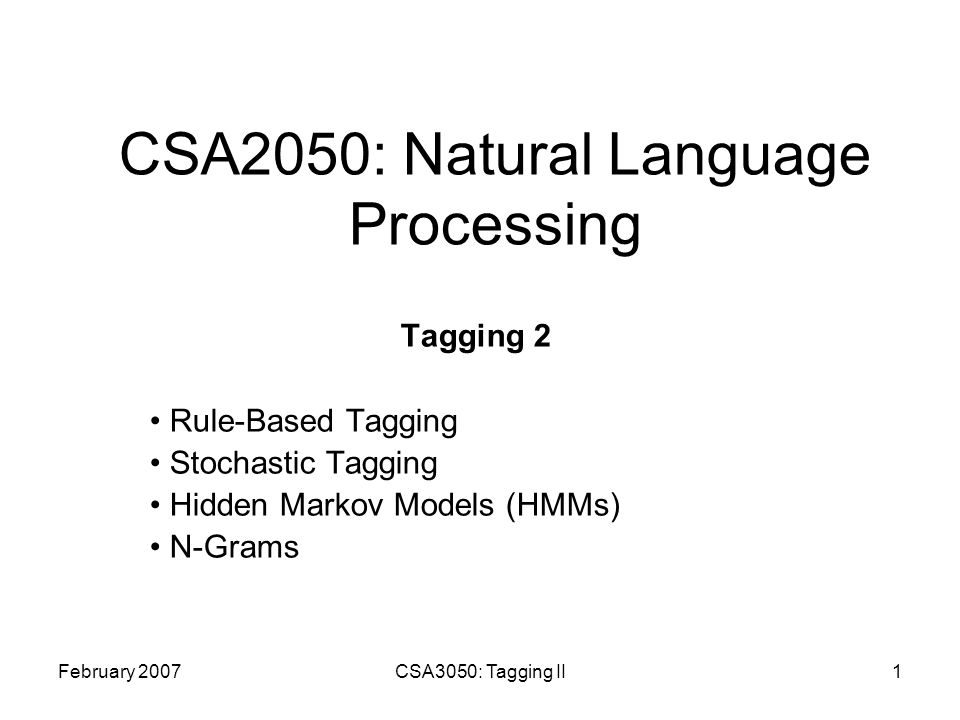

1. February 2007CSA3050: Tagging II1 CSA2050: Natural Language Processing Tagging 2 Rule-Based Tagging Stochastic Tagging Hidden Markov Models (HMMs) N-Grams

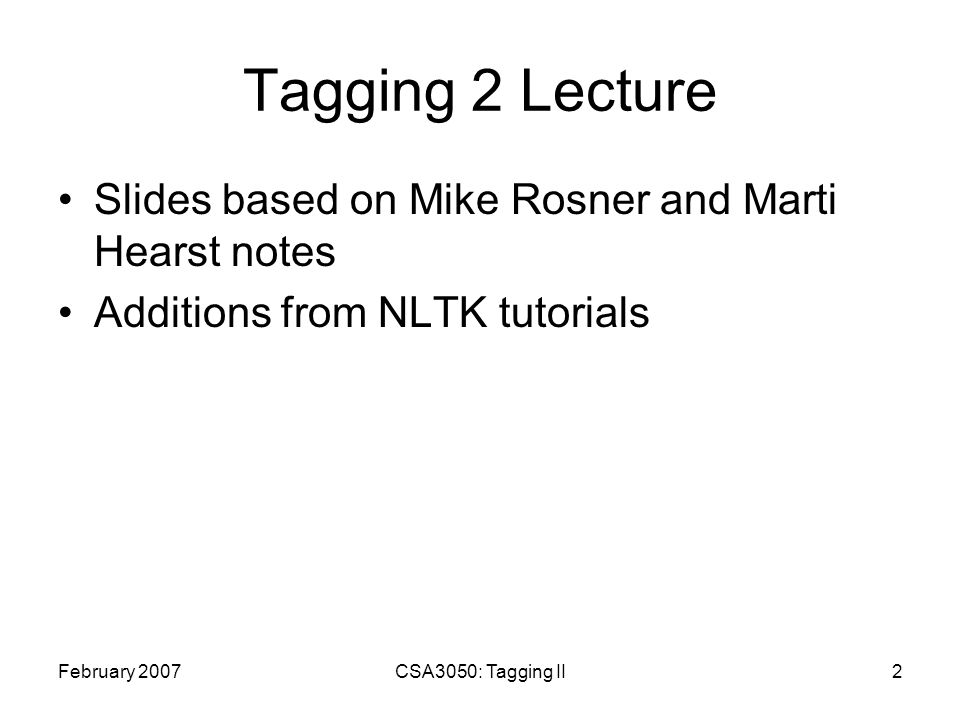

2. February 2007CSA3050: Tagging II2 Tagging 2 Lecture Slides based on Mike Rosner and Marti Hearst notes Additions from NLTK tutorials

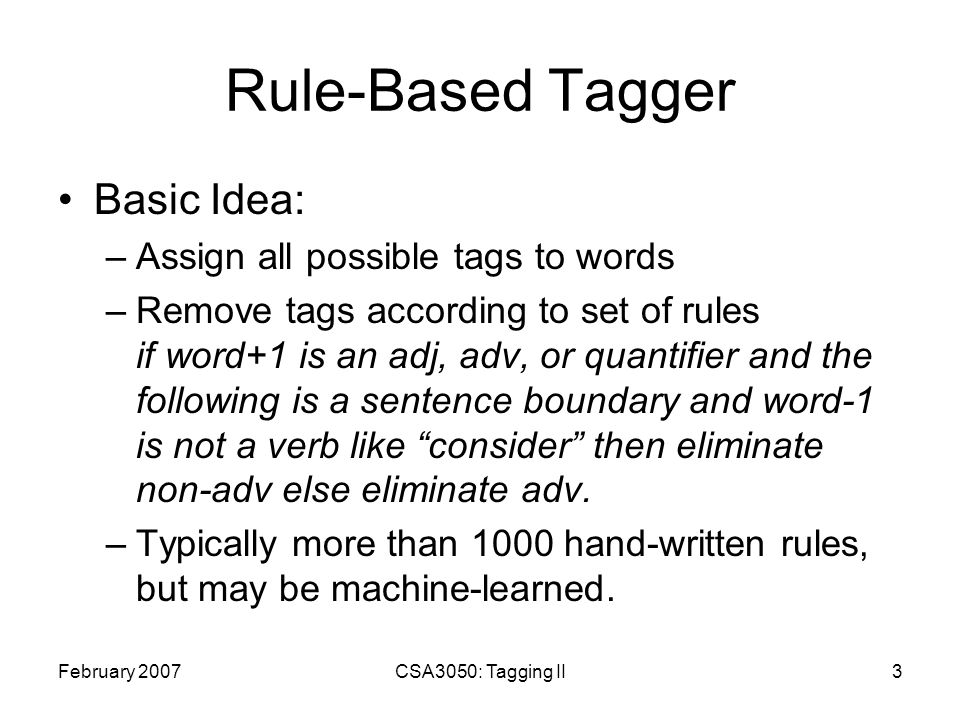

3. February 2007CSA3050: Tagging II3 Rule-Based Tagger Basic Idea: –Assign all possible tags to words –Remove tags according to set of rules if word+1 is an adj, adv, or quantifier and the following is a sentence boundary and word-1 is not a verb like “consider” then eliminate non-adv else eliminate adv. –Typically more than 1000 hand-written rules, but may be machine-learned.

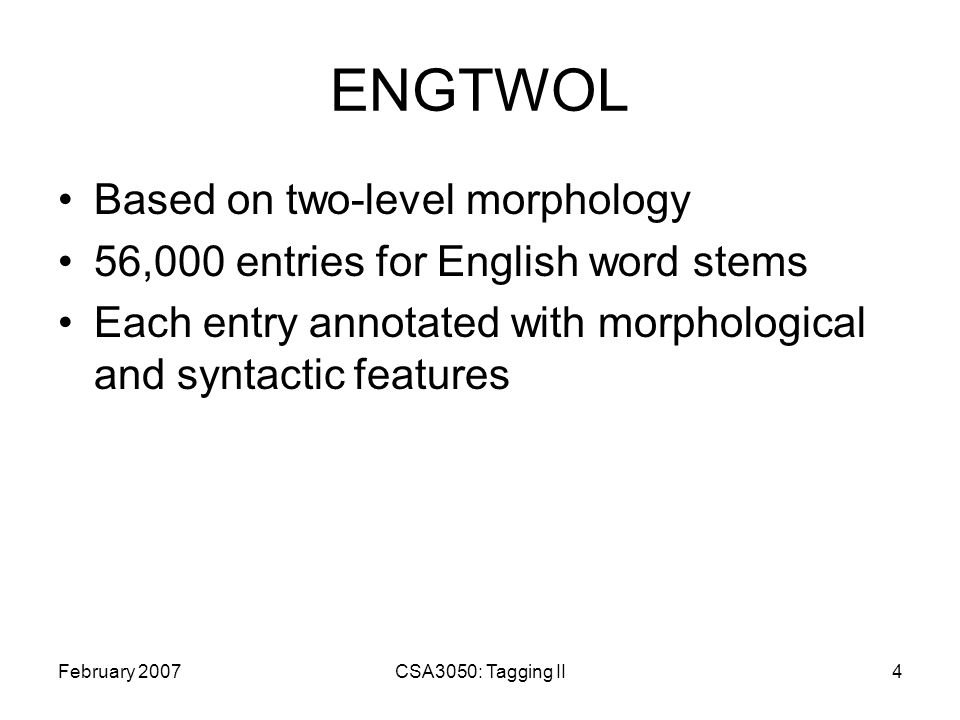

4. February 2007CSA3050: Tagging II4 ENGTWOL Based on two-level morphology 56,000 entries for English word stems Each entry annotated with morphological and syntactic features

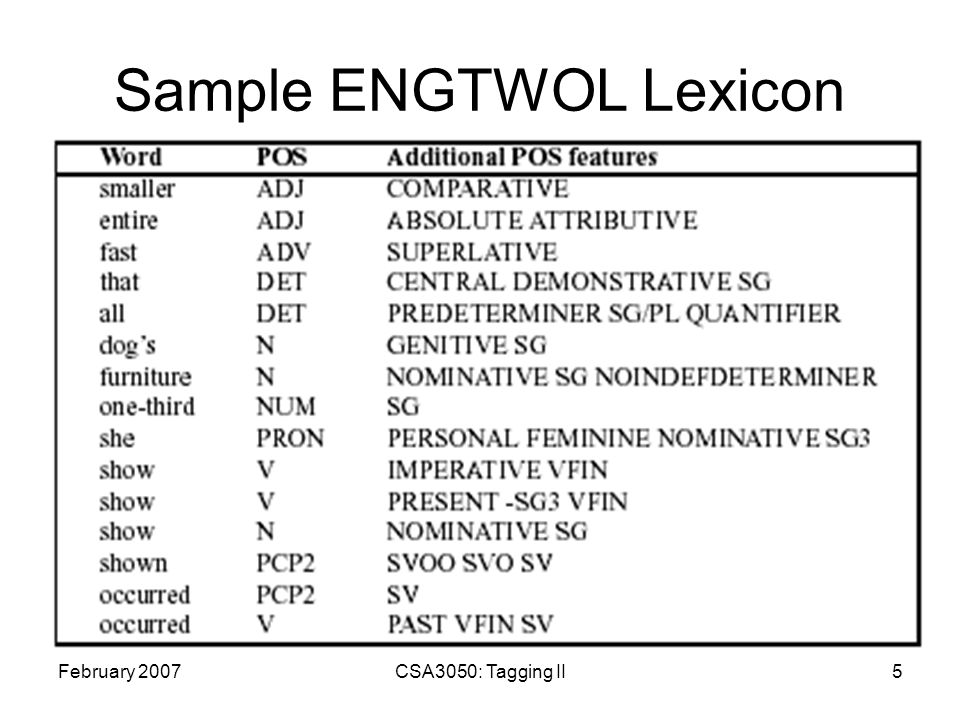

5. February 2007CSA3050: Tagging II5 Sample ENGTWOL Lexicon

6. February 2007CSA3050: Tagging II6 ENGTWOL Tagger Stage 1: Run words through morphological analyzer to get all parts of speech. –E.g. for the phrase “the tables”, we get the following output: " " "the" DET CENTRAL ART SG/PL " " "table" N NOM PL "table" V PRES SG3 VFIN Stage 2: Apply constraints to rule out incorrect POSs

7. February 2007CSA3050: Tagging II7 Examples of Constraints Discard all verb readings if to the left there is an unambiguous determiner, and between that determiner and the ambiguous word itself, there are no nominals (nouns, abbreviations etc.). Discard all finite verb readings if the immediately preceding word is to. Discard all subjunctive readings if to the left, there are no instances of the subordinating conjunction that or lest. The first constraint would discard the verb reading in the previous representation. There are about 1,100 constraints

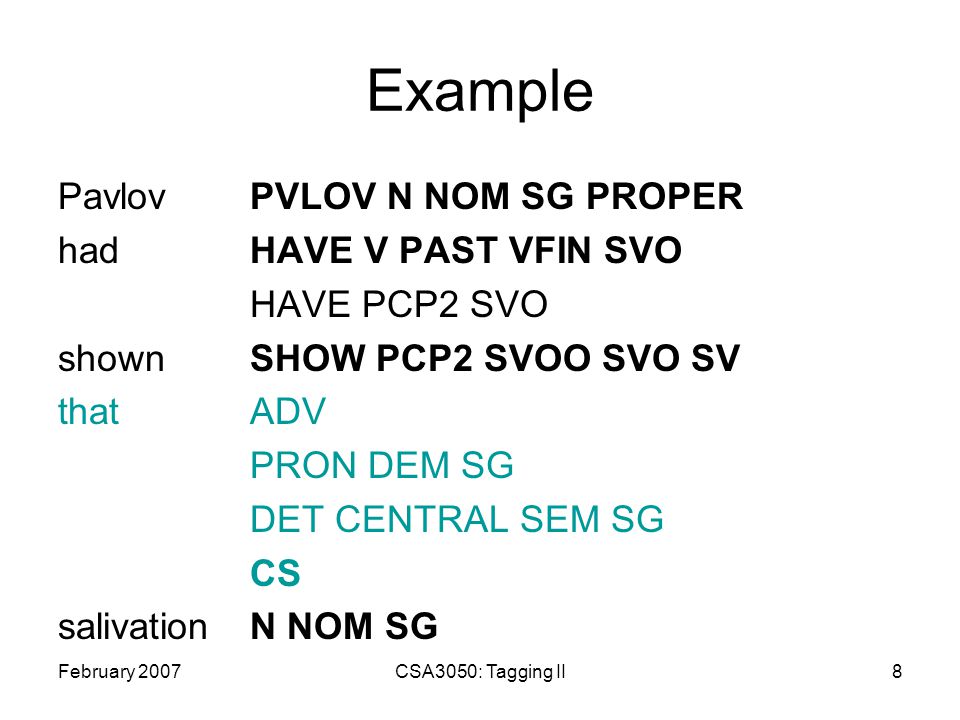

8. February 2007CSA3050: Tagging II8 Example PavlovPVLOV N NOM SG PROPER hadHAVE V PAST VFIN SVO HAVE PCP2 SVO shownSHOW PCP2 SVOO SVO SV thatADV PRON DEM SG DET CENTRAL SEM SG CS salivationN NOM SG

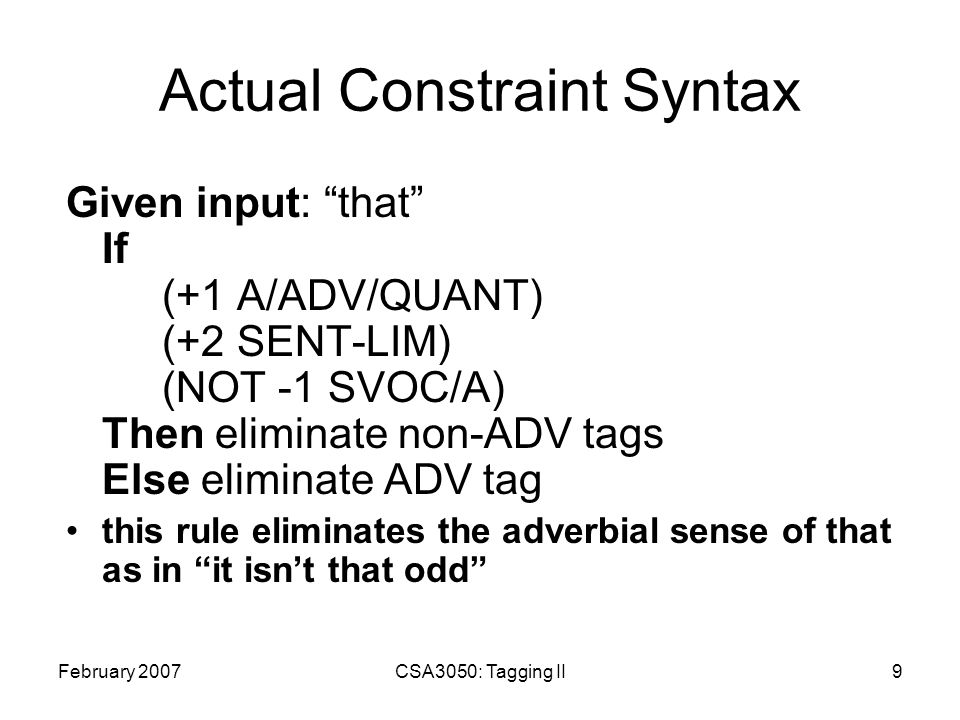

9. February 2007CSA3050: Tagging II9 Actual Constraint Syntax Given input: “that” If (+1 A/ADV/QUANT) (+2 SENT-LIM) (NOT -1 SVOC/A) Then eliminate non-ADV tags Else eliminate ADV tag this rule eliminates the adverbial sense of that as in “it isn’t that odd”

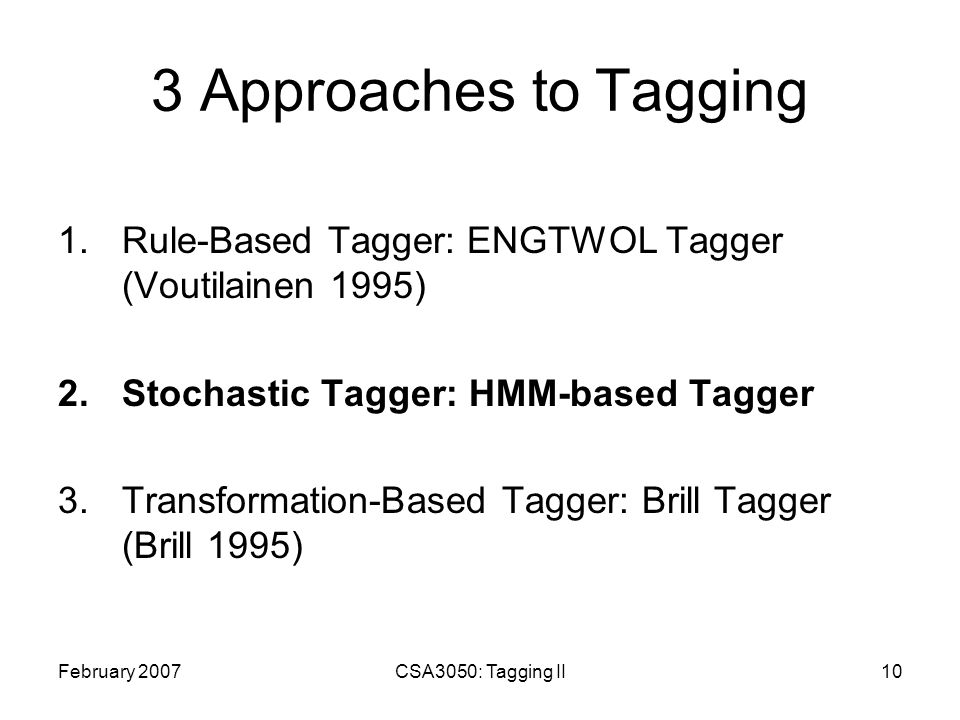

10. February 2007CSA3050: Tagging II10 3 Approaches to Tagging 1.Rule-Based Tagger: ENGTWOL Tagger (Voutilainen 1995) 2.Stochastic Tagger: HMM-based Tagger 3.Transformation-Based Tagger: Brill Tagger (Brill 1995)

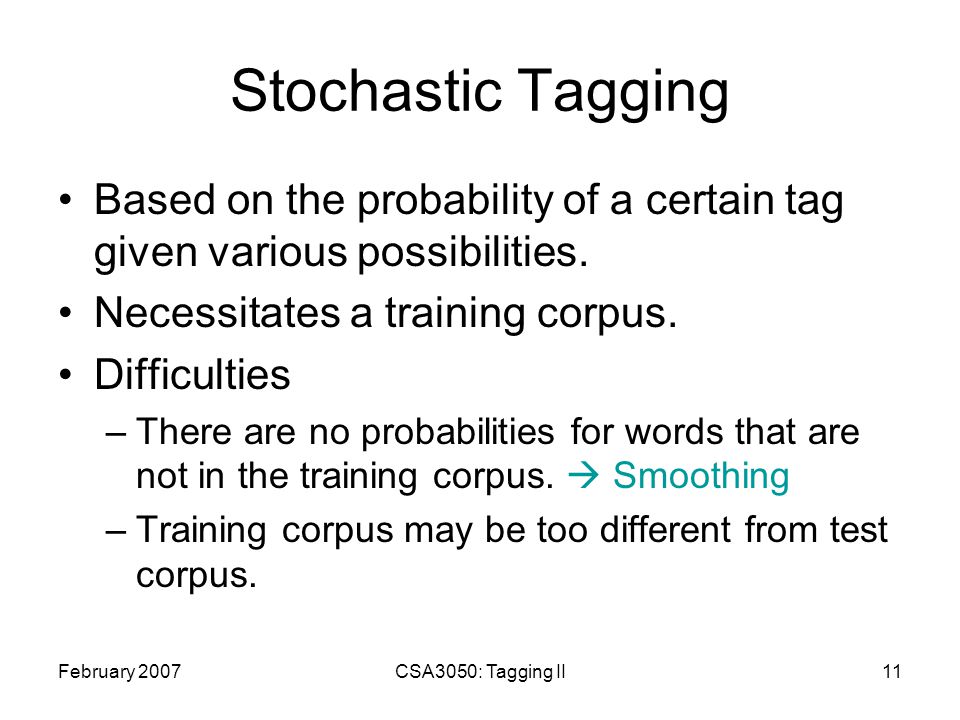

11. February 2007CSA3050: Tagging II11 Stochastic Tagging Based on the probability of a certain tag given various possibilities. Necessitates a training corpus. Difficulties –There are no probabilities for words that are not in the training corpus.  Smoothing –Training corpus may be too different from test corpus.

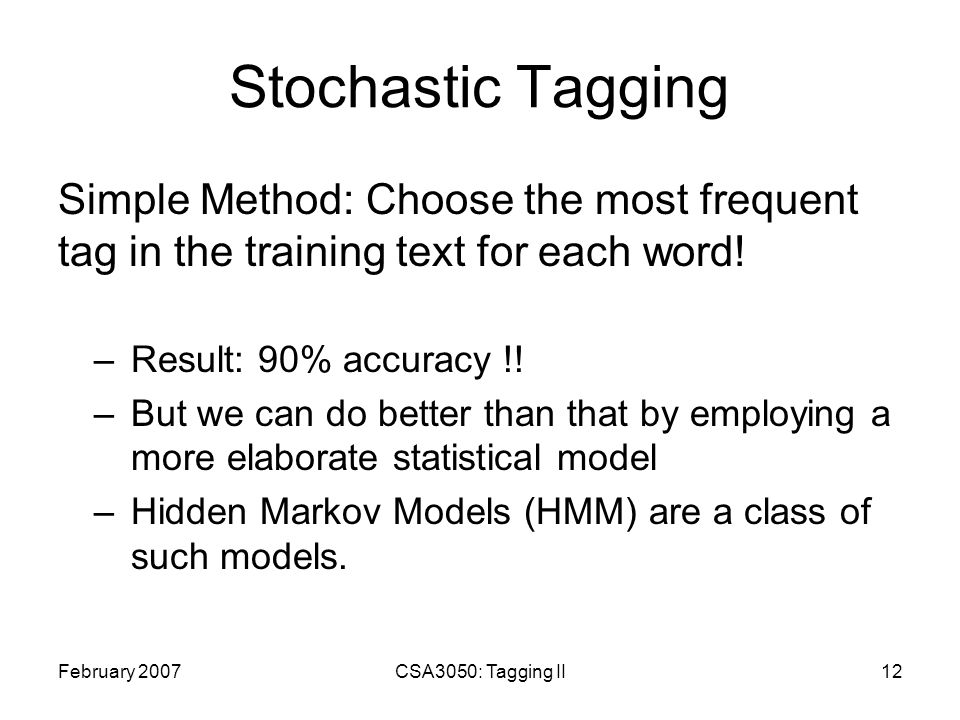

12. February 2007CSA3050: Tagging II12 Stochastic Tagging Simple Method: Choose the most frequent tag in the training text for each word! –Result: 90% accuracy !! –But we can do better than that by employing a more elaborate statistical model –Hidden Markov Models (HMM) are a class of such models.

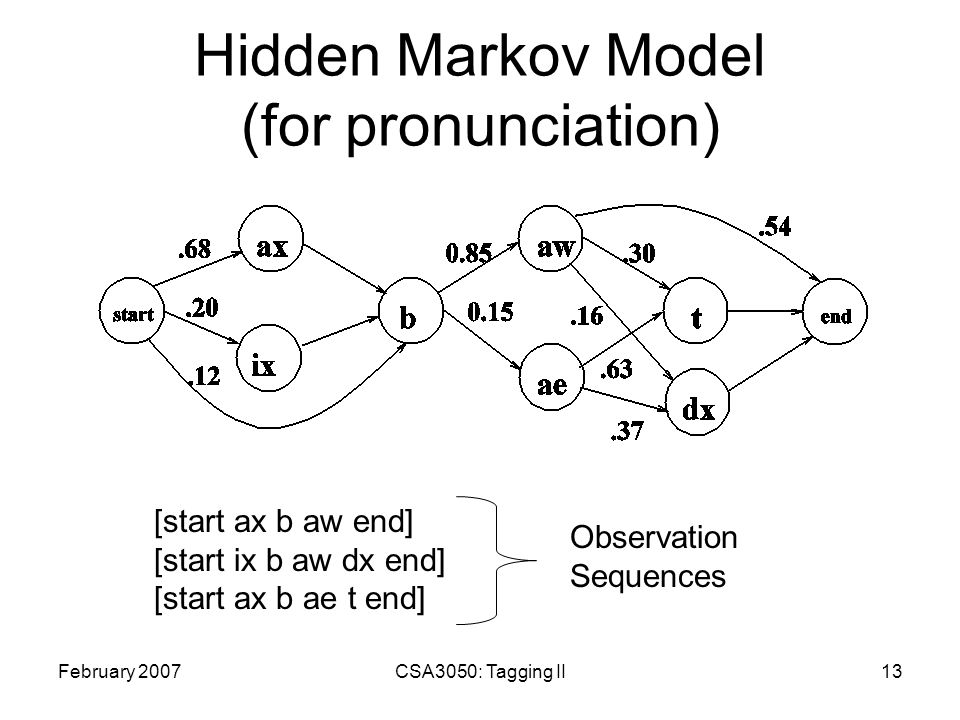

13. February 2007CSA3050: Tagging II13 Hidden Markov Model (for pronunciation) [start ax b aw end] [start ix b aw dx end] [start ax b ae t end] Observation Sequences

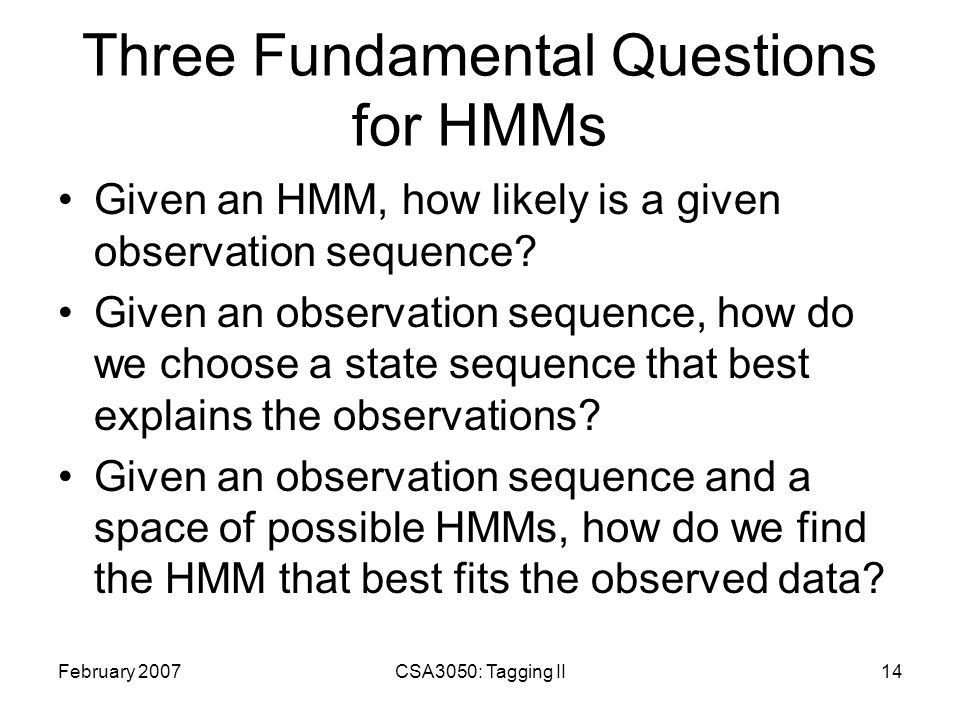

14. February 2007CSA3050: Tagging II14 Three Fundamental Questions for HMMs Given an HMM, how likely is a given observation sequence? Given an observation sequence, how do we choose a state sequence that best explains the observations? Given an observation sequence and a space of possible HMMs, how do we find the HMM that best fits the observed data?

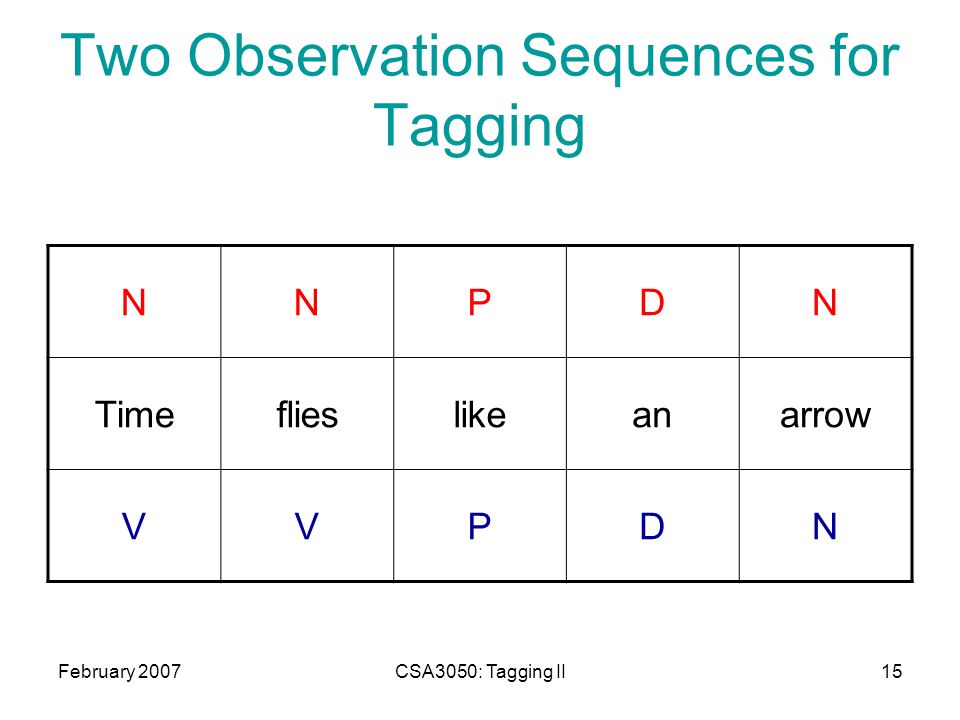

15. February 2007CSA3050: Tagging II15 Two Observation Sequences for Tagging NNPDN Timeflieslikeanarrow VVPDN

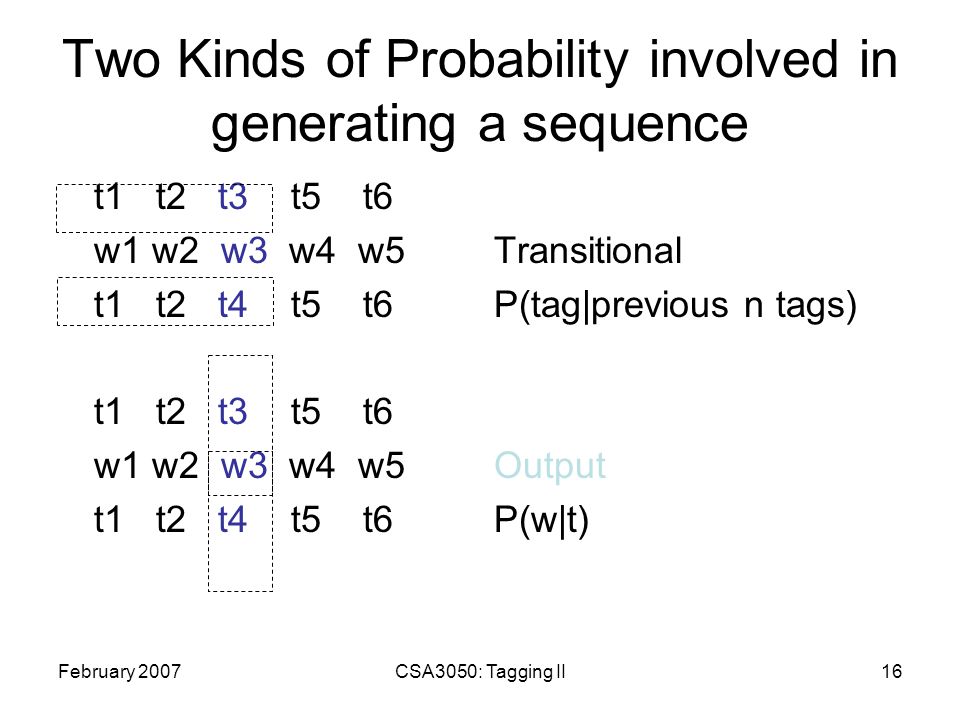

16. February 2007CSA3050: Tagging II16 Two Kinds of Probability involved in generating a sequence t1 t2 t3 t5 t6 w1 w2 w3 w4 w5 Transitional t1 t2 t4 t5 t6 P(tag|previous n tags) t1 t2 t3 t5 t6 w1 w2 w3 w4 w5 Output t1 t2 t4 t5 t6 P(w|t)

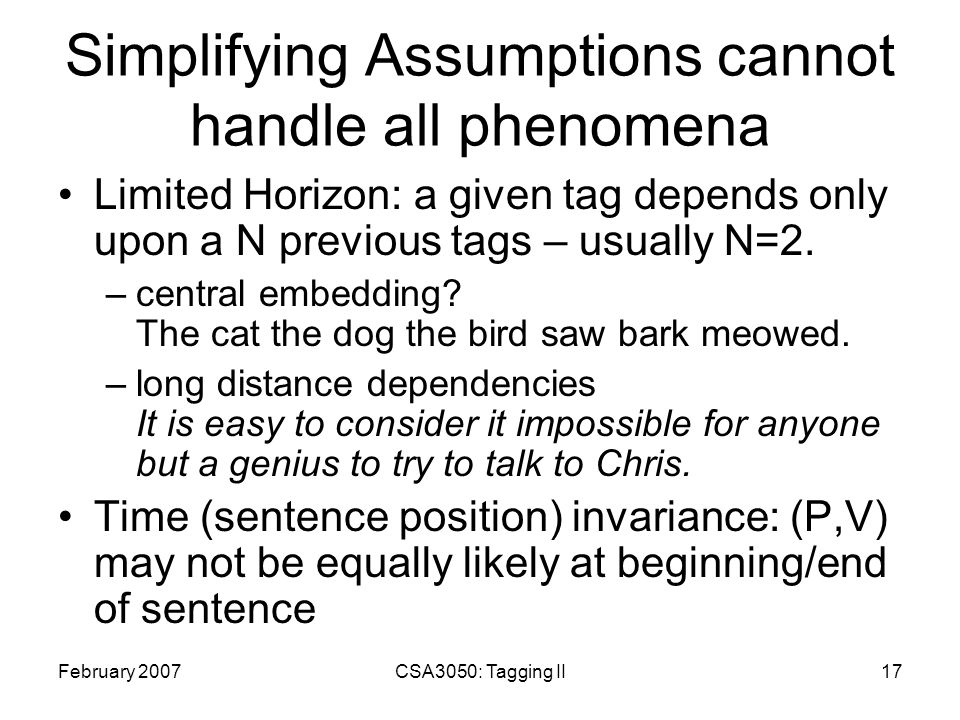

17. February 2007CSA3050: Tagging II17 Simplifying Assumptions cannot handle all phenomena Limited Horizon: a given tag depends only upon a N previous tags – usually N=2. –central embedding? The cat the dog the bird saw bark meowed. –long distance dependencies It is easy to consider it impossible for anyone but a genius to try to talk to Chris. Time (sentence position) invariance: (P,V) may not be equally likely at beginning/end of sentence

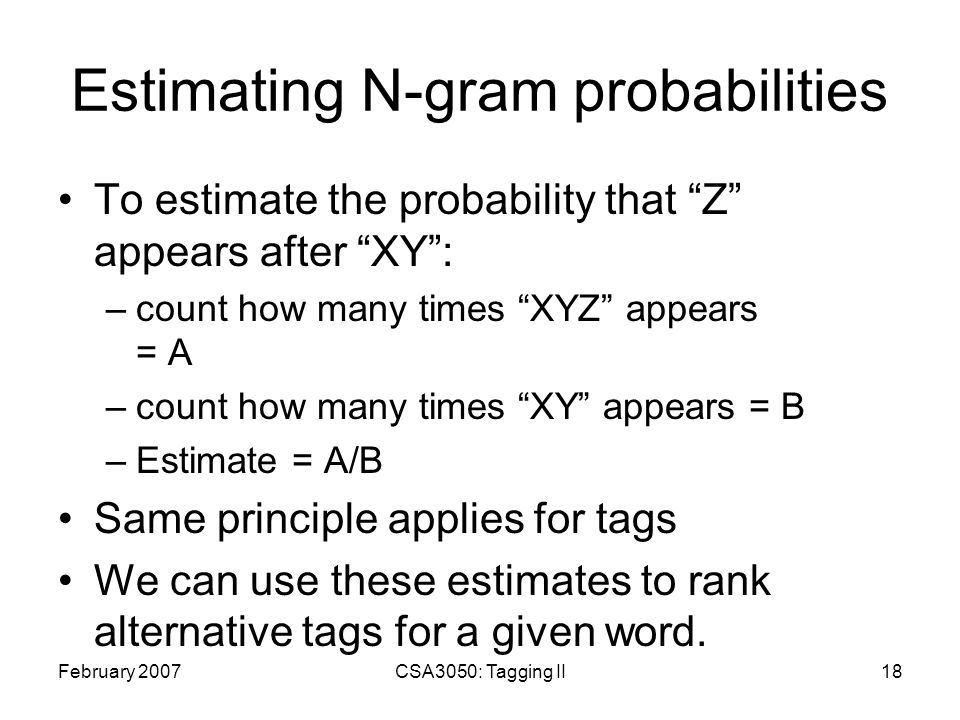

18. February 2007CSA3050: Tagging II18 Estimating N-gram probabilities To estimate the probability that “Z” appears after “XY”: –count how many times “XYZ” appears = A –count how many times “XY” appears = B –Estimate = A/B Same principle applies for tags We can use these estimates to rank alternative tags for a given word.

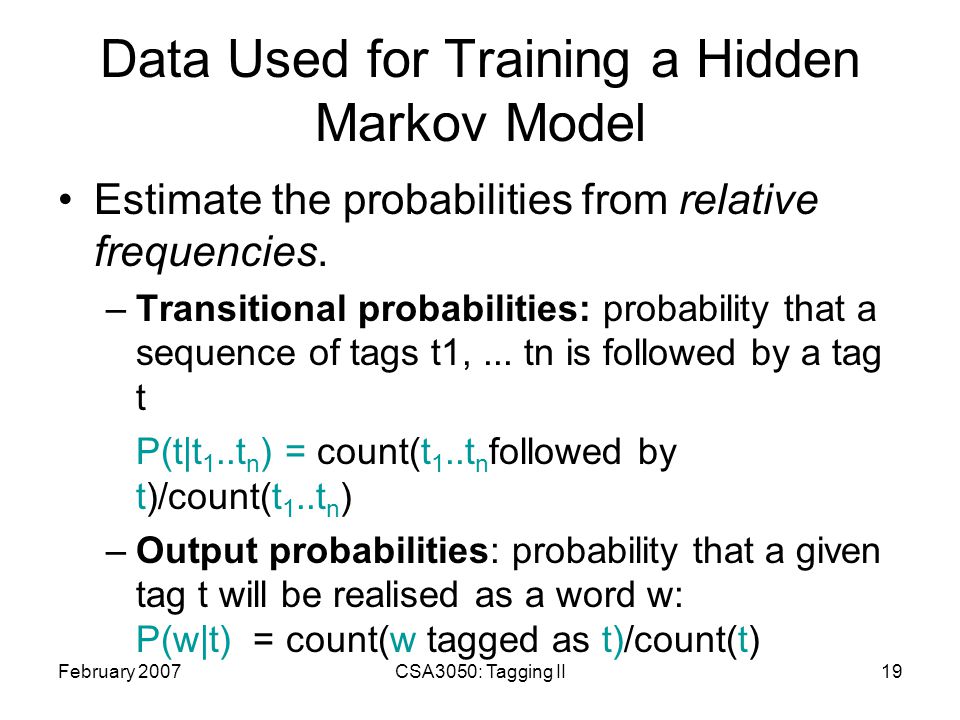

19. February 2007CSA3050: Tagging II19 Data Used for Training a Hidden Markov Model Estimate the probabilities from relative frequencies. –Transitional probabilities: probability that a sequence of tags t1,... tn is followed by a tag t P(t|t 1..t n ) = count(t 1..t n followed by t)/count(t 1..t n ) –Output probabilities: probability that a given tag t will be realised as a word w: P(w|t) = count(w tagged as t)/count(t)

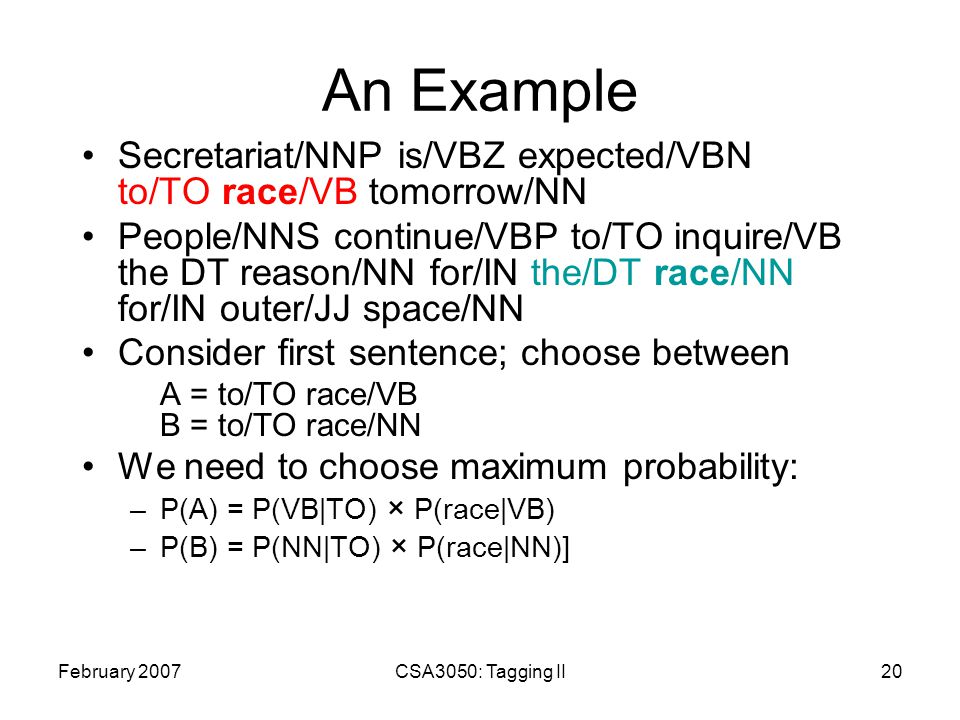

20. February 2007CSA3050: Tagging II20 An Example Secretariat/NNP is/VBZ expected/VBN to/TO race/VB tomorrow/NN People/NNS continue/VBP to/TO inquire/VB the DT reason/NN for/IN the/DT race/NN for/IN outer/JJ space/NN Consider first sentence; choose between A = to/TO race/VB B = to/TO race/NN We need to choose maximum probability: –P(A) = P(VB|TO) × P(race|VB) –P(B) = P(NN|TO) × P(race|NN)]

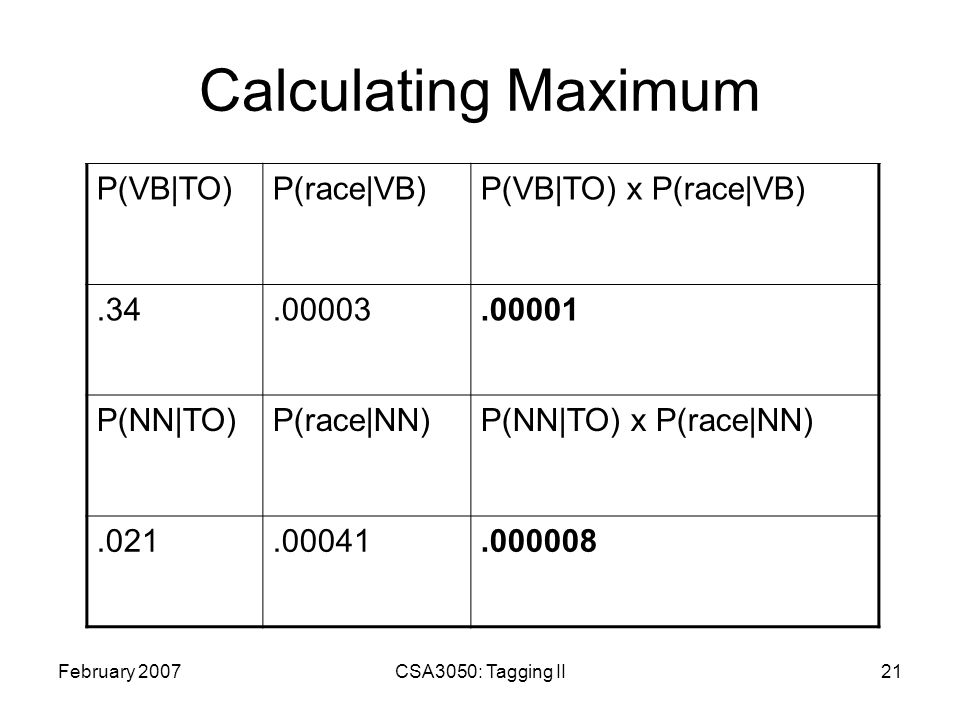

21. February 2007CSA3050: Tagging II21 Calculating Maximum P(VB|TO)P(race|VB)P(VB|TO) x P(race|VB).34.00003.00001 P(NN|TO)P(race|NN)P(NN|TO) x P(race|NN).021.00041.000008

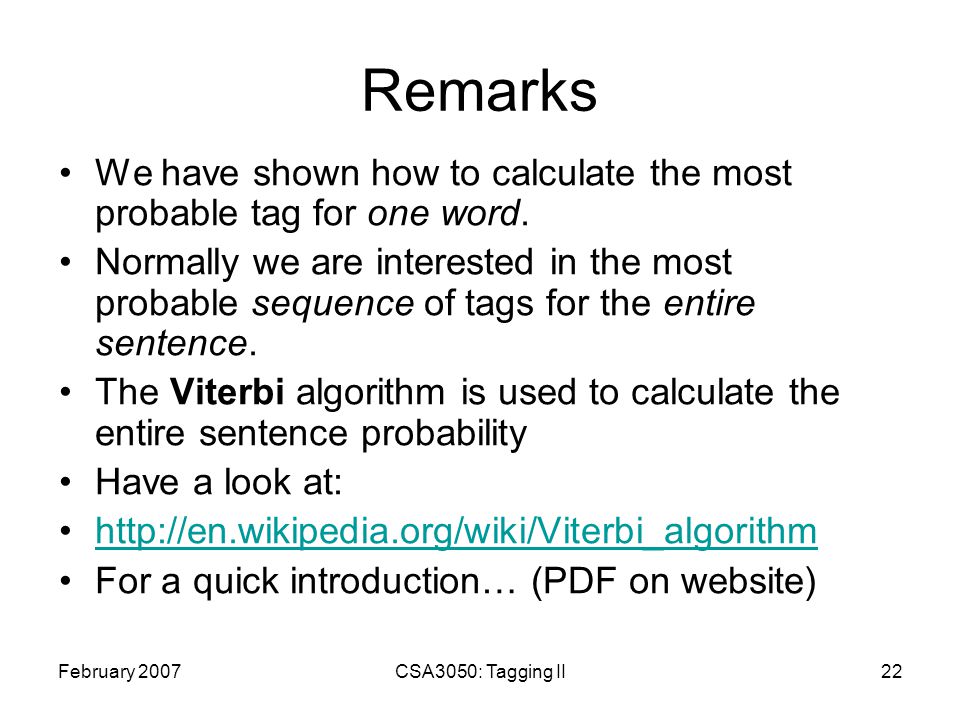

22. February 2007CSA3050: Tagging II22 Remarks We have shown how to calculate the most probable tag for one word. Normally we are interested in the most probable sequence of tags for the entire sentence. The Viterbi algorithm is used to calculate the entire sentence probability Have a look at: http://en.wikipedia.org/wiki/Viterbi_algorithm For a quick introduction… (PDF on website)

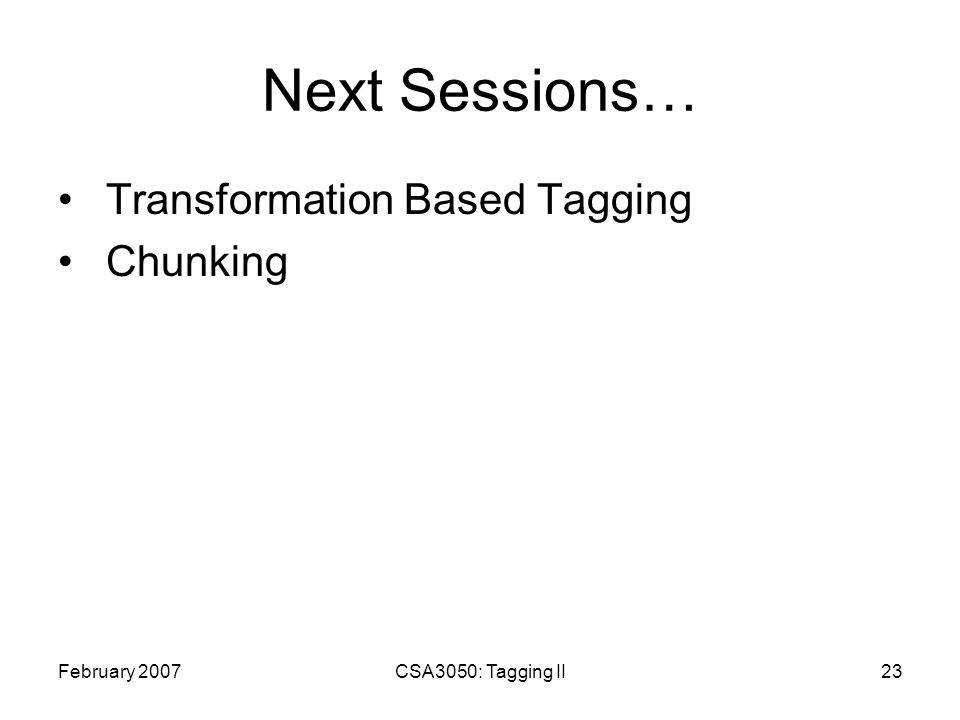

23. February 2007CSA3050: Tagging II23 Next Sessions… Transformation Based Tagging Chunking
