2. Hydrogen combustion accidents 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 20112 Hindenburg 1937 Fukushima 2011 Stockholm 1984 Most of the accidents involving (H2) combustion were really dangerous Motivation to study combustion!

3. Human injury threshold 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 20113

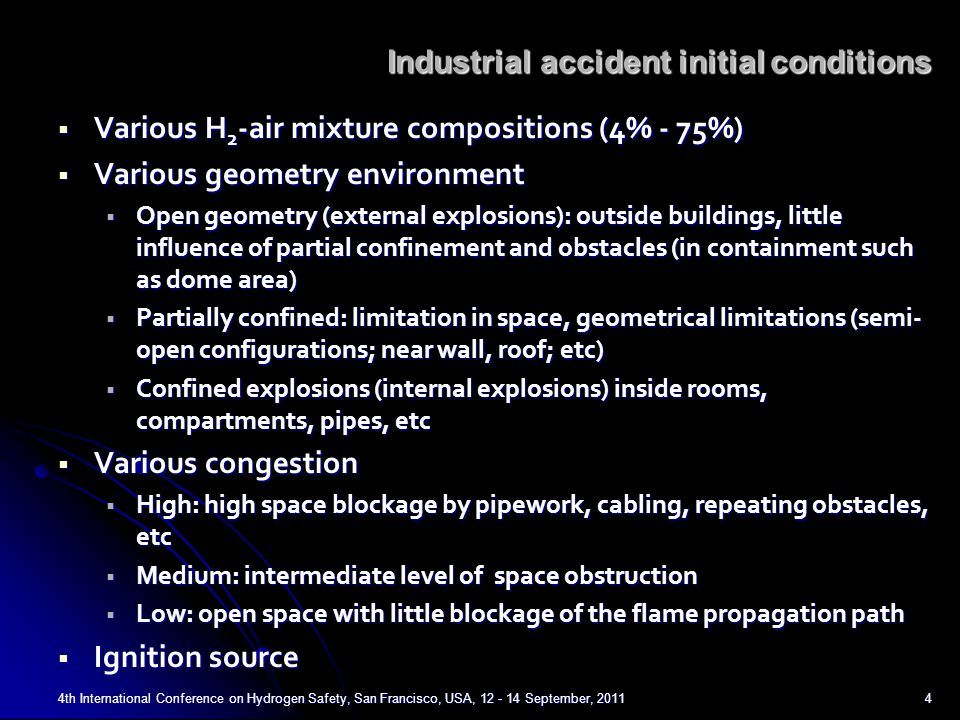

4. Industrial accident initial conditions 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 20114  Various H 2 -air mixture compositions (4% - 75%)  Various geometry environment  Open geometry (external explosions): outside buildings, little influence of partial confinement and obstacles (in containment such as dome area)  Partially confined: limitation in space, geometrical limitations (semi- open configurations; near wall, roof; etc)  Confined explosions (internal explosions) inside rooms, compartments, pipes, etc  Various congestion  High: high space blockage by pipework, cabling, repeating obstacles, etc  Medium: intermediate level of space obstruction  Low: open space with little blockage of the flame propagation path  Ignition source

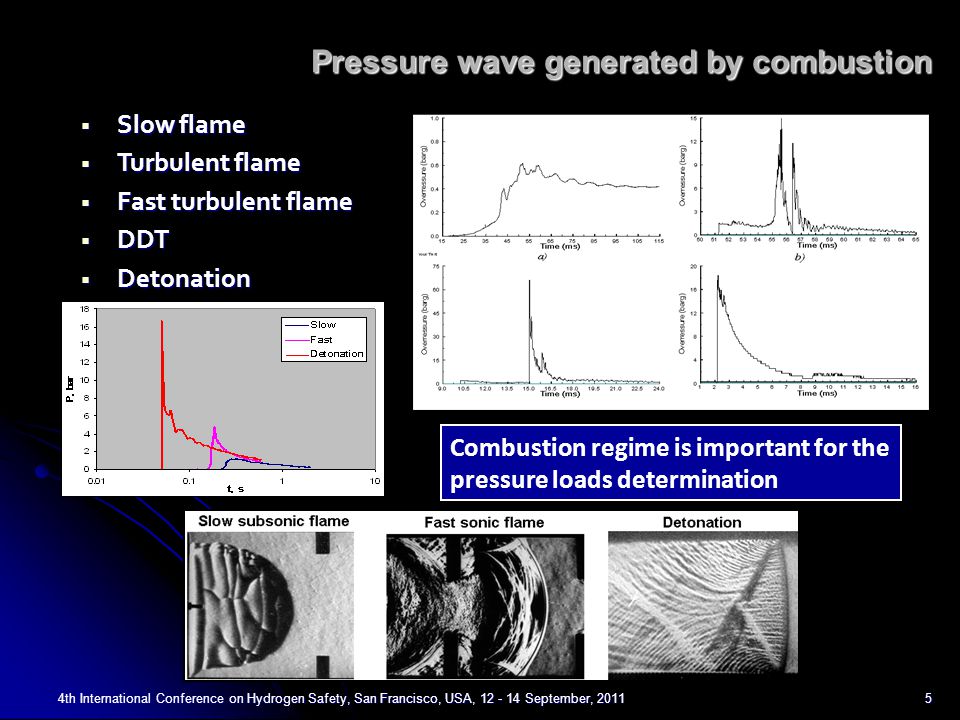

5. Pressure wave generated by combustion 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 20115  Slow flame  Turbulent flame  Fast turbulent flame  DDT  Detonation Combustion regime is important for the pressure loads determination

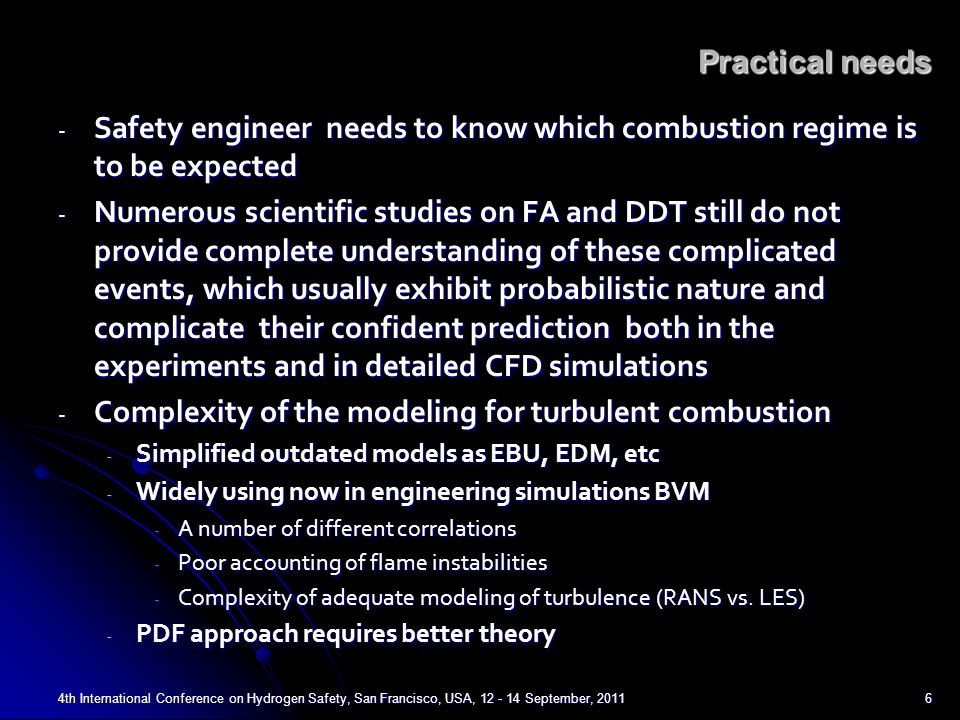

6. Practical needs - Safety engineer needs to know which combustion regime is to be expected - Numerous scientific studies on FA and DDT still do not provide complete understanding of these complicated events, which usually exhibit probabilistic nature and complicate their confident prediction both in the experiments and in detailed CFD simulations - Complexity of the modeling for turbulent combustion - Simplified outdated models as EBU, EDM, etc - Widely using now in engineering simulations BVM - A number of different correlations - Poor accounting of flame instabilities - Complexity of adequate modeling of turbulence (RANS vs. LES) - PDF approach requires better theory 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 20116

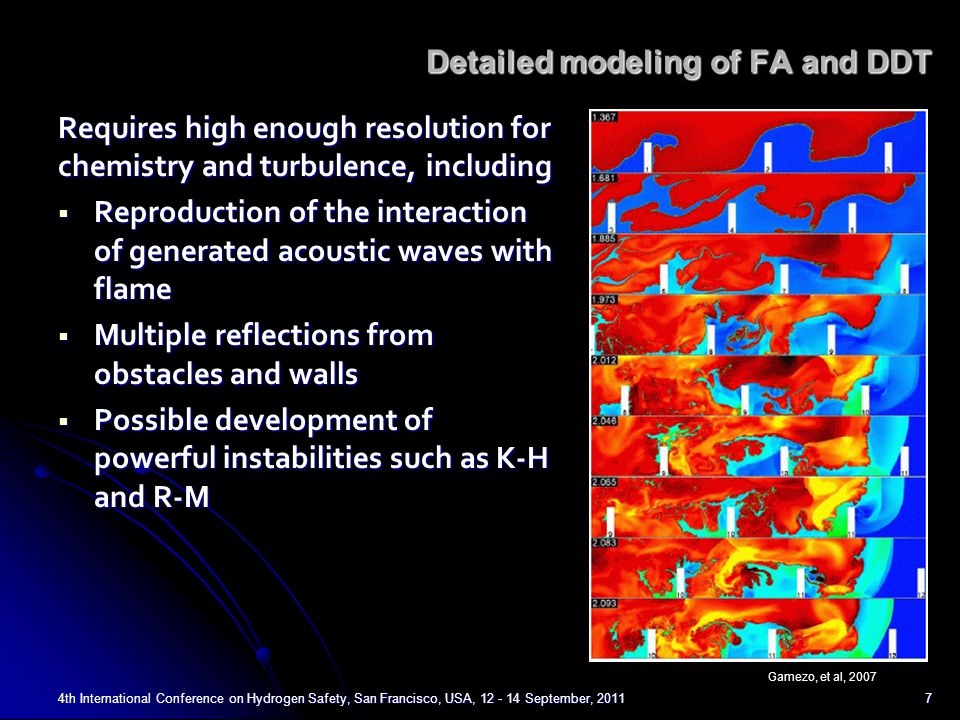

7. Detailed modeling of FA and DDT Requires high enough resolution for chemistry and turbulence, including  Reproduction of the interaction of generated acoustic waves with flame  Multiple reflections from obstacles and walls  Possible development of powerful instabilities such as K-H and R-M 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 20117 Gamezo, et al, 2007

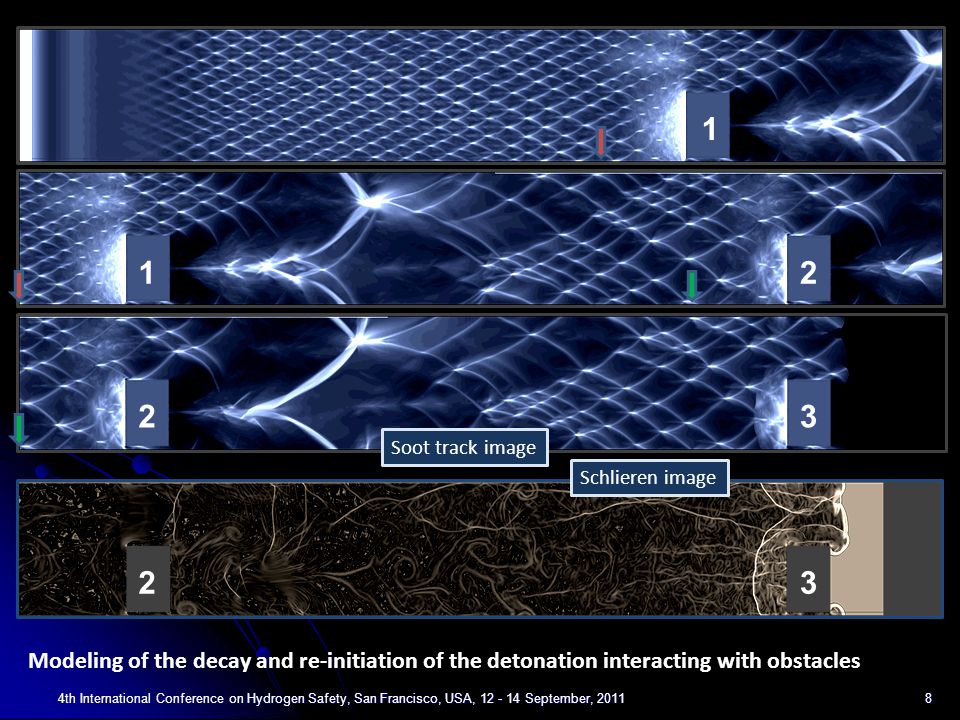

8. 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 20118 1 12 23 32 Soot track image Schlieren image Modeling of the decay and re-initiation of the detonation interacting with obstacles

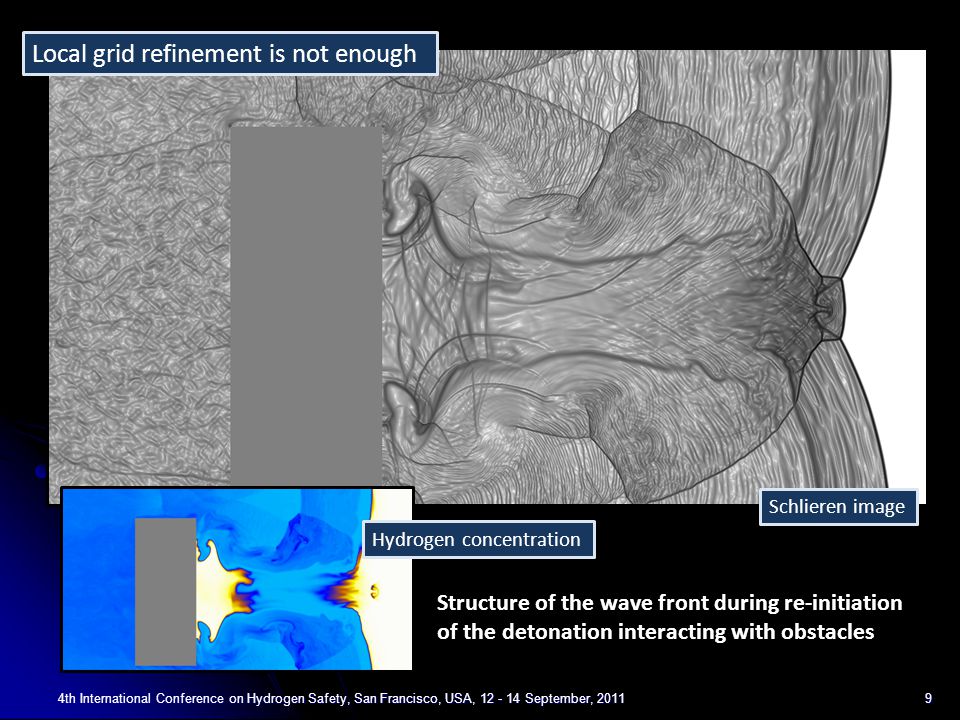

9. 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 20119 Schlieren image Hydrogen concentration Structure of the wave front during re-initiation of the detonation interacting with obstacles Local grid refinement is not enough

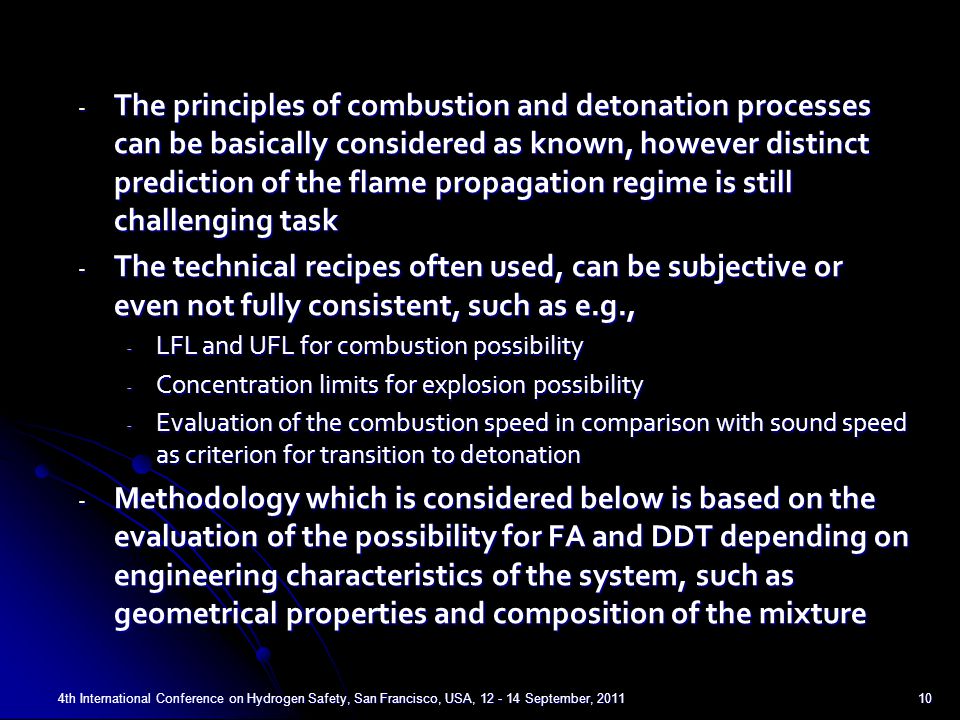

10. 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 201110 - The principles of combustion and detonation processes can be basically considered as known, however distinct prediction of the flame propagation regime is still challenging task - The technical recipes often used, can be subjective or even not fully consistent, such as e.g., - LFL and UFL for combustion possibility - Concentration limits for explosion possibility - Evaluation of the combustion speed in comparison with sound speed as criterion for transition to detonation - Methodology which is considered below is based on the evaluation of the possibility for FA and DDT depending on engineering characteristics of the system, such as geometrical properties and composition of the mixture

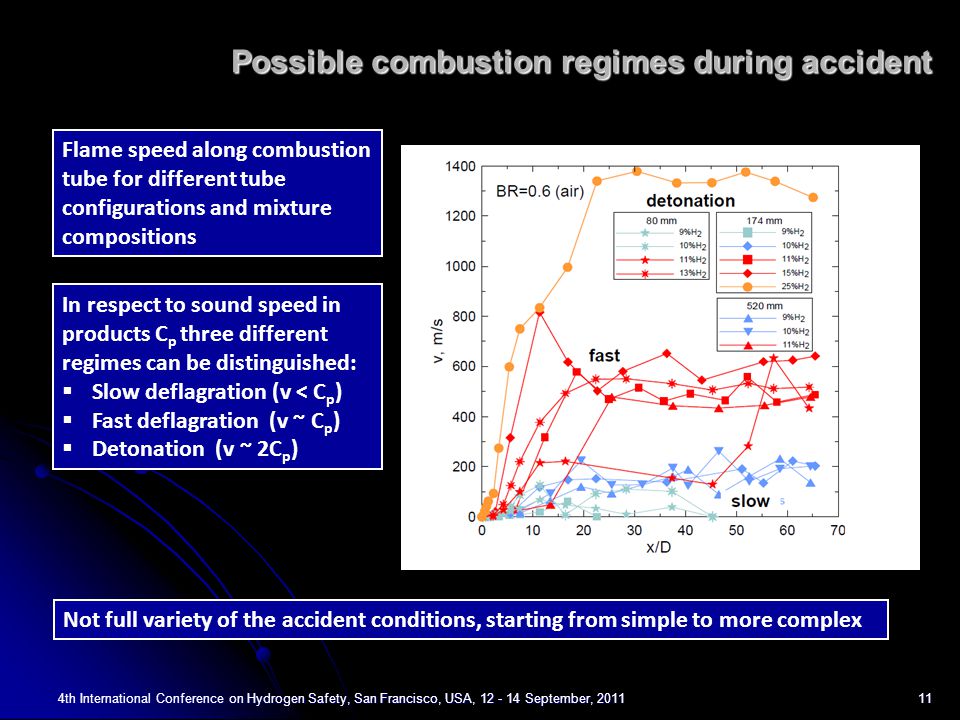

11. Possible combustion regimes during accident 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 201111 Flame speed along combustion tube for different tube configurations and mixture compositions In respect to sound speed in products C p three different regimes can be distinguished:  Slow deflagration (v < C p )  Fast deflagration (v ~ C p )  Detonation (v ~ 2C p ) Not full variety of the accident conditions, starting from simple to more complex

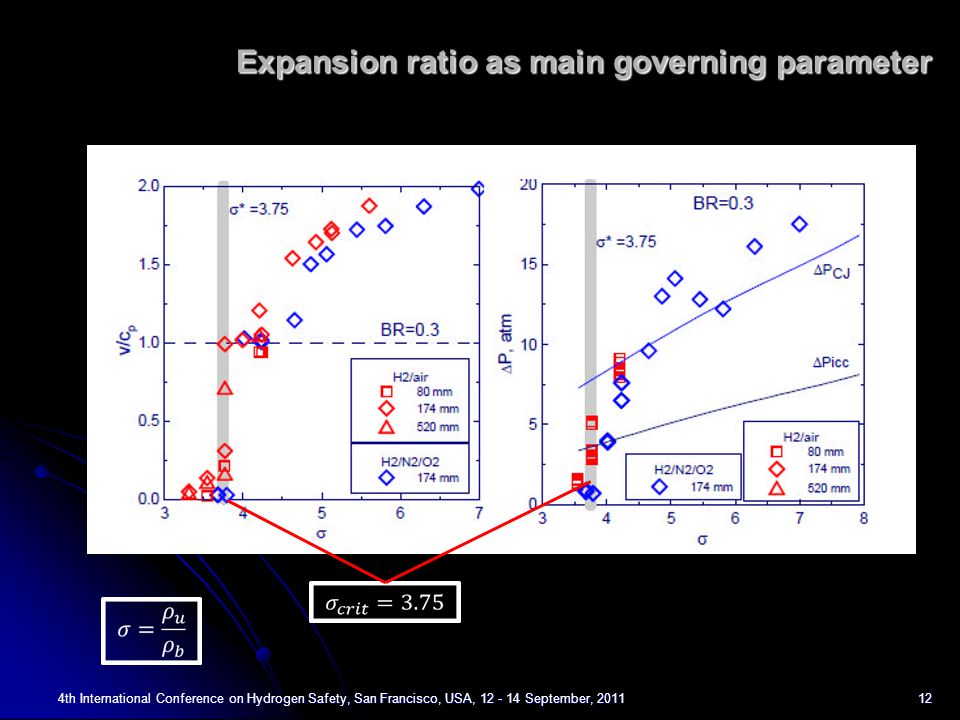

12. Expansion ratio as main governing parameter 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 201112

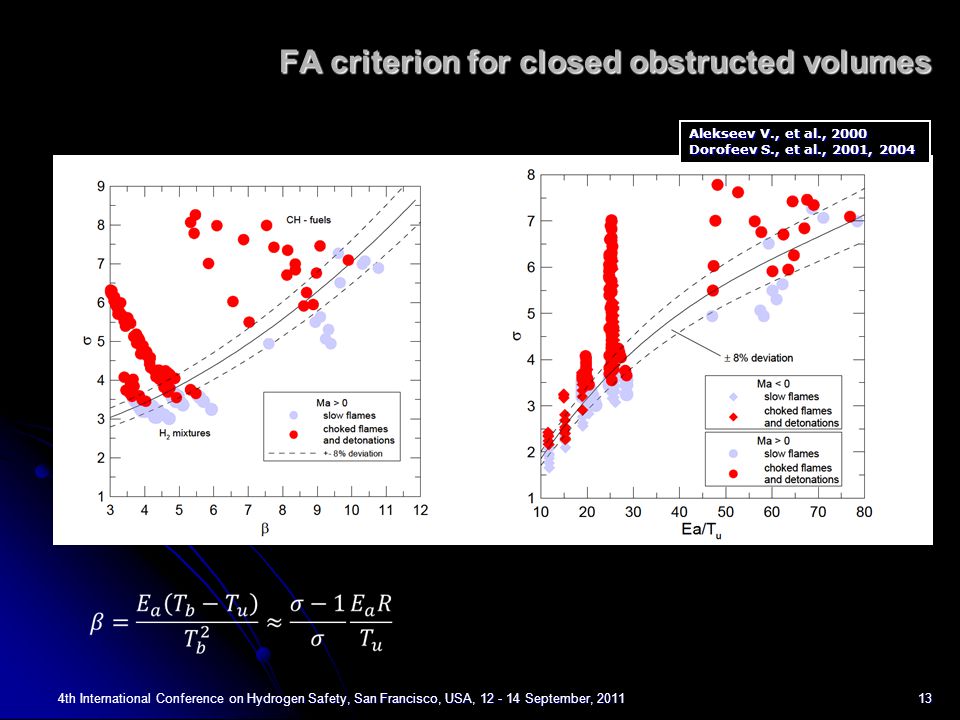

13. FA criterion for closed obstructed volumes 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 201113 Alekseev V., et al., 2000 Dorofeev S., et al., 2001, 2004

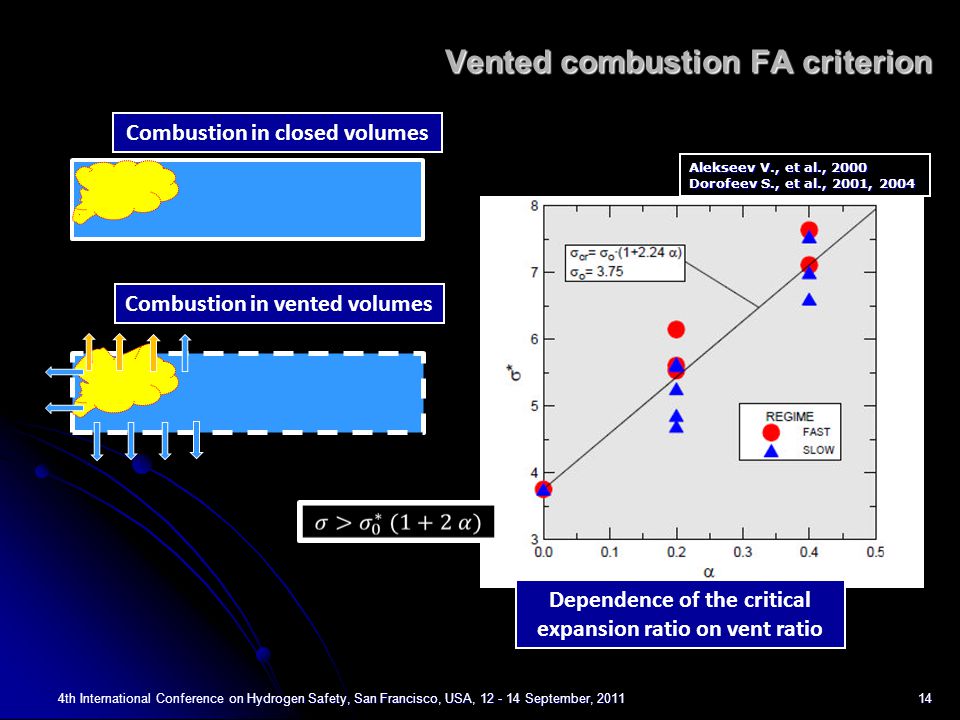

14. Vented combustion FA criterion 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 201114 Combustion in closed volumes Combustion in vented volumes Alekseev V., et al., 2000 Dorofeev S., et al., 2001, 2004 Dependence of the critical expansion ratio on vent ratio

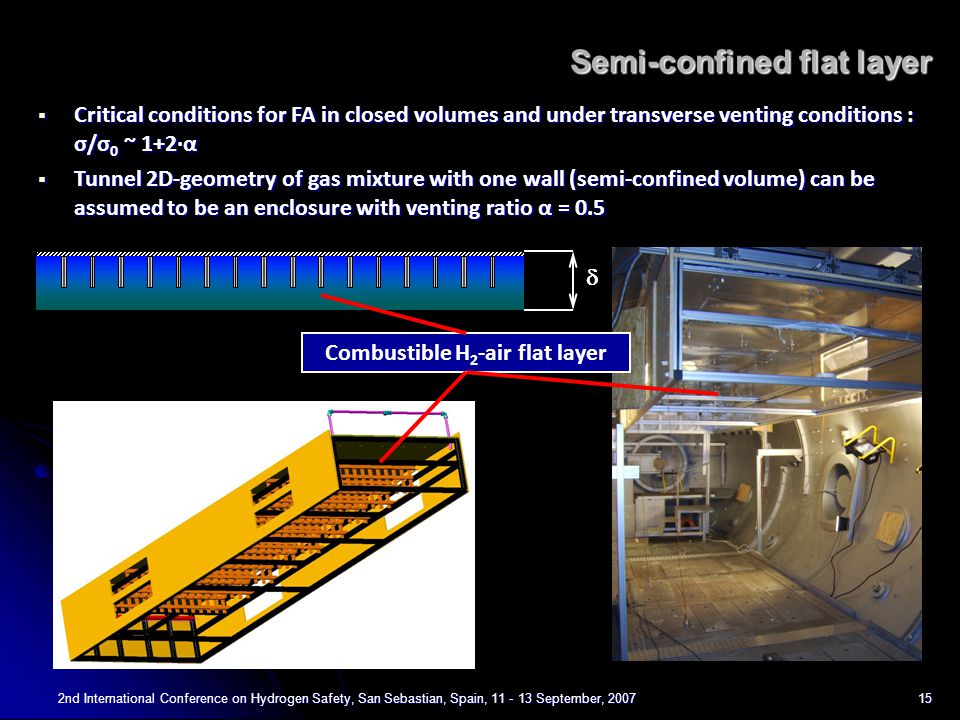

15. Semi-confined flat layer 2nd International Conference on Hydrogen Safety, San Sebastian, Spain, 11 - 13 September, 200715  Critical conditions for FA in closed volumes and under transverse venting conditions : σ/σ 0 ~ 1+2·α  Tunnel 2D-geometry of gas mixture with one wall (semi-confined volume) can be assumed to be an enclosure with venting ratio α = 0.5  Combustible H 2 -air flat layer

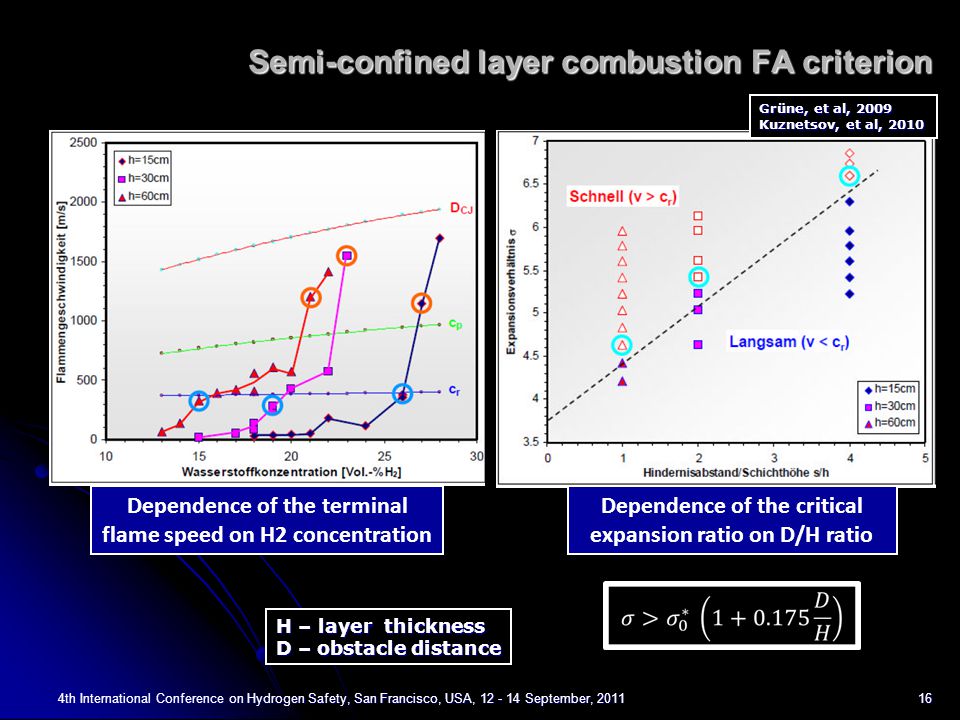

16. Semi-confined layer combustion FA criterion 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 201116 Dependence of the terminal flame speed on H2 concentration Dependence of the critical expansion ratio on D/H ratio H – layer thickness D – obstacle distance Grüne, et al, 2009 Kuznetsov, et al, 2010

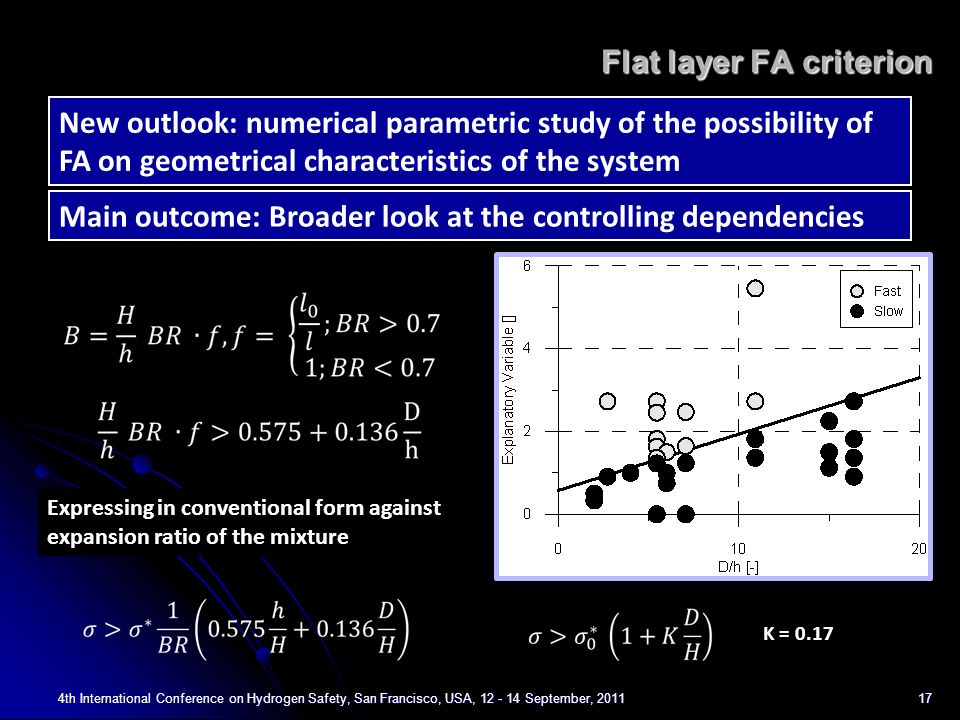

17. Flat layer FA criterion 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 201117 Expressing in conventional form against expansion ratio of the mixture K = 0.17 New outlook: numerical parametric study of the possibility of FA on geometrical characteristics of the system Main outcome: Broader look at the controlling dependencies

18. Summary - The studies targeted to formulation of the principles (criteria) permitting reliably (or at least conservatively) predict possible combustion regimes have to be highly appreciated - An acceptance and approval of the standards based on such criteria has to be considered as significant improvement in safety regulations 4th International Conference on Hydrogen Safety, San Francisco, USA, 12 - 14 September, 201118
