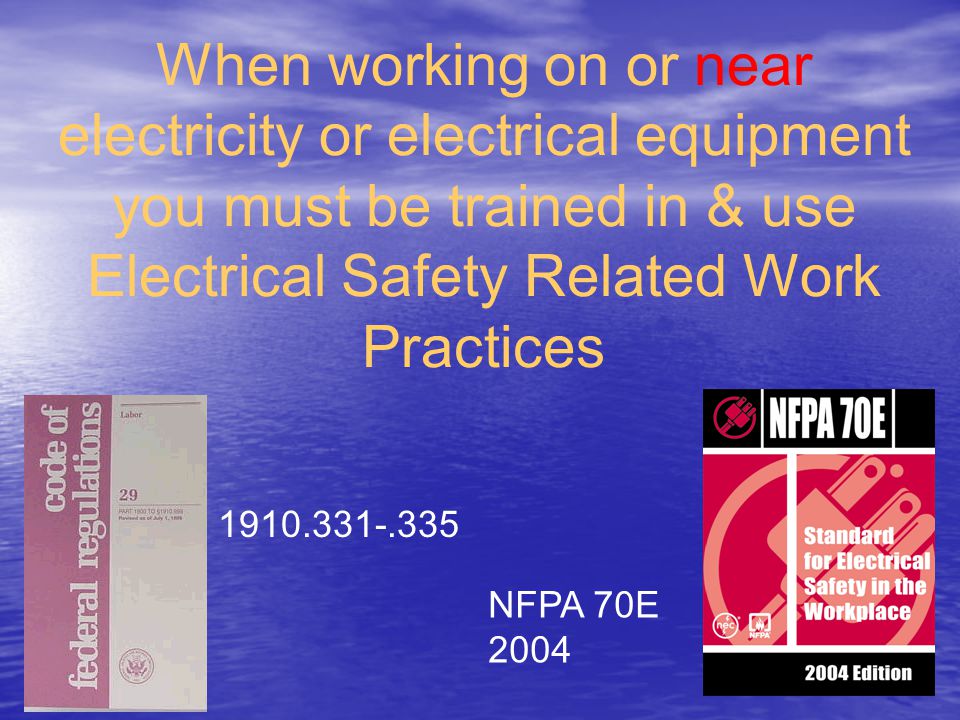

3. When working on or near electricity or electrical equipment you must be trained in & use Electrical Safety Related Work Practices 1910.331-.335 NFPA 70E 2004

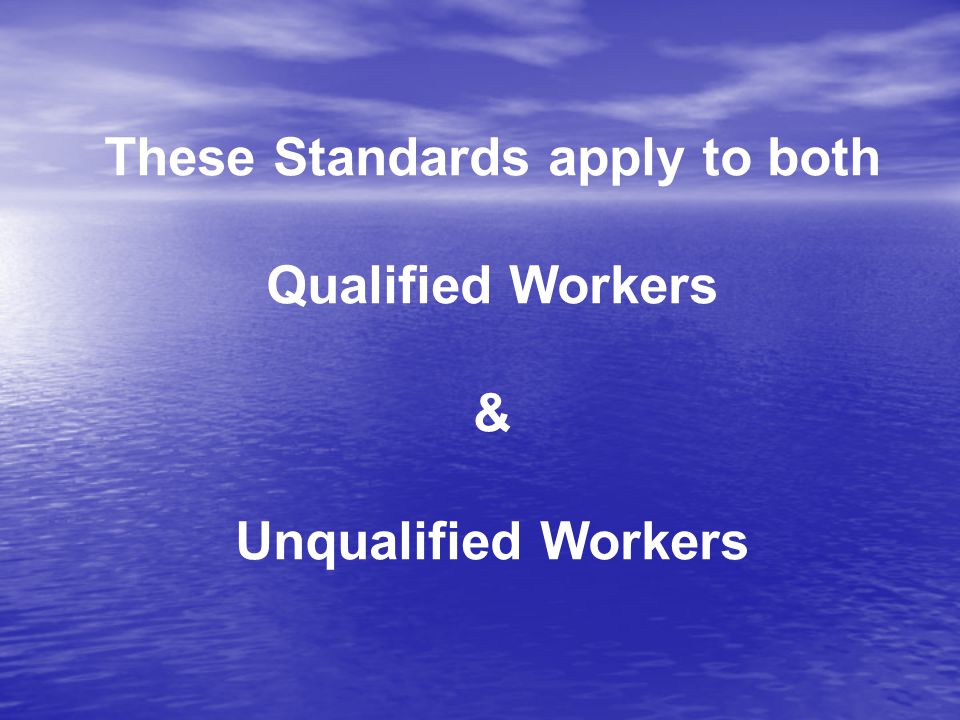

4. These Standards apply to both Qualified Workers & Unqualified Workers

5. Electrical Safety Statistics Average of 4,000 non-disabling and 3,600 disabling electrical contact injuries annually in the United States Average of 4,000 non-disabling and 3,600 disabling electrical contact injuries annually in the United States One person is electrocuted in the workplace every day. One person is electrocuted in the workplace every day. Electrocutions were the fourth leading cause of traumatic occupational fatalities. Electrocutions were the fourth leading cause of traumatic occupational fatalities. 10-15 employees are sent to the hospital every day with electrical burns. 10-15 employees are sent to the hospital every day with electrical burns. Over 4 workers every day go to the burn unit due to arc flash. Over 4 workers every day go to the burn unit due to arc flash.

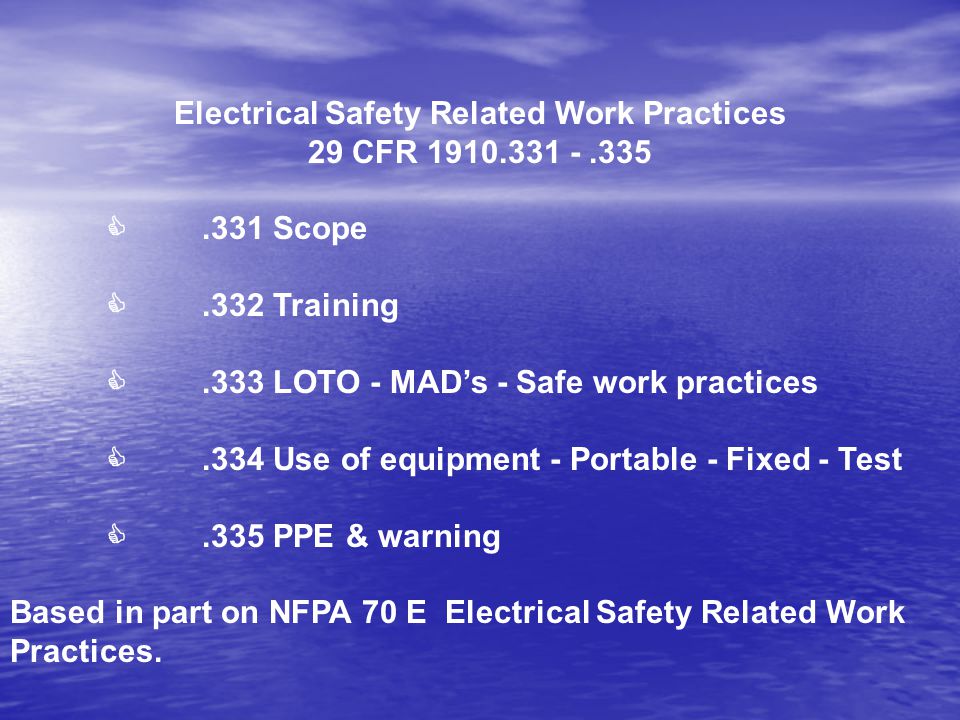

6. Electrical Safety Related Work Practices 29 CFR 1910.331 -.335 C.331 Scope C.332 Training C.333 LOTO - MAD’s - Safe work practices C.334 Use of equipment - Portable - Fixed - Test C.335 PPE & warning Based in part on NFPA 70 E Electrical Safety Related Work Practices.

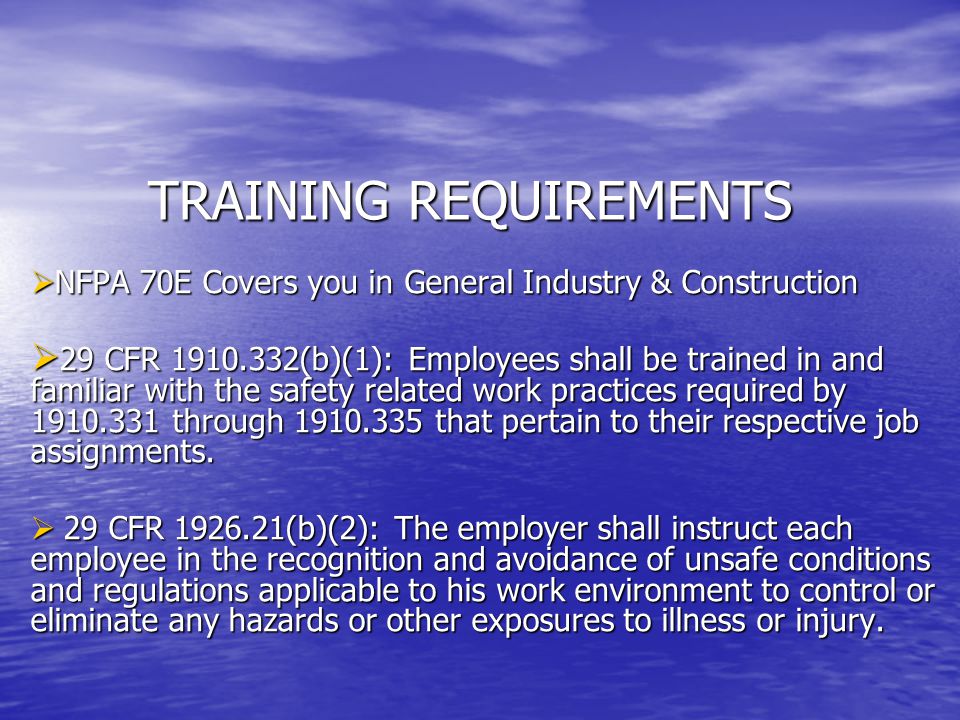

7. TRAINING REQUIREMENTS  NFPA 70E Covers you in General Industry & Construction  29 CFR 1910.332(b)(1): Employees shall be trained in and familiar with the safety related work practices required by 1910.331 through 1910.335 that pertain to their respective job assignments.  29 CFR 1926.21(b)(2): The employer shall instruct each employee in the recognition and avoidance of unsafe conditions and regulations applicable to his work environment to control or eliminate any hazards or other exposures to illness or injury.

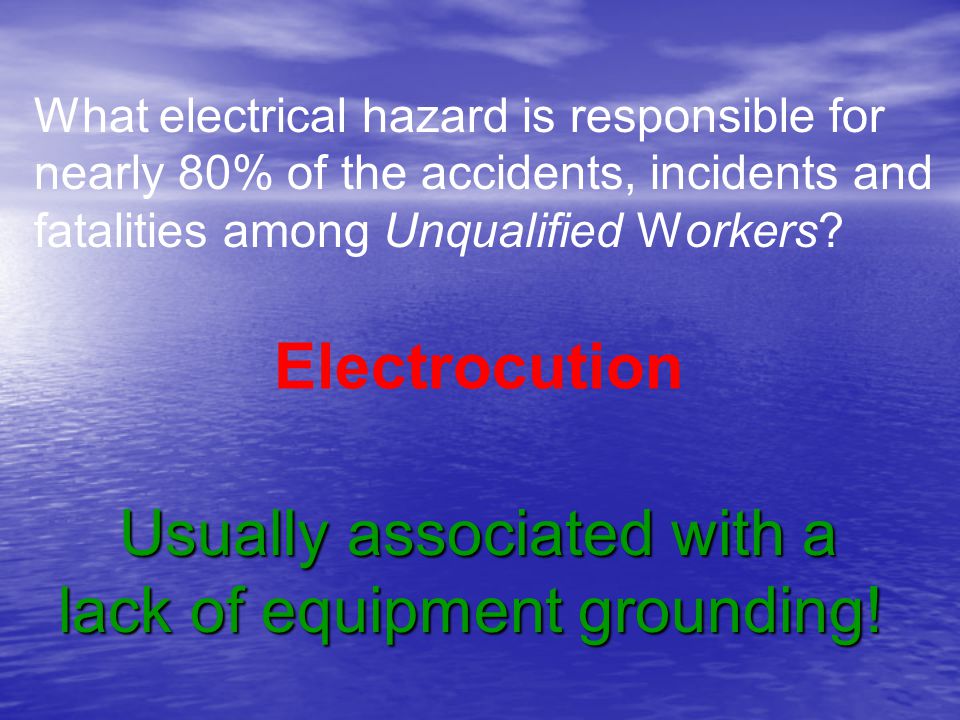

8. What electrical hazard is responsible for nearly 80% of the accidents, incidents and fatalities among Unqualified Workers? Electrocution Usually associated with a lack of equipment grounding!

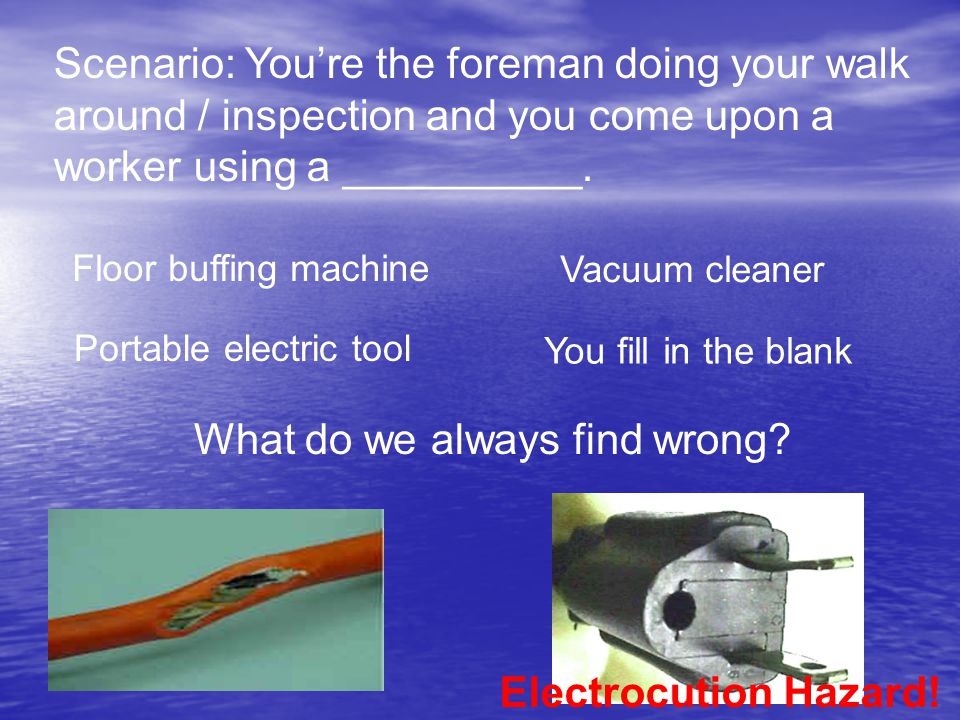

9. Scenario: You’re the foreman doing your walk around / inspection and you come upon a worker using a __________. Floor buffing machine Vacuum cleaner Portable electric tool You fill in the blank What do we always find wrong? Electrocution Hazard!

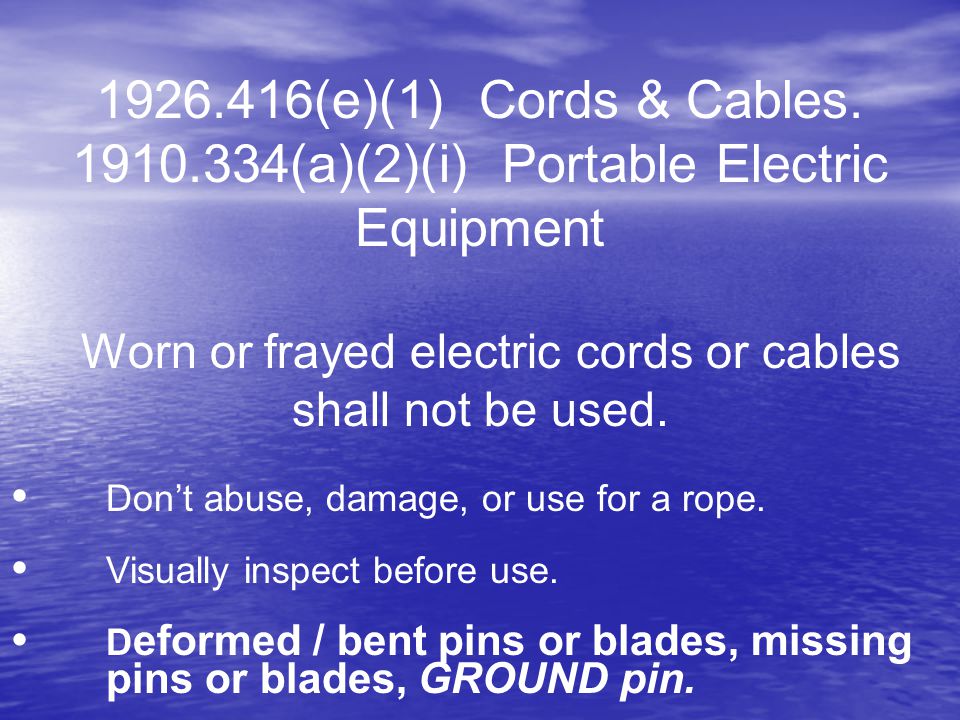

10. 1926.416(e)(1) Cords & Cables. 1910.334(a)(2)(i) Portable Electric Equipment Worn or frayed electric cords or cables shall not be used.  Don’t abuse, damage, or use for a rope.  Visually inspect before use.  D eformed / bent pins or blades, missing pins or blades, GROUND pin.

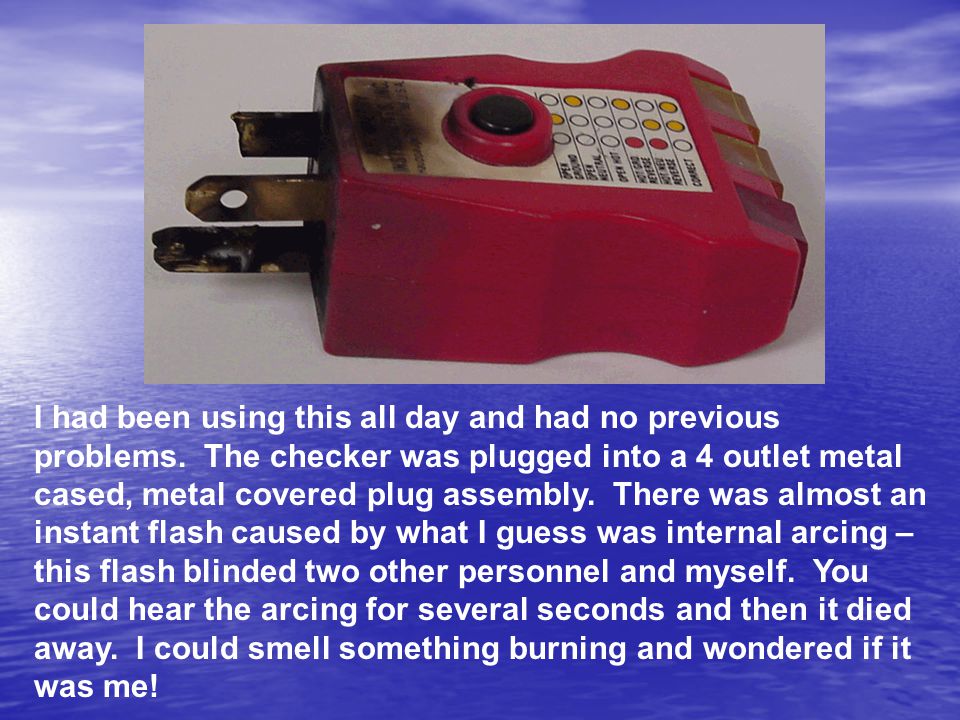

11. Safety Professionals need to follow safe electrical work practices too ! I had been using this all day and had no previous problems. The checker was plugged into a 4 outlet metal cased, metal covered plug assembly. There was almost an instant flash caused by what I guess was internal arcing – this flash blinded two other personnel and myself. You could hear the arcing for several seconds and then it died away. I could smell something burning and wondered if it was me!

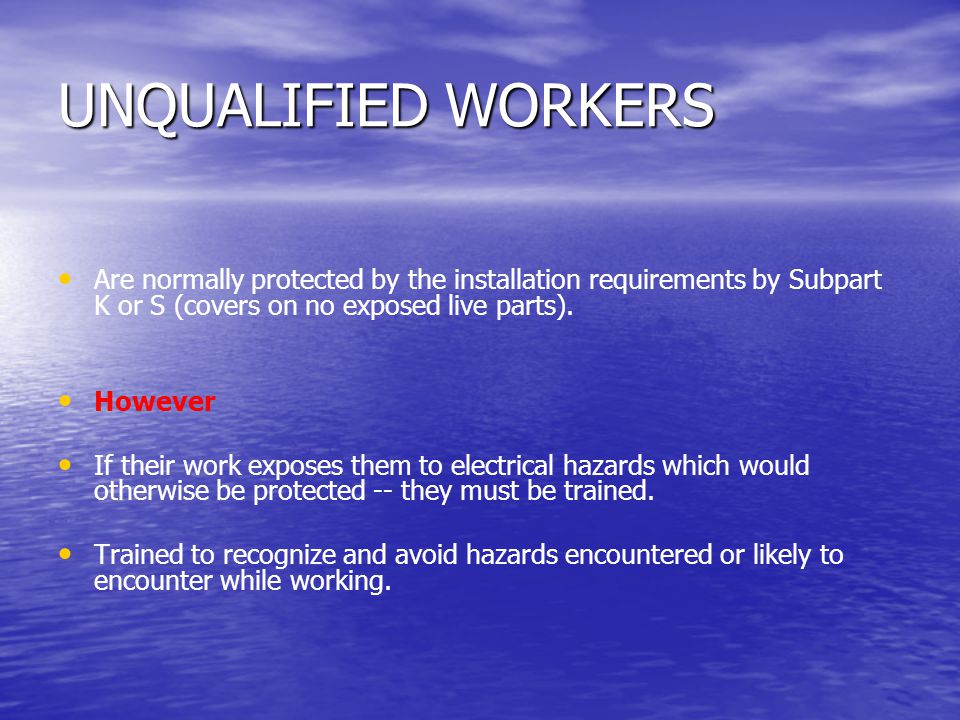

12. UNQUALIFIED WORKERS Are normally protected by the installation requirements by Subpart K or S (covers on no exposed live parts). However If their work exposes them to electrical hazards which would otherwise be protected -- they must be trained. Trained to recognize and avoid hazards encountered or likely to encounter while working.

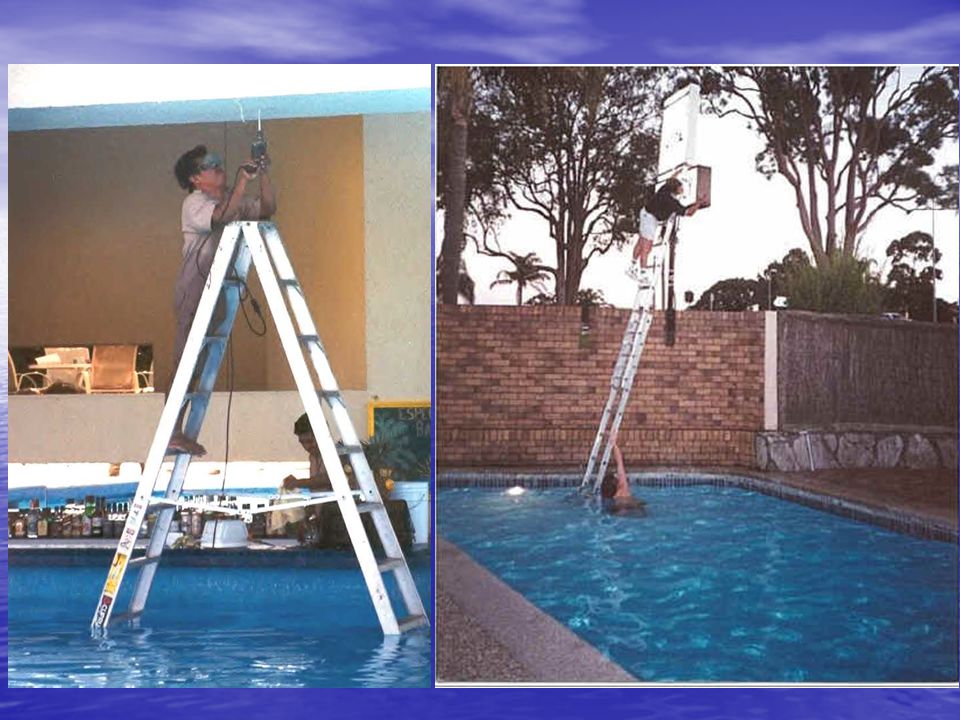

13. Unqualified workers can’t be trained to recognize and avoid electrical hazards. Because it is common sense.

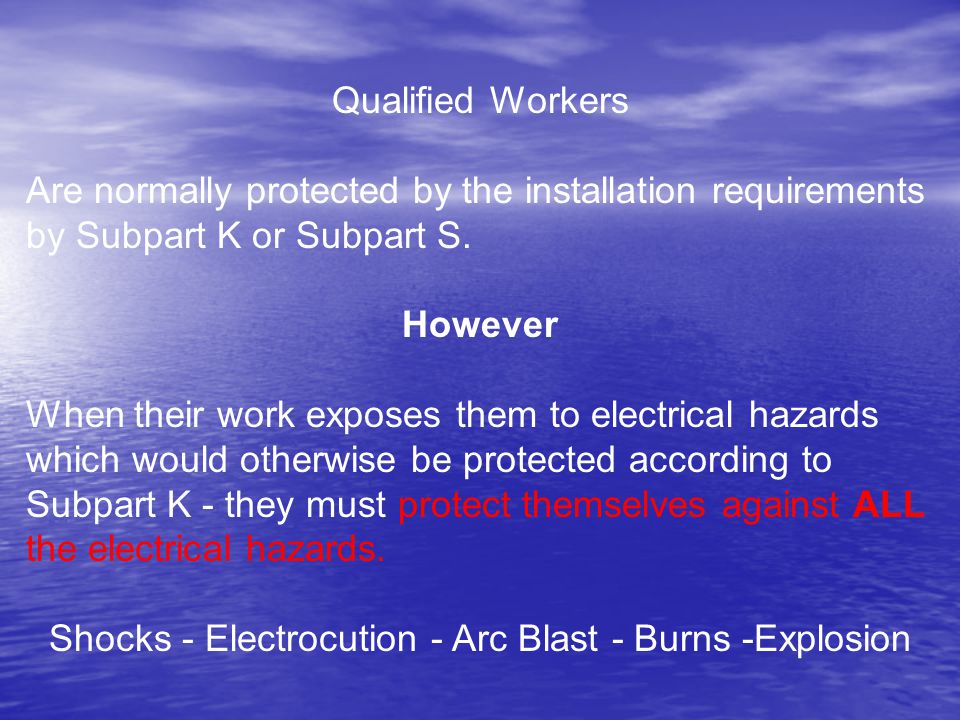

15. Qualified Workers Are normally protected by the installation requirements by Subpart K or Subpart S. However When their work exposes them to electrical hazards which would otherwise be protected according to Subpart K - they must protect themselves against ALL the electrical hazards. Shocks - Electrocution - Arc Blast - Burns -Explosion

16. 80 % of the electrically related accidents, incidents, and fatalities among Qualified Workers Caused by Arc Blast / Arc Flash

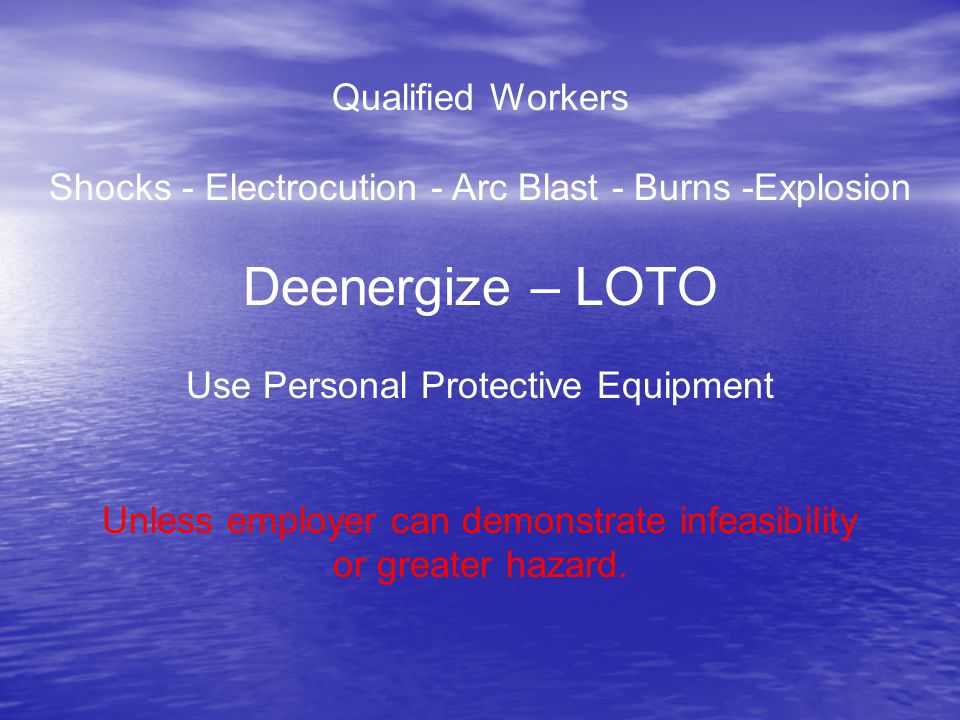

17. Qualified Workers Shocks - Electrocution - Arc Blast - Burns -Explosion Deenergize – LOTO Use Personal Protective Equipment Unless employer can demonstrate infeasibility or greater hazard.

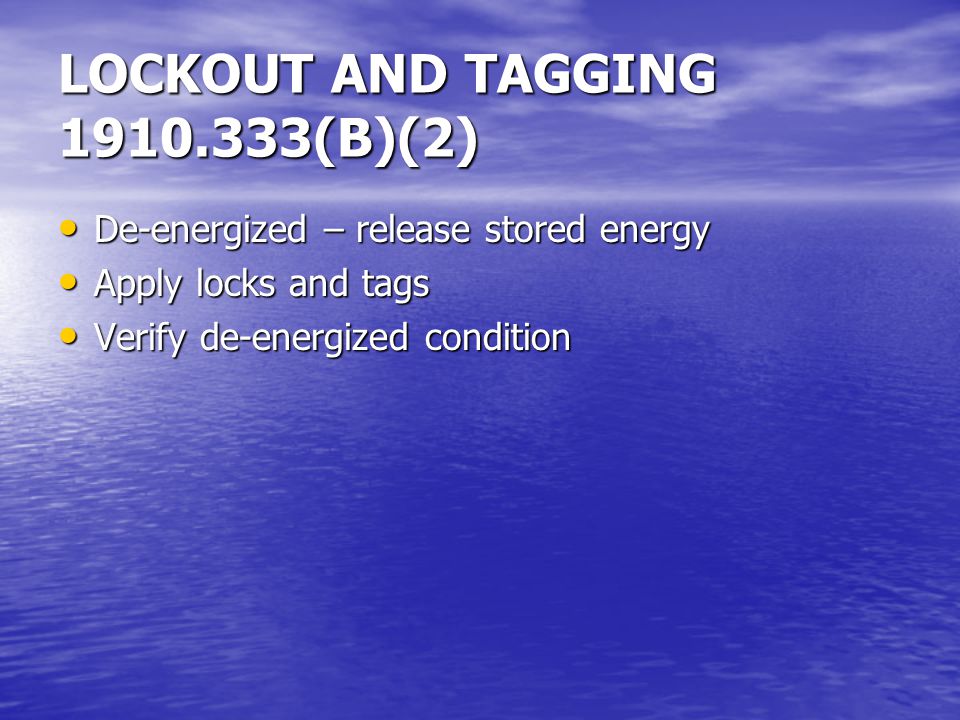

18. LOCKOUT AND TAGGING 1910.333(B)(2) De-energized – release stored energy De-energized – release stored energy Apply locks and tags Apply locks and tags Verify de-energized condition Verify de-energized condition

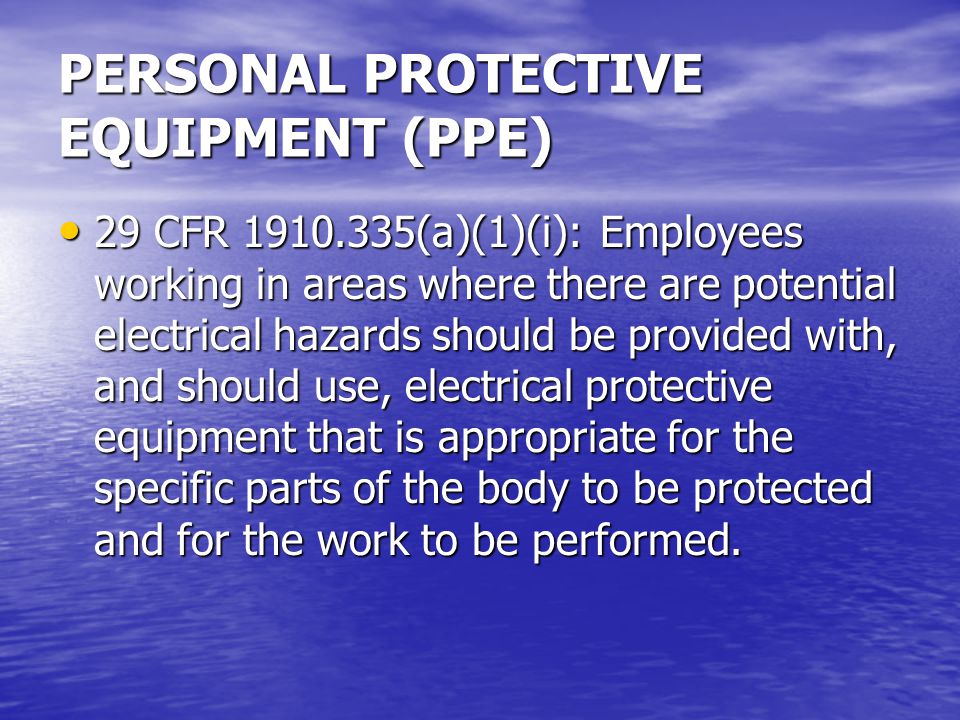

19. PERSONAL PROTECTIVE EQUIPMENT (PPE) 29 CFR 1910.335(a)(1)(i): Employees working in areas where there are potential electrical hazards should be provided with, and should use, electrical protective equipment that is appropriate for the specific parts of the body to be protected and for the work to be performed. 29 CFR 1910.335(a)(1)(i): Employees working in areas where there are potential electrical hazards should be provided with, and should use, electrical protective equipment that is appropriate for the specific parts of the body to be protected and for the work to be performed.

20. TOOLS AND EQUIPMENT 29 CFR 1910.335(a)(2)(i) When working near exposed energized conductors or circuit parts, each employee shall use insulated tools or handling equipment might make contact with such conductors or parts. When working near exposed energized conductors or circuit parts, each employee shall use insulated tools or handling equipment might make contact with such conductors or parts.

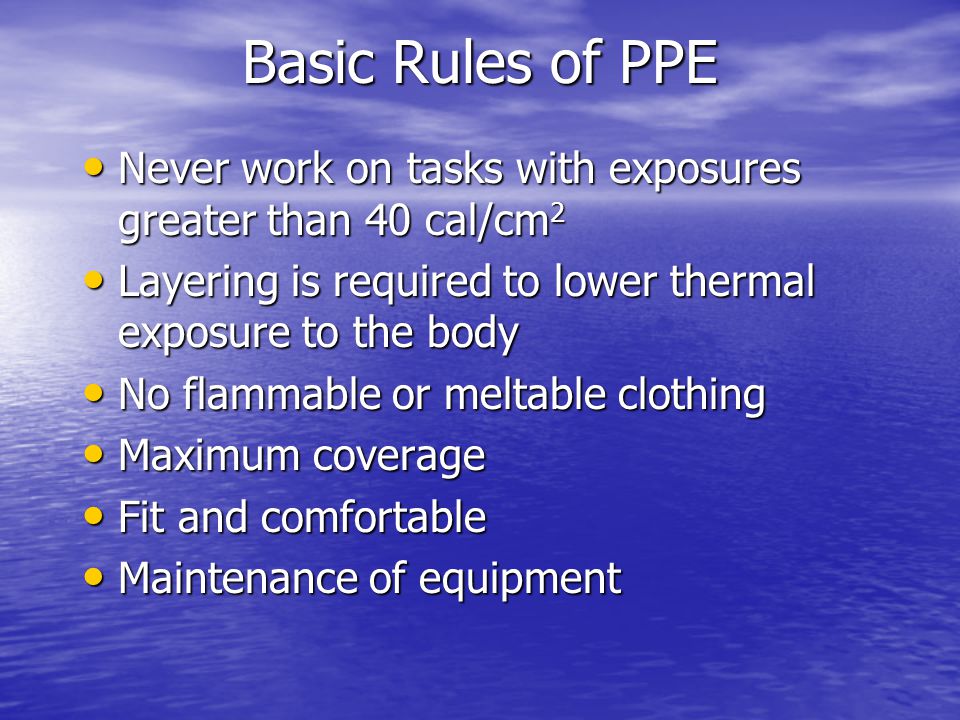

21. Basic Rules of PPE Never work on tasks with exposures greater than 40 cal/cm 2 Never work on tasks with exposures greater than 40 cal/cm 2 Layering is required to lower thermal exposure to the body Layering is required to lower thermal exposure to the body No flammable or meltable clothing No flammable or meltable clothing Maximum coverage Maximum coverage Fit and comfortable Fit and comfortable Maintenance of equipment Maintenance of equipment

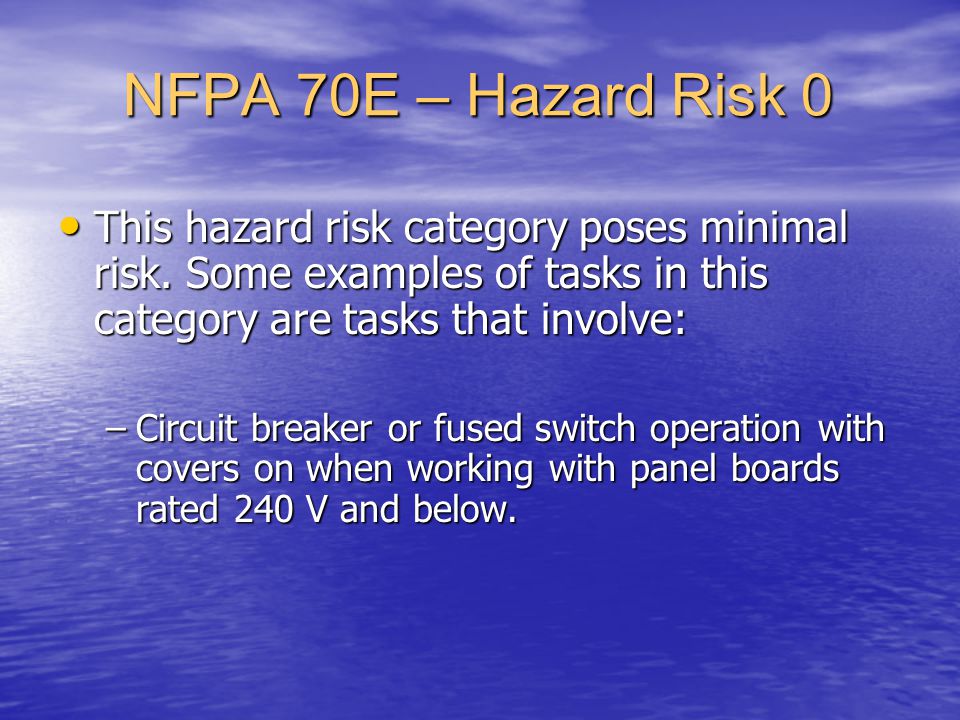

22. NFPA 70E – Hazard Risk 0 This hazard risk category poses minimal risk. Some examples of tasks in this category are tasks that involve: This hazard risk category poses minimal risk. Some examples of tasks in this category are tasks that involve: –Circuit breaker or fused switch operation with covers on when working with panel boards rated 240 V and below.

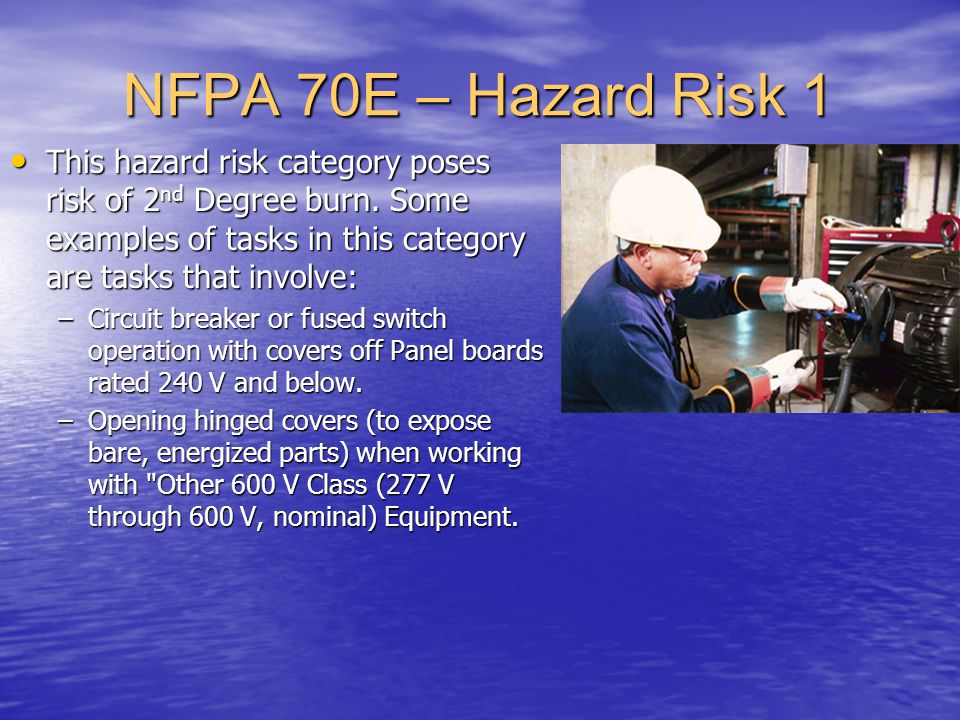

23. NFPA 70E – Hazard Risk 1 This hazard risk category poses risk of 2 nd Degree burn. Some examples of tasks in this category are tasks that involve: This hazard risk category poses risk of 2 nd Degree burn. Some examples of tasks in this category are tasks that involve: –Circuit breaker or fused switch operation with covers off Panel boards rated 240 V and below. –Opening hinged covers (to expose bare, energized parts) when working with "Other 600 V Class (277 V through 600 V, nominal) Equipment.

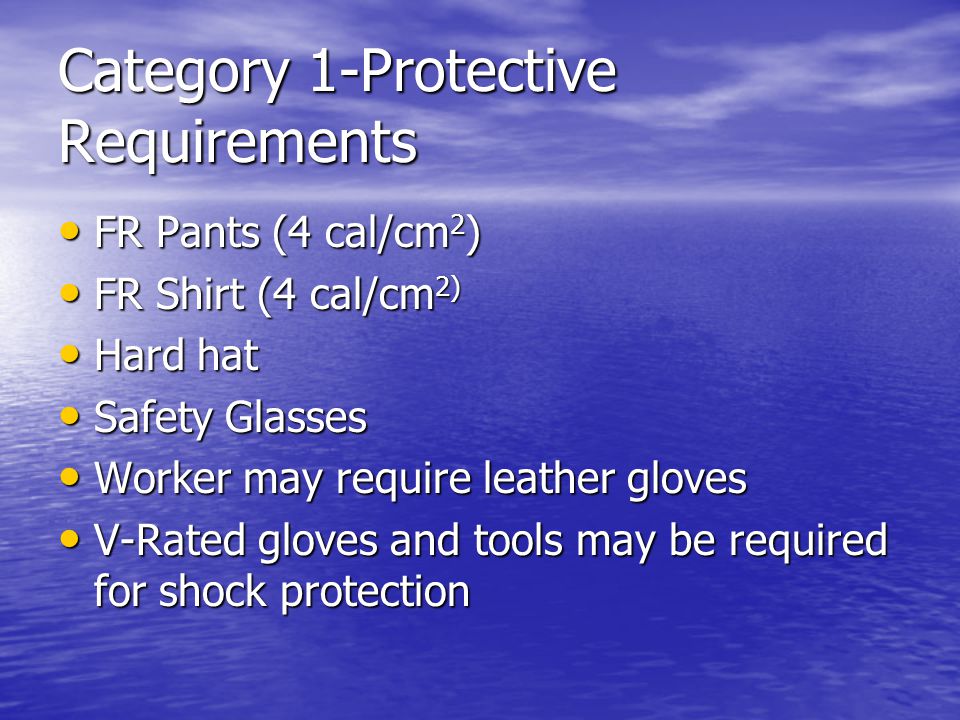

24. Category 1-Protective Requirements FR Pants (4 cal/cm 2 ) FR Pants (4 cal/cm 2 ) FR Shirt (4 cal/cm 2) FR Shirt (4 cal/cm 2) Hard hat Hard hat Safety Glasses Safety Glasses Worker may require leather gloves Worker may require leather gloves V-Rated gloves and tools may be required for shock protection V-Rated gloves and tools may be required for shock protection

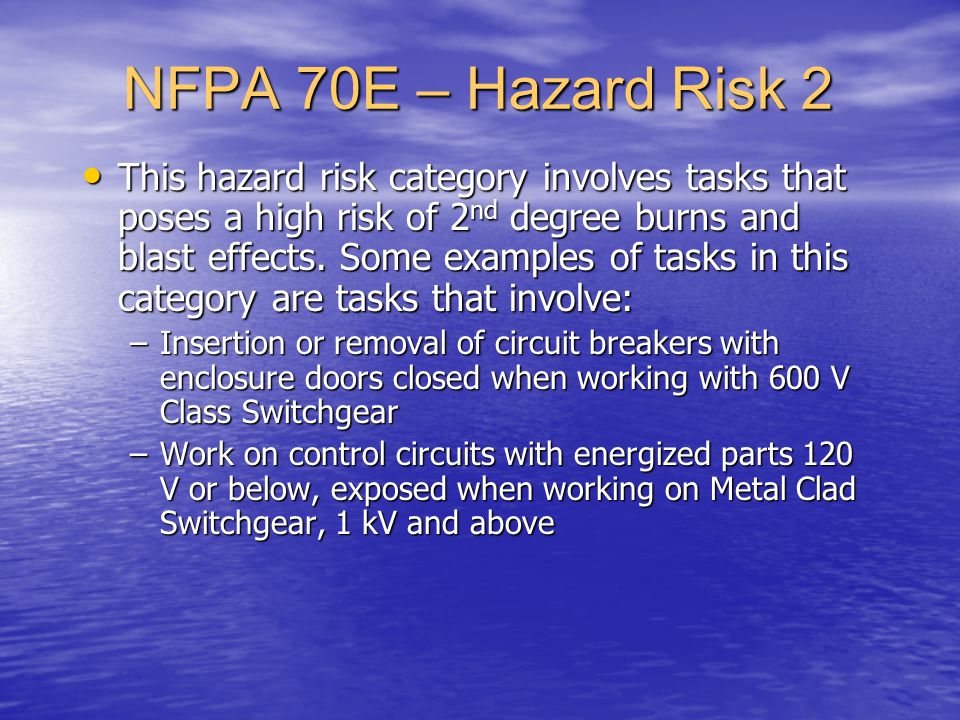

25. NFPA 70E – Hazard Risk 2 This hazard risk category involves tasks that poses a high risk of 2 nd degree burns and blast effects. Some examples of tasks in this category are tasks that involve: This hazard risk category involves tasks that poses a high risk of 2 nd degree burns and blast effects. Some examples of tasks in this category are tasks that involve: –Insertion or removal of circuit breakers with enclosure doors closed when working with 600 V Class Switchgear –Work on control circuits with energized parts 120 V or below, exposed when working on Metal Clad Switchgear, 1 kV and above

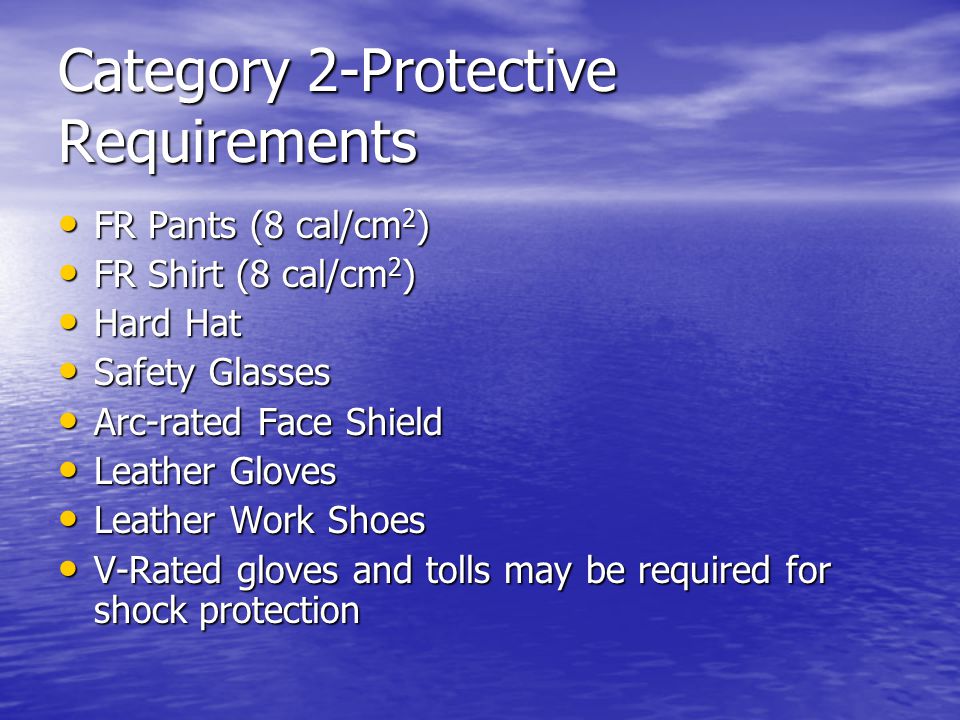

26. Category 2-Protective Requirements FR Pants (8 cal/cm 2 ) FR Pants (8 cal/cm 2 ) FR Shirt (8 cal/cm 2 ) FR Shirt (8 cal/cm 2 ) Hard Hat Hard Hat Safety Glasses Safety Glasses Arc-rated Face Shield Arc-rated Face Shield Leather Gloves Leather Gloves Leather Work Shoes Leather Work Shoes V-Rated gloves and tolls may be required for shock protection V-Rated gloves and tolls may be required for shock protection

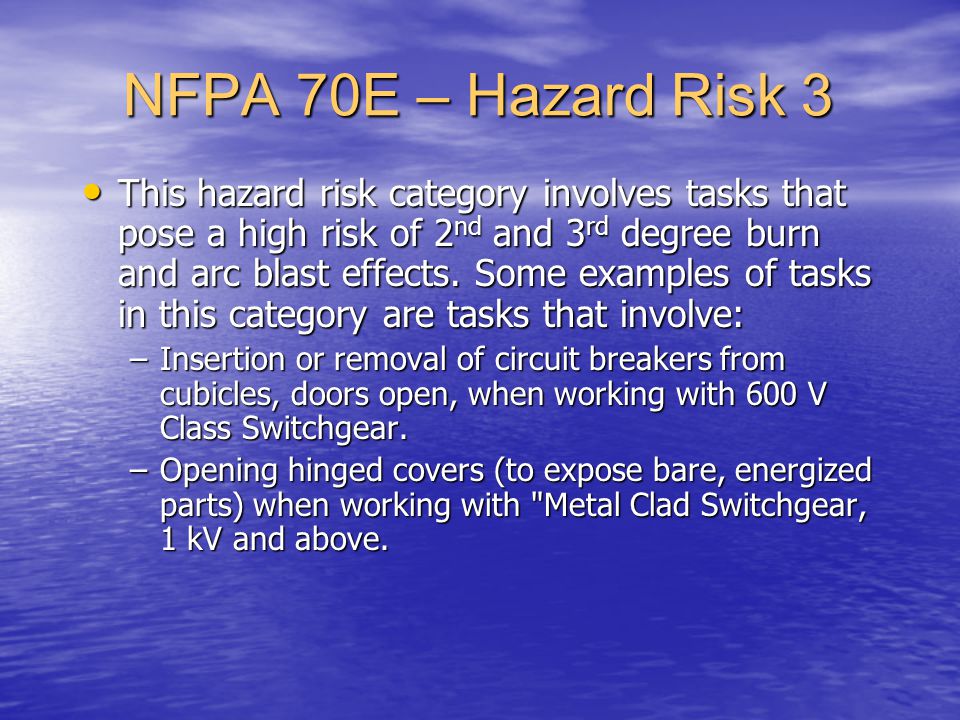

27. NFPA 70E – Hazard Risk 3 This hazard risk category involves tasks that pose a high risk of 2 nd and 3 rd degree burn and arc blast effects. Some examples of tasks in this category are tasks that involve: This hazard risk category involves tasks that pose a high risk of 2 nd and 3 rd degree burn and arc blast effects. Some examples of tasks in this category are tasks that involve: –Insertion or removal of circuit breakers from cubicles, doors open, when working with 600 V Class Switchgear. –Opening hinged covers (to expose bare, energized parts) when working with "Metal Clad Switchgear, 1 kV and above.

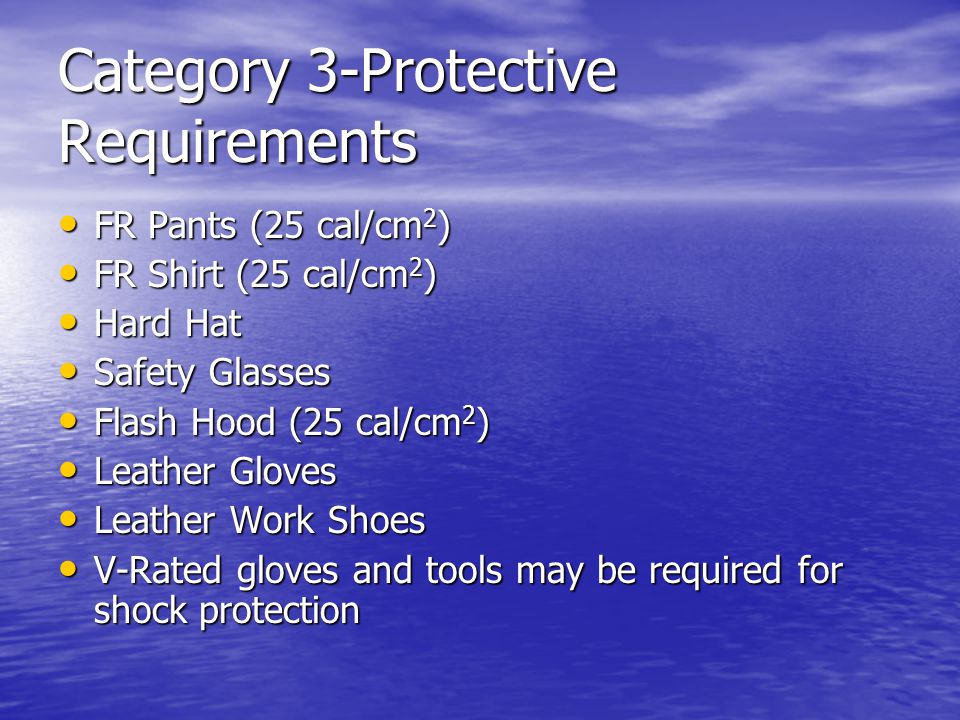

28. Category 3-Protective Requirements FR Pants (25 cal/cm 2 ) FR Pants (25 cal/cm 2 ) FR Shirt (25 cal/cm 2 ) FR Shirt (25 cal/cm 2 ) Hard Hat Hard Hat Safety Glasses Safety Glasses Flash Hood (25 cal/cm 2 ) Flash Hood (25 cal/cm 2 ) Leather Gloves Leather Gloves Leather Work Shoes Leather Work Shoes V-Rated gloves and tools may be required for shock protection V-Rated gloves and tools may be required for shock protection

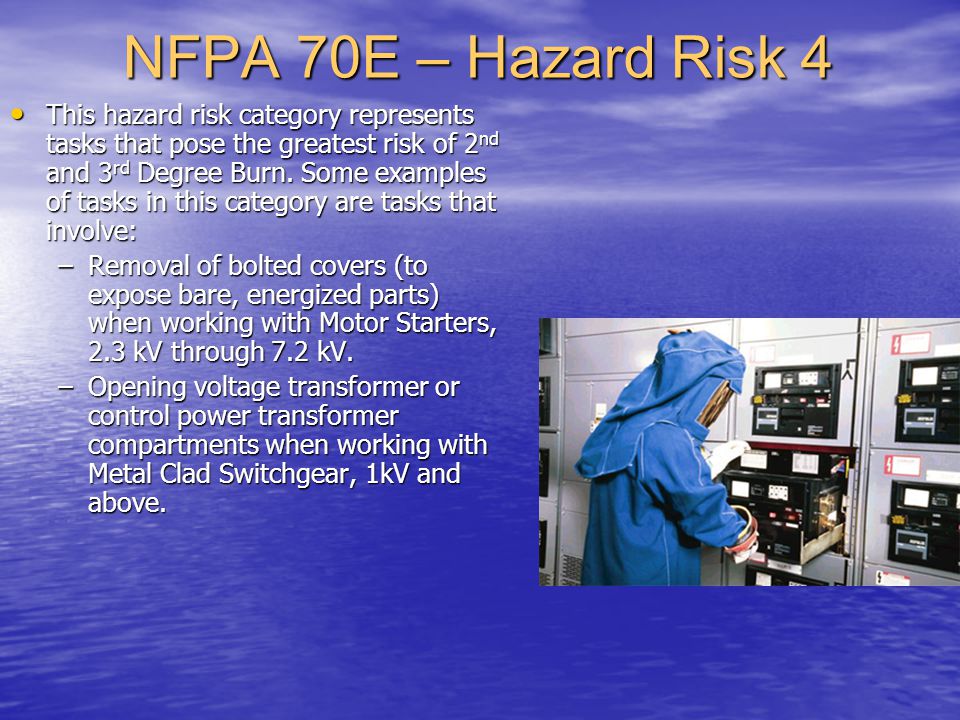

29. NFPA 70E – Hazard Risk 4 This hazard risk category represents tasks that pose the greatest risk of 2 nd and 3 rd Degree Burn. Some examples of tasks in this category are tasks that involve: This hazard risk category represents tasks that pose the greatest risk of 2 nd and 3 rd Degree Burn. Some examples of tasks in this category are tasks that involve: –Removal of bolted covers (to expose bare, energized parts) when working with Motor Starters, 2.3 kV through 7.2 kV. –Opening voltage transformer or control power transformer compartments when working with Metal Clad Switchgear, 1kV and above.

30. Category 4-Protective Requirements FR Pants (8 cal/cm 2 ) FR Pants (8 cal/cm 2 ) FR Shirt (8 cal/cm 2 ) FR Shirt (8 cal/cm 2 ) Hard Hat Hard Hat Safety Glasses Safety Glasses Flash Suit (40 cal/cm 2 ) Flash Suit (40 cal/cm 2 ) Flash Hood (40 cal/cm 2 ) Flash Hood (40 cal/cm 2 ) Leather Gloves Leather Gloves Leather Work Shoes Leather Work Shoes Hearing protection Hearing protection V-Rated gloves and tolls may be required for shock protection V-Rated gloves and tolls may be required for shock protection

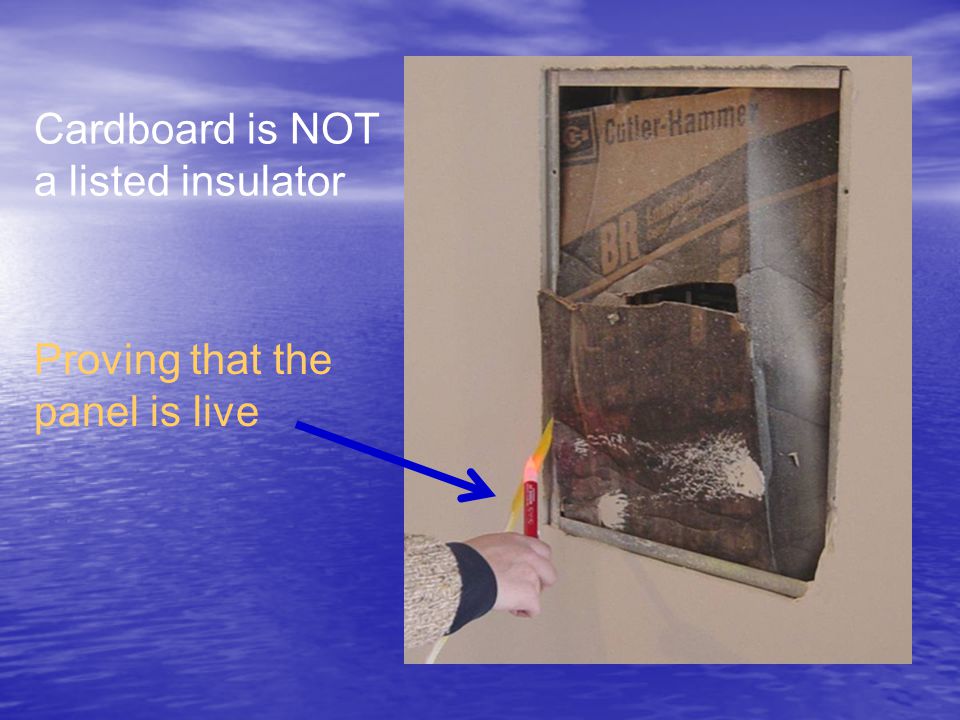

31. Cardboard is NOT a listed insulator Proving that the panel is live

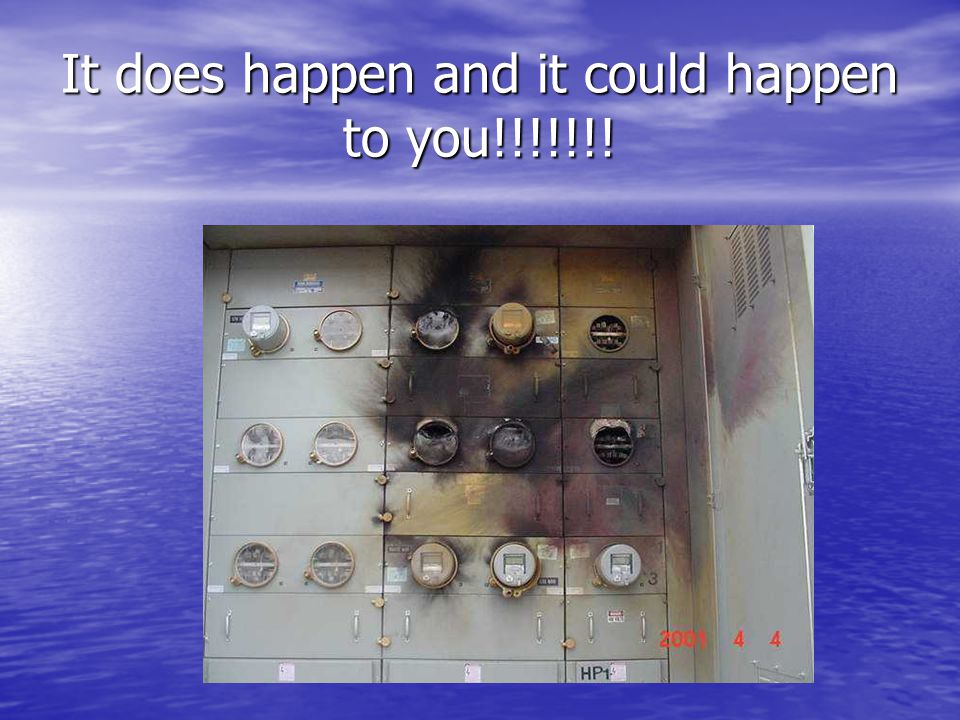

32. It does happen and it could happen to you!!!!!!!

33. Personal Protective Equipment

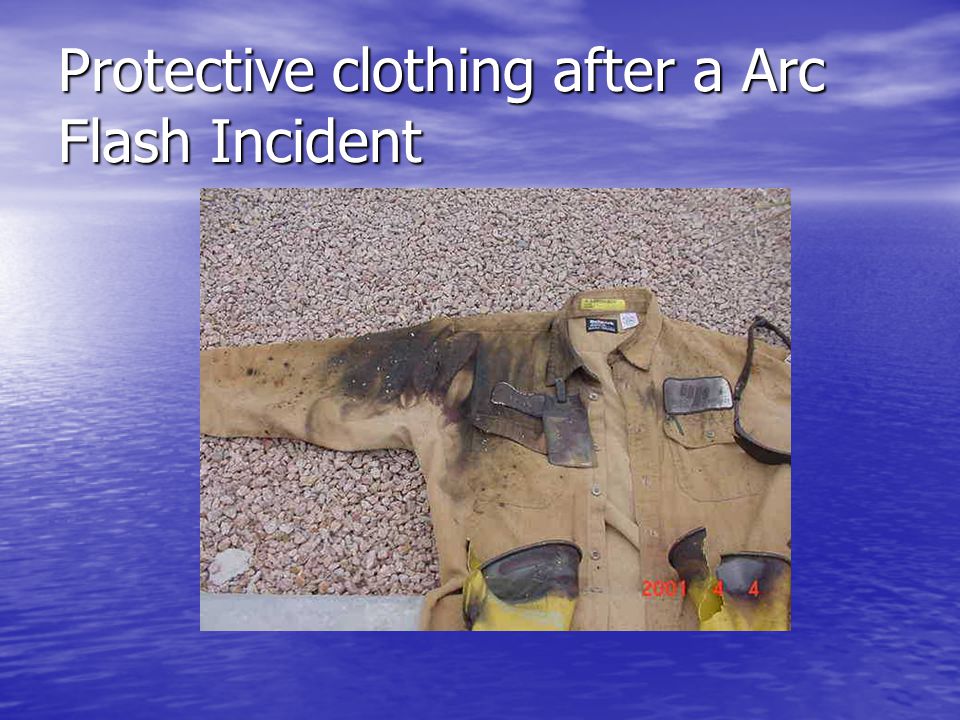

34. Protective clothing after a Arc Flash Incident

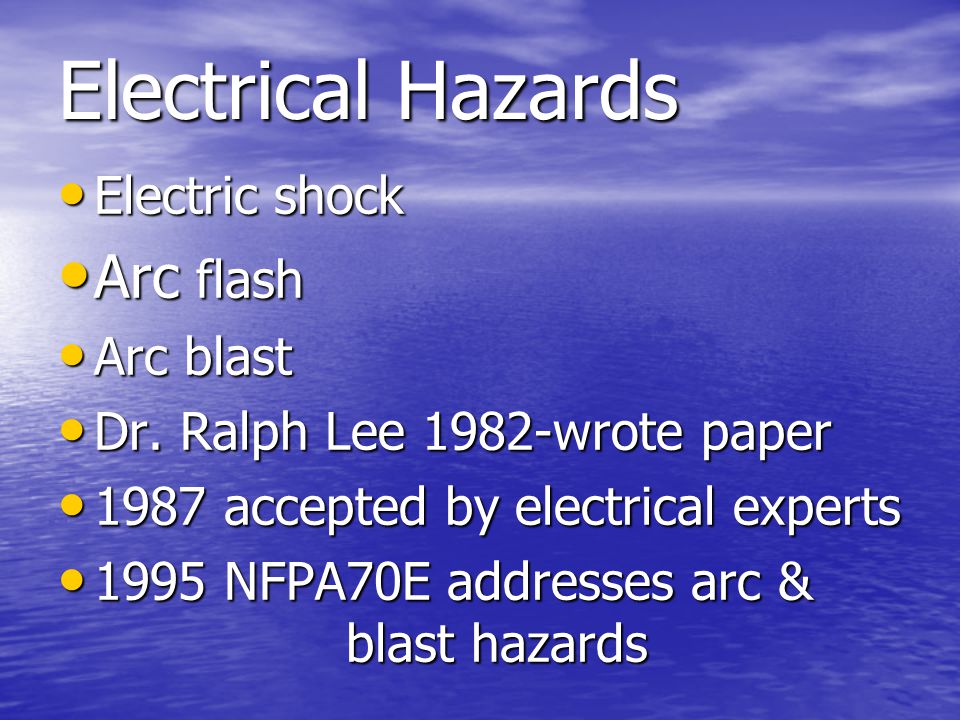

35. Electrical Hazards Electric shock Electric shock Arc flash Arc flash Arc blast Arc blast Dr. Ralph Lee 1982-wrote paper Dr. Ralph Lee 1982-wrote paper 1987 accepted by electrical experts 1987 accepted by electrical experts 1995 NFPA70E addresses arc & blast hazards 1995 NFPA70E addresses arc & blast hazards

36. Arc Flash and Arc Blast

37. Train your workers on electrical hazards!!!!!! Demand T HE P OSSIBLE
