1. Kyland-USA Product Introduction, Overview & Comparison KY-3000EM (Multi-Lingual) KY-2000EM Managed Industrial Ethernet Switch Din-Rail Copyright © KUSA, LLC. All rights reserved.

2. Introducing the KY-3000EM (Multi-Lingual)

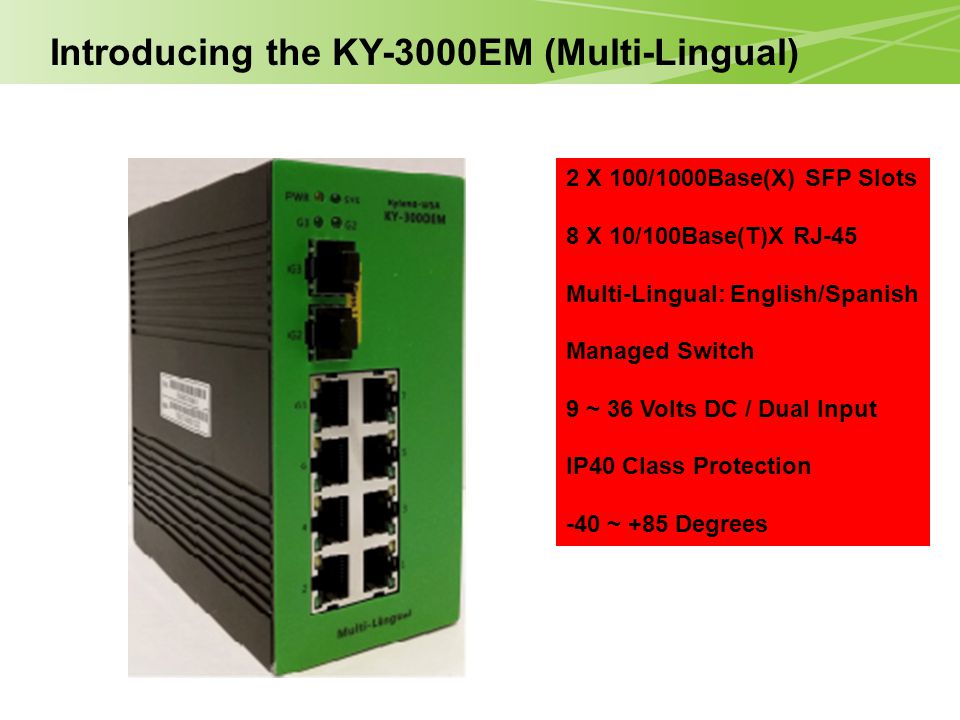

3. 2 X 100/1000Base(X) SFP Slots 8 X 10/100Base(T)X RJ-45 Multi-Lingual: English/Spanish Managed Switch 9 ~ 36 Volts DC / Dual Input IP40 Class Protection -40 ~ +85 Degrees

4. Gigabit Uplink SFP SLOTS Reset Button Power / System Indicator LightsONSYIndicator RJ-45 Serial Console Port Dual DC Inputs 8 X 10/100Base(T)X RJ-45 Surge Protected Ports Multi-Lingual: English / Spanish Link Light Activity Light Fiber Diagnostics (DDMI) SFP Link Lights IP40 Casing Introducing the KY-3000EM (Multi-Lingual)

5. Kyland-USA High Security Switch Series Focus Features KY-3000EM Manufactured for Kyland-USA Kansas City, MO Veteran Owned Small Business (VOSB) 5 Year Warranty NEMA TS-2 Approved Easy to Install Built-in Fiber Diagnostics (DDMI) DOS / DDOS Automatic Detection Multi-Lingual

6. KY-3000EM High Security, Ethernet Switch Focus Features Managed, 10 Port, Industrial, High Security, Ethernet Traffic Switch 1. Cyber Secure Video (CSV) Provides protection against Viruses, BOTS, & Hackers Integrated into our silicon chipsets Secure VLAN transmission of video Video Stream Protection and Integrity Check High Definition Camera Ready Onvif Camera Tested 2. Clean Code Technology with Precision Programming & Algorithms Guaranteed Source Code Origination Switch Runs Faster Greater Switch Security 3. Jumbo Frame Support (High Definition Cameras) Supports up to 9K Byte Data Frames instead of just 1550 Byes Moves More Data (picture elements_ with significantly less overhead framing Runs High Definition Cameras (ARECONT) at full frame rate Jitter Free Video Increases Network Efficiency and Throughput

7. KY-3000EM Focus Features, continued 1 Managed, 10 Port, Industrial, High Security, Traffic Ethernet Switch 4. Global Port Security Provides AUTOMATIC protection against Denial Of Service (DOS) attacks Provides AUTOMATIC protection against Distributed Denial Of Service (DDOS) attacks Built into the switch silicon Automatically detects & shuts down any port where an attack is detected Only shuts down the affected port – not the whole switch Sends email, text or alarm messaging notifying of the attack and port shutdown 5. Port Security Ports can lock into MAC addresses to prevent spoofing and illegal connections Ports can lock into IP addresses to prevent spoofing and illegal connections Ports can lock into Both MAC & IP addresses to prevent spoofing and illegal connections Increased Network & Switch Security (HYBRID MODE) 6. Configuration Wizards Assists with the auto configuration tasks for the switch globally Auto configuration of VLANS Faster - out of box to full operating status Easy Guide for switch configuration

8. KY-3000EM Focus Features, continued 2 Managed, 10 Port, Industrial, High Security, Traffic Ethernet Switch 5.Built-In Fiber Diagnostics 6.Remote Temperature Sensing 7.IEEE 1588v2 Precision Time Protocol (PTP) 8.TACACS+ 9.DHCP (Client / Server) 10. Low Power Consumption : <7 Watts

9. High Security Ethernet Switch Introducing the KY-3000EM (Multi-Lingual)

10. Kyland-USA New Product Announcement KY-2000M (Manufactured for Kyland-USA) Managed Industrial Ethernet Switch Copyright © KUSA, LLC. All rights reserved.

11. Introducing the KY-2000EM

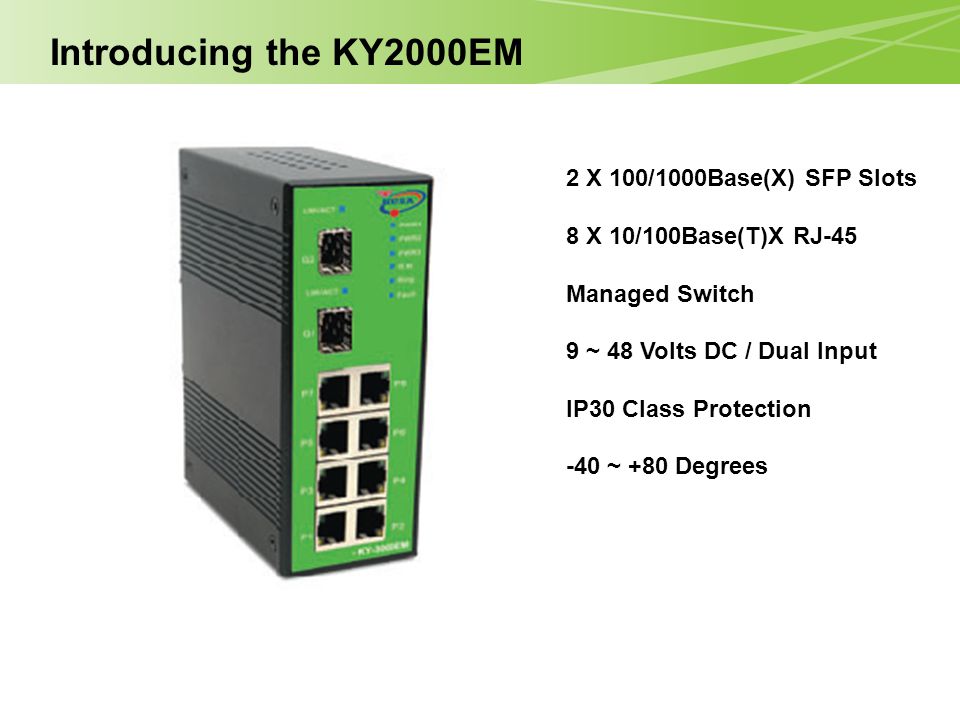

12. Introducing the KY2000EM 2 X 100/1000Base(X) SFP Slots 8 X 10/100Base(T)X RJ-45 Managed Switch 9 ~ 48 Volts DC / Dual Input IP30 Class Protection -40 ~ +80 Degrees

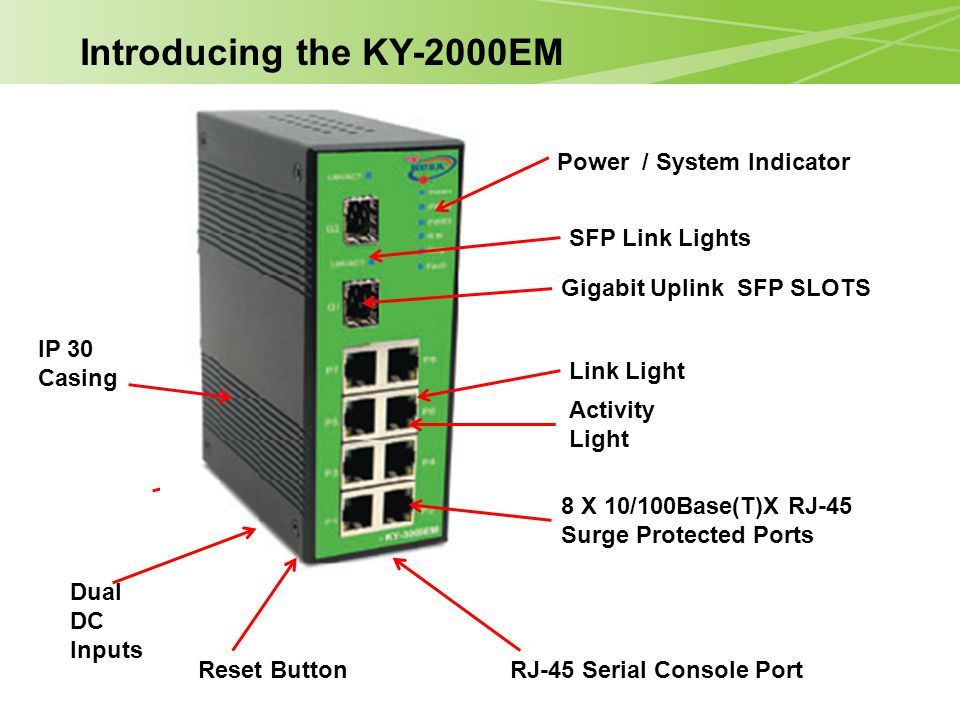

13. Gigabit Uplink SFP SLOTS Reset Button Power / System Indicator RJ-45 Serial Console Port Dual DC Inputs 8 X 10/100Base(T)X RJ-45 Surge Protected Ports Link Light Activity Light SFP Link Lights IP 30 Casing Introducing the KY-2000EM

14. Kyland-USA Traffic Switch Series Focus Features KY-2000EM Manufactured for Kyland-USA Kansas City, MO Veteran Owned Small Business (VOSB) 5 Year Warranty NEMA TS-2 Approved Easy to Install DOS / DDOS Detection

15. KY-2000EM Industrial Ethernet Switch Focus Features Managed, 10 Port, Industrial Ethernet Switch 1. Cyber Secure Video (CSV) Provides protection against Viruses, BOTS, & Hackers Integrated into our silicon chipsets Secure VLAN transmission of video Video Stream Protection and Integrity Check High Definition Camera Ready 2. Clean Code Technology with Precision Programming & Algorithms Guaranteed Source Code Origination Switch Runs Faster Greater Switch Security 3. Jumbo Frame Support (High Definition Cameras) Supports up to 9K Byte Data Frames instead of just 1550 Byes Moves More Data (picture elements_ with significantly less overhead framing Runs High Definition Cameras (ARECONT) at full frame rate Jitter Free Video Increases Network Efficiency and Throughput

16. KY-2000EM Focus Features, continued 1 Managed, 10 Port, Industrial, High Security, Traffic Ethernet Switch 4. Global Port Security Provides AUTOMATIC detection of Denial Of Service (DOS) attacks Provides AUTOMATIC detection against Distributed Denial Of Service (DDOS) attacks 5. Port Security Ports can lock into MAC addresses to prevent spoofing and illegal connections Ports can lock into IP addresses to prevent spoofing and illegal connections Ports can lock into Both MAC & IP addresses to prevent spoofing and illegal connections Increased Network & Switch Security (HYBRID MODE) 6. Configuration Wizards Assists with the auto configuration tasks for the switch globally Auto configuration of VLANS Faster - out of box to full operating status Easy Guide for switch configuration

17. KY-2000EM Focus Features, continued 2 Managed, 10 Port, Industrial, High Security, Traffic Ethernet Switch 5.DHCP (Client / Server) 6. Low Power Consumption : <8 Watts

18. Industrial Ethernet Switch Introducing the KY-2000EM

19. 19 KY-3000EM versus KY-2000EM Comparison KY-3000EM ● Multi-Lingual (English / Spanish ● ACL (Access Control Lists ● High Security Ethernet Bind Features ● DDMI (Digital Diagnostics for Fiber) ● IP 40 Class Protection ● 9 ~ 36 Volts DC / Optional AC Adapter ● TACACS + ● DHCP / Client – Server ● Clean Code Technology ●Cyber Secure Video ● Security Minded Professionals KY-2000EM ● IP 30 Class Protection ● 9 ~ 48 Volts DC: Optional AC Adapter ● DHCP / Client – Server ● Clean Code Technology ● Cyber Secure Video ● Targeted for General Market 2 X 10/100/1000 Base(X) SFP Slots 2 X 10/100/1000 Base(X) SFP Slots 1 X 10/100/1000 Base(T)X RJ-45 7 X 10/100 Base(T)X RJ-45 8 X 10/100 Base(T)X RJ-45 MODBUS

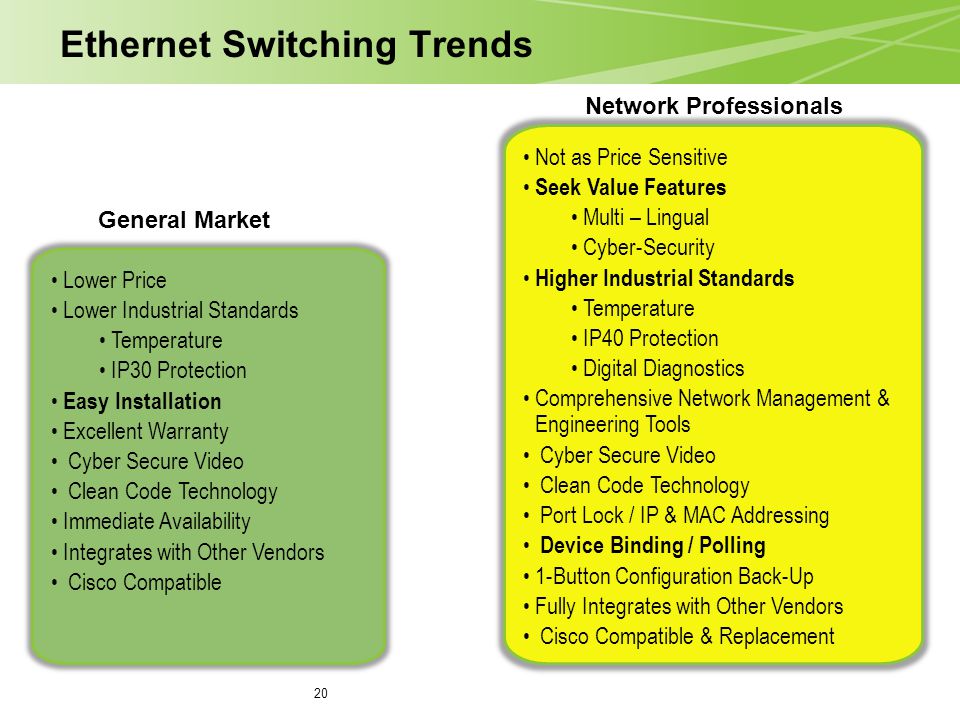

20. 20 Ethernet Switching Trends Not as Price Sensitive Seek Value Features Multi – Lingual Cyber-Security Higher Industrial Standards Temperature IP40 Protection Digital Diagnostics Comprehensive Network Management & Engineering Tools Cyber Secure Video Clean Code Technology Port Lock / IP & MAC Addressing Device Binding / Polling 1-Button Configuration Back-Up Fully Integrates with Other Vendors Cisco Compatible & Replacement Lower Price Lower Industrial Standards Temperature IP30 Protection Easy Installation Excellent Warranty Cyber Secure Video Clean Code Technology Immediate Availability Integrates with Other Vendors Cisco Compatible General Market Network Professionals

21. Questions or Feedback?

23. Kyland-USA Traffic Products 23 THANK YOU FOR ATTENDING! Kyland-USA Kansas City, Missouri

24. Thank You
