1 PROCESSING THE IMAGE SENSITOMETRY WEEK 12 - 2006
RTEC 244 PROCESSING THE IMAGE SENSITOMETRY WEEK

2 THE DARKROOM

3 Darkroom

4 Darkroom Equipment

5 SAFELIGHTS

6 Safe Light 15 Watts Red filter
Must be 3-6 feet from counter top or feed tray of processor Used to be amber or orange filter

7

8

9

10 DEVELOPER FIXER WASH DRY WATER - SOLVENT

11 AUTOMATIC PROCESSING CHEMICALS

12 What is in the Darkroom?

13 Darkroom

14 Darkrooms – Still Necessary?
Darkrooms are necessary for manually fed processors And daylight processors. -Loading automatic (daylight) film processor magazines. Necessary for conducting certain quality control tests (daily sensitometric strip).To check consistency of processing

15 Darkrooms 4 Basic Functions
Number 1 Function Storage Unexposed film

16 Film Bin

17 Darkroom Contents Loading Bench Film Bin Film I.D. Printer Safelights
Pass Box Light-tight Room Ample ventilation Warning Light outside room Lockable Door Wall Shielding if adjacent to x-ray room Walls painted with light color to reflect safelight

18

19

20 Purpose of Film Processing
DARKROOM FUNCTION # 2 Purpose of Film Processing Change silver halide crystals from film emulsion (after exposure to x-ray or light photons) to black metallic silver. Latent image (invisible until processed) is developed into a Manifest image. Improper or careless processing can cause poor diagnostic quality.

21 Manual Feed Processor

22 Processing Film

23 TABLE TOP PROCESSOR

24

25 Function # 4: Film Identification
Pt name Exam date & time Pt x-ray number Pt Birthday/DOB Rt or Lt marker Optional Exam type Dr. Name

26 FILM ID PRINTER In Daylight in Darkroom Cassette Flashed Film Flashed

27

28 Daylight Processor

29

30 WILL THIS WORK ????

31 Function # 3: Handling of Film

32 UNLOAD EXPOSED FILM

33 Basic Recommendations Now done by Processor Co.
Follow mfg. recommendations: -strength of chemicals -temperature of chemicals -time requirements in each chemical Solutions should be replenished as necessary & changed regularly Solutions must be monitored (Daily QC strip).

34 CHEMICAL FOG strength of chemicals in DEVELOPER
DILUTE – Under Processed (light films) OXIDIZED - over processed (films dark) temperature of chemicals Too Hot - films dark time requirements in each chemical Too long in tanks – films dark

35 Chemcial Fog diluted or contaminated chemisty

36 Strength of Chemisty can affect outcome radiograph

37 AUTOMATIC PROCESSING WASHER DEVELOPER DRYER FIXER REPLENISHMENT SYSTEM
TRANSPORTATION SYSTEM DEVELOPER FIXER WASHER DRYER REPLENISHMENT SYSTEM

38 Automatic Processor

39 Processor Chemistry Overview
Developer – converts latent image into manifest image Fixer – clear the film of unexposed, undeveloped silver bromide crystals, promotes archival quality Wash – rid the film of residual chemicals Dry - sets the film for handling

40 Developer Solution (6 Ingredients)
Reducing Agent: reduce exposed silver halide to black metallic silver -Hydroquinone (Blacks) SLOW -Phenidone (Grays) FAST (Metol or Elon) 2. Activator: softens gelatin, maintains alkaline pH (increase pH) -Sodium Carbonate

41 Developer Solution 3. Hardener: prevents damage to the film from over swelling of gelatin in automatic processors. -Gluteraldehyde 4. Preservative: Antioxidant that prevents oxidation of developer -Sodium Sulfite

42 Developer Solution 5. Restrainer: prevents chemical fog in new developer – antifogging agent -Potassium Bromide (In starter solution) 6. Solvent: dissolves & ionizes the developer chemicals -Water

43 Fixer Solution (5 Ingredients)
Clearing Agent: dissolves /removes undeveloped silver halide crystals -Ammonium Thiosulfate (Fixer retention – film turns brown if not washed off) Activator: stops reduction, acidic pH ACETIC ACID

44 FIXER SOLUTION Hardener: harden emulsion POTASSIUM ALUM
(if films come out “sticky” this is depleted – it is not because of the dry not drying the films) 4. Preservative - maintains pH levels SODIUM SULFITE 5. Solvent: dissolves chemicals

45 Wash Rid the film of residual chemicals
Residual chemicals on the film will discolor radiograph over time. Cold water processors are less efficient in removing chemicals – Warm water processors much better. Agitation during wash process is essential

46 DRY removes water, seals emulsion Hot Air

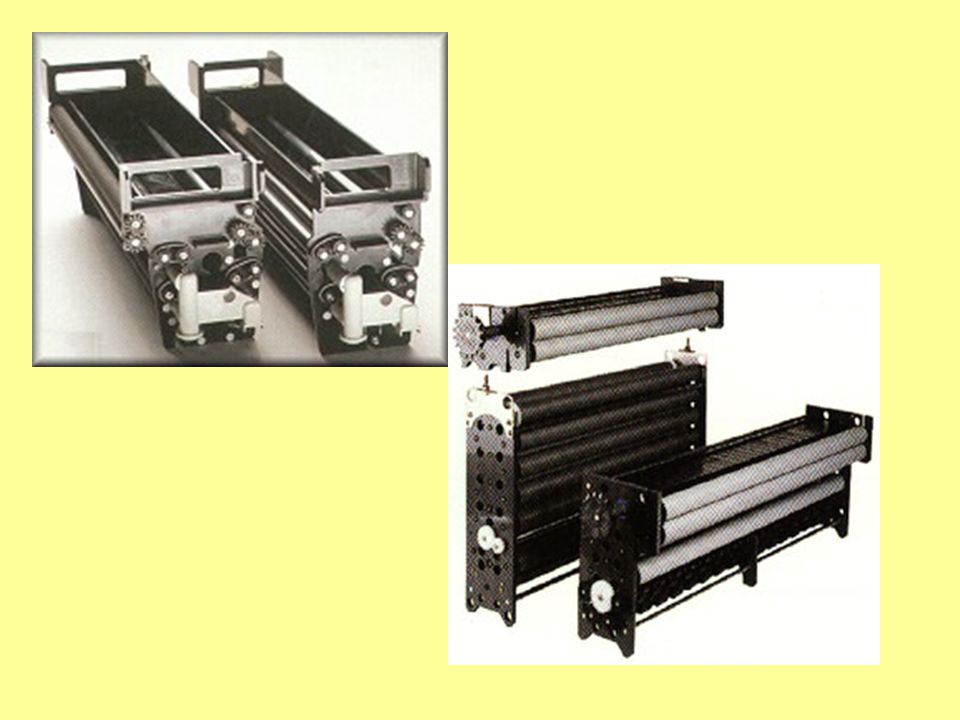

47 Transport System Components
Feed Tray Rollers (Different Assemblies): 1. Entrance 2. Deep Racks 3. Turnaround 4. Crossover 5. Squeegee 6. Dryer Receiving Bin

48 Transport System (Rollers)
Entrance Crossover Feed Tray Squeegee Deep Racks Dryer Turnaround

49 Replenishment System Main function: Keep solution tanks full and assure proper solution concentration. As film is introduced into processor, sensor initiates solution replenishment Right & wrong way to feed in film -Feed in along short edge Crosswise not lenghtwise (except 8x10) to not use up extra replensher

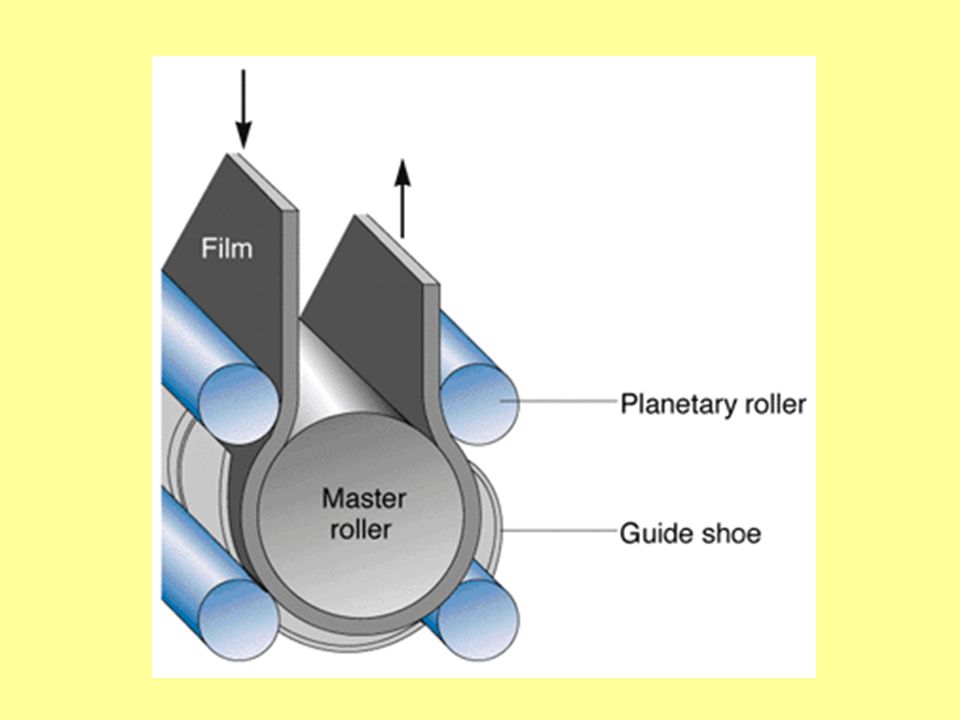

50 Transport System in Automatic Processors
Conveys the film through different solutions (sections) by a series of rollers driven by gears, chains & sprockets. Done at a prescribed speed – determines length of time the film is in each solution

51

52 Temperature Regulation
Main function: To control the temperature of each section of the processor. Developer – most important solution to regulate Usually between 92 degrees and 95 degrees Thermostatically controlled Water circulation helps to control temp – if water is not turned on – processor temp will rise

53 Recirculation System Provides agitation necessary for uniform solution concentration

54 Wash & Dryer Systems Wash: Provide thorough removal of chemical solutions from the film. -Archival film quality Dryer: Removes water from film by blowing warm, dry air -Between 120 degrees & 130 degrees F.

55 Darkroom Summary

56 ARTIFACTS CAUSED BY PATIENT IMPROPER HANDLING / STORAGE
PROCESSING PROBLEMS

57 ARTIFACTS – An unwanted density on a film
can appear as a dark or light mark on the film (image) Caused by: Improper: Handling, Processing or Storage

58 Artifact are undesirable an unwanted density on film
is the term for markings or images that appear on the finished film that did not result from the attenuation of the x-ray beam passing through the patient. They may appear because of poor conditions related to the film, mishandling, or processing problems. Artifacts can cause an image to be misinterpreted, can make interpretation difficult or impossible (as in the images shown in the illustration), and may require a repeat procedure resulting in unnecessary additional patient exposure.

59 Different kinds of artifacts can occur, but virtually all can be prevented. Fog artifacts can be caused by high temperatures, bright light, high humidity, or ionizing radiation. Scratches or pressure on the film can cause white or dark areas. Poor contact between the screen and film can cause localized blurring or darker areas. Dirt on the screen or film can cause white spots. Damaged cassettes or screens can cause a range of artifacts, as can improperly functioning automatic processors. Shown in the illustration are films marred by a variety of artifacts. Only by following accepted and safe procedures for handling and storing film, and for processing exposed film, can artifacts be prevented.

60 patient artifacts

61 ARTIFACTS AN UNWANTED DENSITY ON THE FILM

62 FIXER RETENTION (FIXER NOT WASHED OFF)

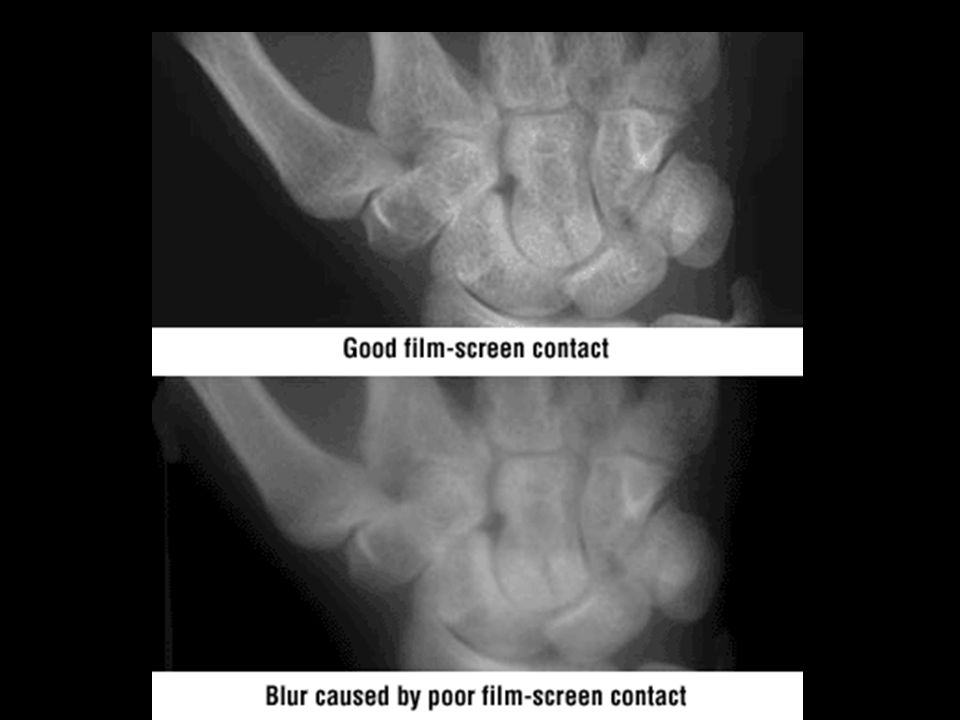

63 POOR SCREEN CONTACT

64

65

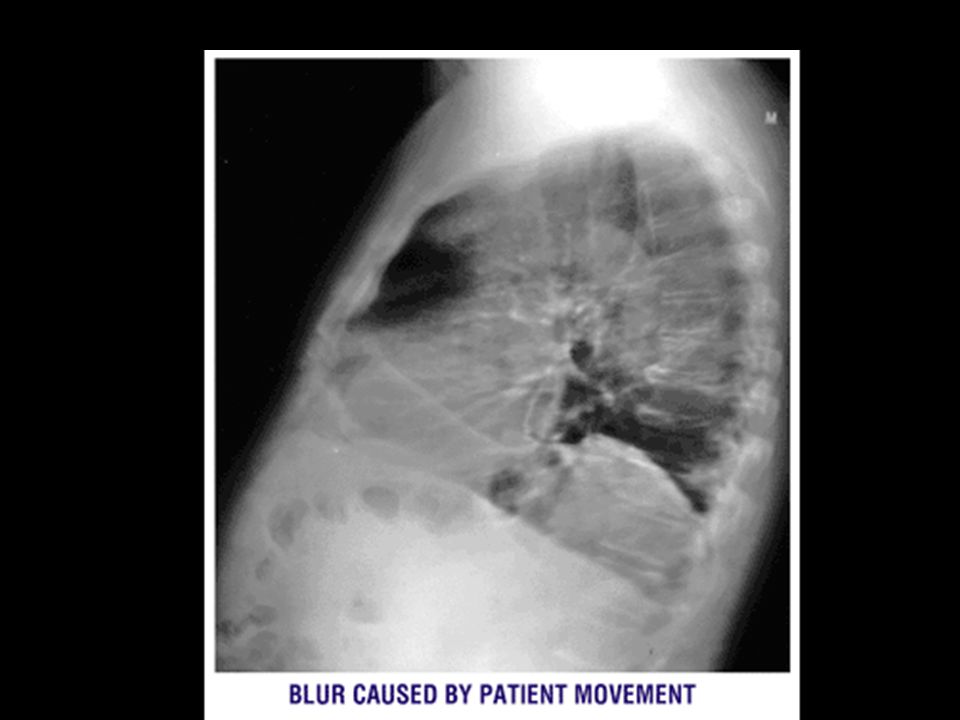

66 Blurring = Motion vs Poor screen contact

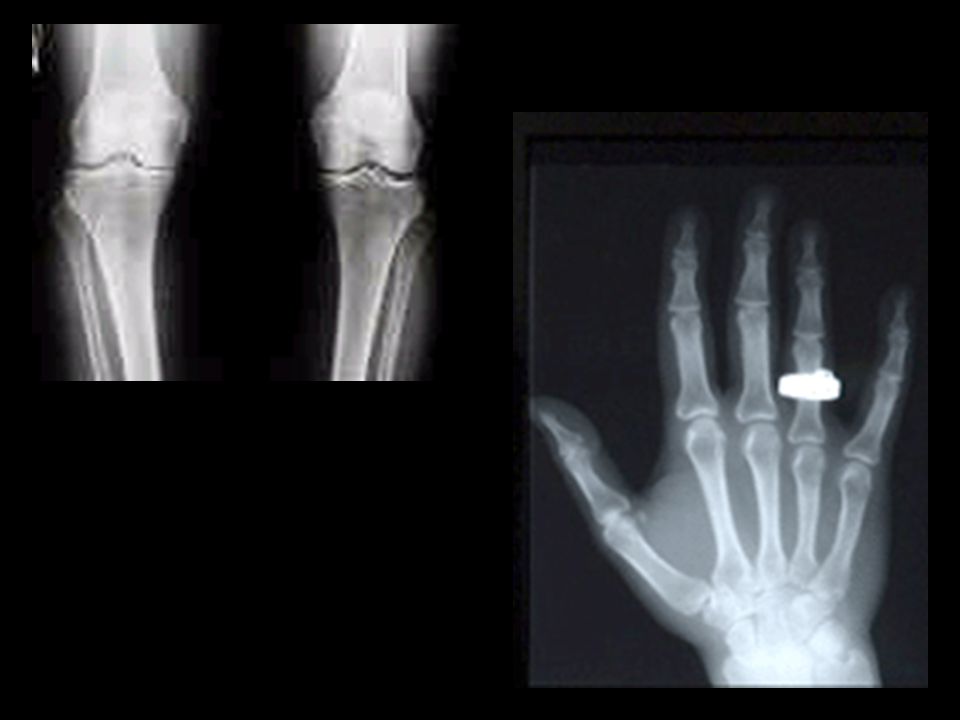

67 PATIENT ARTIFACT - JEWERLY

68 Crimping /cresent mark

69 Developer splashed on unprocessed film

70 Double exposure

71 Fogged film

72 Water spot

73 Hypo (fixer) retention

74 Kink / cresent mark WHITE MARK – FILM BENT BEFORE EXPOSURE
(SILVER SEPARATES) DARK MARK – FILM BENT AFTER EXPOSURE SILVER MOVES TOGETHER

75 ROLLER MARKS

76 ROLLER MARKS VS SCRATCHES
ROLLER MARKS – USUALLY DARK PERPEDICULAR TO FILM TRAVEL – THE WAY THE FILM IS PLACED ON THE FEED TRAY SCRATCHES – LIGHT PARALLEL TO FILM TRAVEL

77 SCRATCHES

78 DIRT IN SCREEN – WHITE MARK

79 STATIC = LOW HUMIDITY

80 Careful Handling a must

81 REFLECTED

82

83

84 scratch

85 Artifact

86

87 PATHOLOGY NOT ARTIFACT

88

89

90

91 Silver recovery

92 Silver Recovery About ½ of the film’s silver remains in the emulsion after exposure & processing. Other ½ (unexposed silver) is removed from the film during fixing process. Silver is toxic to public water supply – must have proper disposal.

93 SILVER RECOVERY – Photography consumes approximately 30% of the worlds sliver - half of this is used in diagnostic imaging films 3 reasons for Diagnostic Imaging Department to use silver recovery: 1. Dwindling worldwide supply of silver 2. $$ cash for silver ( school’s processing services donated for silver recovery) (About 10% of the films cost is recovered through silver recover) 3. State and Federal pollution regulations One of the functions of the fixer solution is to remove the unexposed and undeveloped silver halide crystals from the film. These crystals are eliminated with the used fixer by the replenishment system. The dissolved silver averages about 50% of the silver that was originally on the film.

94

95 Three methods of recovery:
1. Metallic Replacement - Steel wool inside a canister collects the silver (most useful type of recovery for low volume processors) 2. Electrolytic - cells pass an electric current through a cylinder, causing silver to be plated onto the cathode cylinder of the unit. Silver is removed by scraping it off the cathode. (For medium to high volume) 3. Chemical Precipitation - (oldest form) Chemicals cause a separation of the silver form the fixer. The silver sinks to the bottom and forms a sludge where it can be removed. (This is the least desirable way - hazardous chemicals used with toxic fumes) ( Only used by very large institutions) SILVER RECOVERY FROM FILM:

96 Green film - contains most of the silver (should be separated from other film) this film is worth more than developed film Scrap Film & Archival Film - Silver can be removed by burning the film and removing silver from the ashes, or using chemical treatments. Usually paid on a price per pound of film

97 There are three types of silver recovery systems: metallic replacement units, electrolytic units, and chemical precipitation units. In metallic replacement units, the used fixer circulates through a tank in which iron molecules in steel screens break down and are replaced by metallic silver precipitates. This method is less efficient than other methods and is less commonly used. In electrolytic units, such as the one shown in the illustration, an electric current is passed through the fixer; ionized silver molecules in the fixer are attracted to, and form a plating on, the negatively-charged rotating cathode. Other units use a process of chemical precipitation in which other chemicals react with the silver in the fixer solution. Silver molecules are freed and precipitate out of the solution, falling to the bottom of the tank where they can be recovered from the silver sludge that forms.

98 silver recovery. A final consideration in film processing is silver recovery. This term is the process by which silver in the processing chemicals is reclaimed and recycled by a unit, such as the one shown in the illustration. This recycling is important for two reasons. Silver has economic value in its recycled form and helps recover some of the cost of the unexposed film, which is expensive, in part, because of the silver in it. Secondly, federal regulations require that heavy metals like silver be reclaimed from waste solutions before they are disposed of, to prevent pollution of the environment. Roughly half the silver in the film ends up dissolved in the fixer in the automatic processor. Different kinds of silver recovery units are used to process the used fixer to recover the silver.

99 First, the film is fed into the unit through a feed tray in a conventional unit or directly from the cassette in daylight systems. The film first enters the developer tank. The developer solution gives up electrons that neutralize the positively charged silver ions in the film in a process called reduction. The chemical in the developer solution responsible for this is called the reducing agent. Metallic silver builds up in visible black specks at the sensitivity specks. Other chemicals in the developer help control this process precisely and prevent overexposure. A hardener also prevents the film emulsion from becoming too soft or swollen during the processing. To obtain the best visible image, the development process depends on precise control of the concentration and temperature of the developer, as well as the length of time the film is in the developer. All these are controlled automatically by the film processor.

100 Why does x-ray film come out black?
There are five possible reasons: The film is overexposured (exposures are too long or the setting is too high). The processing times are too long. The temperature is too warm. The film has been exposed to another light source. The safelight lens (filter) is cracked or damaged.

101 QUESTIONS ??

102 X-ray film scanner Turns an analog image into an electronic image
See Ch. 43

103 Digital – Reverse Image

104 CASSETTES / FILM AND INTENSIFYING SCREENS
RT 244 REVIEW CASSETTES / FILM AND INTENSIFYING SCREENS

105 FILM SIZES 14 X 17 11 X 14 10 X 12 8 X 10

106 Film Sizes Standard “inches”: 8” x 10” 10” x 12” 11” x 14” 14” x 17”
Metric: 18cm x 24cm 24cm x 30cm 30cm x 35cm 35cm x 43cm

107 X-Ray Film Film is a media that makes a permanent record of the image.
Image recorded on film is caused by exposure to energy: -X-ray energy converted to light energy -Image before processing = Latent image -Made visible by chemical processing

108 X-ray Film cont’d Radiographic film is/was most common image receptor
Two parts: 1. Base 2. Emulsion

109 Film Construction Made of a polyester plastic
Must be clear, strong, consistent thickness Tinted pale blue or blue-gray (reduces eye strain) Photographic emulsion can be on one side or both sides of base (single emulsion / double emulsion) Protective overcoat layered on top of emulsion

110 FILM COMPOSTION SINGLE OR DOUBLE EMULSION EMULSION : GELATIN
COATED ON A BASE EMULSION : GELATIN WITH SILVER HALIDE CRYSTALS BASE: SUPPORT POLYESTER

111

112 Film Emulsion Made of mixture of gelatin & silver halide crystals (fluorine, chlorine, bromine, & iodine) Most x-ray film emulsions made of : silver bromide (90%) silver iodide (10%) Photographically active layer – activated by light & radiation to create image

113

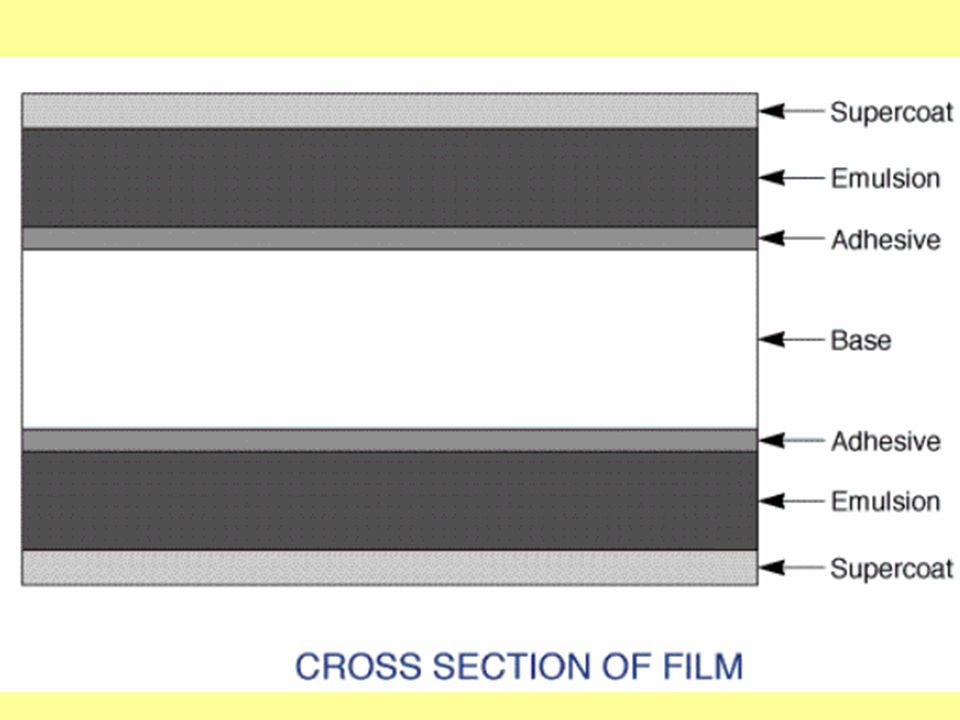

114 X-Ray Film Cross Section

115

116

117 Film Characteristics Size of silver halide crystals & emulsion thickness determine speed of film and degree of resolution Larger crystals / thicker crystal layer =Faster response, less detail, less exposure (chest x-ray) Finer crystals / thinner crystal layer =Slower response, greater detail, more exposure (extremity)

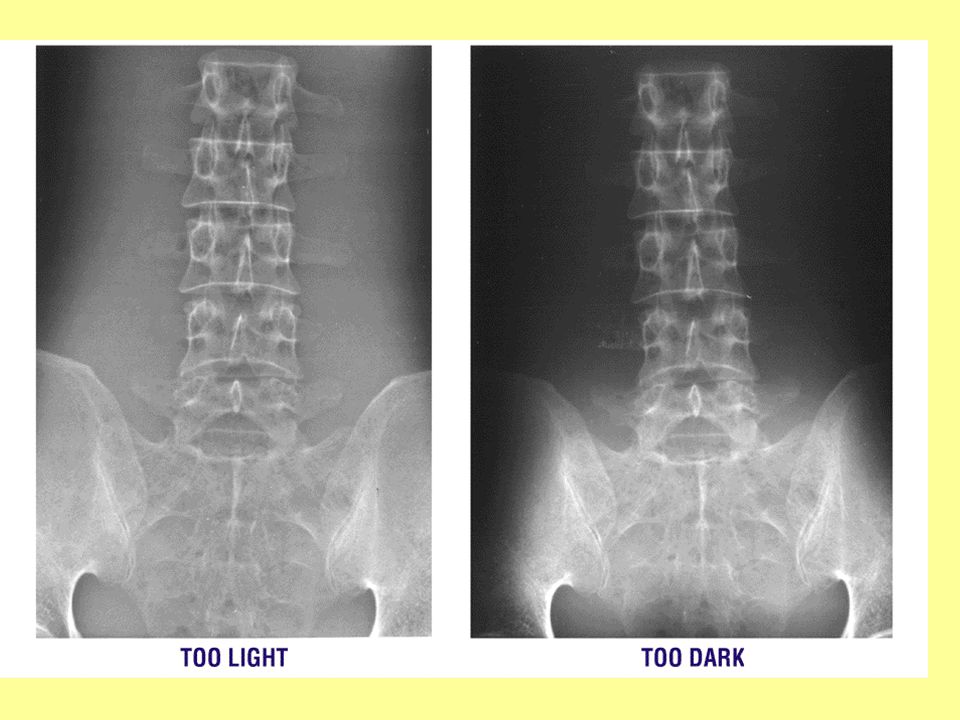

118

119 FIRST “FILM” GLASS PLATES WW 1 CELLULOSE ACETATE HIGHLY FLAMMABLE EASILY TORN RESPONSIBLE FOR MANY FIRES IN HOSPITAL BASEMENTS

120 X-ray Film Sensitivity
Light X-rays Gamma Rays Gases Fumes Heat Moisture Pressure Static Electricity Age So what happens??

121 FILM FOG!!!! Unintended uniform optical density on a radiograph because of x-rays, light, or chemical contamination that reduces contrast.

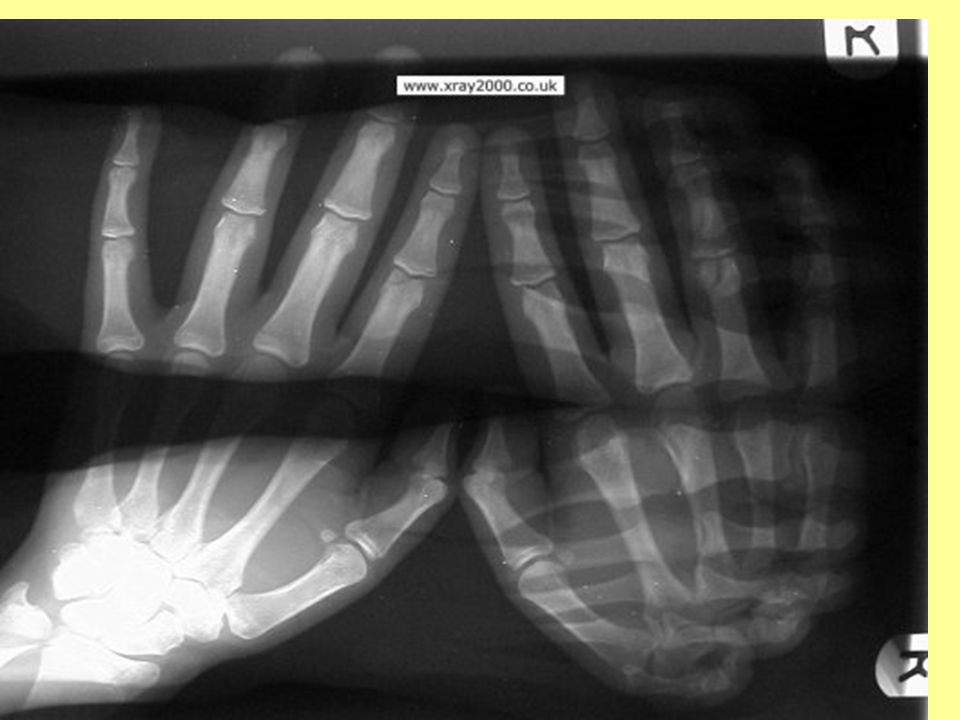

122

123 Film Storage Clean, dry location 40 degrees – 60 degrees Fahrenheit
Away from chemical fumes Safe from radiation exposure Standing on edge Expiration date clearly visible

124 Film latitude

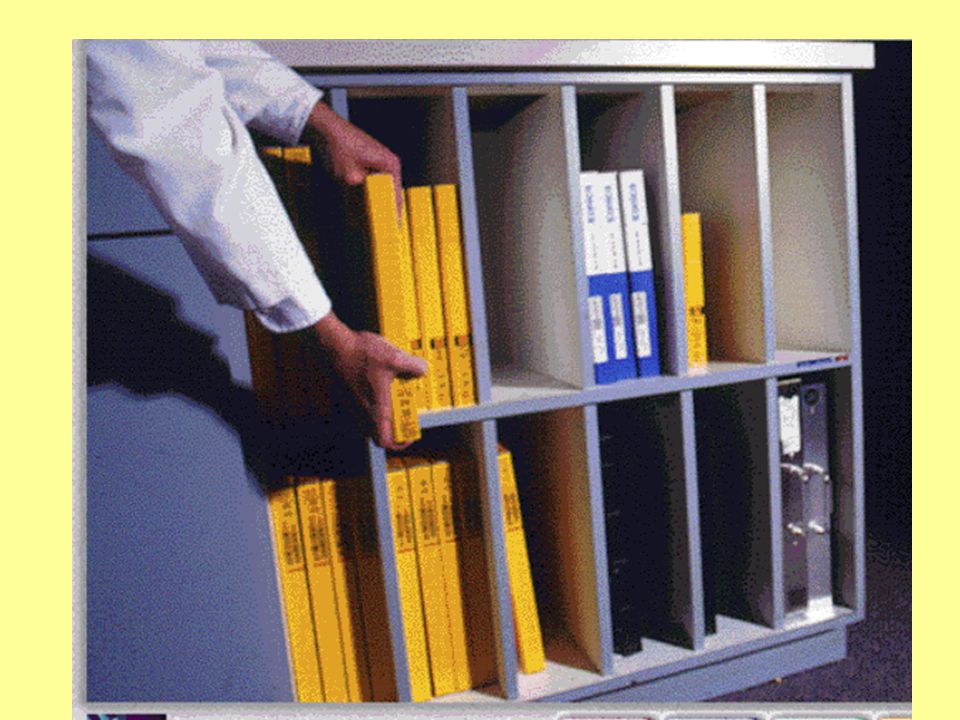

125 FILM BIN - STORAGE

126

127 Spectral Sensitivity Film is designed to be sensitive to the color of light emitted by the intensifying screens. Blue LIGHT– Conventional Calcium Tungstate screen Green, Yellow-Green LIGHT – Rare Earth screen

128 Cassettes Cassettes serve 3 important functions:
Protect film from exposure to light Protect film from bending and scratching during use. Contain intensifying screens, keeps film in close contact to screen during exposure.

129 CASSETTE or FILM HOLDER
The CASSETTE is used to hold the film during examinations. It consist of front and back intensifying screens, and has a lead (Pb) backing. The cassette is light tight

130 Cassette Features - Front
Exposure side of cassette is the “front”. Has the ID blocker (patient identification) Made of radiolucent material – easily penetrated by x-rays, lightweight metal alloy or plastic material made of resin. Intensifying screen mounted to inside of front.

131

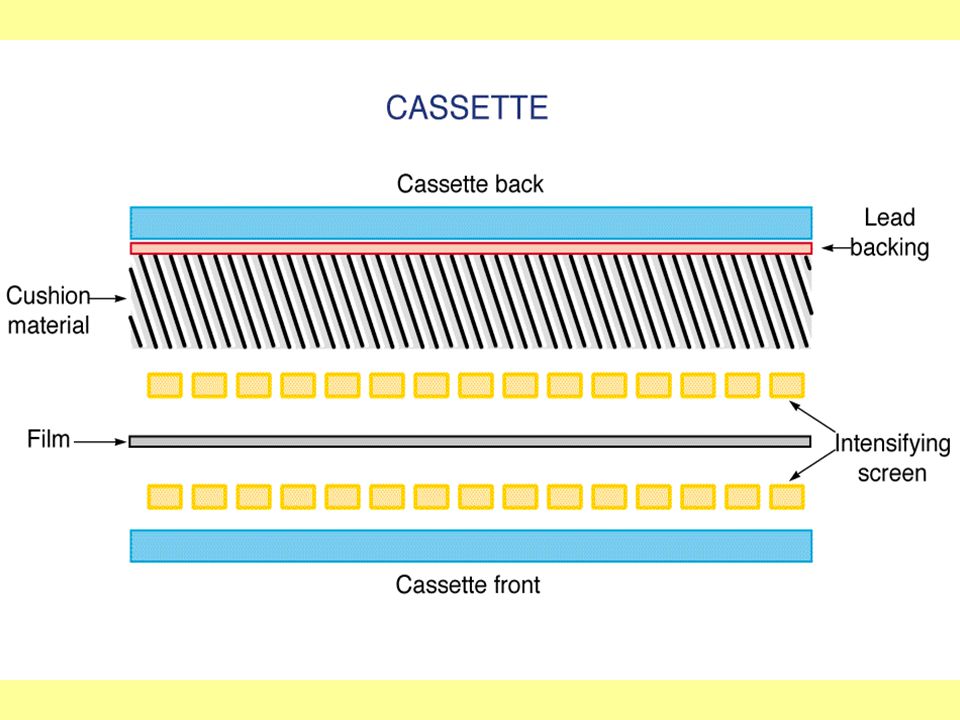

132 Cassette Features - Back
Back made of metal or plastic Inside back is a layer of lead foil – prevents backscatter that could fog the film Inside foil layer is a layer of padding – maintains good film/screen contact Back intensifying screen mounted on padding

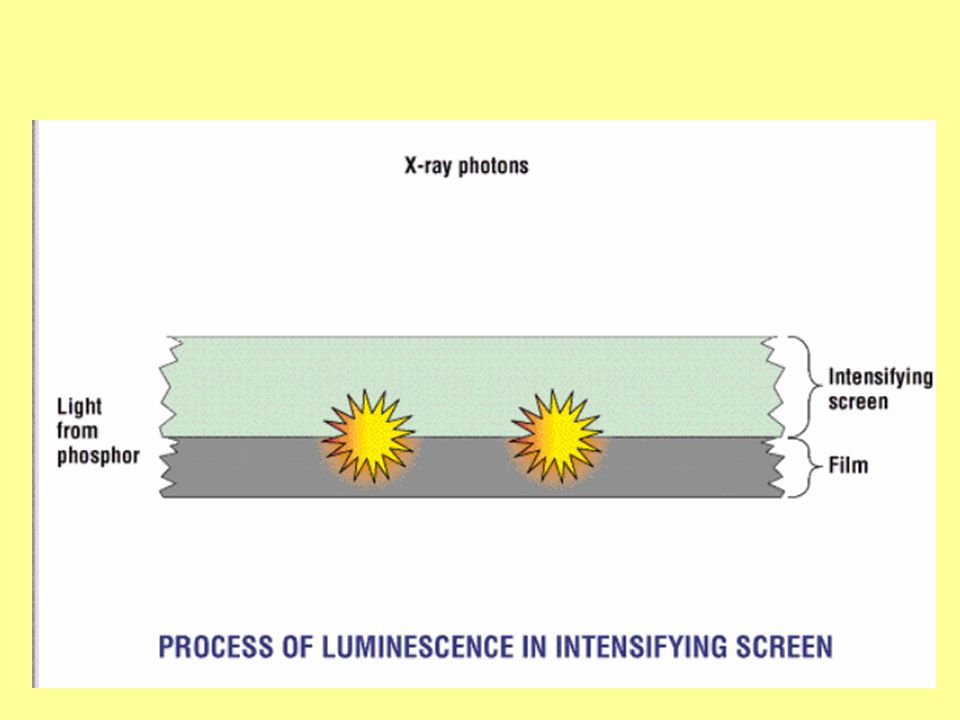

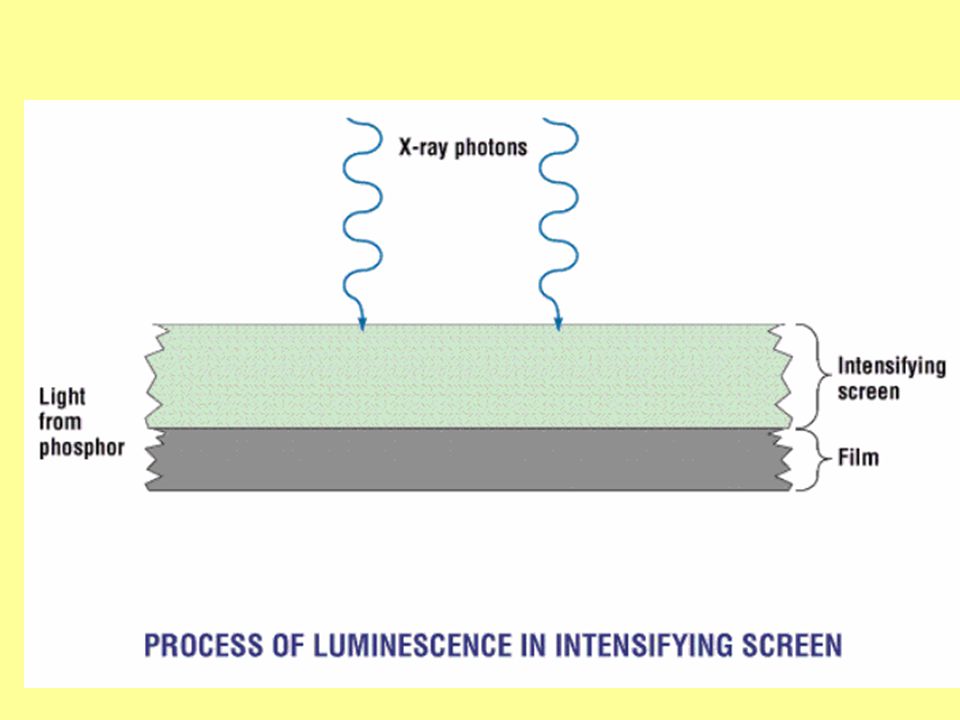

133 Intensifying Screens Flat surface coated with fluorescent crystals called phosphors that glow, giving off light when exposed to x-rays.

134 Intensifying Screens Reduce patient exposure Increase x-ray tube life
Direct x-ray exposure to film requires 25 to 400 times more radiation than film/screen. Two advantages to using intensifying screens: Reduce patient exposure Increase x-ray tube life

135 Screen Construction Polyester plastic base – support layer
Phosphor layer – active layer Reflective layer – increases screen efficiency by redirecting light headed in other directions Protective coating

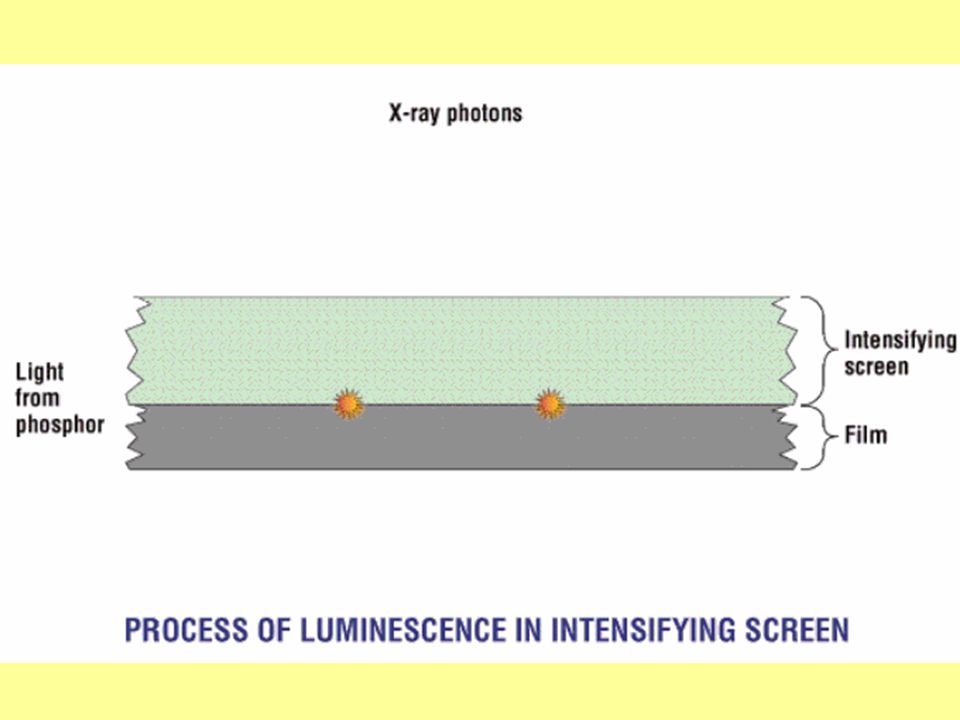

136 Phosphor Layer Active layer – x-ray photons converted to light photons
*Photoelectric Effect Type must correlate with film: -Calcium Tungstate = blue to purple light -Rare Earth = green & ultraviolet light NAMES 3 ?

137 Rare Earth Screens Gadolinium Lanthanum Yttrium
Found in low abundance in nature

138 Intensifying Screen & Film Cross Section

139 Screen Speed Efficiency of a screen in converting x-rays to light is Screen Speed.

140 Screen Speed Greater efficiency = less exposure = faster
-Standard screen speed class of 100 -200 screen speed is twice as fast Speeds for routine work: 200 – 800 Speeds for high detail:

141 SCREEN SPEEDS FASTER SPEED – REDUCES PATIENT EXPOSURE
FASTER SPEED - REDUCES IMAGE DETAIL (LIGHT BLURING AROUND IMAGE)

142

143

144

145

146

147

148

149 SAFELIGHTS

150 FILM ID PRINTER

151

152

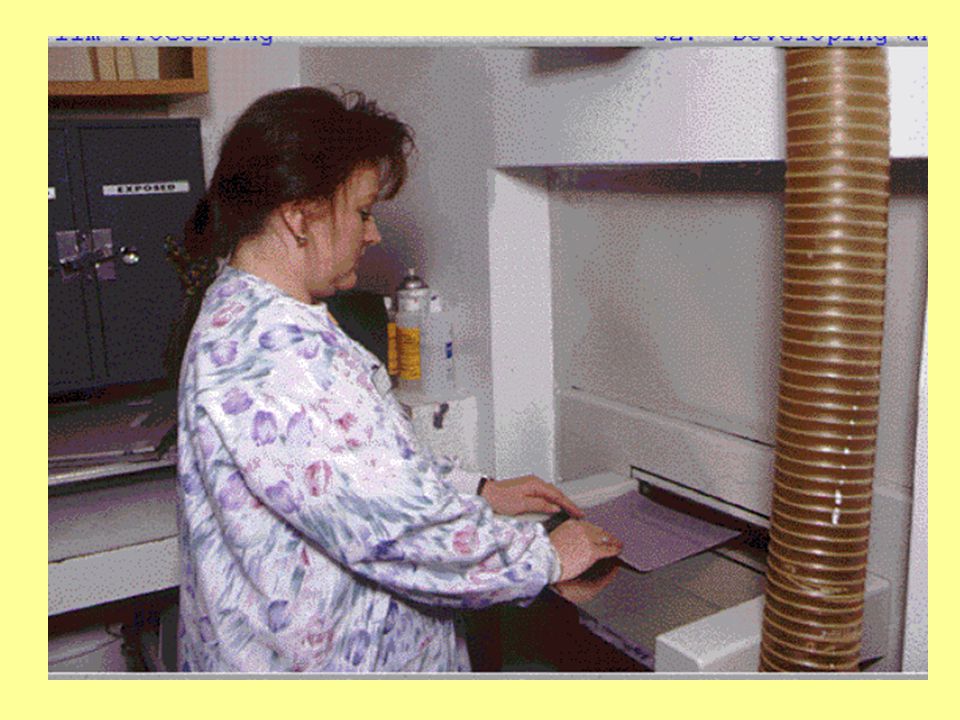

153 UNLOAD EXPOSED FILM

154

155 LOAD CASSETTE

156

157 Next Week – Processing the Image

158 QUESTIONS ?

159 Chapter 21 Film Sensitometry

160 Objectives Calculate speed points, speed exposure points and relative speeds from D log E curves Calculate gamma, gradient point, average gradient and latitude from D log E curves

161 Objectives Analyze D log E curves to determine speed, contrast and latitude relationships Discuss the relationships between speed, contrast and latitude

162 Sensitometry Measures the response of film to exposure and processing

163 Sensitometric Equipment
Penetrometer or sensitometer Used to create a uniform set of densities on a film Densitometer Provides measurement of light transmitted through film Measures optical density

164 Penetrometer Stepwedge Used to monitor x-ray equipment
Also used to monitor film/screen combinations Not recommended for processor monitoring

165 Sensitometer Uses a controlled light source
Produces same amount of light each time it is triggered

166 Sensitometer Available in 11- or 21- step versions
21 step version increases density by a factor of the square root of 2 (1.41) for each step

167 Densitometer Uniform light source and an optical sensor
Calibration control allows for easy calibration

168 Optical Density Numbers
Formula: OD=log10 Io/It If 100% of the light is transmitted through the film, it has an OD of 0 If none of the light transmits through film the OD is 4

169 Opacity Ability of a film to stop light transmission Formula: Io/It

170 The D Log E Curve Describes relationship between density and exposure
This is done through sensitometry

171 The D Log E Curve AKA Sensitometric curve Characteristic curve Hurter and Driffield (H & D) curve Sensitometry’s roots lie in analysis of photographic film

172 The Sensitometric Curve
Plots OD vs. LRE Log relative exposure Allows large range of exposure displayed in a few numbers

173 The Sensitometric Curve
Log relative exposure Log102 represents doubling exposure Log102 = 0.3

174 Densitometer Reads on a scale of 0-4
0 meaning that all light is transmitted 4 meaning that no light transmits through the film Typical diagnostic densities range between 0.25 to 2.5

175 Parts of the Curve Base + fog Toe-Dmin Straight line portion
Where the density becomes light Straight line portion Used to demonstrate the relationship to the film’s exposure vs. the density transmitted

176 Parts of the Curve Shoulder-Dmax Where the density becomes dark

177 Film Properties Base density Fog Density
Inherent in a piece of film due to dyes etc. Value is usually 0.1 OD Fog Density Inadvertent exposure during storage handling etc. Fog density should not exceed 0.2 OD

178 Base + Fog Cannot separate base and fog density measurements
Typical range of OD for Base + fog 0.18 to 0.23 Should not exceed 0.25

179 Toe Dmin Controlled by phenidone
Fast acting reducing agent in developer Produces gray tones on film

180 Straight Line Portion Area of curve between toe and shoulder
Contains range of useful densities Typically 0.25 – 2.5 or 3.0

181 Shoulder Dmax Controlled by hydroquinone
Slow acting reducing agent in developer Produces blacks in image

182 Reversal or Solarization
Once a film has been exposed to Dmax, it will begin to lose density after further exposure Duplication film has been solarized

183 Film Characteristics Resolution Speed Contrast Latitude

184 Resolution Ability to accurately image an object AKA Detail Sharpness
Definition Resolving power

185 Resolution Inversely related to size of silver halide crystals

186 Speed Ability of an IR to respond to low exposure measures its sensitivity or speed Speed index Specified by base + fog

187 Speed Faster film will have a curve closer to y-axis of graph

188 Speed Film sensitivity is affected by:
Size of silver halide crystals Number of sensitivity specks Thickness of the emulsion All of the above are directly related to film speed

189 Speed Affected by processing Immersion time Solution temperature
Chemical activity

190 Speed

191 Contrast Contrast is controlled by hydroquinone
Hydroquinone establishes the shoulder Thus, it affects slope of the straight line portion of curve

192 Film Contrast and Curve
Film contrast is defined by straight line portion of the characteristic curve Gamma slope of straight line

193 Film Contrast and Curve
As the line becomes more vertical the contrast gets higher

194 Average Gradient Used to identify contrast of a film by manufacturers
Slope of line that is drawn between 0.25 above base and fog density

195 Average Gradient Slope of line that is drawn between
And 2.0 above base and fog density Higher the average gradient, the higher the contrast

196 Latitude The lower the slope (the more horizontal the line) the wider the latitude

197 Latitude Low scale of contrast in film More latitude
Margin of error higher


Download ppt "PROCESSING THE IMAGE SENSITOMETRY WEEK"

Similar presentations


Ads by Google
