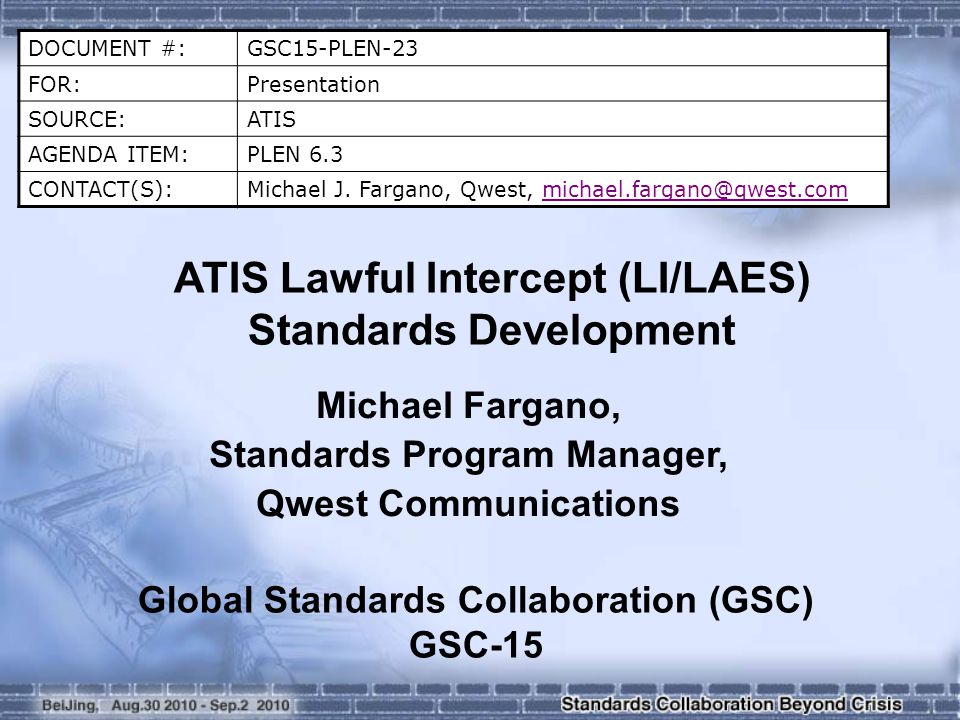

1. DOCUMENT #:GSC15-PLEN-23 FOR:Presentation SOURCE:ATIS AGENDA ITEM:PLEN 6.3 CONTACT(S):Michael J. Fargano, Qwest, michael.fargano@qwest.commichael.fargano@qwest.com ATIS Lawful Intercept (LI/LAES) Standards Development Michael Fargano, Standards Program Manager, Qwest Communications Global Standards Collaboration (GSC) GSC-15

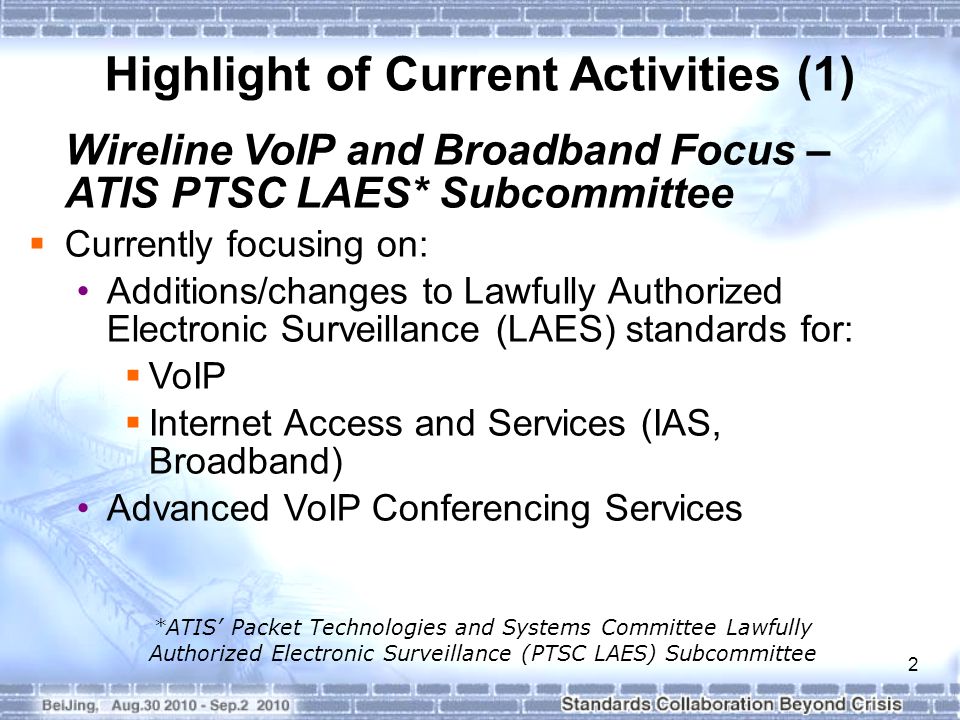

2. 2 *ATIS’ Packet Technologies and Systems Committee Lawfully Authorized Electronic Surveillance (PTSC LAES) Subcommittee Highlight of Current Activities (1) Wireline VoIP and Broadband Focus – ATIS PTSC LAES* Subcommittee  Currently focusing on: Additions/changes to Lawfully Authorized Electronic Surveillance (LAES) standards for:  VoIP  Internet Access and Services (IAS, Broadband) Advanced VoIP Conferencing Services

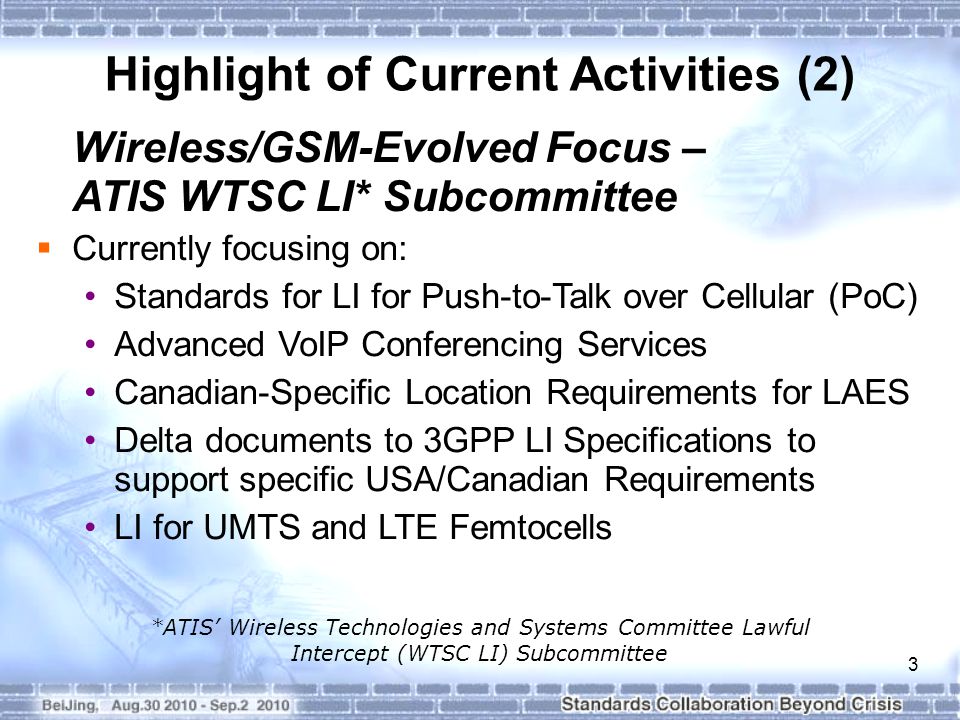

3. 3 *ATIS’ Wireless Technologies and Systems Committee Lawful Intercept (WTSC LI) Subcommittee Highlight of Current Activities (2) Wireless/GSM-Evolved Focus – ATIS WTSC LI* Subcommittee  Currently focusing on: Standards for LI for Push-to-Talk over Cellular (PoC) Advanced VoIP Conferencing Services Canadian-Specific Location Requirements for LAES Delta documents to 3GPP LI Specifications to support specific USA/Canadian Requirements LI for UMTS and LTE Femtocells

4. 4 Strategic Direction  Work within legal and regulatory framework (per USA CALEA law and related FCC regulations, and Canadian regulations) – e.g., USA “Safe-Harbor” provision  Work proactively to support law enforcement’s needs (per reasonable changes and direction)  Work in response to US Federal Communications Commission (FCC) regulatory mandates  Focus on regional (North American) needs of LI/LAES  Coordinate/collaborate with other organizations where appropriate (e.g., TIA)

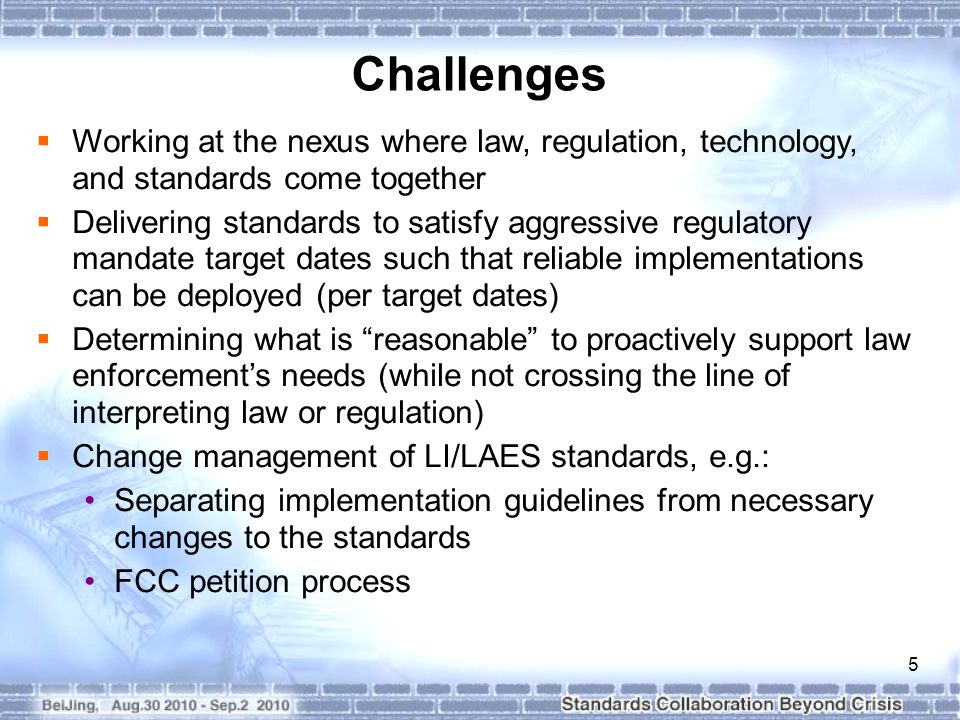

5. 5 Challenges  Working at the nexus where law, regulation, technology, and standards come together  Delivering standards to satisfy aggressive regulatory mandate target dates such that reliable implementations can be deployed (per target dates)  Determining what is “reasonable” to proactively support law enforcement’s needs (while not crossing the line of interpreting law or regulation)  Change management of LI/LAES standards, e.g.: Separating implementation guidelines from necessary changes to the standards FCC petition process

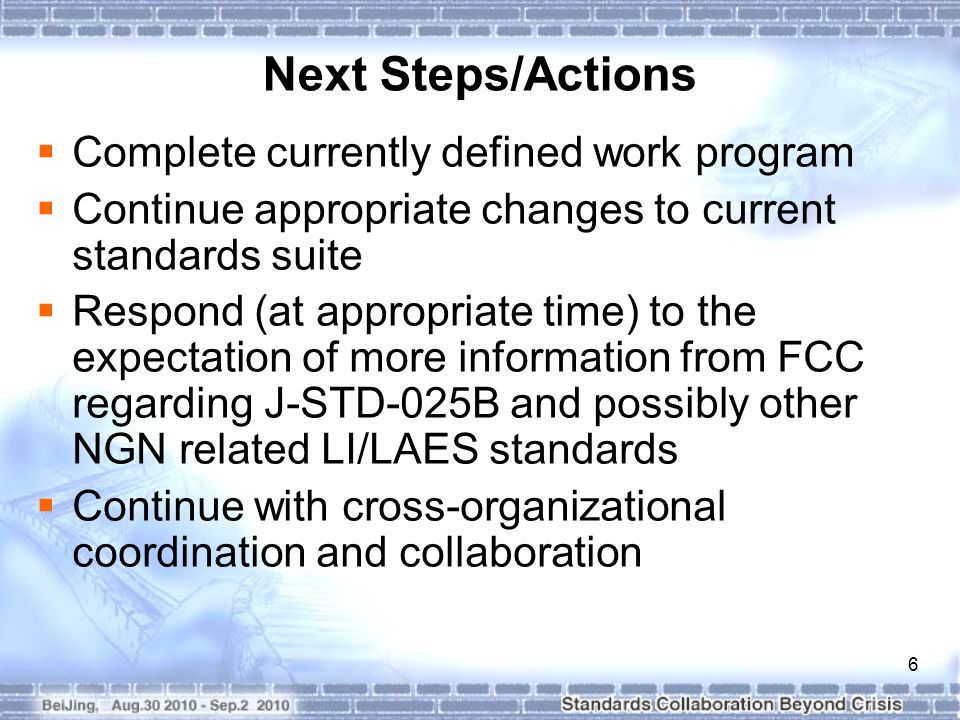

6. 6 Next Steps/Actions  Complete currently defined work program  Continue appropriate changes to current standards suite  Respond (at appropriate time) to the expectation of more information from FCC regarding J-STD-025B and possibly other NGN related LI/LAES standards  Continue with cross-organizational coordination and collaboration

7. 7 Proposed Resolution  No change proposed.

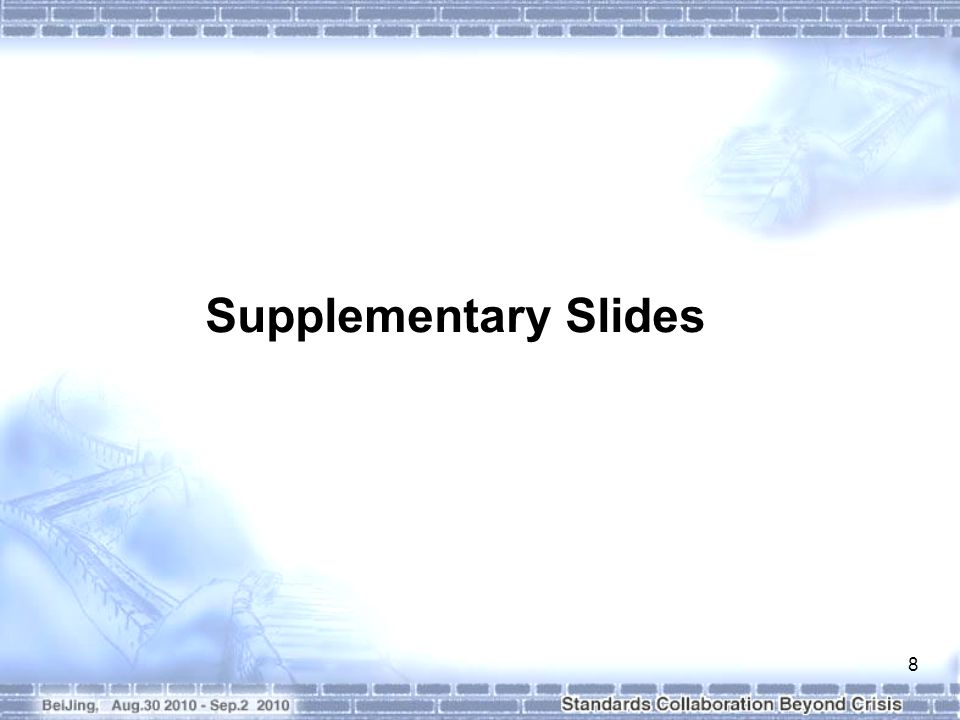

8. 8 Supplementary Slides

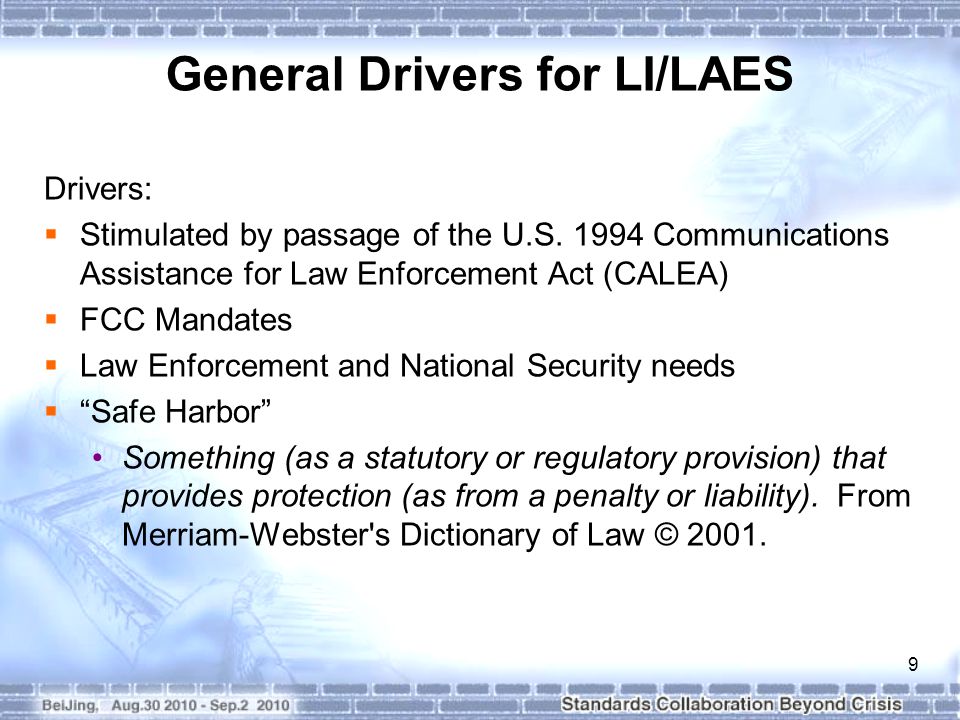

9. 9 Drivers:  Stimulated by passage of the U.S. 1994 Communications Assistance for Law Enforcement Act (CALEA)  FCC Mandates  Law Enforcement and National Security needs  “Safe Harbor” Something (as a statutory or regulatory provision) that provides protection (as from a penalty or liability). From Merriam-Webster's Dictionary of Law © 2001. General Drivers for LI/LAES

10. 10  Packet Technologies and Systems Committee (PTSC) http://www.atis.org/0191/index.asp Mission: PTSC develops and recommends standards and technical reports related to services, architectures, and signaling, in addition to related subjects under consideration in other North American and international standards bodies. Scope:  Coordinates and develops standards and technical reports relevant to telecommunications networks in the U.S.  Reviews and prepares contributions on such matters for submission to U.S. ITU-T and U.S. ITU-R Study Groups or other standards organizations.  Reviews for acceptability or per contra the positions of other countries in related standards development and takes or recommends appropriate actions. PTSC Mission/Scope

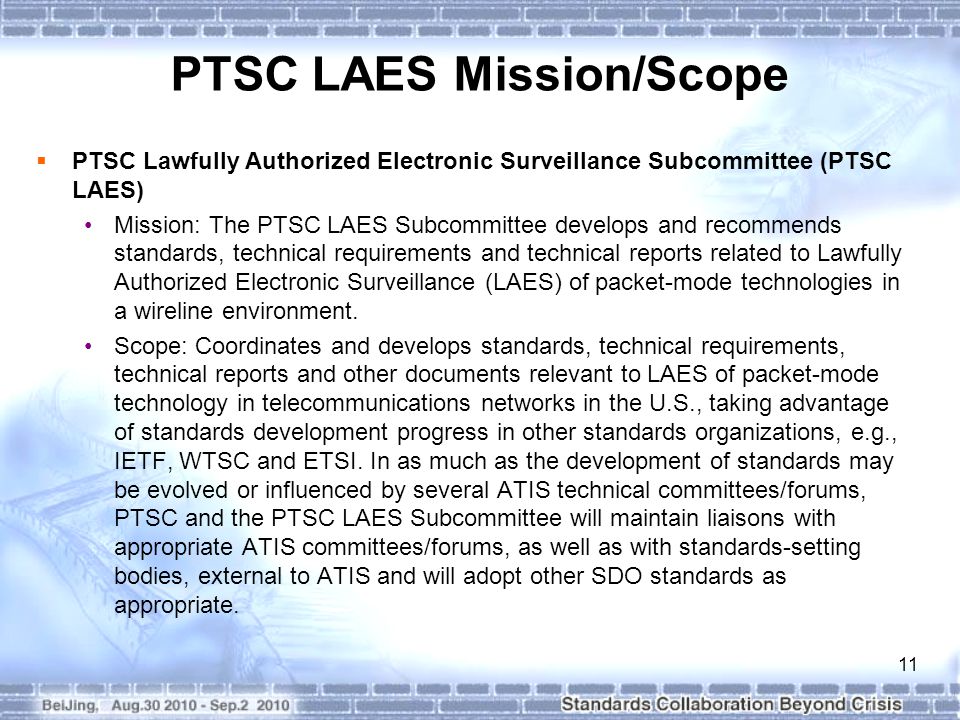

11. 11  PTSC Lawfully Authorized Electronic Surveillance Subcommittee (PTSC LAES) Mission: The PTSC LAES Subcommittee develops and recommends standards, technical requirements and technical reports related to Lawfully Authorized Electronic Surveillance (LAES) of packet-mode technologies in a wireline environment. Scope: Coordinates and develops standards, technical requirements, technical reports and other documents relevant to LAES of packet-mode technology in telecommunications networks in the U.S., taking advantage of standards development progress in other standards organizations, e.g., IETF, WTSC and ETSI. In as much as the development of standards may be evolved or influenced by several ATIS technical committees/forums, PTSC and the PTSC LAES Subcommittee will maintain liaisons with appropriate ATIS committees/forums, as well as with standards-setting bodies, external to ATIS and will adopt other SDO standards as appropriate. PTSC LAES Mission/Scope

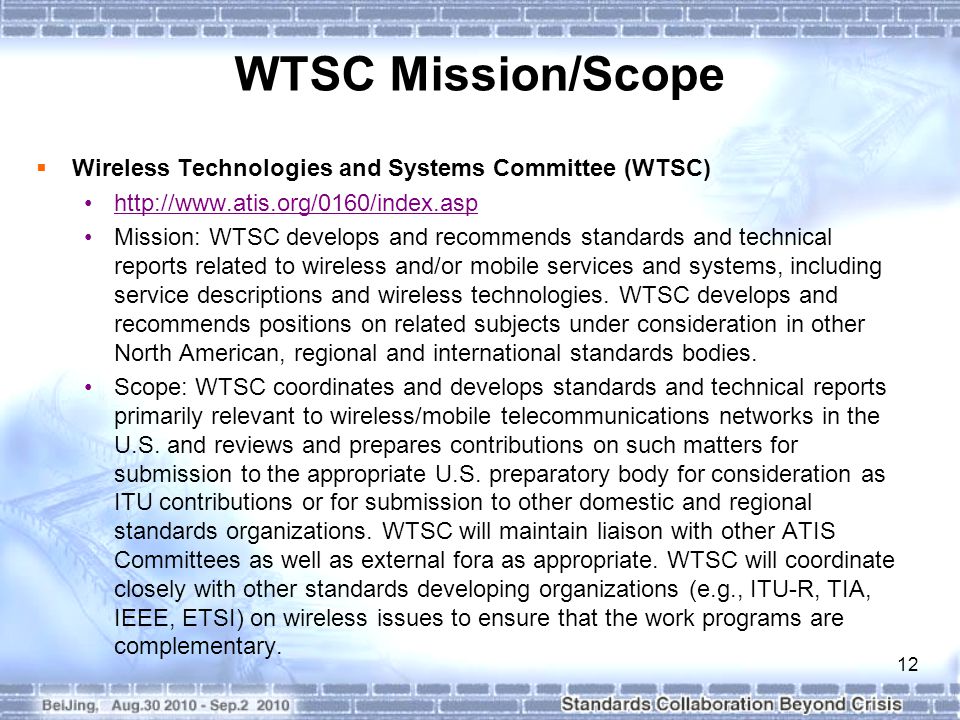

12. 12  Wireless Technologies and Systems Committee (WTSC) http://www.atis.org/0160/index.asp Mission: WTSC develops and recommends standards and technical reports related to wireless and/or mobile services and systems, including service descriptions and wireless technologies. WTSC develops and recommends positions on related subjects under consideration in other North American, regional and international standards bodies. Scope: WTSC coordinates and develops standards and technical reports primarily relevant to wireless/mobile telecommunications networks in the U.S. and reviews and prepares contributions on such matters for submission to the appropriate U.S. preparatory body for consideration as ITU contributions or for submission to other domestic and regional standards organizations. WTSC will maintain liaison with other ATIS Committees as well as external fora as appropriate. WTSC will coordinate closely with other standards developing organizations (e.g., ITU-R, TIA, IEEE, ETSI) on wireless issues to ensure that the work programs are complementary. WTSC Mission/Scope

13. 13  WTSC Lawful Intercept Subcommittee (WTSC LI) Mission: WTSC LI develops, maintains, amends, and enhances American National Standards and other WTSC deliverables related to lawful intercept within the GSM family (GSM/EGPRS/UMTS). This work may be done within WTSC LI or may be done in close cooperation with other U.S., regional, and international standards and specifications groups to ensure that respective standards and specifications for the GSM family meet North American regulatory and commercial requirements. Scope: WTSC LI provides the following functions and capabilities:  Formulate positions in support of WTSC objectives.  Coordinates activities relevant to U.S., regional, and international standards and specifications activities including:  Preparation, review and presentation of contributions as proposed US positions for submission to international standards bodies such as ITU-T;  Establish appropriate mechanisms and coordinate contributions and positions that support WTSC objectives with other relevant committees and organizations (e.g., other US, regional, and international standards and specifications fora).  Evaluate proposals for lawful intercept capabilities within the GSM family.  Transpose 3GPP lawful intercept deliverables into WTSC deliverables.  Develop and coordinate appropriate inputs regarding lawful intercept aspects that impact or are impacted by IMT-2000 services. WTSC LI Mission/Scope

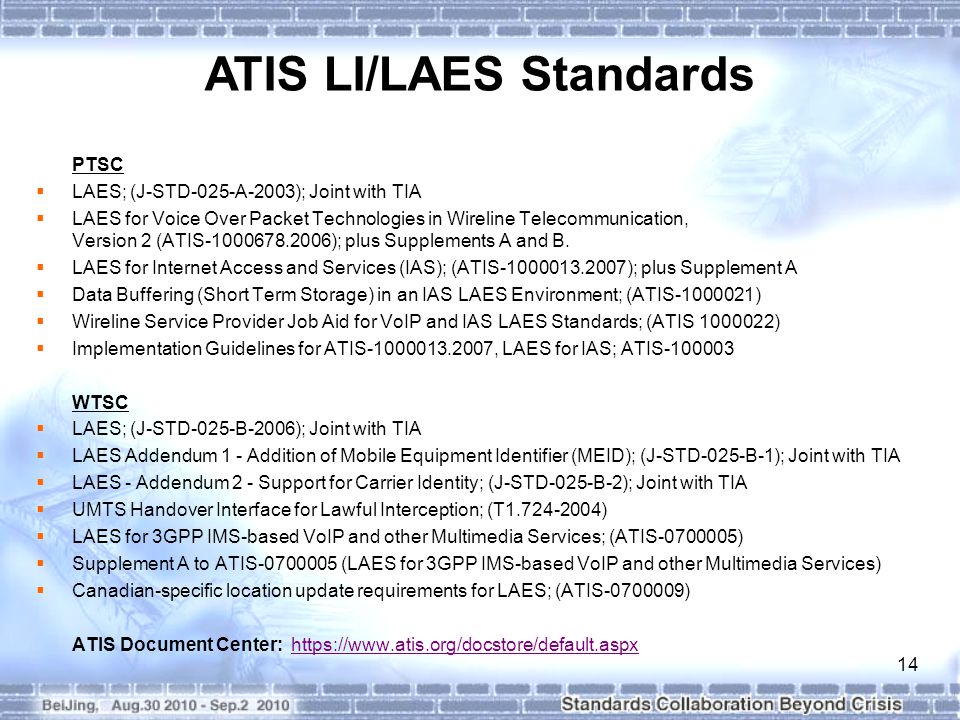

14. 14 PTSC  LAES; (J-STD-025-A-2003); Joint with TIA  LAES for Voice Over Packet Technologies in Wireline Telecommunication, Version 2 (ATIS-1000678.2006); plus Supplements A and B.  LAES for Internet Access and Services (IAS); (ATIS-1000013.2007); plus Supplement A  Data Buffering (Short Term Storage) in an IAS LAES Environment; (ATIS-1000021)  Wireline Service Provider Job Aid for VoIP and IAS LAES Standards; (ATIS 1000022)  Implementation Guidelines for ATIS-1000013.2007, LAES for IAS; ATIS-100003 WTSC  LAES; (J-STD-025-B-2006); Joint with TIA  LAES Addendum 1 - Addition of Mobile Equipment Identifier (MEID); (J-STD-025-B-1); Joint with TIA  LAES - Addendum 2 - Support for Carrier Identity; (J-STD-025-B-2); Joint with TIA  UMTS Handover Interface for Lawful Interception; (T1.724-2004)  LAES for 3GPP IMS-based VoIP and other Multimedia Services; (ATIS-0700005)  Supplement A to ATIS-0700005 (LAES for 3GPP IMS-based VoIP and other Multimedia Services)  Canadian-specific location update requirements for LAES; (ATIS-0700009) ATIS Document Center: https://www.atis.org/docstore/default.aspxhttps://www.atis.org/docstore/default.aspx ATIS LI/LAES Standards

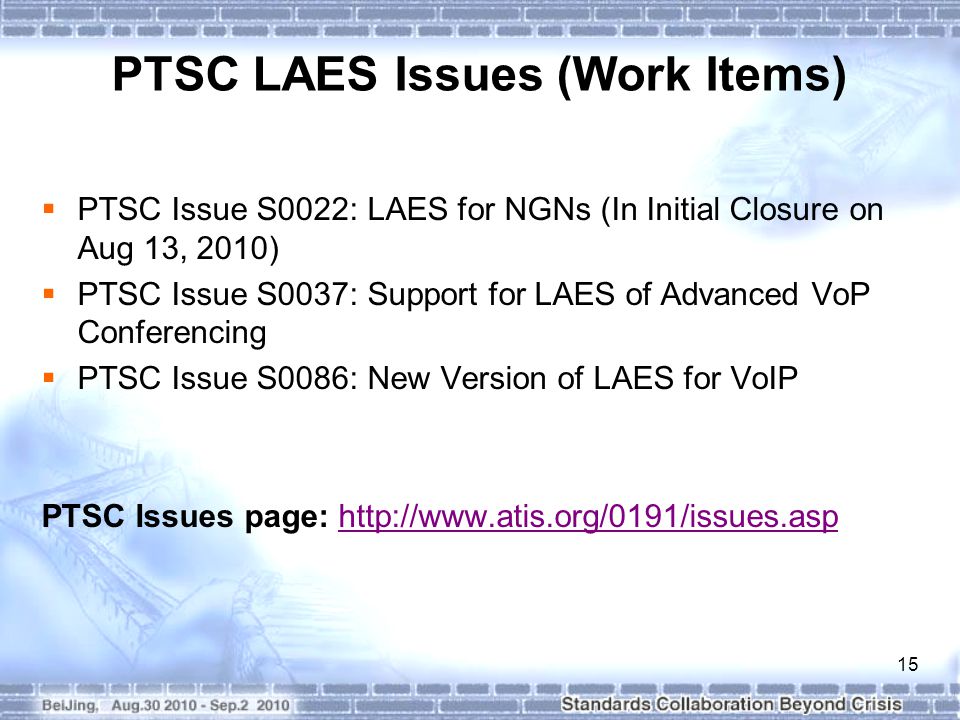

15. 15  PTSC Issue S0022: LAES for NGNs (In Initial Closure on Aug 13, 2010)  PTSC Issue S0037: Support for LAES of Advanced VoP Conferencing  PTSC Issue S0086: New Version of LAES for VoIP PTSC Issues page: http://www.atis.org/0191/issues.asphttp://www.atis.org/0191/issues.asp PTSC LAES Issues (Work Items)

16. 16  WTSC Issue P0009: IMS Based POC (Push-to-talk Over Cellular) LAES Capabilities  WTSC Issue P0015: LAES for Server-Based VoIP Conferencing  WTSC Issue P0021: Canadian-specific location update requirements for LAES  WTSC Issue P0022: North American changes to 3GPP Lawfully Authorized Electronic Surveillance Standards WTSC Issues page: http://www.atis.org/0160/issues.asphttp://www.atis.org/0160/issues.asp WTSC LI Issues (Work Items)
