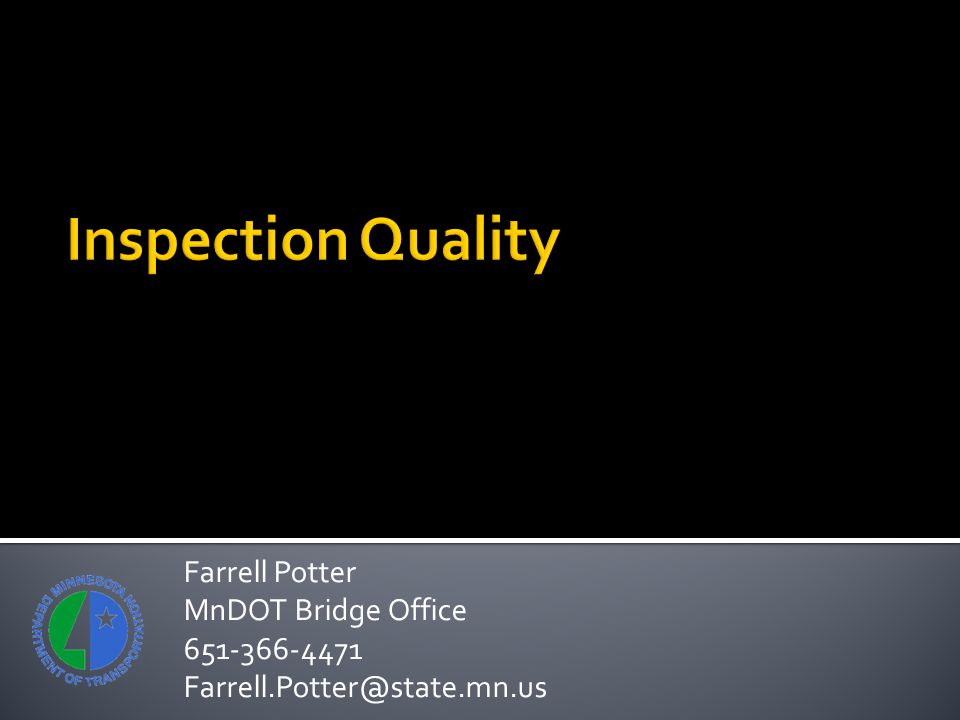

Farrell Potter MnDOT Bridge Office 651-366-4471 Farrell.Potter@state.mn.us
2
Quantification Location Description Dates
3
If it can be measured, then it shall Record in inspection report: Measurements to monitor any change How measurements were made
4
Report locations of defects Allows other inspectors to monitor defects on next inspection The severity of defect can depend on location
5
Justification of the condition state or NBI code Should indicate type of defect and severity Use language from the inspection manual
6
Date inspection notes Allows for determination of when defect was first noted Allows to see how defect is changing over time
7
Date [2009] South fascia girder has 10LF of freckling rust starting at west abutment Location Description Quantity
![Date [2009] South fascia girder has 10LF of freckling rust starting at west abutment Location Description Quantity](http://images.slideplayer.com/14/4347239/slides/slide_7.jpg "Date [2009] South fascia girder has 10LF of freckling rust starting at west abutment Location Description Quantity")
8

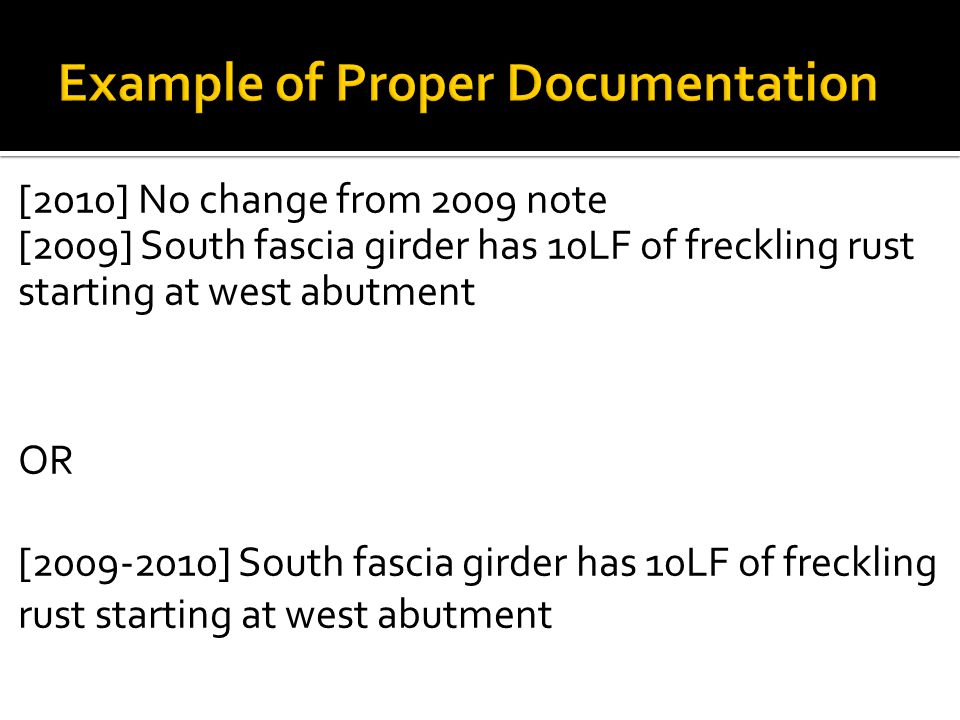

OR [2009-2010] South fascia girder has 10LF of freckling rust starting at west abutment [2010] No change from 2009 note [2009] South fascia girder has 10LF of freckling rust starting at west abutment
![OR [ ] South fascia girder has 10LF of freckling rust starting at west abutment [2010] No change from 2009 note [2009] South fascia girder has 10LF of freckling rust starting at west abutment](http://images.slideplayer.com/14/4347239/slides/slide_8.jpg "OR [ ] South fascia girder has 10LF of freckling rust starting at west abutment [2010] No change from 2009 note [2009] South fascia girder has 10LF of freckling rust starting at west abutment")
9
OR [2011] South fascia girder has 15LF of freckling rust starting at west abutment [2009-2010] South fascia girder has 10LF of freckling rust starting at west abutment [2011] South fascia girder has 15LF of freckling rust starting at west abutment [2010] No change from 2009 note [2009] South fascia girder has 10LF of freckling rust starting at west abutment
![OR [2011] South fascia girder has 15LF of freckling rust starting at west abutment [ ] South fascia girder has 10LF of freckling rust starting at west abutment [2011] South fascia girder has 15LF of freckling rust starting at west abutment [2010] No change from 2009 note [2009] South fascia girder has 10LF of freckling rust starting at west abutment](http://images.slideplayer.com/14/4347239/slides/slide_9.jpg "OR [2011] South fascia girder has 15LF of freckling rust starting at west abutment [ ] South fascia girder has 10LF of freckling rust starting at west abutment [2011] South fascia girder has 15LF of freckling rust starting at west abutment [2010] No change from 2009 note [2009] South fascia girder has 10LF of freckling rust starting at west abutment")
10
Any element in a condition state of 2, 3, 4 or 5 Any NBI in a 5 or less Date or note should be updated every year inspection is performed
11
Acceptable: The entire quantity is in condition state 1, so no defects means no notes are necessary
12
Unacceptable: Quantity is in CS2, and is missing description and date.
13
Acceptable: Should consider keeping original dates to track change over time
14
Unacceptable: Quantity is in CS4 and properly dated. However notes do not justify the condition state.
15
At a minimum two photos in the bridge file Roadway view, profile view Also recommend for: NBIs less than 5 Condition States greater than CS2
16
Provide quick and easy way to capture inspection data Can be updated over time to reflect changes Recommend for: NBIs less than 5 Condition States greater than CS2
18
How thorough of an inspection can you perform during the winter?
19
