4. © March 9, 2004 Novell Inc. 4 Presentation Overview Overview and Architecture Administration & Configuration Platform Agent Server Configuration Queries Reports Application Instrumentation Frozen Bubble Instrumentation Verification Signing and Chaining Events.

5. 5 Secure Logging Server Platform Agent Notification Service Logging Service Filter SMTP Flat File Driver Monitoring Applications Report Generator SNMP SYSLO G Storag e Java CVR … SQL Driver Crystal Reports Java API TCP/IP (TLS) Alerts/ Notifications JMS Event Adapter Oracle SQL Server MySQL File System [11:58:18] MyApp\ IMAP\ Authentication: Valid login for account “FMSmith" from 137.65.47.144 [11:58:18] MyApp \POP3\ Authentication: Valid login for account "pfeiffer" from 195.224.28.4 C API Application … Monitoring Service Disconnected Mode Cache Administrator Nsure Audit Overview & Architecture

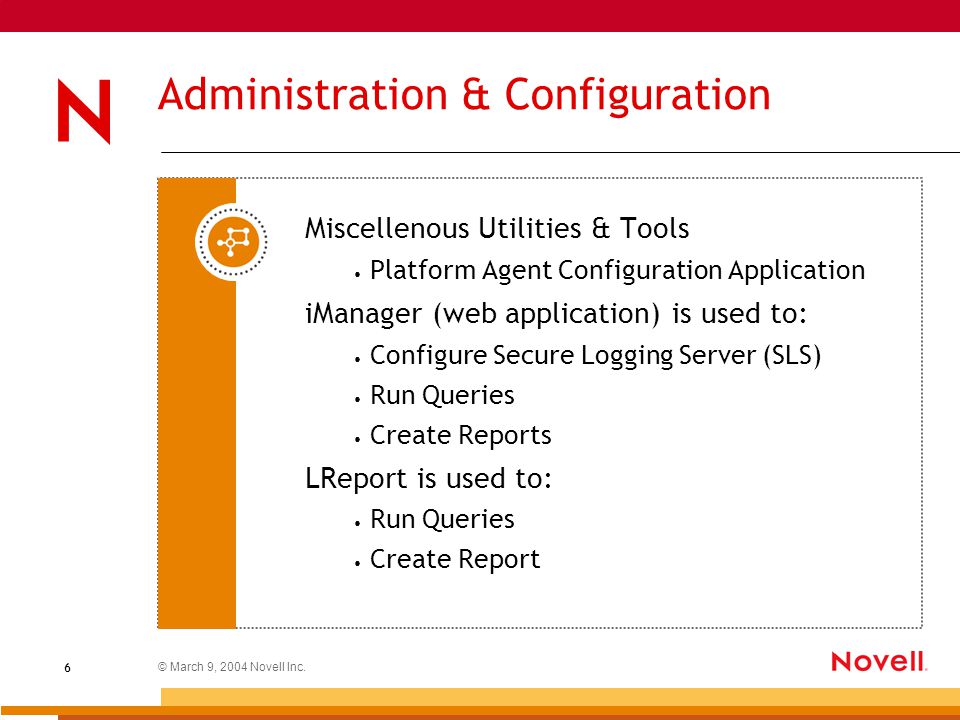

6. © March 9, 2004 Novell Inc. 6 Administration & Configuration Miscellenous Utilities & Tools Platform Agent Configuration Application iManager (web application) is used to: Configure Secure Logging Server (SLS) Run Queries Create Reports LReport is used to: Run Queries Create Report

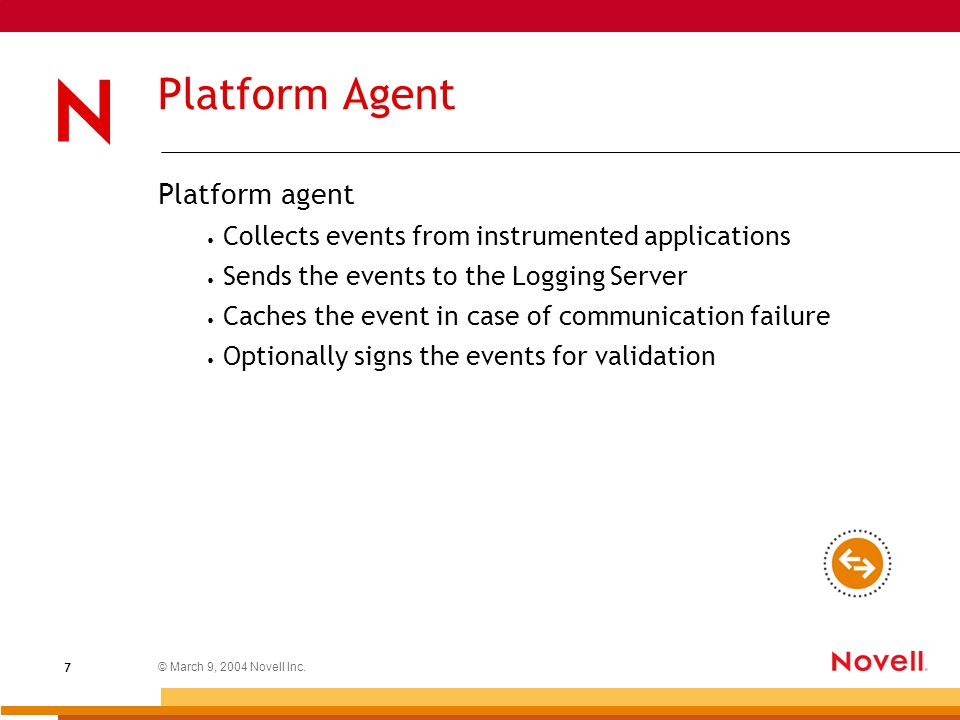

7. © March 9, 2004 Novell Inc. 7 Platform Agent Platform agent Collects events from instrumented applications Sends the events to the Logging Server Caches the event in case of communication failure Optionally signs the events for validation

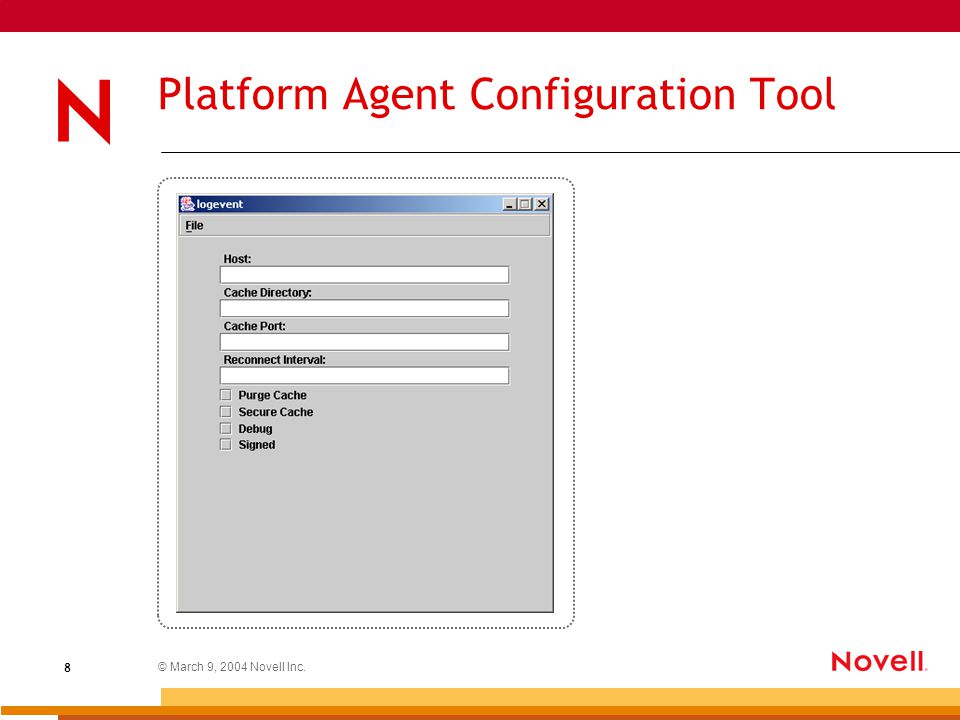

8. © March 9, 2004 Novell Inc. 8 Platform Agent Configuration Tool

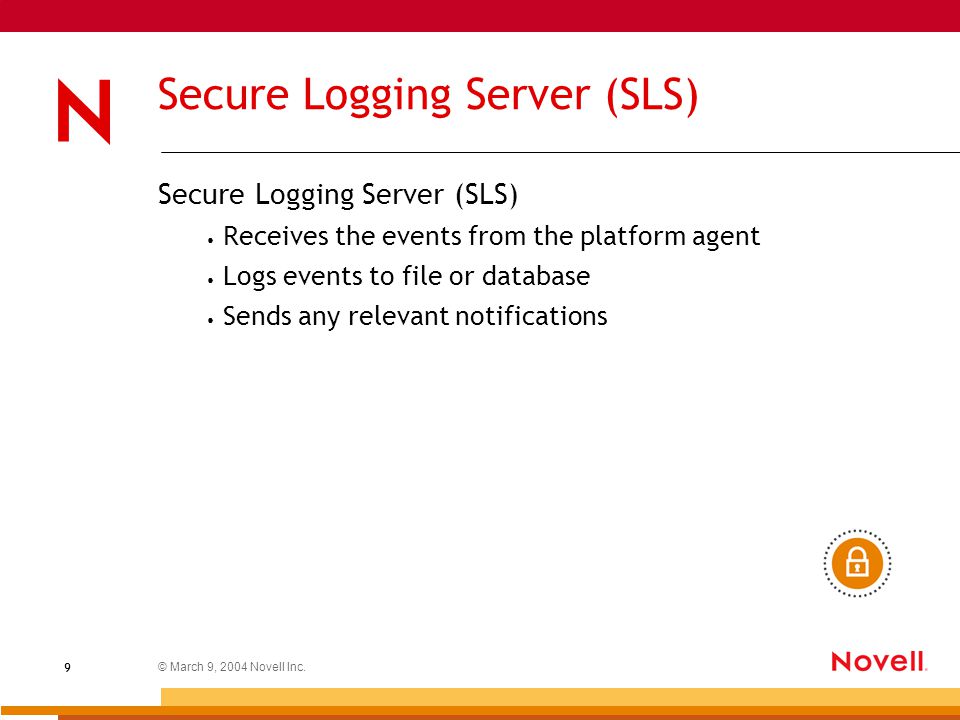

9. © March 9, 2004 Novell Inc. 9 Secure Logging Server (SLS) Receives the events from the platform agent Logs events to file or database Sends any relevant notifications

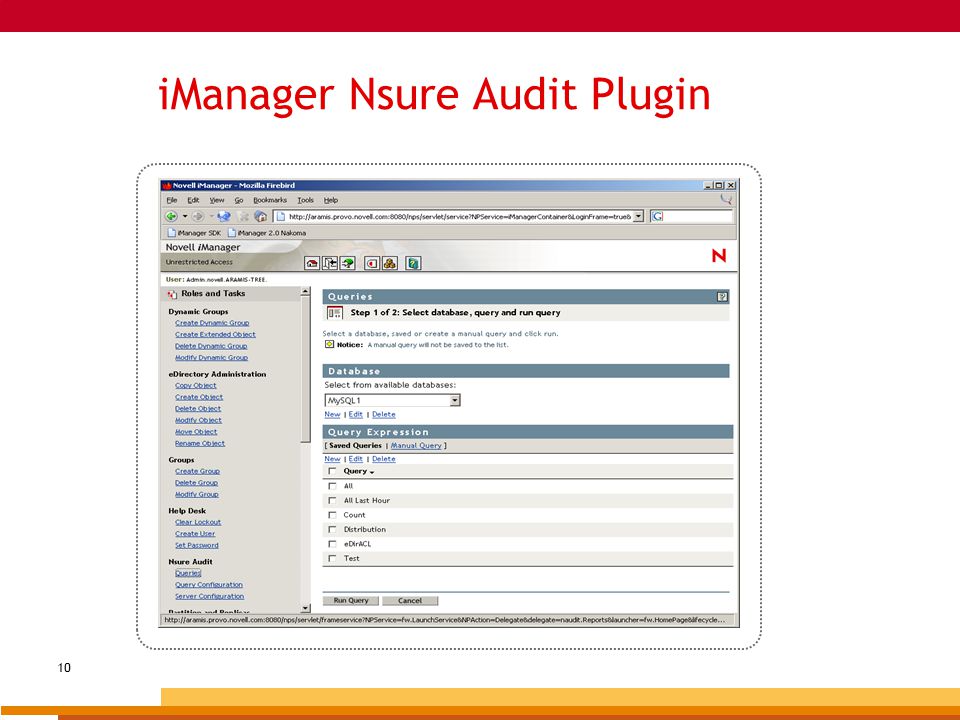

10. 10 iManager Nsure Audit Plugin

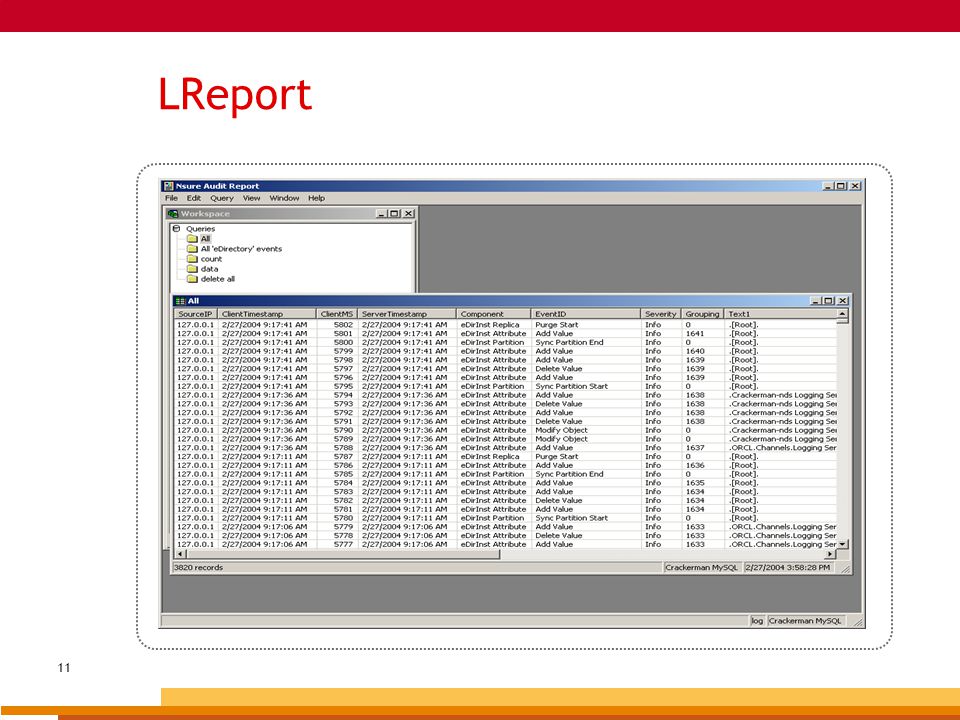

11. 11 LReport

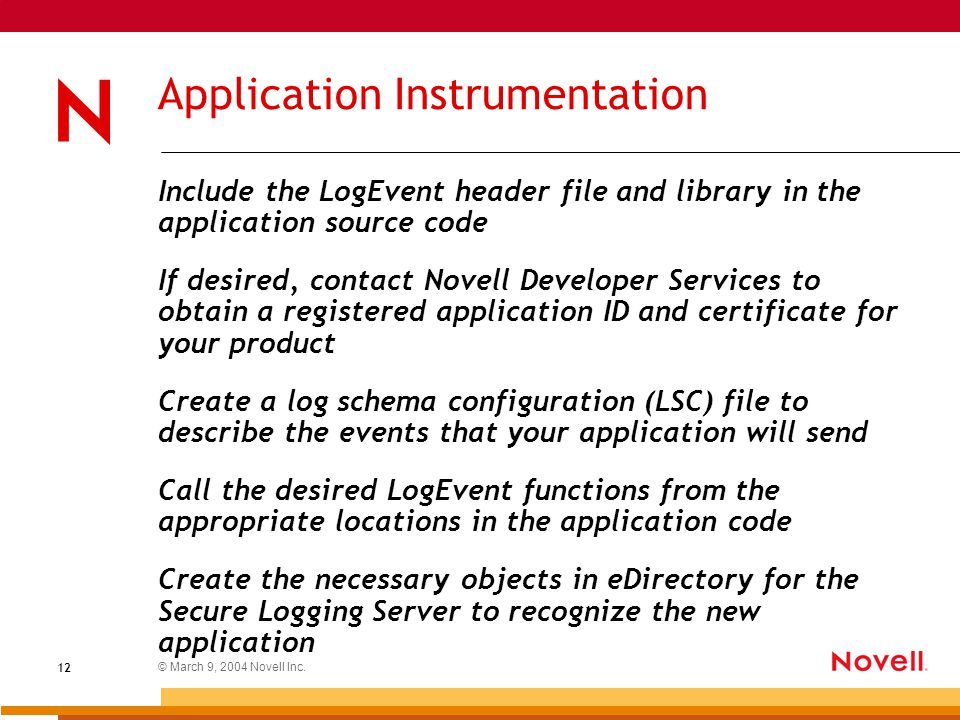

12. © March 9, 2004 Novell Inc. 12 Application Instrumentation Include the LogEvent header file and library in the application source code If desired, contact Novell Developer Services to obtain a registered application ID and certificate for your product Create a log schema configuration (LSC) file to describe the events that your application will send Call the desired LogEvent functions from the appropriate locations in the application code Create the necessary objects in eDirectory for the Secure Logging Server to recognize the new application

13. © March 9, 2004 Novell Inc. 13 Log Schema Configuration (LSC) file Defines the different events, used to translate text Can be used with auditext to automatically generate the Application Object #^Frozen Bubble Instrumentation^FBFB^FBubbleInst^EN # #EventID,Description,Text1 Title,Text2 Title,Value1 Title,Value1 Type,Value2 #Title,Value2 Type,Group Title,Group Type,Data Title,Data Type,Display Schema FBFB,Frozen Bubble,Frozen Bubble Instrumentation,,,,,,,,,, FBFB0001,Game Started,,,,,Start Time,,,,,, FBFB0002,Level Started,,,Level,,Timestamp,,,,,, FBFB0003,Level Completed,,,Level,,Timestamp,,,,,, FBFB0004,Level Completion Time,,,Level,,Total Time,,,,,, FBFB0005,Premature Exit,,,Level,,Timestamp,,,,,, FBFB0006,Died,,,Level,,Life Number,,,,,, FBFB0007,Game Ended,,,Level,,Timestamp,,,,,, FBFB0008,Final Score and Time,Username,,Level,,Total Time,,,,,,

14. © March 9, 2004 Novell Inc. 14 Logevent Functions LogOpen – create the log handle, connect to the server LogEventDirect – send a log event with any of the available data fields LogClose – close the log handle LogEventText, LogEventNameValue, LogEventLong, LogEventRaw are macros that log events with only certain types of data Unicode interface is also available

15. © March 9, 2004 Novell Inc. 15 Instrumentation of Frozen Bubble

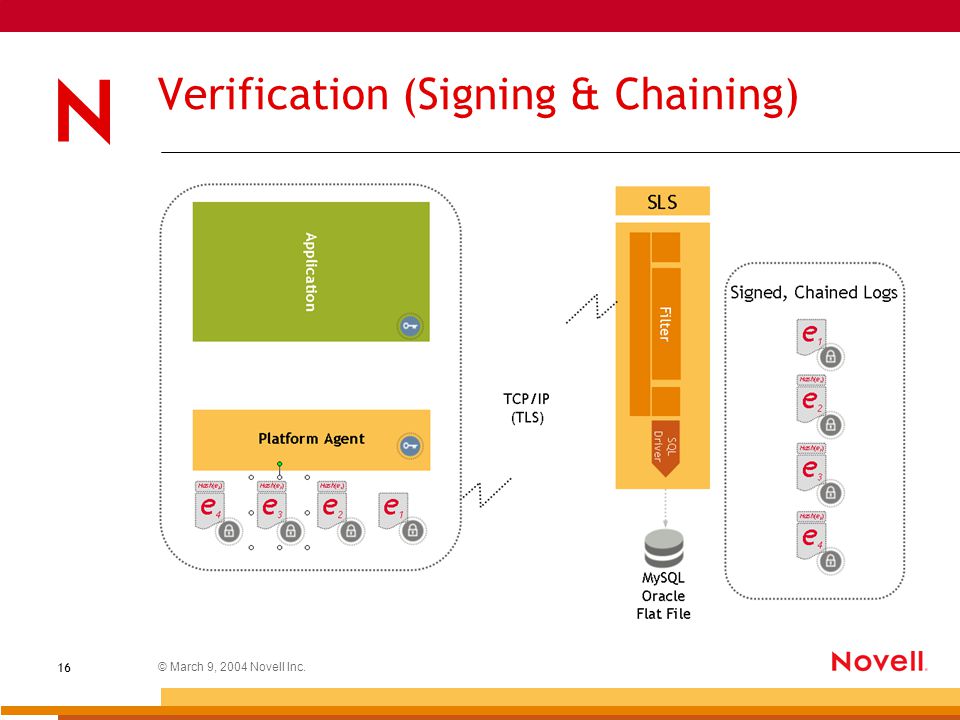

16. © March 9, 2004 Novell Inc. 16 Verification (Signing & Chaining)
