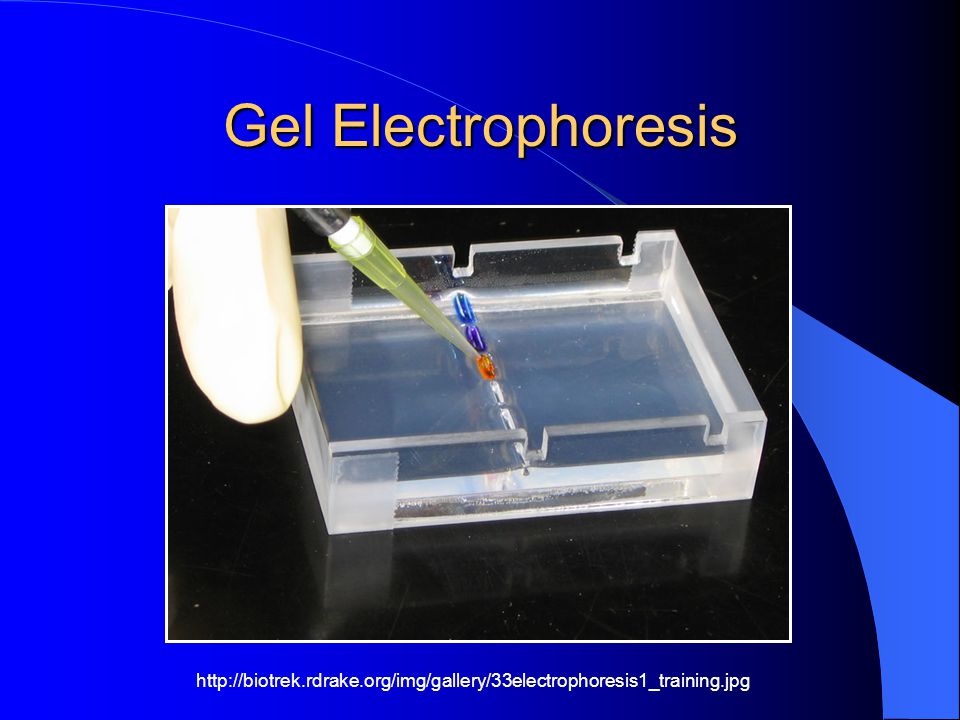

1. Gel Electrophoresis http://biotrek.rdrake.org/img/gallery/33electrophoresis1_training.jpg

2. http://www.antibiotic.ru/en/mbio/pub/images/p233r2.gif Definition Gel electrophoresis is a technique used to separate DNA bands based on size

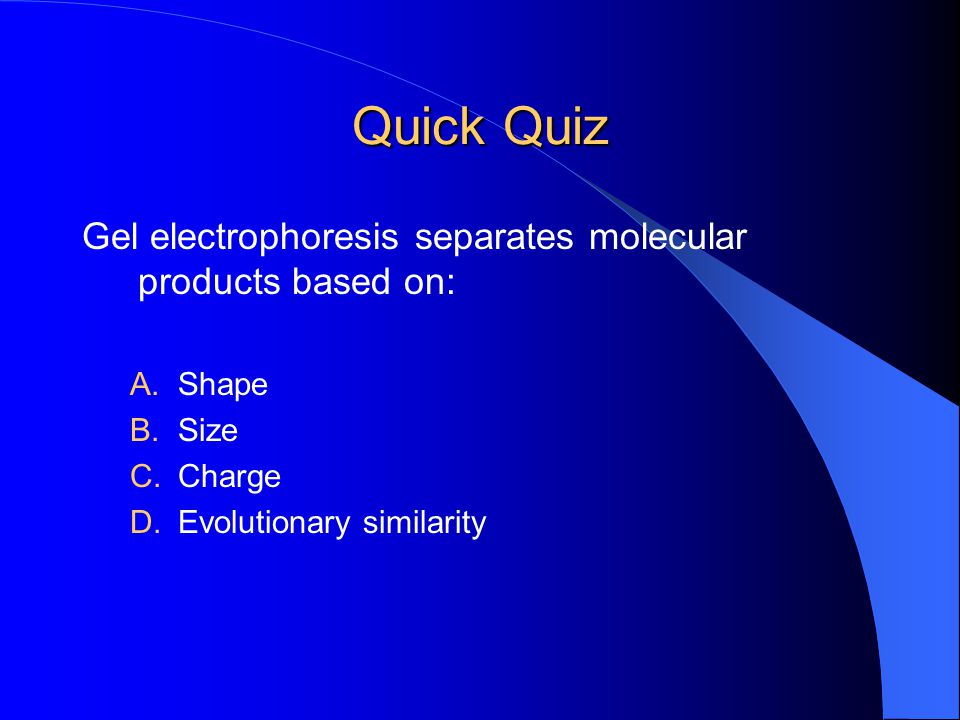

3. Quick Quiz Gel electrophoresis separates molecular products based on: A.Shape B.Size C.Charge D.Evolutionary similarity

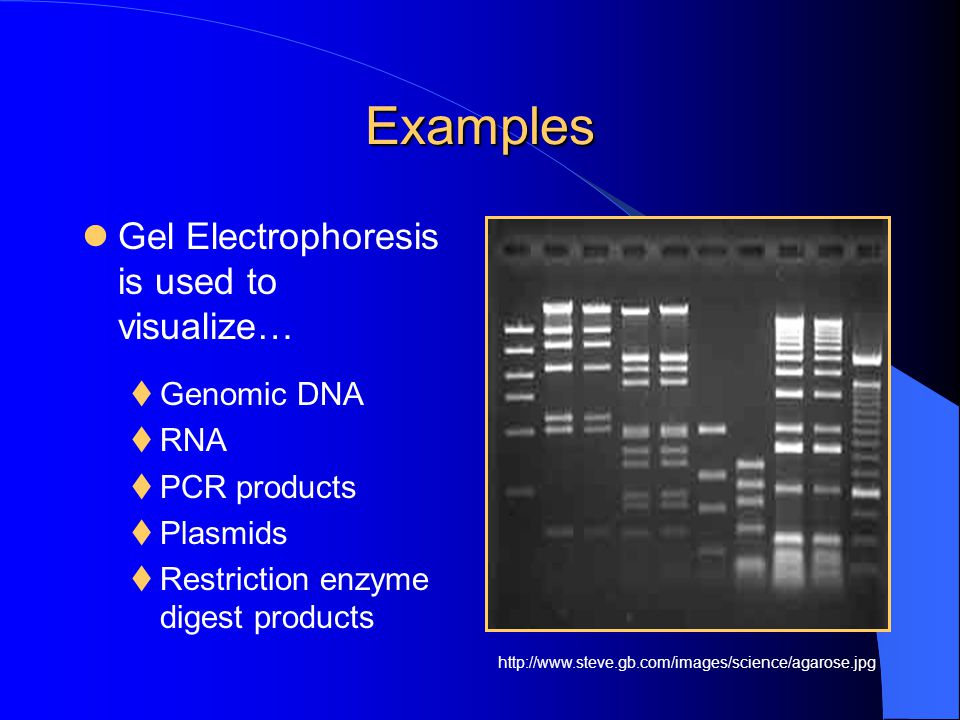

4. Examples Gel Electrophoresis is used to visualize…  Genomic DNA  RNA  PCR products  Plasmids  Restriction enzyme digest products http://www.steve.gb.com/images/science/agarose.jpg

5. Non-example Gel Electrophoresis is not used to…  Separate DNA from the cell or from tissues

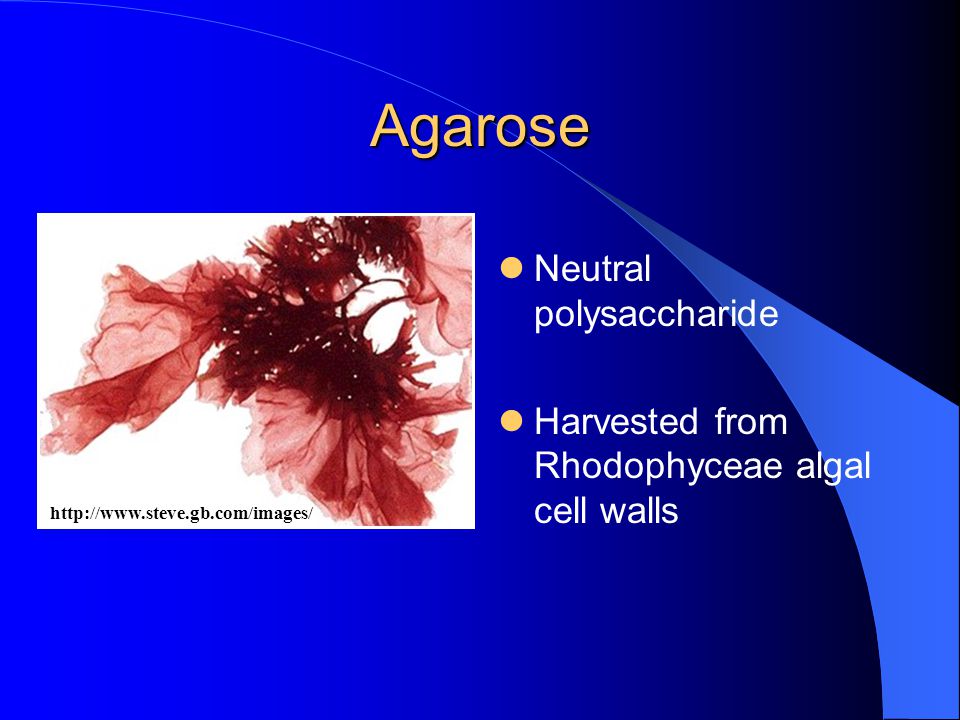

6. Agarose Neutral polysaccharide Harvested from Rhodophyceae algal cell walls http://www.steve.gb.com/images/

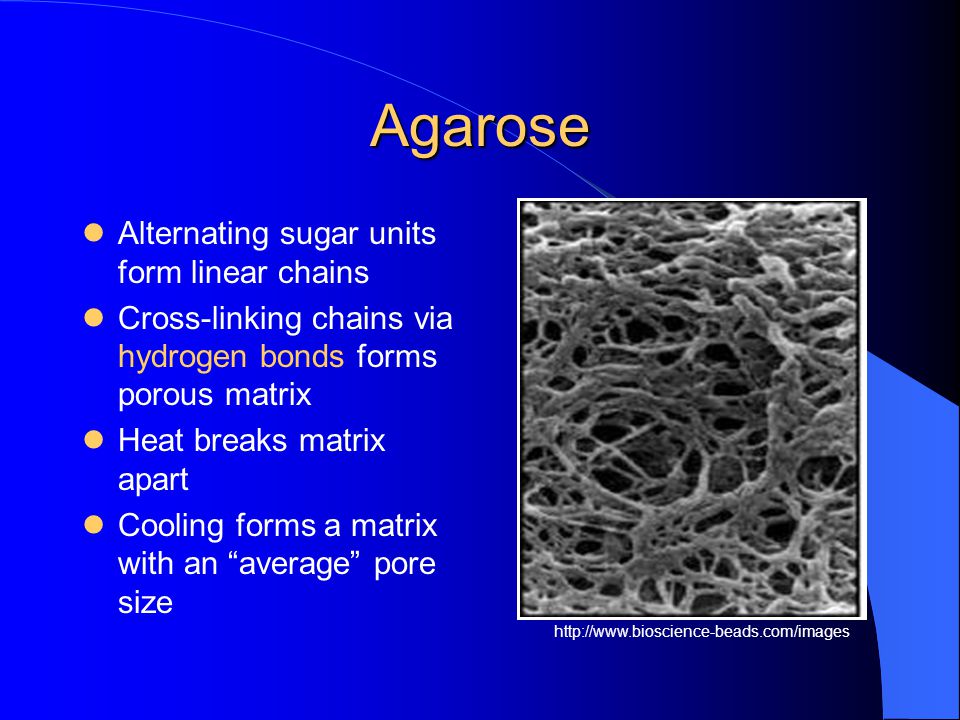

7. Agarose Alternating sugar units form linear chains Cross-linking chains via hydrogen bonds forms porous matrix Heat breaks matrix apart Cooling forms a matrix with an “average” pore size http://www.bioscience-beads.com/images

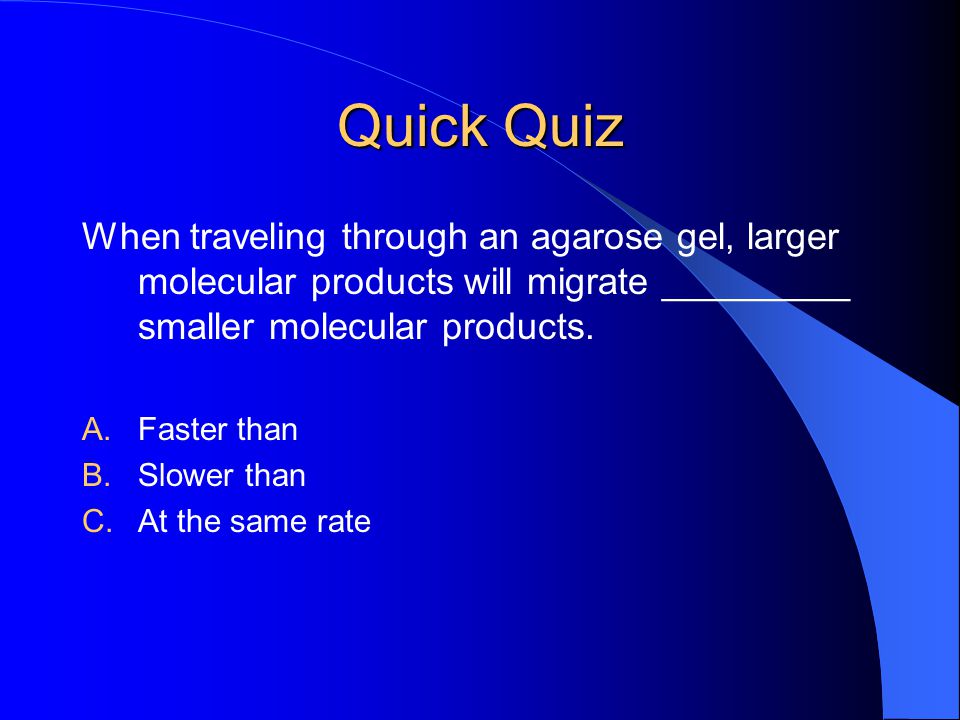

8. Quick Quiz When traveling through an agarose gel, larger molecular products will migrate _________ smaller molecular products. A.Faster than B.Slower than C.At the same rate

9. Why Run a Gel? Molecular weight markers are DNA fragments of known size Comparison of sample bands to markers allows…  Visible confirmation of desired product  Quantification of sample DNA http://www.biomedcentral.com/content/figures/1471-2180-5-63-2.jpg

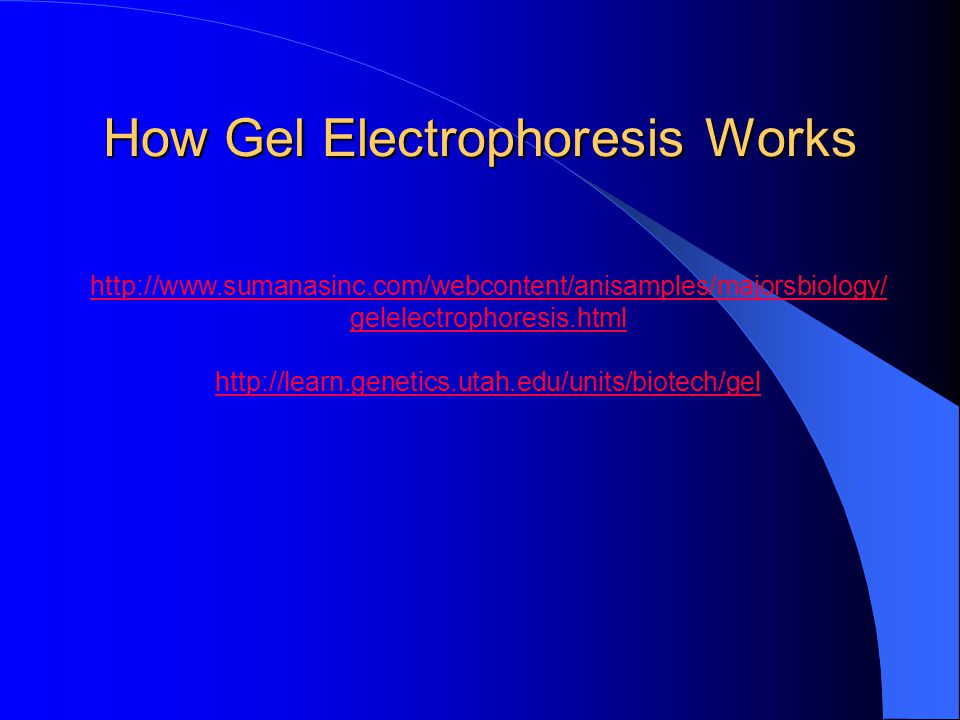

10. http://www.sumanasinc.com/webcontent/anisamples/majorsbiology/ gelelectrophoresis.html http://learn.genetics.utah.edu/units/biotech/gel How Gel Electrophoresis Works

11. Quick Quiz As DNA has a net _______ charge, it migrates towards the gel box’s _________. A.Positive; cathode B.Positive; anode C.Negative; cathode D.Negative; anode

12. Visualizing DNA Ethidium Bromide binds to DNA Fluorescence under UV light makes bands visible http://www.lanl.gov/news/albums/bioscience/AnthraxUVplate.sized.jpg

13. Quick Quiz The size of the molecular products is determined by: A.The intensity of the band B.The percentage of agarose gel C.Comparison with a molecular weight “ladder” D.Being familiar with your gel and “eyeballing” it

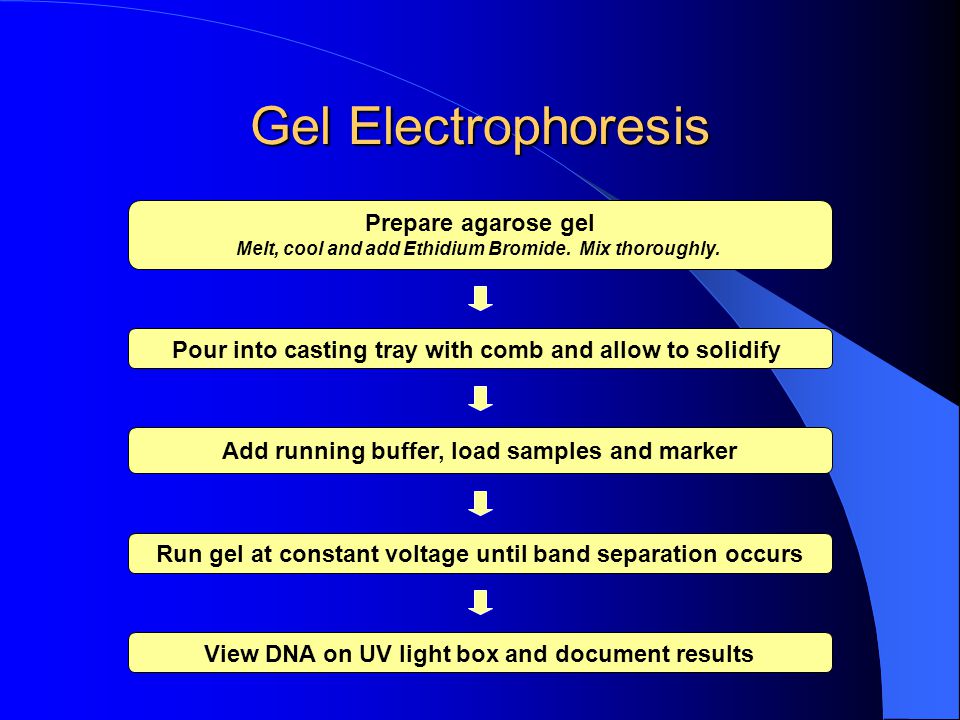

14. Gel Electrophoresis Prepare agarose gel Melt, cool and add Ethidium Bromide. Mix thoroughly. Add running buffer, load samples and marker Run gel at constant voltage until band separation occurs Pour into casting tray with comb and allow to solidify View DNA on UV light box and document results

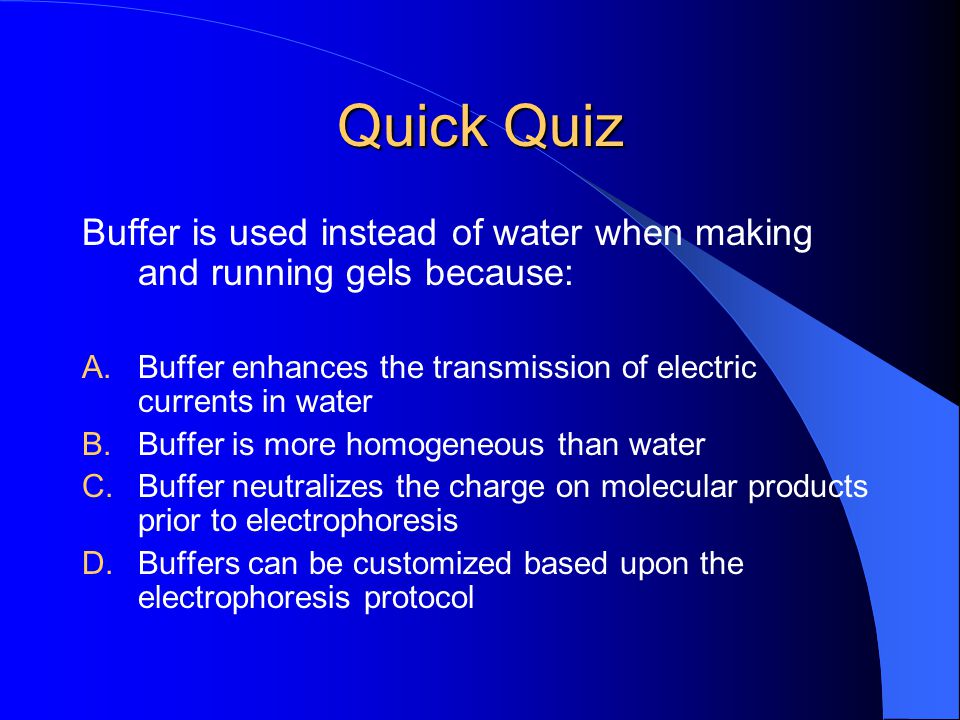

15. Quick Quiz Buffer is used instead of water when making and running gels because: A.Buffer enhances the transmission of electric currents in water B.Buffer is more homogeneous than water C.Buffer neutralizes the charge on molecular products prior to electrophoresis D.Buffers can be customized based upon the electrophoresis protocol
