1. Chromosomes and Cell Division

2. Chromosomes Your somatic cells (all excluding egg and sperm cells) contain 46 chromosomes Chromosomes contain the genetic instructions for the structure & function of your body

4. Chromosomes Autosomes – these are the 44 chromosomes containing similar types of information in cells of both males & females Sex chromosomes – these are 2 of the 46 chromosomes that look like an XX for females and XY for males

5. Microtubules Microtubules form the Spindle Apparatus which is the “machinery” responsible for moving chromosomes during cell division

6. Note the pink spindle apparatus moving the chromosomes

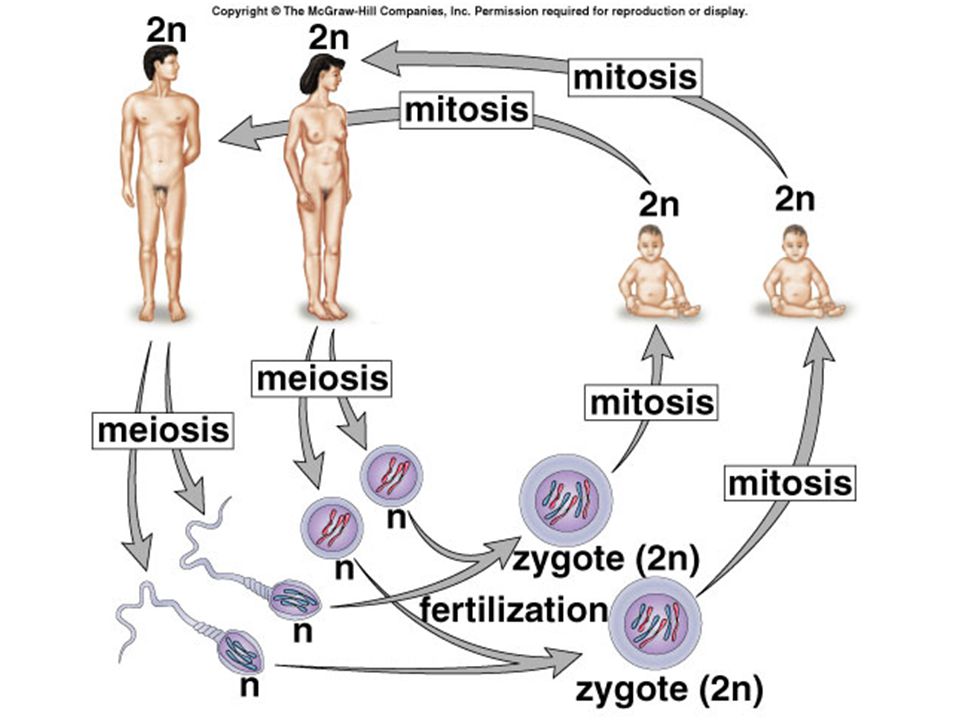

7. Chromosome numbers Diploid = 2n 23 chromosomes that you received from your mother plus 23 chromosomes you received from your father 2 sets of chromosomes Seen in somatic cells (body cells other than egg and sperm)

9. Homologous Chromosomes Similar chromosomes Contains the same TYPE of information E.g. chromosome number 1 you received from mom and chromosome number 1 you received from dad.

10. This photo shows homologous chromosome pairs

11. MITOSIS Cell division in cells that are NOT your sex cells Allows growth and repair 2n >>>>2n

13. Interphase – Chromosome replication

15. Interphase Exact copies are made of the chromosomes Exact copies are termed sister chromatids Sister chromatids are joined in the middle at the centromere

17. Mitosis - Prophase Nuclear envelope breaks down Spindle apparatus forms Chromosomes thicken

20. Mitosis - Metaphase The microtubules of the spindle apparatus attach to the centromere of sister chromatids Sister chromatids line up along the cell equator

23. Mitosis - Anaphase Sister chromatids move to opposite poles of the cell

26. Mitosis - Telophase Sister chromatids have arrived at opposite poles of the cell Nuclear envelope reforms around each set of chromosomes Cytoplasm cleaves yielding 2 identical “daughter” cells

29. Meiosis This cell division occurs in the gonads (ovaries and testes) Resulting cells are the egg and sperm each with 23 chromosomes Chromosome numbers are cut in half from 46 to 23 Diploid (2n) to Haploid (n)

31. Interphase Interphase in meiosis is just as it was in mitosis Chromosomes are copied

32. Meiosis – Prophase I Nuclear envelope breaks down Chromosomes thicken Spindle apparatus forms Homologous chromosomes pair up (this does NOT happen in mitosis) Crossing over occurs randomly

35. Meiosis – Metaphase I Homologous pairs line up along the equator Lining up is random resulting in more variation

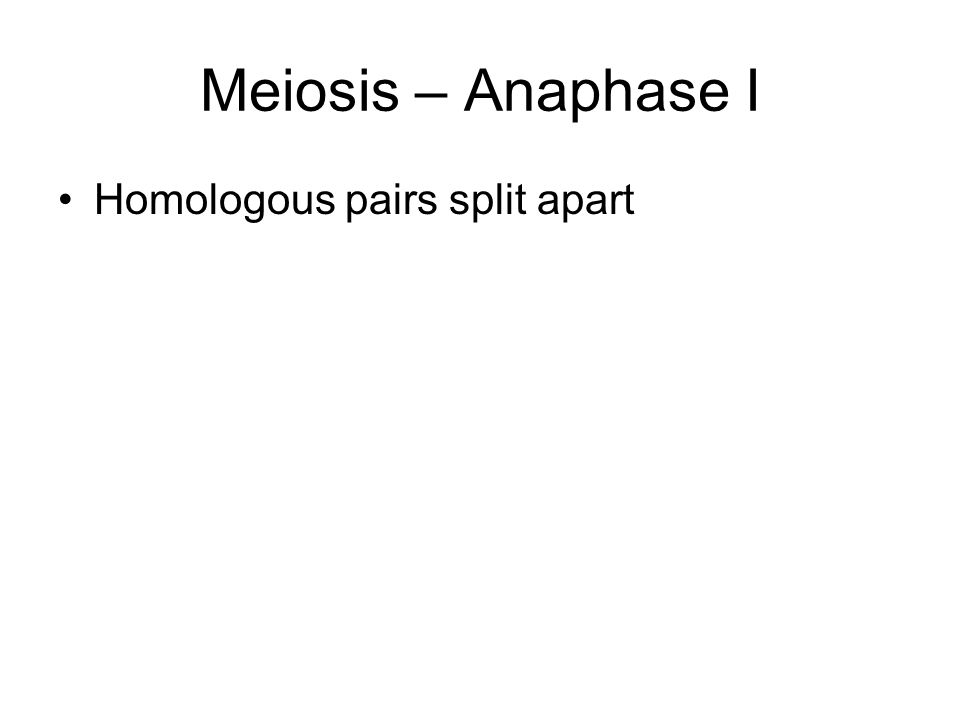

37. Meiosis – Anaphase I Homologous pairs split apart

39. Meiosis – Telophase I Chromosomes have arrive at opposite poles New nuclear envelope reforms 2 new cells are NOT identical and are still diploid

41. Meiosis - Prophase II Now, onto Prophase II without an interphase stage Chromosomes thicken Nuclear envelope breaks down Spindle apparatus forms

43. Meiosis – Metaphase II Single chromosomes line up on the equator

45. Meiosis – Anaphase II Chromosomes split apart But, chromosomes are NOT identical

47. Meiosis – Telophase II Chromosomes have arrived at opposite poles Nuclear envelope reforms 4 resulting haploid cells Each of the four cells is genetically different

49. Chromosomal inheritance Sex determination XX is female XY is male

50. Downs Syndrome Mistake during meiosis Commonly due to an extra chromosome # 21
