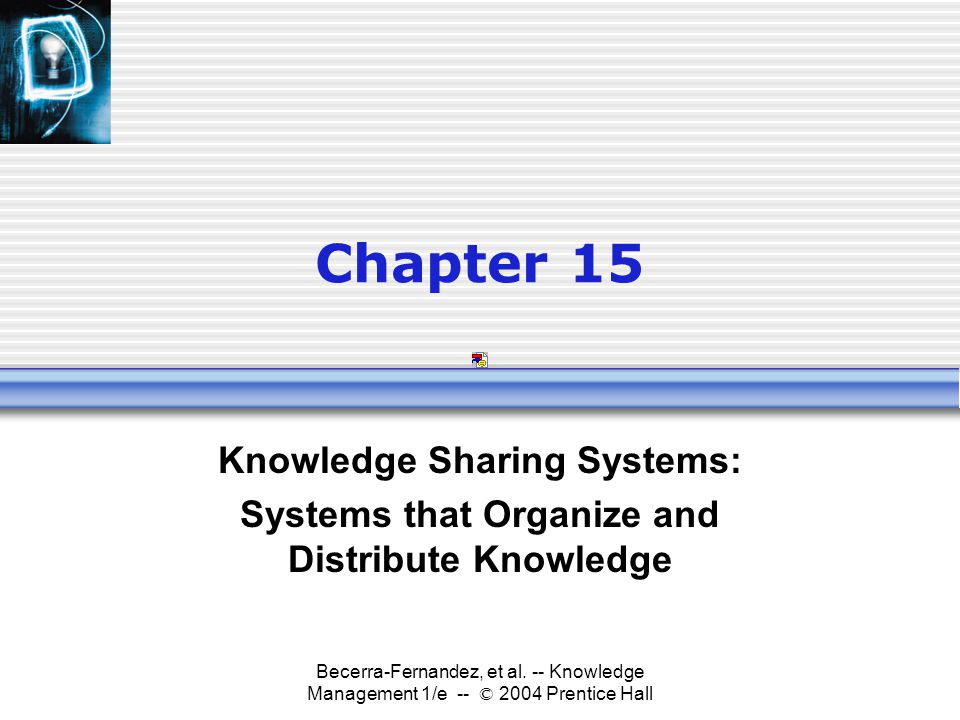

1. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Chapter 15 Knowledge Sharing Systems: Systems that Organize and Distribute Knowledge

2. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Chapter Objectives  To explain how knowledge sharing systems help users share their knowledge, both tacit and explicit:  For tacit knowledge – systems utilized by communities of practice, particularly those that meet virtually  For explicit knowledge - knowledge repositories To present the different types of knowledge repositories To demonstrate how sharing systems serve to organize and distribute organizational and individual knowledge

3. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Corporate Memory Corporate Memory (also known as an organizational memory) is made up of the aggregate intellectual assets of an organization. It is the combination of both explicit and tacit knowledge. The loss of Corporate Memory often results from a lack of appropriate technologies for the organization and exchange of documents.

4. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall What are Knowledge Sharing Systems Systems that enable members of an organization to acquire tacit and explicit knowledge from each other. Knowledge markets that must attract a critical volume of knowledge seekers and knowledge owners in order to be effective.

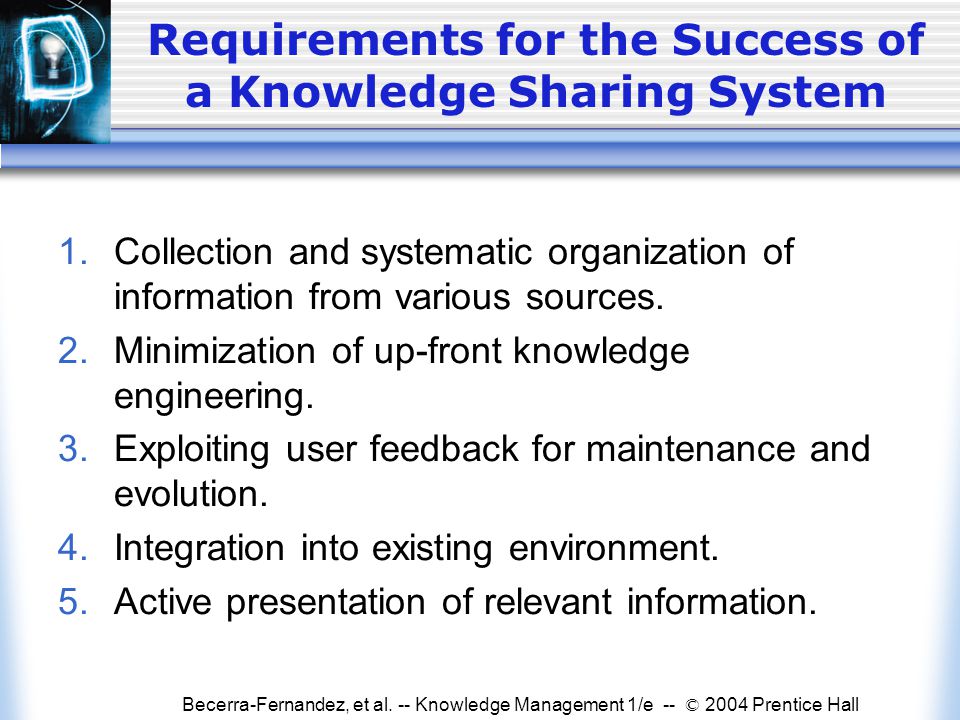

5. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Requirements for the Success of a Knowledge Sharing System 1.Collection and systematic organization of information from various sources. 2.Minimization of up-front knowledge engineering. 3.Exploiting user feedback for maintenance and evolution. 4.Integration into existing environment. 5.Active presentation of relevant information.

6. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Barriers to the use of Knowledge Sharing Systems Many organizations, specifically science and engineering-oriented firms, are characterized by a culture known as the ‘not-invented-here syndrome’. Organizations suffering from this syndrome tend to essentially reward employees for ‘inventing’ new solutions, rather than re-using solutions developed within and outside the organization.

7. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Specific Types of Knowledge Sharing Systems Knowledge sharing systems are classified according to their attributes 1. Incident report databases 2. Alert systems 3. Best practices databases 4. Lessons-learned systems 5. Expertise locator systems

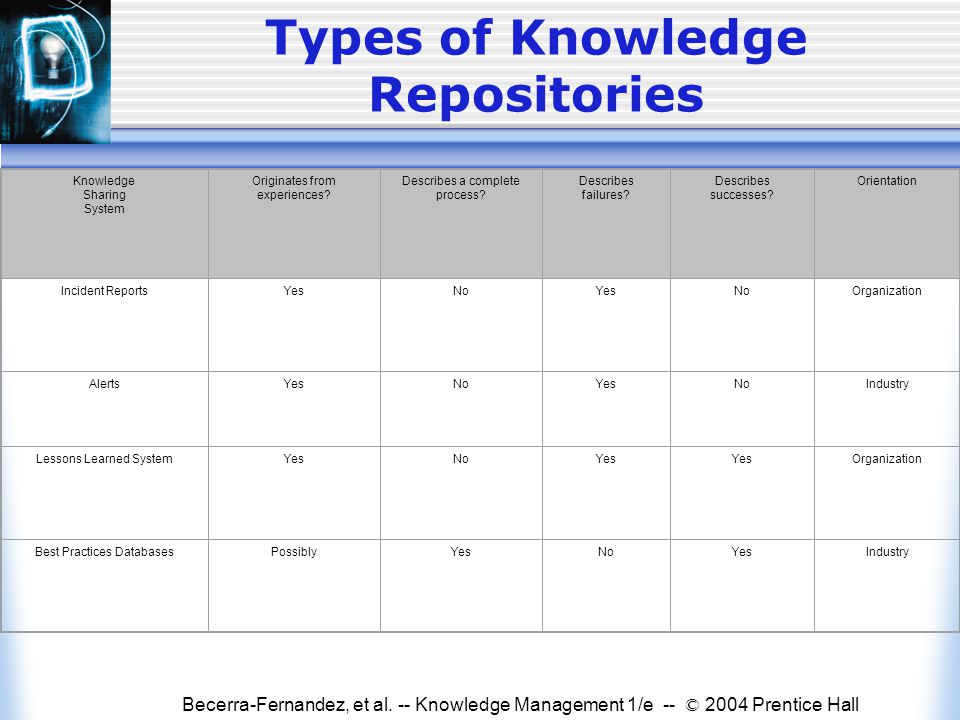

8. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Types of Knowledge Repositories Knowledge Sharing System Originates from experiences? Describes a complete process? Describes failures? Describes successes? Orientation Incident ReportsYesNoYesNoOrganization AlertsYesNoYesNoIndustry Lessons Learned SystemYesNoYes Organization Best Practices DatabasesPossiblyYesNoYesIndustry

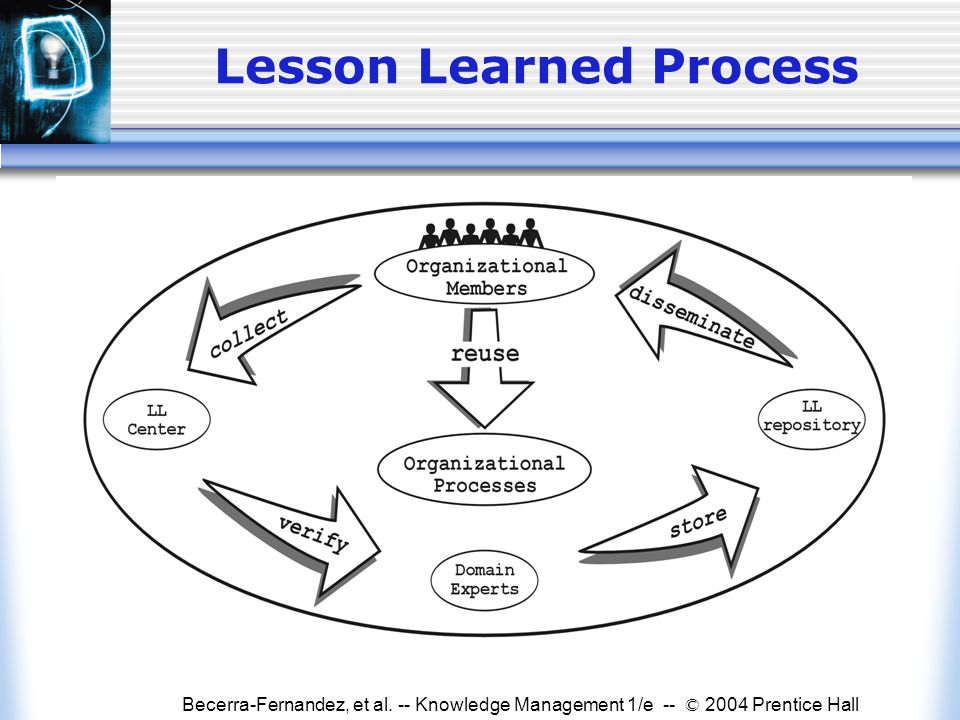

9. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Lesson Learned Process

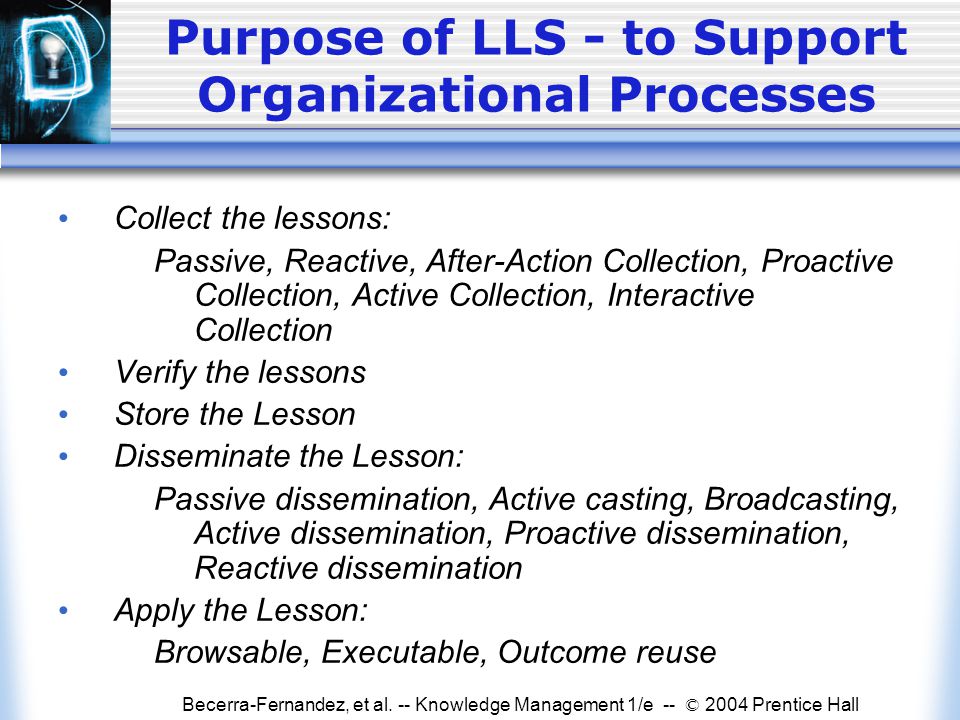

10. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Purpose of LLS - to Support Organizational Processes Collect the lessons: Passive, Reactive, After-Action Collection, Proactive Collection, Active Collection, Interactive Collection Verify the lessons Store the Lesson Disseminate the Lesson: Passive dissemination, Active casting, Broadcasting, Active dissemination, Proactive dissemination, Reactive dissemination Apply the Lesson: Browsable, Executable, Outcome reuse

11. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Expertise-Locator Knowledge Sharing Systems Goal: to catalog knowledge competencies, including information not typically captured by human resources systems, in a way that could later be queried across the organization to help locate intellectual capital. Significant challenge in the development of ELS, knowledge repositories, and digital libraries, deals with the accurate development of knowledge taxonomies. Taxonomies, also called classification or categorization schemes, are considered to be knowledge organization systems that serve to group objects together based on a particular characteristic.

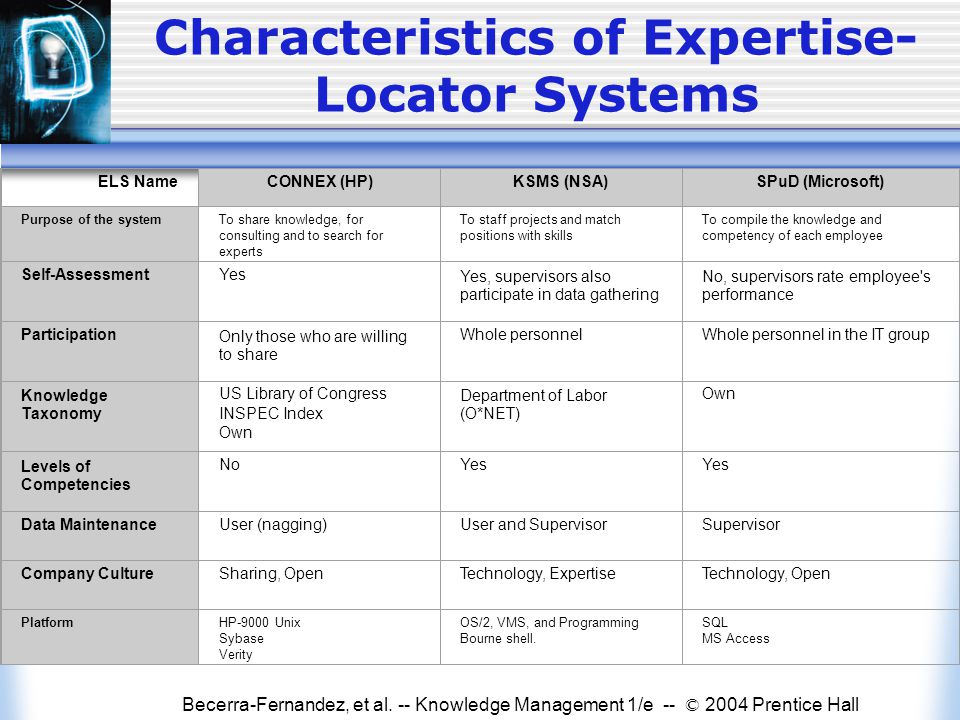

12. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Characteristics of Expertise- Locator Systems ELS NameCONNEX (HP)KSMS (NSA)SPuD (Microsoft) Purpose of the systemTo share knowledge, for consulting and to search for experts To staff projects and match positions with skills To compile the knowledge and competency of each employee Self-AssessmentYesYes, supervisors also participate in data gathering No, supervisors rate employee's performance ParticipationOnly those who are willing to share Whole personnelWhole personnel in the IT group Knowledge Taxonomy US Library of Congress INSPEC Index Own Department of Labor (O*NET) Own Levels of Competencies NoYes Data MaintenanceUser (nagging)User and SupervisorSupervisor Company CultureSharing, OpenTechnology, ExpertiseTechnology, Open PlatformHP-9000 Unix Sybase Verity OS/2, VMS, and Programming Bourne shell. SQL MS Access

13. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Case Study - SAGE The purpose of Searchable Answer Generating Environment (SAGE) is to create a searchable repository of university experts in the State of Florida. www.sage.fiu.edu

14. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall SAGE Architecture

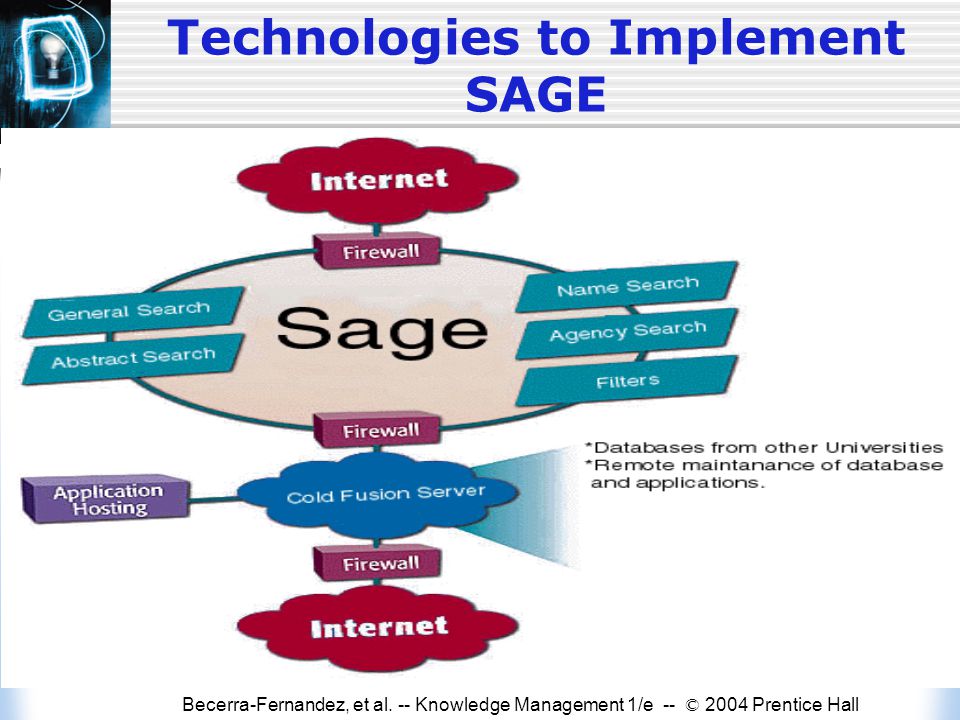

15. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Technologies to Implement SAGE

16. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Case Study – Expert Seeker Expert Seeker is an organizational expertise- locator KMS used to locate experts at NASA. The main difference between Expert Seeker and SAGE is that the former searches for expertise at NASA (KSC and GSFC), while the latter is on the Web and seeks expertise at various universities.

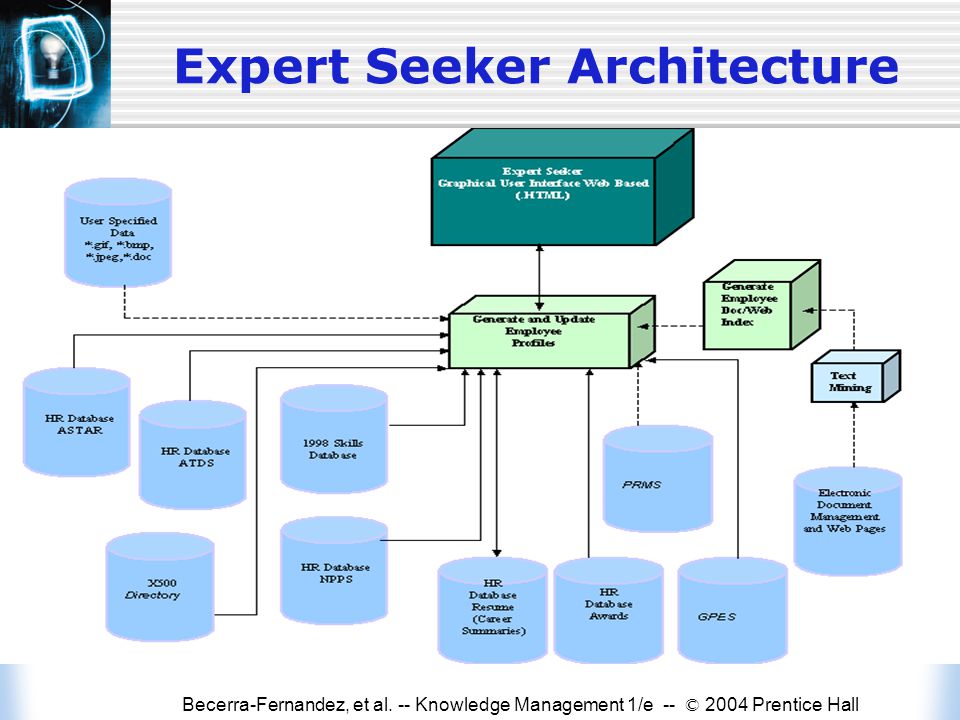

17. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Expert Seeker Architecture

18. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall KM Systems to Share Tacit Knowledge To create a cultural environment that encourages the sharing of knowledge, some organizations are creating knowledge communities. A community of practice is an organic and self- organized group of individuals who are dispersed geographically or organizationally but communicate regularly to discuss issues of mutual.

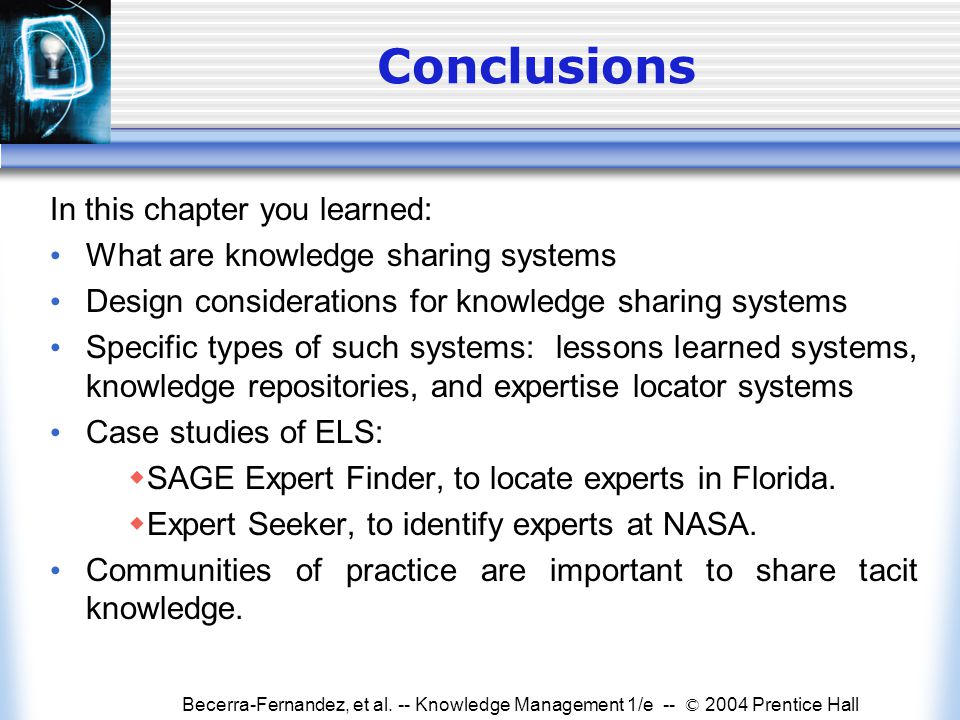

19. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Conclusions In this chapter you learned: What are knowledge sharing systems Design considerations for knowledge sharing systems Specific types of such systems: lessons learned systems, knowledge repositories, and expertise locator systems Case studies of ELS:  SAGE Expert Finder, to locate experts in Florida.  Expert Seeker, to identify experts at NASA. Communities of practice are important to share tacit knowledge.

20. Becerra-Fernandez, et al. -- Knowledge Management 1/e -- © 2004 Prentice Hall Chapter 15 Knowledge Sharing Systems: Systems that Organize and Distribute Knowledge
