1. Retrieval of Separated Endodontic Files and Other Intra-canal Obstructions Using the IRS Core Drill and Instrument Removal System

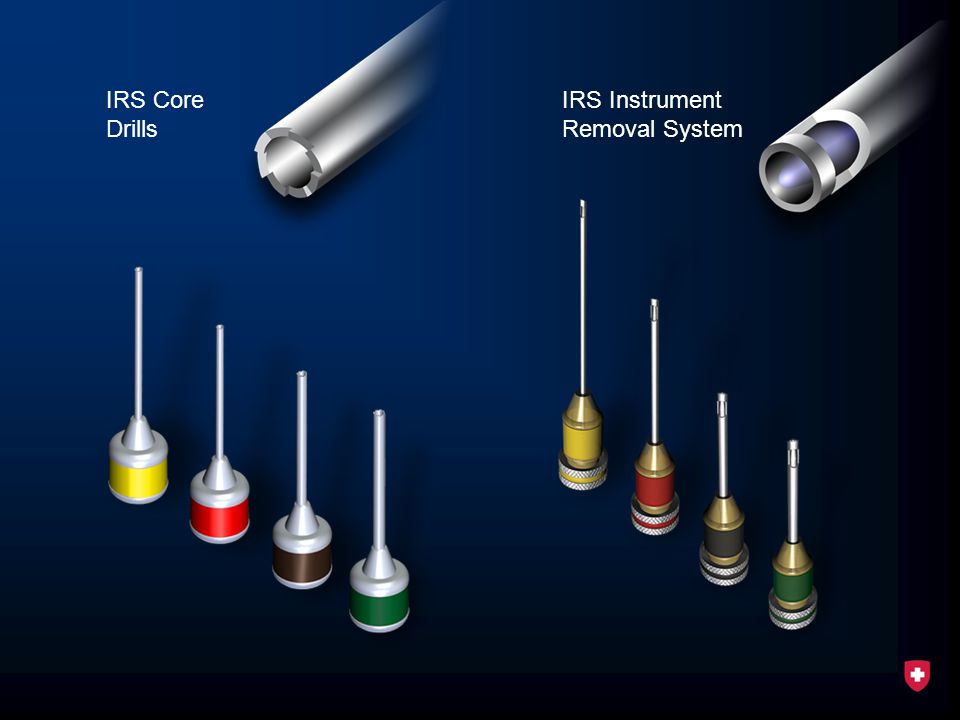

2. IRS Core Drills IRS Instrument Removal System

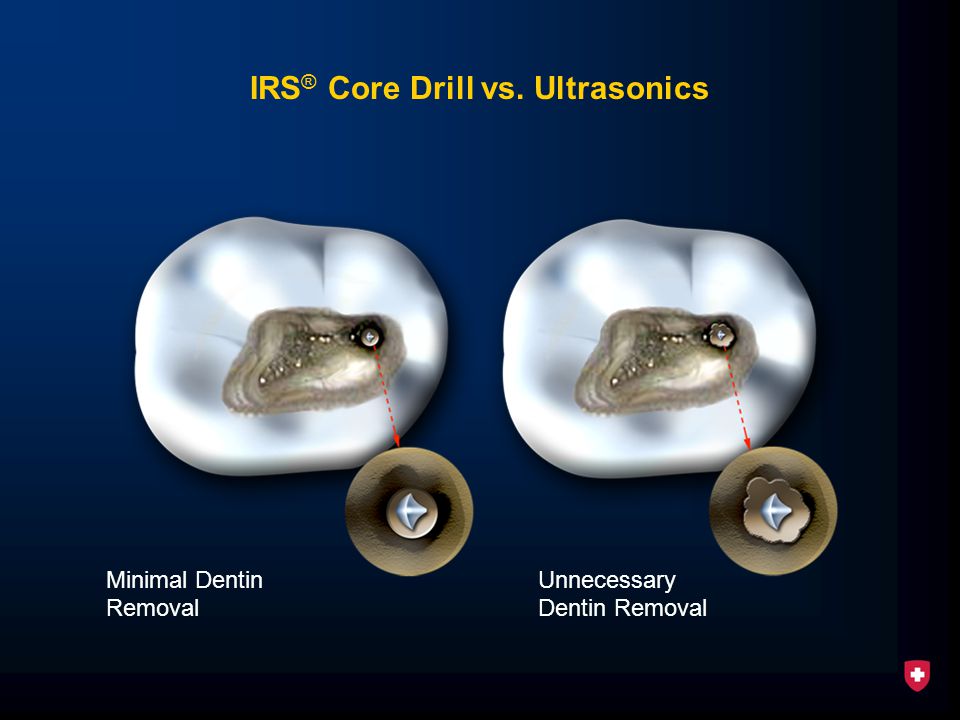

3. IRS ® Core Drill vs. Ultrasonics Minimal Dentin Removal Unnecessary Dentin Removal

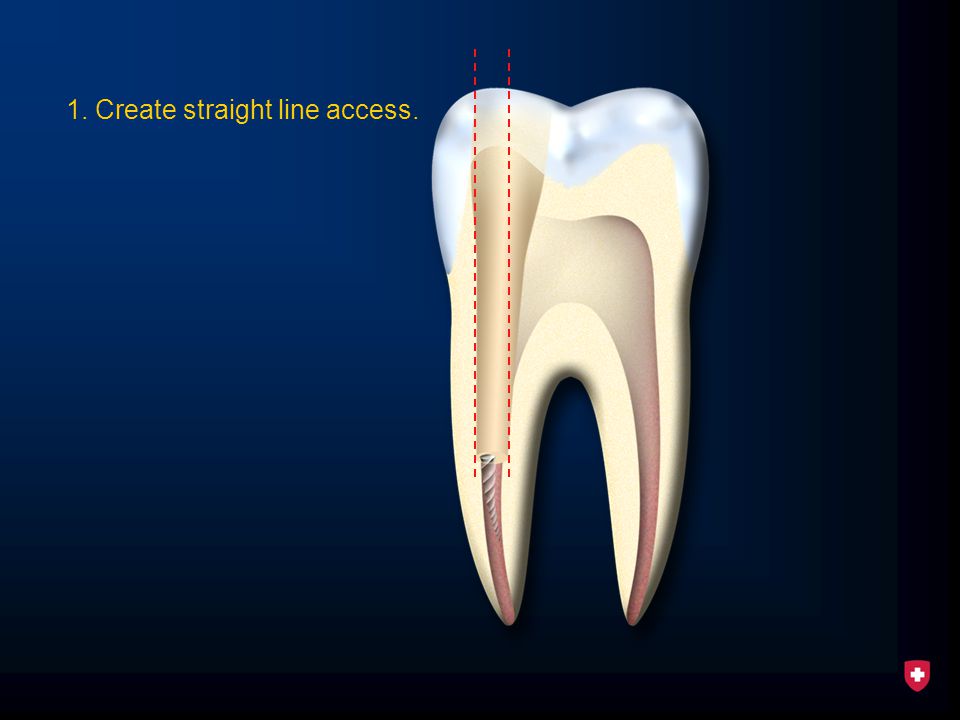

4. 1. Create straight line access.

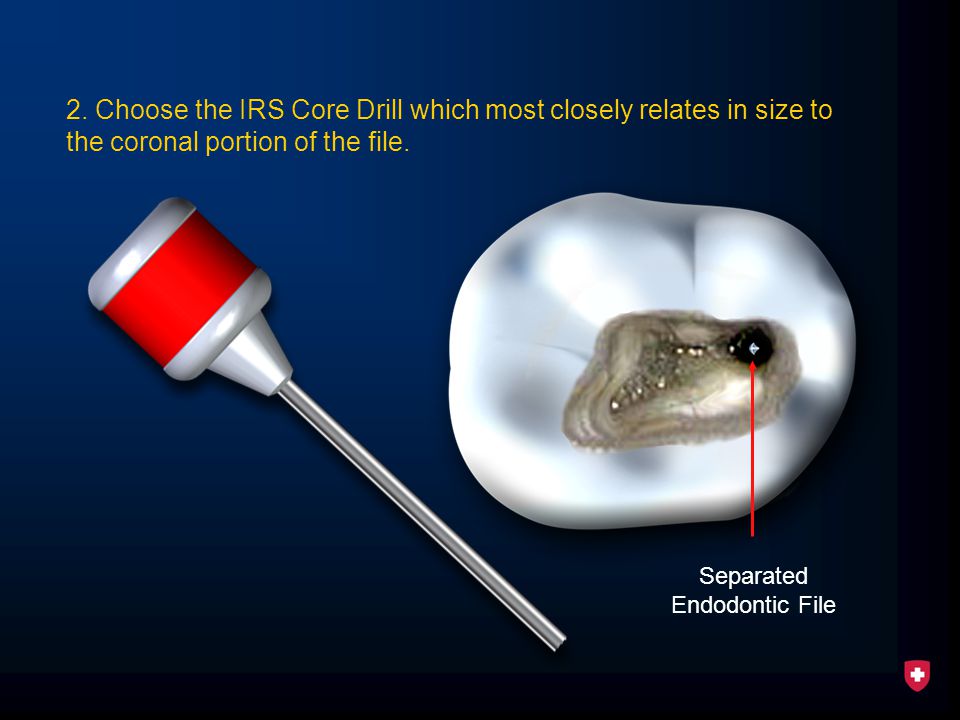

5. 2. Choose the IRS Core Drill which most closely relates in size to the coronal portion of the file. Separated Endodontic File

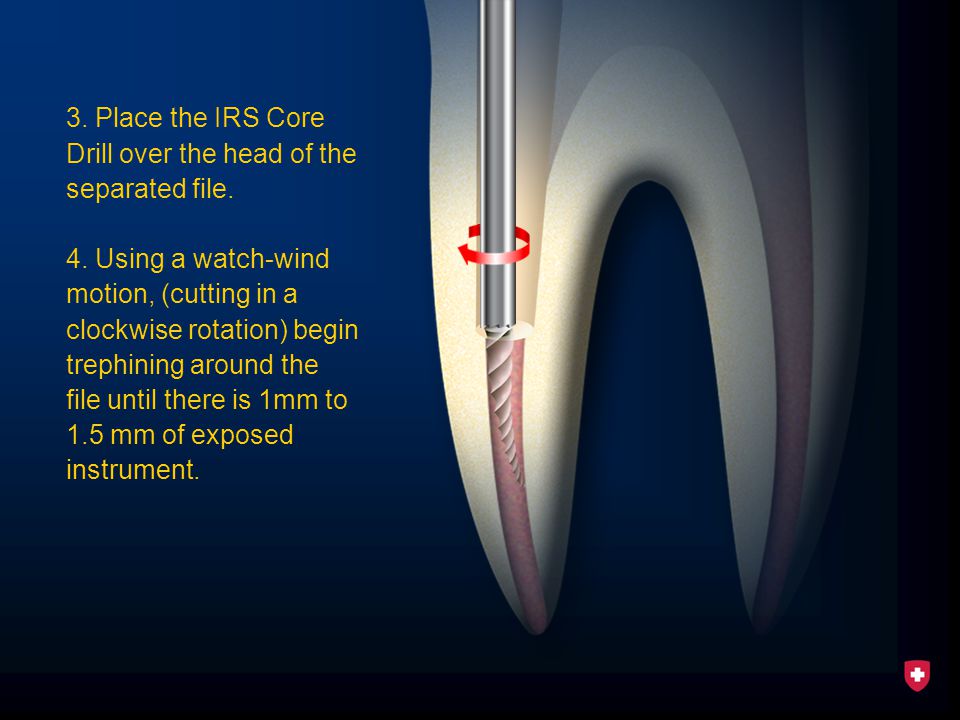

6. 3. Place the IRS Core Drill over the head of the separated file. 4. Using a watch-wind motion, (cutting in a clockwise rotation) begin trephining around the file until there is 1mm to 1.5 mm of exposed instrument.

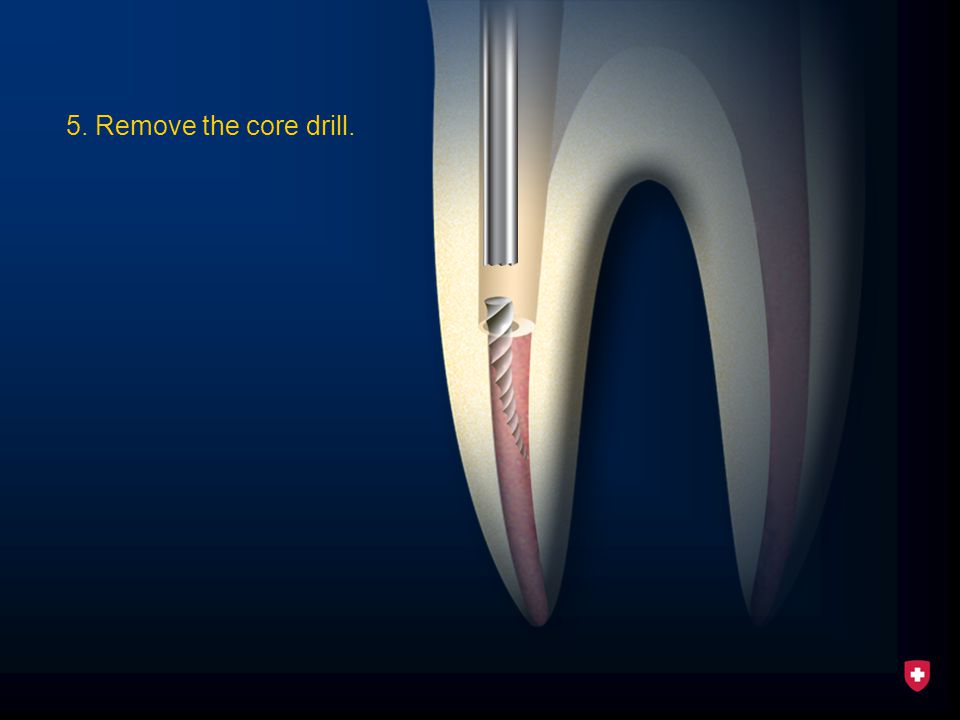

7. 5. Remove the core drill.

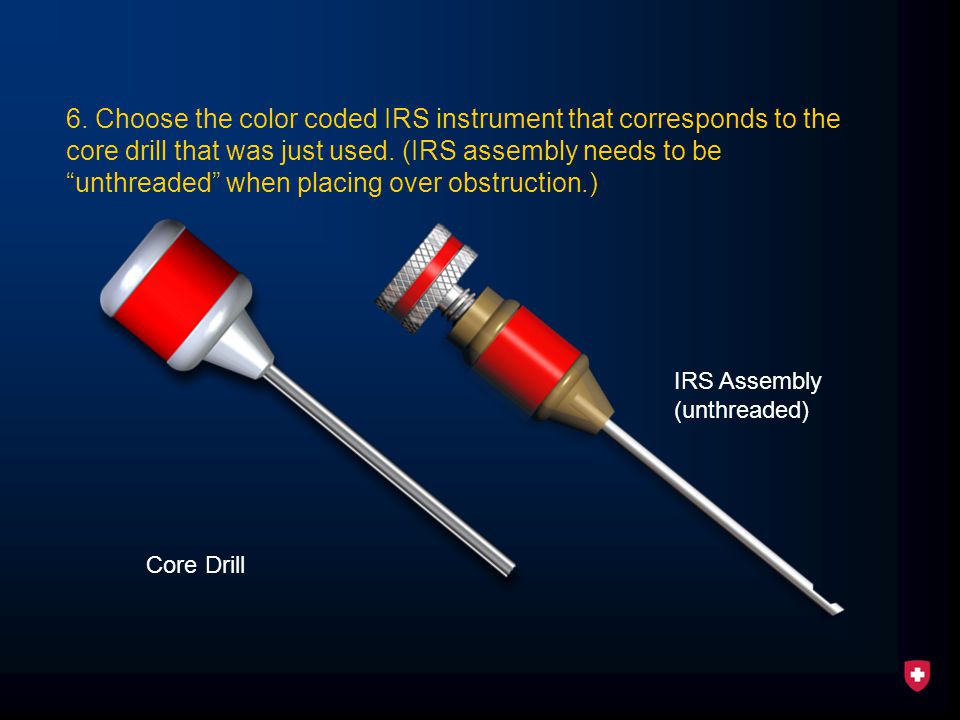

8. 6. Choose the color coded IRS instrument that corresponds to the core drill that was just used. (IRS assembly needs to be “unthreaded” when placing over obstruction.) Core Drill IRS Assembly (unthreaded)

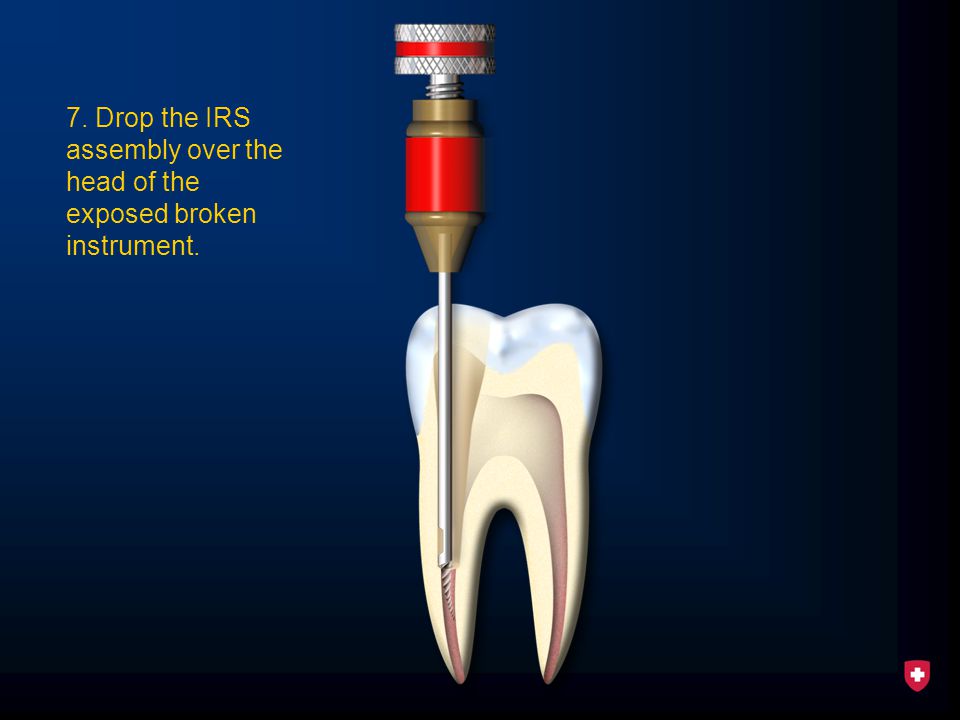

9. 7. Drop the IRS assembly over the head of the exposed broken instrument.

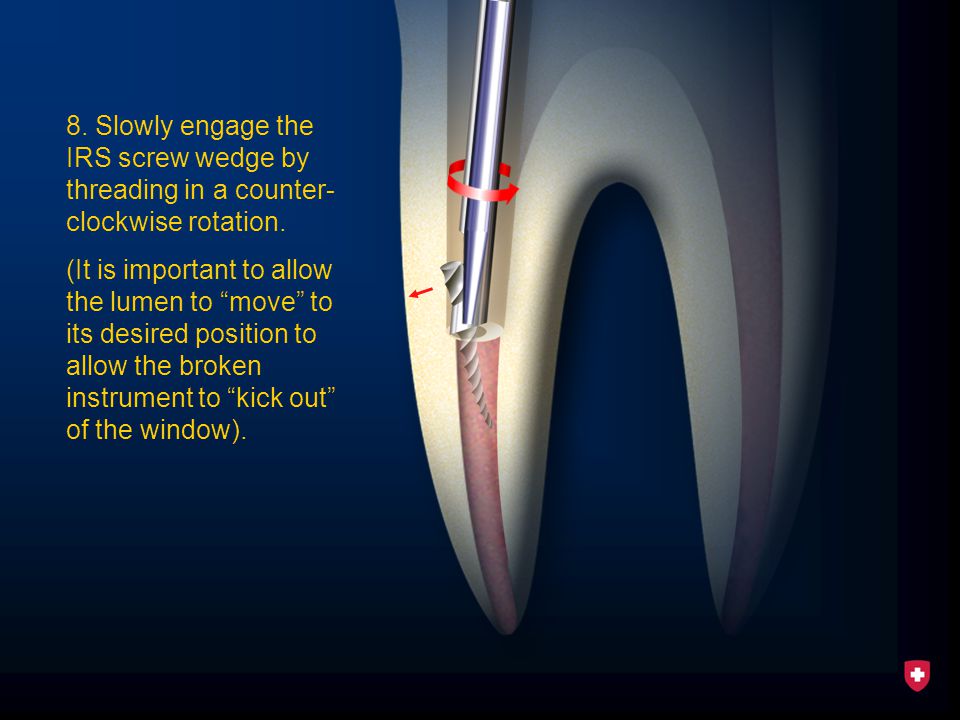

10. 8. Slowly engage the IRS screw wedge by threading in a counter- clockwise rotation. (It is important to allow the lumen to “move” to its desired position to allow the broken instrument to “kick out” of the window).

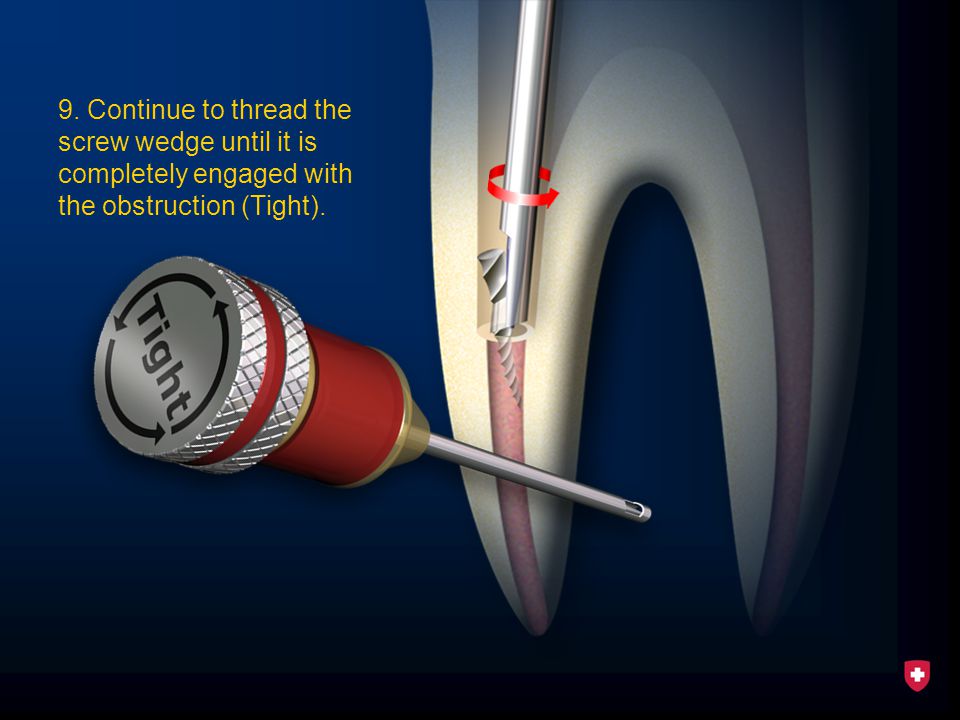

11. 9. Continue to thread the screw wedge until it is completely engaged with the obstruction (Tight).

12. 10. Gently rotate entire assembly using a watch- wind motion to loosen the obstruction. Continue to unwind and lift assembly until obstruction is removed.

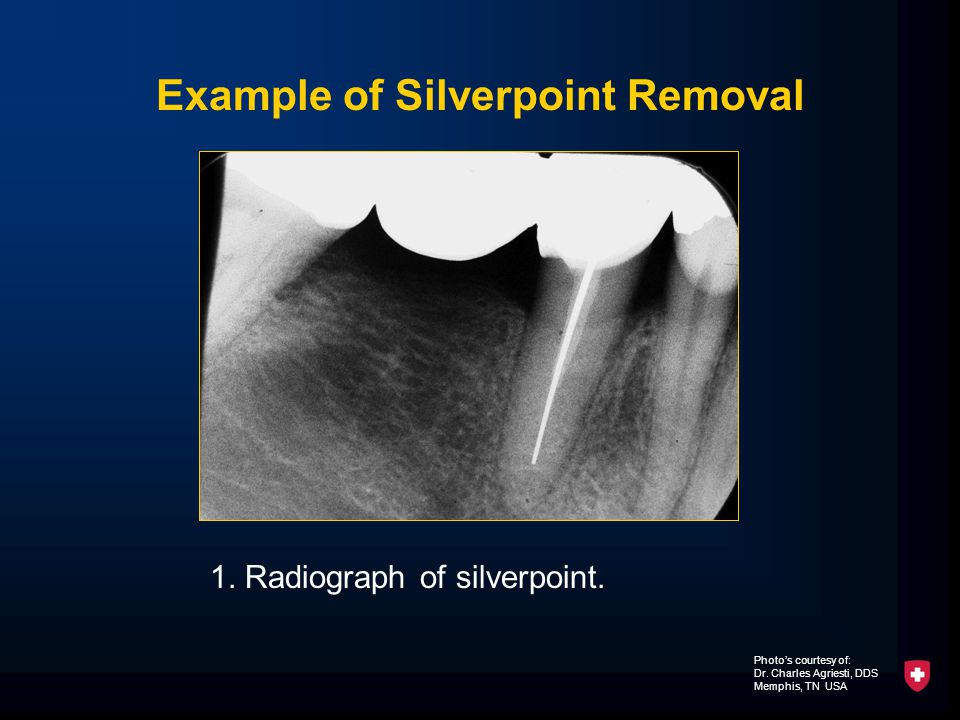

13. Example of Silverpoint Removal 1. Radiograph of silverpoint. Photo’s courtesy of: Dr. Charles Agriesti, DDS Memphis, TN USA

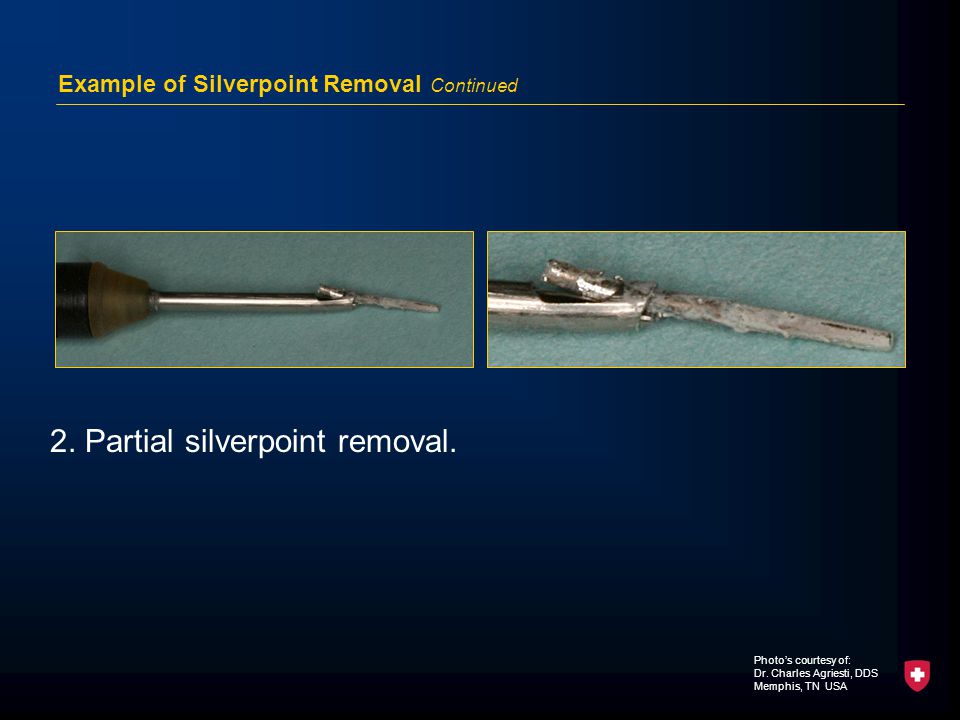

14. Example of Silverpoint Removal Continued 2. Partial silverpoint removal. Photo’s courtesy of: Dr. Charles Agriesti, DDS Memphis, TN USA

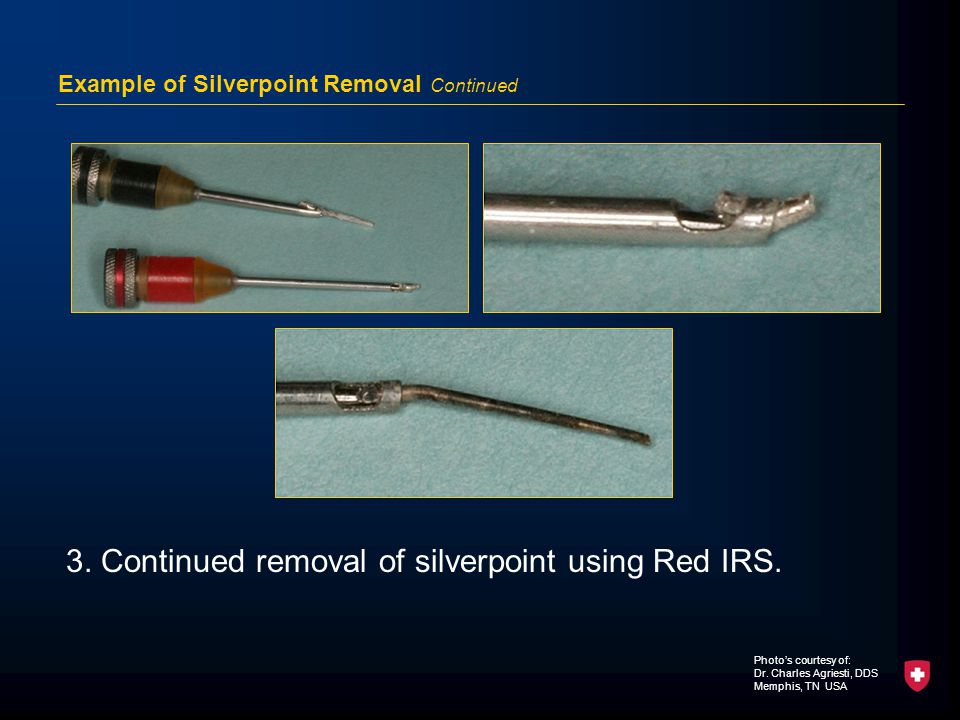

15. Example of Silverpoint Removal Continued 3. Continued removal of silverpoint using Red IRS. Photo’s courtesy of: Dr. Charles Agriesti, DDS Memphis, TN USA

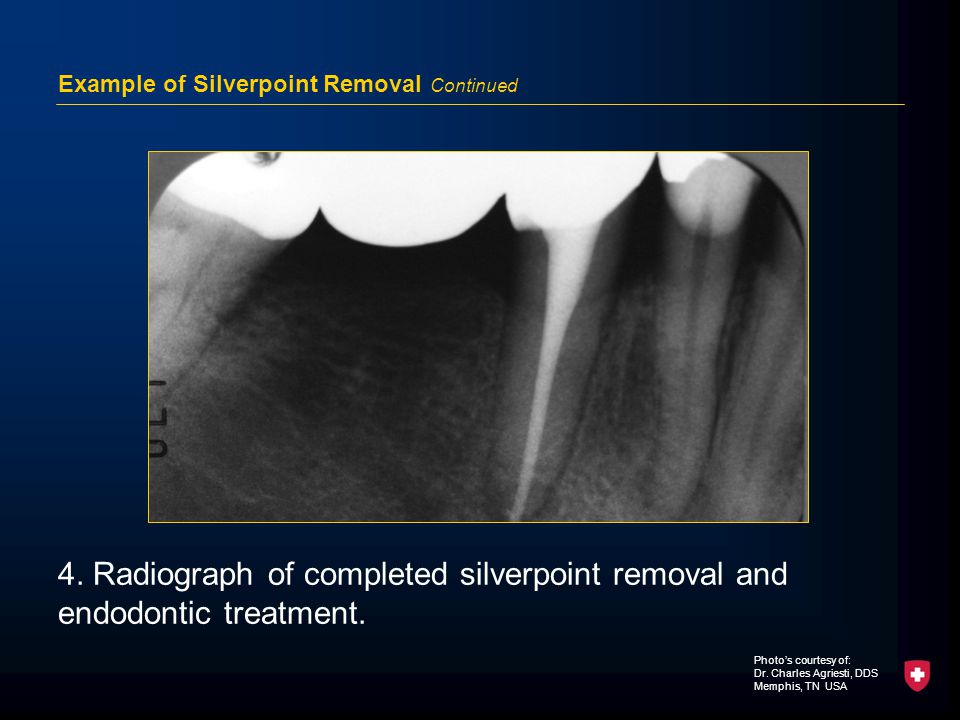

16. Example of Silverpoint Removal Continued 4. Radiograph of completed silverpoint removal and endodontic treatment. Photo’s courtesy of: Dr. Charles Agriesti, DDS Memphis, TN USA

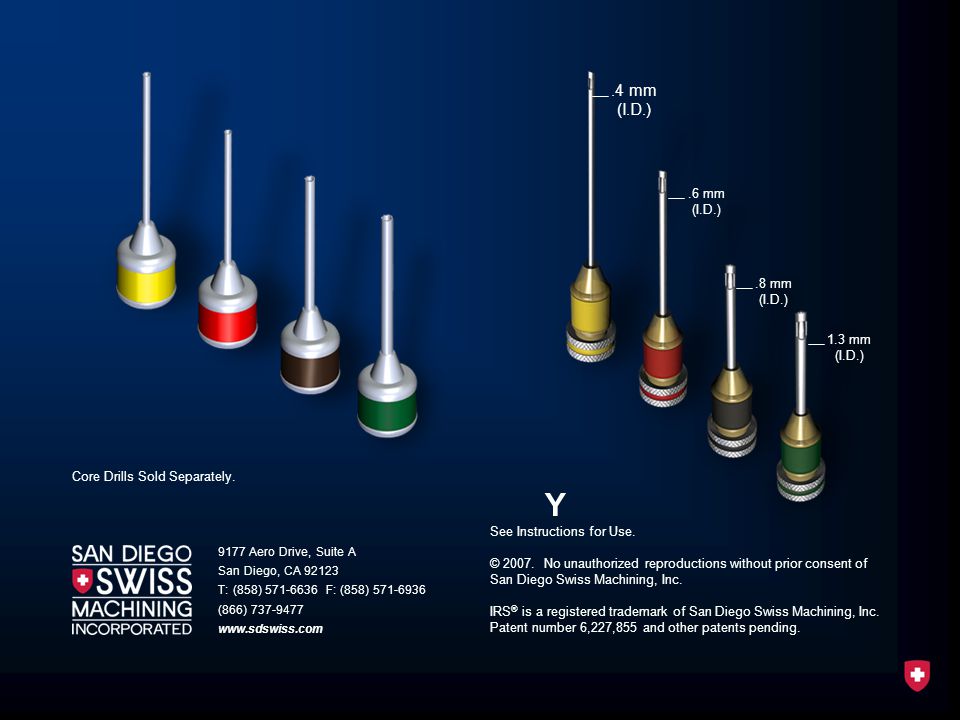

17. Y See Instructions for Use. © 2007. No unauthorized reproductions without prior consent of San Diego Swiss Machining, Inc. IRS ® is a registered trademark of San Diego Swiss Machining, Inc. Patent number 6,227,855 and other patents pending. 9177 Aero Drive, Suite A San Diego, CA 92123 T: (858) 571-6636 F: (858) 571-6936 (866) 737-9477 www.sdswiss.com.4 mm (I.D.).6 mm (I.D.).8 mm (I.D.) 1.3 mm (I.D.) Core Drills Sold Separately.
