1. MDR-304 Digital Video Recorder

2. Can do: - Reliable real time recording of vehicle interiors & surrounding road environment. - Removable recorder unit with USB connector for easy extraction and portability. - Embed GPS data with optional GPS module then synchronise with virtual globe programs such as Google Earth Plus to indicate your exact vehicle position. - 4 levels of image quality at up to 25fps (PAL). - Up to 30 hours of recording time at highest resolution and frame rate. - Record on manual activation, movement or alarm. - Endless loop recording or stop when hard drive filled. - Save snapshot image & date directly to SD card. - 4 camera inputs & up to 4 way split screen. - Save & load all settings onto SD card for easy unit configuration. - Password lockout disables controls for tamper free operation. - Software for viewing files on PC included. - On-site, PC or TV playback capabilities. - Rapid Search of recordings.

3. Password lockout disables controls for tamper free operation Features Protects against unauthorised use. Disables entire front panel controls. Activated by holding down Enter button for 3 seconds. Deactivate by doing the same then entering password. Comes standard with Keys. Keys used to physically lock and turn unit on/off.

4. Features Removable recorder unit with USB connector Quickly and easily remove inner recorder unit. Easily connect recorder unit to PC with USB cable. View files straight off recorder unit with HDD Viewer. Removable recorder units can be swapped into other outer caddies.

5. Features 4 levels of image quality at up to 25 fps (PAL) Changeable frame rate and image quality levels. Disable audio options saving HD space. Frame rate options ranging from 25 frames per second to 1 frame captured every 16 seconds.

6. Features Up to 60 hours of recording time at highest resolution and frame rate 60.8 hours of recording time at best settings with 320 GB HDD. Up to 36,640 hours of recording time on lowest settings with 320 GB HDD.

7. Features Record on manual activation, movement or alarm Manually record at any time with a push of a button. Program MDR-304 to automatically change record settings. Record on motion detection.

8. Features Endless loop recording or stop when hard drive filled Continuous recording. Stop recording when hard drive fills. Auto erase from 1 to 365 days recording. Display hard drive capacity status bar.

9. Features Save snapshot image & data directly to SD card Save and delete up to 3000 single images on SD card. Save video files to SD card. Save system settings to SD card.

10. Features Save & load all settings onto SD card for easy unit configuration Save and load complete system configurations to SD card. Streamline fleet configurations. Save time and keep settings consistent.

11. Features Software for viewing files on PC included HDD Viewer, comprehensive file reviewing software. Comes standard with kit. Designed specifically for MDR-304. Save single frames as JPG images. Export video as AVI movies. Synchronise with virtual globe programs.

12. Features On-site, PC or TV playback capabilities Review recorded video anywhere. Immediately playback video within vehicle. Review recorded video on PC, TV or in cab monitor. AV outputs on both removable recorder unit & caddy. Video plays either straight off recorder unit or using HDD Viewer.

13. Features Rapid search of recordings Sort video archives for easier searches. Thumbnail view recorded videos. Speed playback up to 100x faster. Slow playback down to 1/16 speed.

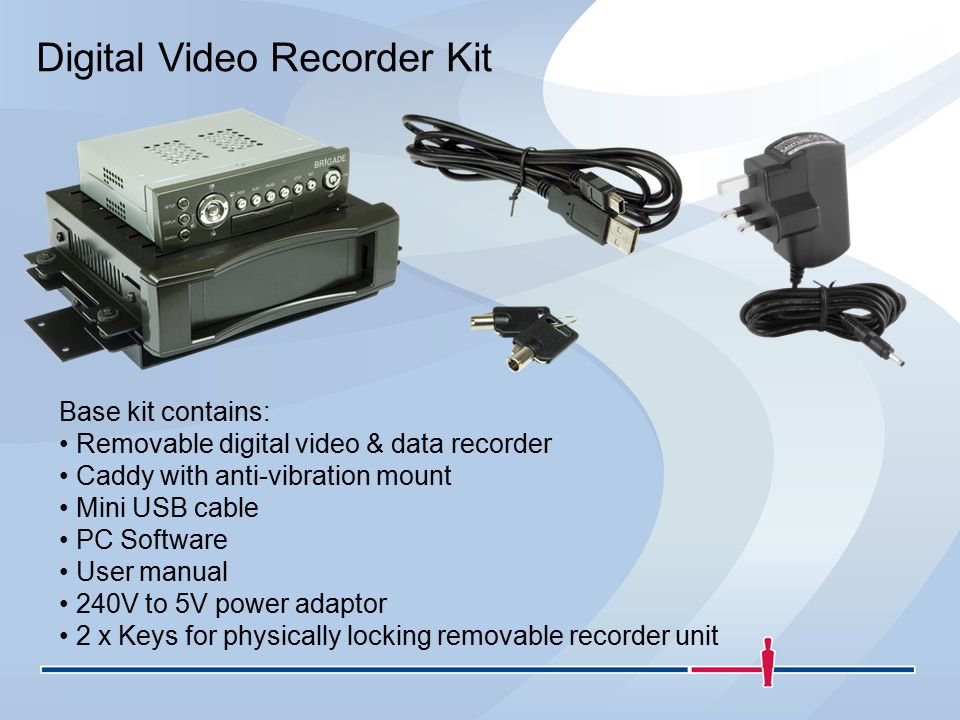

14. Digital Video Recorder Kit Base kit contains: Removable digital video & data recorder Caddy with anti-vibration mount Mini USB cable PC Software User manual 240V to 5V power adaptor 2 x Keys for physically locking removable recorder unit

15. Digital Video Recorder Camera Adaptors: Part No. AC-301 Suits Essential Camera Monitor Systems Part No. AC-302 Suits Elite + Extreme Camera Monitor Systems

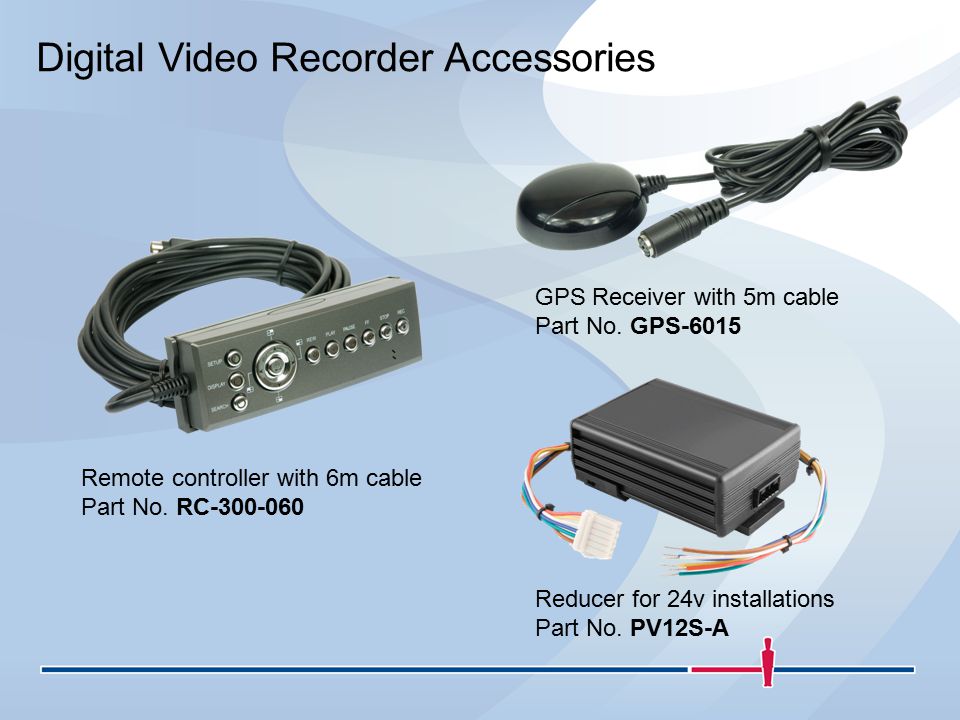

16. Digital Video Recorder Accessories GPS Receiver with 5m cable Part No. GPS-6015 Remote controller with 6m cable Part No. RC-300-060 Reducer for 24v installations Part No. PV12S-A

17. DVR Software – HDD Viewer

19. DVR Software – HDD Viewer & Google Earth Plus

20. MDR 304 General Specifications Voltage:12V Current Draw:2A (Max.) Vibration:1.25 G rms Mechanical Shock:8 G Operation Temperature:0°C to +65°C Camera Connection:4 x 6 Pole Mini DIN Auxiliary Audio In:2 x RCA Auxiliary Video Out:1 x RCA Auxiliary Audio Out:1 x RCA Communication Port:1 x RS-232 Auxiliary Inputs:SD Card, Mini USB GPS Supported:Yes Recording Rate:1 frame every 16 seconds up to 25 fps (PAL) Recording Capacity:Best Quality: 3.8Hrs per 20GB Basic Quality: 2290Hrs per 20GB Hard Drive Size Options80, 120, 160, 250, 320GB Resolution:720 x 576 Pixels (PAL) Alarm Recording:Pre-Alarm / Post Alarm Window Divisions:1/2/3/4 Search:Record List / Event List / Time & Date / Thumbnail Fast Search:1x, 2x, 4x, 8x, 16x, 30x, 100x Slow Search:1/2x, 1/4x, 1/8x, 1/16x Compression:MPEG Password Protection:Yes, operation-menu setup Certificate:FCC / CE / RoHS / E / e-mark

21. Dimensional Drawing
