2 Quantum Information Stephen M. Barnett University of Strathclyde The Wolfson Foundation

3 1.Probability and Information 2. Elements of Quantum Theory 3. Quantum Cryptography 4. Generalized Measurements 5.Entanglement 6.Quantum Information Processing 7. Quantum Computation 8. Quantum Information Theory 4.1 Ideal von Neumann measurements 4.2 Non-ideal measurements 4.3 Probability operator measures 4.4 Optimised measurements 4.5 Operations

4 Measurement model What are the probabilities for the measurement outcomes? How does the measurement change the quantum state? ‘Black box’ 4.1 Ideal von Neumann measurements

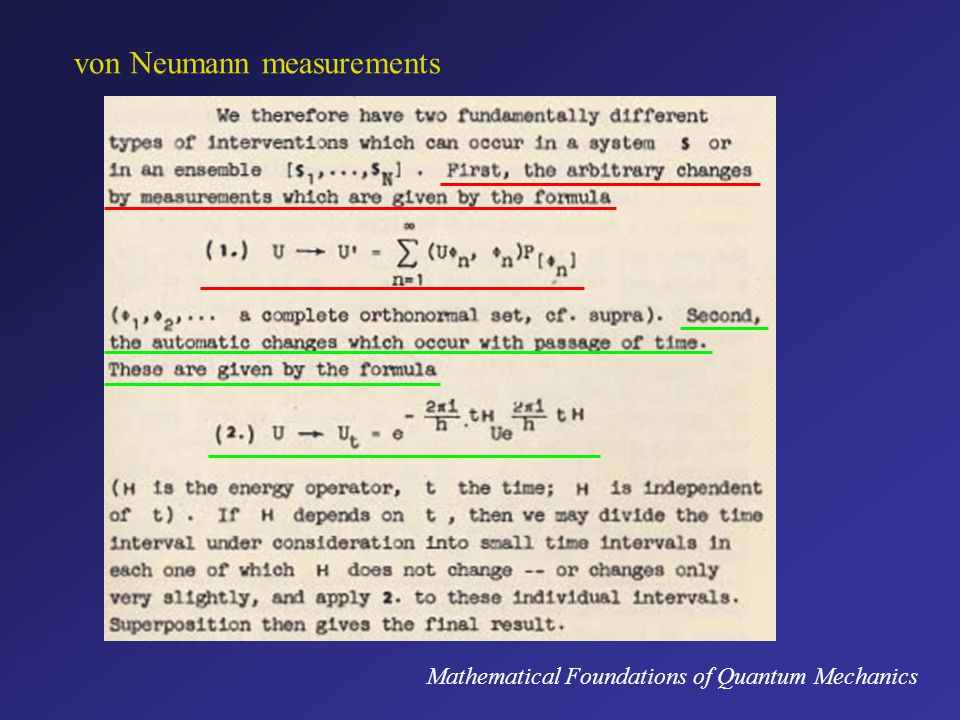

5 von Neumann measurements Mathematical Foundations of Quantum Mechanics

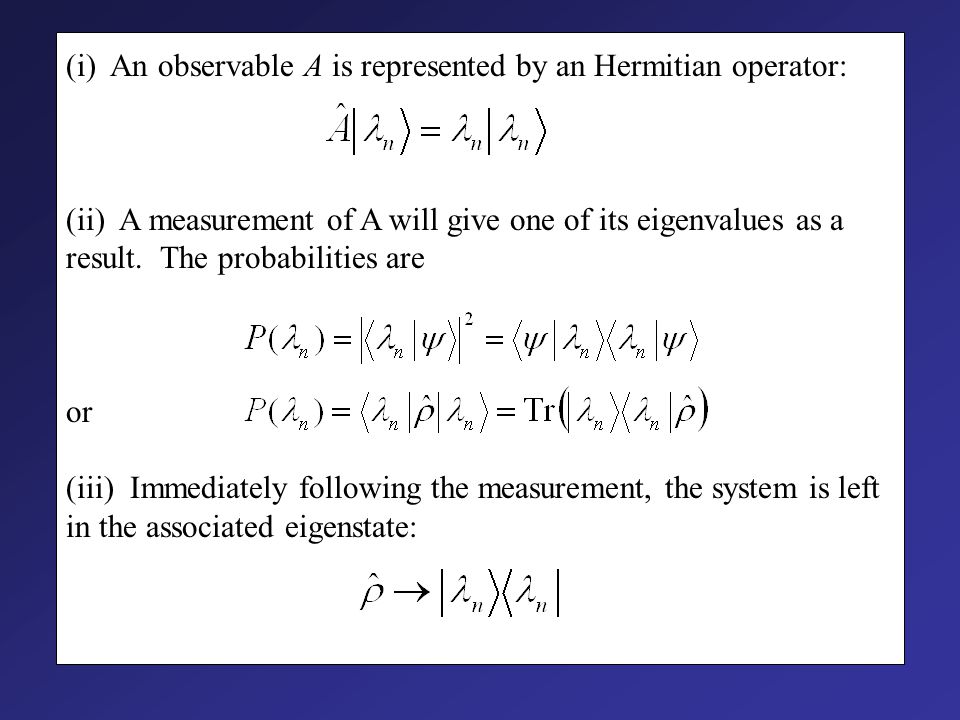

6 (i) An observable A is represented by an Hermitian operator: (ii) A measurement of A will give one of its eigenvalues as a result. The probabilities are or (iii) Immediately following the measurement, the system is left in the associated eigenstate:

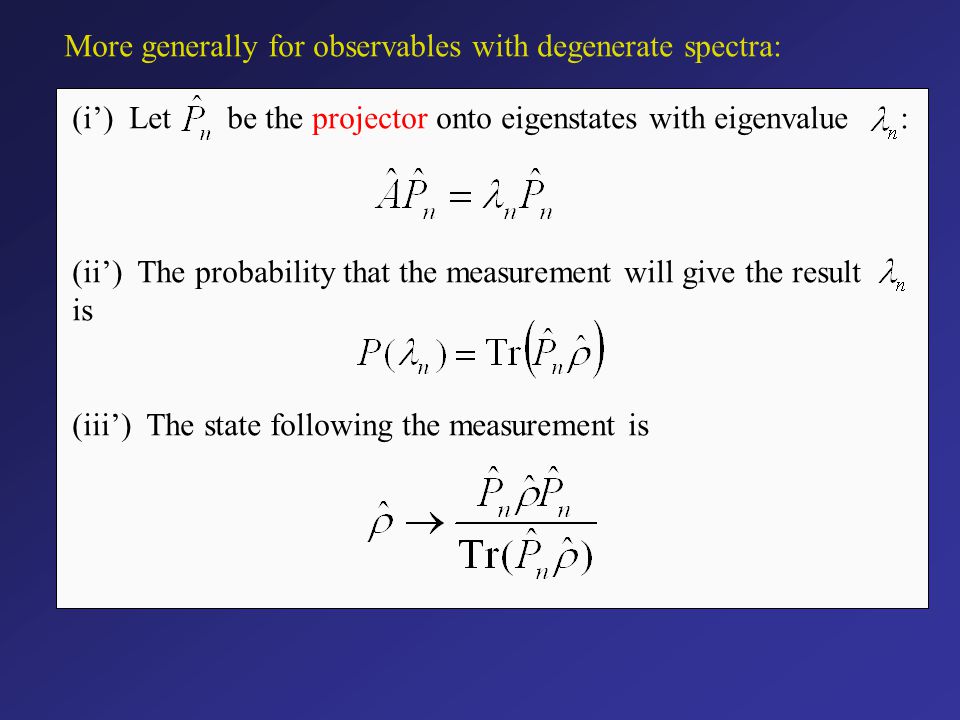

7 More generally for observables with degenerate spectra: (i’) Let be the projector onto eigenstates with eigenvalue : (ii’) The probability that the measurement will give the result is (iii’) The state following the measurement is

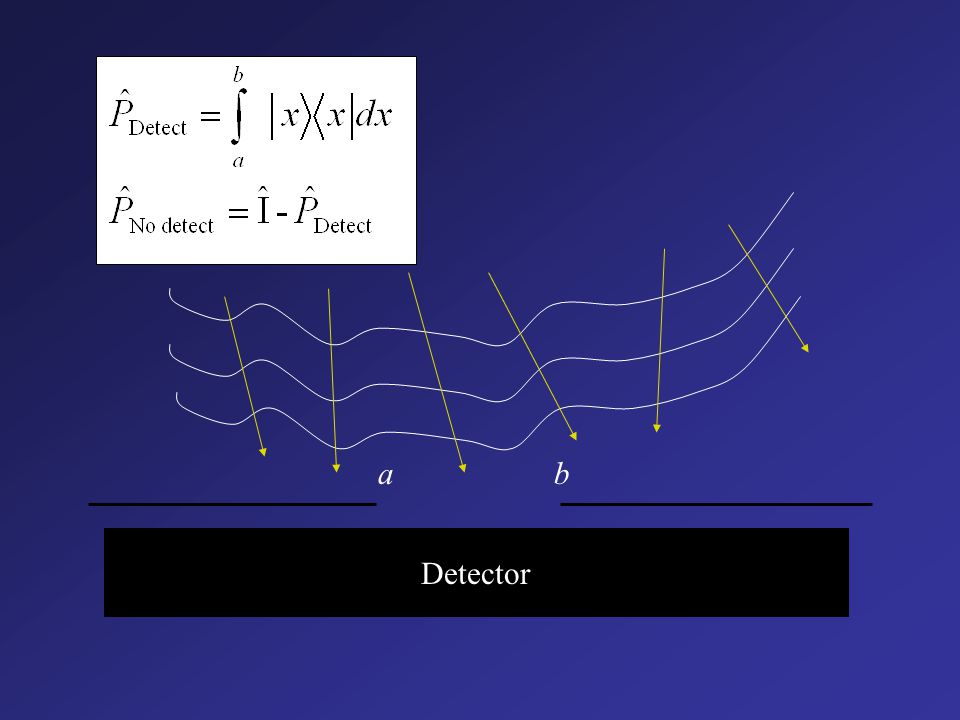

8 Detector ab

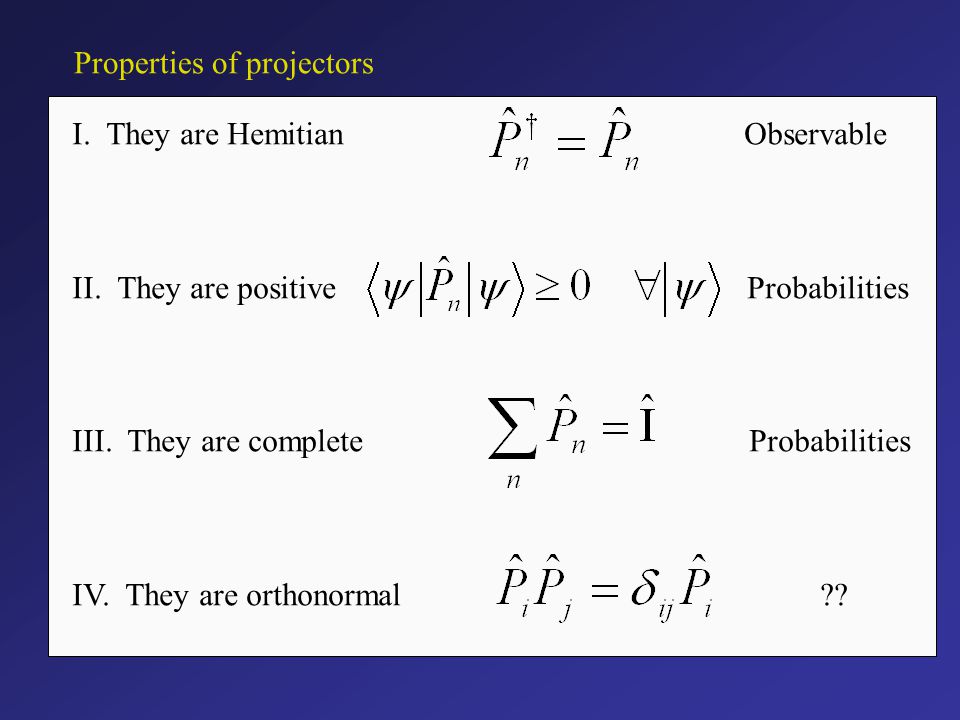

9 Properties of projectors I. They are HemitianObservable II. They are positive Probabilities III. They are complete Probabilities IV. They are orthonormal ??

10 4.2 Non-ideal measurements Real measurements are ‘noisy’ and this leads to errors ‘Black box’

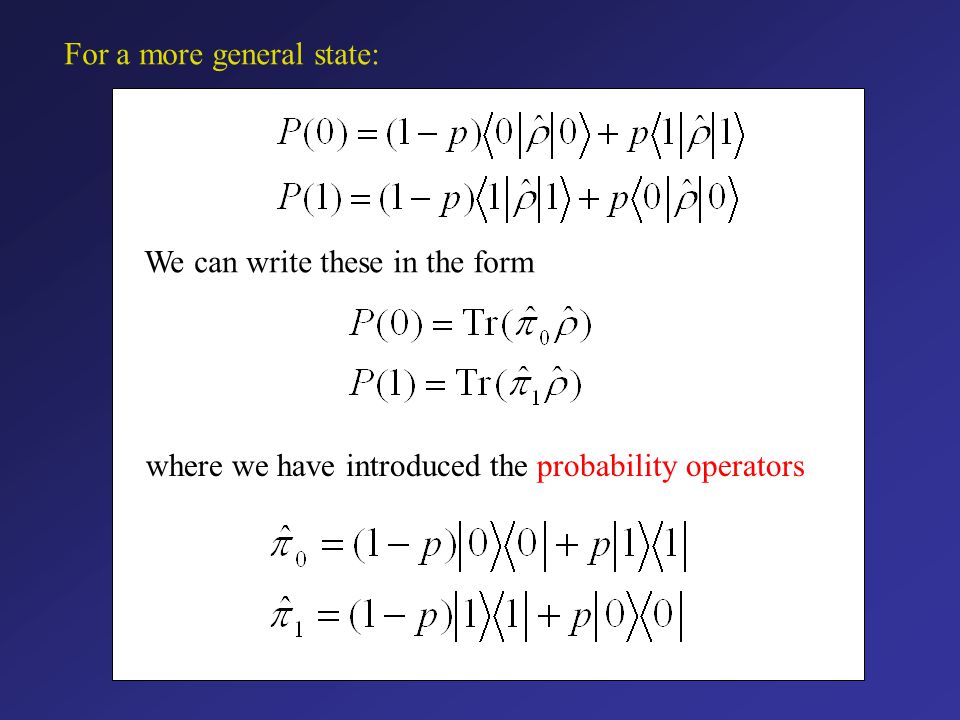

11 For a more general state: We can write these in the form where we have introduced the probability operators

12 These probability operators are I. Hermitian II. positive III. complete But IV. they are not orthonormal We seem to need a generalised description of measurements

13 4.3 Probability operator measures Our generalised formula for measurement probabilities is The set probability operators describing a measurement is called a probability operator measure (POM) or a positive operator-valued measure (POVM). The probability operators can be defined by the properties that they satisfy:

14 Properties of probability operators I. They are HermitianObservable II. They are positive Probabilities III. They are complete Probabilities IV. Orthonormal ??

15 Generalised measurements as comparisons S A S A S + A Prepare an ancillary system in a known state: Perform a selected unitary transformation to couple the system and ancilla: Perform a von Neumann measurement on both the system and ancilla:

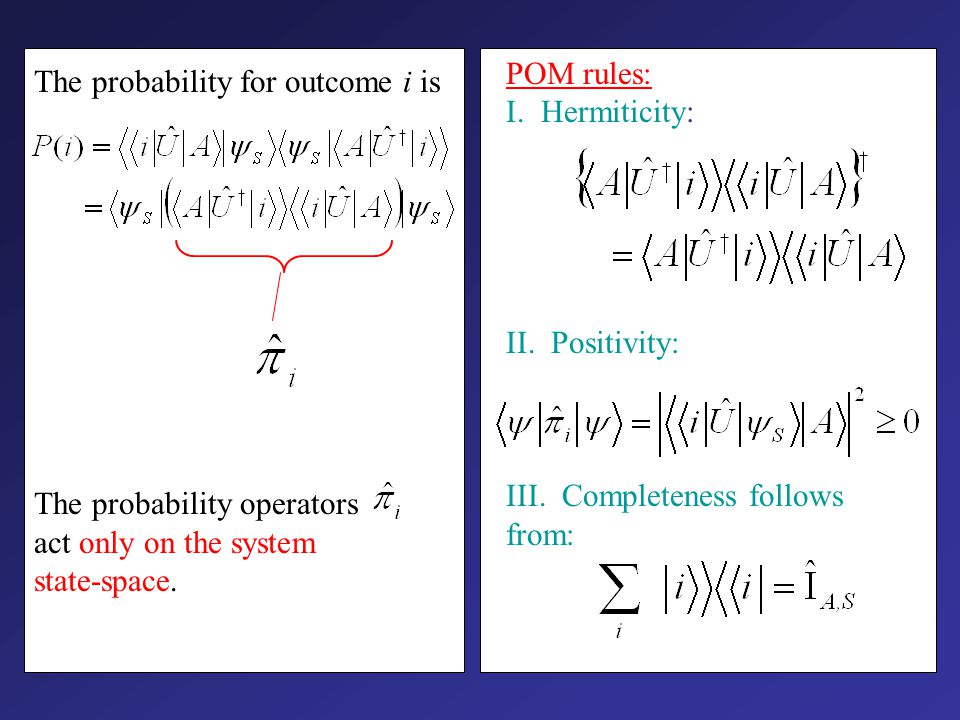

16 The probability for outcome i is The probability operators act only on the system state-space. POM rules: I. Hermiticity: II. Positivity: III. Completeness follows from:

17 Generalised measurements as comparisons We can rewrite the detection probability as is a projector onto correlated (entangled) states of the system and ancilla. The generalised measurement is a von Neumann measurement in which the system and ancilla are compared.

18 Simultaneous measurement of position and momentum The simultaneous perfect measurement of x and p would violate complementarity. x p Position measurement gives no momentum information and depends on the position probability distribution.

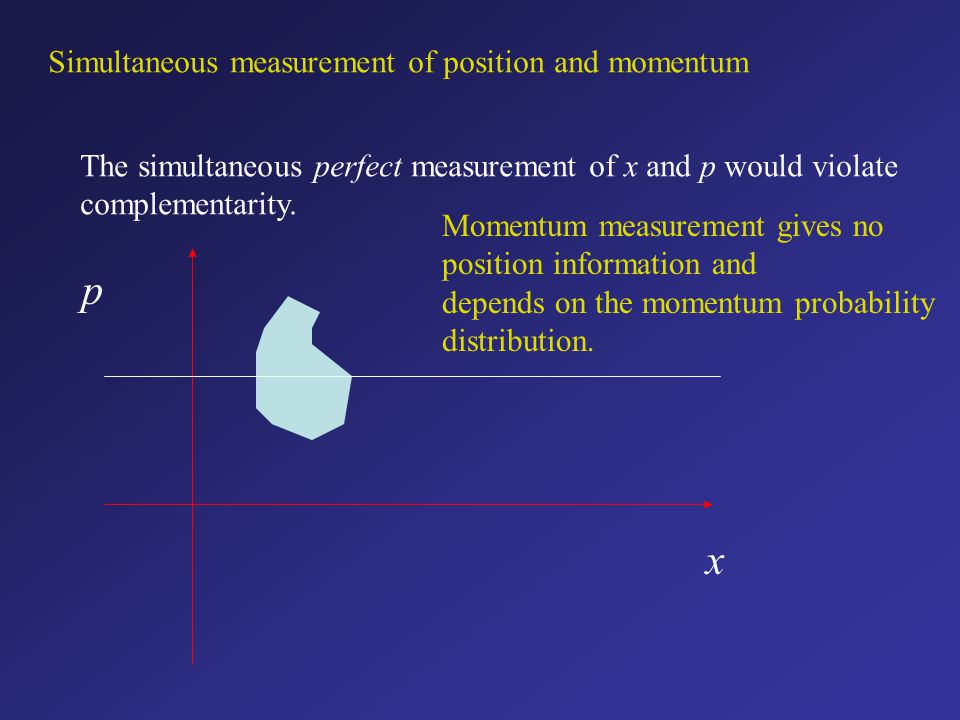

19 Simultaneous measurement of position and momentum The simultaneous perfect measurement of x and p would violate complementarity. x p Momentum measurement gives no position information and depends on the momentum probability distribution.

20 Simultaneous measurement of position and momentum The simultaneous perfect measurement of x and p would violate complementarity. x p Joint position and measurement gives partial information on both the position and the momentum. Position-momentum minimum uncertainty state.

21 POM description of joint measurements Probability density: Minimum uncertainty states:

22 This leads us to the POM elements: The associated position probability distribution is Increased uncertainty is the price we pay for measuring x and p.

23 The communications problem ‘Alice’ prepares a quantum system in one of a set of N possible signal states and sends it to ‘Bob’ Bob is more interested in Preparation device i selected. prob. Measurement result j Measurement device

24 In general, signal states will be non-orthogonal. No measurement can distinguish perfectly between such states. Were it possible then there would exist a POM with Completeness, positivity and What is the best we can do? Depends on what we mean by ‘best’.

25 Minimum-error discrimination We can associate each measurement operator with a signal state. This leads to an error probability Any POM that satisfies the conditions will minimise the probability of error.

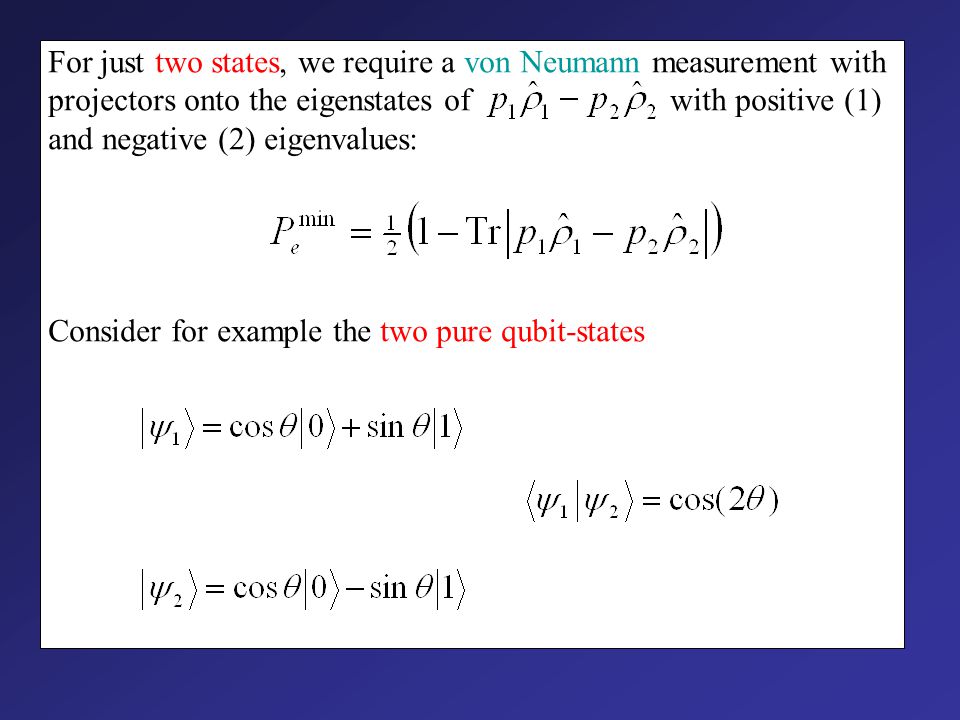

26 For just two states, we require a von Neumann measurement with projectors onto the eigenstates of with positive (1) and negative (2) eigenvalues: Consider for example the two pure qubit-states

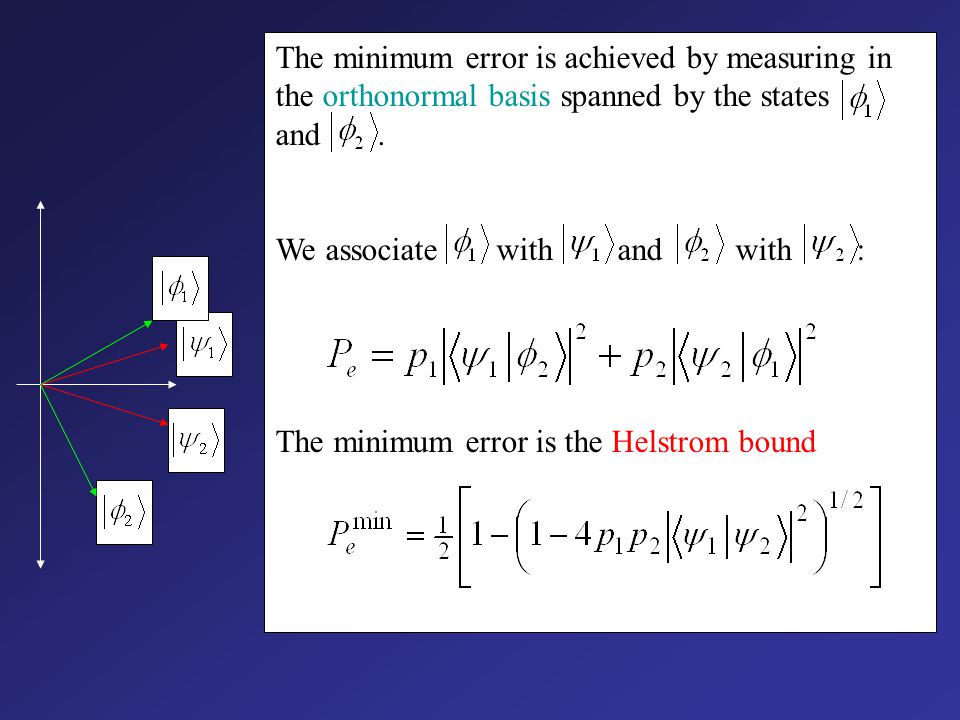

27 The minimum error is achieved by measuring in the orthonormal basis spanned by the states and. We associate with and with : The minimum error is the Helstrom bound

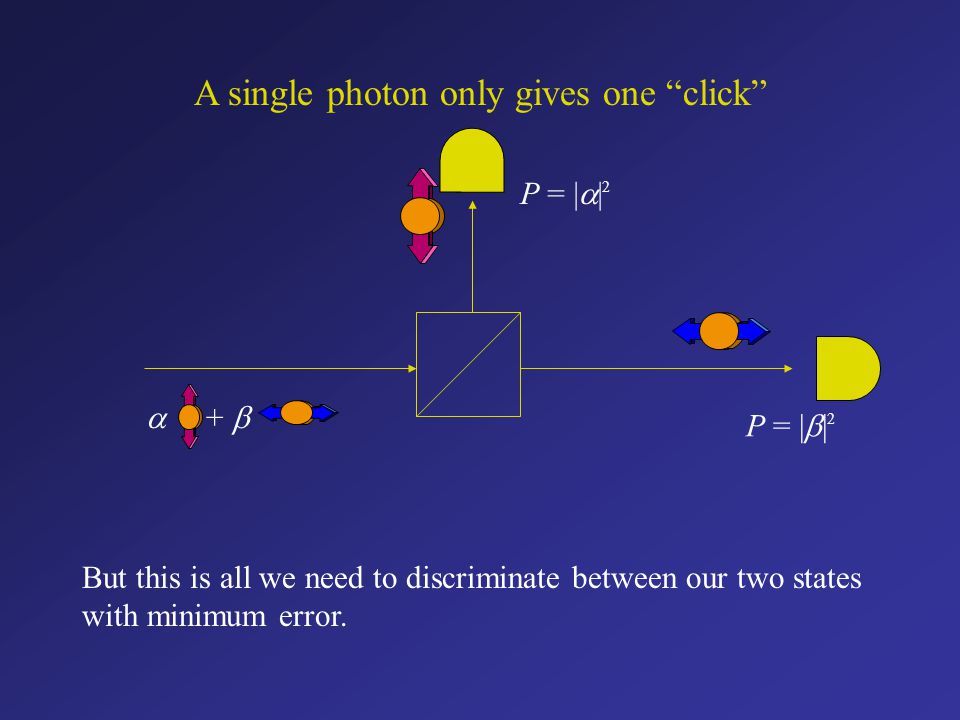

28  +  P = |  | 2 P = |  | 2 A single photon only gives one “click” But this is all we need to discriminate between our two states with minimum error.

29 A more challenging example is the ‘trine ensemble’ of three equiprobable states: It is straightforward to confirm that the minimum-error conditions are satisfied by the three probability operators

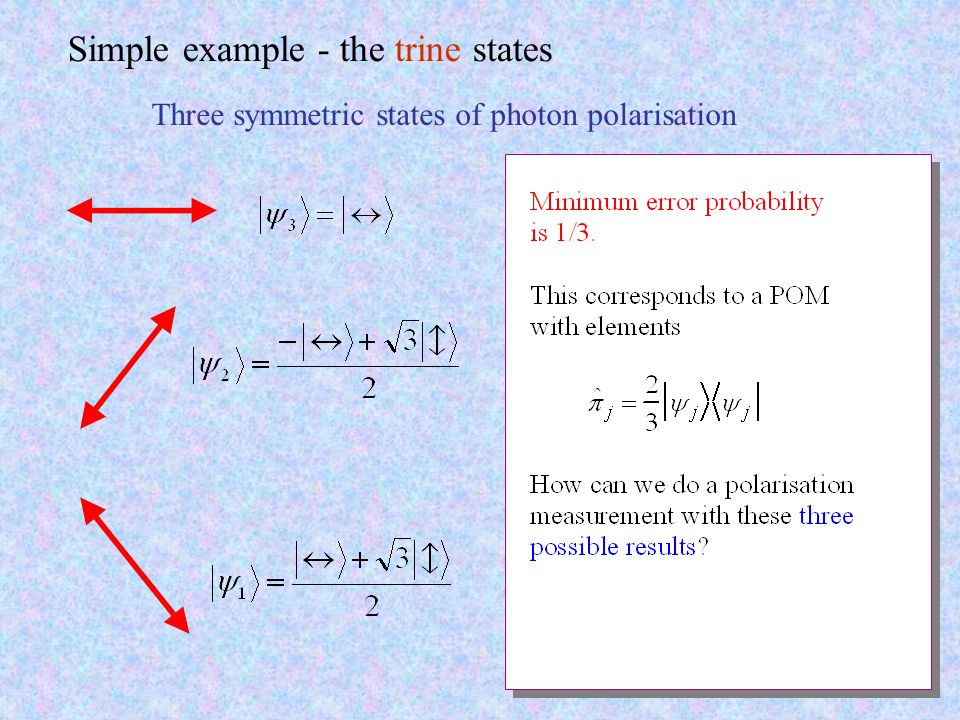

30 Simple example - the trine states Three symmetric states of photon polarisation

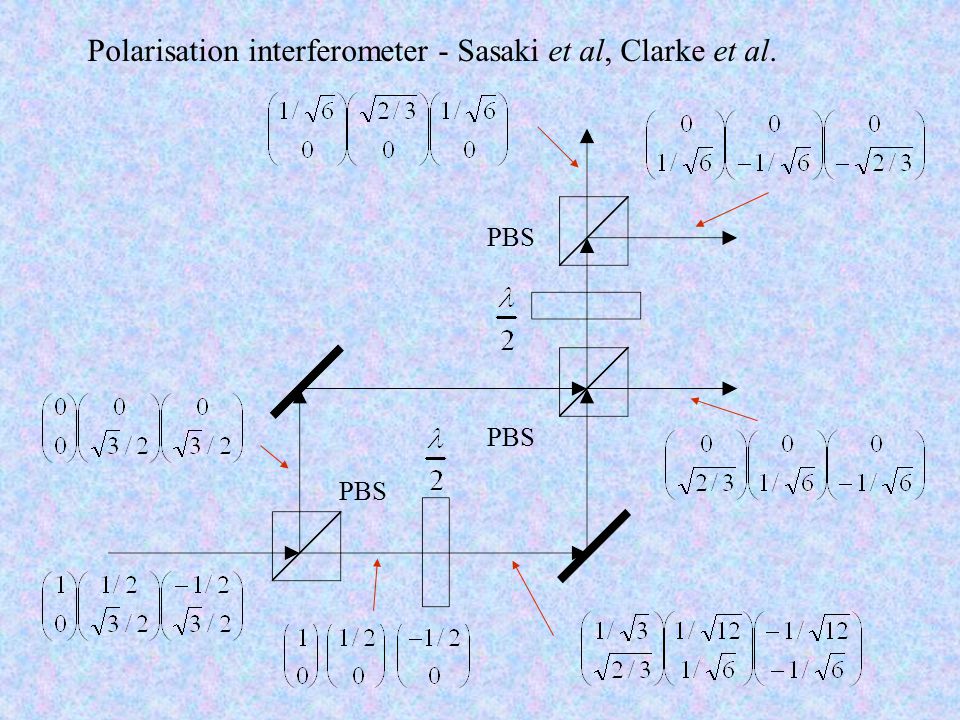

31 Polarisation interferometer - Sasaki et al, Clarke et al. PBS

32 Unambiguous discrimination The existence of a minimum error does not mean that error-free or unambiguous state discrimination is impossible. A von Neumann measurement with will give unambiguous identification of : result error-free result inconclusive

33 There is a more symmetrical approach with Result 1 Result 2 Result ? State 0

34 How can we understand the IDP measurement? Consider an extension into a 3D state-space

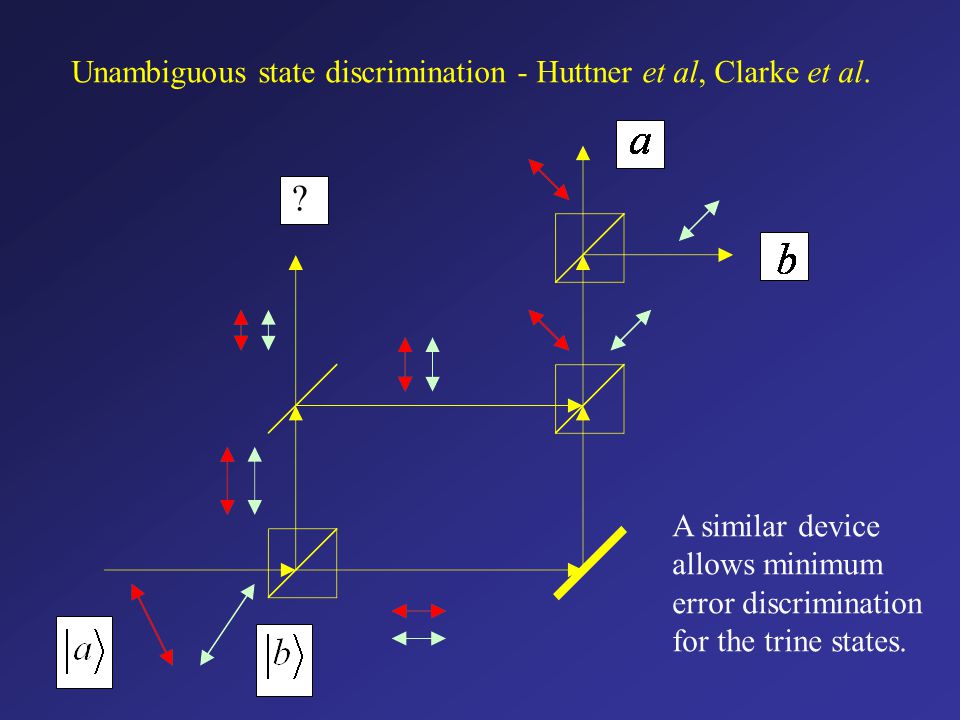

35 Unambiguous state discrimination - Huttner et al, Clarke et al. ? A similar device allows minimum error discrimination for the trine states.

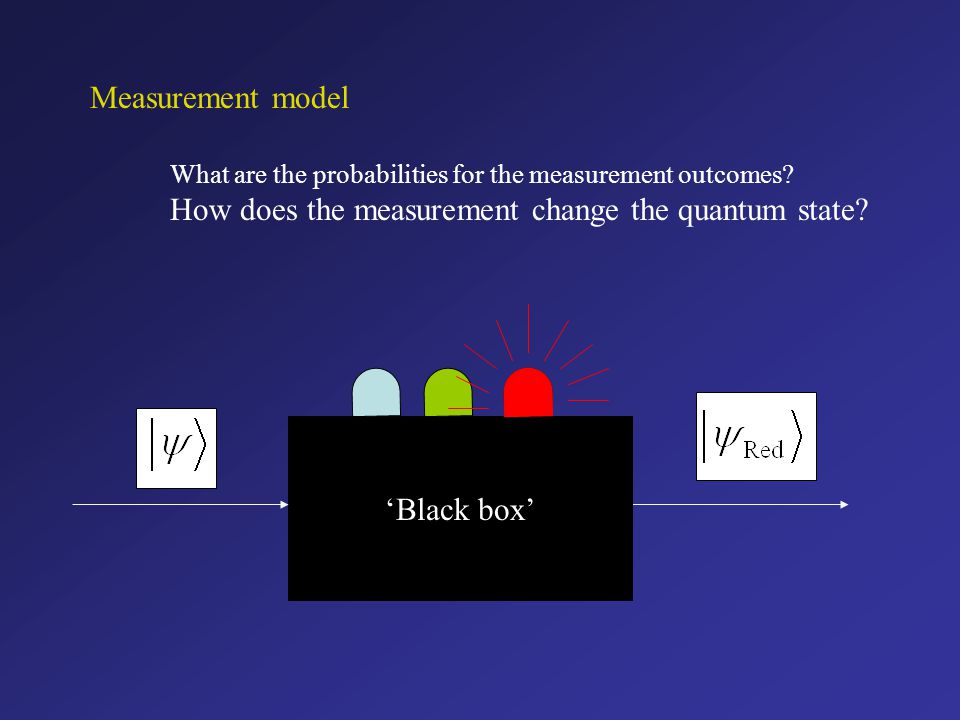

36 Measurement model What are the probabilities for the measurement outcomes? How does the measurement change the quantum state? ‘Black box’

37 How does the state of the system change after a measurement is performed? Problems with von Neumann’s description: 1) Most measurements are more destructive than von Neumann’s ideal. 2) How should we describe the state of the system after a generalised measurement? 4.5 Operations

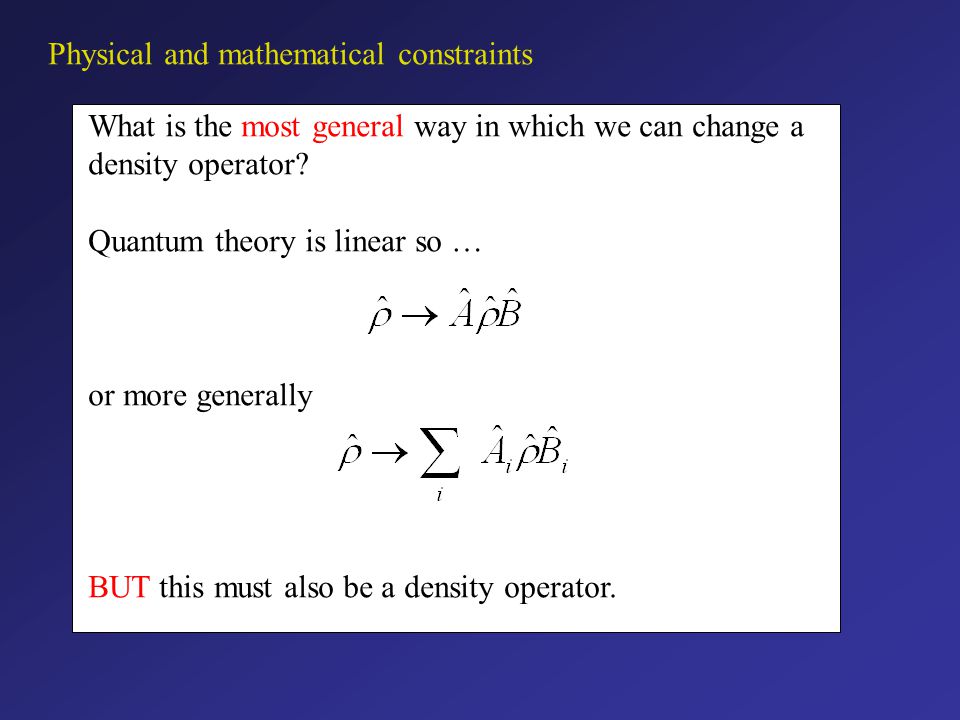

38 Physical and mathematical constraints What is the most general way in which we can change a density operator? Quantum theory is linear so … or more generally BUT this must also be a density operator.

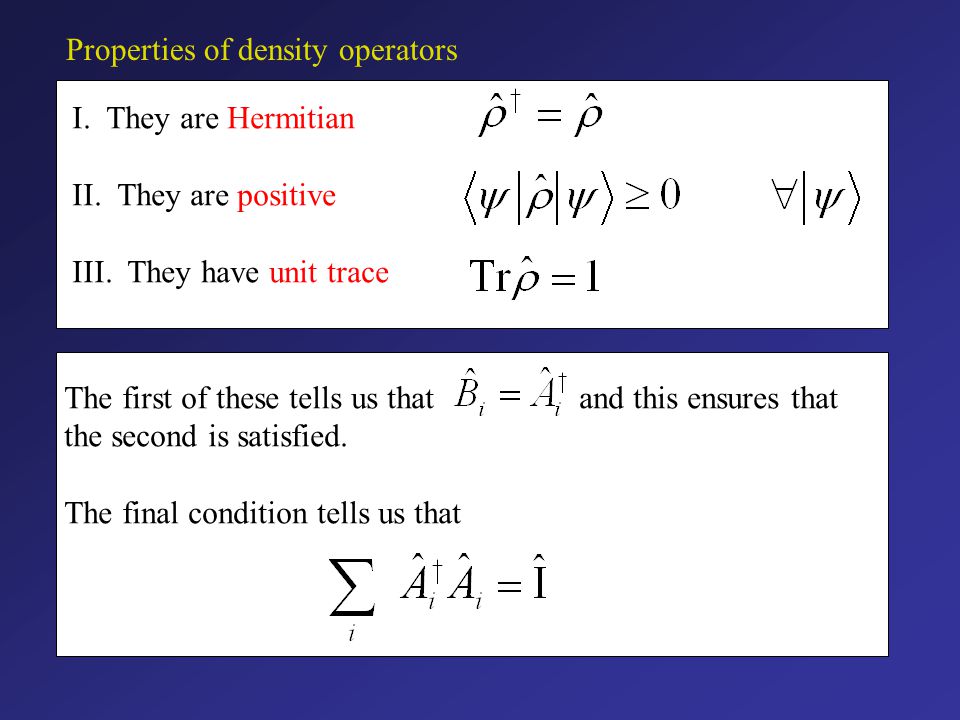

39 Properties of density operators I. They are Hermitian II. They are positive III. They have unit trace The first of these tells us that and this ensures that the second is satisfied. The final condition tells us that

40 The operator is positive and this leads us to associate (Knowing does not give us.) If the measurement result is i then the density operator changes as This replaces the von Neumann transformation

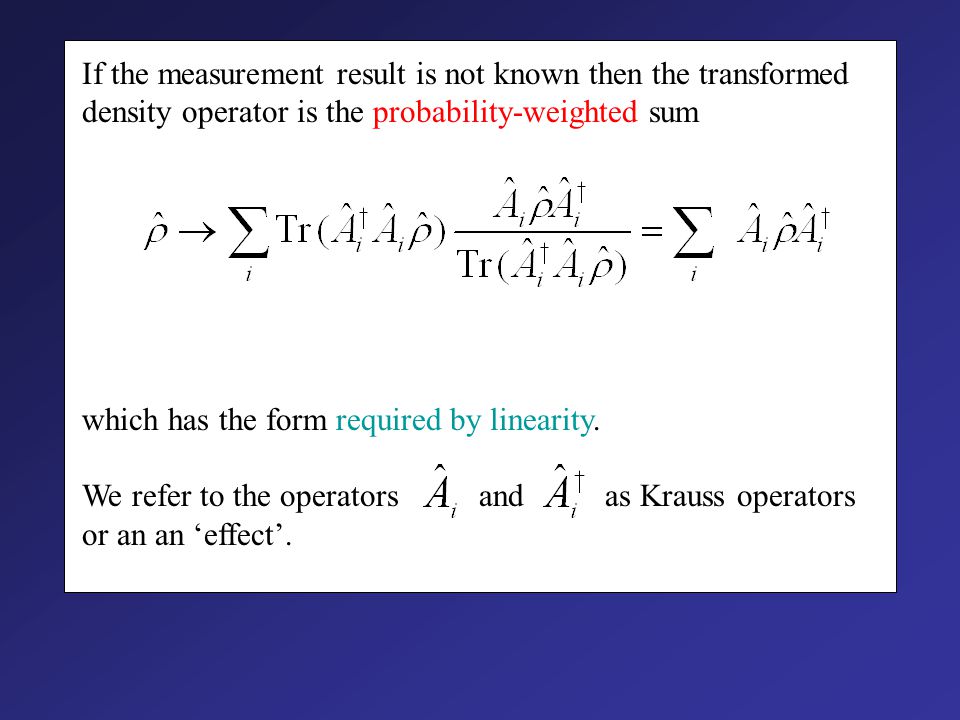

41 If the measurement result is not known then the transformed density operator is the probability-weighted sum which has the form required by linearity. We refer to the operators and as Krauss operators or an an ‘effect’.

42 Repeated measurements Suppose we perform a first measurement with results i and effect operators and then a second with outcomes j and effects. The probability that the second result is j given that the first was i is

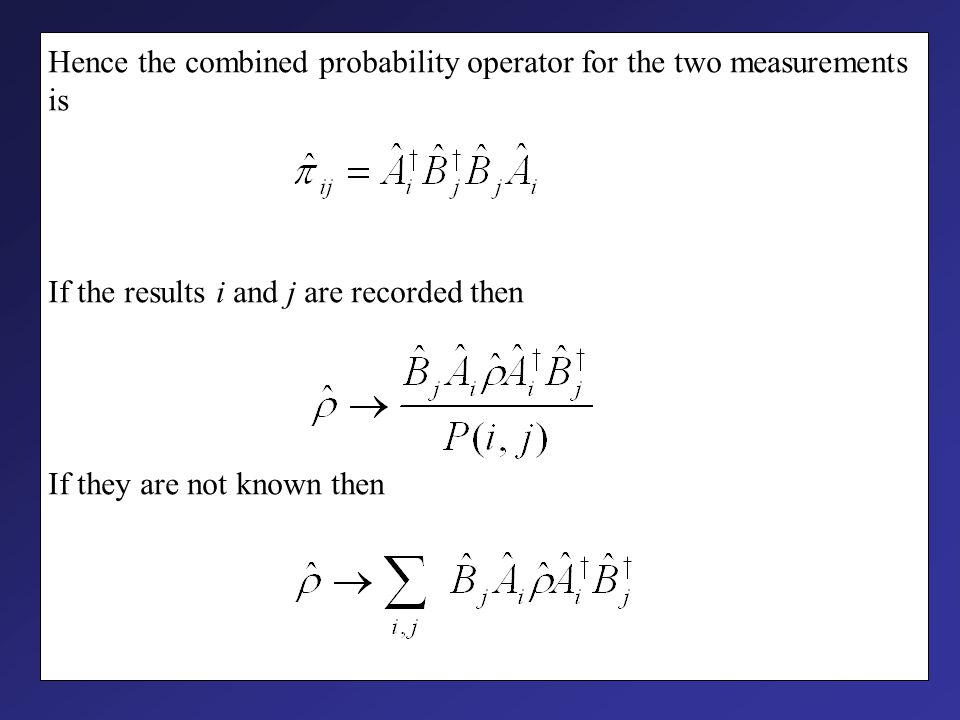

43 Hence the combined probability operator for the two measurements is If the results i and j are recorded then If they are not known then

44 Unitary and non-unitary evolution The effects formalism is not restricted to describing measurements, e.g. Schroedinger evolution which has a single Krauss operator. We can also use it to describe dissipative dynamics: Spontaneous decay rate 2 

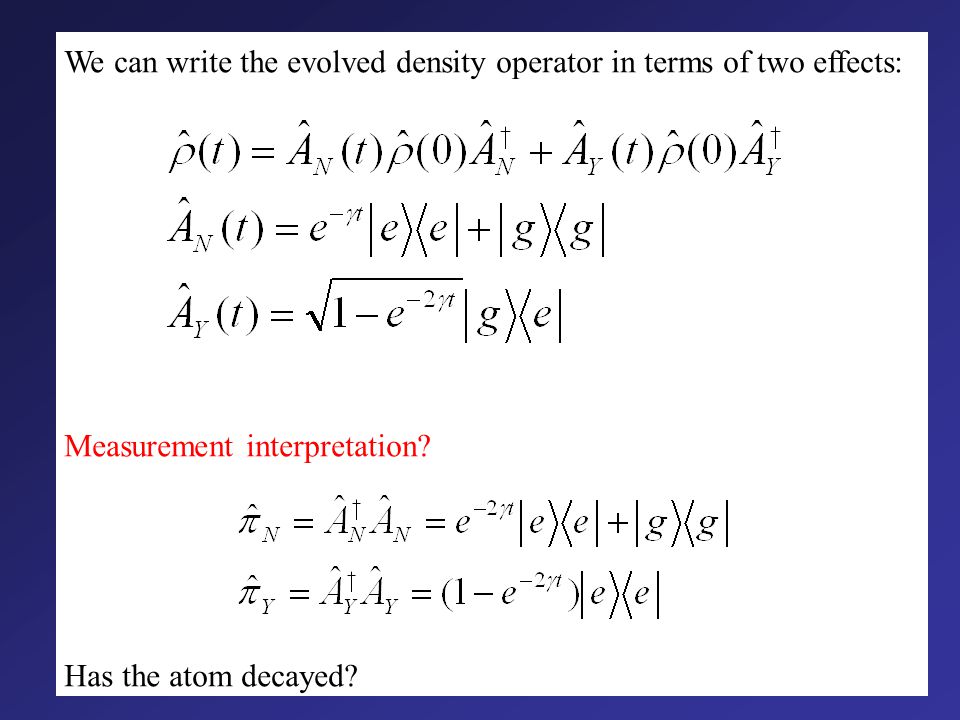

45 We can write the evolved density operator in terms of two effects: Measurement interpretation? Has the atom decayed?

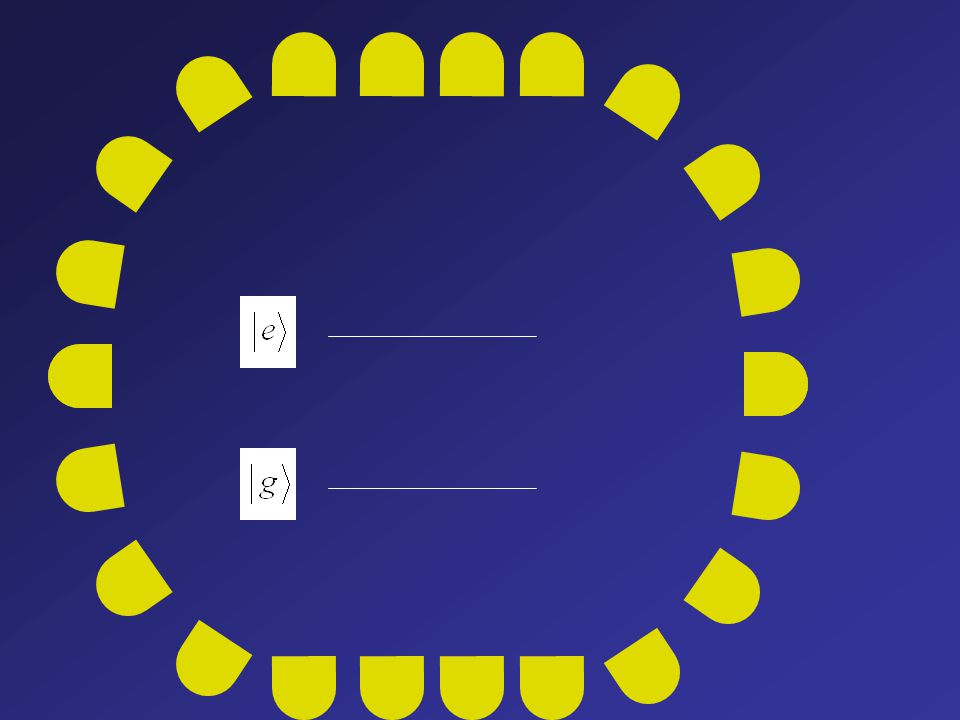

47 No detection

48 Detection

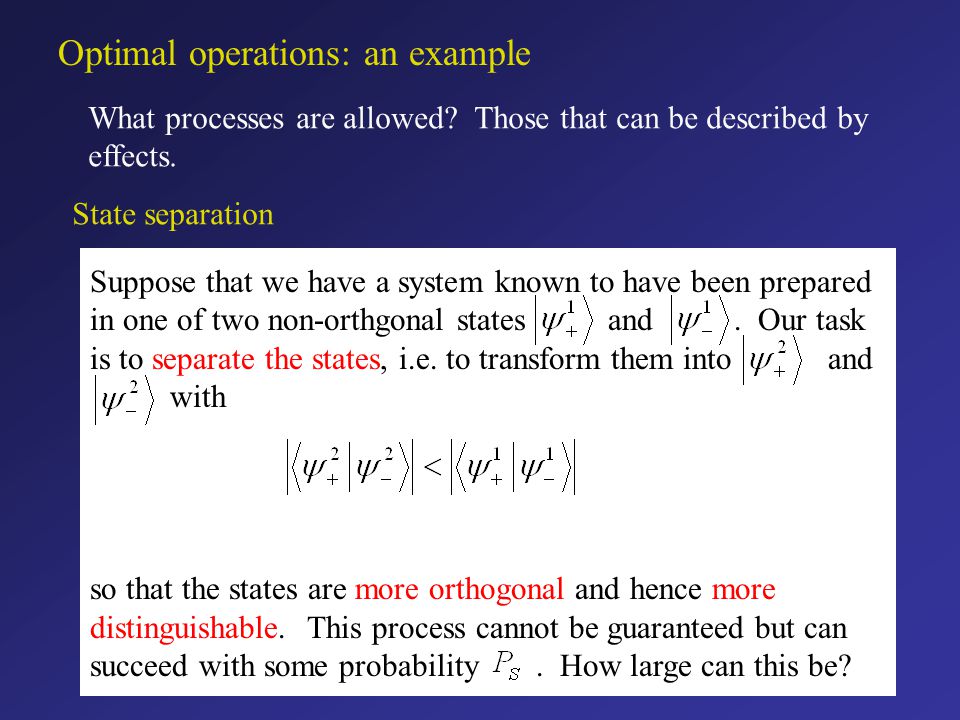

49 Optimal operations: an example What processes are allowed? Those that can be described by effects. State separation Suppose that we have a system known to have been prepared in one of two non-orthgonal states and. Our task is to separate the states, i.e. to transform them into and with so that the states are more orthogonal and hence more distinguishable. This process cannot be guaranteed but can succeed with some probability. How large can this be?

50 We introduce an effect associated with successful state separation We can bound the success probability by considering the action of on a superposition of the states and noting that the result must be an allowed state:

51 There is a natural interpretation of this in terms of unambiguous state discrimination: Because this is the maximum allowed, state separation cannot better it so

52 No cloning theorem - Wootters & Zurek, Dieks

53 Exact cloning? - Duan & Guo, Chefles Error-free discrimination probability For the cloned states Cloning cannot increase the discrimination probability separation bound Can we clone exactly a quantum system known to be in the state |a  or |b  ?

54 Summary The projective von Neumann measurements do not provide the most general description of a measurement. The use of probability operators (POMs) allows us to seek optimal measurements for any given detection problem. The language of operations and effects allows us to describe, in great generality, the post-measurement state.

55 Naimark’s theorem All POMs correspond to measurements. Consider a POM for a qubit with N probability operators: POM conditions: Can we treat this as a von Neumann measurement in a enlarged state-space?

56 Our task is to represent the vectors as the components in the qubit space of a set of orthonormal states in an enlarged space. Enlarged space spanned by N orthornormal states. The extra states can be other states of the system or by introducing an ancilla: An alternative orthonormal basis is

57 Because is unitary, we can also form the orthonormal basis: These are the required orthonormal states for our von Neumann measurement: All measurements can be described by a POM and all POMs describe possible measurements.

58 Summary The probabilities for the possible outcomes of any given measurement can be written in the form: The probability operators satisfy the three conditions All measurements can be described in this way and all sets of operators with these properties represent possible measurements.

59 Poincaré Sphere Optical polarization Bloch Sphere Electron spin Spin and polarisation Qubits Poincaré and Bloch Spheres Two state quantum system

60 States of photon polarisation Horizontal Vertical Diagonal up Diagonal down Left circular Right circular

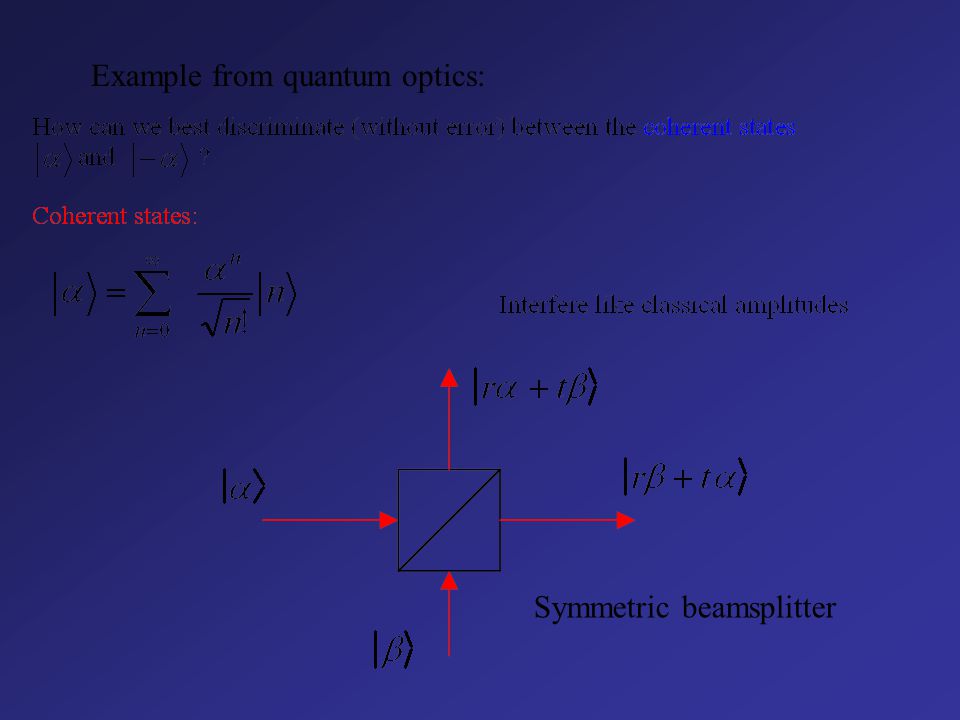

61 Example from quantum optics: Symmetric beamsplitter

62 Unambiguous discrimination between coherent states - Hutner et al This interference experiment puts all the light into a single output. Inconclusive results occur when no photons are detected. This happens with probability
