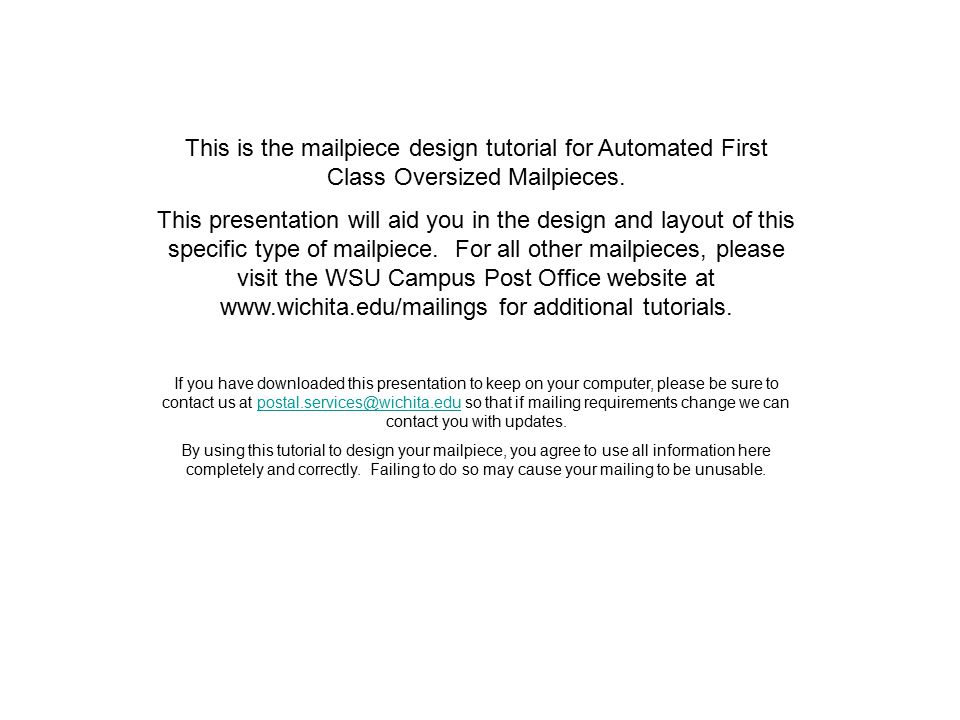

1. This is the mailpiece design tutorial for Automated First Class Oversized Mailpieces. This presentation will aid you in the design and layout of this specific type of mailpiece. For all other mailpieces, please visit the WSU Campus Post Office website at www.wichita.edu/mailings for additional tutorials. If you have downloaded this presentation to keep on your computer, please be sure to contact us at postal.services@wichita.edu so that if mailing requirements change we can contact you with updates.postal.services@wichita.edu By using this tutorial to design your mailpiece, you agree to use all information here completely and correctly. Failing to do so may cause your mailing to be unusable.

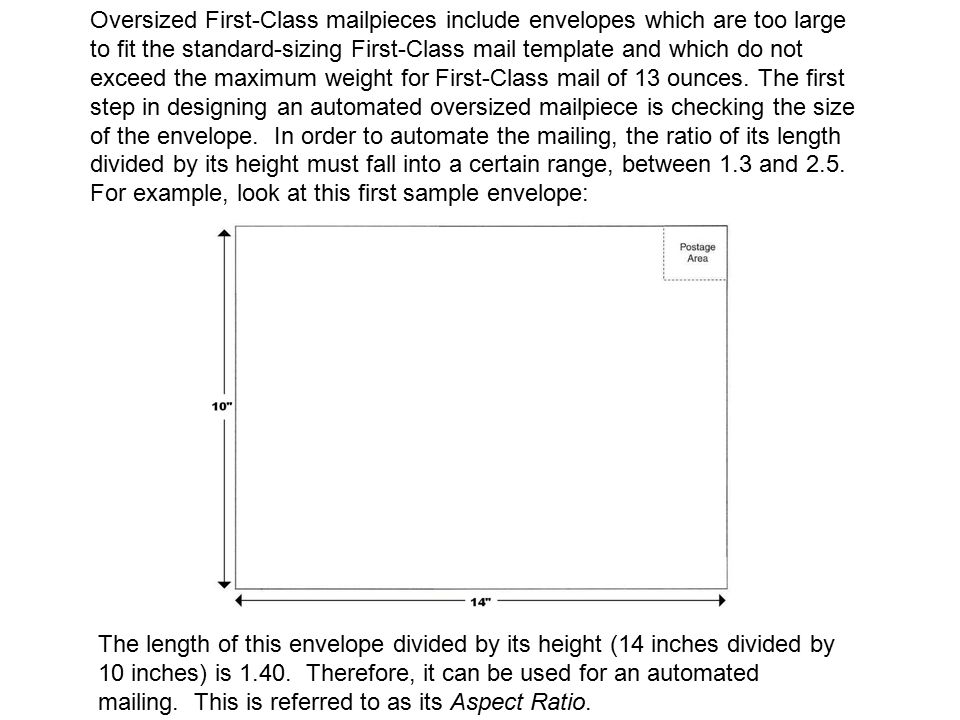

2. Oversized First-Class mailpieces include envelopes which are too large to fit the standard-sizing First-Class mail template and which do not exceed the maximum weight for First-Class mail of 13 ounces. The first step in designing an automated oversized mailpiece is checking the size of the envelope. In order to automate the mailing, the ratio of its length divided by its height must fall into a certain range, between 1.3 and 2.5. For example, look at this first sample envelope: The length of this envelope divided by its height (14 inches divided by 10 inches) is 1.40. Therefore, it can be used for an automated mailing. This is referred to as its Aspect Ratio.

3. Now, look at this next sample envelope: The Aspect Ratio of this envelope is one (10 inches divided by 10 inches). Because this is not between 1.3 and 2.5, this envelope may not be used for an automated mailing. However, mass mailings envelope that do not have the correct Aspect Ratio for automated mail may be sent using other types of bulk mail. If you wish to send an odd-sized envelope, please refer to our tutorial on oversized mailpieces for manual bulk mail.

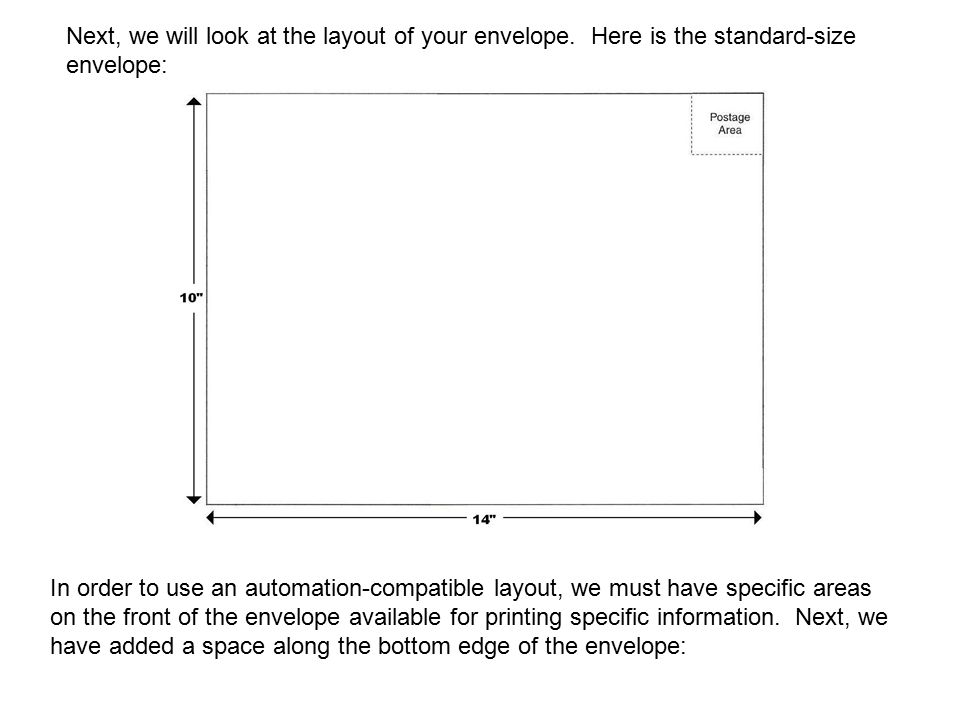

4. Next, we will look at the layout of your envelope. Here is the standard-size envelope: In order to use an automation-compatible layout, we must have specific areas on the front of the envelope available for printing specific information. Next, we have added a space along the bottom edge of the envelope:

5. This field is referred to as the Barcode Clear Zone (BCZ). When we automate your mailing, this is where we will print a Delivery Point Barcode on the envelope. Here is a larger view of the BCZ, with the required measurements:

6. In the picture you can see the lower right corner of your envelope with the dimensions of the BCZ shown. Looking at your envelope, measure 5/8 of an inch up along the right edge from the lower right corner, and 4 3/4 inches back along the bottom edge from the same corner. Using right angles to create a rectangle using these measurements, you have defined the BCZ on your envelope. You do not need to show the BCZ on your finished envelope, but when you pick the envelope to use for your mailing, the BCZ must be clear of any printing or graphics. Nothing may appear in this space or the mailing will not qualify for automation.

7. Next, we will designate a location for the destination address. The address must be in a specific place so that the OCRs (Optical Code Readers) used by the U.S. Post Office can locate it successfully. Below, the sample envelope has a field added showing where the OCR read area is located.

8. The OCR Read Area, unlike the BCZ, is not defined by a standard size but by the size of the envelope itself. By measuring in a minimum of one half inch from each edge and a minimum of two and three fourths inches up from the bottom of the envelope, using right angles a space is defined which sits on top of the BCZ. If the envelope were of different dimensions (keep in mind that the Aspect Ratio must still be acceptable for automated mail, of course) then the OCR Read Area would also have different dimensions. Besides the destination address, other design elements may be placed in the OCR Read Area. However, the entire destination address must be contained in the OCR Read Area. The Campus Post Office is able to print extra graphics, text, or design elements inside the OCR Read Area at the same time we address your mailing. For more information concerning this service, including additional costs, please contact us. Next, we will place a field on the envelope for a return address. Return addresses are required in sending mail from WSU. We are also able to print return addresses on your envelopes if your envelopes do not already have the correct return address pre-printed. The next screen shows the return address field added to our envelope.

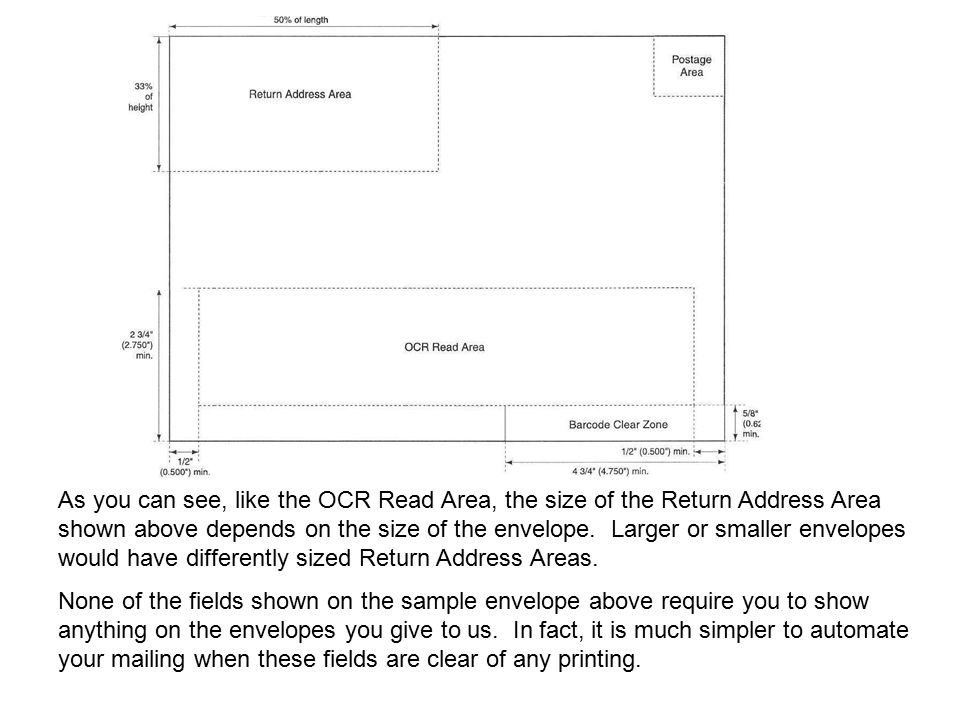

9. As you can see, like the OCR Read Area, the size of the Return Address Area shown above depends on the size of the envelope. Larger or smaller envelopes would have differently sized Return Address Areas. None of the fields shown on the sample envelope above require you to show anything on the envelopes you give to us. In fact, it is much simpler to automate your mailing when these fields are clear of any printing.

10. Besides looking at the front of each envelope, you will need to fill each envelope with the contents. The contents of each envelope must be identical is size, weight, and printing. Sealing the envelopes may be done one of several ways. If you wish, you may seal each envelope yourself, however, if you do so, please do not use tape or additional glue to secure the flap. Tape may melt when the envelopes pass through sorting machines used by the U.S. Post Office, and may also damage those machines. Additional glue may cause the envelopes to adhere to each other. Please use only the glue already present on the flap of the envelope to seal it.

11. In many cases, the Campus Post Office can use a machine to seal your envelopes for you when we process the mailing. However, not all envelopes are able to be machine sealed. We are able to seal envelopes which have the open flap along the long edge of the envelope, but not the short edge. For example: This envelope is machine sealable. We can seal this for you. This envelope is not machine sealable. You must seal these envelopes before we get your mailing.

12. In addition to the fields we have added to our envelope, we may also add an Ancillary Service Endorsement. This refers to instructions for the U.S. Post Office on the outside of the envelope in case the envelope is not able to be delivered as addressed. You may have seen phrases on envelopes such as “Address Service Requested” or “Return Service Requested.” We are able to print Ancillary Service Endorsements on your envelopes when we automate them if you wish. The four locations where we may print them on the envelope are shown below.

13. There is no additional cost for printing Ancillary Service Endorsements, and for First-Class mail there is no additional charge for using these services. The Ancillary Service Endorsements are as follows: Address Service Requested –for Forwarding and Return of Mail Months 1 – 12: mailpiece forwarded Months 12 – 18: mailpiece returned with new address attached After 18 months or if undeliverable: mailpiece returned with reason for nondelivery attached Forwarded at no charge. Returned at no charge. Return Service Requested-for Return of Mail only, No Forwarding At any time: mailpiece returned with new address or reason for nondelivery attached No charge. Change Service Requested-No Forwarding or Return, but new address provided Separate notice of new address or reason for nondelivery provided, mailpiece disposed of by USPS No charge. Forwarding Service Requested-For Forwarding or Return. New address provided only with Return Service Months 1 – 12: mailpiece forwarded Months 13 - 18: mailpiece returned with new address attached After 18 months or if undeliverable: mailpiece returned with reason for nondelivery attached Forwarded at no charge. Returned at no charge. Temp-Return Service Requested-For Return Mailpiece returned with reason for nondelivery attached (unless temporary change of address, then mailpiece forwarded with no notice to mailer) No charge.

14. This concludes our tutorial for First-Class Automated Standard Envelopes. Please remember to use all the information contained here correctly. If you have mailings which cannot be sent using the qualifications shown here, please browse our other tutorials or consult our staff to see if there is another class of mailing that better suits your needs. Also, please remember to schedule your automated mailings in advance using our website and to provide us with your mailing list in one of the compatible file formats listed in the left navigation of our Mass Mailings Section of our website. If you have any additional questions, please feel free to contact us. Our campus phone is 978-3550, our email address is postal.services@wichita.edu and we are located on the first floor of Morrison Hall on WSU’s main campus. Our office hours are 7:30am through 4:30pm Monday through Friday except for all holidays observed by the University. postal.services@wichita.edu
