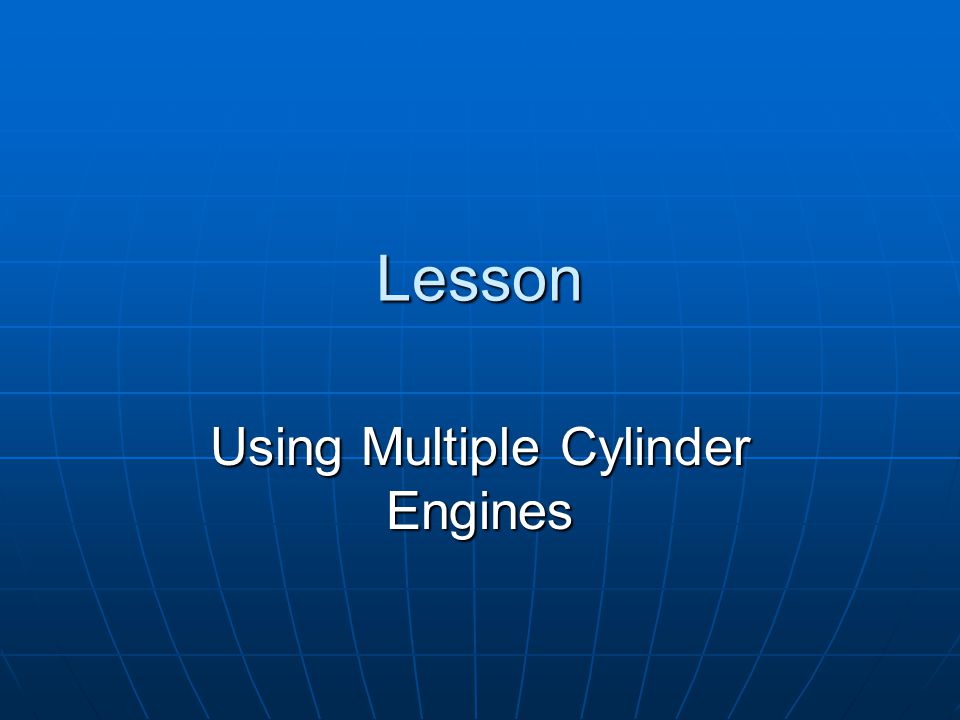

1 Lesson Using Multiple Cylinder Engines

2 Interest Approach Name the ways that engines may be classified. Name the ways that engines may be classified.

3 Student Learning Objectives Explain general maintenance guidelines associated with multiple cylinder engines Explain general maintenance guidelines associated with multiple cylinder engines Describe the concept of power as it relates to multiple cylinder engines Describe the concept of power as it relates to multiple cylinder engines Discuss common maintenance practices associated with multiple cylinder engines Discuss common maintenance practices associated with multiple cylinder engines Describe the operating characteristics of a diesel engine Describe the operating characteristics of a diesel engine

4 Terms Bleed Bleed Coolant hydrometer Coolant hydrometer Diesel engine Diesel engine Drawbar power Drawbar power Engine horsepower Engine horsepower Fuel injectors Fuel injectors Horsepower Horsepower Multiple cylinder engines Multiple cylinder engines Power Power Power-take off shaft Power-take off shaft PTO power PTO power Preventative maintenance Preventative maintenance Turbocharger Turbocharger

5 Multiple Cylinder Engines Have 2, 3, 4, 5, 6, 8, or more cylinders. Have 2, 3, 4, 5, 6, 8, or more cylinders. Preventative maintenance – performing periodic practice to keep equipment in good working order Preventative maintenance – performing periodic practice to keep equipment in good working order Preventative maintenance helps multiple cylinder engines perform well Preventative maintenance helps multiple cylinder engines perform well

6 General Preventative Practices Read the operator’s manual Read the operator’s manual Know the history of the equipment Know the history of the equipment Follow all manufacturer recommendations Follow all manufacturer recommendations Use quality materials Use quality materials Keep accurate records Keep accurate records Use common sense Use common sense Use safety practices Use safety practices

7 Power The rate of performing work The rate of performing work Engine power is stated as horsepower Engine power is stated as horsepower

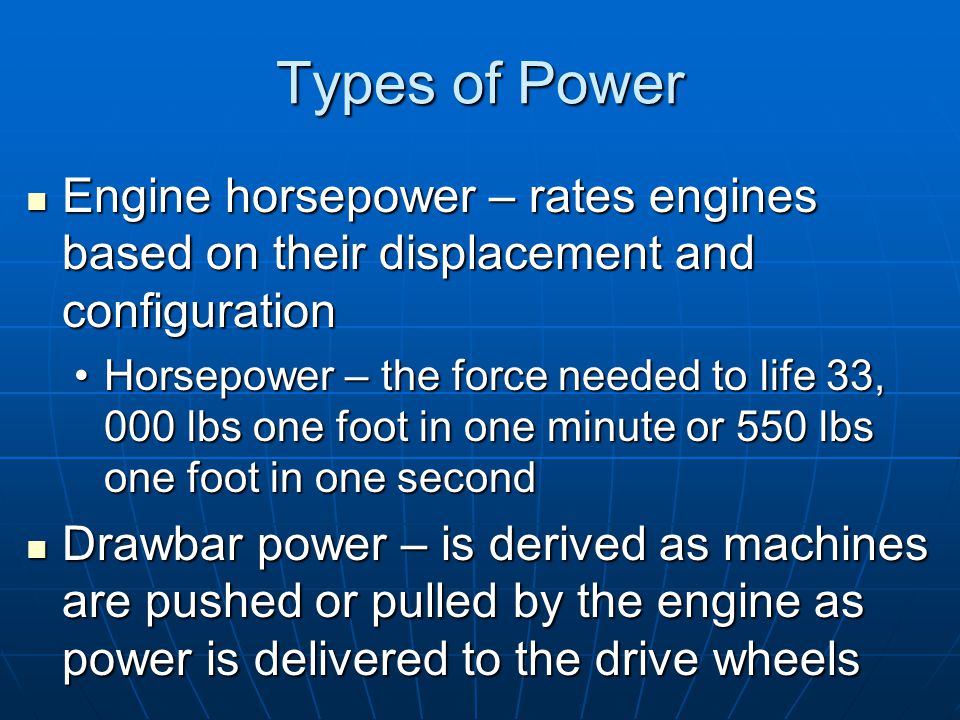

8 Types of Power Engine horsepower – rates engines based on their displacement and configuration Engine horsepower – rates engines based on their displacement and configuration Horsepower – the force needed to life 33, 000 lbs one foot in one minute or 550 lbs one foot in one secondHorsepower – the force needed to life 33, 000 lbs one foot in one minute or 550 lbs one foot in one second Drawbar power – is derived as machines are pushed or pulled by the engine as power is delivered to the drive wheels Drawbar power – is derived as machines are pushed or pulled by the engine as power is delivered to the drive wheels

9 Horsepower

10 Types of Power PTO power – rotary power converted to hydraulic or electrical energy. PTO power – rotary power converted to hydraulic or electrical energy. Power-take-off (PTO) shaft transfers power from the engine to the attached implement.Power-take-off (PTO) shaft transfers power from the engine to the attached implement.

11 PTO shaft & implement

12 Maintenance practices Maintaining the intake system Maintaining the intake system Maintaining the fuel system Maintaining the fuel system Bleed – to remove air from the systemBleed – to remove air from the system Maintaining the exhaust system Maintaining the exhaust system Maintaining the cooling system Maintaining the cooling system Coolant hydrometer – determines the proportion of antifreeze to waterCoolant hydrometer – determines the proportion of antifreeze to water

13 Antifreeze chart

14 Maintenance practices (continued) Maintaining the ignition system Maintaining the ignition system Maintaining the lubrication system Maintaining the lubrication system Maintaining the starting systems Maintaining the starting systems

15 Diesel engine An engine with a very high compression ration in which the air- fuel mixture is ignited by the heat of compression An engine with a very high compression ration in which the air- fuel mixture is ignited by the heat of compression Available in two-stroke or four-stroke engines Available in two-stroke or four-stroke engines

16 Diesel engines have: Fuel injectors – measure the correct amount of fuel for injection at he correct time Fuel injectors – measure the correct amount of fuel for injection at he correct time Turbocharger – a turbine-type air pump that is driven by the engine’s exhaust gasses Turbocharger – a turbine-type air pump that is driven by the engine’s exhaust gasses

17 Comparison between spark ignition & diesel cycle engines Spark ignition (Otto Cycle Engine Compression Ignition (Diesel Cycle) Engines Lighter weight components Lighter weight components Lower compression rations Lower compression rations Easier starting Easier starting Lower fuel efficiency Lower fuel efficiency Quicker speed acceleration Quicker speed acceleration Higher engine speeds Higher engine speeds Lower engine torque Lower engine torque Heavier weight components Heavier weight components Higher compression ratios Higher compression ratios More difficult starting More difficult starting Higher fuel efficiency Higher fuel efficiency Slower speed acceleration Slower speed acceleration Slower engine speeds Slower engine speeds Higher engine torque Higher engine torque

18 Review/Summary What are some common preventative maintenance practices associated with multiple cylinder engines? What are some common preventative maintenance practices associated with multiple cylinder engines? What is power? How does it apply to multiple cylinder engines? What is power? How does it apply to multiple cylinder engines?

19 Review/Summary What are common maintenance practices associated with multiple cylinder engines? What are common maintenance practices associated with multiple cylinder engines? What are the characteristics of a diesel engine? What are the characteristics of a diesel engine?
