4. NFPA ELECTRIC VEHICLE SAFETY FOR EMERGENCY RESPONDERS To prepare first responders to be able to operate safely at incidents involving hybrid electric (HEV), plug- in hybrid electric (PHEV) and electric vehicles (EV). 1-4 Course Goal

5. NFPA ELECTRIC VEHICLE SAFETY FOR EMERGENCY RESPONDERS Module I: Introduction Module II: Basic Electrical Concepts and Hazards Module III: Vehicle Systems and Safety Features Module IV: Initial Response: Identify, Immobilize and Disable Module V: Emergency Operations Module VI: Review and Conclusion 1-5 Course Modules

6. ? 1-6 Why is this course important to you as an emergency responder?

7. 1-7 How familiar are you with hybrid electric vehicles and electric vehicles?

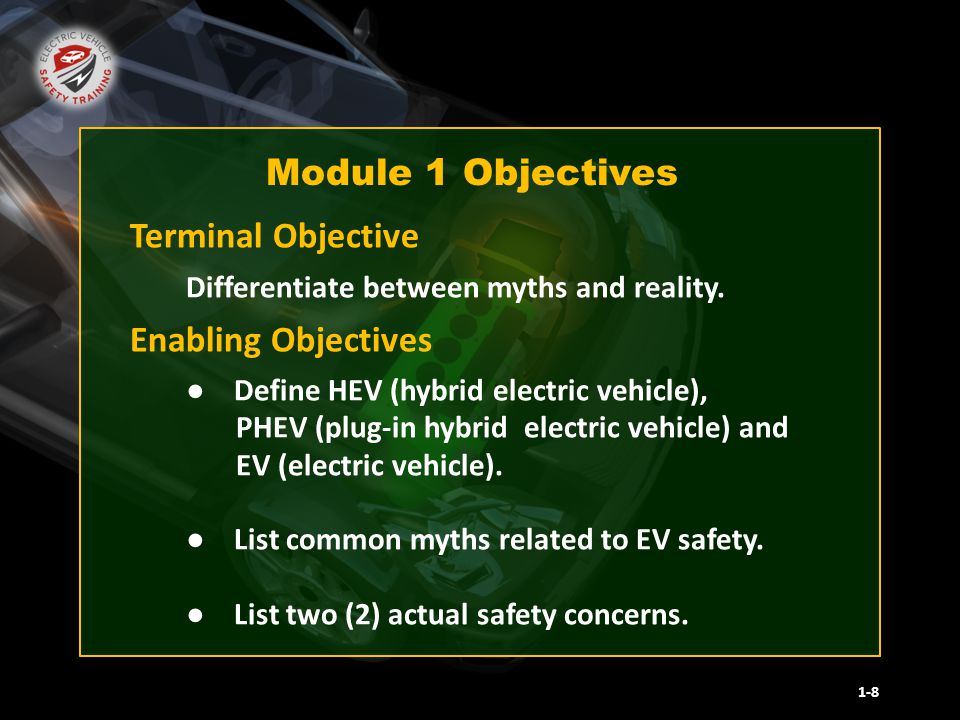

8. Differentiate between myths and reality. Terminal Objective ● Define HEV (hybrid electric vehicle), PHEV (plug-in hybrid electric vehicle) and EV (electric vehicle). ● List common myths related to EV safety. ● List two (2) actual safety concerns. Enabling Objectives 1-8 Module 1 Objectives

9. Hybrid Electric Vehicle Hybrid and Electric Vehicles are just another fad… Myth or Reality? 1-9 MYTH

10. Hybrid Electric Vehicle Hybrid and Electric Vehicles are just another fad… 1-10 ●HEV/EVs are growing in popularity. ●They are proven reliable. ●Goal is 1 million EVs on the road by 2015. ●Interest is at an all time high.

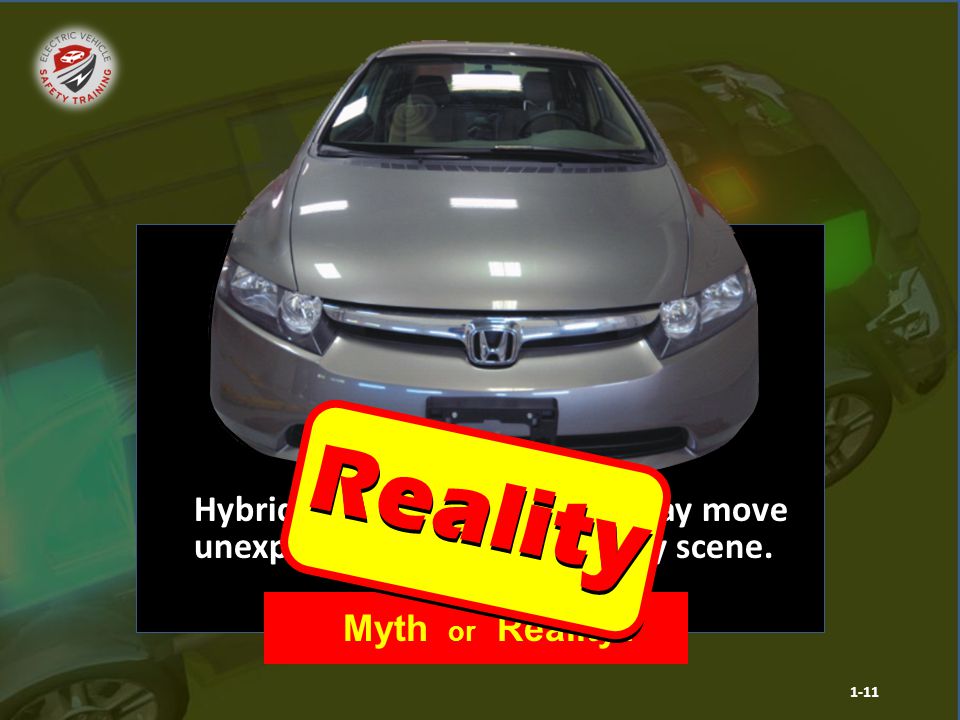

11. Hybrid Electric Vehicle Myth or Reality? Hybrid and electric vehicles may move unexpectedly at an emergency scene. 1-11 Reality

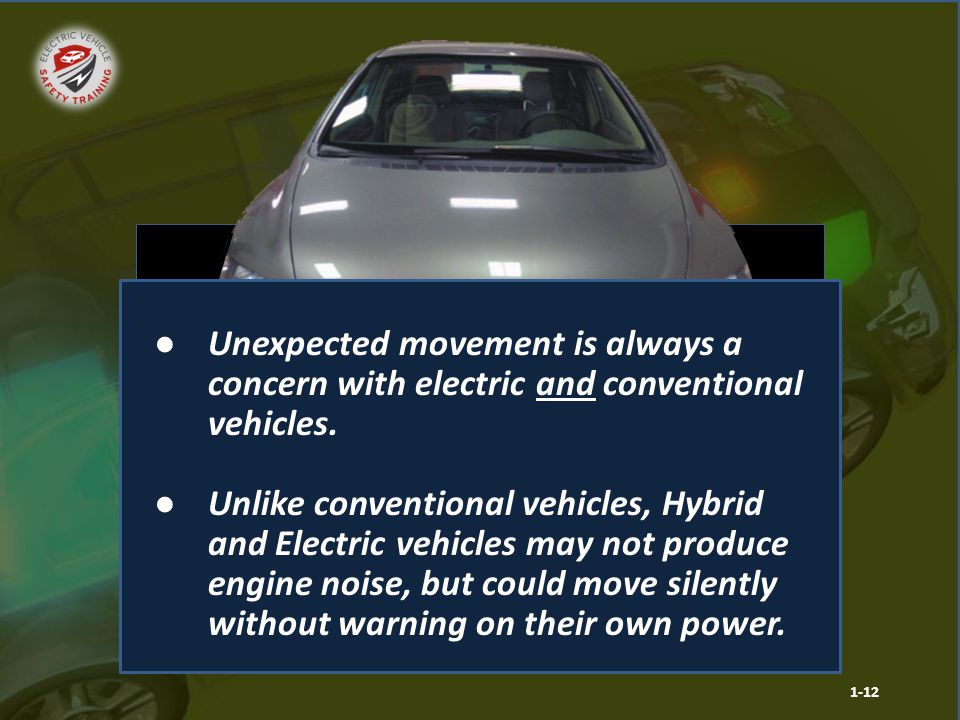

12. Hybrid Electric Vehicle Hybrid and electric vehicles may move unexpectedly at an emergency scene. 1-12 ●Unexpected movement is always a concern with electric and conventional vehicles. ●Unlike conventional vehicles, Hybrid and Electric vehicles may not produce engine noise, but could move silently without warning on their own power.

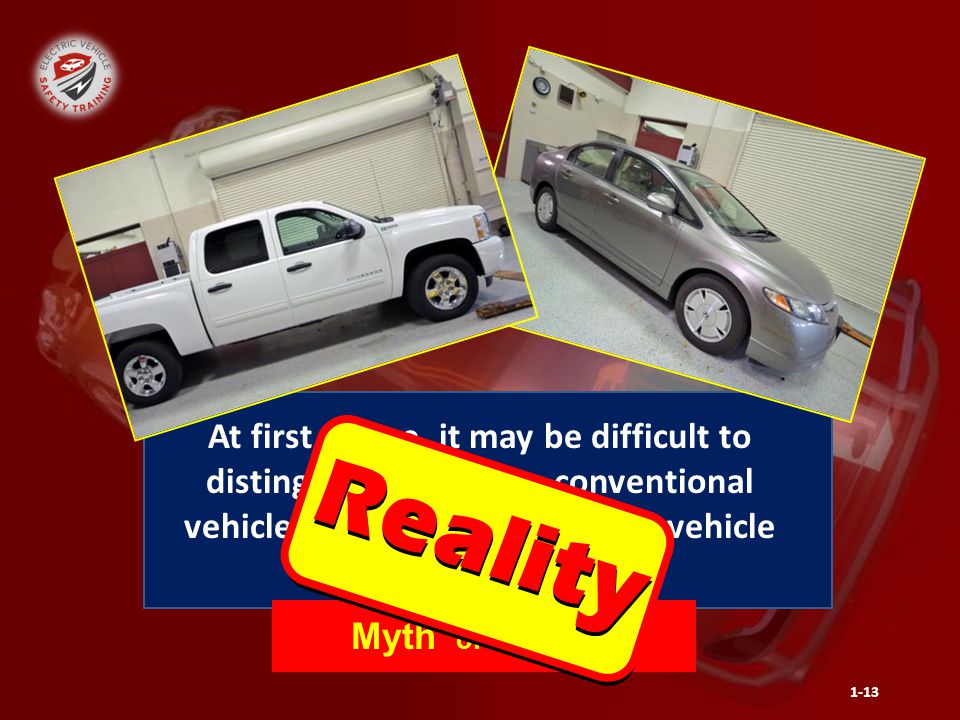

13. Hybrid Electric Vehicle Myth or Reality? At first glance, it may be difficult to distinguish between a conventional vehicle and a hybrid or electric vehicle of the same model. 1-13 Reality

14. Hybrid Electric Vehicle At first glance, it may be difficult to distinguish between a conventional vehicle and a hybrid or electric vehicle of the same model. 1-14 ●Most look like conventionally powered models. ●Responders will need to recognize special features and markings that identify hybrid and electric vehicles.

15. Hybrid Electric Vehicle Myth or Reality? Special equipment is needed for hybrid and electric vehicle fires. 1-15 MYTH

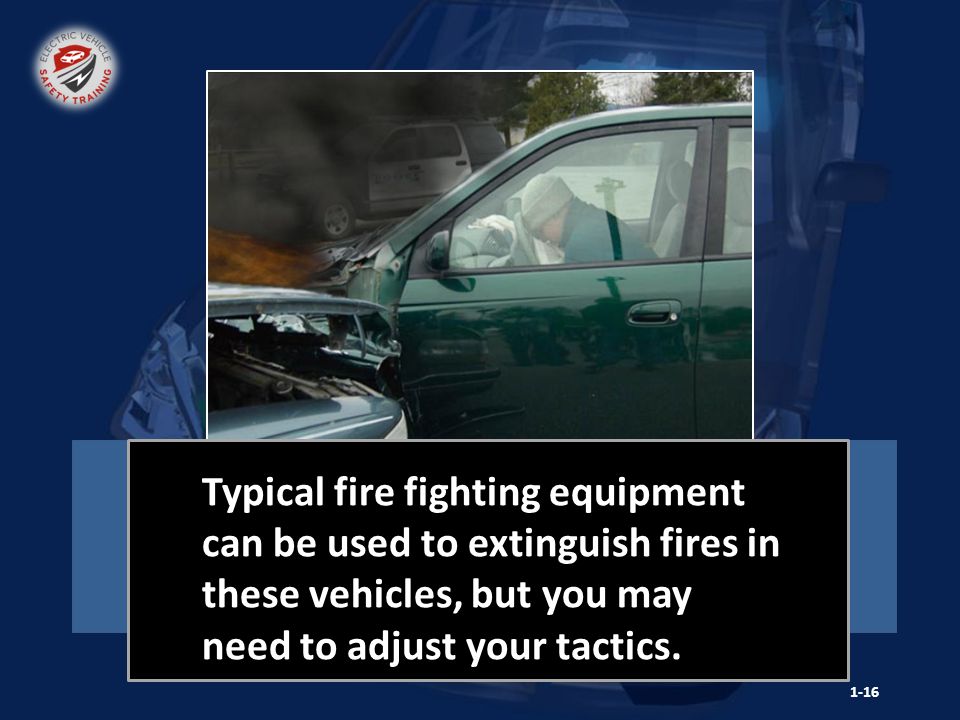

16. Hybrid Electric Vehicle Special equipment is needed for hybrid and electric vehicle fires. 1-16 Typical fire fighting equipment can be used to extinguish fires in these vehicles, but you may need to adjust your tactics.

17. Hybrid Electric Vehicle Myth or Reality? Extrication from these vehicles will be greatly hampered by high voltage cabling. 1-17 MYTH

18. Hybrid Electric Vehicle Extrication from these vehicles will be greatly hampered by high voltage cabling. 1-18 ●High voltage cabling generally will NOT impede operations. ●Not usually placed in common cut points. ●Commonly runs under floor.

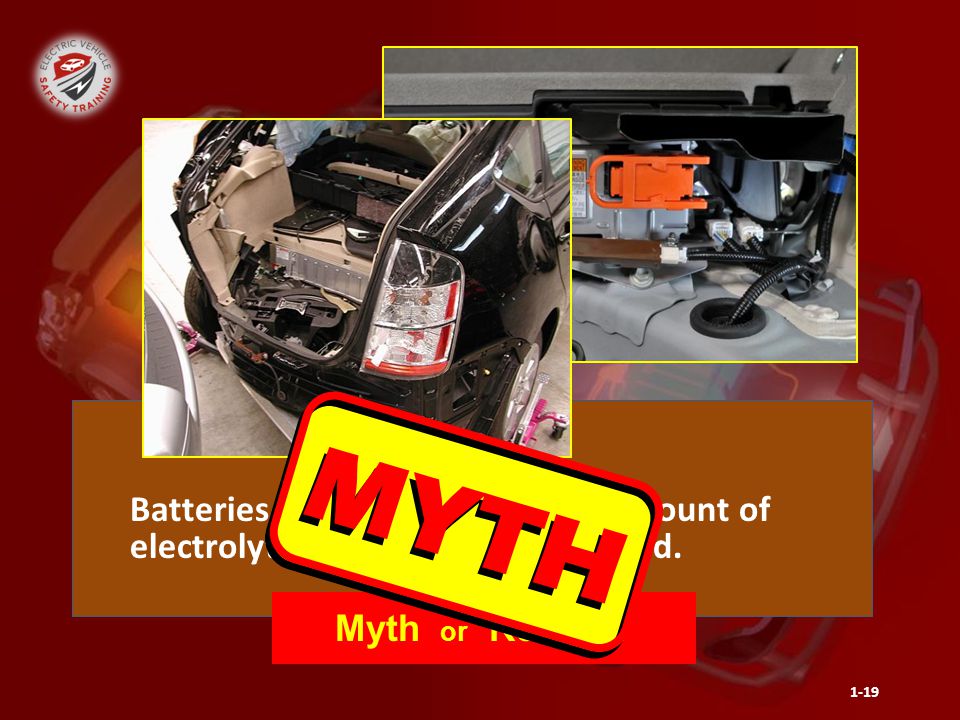

19. Hybrid Electric Vehicle Myth or Reality? Batteries will leak a significant amount of electrolyte if damaged or breached. 1-19 MYTH

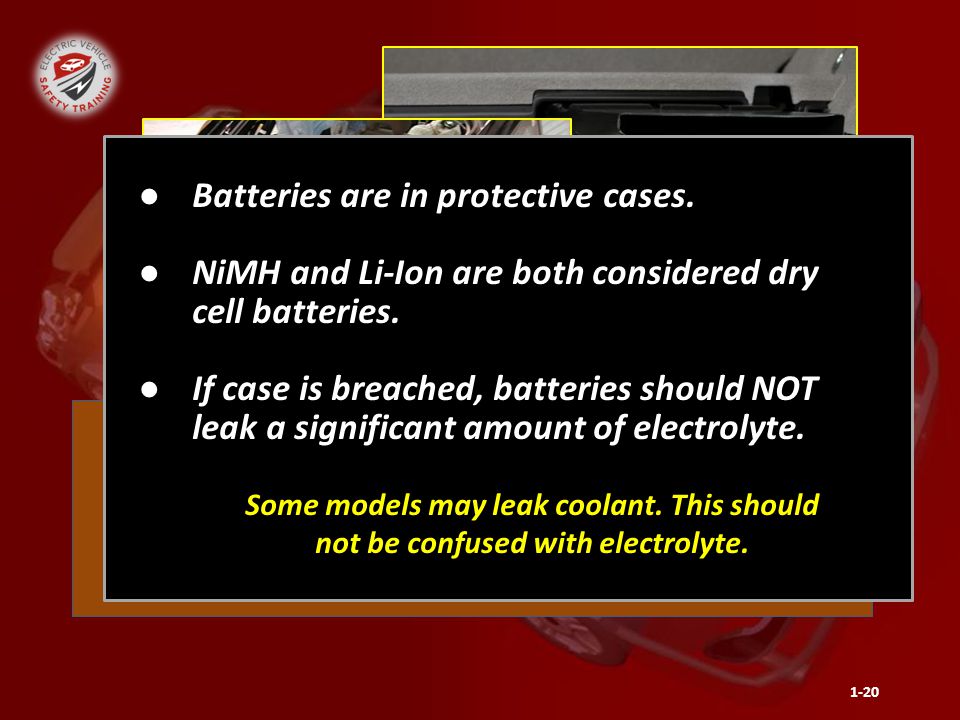

20. Hybrid Electric Vehicle Batteries will leak a significant amount of electrolyte if damaged or breached. 1-20 ●Batteries are in protective cases. ●NiMH and Li-Ion are both considered dry cell batteries. ●If case is breached, batteries should NOT leak a significant amount of electrolyte. Some models may leak coolant. This should not be confused with electrolyte.

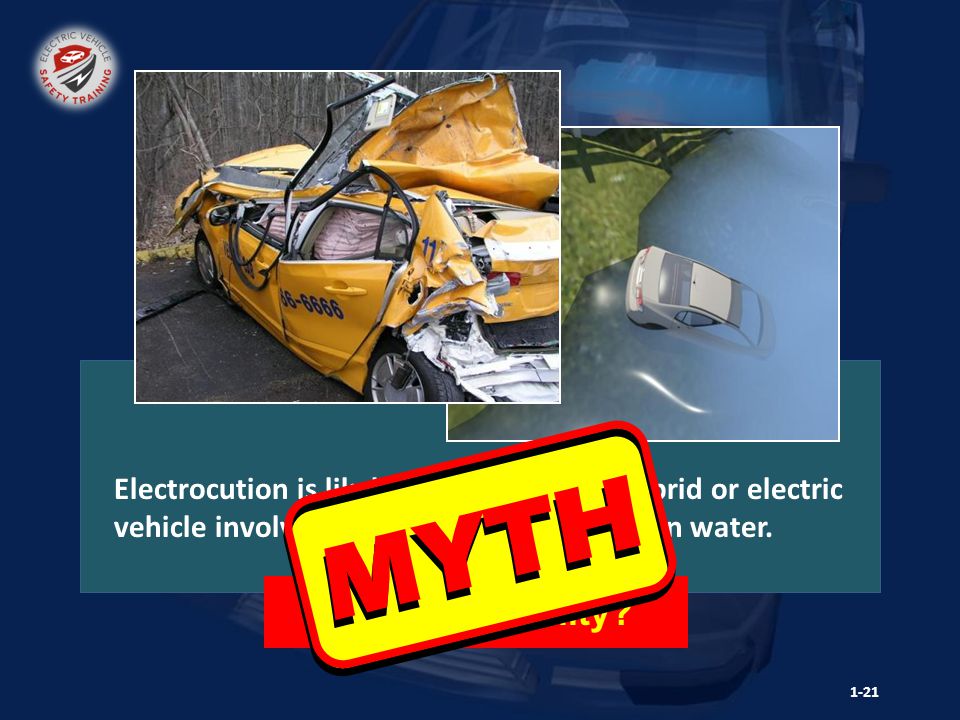

21. Hybrid Electric Vehicle Myth or Reality? Electrocution is likely from touching a hybrid or electric vehicle involved in a crash or submerged in water. 1-21 MYTH

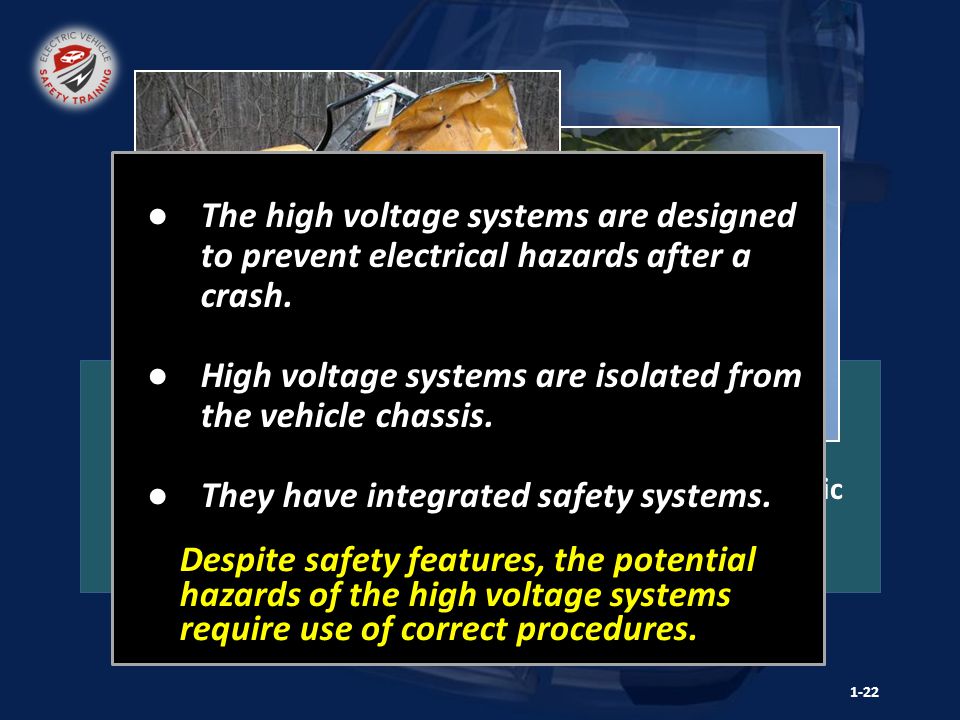

22. Hybrid Electric Vehicle Electrocution is likely from touching a hybrid or electric vehicle involved in a crash or submerged in water. 1-22 ●The high voltage systems are designed to prevent electrical hazards after a crash. ●High voltage systems are isolated from the vehicle chassis. ●They have integrated safety systems. Despite safety features, the potential hazards of the high voltage systems require use of correct procedures.

23. 1-23 ●There are many myths about the risks posed by hybrid and electric vehicles. ●The reality is that there are numerous safety systems to protect responders. ●As always, the key to your safety is proper training. Myths versus Realities

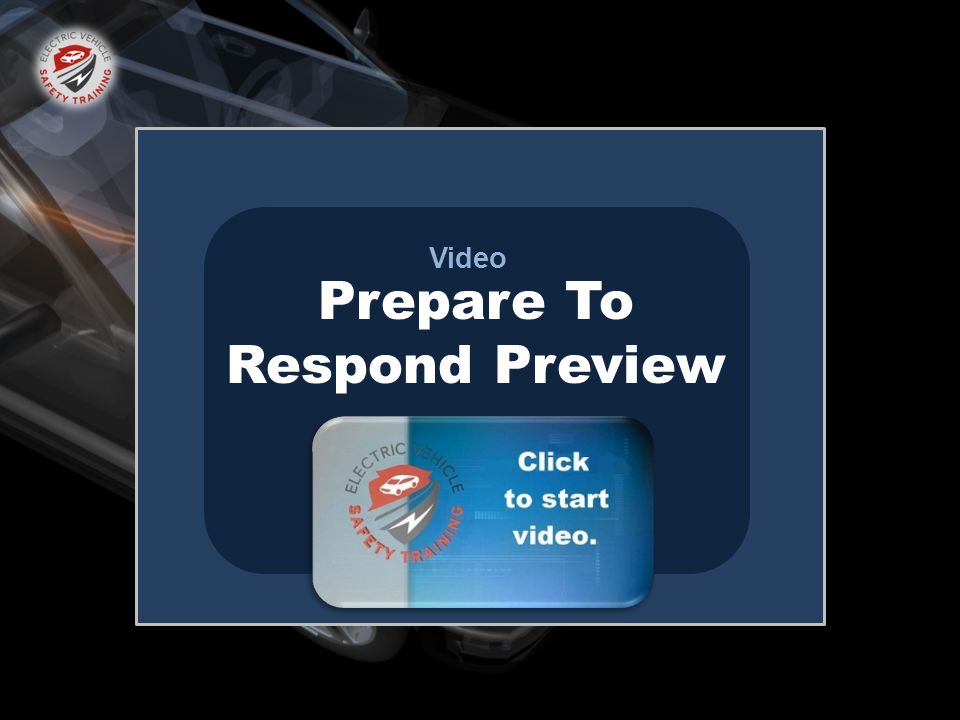

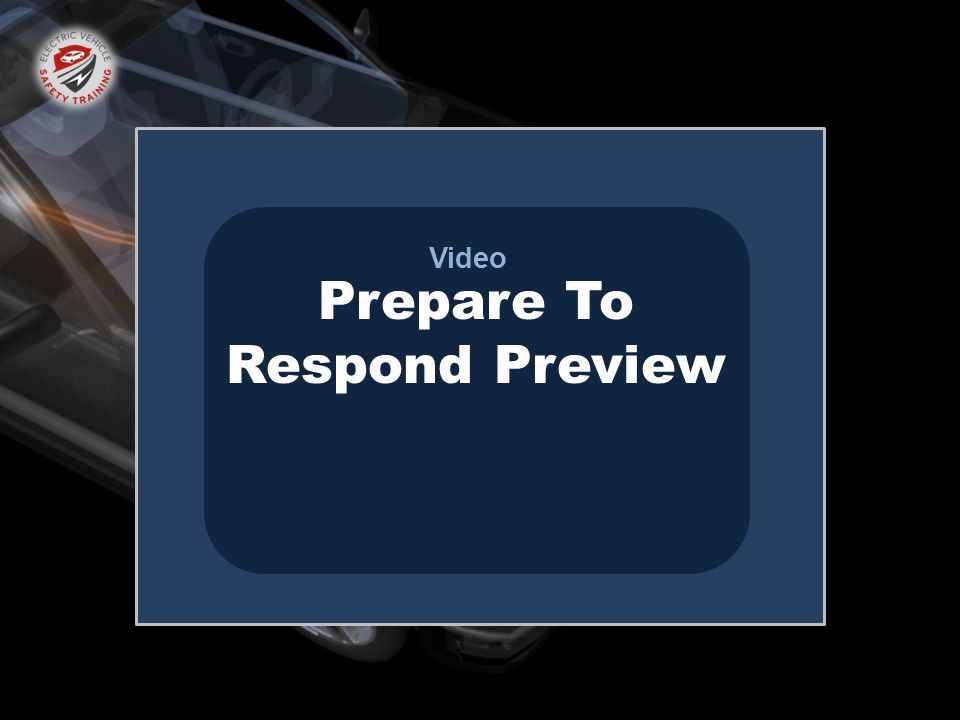

24. Video Prepare To Respond Preview

25. Video Prepare To Respond Preview

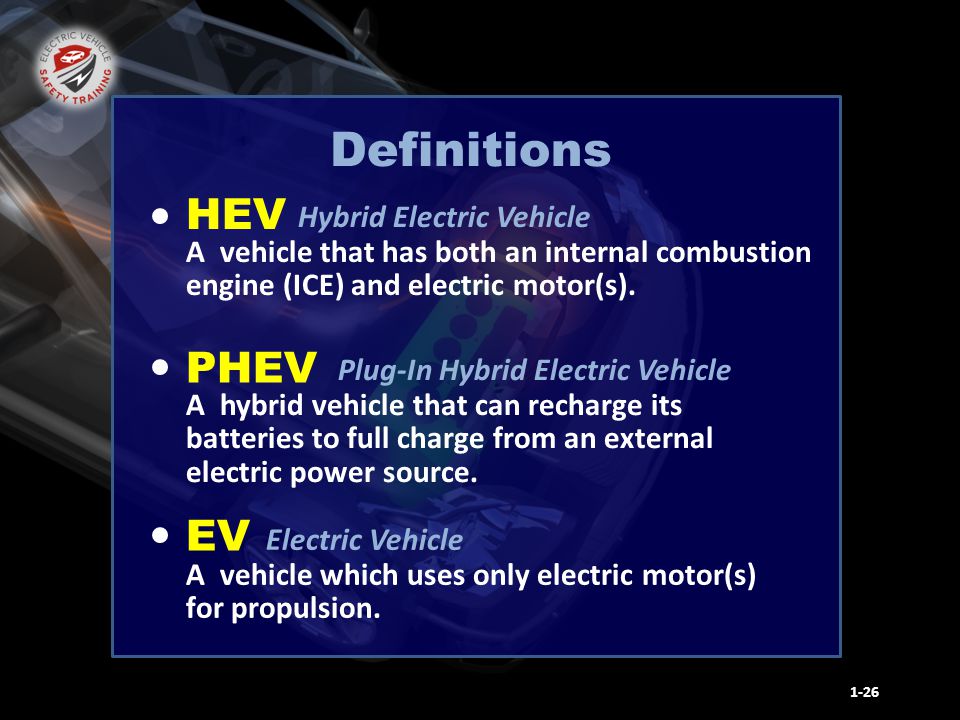

26. HEV Hybrid Electric Vehicle A vehicle that has both an internal combustion engine (ICE) and electric motor(s). PHEV Plug-In Hybrid Electric Vehicle A hybrid vehicle that can recharge its batteries to full charge from an external electric power source. EV Electric Vehicle A vehicle which uses only electric motor(s) for propulsion. 1-26 Definitions

27. History of EVs and HEVs First crude electric vehicles. 1832 to 1839 23% of all cars manufactured were electric. 1900 GM built EV-1 electric vehicles for lease. 1996 to 2003 Tesla Roadster EV released.2006 1-27 Porsche builds first hybrid. 1889 Prototype hybrid Buick Skylark. 1974 Honda Insight became 1 st production hybrid in U.S. 1999

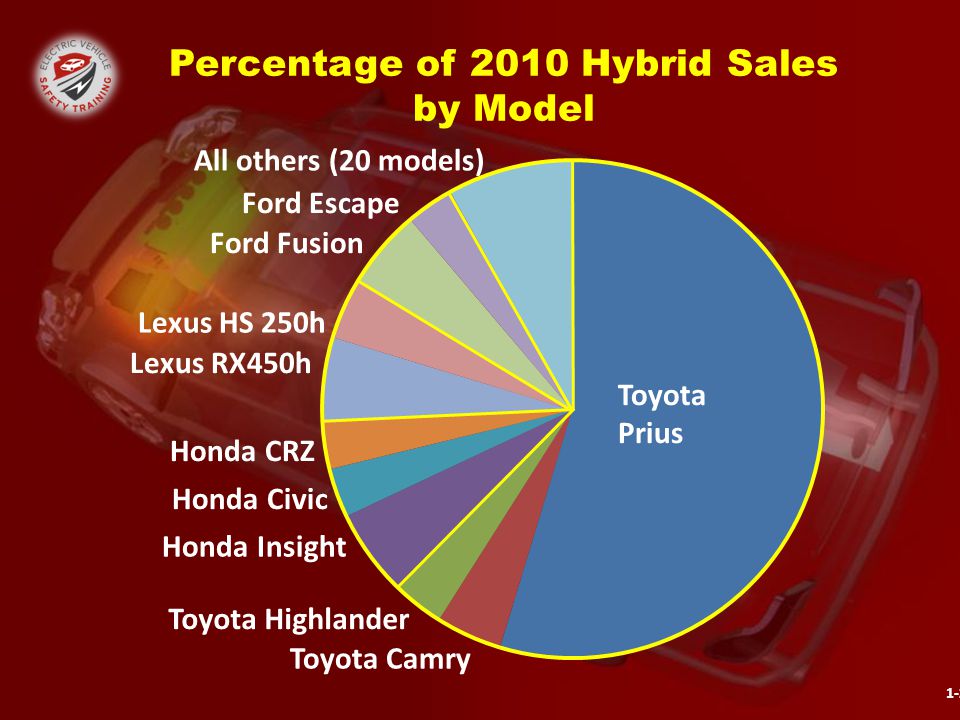

28. Percentage of 2010 Hybrid Sales by Model Honda Insight Lexus RX450h Ford Fusion Toyota Camry Lexus HS 250h Toyota Highlander Honda Civic Ford Escape Toyota Prius Honda CRZ All others (20 models) 1-28

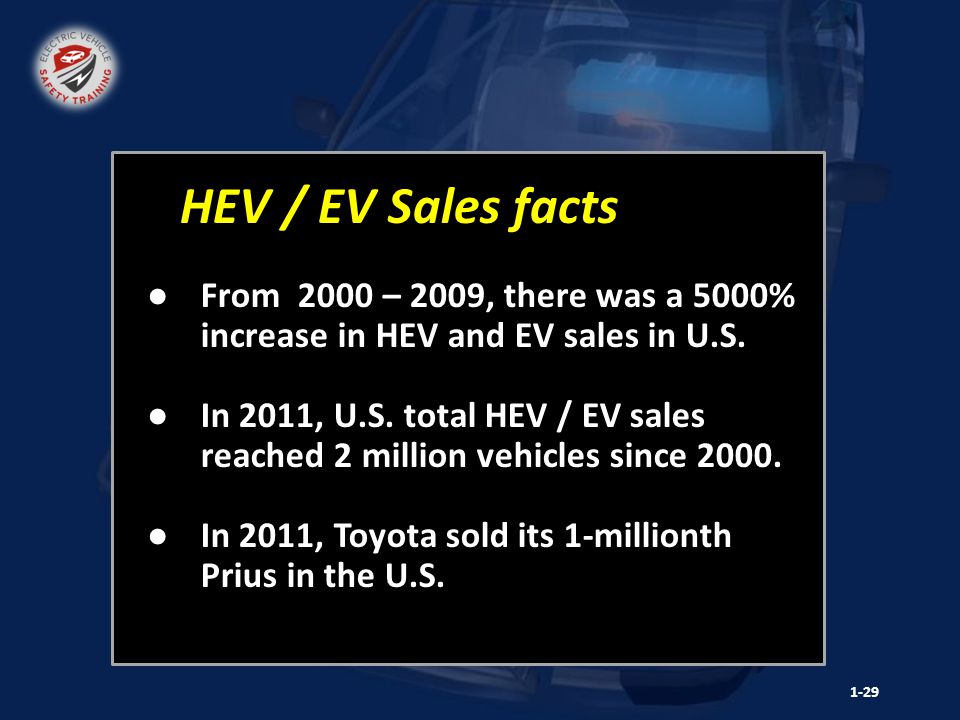

29. Hybrid Electric Vehicle 1-29 ●From 2000 – 2009, there was a 5000% increase in HEV and EV sales in U.S. ●In 2011, U.S. total HEV / EV sales reached 2 million vehicles since 2000. ●In 2011, Toyota sold its 1-millionth Prius in the U.S. HEV / EV Sales facts

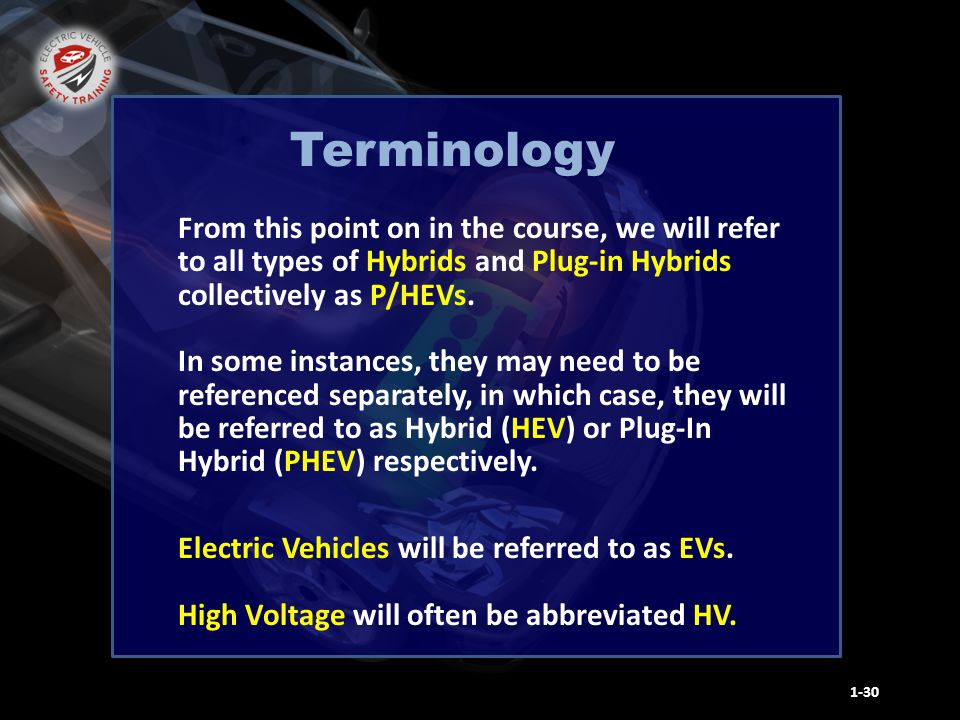

30. From this point on in the course, we will refer to all types of Hybrids and Plug-in Hybrids collectively as P/HEVs. In some instances, they may need to be referenced separately, in which case, they will be referred to as Hybrid (HEV) or Plug-In Hybrid (PHEV) respectively. 1-30 Terminology Electric Vehicles will be referred to as EVs. High Voltage will often be abbreviated HV.

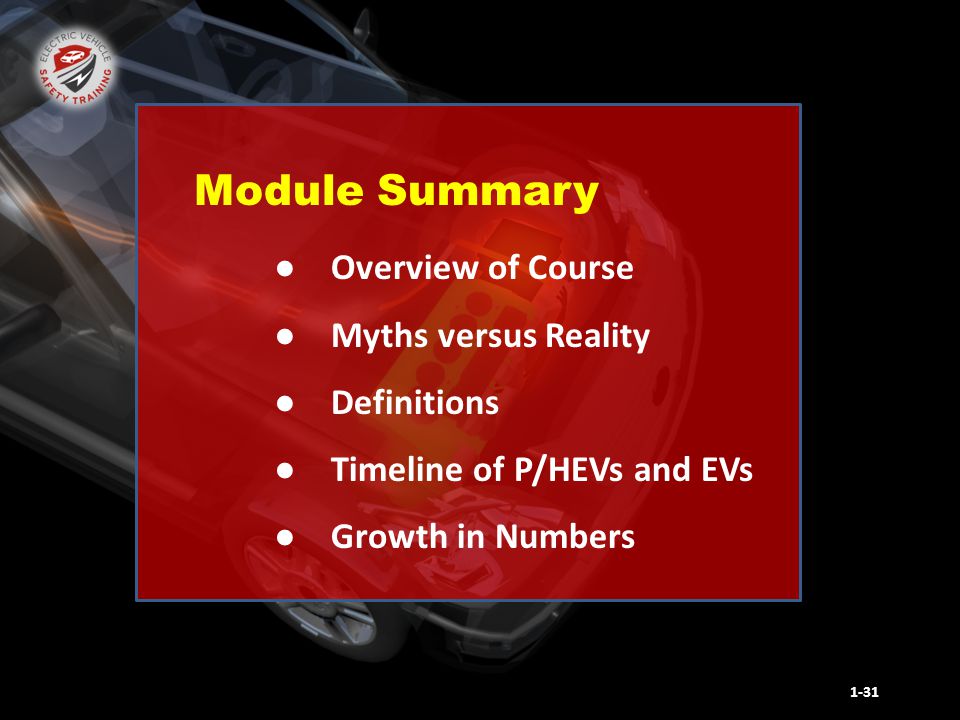

31. ● Overview of Course ● Myths versus Reality ● Definitions ● Timeline of P/HEVs and EVs ● Growth in Numbers 1-31 Module Summary
