1. THE LIVER

2. Introduction/General Information
A. Largest of viscera
1. ~ 2.5% body weight
2. Completely covered by Glisson’s Capsule
3. Incomplete covering by peritoneum

3. b. 15 – 18 cm superior to inferior
General Information, continued …
4. Measurements are ~
a. 21 – 23 cm transverse
b. 15 – 18 cm superior to inferior
c. 10 – 13 cm anterior to posterior

4. C. Mostly covered by ribs
General Information, continued …
Location:
1. right hypochondrium
2. epigastrium
C. Mostly covered by ribs
D. Contains numerous vascular structures

5. 1. Divisions based on blood supply, bile drainage
II. Detailed Anatomy
A. Four lobes
1. Divisions based on blood supply, bile drainage
2. Anatomical lobes divided by falciform ligament

6. Inferior View of the LiverA P

7. a. right and left lobes separated by imaginary line
Detailed Anatomy, con’t…
3. Functional Lobes
a. right and left lobes separated by imaginary line
b. from fossa for GB  IVC

8. Right and Left Functional Lobes of the Liver
Left Lobe
Right Lobe

9. Right lobe with caudate process Left lobe: a. Caudate lobe
Detailed Anatomy, continued …
Functional Divisions
Right lobe with caudate process
Left lobe:
a. Caudate lobe
b. Quadrate lobe
Caudate Process

11. 2. Left sagittal (accessory) 3. Portal 4. Right oblique intersegmental
Detailed Anatomy, continued …
C. Fissures:
1. Right sagittal (main)
2. Left sagittal (accessory)
3. Portal
4. Right oblique intersegmental
5. Lateral intersegmental

12. Fissures of the Liver Main lobar fissure
Boundary between R and L lobes
L.S. on U/S: seen as hyperechoic line from PV to neck of GB
Used to ID GB when it is packed with stones

13. Fissures of the Liver Portal fissure T.S. on U/S
Created by portal veins (triads)
R. main PV is // to anterior body wall

14. Segments of the Liver Hepatic segments I = caudate lobe
II & III = superior and inferior lateral segments, L. lobe
IV = medial segment, L. lobe
V & VI = caudal to transverse plane
VII & VIII = cephalad to transverse plane I

15. b. Portal Vein – inferior c. Gallbladder – inferior
Functional divisions, continued …
4. Fossae (Superficial)
a. IVC – posterior
b. Portal Vein – inferior
c. Gallbladder – inferior

16. Fossae, Inferior Surface of the Liver
Fossa for IVC
Fossa for Portal Vein
Fossa for Gall Bladder

17. 5. Impressions (visceral surface): produced by abdominal viscera
Functional Divisions, continued …
5. Impressions (visceral surface): produced by abdominal viscera
a. Gastric (fundus of stomach)
b. Renal (right kidney)
c. Adrenal (right adrenal gland)
d. Duodenal (bulb of duodenum)
e. Esophageal (esophagus)
f. Right and left colic (flexures of the colon)

18. Visceral Impressions, continued …
Esophageal
Renal
Gastric
Adrenal
Duodenal
Right colic
Left colic L R A

19. 1. Falciform (most superficial anteriorly)
Detailed Anatomy, continued …
D. Ligaments
1. Falciform (most superficial anteriorly)
a. Divides left lobe in two sections
1. anatomical left lobe
2. caudate & quadrate lobes
b. Two layers of peritoneum
c. Extends to umbilicus

20. 2. Ligamentum teres hepatis (fetal source??) 3. Ligamentum venosum
Ligaments, continued …
2. Ligamentum teres hepatis
(fetal source??)
3. Ligamentum venosum
4. Right/Left Coronary Ligaments

21. Ligamentum teres hepatis Ligamentum venosum
Hepatic Ligaments
Falciform ligament
L. coronary ligament
L. triangular ligament
Ligamentum teres hepatis
Ligamentum venosum

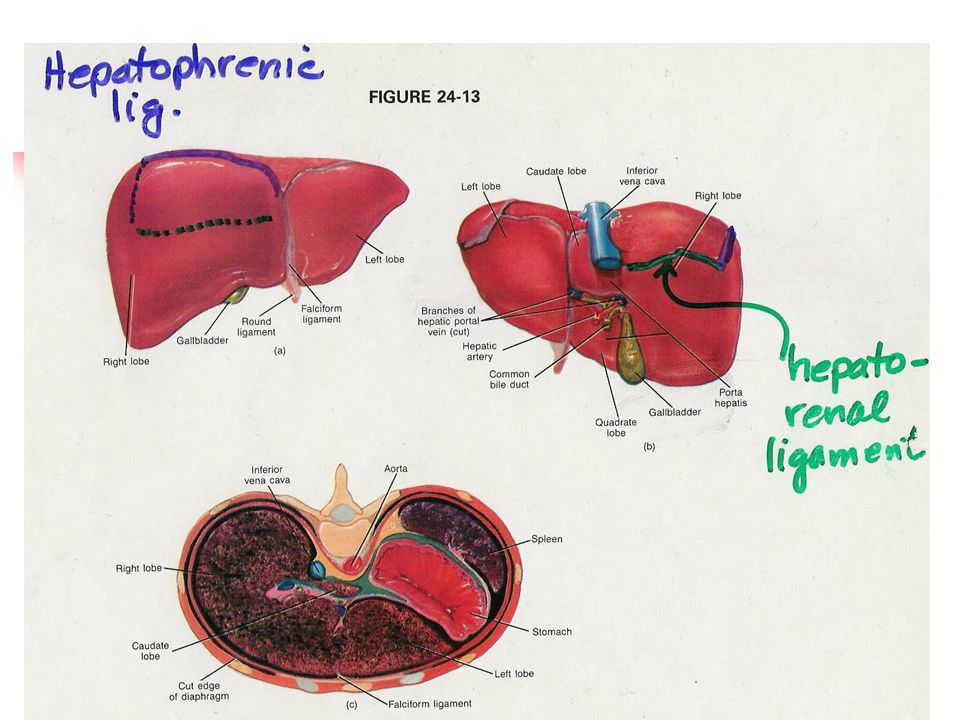

22. 5. Hepatophrenic & Hepatorenal ligaments:
Ligaments, continued …
5. Hepatophrenic & Hepatorenal ligaments:
a. Subdivisions of right coronary ligament
b. hepatophrenic (superior) & hepatorenal (inferior)
c. Surround BARE AREA

23. Hepatic Ligaments, con’t…
Hepatophrenic ligament
Hepatorenal ligament
Bare Area

24. 1. Sleeve-like structure
Detailed Anatomy, continued …
E. Lesser Omentum
1. Sleeve-like structure
2. Connects lesser curvature of stomach & bulb of duodenum to inferior surface of liver
3. AKA: Gastrohepatic or Hepatoduodenal ligament

25. 3. Attachment surrounds Porta Hepatis
Lesser Omentum, continued …
3. Attachment surrounds Porta Hepatis
4. Continues on each side of ligamentum venosum
5. Extends to caudate & left lobes on posterior surface of liver

26. Lesser Omentum: (R) Anterior view, (L) Inferior view
7. Liver Inferiorly (7)
Lesser Omentum: (R) Anterior view, (L) Inferior view

27. common sites for abscesses Between liver and diaphragm
Detailed Anatomy, con’t…
E. Subphrenic Spaces
clinically important
common sites for abscesses
Between liver and diaphragm

28. 4. Right superior posterior subphrenic space
Subphrenic Spaces, con’t…
4. Right superior posterior subphrenic space
a. Boundaries:
- superior: right coronary ligament
- anterior: liver
- posterior: parietal peritoneum covering diaphragm
b. Extends inferiorly to….

29. - above: inferior surface of liver
Subphrenic Spaces, continued …
5. Right posterior inferior subphrenic space
a. Boundaries
- above: inferior surface of liver
- below: transverse colon & mesocolon
b. Extends over right adrenal & kidney

30. c. AKA: Hepatorenal Pouch/Recess, Morrison’s Pouch
Subphrenic Spaces, continued …
c. AKA: Hepatorenal Pouch/Recess, Morrison’s Pouch
d. Patient lying supine:
1. Lowest part of peritoneal cavity is behind liver
2. Fluid, pus, etc. collects here
3. Can cause abscess formation

31. 6. Right superior anterior subphrenic space
Subphrenic spaces, continued …
Right superior anterior subphrenic space
a. Boundaries:
- right side of falciform ligament
- upper layer of right coronary ligament
- underside of diaphragm
- superior surface of liver
b. Found when patient lying prone

32. 7. Most sources of peritoneal contamination are on the right
Subphrenic spaces, continued …
7. Most sources of peritoneal contamination are on the right
8. Right posterior & right inferior spaces are most significant sites
9. Infection may spread via diaphragmatic lymphatics

33. F. Porta Hepatis: contains the following structures
Detailed Anatomy, continued …
F. Porta Hepatis: contains the following structures
1. Hepatic arteries
a. Usually two, sometimes one
b. Originate from common/proper hepatic artery
c. Course is variable

34. 2. Portal vein (supplies 1100 ml/blood per minute)
Porta Hepatis, continued …
2. Portal vein (supplies ml/blood per minute)
a. Largest structure in porta
b. Formed by confluence of mesenteric veins & splenic vein

35. Hepatic Artery Portal Vein Common Bile Duct Porta Hepatis
5. Transparent Liver (5)

36. a. Vagus X (parasympathetic) b. Fibers from celiac ganglion
Porta Hepatis, continued …
3. Hepatic & cystic ducts
4. Nerves:
a. Vagus X (parasympathetic)
b. Fibers from celiac ganglion

37. a. most hepatic lymph vessels end in nodes around porta hepatis
Porta Hepatis, continued …
4. Lymph nodes:
a. most hepatic lymph vessels end in nodes around porta hepatis
b. From here, drain into celiac nodes

38. c. Some vessels pass through falciform ligament
Porta Hepatis, continued …
c. Some vessels pass through falciform ligament
1. through diaphragm
2. into mediastinal nodes
d. enlarged nodes may compress portal vein or hepatic duct

39. G. Vascular Structures in Liver
Detailed Anatomy, continued …
G. Vascular Structures in Liver
1. Largest vessels are portal vein and IVC
a. Portal Vein:
1. appears on T.S. as tubular, echolucent structure
2. courses horizontally from porta hepatis

40. 3. walls echogenic due to structures in portal triad
Detailed Anatomy, continued …
3. walls echogenic due to structures in portal triad
b. Left Portal Vein:
1. has more variable course
2. May be difficult to trace on transverse scans

41. Hepatic Vessels
IVC
Right Portal Vein
Left Portal Vein
Main Portal Vein

42. 2. extends into right lobe 3. branches after porta hepatis
Vascular Structures, continued …
c. Right Portal Vein:
1. anatomical landmark
2. extends into right lobe
3. branches after porta hepatis
4. L.S. shows “dumbbell” or circular structure with echogenic “collar”

43. Computer-enhanced image of RPV, L.S.

44. Computer-enhanced 3-D image of RPV, L.S.

45. 2. Appears to pass through liver
Vascular Structures, continued …
d. IVC:
1. To right of aorta
2. Appears to pass through liver
3. Diameter enlarges after renal veins join (~L-1)

46. Computer-enhanced 3-D image of Hepatic Vessels

47. c. In superior half of liver
Vascular structures, continued …
2. Hepatic Veins:
a. Tubular structures
b. Enlarge cephalad
c. In superior half of liver
d. Angles of hepatic vein branches oriented toward IVC
e. Walls not echogenic

48. Hepatic Veins
R. Hepatic Vein
Middle Hepatic Vein
L. Hepatic Vein

49. c. Highly branched over short distances
Detailed Anatomy, continued …
Bile Ducts
1. No “normal” anatomy
2. If dilated:
a. Echogenic collar
b. Lobulated shape
c. Highly branched over short distances
d. Converge toward porta hepatis

50. Anatomy of the Biliary System (yeah, right…)P R L
8. Liver, Biliary Cast (8) A

51. III. Hepatic Masses
A. May be cystic, solid, or complex
B. Simple Cysts
1. solitary or multiple
2. sonolucent
3. well-defined margins
4. exhibit posterior acoustic enhancement
5. Congenital cysts may contain cellular debris

52. a. Wall is distinct, sharp border, crisp edges
Simple Cysts, Hepatic Masses, continued …
6. Polycysts: usually accompany cysts of kidney, spleen, and/or pancreas
7. Appearance:
a. Wall is distinct, sharp border, crisp edges
b. Shape: spherical

53. 1. With central necrosis: irregular walls
Hepatic Masses, continued …
C. Complex Masses
1. With central necrosis: irregular walls
a. Associated with metastases from rapidly-growing neoplasms
b. Blood supply can’t supply tumor growth
c. Central part of mass becomes necrotic

54. 2. With cellular or inflammatory debris: a. walls are irregular
Complex Masses,Hepatic Masses, continued …
2. With cellular or inflammatory debris: a. walls are irregular
b. Associated with hepatic abscess
c. Internal bacterial infection
3. Due to echinococcal disease:
a. Show irregular wall thickness
b. Parasitic bacteria in sheep feces

55. b. After clot forms, echogenic c. Due to liver trauma
Complex Masses, continued …
Hematoma: ill-defined borders, sonolucent-to-complex masses a. Early: appears sonolucent
b. After clot forms, echogenic
c. Due to liver trauma

56. D. Solid Masses often represent carcinomas
Hepatic Masses, continued …
D. Solid Masses often represent carcinomas
1. Hepatoma: primary liver cancer
a. Central necrosis may be present
b. Tumor thrombus may be detected impinging on major veins

57. 2. Metastatic Liver Disease
Solid Masses, Hepatic Masses, continued …
2. Metastatic Liver Disease
a. “Bull’s Eye” or “Target” pattern [adenocarcinoma of GI Tract]
b. Adenocarcinomas from other sources more echogenic
c. Sonolucent metastases from lymphomas, sarcomas more complex

58. IV. Parenchymal Disorders
A. Sonographic appearance: non-specific
1. Stroma = supportive connective tissue
2. Parenychma = functional tissue
3. Most liver tissue is parenchyma

59. B. Cirrhosis: Most common 1. Due to hepatitis or alcoholism
Parenchymal disorders, continued …
B. Cirrhosis: Most common
1. Due to hepatitis or alcoholism
2. Sonographic appearance:
a. Moderately echogenic
b. Liver denser than normal
c. Due to formation of scar tissue

60. 2. peripheral vessels obscured by scar tissue
Cirrhosis, Sonographic appearance, continued …
c. Peripheral intrahepatic vessels indistinct
1. reduced blood supply
2. peripheral vessels obscured by scar tissue

61. d. Lobes may show reduced size: 1. right lobe is more affected
Cirrhosis, Sonographic appearance, continued …
d. Lobes may show reduced size:
1. right lobe is more affected
2. left lobe enlargement a. compensation
b. decreased function of right lobe

62. e. As scar tissue develops, blood flow is affected
Cirrhosis, Sonographic appearance, continued …
e. As scar tissue develops, blood flow is affected
1. Blood backs up
2. Spleen and splenic vein enlarge
e. Portal Hypertension

63. f. Liver margin: 1. indentations 2. changes in contour
Cirrhosis, Sonographic appearance, continued …
f. Liver margin:
1. indentations
2. changes in contour
3. blunted edges
4. may be observed on U/S

64. g. Increased incidence of hepatoma in advanced cirrhosis
Cirrhosis, Sonographic appearance, continued …
g. Increased incidence of hepatoma in advanced cirrhosis
h. detection of ascites aids in differential diagnosis
1. Ascites: fluid in peritoneal cavity
2. Due to portal HTN

65. C. Fatty Replacement (prior to cirrhosis)
Parenchymal Disorders, continued …
C. Fatty Replacement (prior to cirrhosis)
1. Appearance similar to cirrhosis
2. May be initial stage of cirrhosis
3. Difference:
a. Intrahepatic vessels remain clearly defined
b. No portal HTN

66. V. Other Diseases and Conditions
A. Congestive Hepatomegaly:
1. Enlargement of liver secondary to congestive heart failure
2. Homogeneous: liver rarely shows echo changes
3. Tissue attenuation may decrease as liver fills with blood

67. 5. Hepatic vein branches may show enlargement
Other Disease Conditions, continued …
4. Marked dilation of IVC without respiratory influence is proof of right heart failure
5. Hepatic vein branches may show enlargement

68. 6. Thrombosis of IVC may show similarities -thrombus can be detected
Other disease conditions, continued …
6. Thrombosis of IVC may show similarities
-thrombus can be detected
7. Other signs:
a. Ascites
b. dilation of right atrium

69. Other diseases and conditions, continued …
B. Liver Abscesses:
1. Commonly found in hepatorenal pouch
2. Appear cystic with irregular borders and fine precipitates

70. Obstructive Jaundice: 1. Result of obstruction of bile flow
Other Disease Conditions, continued …
Obstructive Jaundice:
1. Result of obstruction of bile flow
2. Dilation of intrahepatic bile ducts
3. Ultrasound can differentiate between obstructive and hepatocellular jaundice

71. Dilated CBD: seen in Obstructive Jaundice

72. D. Hepatic Artery Aneurysm: 1. May stimulate hepatic abscess
Other Disease Conditions, continued …
D. Hepatic Artery Aneurysm:
1. May stimulate hepatic abscess
2. Usually appears as sonolucency with surrounding echogenic area (thrombus)
3. Flow of blood changes as blood swirls and clots

73. b. Causes obstructive jaundice
Other Disease Conditions, continued …
Klatskin Tumor:
1. Ducts are blocked or fused a. Tumor at junction of Right and Left Hepatic Ducts
b. Causes obstructive jaundice

74. 1. Refers to gallbladder “rate of fill” with tumor vs. stone
Other Disease Conditions, continued …
F. Courvasier’s Sign:
1. Refers to gallbladder “rate of fill” with tumor vs. stone
2. Hydrops (edema) of gallbladder due to tumor in head of pancreas

75. 1. Anomalous, tongue-like extension
Other Disease Conditions, continued …
G. Reidel’s Lobe:
1. Anomalous, tongue-like extension
2. From right lobe of liver to the gallbladder

76. Reidel’s Lobe
R. Lobe
L. Lobe GB
Reidel’s Lobe
Reidel’s Lobe

77. VI. Miscellaneous Data
A. Portal Vein: Measurements
1. Length = 5.5 – 8.0 cm (average = 6.5)
2. Diameter = ~ 1 cm

78. B. Ampulla of Vater 1. Length = 1 – 14 mm 2. Width = 1.5 – 4.5 mm
Misc. Data, continued …
B. Ampulla of Vater
1. Length = 1 – 14 mm
2. Width = 1.5 – 4.5 mm
