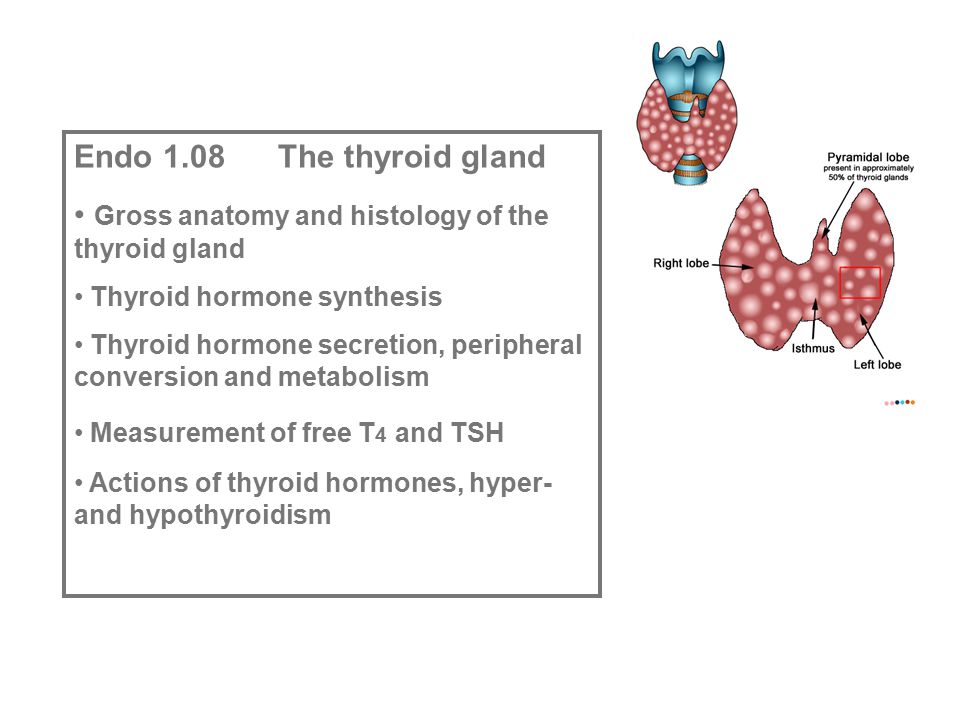

1. Endo 1.08 The thyroid gland Gross anatomy and histology of the thyroid gland Thyroid hormone synthesis Thyroid hormone secretion, peripheral conversion and metabolism Measurement of free T 4 and TSH Actions of thyroid hormones, hyper- and hypothyroidism

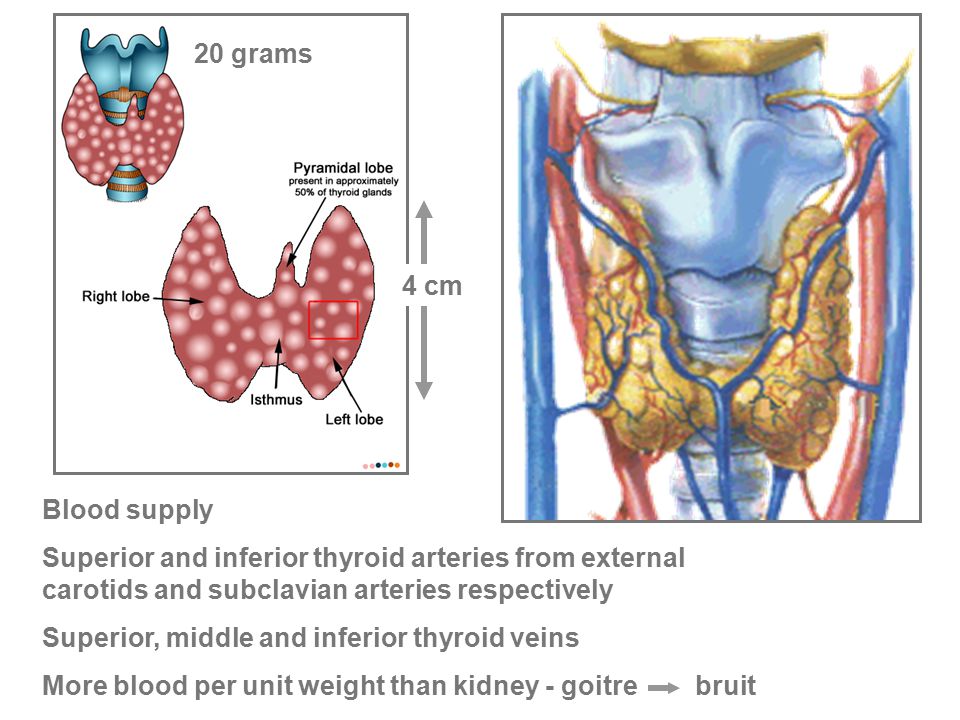

2. Blood supply Superior and inferior thyroid arteries from external carotids and subclavian arteries respectively Superior, middle and inferior thyroid veins More blood per unit weight than kidney - goitre bruit 20 grams 4 cm

3. Histology of the thyroid gland

4. Thyroid hormones derived from two iodinated tyrosine molecules

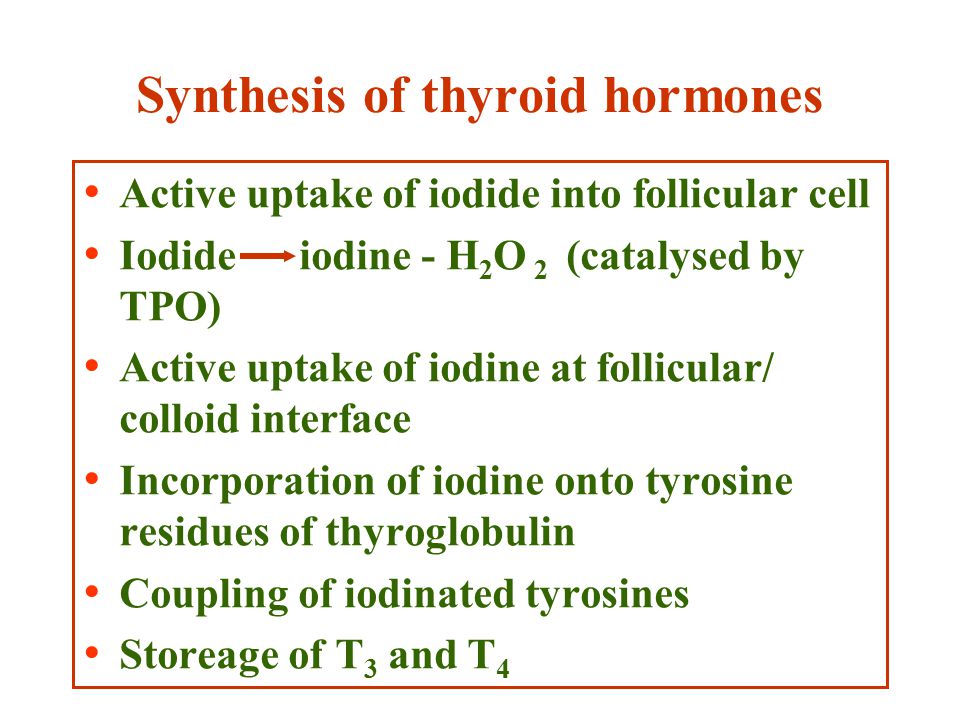

5. Synthesis of thyroid hormones Active uptake of iodide into follicular cell Iodide iodine - H 2 O 2 (catalysed by TPO) Active uptake of iodine at follicular/ colloid interface Incorporation of iodine onto tyrosine residues of thyroglobulin Coupling of iodinated tyrosines Storeage of T 3 and T 4

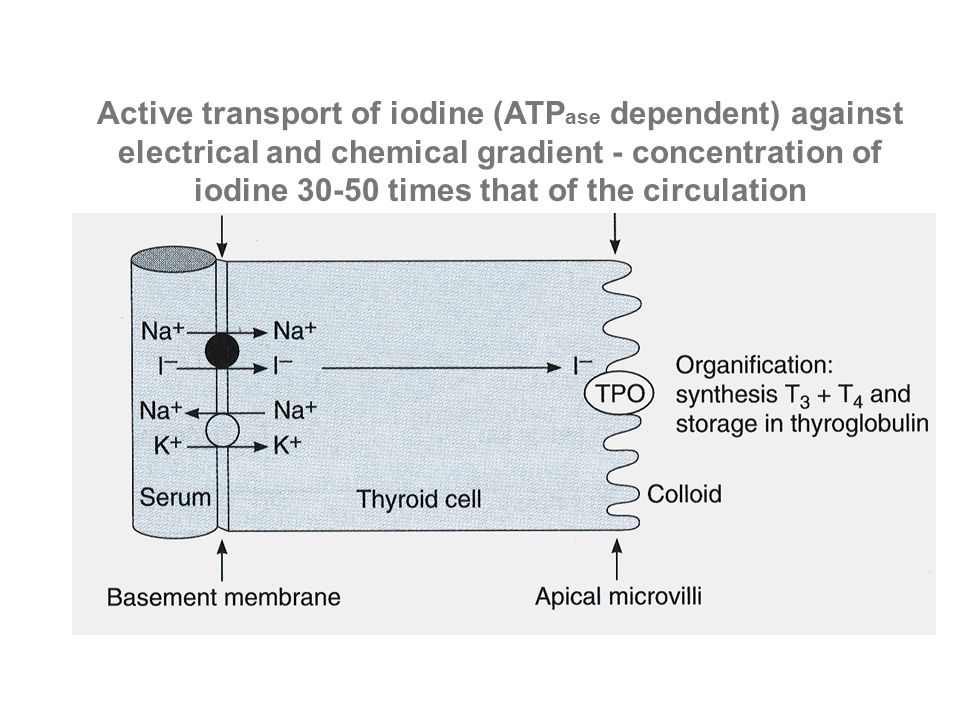

6. Active transport of iodine (ATP ase dependent) against electrical and chemical gradient - concentration of iodine 30-50 times that of the circulation

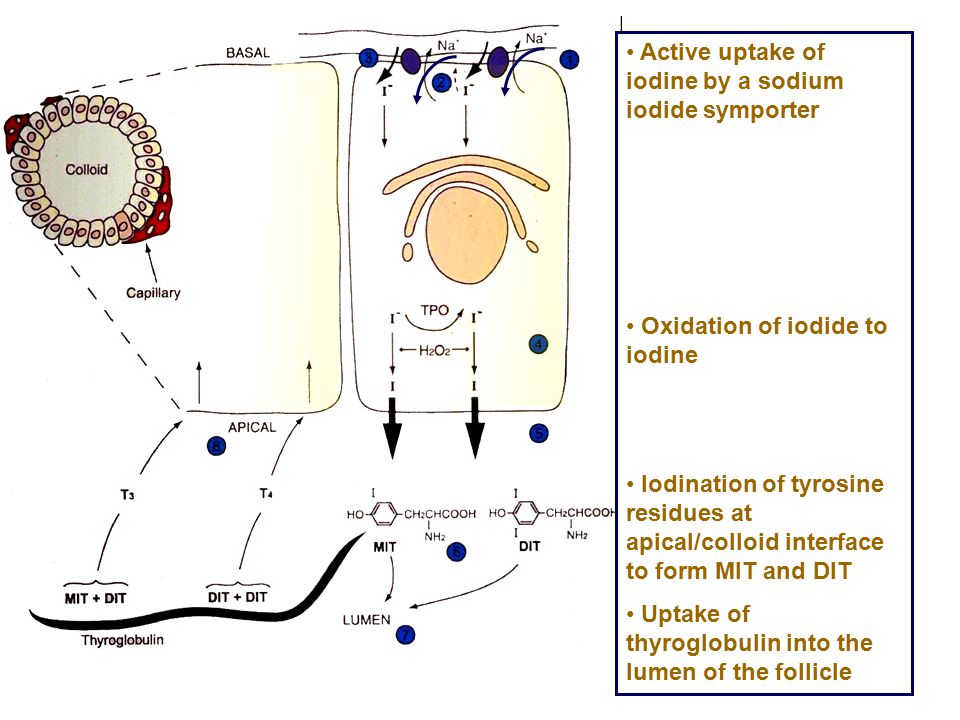

7. Active uptake of iodine by a sodium iodide symporter Oxidation of iodide to iodine Iodination of tyrosine residues at apical/colloid interface to form MIT and DIT Uptake of thyroglobulin into the lumen of the follicle

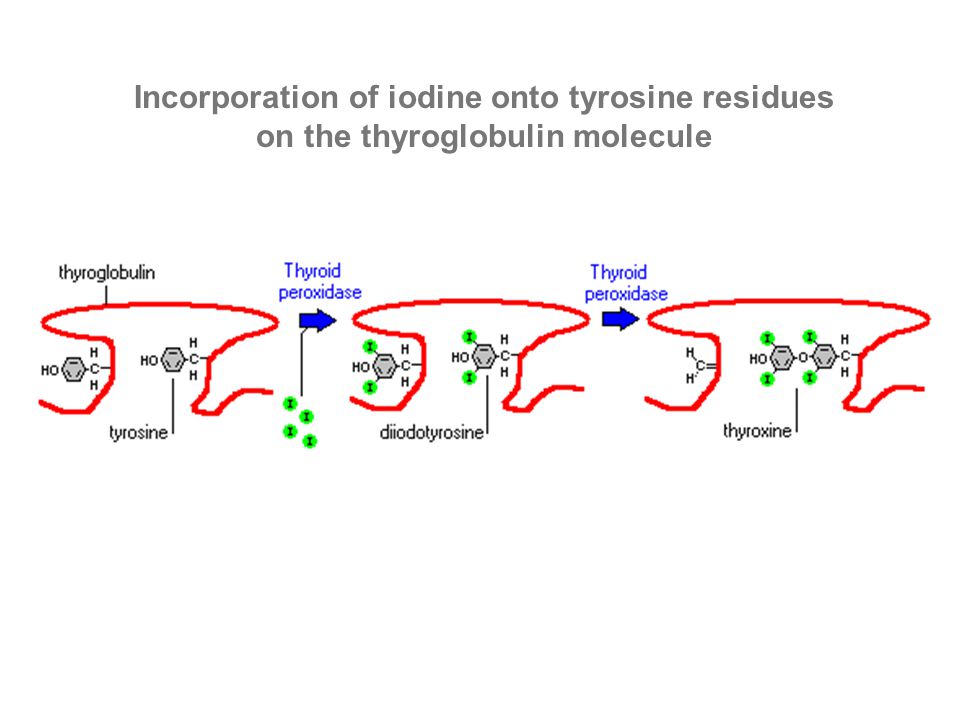

8. Incorporation of iodine onto tyrosine residues on the thyroglobulin molecule

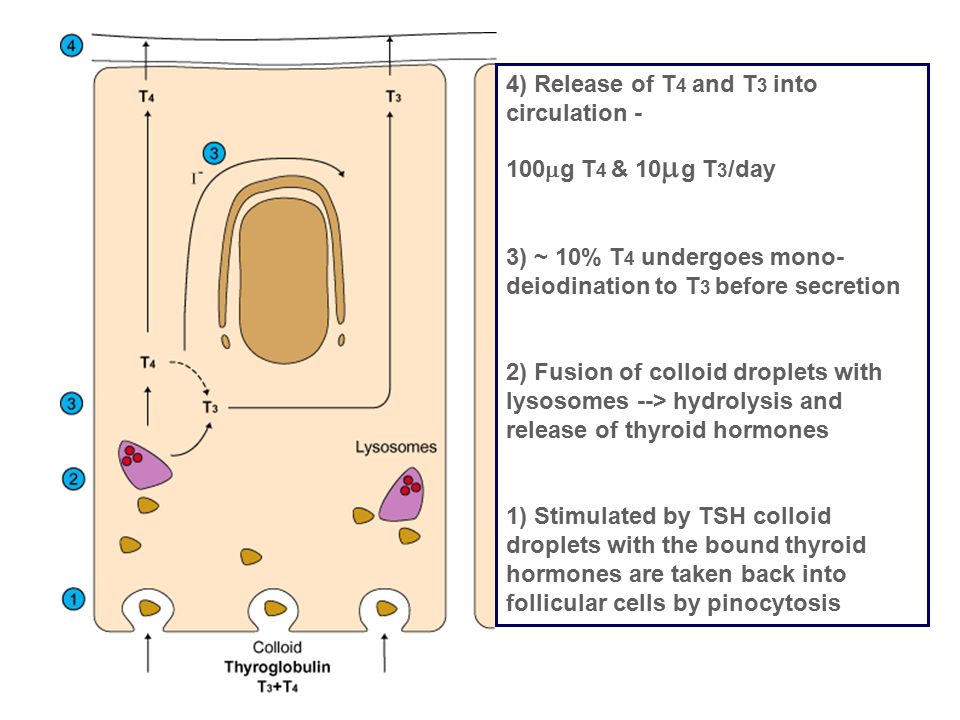

9. 4) Release of T 4 and T 3 into circulation - 100  g T 4 & 10  g T 3 /day 3) ~ 10% T 4 undergoes mono- deiodination to T 3 before secretion 2) Fusion of colloid droplets with lysosomes --> hydrolysis and release of thyroid hormones 1) Stimulated by TSH colloid droplets with the bound thyroid hormones are taken back into follicular cells by pinocytosis

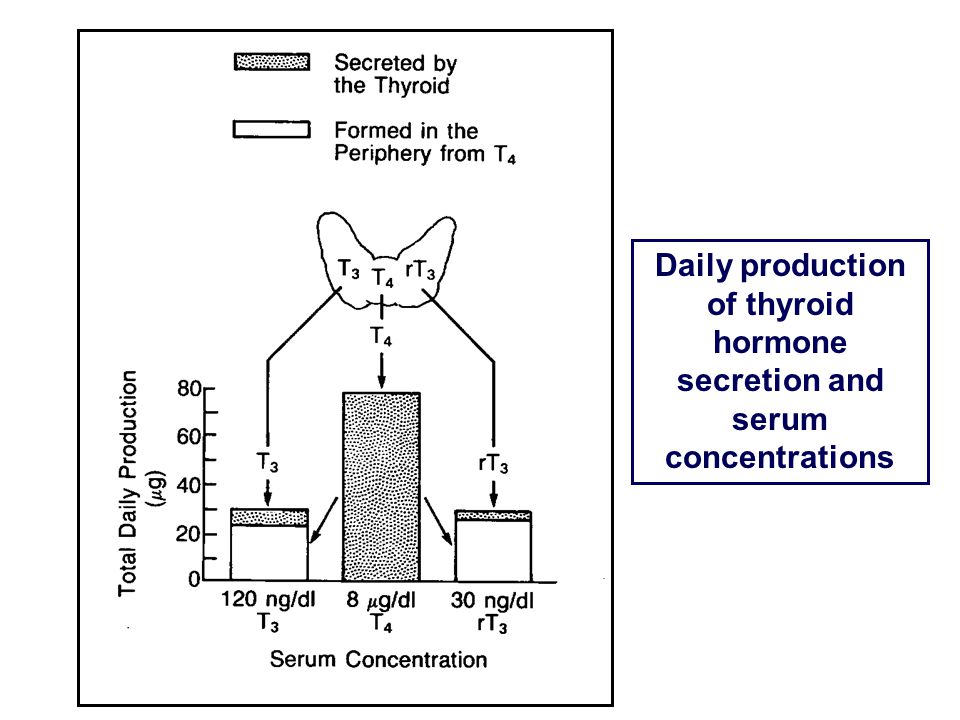

10. Daily production of thyroid hormone secretion and serum concentrations

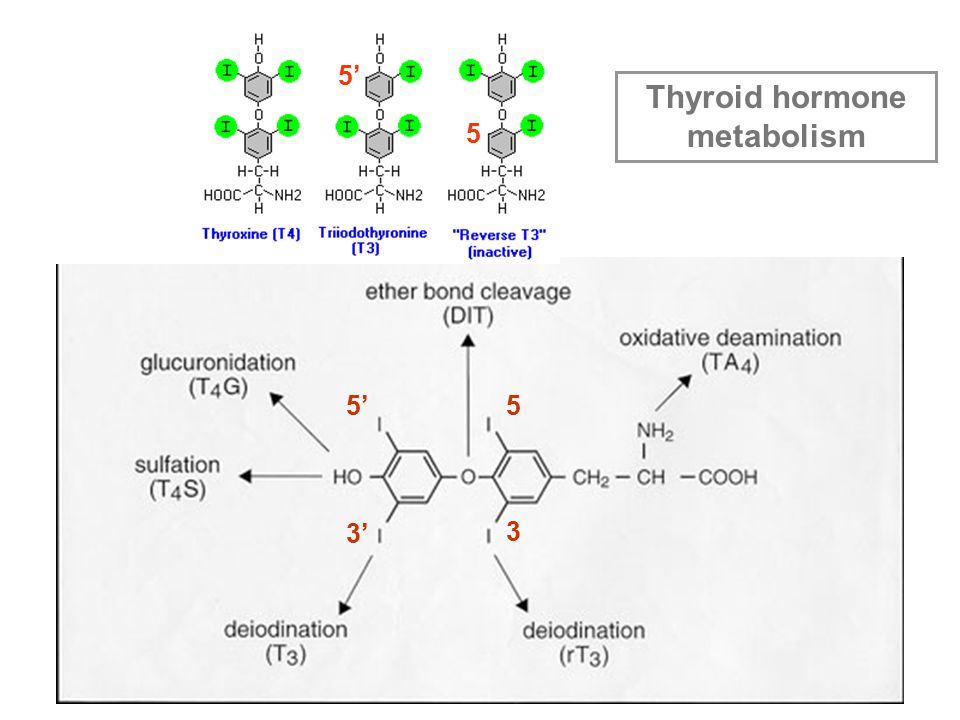

11. 5’5 3’ 3 5’ 5 Thyroid hormone metabolism

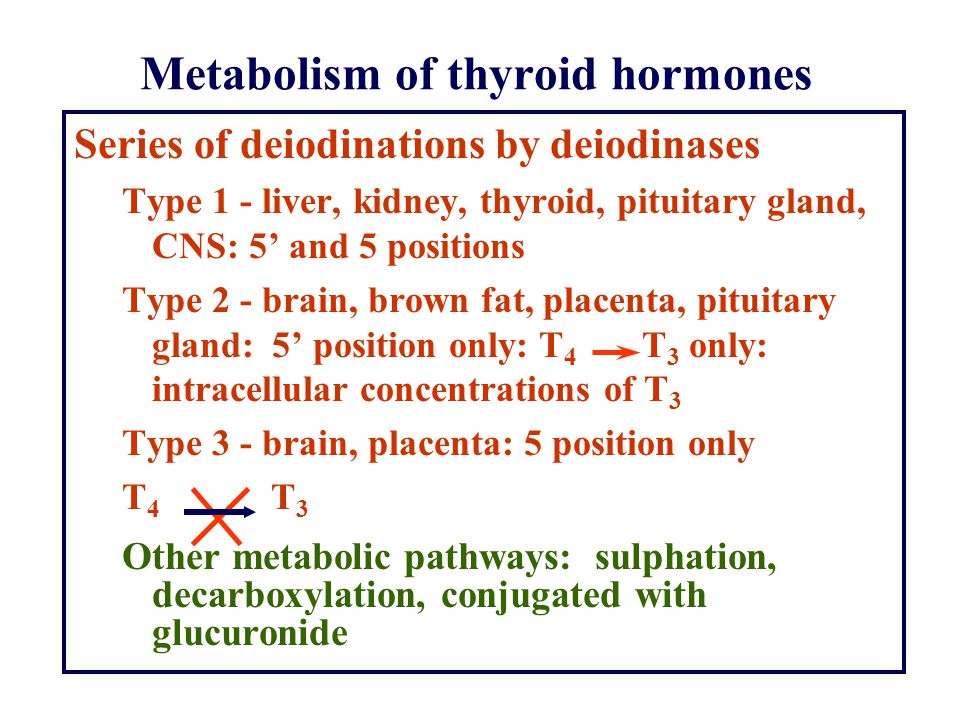

12. Metabolism of thyroid hormones Series of deiodinations by deiodinases Type 1 - liver, kidney, thyroid, pituitary gland, CNS: 5’ and 5 positions Type 2 - brain, brown fat, placenta, pituitary gland: 5’ position only: T 4 T 3 only: intracellular concentrations of T 3 Type 3 - brain, placenta: 5 position only T 4 T 3 Other metabolic pathways: sulphation, decarboxylation, conjugated with glucuronide

13. Thyroxine (T 4 ) T 3 rT 3 T 3 S TRIAC T2T2 T2T2 other pathways T1 T1 T1T1 thyronine 1 & 21 & 3 3,5,3’3,5’,3’ Type 1 - 5’ and 5 Type 2 - 5’ only Type 3 - 5 only

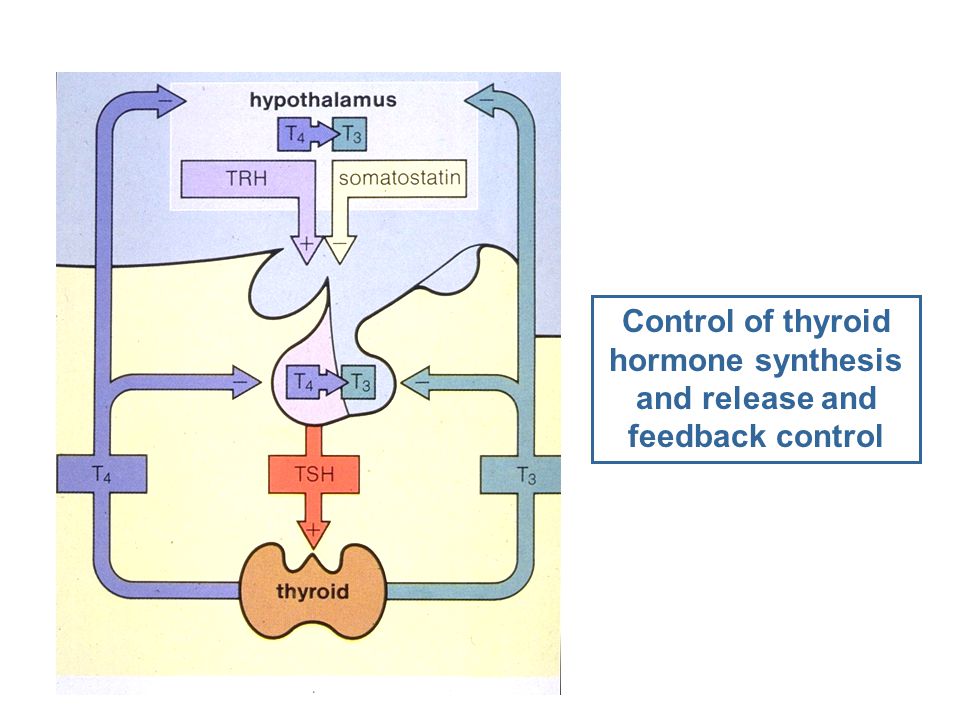

14. Control of thyroid hormone synthesis and release and feedback control

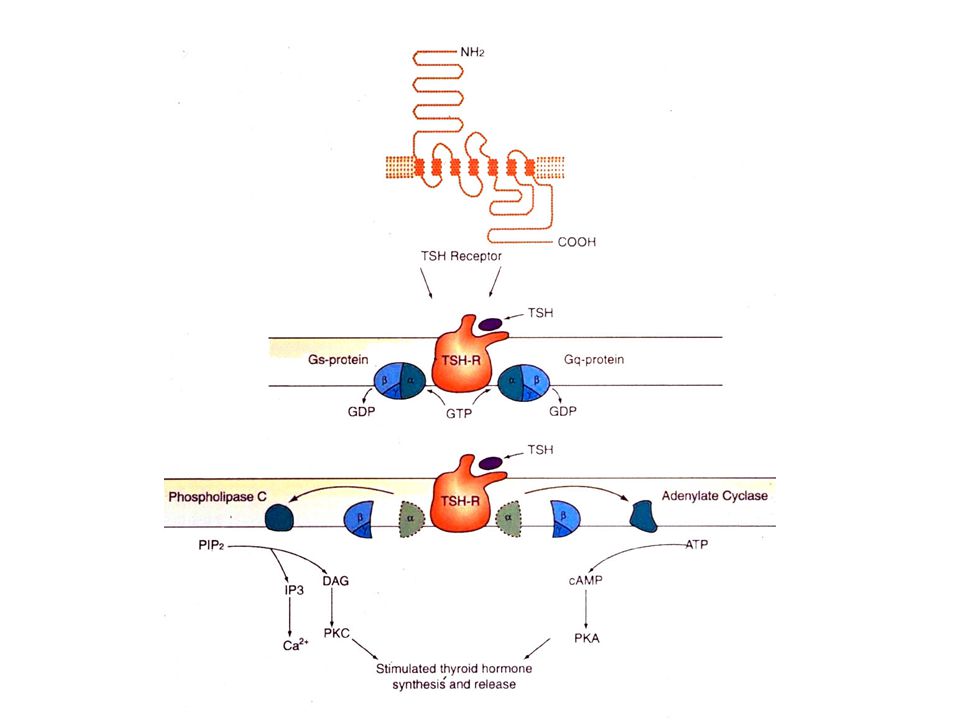

15. TSH Receptors TSH G protein linked receptor cAMP IP 3 + DAG Protein Ca 2+ Protein Kinase A CM Kinase C (high concentrations)

17. Actions of TSH Active uptake of iodine* Stimulates other reactions involved in thyroid hormone synthesis Stimulates the uptake of colloid Induces growth of the thyroid gland

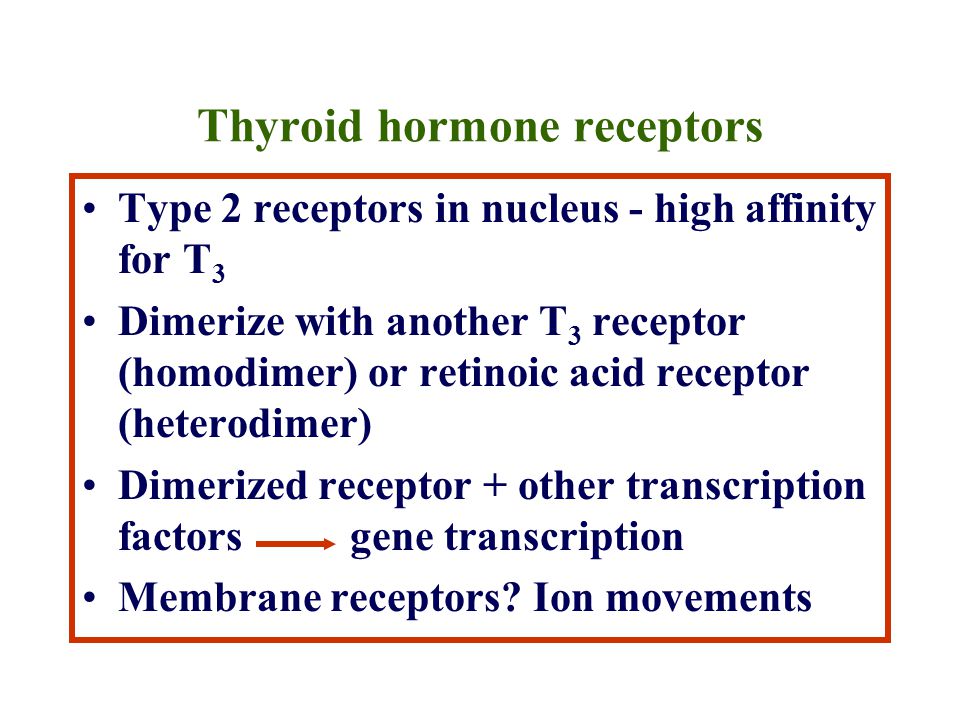

18. Thyroid hormone receptors

19. Type 2 receptors in nucleus - high affinity for T 3 Dimerize with another T 3 receptor (homodimer) or retinoic acid receptor (heterodimer) Dimerized receptor + other transcription factors gene transcription Membrane receptors? Ion movements

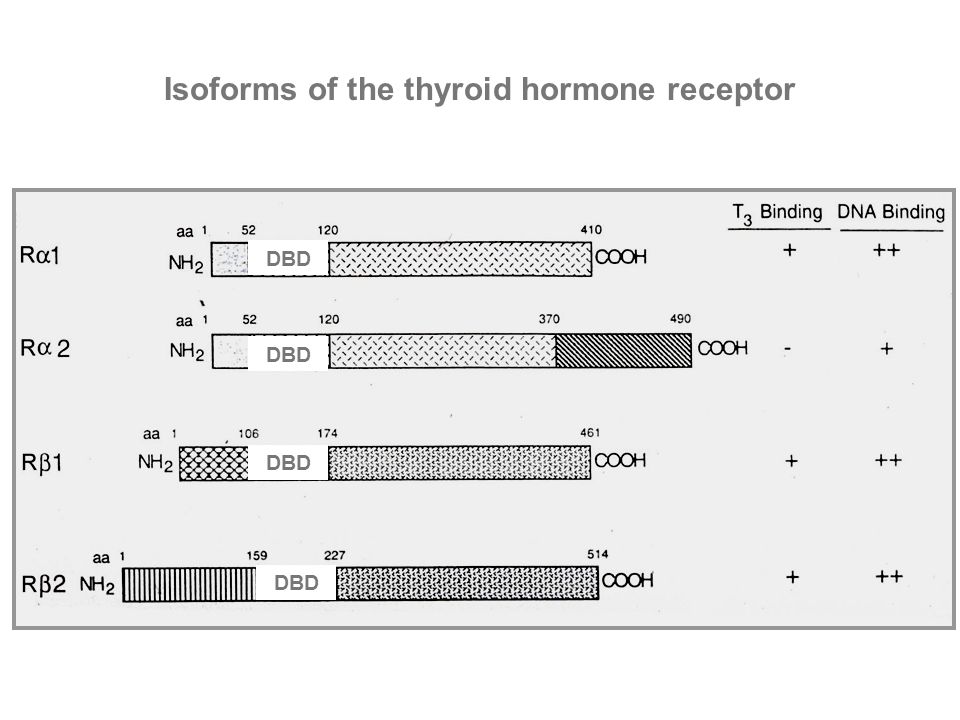

20. Isoforms of the thyroid hormone receptor DBD

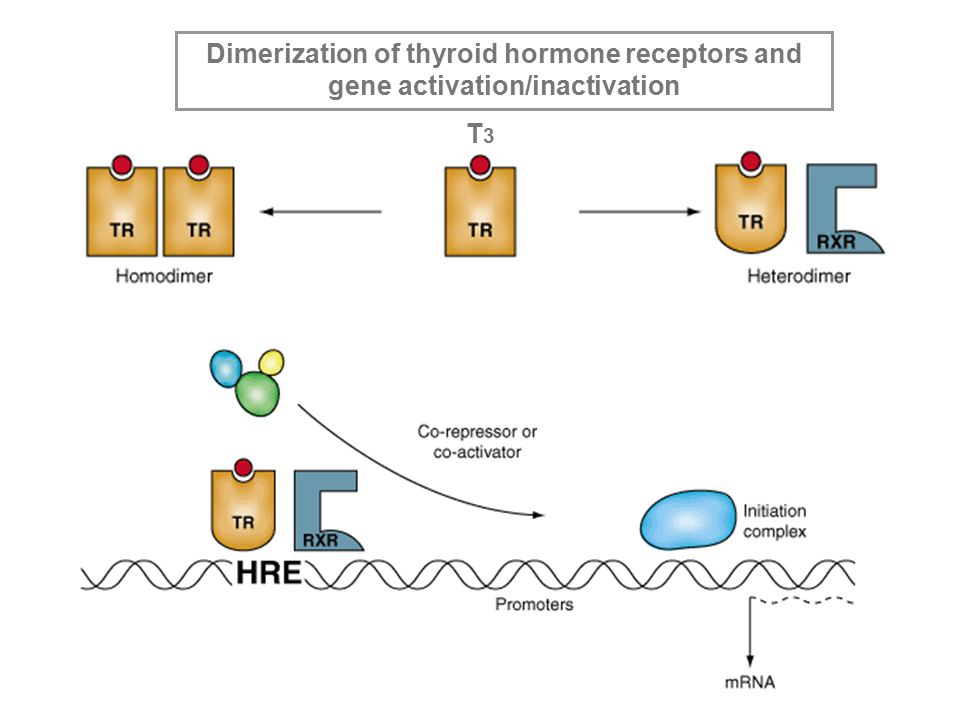

21. T3T3 Dimerization of thyroid hormone receptors and gene activation/inactivation

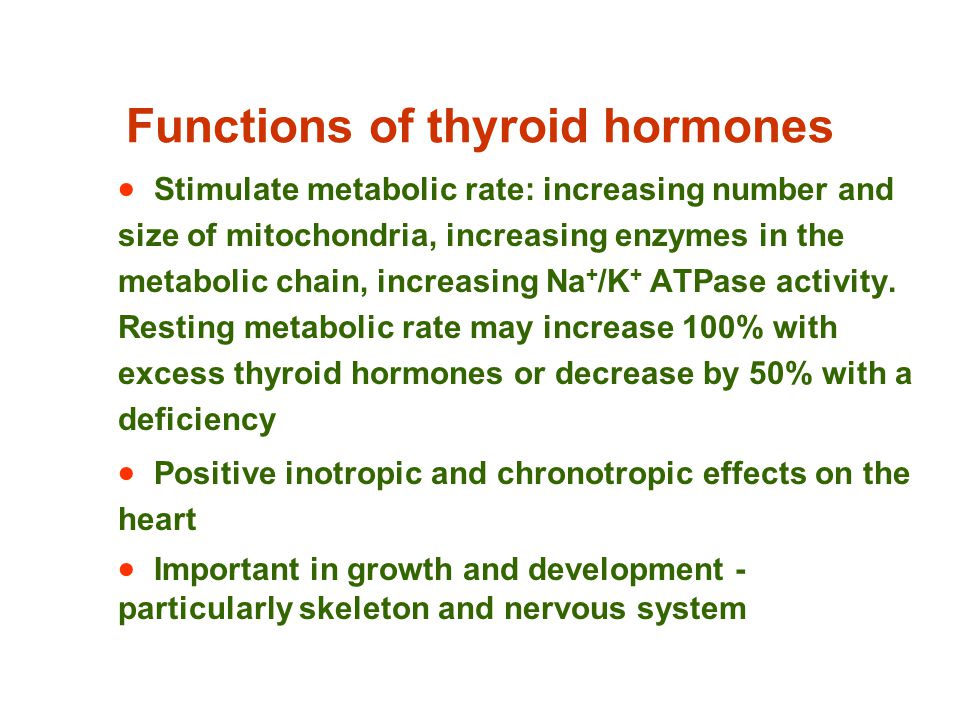

23. Functions of thyroid hormones  Stimulate metabolic rate: increasing number and size of mitochondria, increasing enzymes in the metabolic chain, increasing Na + /K + ATPase activity. Resting metabolic rate may increase 100% with excess thyroid hormones or decrease by 50% with a deficiency  Positive inotropic and chronotropic effects on the heart  Important in growth and development - particularly skeleton and nervous system

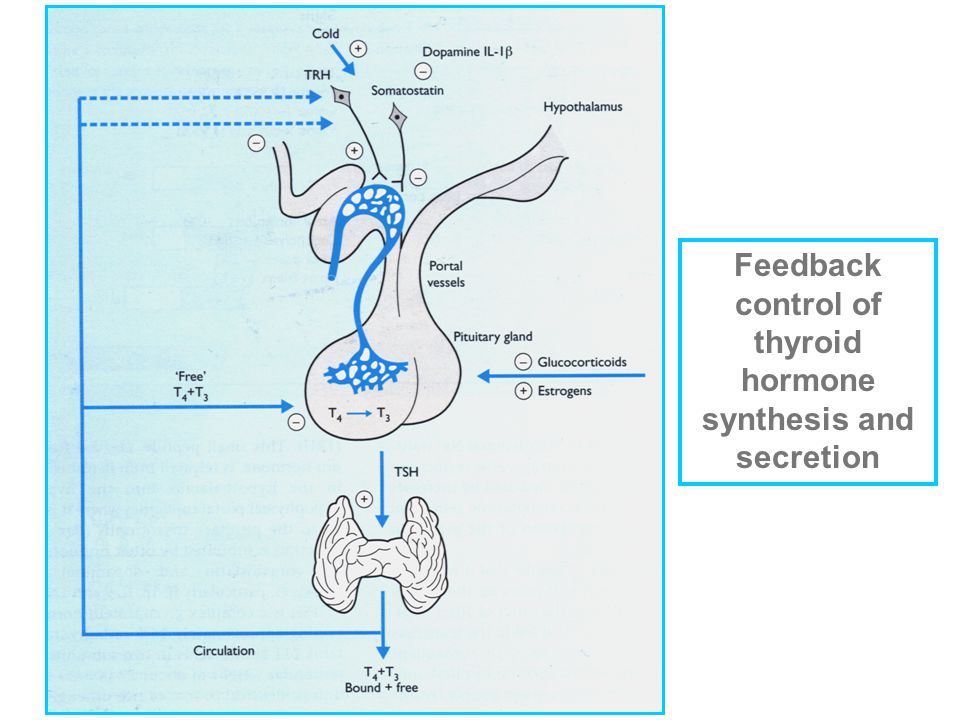

24. Feedback control of thyroid hormone synthesis and secretion

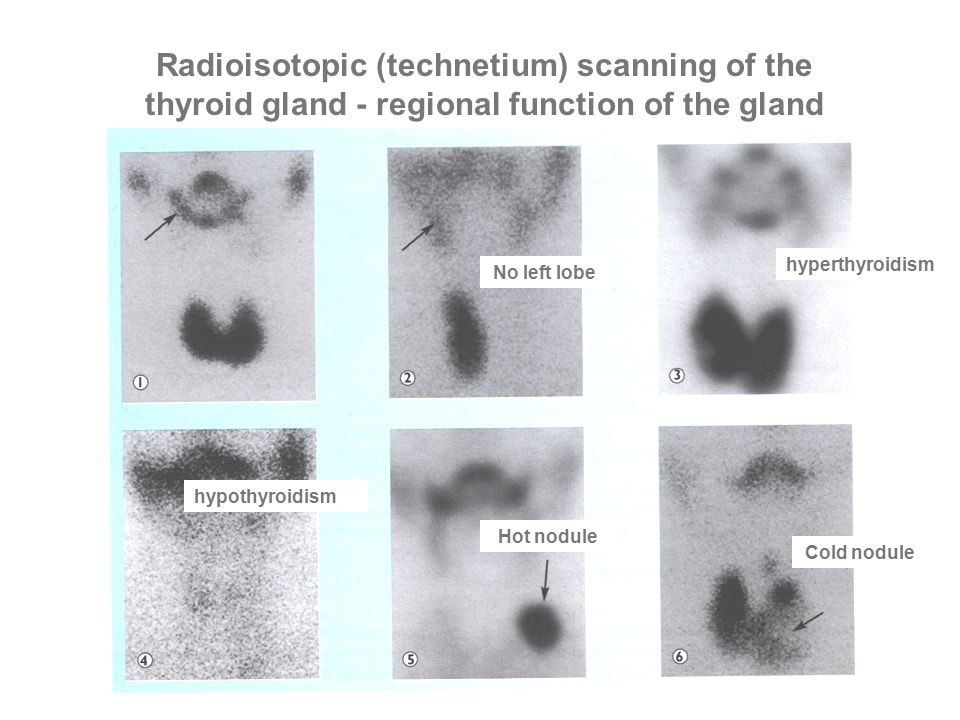

25. Radioisotopic (technetium) scanning of the thyroid gland - regional function of the gland No left lobe hyperthyroidism hypothyroidism Hot nodule Cold nodule

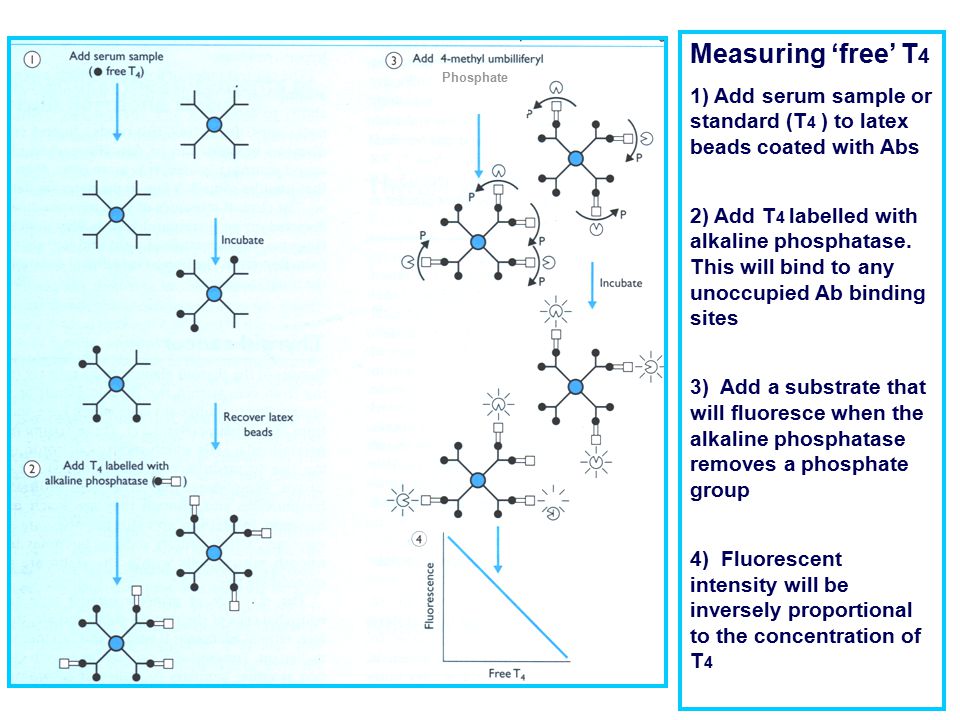

26. Measuring ‘free’ T 4 1) Add serum sample or standard (T 4 ) to latex beads coated with Abs 2) Add T 4 labelled with alkaline phosphatase. This will bind to any unoccupied Ab binding sites 3) Add a substrate that will fluoresce when the alkaline phosphatase removes a phosphate group 4) Fluorescent intensity will be inversely proportional to the concentration of T 4 Phosphate

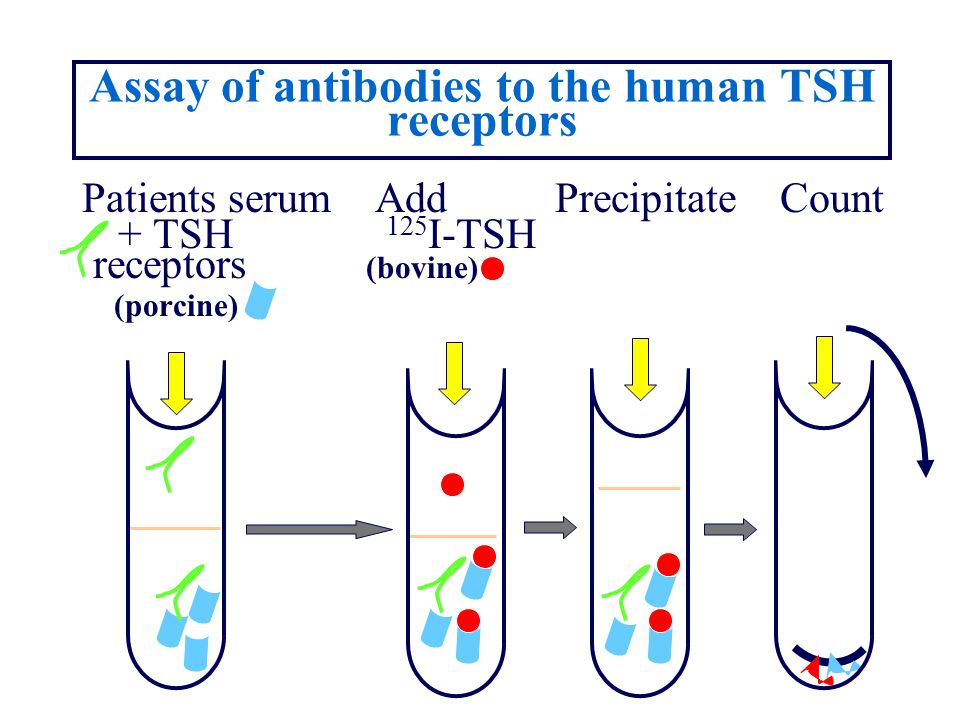

27. Assay of antibodies to the human TSH receptors Patients serum Add Precipitate Count + TSH 125 I-TSH receptors (bovine) (porcine)

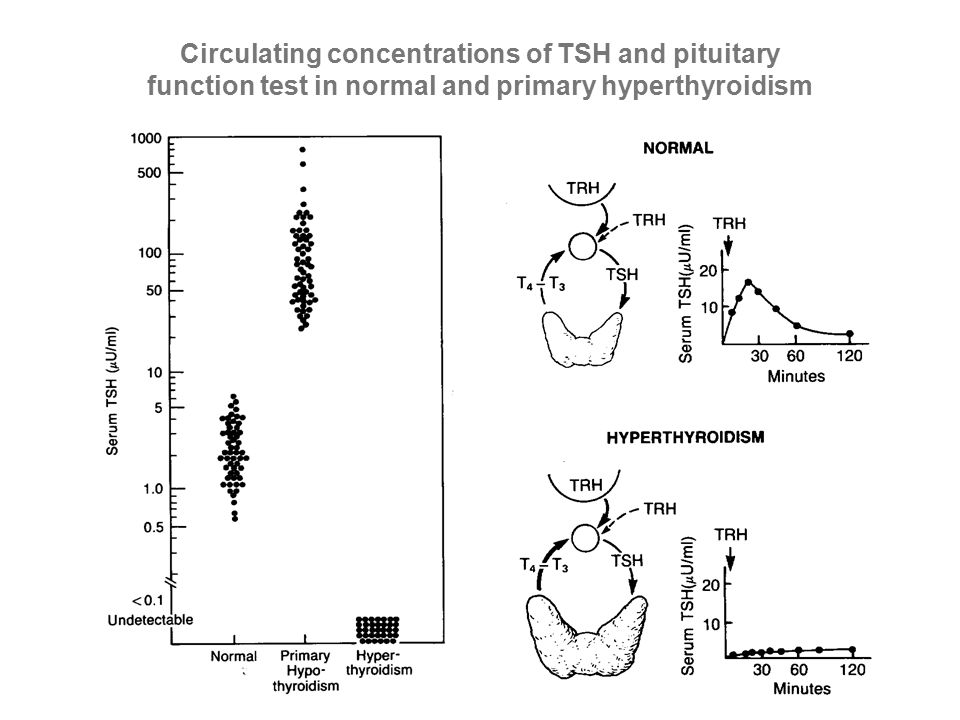

28. Circulating concentrations of TSH and pituitary function test in normal and primary hyperthyroidism

29. Saggital MR scans of a) normal and b) a patient with a craniopharyngioma causing bitemporal hemianopia and hypopituitarism

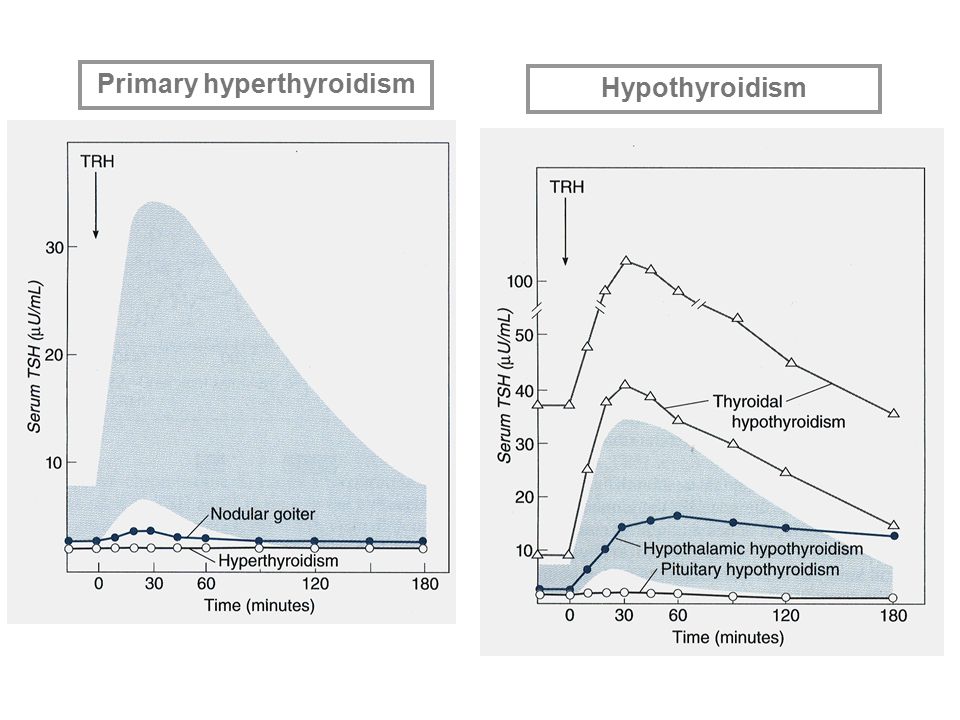

30. Primary hyperthyroidism Hypothyroidism

31. Grave’s disease (1 0 ) Autoimmune - activating AB’s to TSH receptor High concentrations of circulating thyroid hormones, low TSH Weight loss, tachycardia, tiredness Diffuse goitre - TSH stimulating growth Opthalmompathy and dermopathy

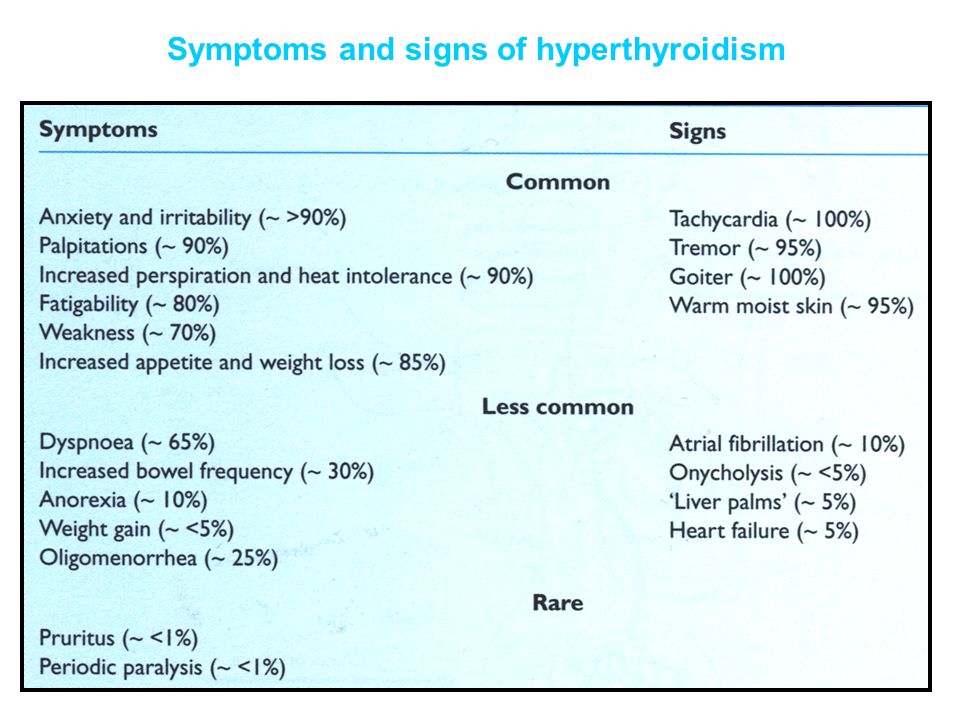

32. Symptoms and signs of hyperthyroidism

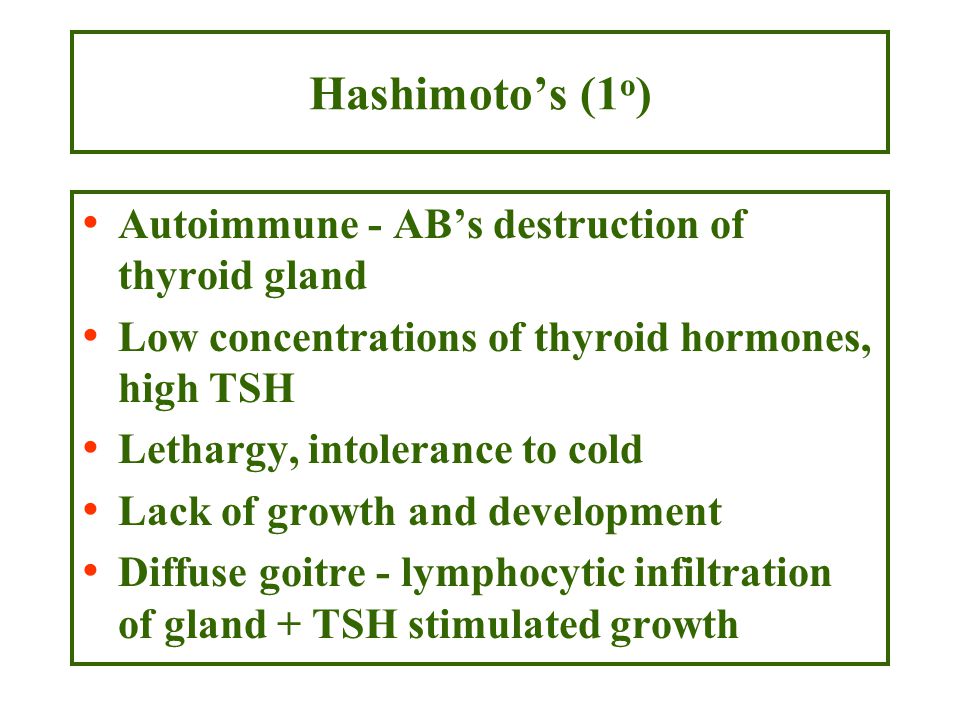

33. Hashimoto’s (1 o ) Autoimmune - AB’s destruction of thyroid gland Low concentrations of thyroid hormones, high TSH Lethargy, intolerance to cold Lack of growth and development Diffuse goitre - lymphocytic infiltration of gland + TSH stimulated growth

35. Symptoms and signs of hypothyroidism
