1. Production, Regulation, and Action of Thyroid Hormones
Early Studies on the Thyroid Gland Gross and Microscopic Anatomy of the Thyroid Gland Production of Thyroid Hormones Transport and Activities of T3 and T4 Regulation of Thyroid Hormone Production and Secretion Actions of Thyroid Hormones Hyper- and Hypothyroidism

2. Histology of the Thyroid Gland
The thyroid gland contains numerous follicles, composed of epithelial follicle cells and colloid.
Also, between follicles are clear parafollicular cells, which produce calcitonin (see coming lecture on calcium balance).

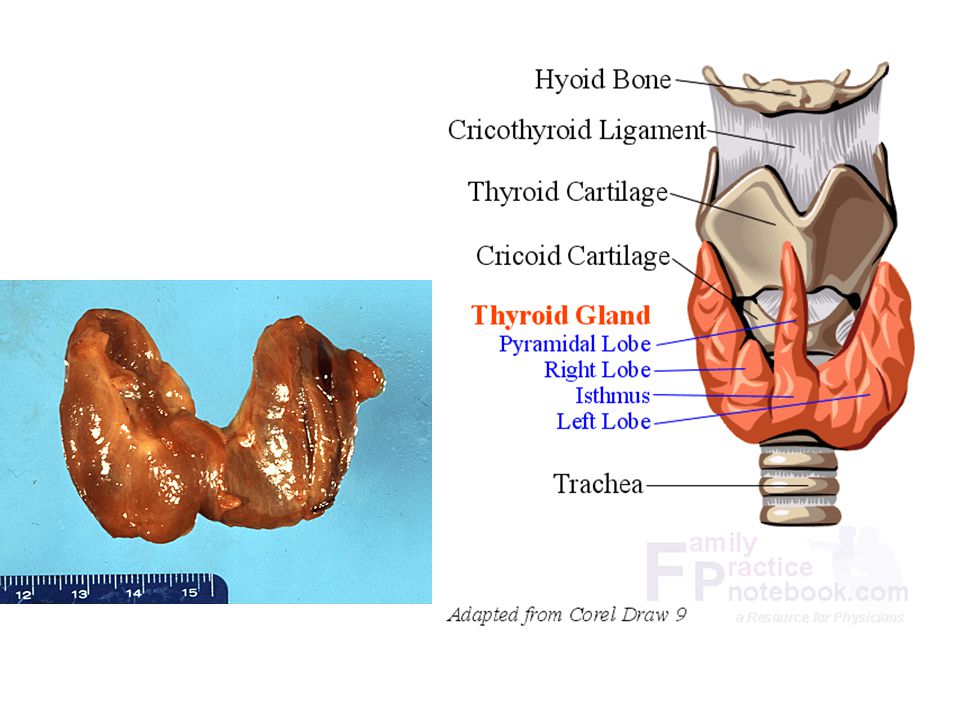

4. The Thyroid Gland

6. Thyroid Hormones There are two biologically active thyroid hormones:
- tetraiodothyronine (T4; usually called thyroxine)
- triiodothyronine (T3)
Derived from modification of tyrosine.

7. Differences between T4 and T3
The thyroid secretes about 80 microg of T4, but only 5 microg of T3 per day.
However, T3 has a much greater biological activity (about 10 X) than T4.
An additional 25 microg/day of T3 is produced by peripheral monodeiodination of T4 (stay tuned….).
thyroid T4 T3 I-

9. Why is Iodine Important in Thyroid Hormone Production?
Thyroid hormones are unique biological molecules in that they incorporate iodine in their structure.
Thus, adequate iodine intake (diet, water) is required for normal thyroid hormone production.
Major sources of iodine:
- iodized salt
- iodated bread
- dairy products
- shellfish
Minimum requirement: 75 micrograms/day
US intake: micrograms/day

10. Iodine Metabolism
Dietary iodine is absorbed in the GI tract, then taken up by the thyroid gland (or removed from the body by the kidneys).
The transport of iodide into follicular cells is dependent upon a Na+/I- cotransport system.
Iodide taken up by the thyroid gland is oxidized by peroxide in the lumen of the follicle:
peroxidase
I- I+
Oxidized iodine can then be used in production of thyroid hormones.

11. The Next Step: Production of Thyroglobulin
Pituitary produces TSH, which binds to follicle cell receptors.
The follicle cells of the thyroid produce thyroglobulin.
Thyroglobulin is a very large glycoprotein.
Thyroglobulin is released into the colloid space, where it’s tyrosine residues are iodinated by I+.
This results in tyrosine residues which have one or two iodines attached (monoiodotyrosine or diiodotyrosine).

12. The Thyroid Gland – Histology Gland is composed of hollow spheres, called colloid follicles.
Squamous epithelial cells, cuboidal cells (follicle cells)
Colloid fills the follicle cavities I
Follicle cells produce thyroglobulin ---- TH

13. Thyroid Follicles

14. Thyroid Follicles

15. Initial Steps in Thyroid Hormone Synthesis
ATPase I-
Na+ K+
follicle
cell
extracellular space
colloid space
Thyroglobulin
thyroglobulin
gene I- I+
oxidation I-
iodination
thyroglobulin with
monoiodotyrosines and
diiodotyrosines

16. Production of Thyroid Hormones from Iodinated Thyroglobulin
The iodinated tyrosine residues on thyroglobulin are modified and joined to form T3 and T4, still attached to the thyroglobulin molecule.

17. Utilization of Thyroglobulin to Secrete Thyroid Hormones
In order to secrete T3/T4, the thyroglobulin in the colloid space is internalized by endocytosis back into the follicle cell.
This internalized vesicle joins with a lysosome, whose enzymes cause cleavage of T3 and T4 from thyroglobulin. Some T4 is converted to T3 at this point. [this is the peripheral monoiodination of T4 mentioned earlier].
T3 and T4 are then released into the extracellular space by diffusion.
Only minute amounts of thyroglobulin are released into the circulation.

18. Utilization of Thyroglobulin to Secrete Thyroid Hormones
extracellular space
T3/T4
iodinated tyrosines (gets deiodinated,
recycled)
follicle
cell
lysosome
colloid droplet
endocytosis
colloid space
thyroglobulin
T T4

19. To Sum…

20. Transport of Thyroid Hormones
Thyroid hormones are not very soluble in water (but are lipid-soluble).
Thus, they are found in the circulation associated with binding proteins:
- Thyroid Hormone-Binding Globulin (~70% of hormone)
- Pre-albumin (transthyretin), (~15%)
- Albumin (~15%)
Less than 1% of thyroid hormone is found free in the circulation.
Only free and albumin-bound thyroid hormone is biologically available to tissues.

21. Conversion of T4 to T3
T3 has much greater biological activity than T4.
A large amount of T4 (25%) is converted to T3 in peripheral tissues.
This conversion takes place mainly in the liver and kidneys. The T3 formed is then released to the blood stream.
In addition to T3, an equal amount of “reverse T3” may also be formed. This has no biological activity.

22. One Major Advantage of this System
The thyroid gland is capable of storing many weeks worth of thyroid hormone (coupled to thyroglobulin).
If no iodine is available for this period, thyroid hormone secretion will be maintained.

23. Regulation of Thyroid Hormone Levels
Thyroid hormone synthesis and secretion is regulated by two main mechanisms:
- an “autoregulation” mechanism, which reflects the available levels of iodine
- regulation by the hypothalamus and anterior pituitary

24. Autoregulation of Thyroid Hormone Production
The rate of iodine uptake and incorporation into thyroglobulin is influenced by the amount of iodide available:
- low iodide levels increase iodine transport into follicular cells
- high iodide levels decrease iodine transport into follicular cells
Thus, there is negative feedback regulation of iodide transport by iodide.

25. Neuroendocrine Regulation of Thyroid Hormones: Role of TSH
Thyroid-stimulating hormone (TSH) is produced by thyrotroph cells of the anterior pituitary.
TSH is a glycoprotein hormone composed of two subunits:
- alpha subunit (common to LH, FSH, TSH)
- TSH beta subunit, which gives specificity of receptor binding and biological activity a
LHb
FSHb
TSHb 
LH FSH TSH

26. Action of TSH on the Thyroid
TSH acts on follicular cells of the thyroid.
- increases iodide transport into follicular cells
- increases production and iodination of thyroglobulin
- increases endocytosis of colloid from lumen into follicular cells I-
Na+ K+
ATP
Na+
gene I-
follicle
cell
colloid droplet
thyroglobulin
endocytosis
thyroglobulin
T T4
thyroglobulin I+ I-
iodination

27. Mechanism of Action of TSH
TSH binds to a plasma membrane-bound, G protein-coupled receptor on thyroid follicle cells.
Specifically, it activates a Gs-coupled receptor, resulting in increased cAMP production and PKA activation.
TSH
Gsa
Adenylyl
Cyclase
ATP cyclic AMP
Protein kinase A
Follicle cell

28. Regulation of TSH Release from the Anterior Pituitary
TSH release is influenced by hypothalamic TRH, and by thyroid hormones themselves.
Thyroid hormones exert negative feedback on TSH release at the level of the anterior pituitary.
- inhibition of TSH synthesis
- decrease in pituitary receptors for TRH
hypothalamus
TRH
TRH receptor
TSH synthesis
pituitary
T3/T4 + -

29. Influence of TRH on TSH Release
Thyrotropin-releasing hormone (TRH) is a hypothalamic releasing factor which travels through the pituitary portal system to act on anterior pituitary thyrotroph cells.
TRH acts through G protein-coupled receptors, activating the IP3 (Ca2+) and DAG (PKC) pathways to cause increased production and release of TSH.
TRH phospholipase C
G protein-coupled
receptor
IP3 calcium
DAG PKC
calmodulin
Thyroid hormones also inhibit TRH synthesis.

30. follicle cell receptors
Negative Feedback Actions of Thyroid Hormones on TSH Synthesis and Release
hypothalamus
TRH
TRH receptor
TSH synthesis
pituitary
T3/T4 + -
TRH synthesis
TSH binds
Thyroid gland
follicle cell receptors

32. Other Factors Regulating Thyroid Hormone Levels
Diet: a high carbohydrate diet increases T3 levels, resulting in increased metabolic rate (diet-induced thermogenesis).
Low carbohydrate diets decrease T3 levels, resulting in decreased metabolic rate.
Cold Stress: increases T3 levels in other animals, but not in humans.
Other stresses: increased or decreased?
Any condition that increases body energy requirements (e.g., pregnancy, prolonged cold) stimulates hypothalamus  TRH  TSH (Pit)

33. Actions of Thyroid Hormones
Thyroid hormones are essential for normal growth of tissues, including the nervous system.
Lack of thyroid hormone during development results in short stature and mental deficits (cretinism).
Thyroid hormone stimulates basal metabolic rate.
What are the specific actions of thyroid hormone on body systems?

34. Actions of Thyroid Hormone
Required for GH and prolactin production and secretion
Required for GH action
Increases intestinal glucose reabsorption (glucose transporter)
Increases mitochondrial oxidative phosphorylation (ATP production)
Increases activity of adrenal medulla (sympathetic; glucose production)
Induces enzyme synthesis
Result: stimulation of growth of tissues and increased metabolic rate. Increased heat production (calorigenic effect)

35. Effects of Thyroid Hormone on Nutrient Sources
Effects on protein synthesis and degradation:
-increased protein synthesis at low thyroid hormone levels (low metabolic rate; growth)
-increased protein degradation at high thyroid hormone levels (high metabolic rate; energy)
Effects on carbohydrates:
-low doses of thyroid hormone increase glycogen synthesis (low metabolic rate; storage of energy)
- high doses increase glycogen breakdown (high metabolic rate; glucose production)

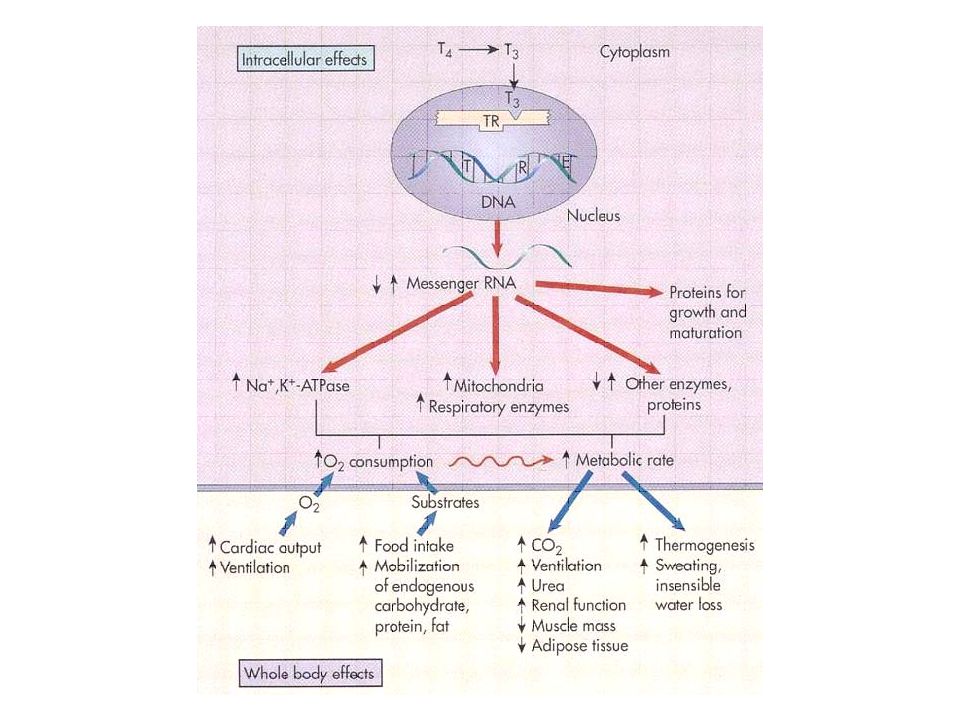

36. Mechanism of Action of T3
T3/T4 acts through the thyroid hormone receptor
- intracellular, in steroid receptor superfamily
- acts as a transcription factor
- receptor binds to TRE on 5’ flanking region of genes as homodimers and/or heterodimers.
- multiple forms (alphas and betas) exist
- one form (alpha-2) is an antagonist at the TRE
hypervariable
DBD
HBD

37. More on Receptor Coactivators and Corepressors
When not bound to hormone, the thyroid hormone receptor binds to target DNA (TRE on 5’ flanking region). It is associated with corepressor proteins that cause DNA to be tightly wound and inhibit transcription.
Binding of hormone causes a conformational change, resulting in loss of corepressor binding and association with coactivator proteins, which loosen DNA structure and stimulate transcription.

38. Expression and Regulation of Thyroid Hormone Receptors
Thyroid hormone receptors are found in many tissues of the body, but not in adult brain, spleen, testes, uterus, and thyroid gland itself.
Thyroid hormone inhibits thyroid hormone receptor expression (TRE on THR genes).

39. One Major Target Gene of T3: The Na+/K+ ATPase Pump
Pumps sodium and potassium across cell membranes to maintain resting membrane potential
Activity of the Na+/K+ pump uses up energy, in the form of ATP
About 1/3rd of all ATP in the body is used by the Na+/K+ ATPase
T3 increases the synthesis of Na+/K+ pumps, markedly increasing ATP consumption.
T3 also acts on mitochondria to increase ATP synthesis
The resulting increased metabolic rate increases thermogenesis (heat production).

40. Thyroid hormones: Key Points
Held in storage
Bound to mitochondria, thereby increasing ATP production
Bound to receptors activating genes that control energy utilization
Exert a calorigenic effect

41. Thyroid Hormone Actions which Increase Oxygen Consumption
Increase mitochondrial size, number and key enzymes
Increase plasma membrane Na-K ATPase activity
Increase futile thermogenic energy cycles
Decrease superoxide dismutase activity

42. Effects of Thyroid Hormones on the Cardiovascular System
Increase heart rate
Increase force of cardiac contractions
Increase stroke volume
Increase Cardiac output
Up-regulate catecholamine receptors

43. Effects of Thyroid Hormones on the Respiratory System
Increase resting respiratory rate
Increase minute ventilation
Increase ventilatory response to hypercapnia and hypoxia

44. Effects of Thyroid Hormones on the Renal System
Increase blood flow
Increase glomerular filtration rate

45. Effects of Thyroid Hormones on Oxygen-Carrying Capacity
Increase RBC mass
Increase oxygen dissociation from hemoglobin

46. Effects of Thyroid Hormones on Intermediary Metabolism
Increase glucose absorption from the GI tract
Increase carbohydrate, lipid and protein turnover
Down-regulate insulin receptors
Increase substrate availability

47. Effects Thyroid Hormones in Growth and Tissue Development
Increase growth and maturation of bone
Increase tooth development and eruption
Increase growth and maturation of epidermis,hair follicles and nails
Increase rate and force of skeletal muscle contraction
Inhibits synthesis and increases degradation of mucopolysaccharides in subcutaneous tissue

48. Effects of Thyroid Hormones on the Nervous System
Critical for normal CNS neuronal development
Enhances wakefulness and alertness
Enhances memory and learning capacity
Required for normal emotional tone
Increase speed and amplitude of peripheral nerve reflexes

49. Effects of Thyroid Hormones on the Reproductive System
Required for normal follicular development and ovulation in the female
Required for the normal maintenance of pregnancy
Required for normal spermatogenesis in the male

51. Thyroid Hormone Deficiency: Hypothyroidism
Early onset: delayed/incomplete physical and mental development
Later onset (youth): Impaired physical growth
Adult onset (myxedema) : gradual changes occur. Tiredness, lethargy, decreased metabolic rate, slowing of mental function and motor activity, cold intolerance, weight gain, goiter, hair loss, dry skin. Eventually may result in coma.
Many causes (insufficient iodine, lack of thyroid gland, lack of hormone receptors, lack of TH binding globulin….)

52. How is Hypothyroidism Related to Goiter?
During iodine deficiency, thyroid hormone production decreases.
This results in increased TSH release (less negative feedback).
TSH acts on thyroid, increasing blood flow, and stimulating follicular cells and increasing colloid production.

53. Midwest – the Goiter Belt
If goiter is due to decreased I, then thyroid gland enlarges – called endemic or colloidal goiter.
Pituitary gland  TSH to stim thyroid gland to produce TH, but the only result is that the follicles accumulate more and more unusable colloid.
Cells eventually die from overactivity and the gland atrophies.

54. Thyroid Hormone Excess: Hyperthyroidism
Emotional symptoms (nervousness, irritability), fatigue, heat intolerance, elevated metabolic rate, weight loss, tachycardia, goiter, muscle wasting, apparent bulging of eyes, may develop congestive heart failure.
Also due to many causes (excessive TSH release, autoimmune disorders,…)

55. How is Goiter Related to Hyperthyroidism?
Due to excessive stimulation by TSH (thyroglobulin production, enlarged follicles…).
In this case, excessive stimulation of the thyroid gland by TSH DOES result in thyroid hormone secretion, since iodine is available.
