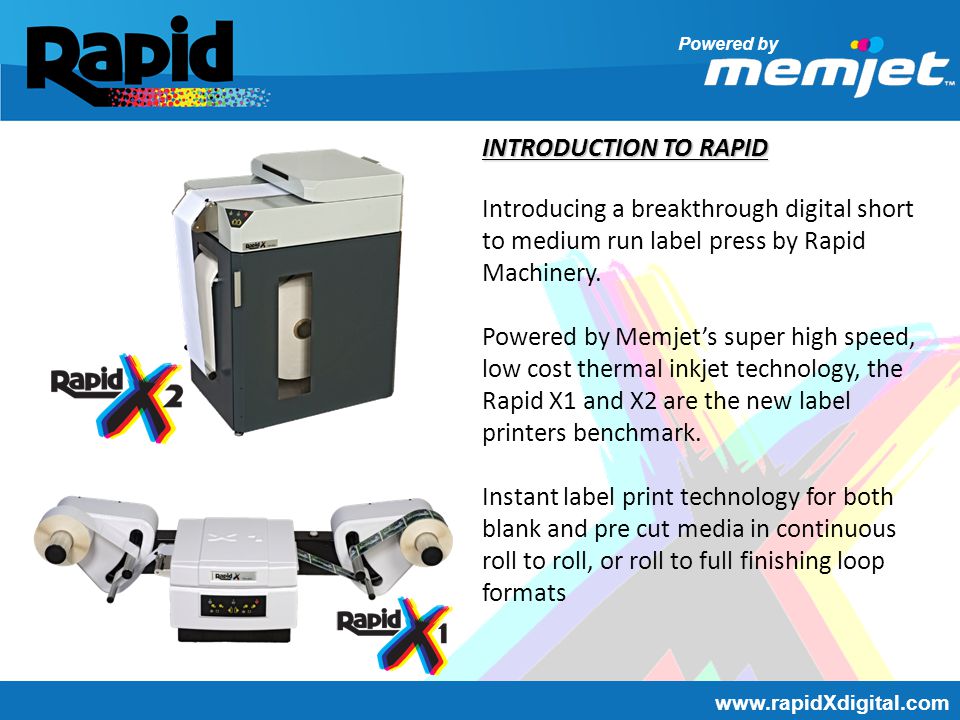

1. Powered by www.rapidXdigital.com INTRODUCTION TO RAPID Introducing a breakthrough digital short to medium run label press by Rapid Machinery. Powered by Memjet’s super high speed, low cost thermal inkjet technology, the Rapid X1 and X2 are the new label printers benchmark. Instant label print technology for both blank and pre cut media in continuous roll to roll, or roll to full finishing loop formats

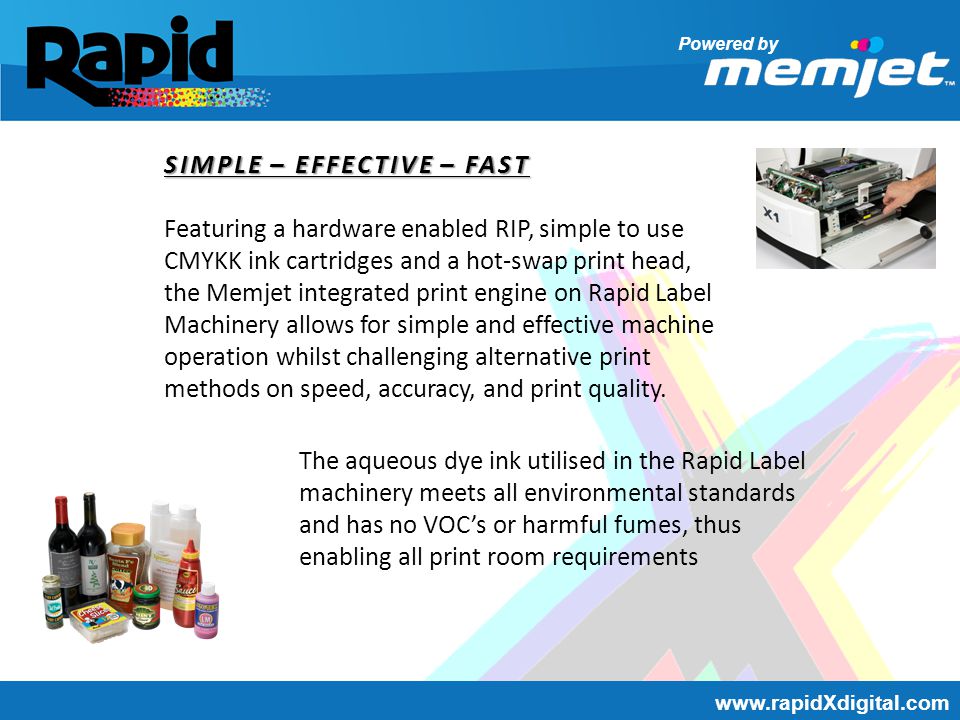

2. Powered by www.rapidXdigital.com SIMPLE – EFFECTIVE – FAST Featuring a hardware enabled RIP, simple to use CMYKK ink cartridges and a hot-swap print head, the Memjet integrated print engine on Rapid Label Machinery allows for simple and effective machine operation whilst challenging alternative print methods on speed, accuracy, and print quality. The aqueous dye ink utilised in the Rapid Label machinery meets all environmental standards and has no VOC’s or harmful fumes, thus enabling all print room requirements

3. Powered by www.rapidXdigital.com MACHINE SPECIFICATIONS Printhead: Memjet 70,400 nozzles Ink Channels: 5 colour CMYK-K Print area: Max 220mm Min 50mm, continuous roll Resolution: 1600 x 1600dpi or 1600 x 800dpi Print Speed: 18 linear meters P/M or 9 linear meters P/M Drop size: 1.2 – 1.7 Pica liter Inks: aqueous dye Operating System: Vista, Xp, Win7

4. Powered by www.rapidXdigital.com Designed to meet all labelling needs, the X1 features an unwind – print – rewind system with a maximum roll diameter of 305mm. The X1 is perfectly suited for pre cut and stripped labels, however it is not limited to this only, blank media for print and post finishing is a breeze on the X1 Perfect for all small to medium sized print businesses or even “in plant” production, the X1 is sure to add value.

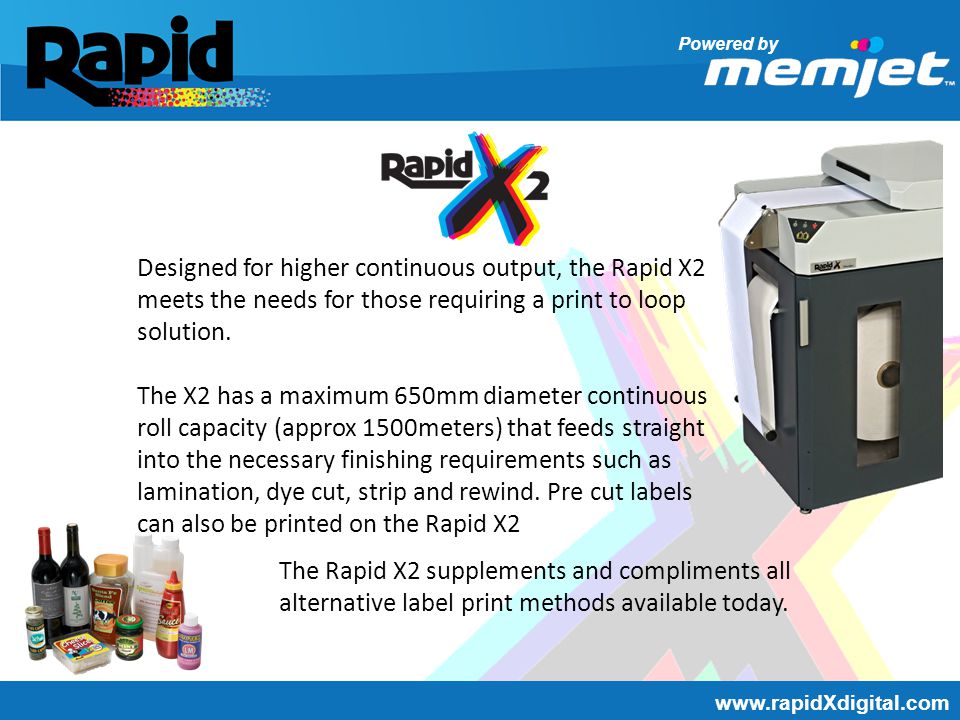

5. Powered by www.rapidXdigital.com Designed for higher continuous output, the Rapid X2 meets the needs for those requiring a print to loop solution. The X2 has a maximum 650mm diameter continuous roll capacity (approx 1500meters) that feeds straight into the necessary finishing requirements such as lamination, dye cut, strip and rewind. Pre cut labels can also be printed on the Rapid X2 The Rapid X2 supplements and compliments all alternative label print methods available today.
