1. A look into Bullet Proof Hosting November 2014 - DefCamp 5 Silviu Sofronie – Head of Forensics ssofronie@bitdefender.com

2. Key points: -Why Forensics ? -How do we approach this -Attack vectors -Victim profile -Hacker profile -A botnet infrastructure that works -CryptoLocker -GameOver Zeus takedown -Hiding the Network behind the network -Knock Knock -Take-away -Q&A

3. Why Forensics ? Expertise from 350+ points of view (if needed) Honeypots (Malware samples, Spam, DriveBy) IP Reputation Systems URL Blacklists Correlated events and Machine Learning algorithms This is information from our own systems, NOT client data.

4. How do we approach this Step 1: Recognize a prevalent threat Step 2: Break it all apart Step 3: Understand what you’re seeing Step 4: Find the best course of action Step 5: Level UP towards the mothership Step 6: TakeDown

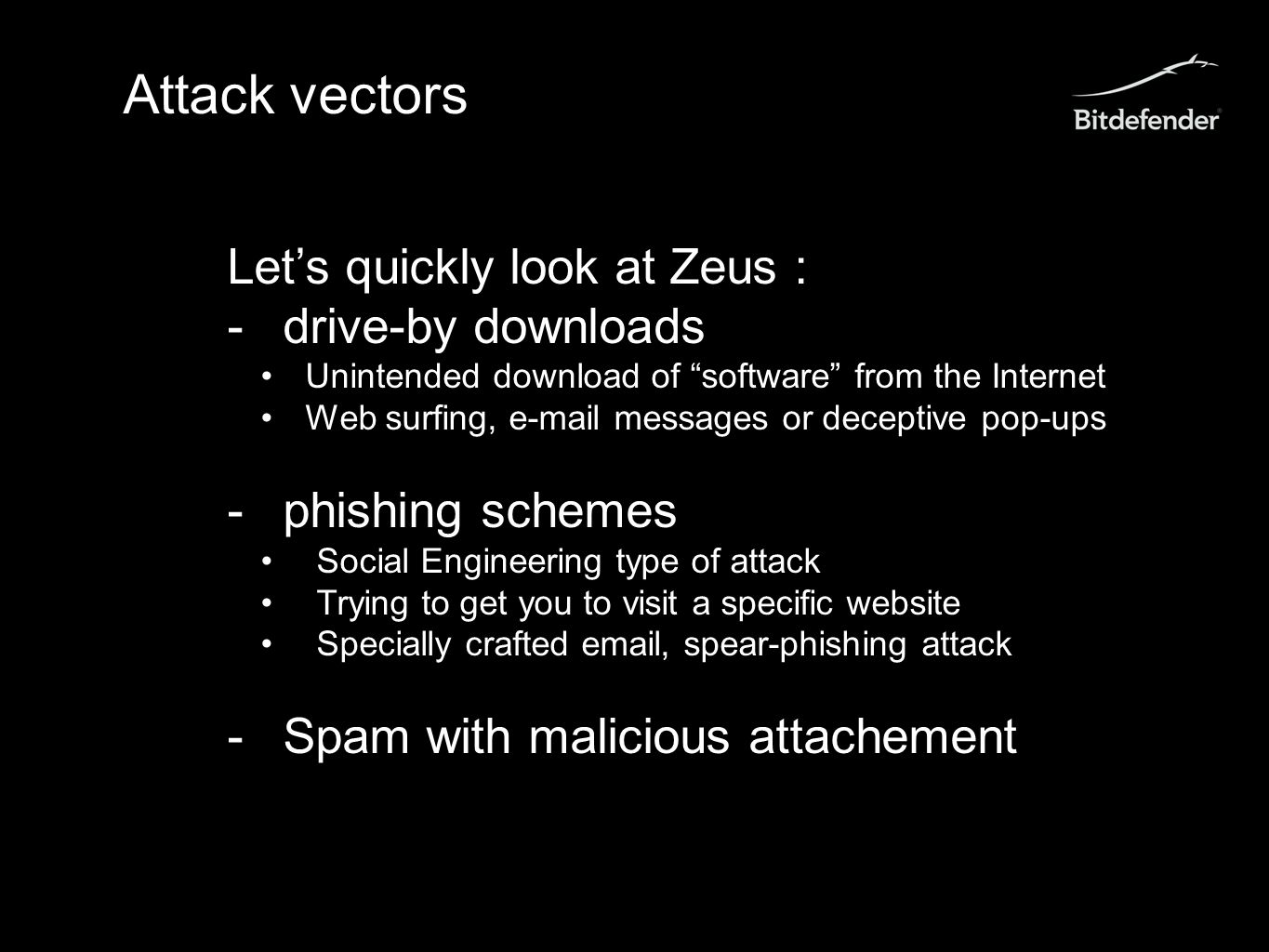

5. Attack vectors Let’s quickly look at Zeus : -drive-by downloads Unintended download of “software” from the Internet Web surfing, e-mail messages or deceptive pop-ups -phishing schemes Social Engineering type of attack Trying to get you to visit a specific website Specially crafted email, spear-phishing attack -Spam with malicious attachement

6. Victim profile Anyone could be a victim.

7. Hacker profile Hacktivism Cybercrime Groups

8. A botnet infrastructure that works http://blogs.it.ox.ac.uk/oxcert/2014/06/06/gameover-for-p2p-zeus/

9. CryptoLocker Calls home for key Encrypts file system GameOver Zeus distribution

10. GameOver Zeus takedown Operation Tovar: All domains for DGA are seized FBI,Europol, UK NCA 1000 random domains per week in the.biz,.com,.info,.net,.org and.ru TLDs

11. Hiding the Network behind the network At least 2 levels of proxies protecting the real C&C servers Currently, it has 10 “clients”, serving different types of malware Proxy level 1 is responsible for redirecting the UDP and HTTP traffic Proxy level 2 is where the redirected traffic arrives and is tunneled to other servers where the requests are processed

12. Hiding the Network behind the network Victim Client Y with service.xml IP: DNS SERVER; PORT 53 IP: PROXY LAYER 2; PORT 80 (Machine with IP Y1) Client Y with service.xml IP: DNS SERVER; PORT 53 IP: PROXY LAYER 2; PORT 80 (Machine with IP Y1) DNS SERVER PROXY LAYER 2 Port 53: ?domain Port BP + Y ?domain IP Y1, IP Y2, IP Y3, IP Y4 IP Y1, IP Y2, IP Y3, IP Y4 Port 80: IP Y1 PROXY LAYER 1

13. Knock After Operation Tovar, the backend is still operational and serving other botnet masters TOR functionality for the backend is being implemented Watching for update lookups between servers in backend, we could see more than 1700 requests in 24 hours (1 oct 2014)

14. Now, about TOR

18. To talk to a HSDir The first 3 relays in the consesus after this fingerprint are the HSDirs, for each replica index. Now, about TOR

20. The Client: -Has the.onion address -Decodes the base32 value of the.onion hostname -Computes the fingerprint for the hidden service (hash public key and timestamp and replica_index) - Get list of Hidden Service Directories (from consesus) -Gets the descriptors from the Hidden Service -The descriptors contain the Introduction Points for the Hidden Service -Establishes a connection to a Randevous Point (random relay) -Builds a circuit to one of the Introduction Points for the Hidden Service -Comunicates the Randevous Point to the Introduction Point -The Introduction Point calls back to the Hidden Service with the information about the Randevous Point -The Hidden Service creates a circuit to the Randevous Point -Connection Established between the Client and the Hidden Service Now, about TOR

22. Take-away Botnets are still growing in complexity This threat is not easily handled IP reputation mechanism could help URL blacklists could patch things up as well Private and LEA should work more closely on this Bitdefender is reaching out to CERTS with blacklists of IP addresses and URLs, botnet related If you want to help, hop on … we’re hiring as well Reach out to forensics@bitdefender.comforensics@bitdefender.com if you need our input

23. Q&A
