CCNA3 v3 Module 7 v3 CCNA 3 Module 7 JEOPARDY K. Martin.

Similar presentations


Presentation on theme: "CCNA3 v3 Module 7 v3 CCNA 3 Module 7 JEOPARDY K. Martin."— Presentation transcript:

1

2 CCNA3 v3 Module 7 v3 CCNA 3 Module 7 JEOPARDY K. Martin

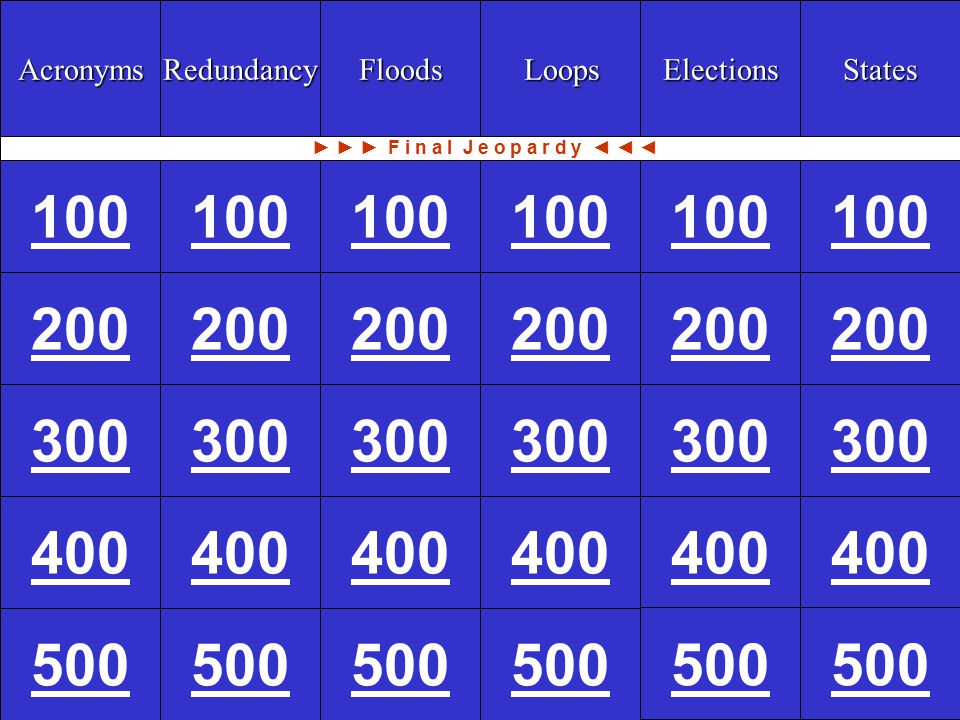

3 CCNA3 v3 Module 7 RouterModesWANEncapsulationWANServicesRouterBasicsRouterCommands 100 200 300 400 500RouterModesWANEncapsulationWANServicesRouterBasicsRouterCommands 100 200 300 400 500 Acronyms Redundancy Floods Loops Loops Elections States 100 200 300 400 500 100 200 300 400 500 ► ► ► F i n a l J e o p a r d y ◄ ◄ ◄

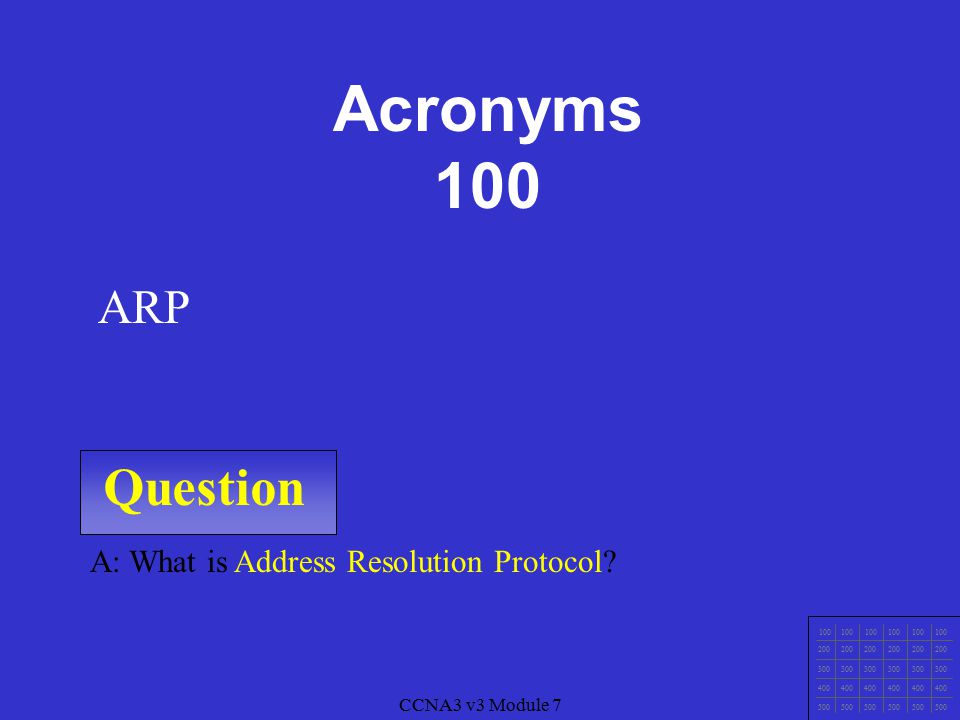

4 CCNA3 v3 Module 7 Question ARP Acronyms 100 A: What is Address Resolution Protocol? 100 200 300 400 500 CCNA3 v3 Module 7

5 Question A: What is Spanning Tree Protocol? STP CCNA3 v3 Module 7 Acronyms 200 100 200 300 400 500

6 CCNA3 v3 Module 7 Question 100 200 300 400 500 A: What is Time To Live? TTL CCNA3 v3 Module 7 Acronyms 300

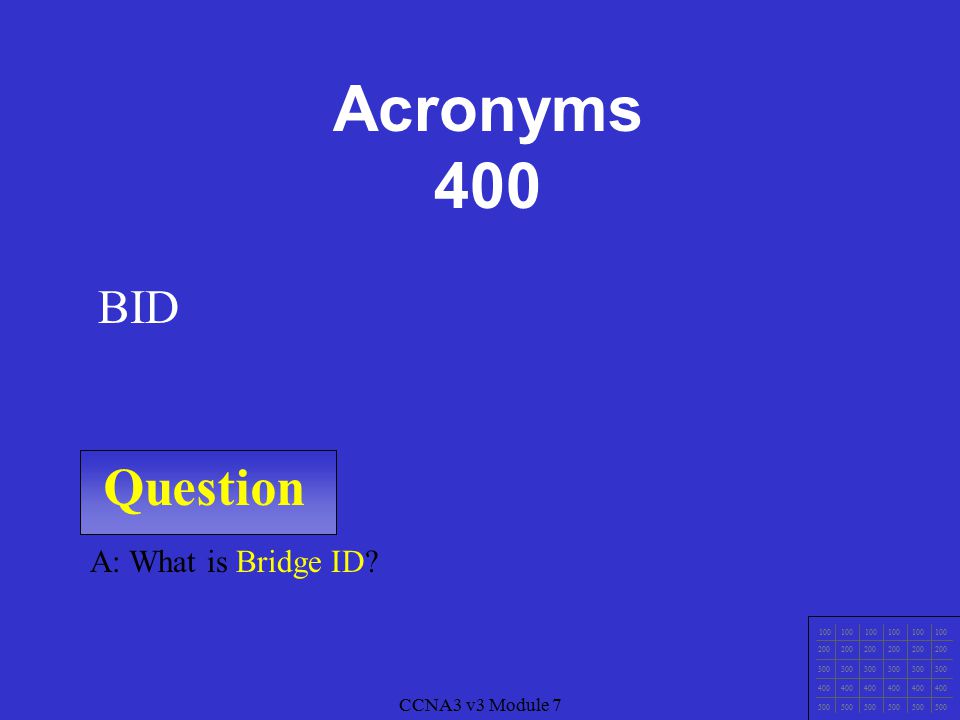

7 CCNA3 v3 Module 7 Question 100 200 300 400 500 A: What is Bridge ID? BID CCNA3 v3 Module 7 Acronyms 400

8 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Bridge Protocol Data Unit? BPDU Acronyms 500

9 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Fault Tolerance? Redundancy helps achieve this. Redundancy 100 200 300 400 500

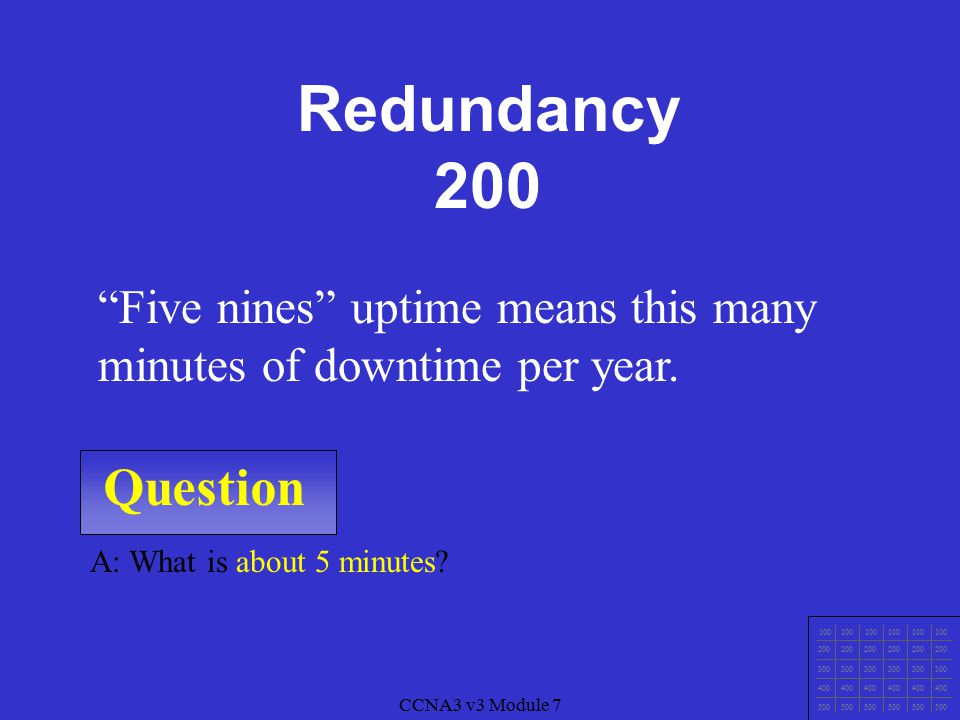

10 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is about 5 minutes? “Five nines” uptime means this many minutes of downtime per year. Redundancy 200

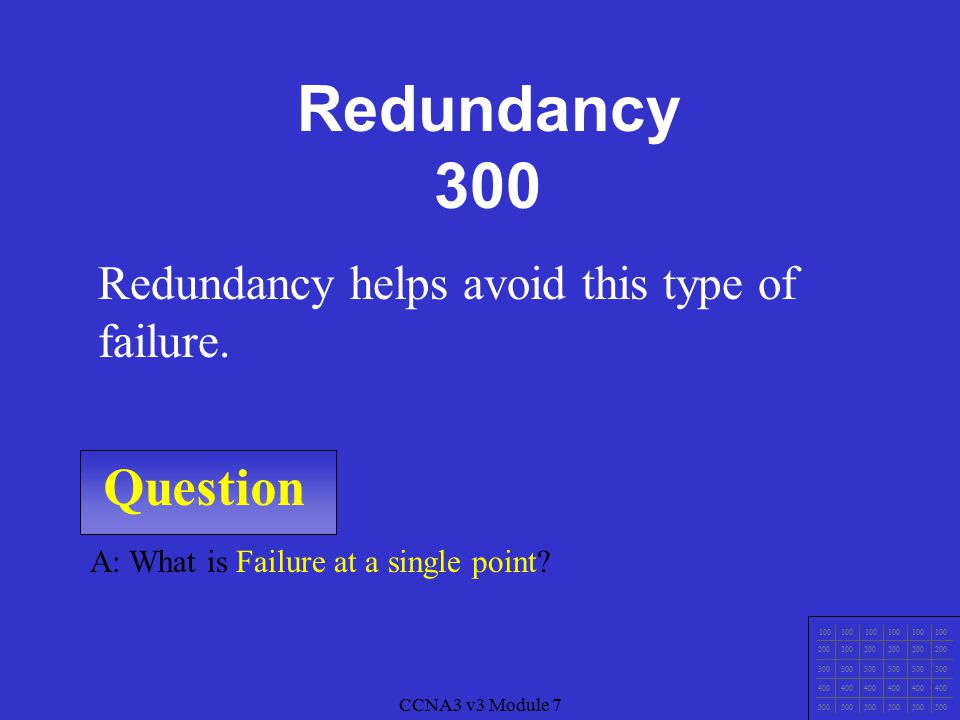

11 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Failure at a single point? Redundancy helps avoid this type of failure. Redundancy 300

12 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Reliability? Redundancy increases this dependable trait. Redundancy 400

13 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is are Physical Loops? Adding redundancy to a switched network also adds these problems. Redundancy 500

14 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is are Broadcasts, Multicasts, and frames to unknown destinations? These three types of frames are flooded. Floods 100

15 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is a Broadcast Storm? When broadcast traffic is sent over and over and over… Floods 200

16 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is an ARP Request? A PC sends this broadcast packet when needing a destination MAC. Floods 300

17 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is send updates as a broadcast? Routers using RIPv1 do this. Floods 400

18 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is a DHCP request? This broadcast occurs when a Windows PC automatically gets an ip address. Floods 500

19 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is TTL? Frames can loop forever – they lack this field. Loops 100

20 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is a Tree? A loop free logical topology is called this. Loops 200

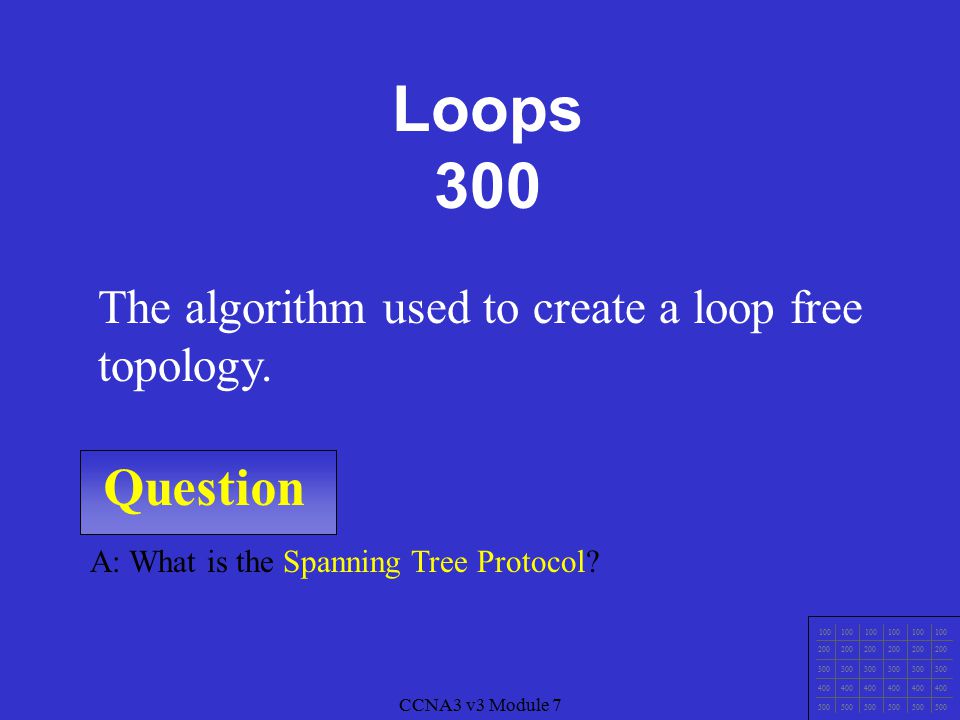

21 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is the Spanning Tree Protocol? The algorithm used to create a loop free topology. Loops 300

22 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Blocking? Some switch ports are placed in this state to prevent loops. Loops 400

23 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is the Root Bridge? This switch is responsible for creating a loop free topology. Loops 500

24 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What are BPDUs? Switches send these in order to build a loop free topology. Elections 100

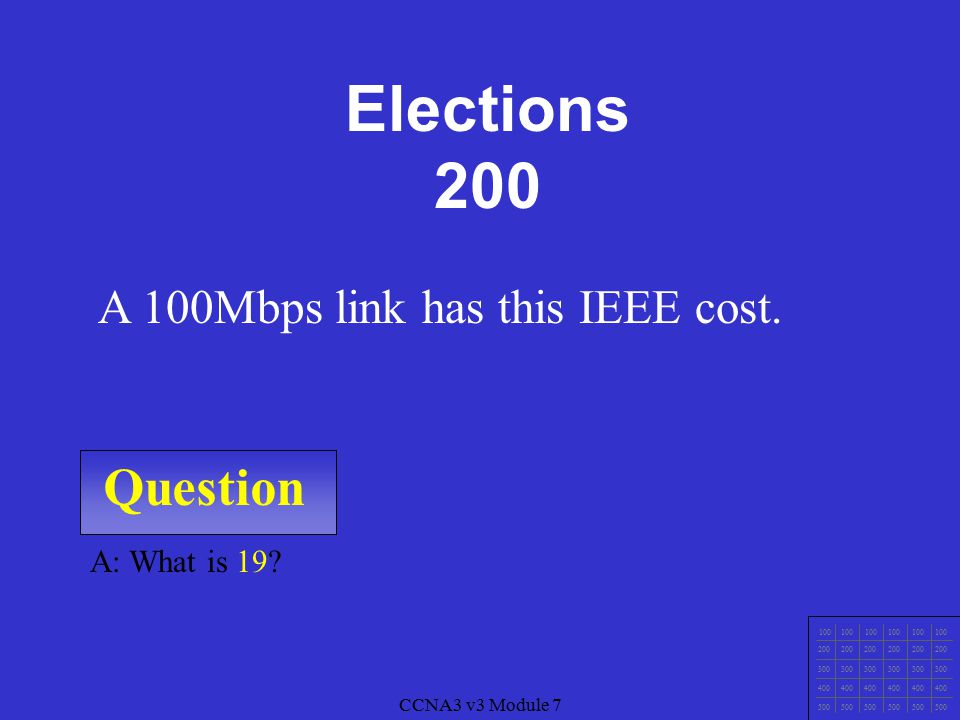

25 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is 19? A 100Mbps link has this IEEE cost. Elections 200

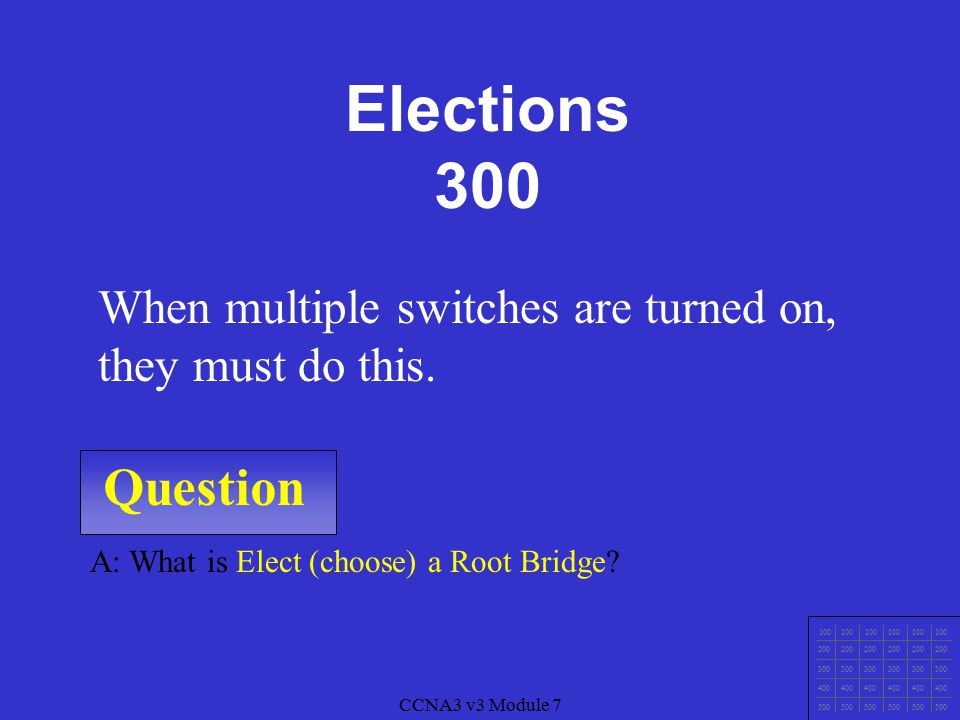

26 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Elect (choose) a Root Bridge? When multiple switches are turned on, they must do this. Elections 300

27 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is a Root Port? A port that connects to the root bridge is called this. Elections 400

28 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is influences the spanning tree protocol to elect SwitchA as the root bridge? Lowering the Bridge ID of SwitchA does this. Elections 500

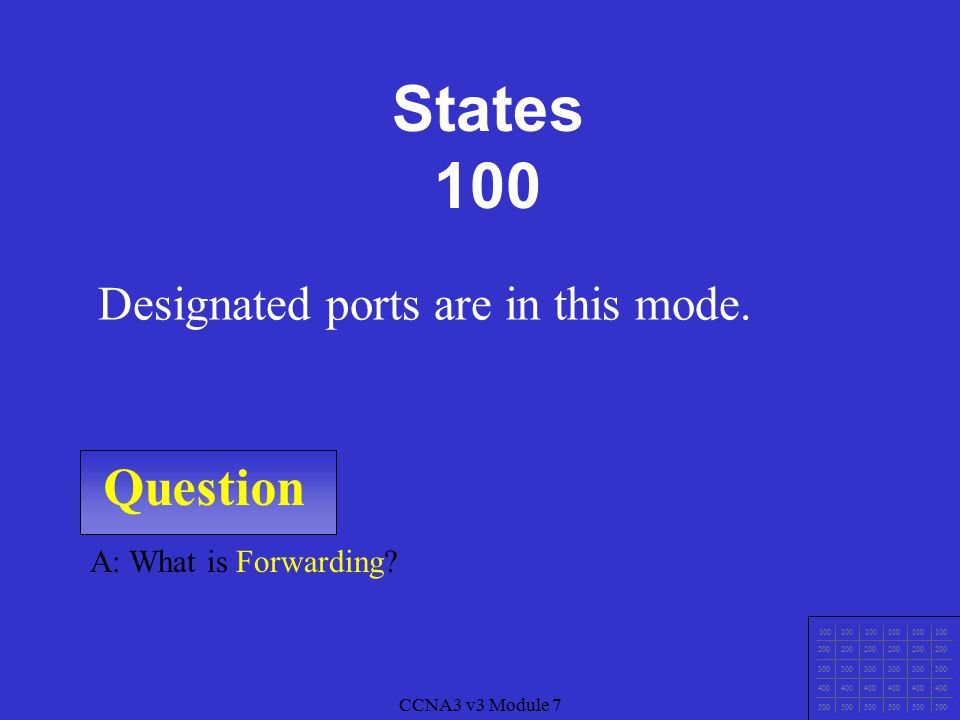

29 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Forwarding? Designated ports are in this mode. States 100

30 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Blocking? Non-designated ports are in this mode. States 200

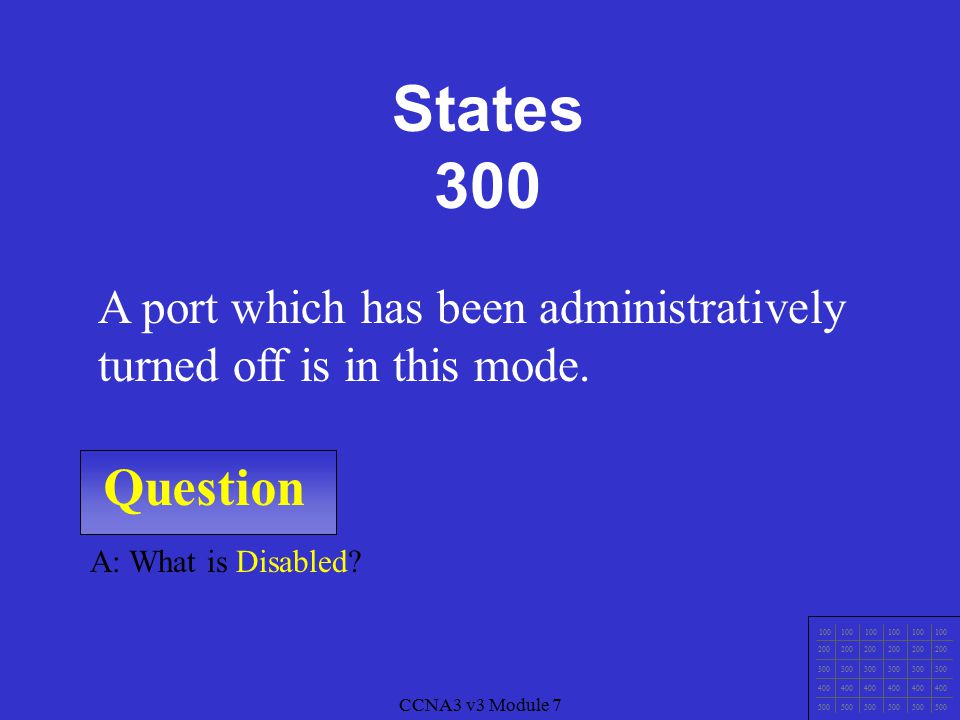

31 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Disabled? A port which has been administratively turned off is in this mode. States 300

32 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is the Learning state? In this state, a switch port learns MAC addresses, but does not forward data. States 400

33 CCNA3 v3 Module 7 Question 100 200 300 400 500 CCNA3 v3 Module 7 A: What is Discarding state? Using Rapid STP, a port in blocked state is called this. States 500

34 CCNA3 v3 Module 7 Question A: What is IEEE 802.1w? Rapid STP is defined in this IEEE standard. Final Jeopardy CCNA3 v3 Module 7 100 200 300 400 500
