2. 1 CRYPTO via KYK-13 STEP 1 STEP 2 STEP 3 STEP 4 STEP 5 Connect the KYK-13 to the J1 port on the AN/ PSN-11. Make sure the AN/PSN-11 is on and not doing a self test. Set the KYK-13 selector switch to the position that contains the crypto fill. Set the KYK-13 mode switch to ON. The light on the KYK-13 flashes, showing a successful crypto key load. Call up the CRYPTO pages from the AN/PSN-11 MENU. Verify the crypto key status. Set the KYK-13 mode switch to OFF. Disconnect the KYK-13 from the AN/PSN-11. MENU PAGE #2 DATA-XFR CRYPTO DOP-CALC SINCGARSKOI-18 ALERTS SV-SEL p MENU PAGE #2 DATA-XFR CRYPTO DOP-CALC SINCGARSKOI-18 ALERTS SV-SEL p CRYPTO PAGE #4 p CRYPTO ZEROIZE zeroize all crypto data ACTIVATE QUIT NOTE: OLD CRYPTO VARIABLES MUST BE ZEROIZED BEFORE ATTEMPTING TO LOAD

3. 2 UNITED STATES ARMY FORT SILL, OKLAHOMA NEW EQUIPMENT TRAINING INSTRUCTOR SLIDE PACKAGE FIELD ARTILLERY SCHOOL

4. 3 SEGMENTS GPS IS A SYSTEM THAT CONTAINS 3 SEGMENTS 1. SPACE SEGMENT 2. CONTROL SEGMENT 3. GROUND SEGMENTS

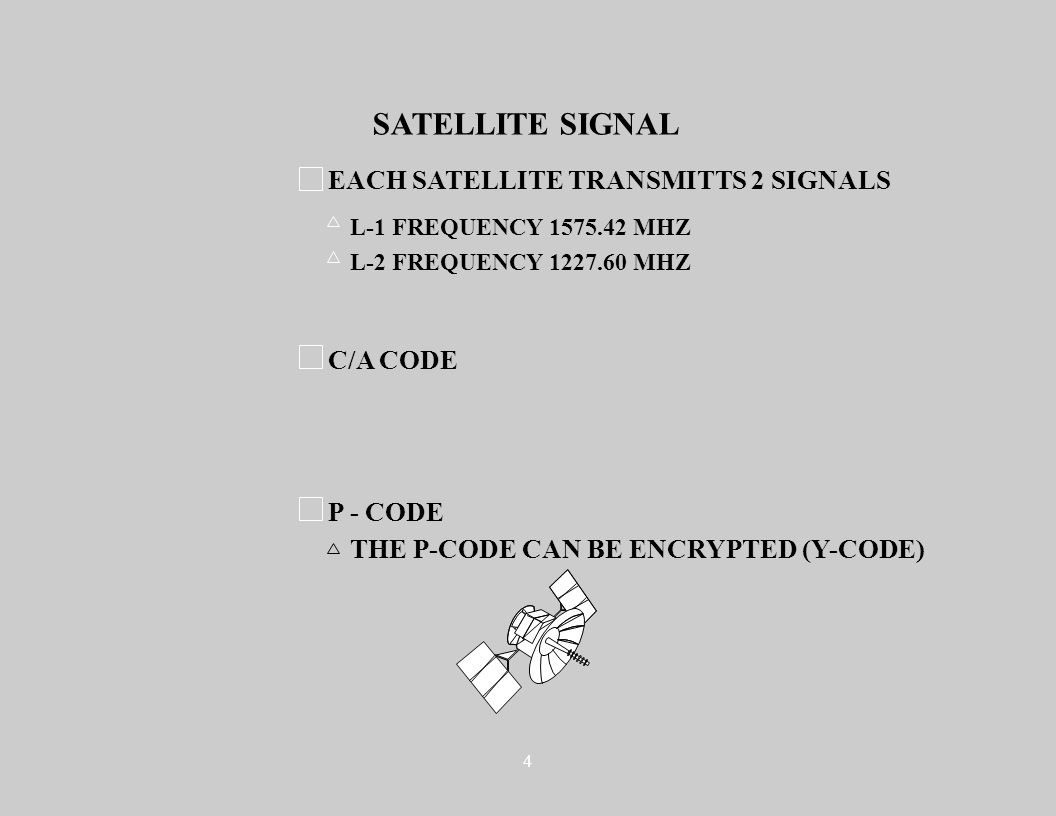

5. 4 SATELLITE SIGNAL EACH SATELLITE TRANSMITTS 2 SIGNALS L-1 FREQUENCY 1575.42 MHZ L-2 FREQUENCY 1227.60 MHZ C/A CODE P - CODE THE P-CODE CAN BE ENCRYPTED (Y-CODE)

6. 5 SIGNAL ACQUISITION PLGR SEARCHES FOR C/A CODE THEN CHECKS FOR HANDOVER WORD THE PLUGGER WILL THEN SWITCH TO P(Y)-CODE Rockwell 234567e1234567n FIX FOM 1 14S UTM/UPS EL +365 M P ZEROIZE 12 3 456 879 0 Rockwell 234567e1234567n FIX FOM 1 14S UTM/UPS EL +365 M P ZEROIZE 12 3 456 879 0 Rockwell 234567e1234567n FIX FOM 1 14S UTM/UPS EL +365 M P ZEROIZE 12 3 456 879 0

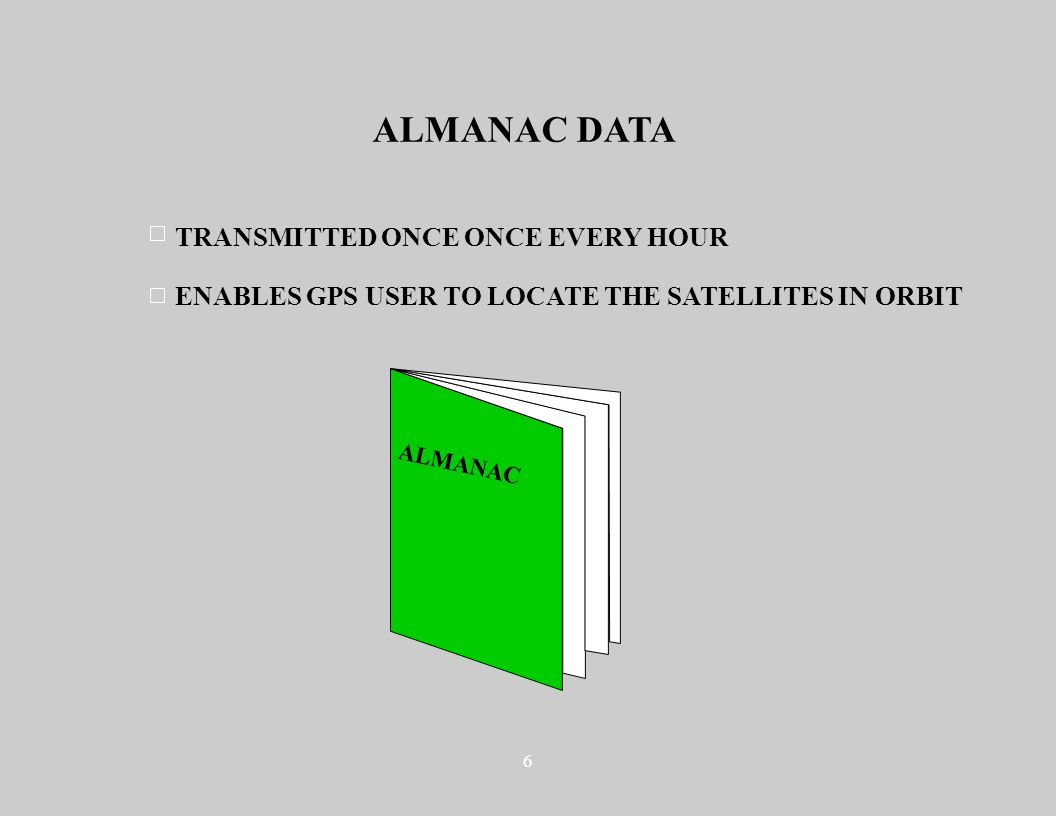

7. 6 ALMANAC DATA ALMANAC TRANSMITTED ONCE ONCE EVERY HOUR ENABLES GPS USER TO LOCATE THE SATELLITES IN ORBIT

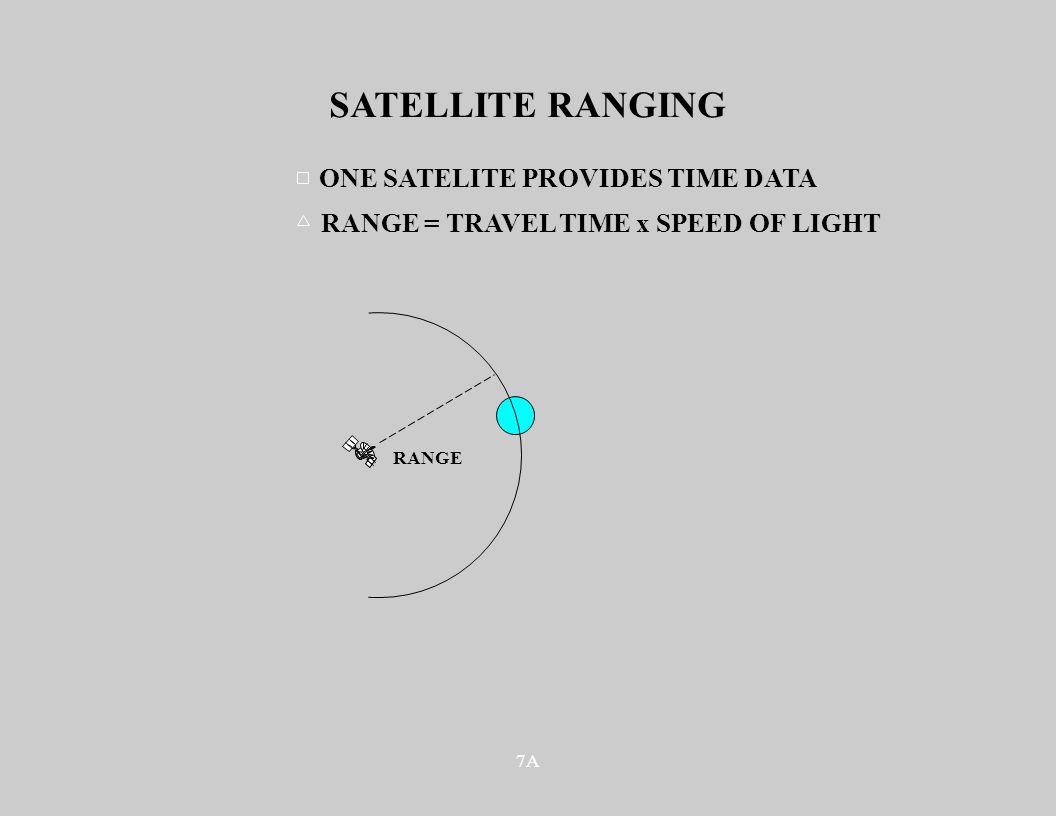

8. 7A SATELLITE RANGING RANGE ONE SATELITE PROVIDES TIME DATA RANGE = TRAVEL TIME x SPEED OF LIGHT

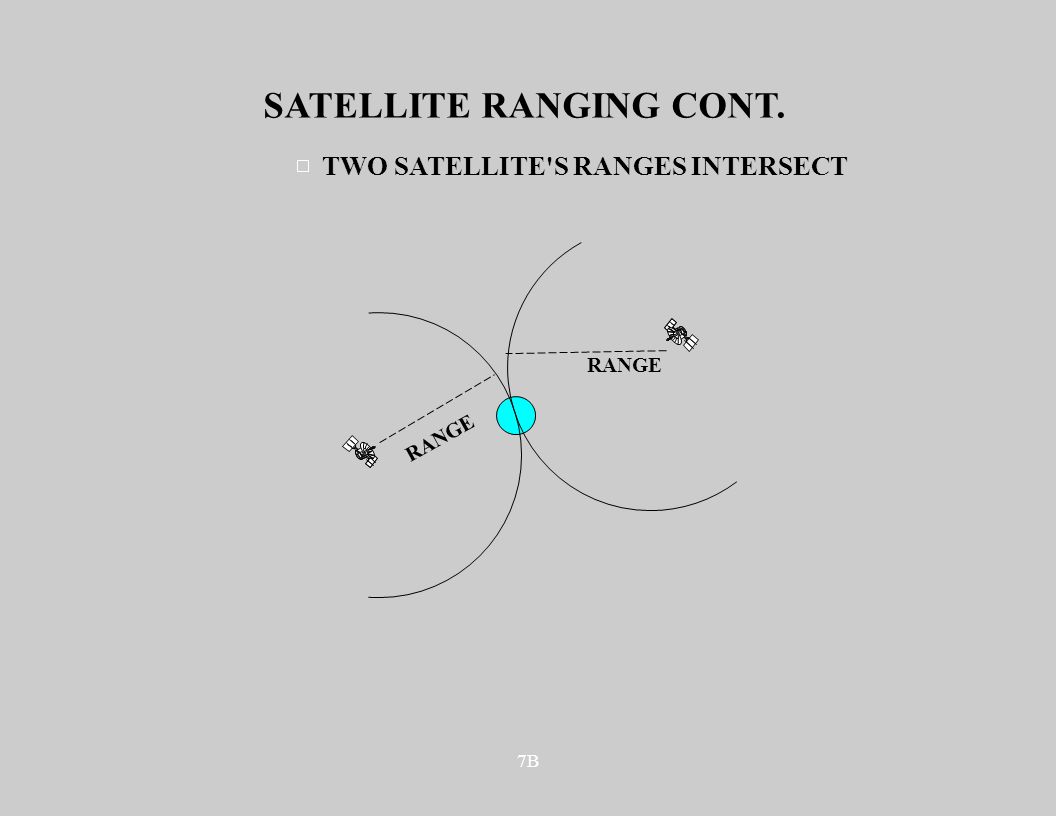

9. 7B SATELLITE RANGING CONT. RANGE TWO SATELLITE'S RANGES INTERSECT

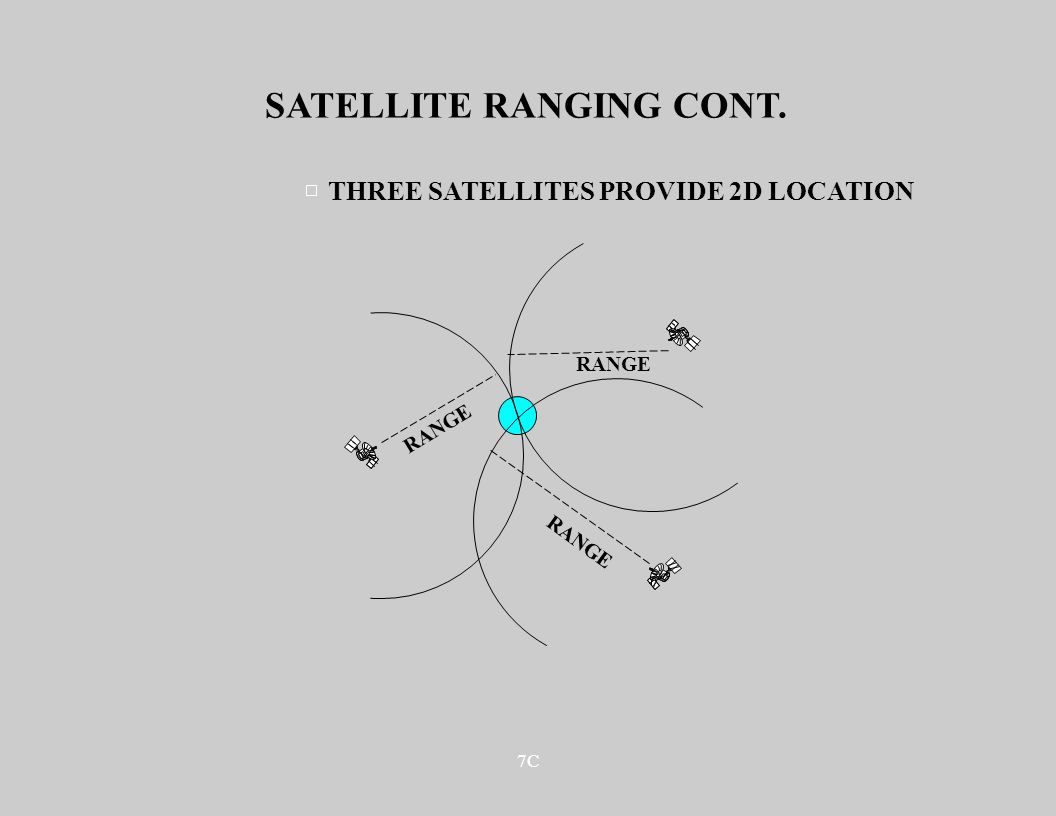

10. 7C SATELLITE RANGING CONT. RANGE THREE SATELLITES PROVIDE 2D LOCATION

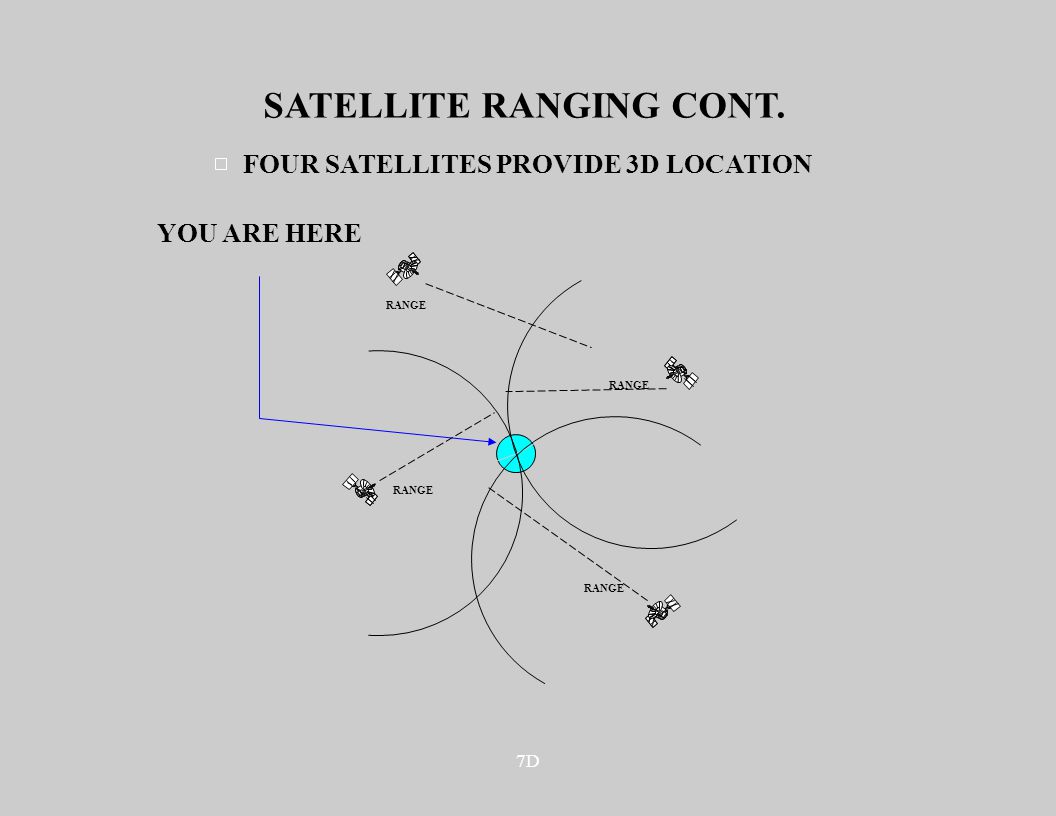

11. 7D SATELLITE RANGING CONT. YOU ARE HERE RANGE FOUR SATELLITES PROVIDE 3D LOCATION

12. 8 AN/PSN-11 PLGR PLGR USES 3-5 SATELLITES FOR NAVIGATION PLGR WILL SELECT THE BEST SATELLITE GEOMETRY OPERATOR CAN DE-SELECT SATELLITES Rockwell 234567e1234567n FIX FOM 1 14S UTM/UPS EL +365 M P ZEROIZE 12 3 456 879 0

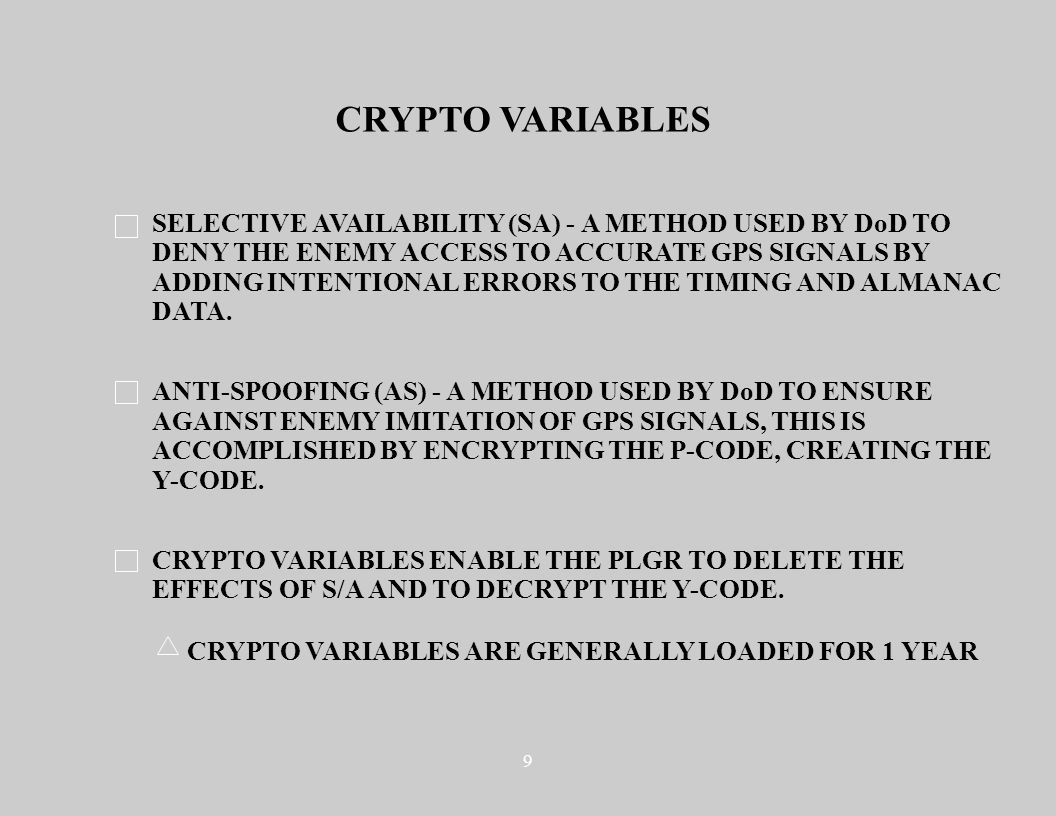

13. 9 CRYPTO VARIABLES SELECTIVE AVAILABILITY (SA) - A METHOD USED BY DoD TO DENY THE ENEMY ACCESS TO ACCURATE GPS SIGNALS BY ADDING INTENTIONAL ERRORS TO THE TIMING AND ALMANAC DATA. ANTI-SPOOFING (AS) - A METHOD USED BY DoD TO ENSURE AGAINST ENEMY IMITATION OF GPS SIGNALS, THIS IS ACCOMPLISHED BY ENCRYPTING THE P-CODE, CREATING THE Y-CODE. CRYPTO VARIABLES ENABLE THE PLGR TO DELETE THE EFFECTS OF S/A AND TO DECRYPT THE Y-CODE. CRYPTO VARIABLES ARE GENERALLY LOADED FOR 1 YEAR

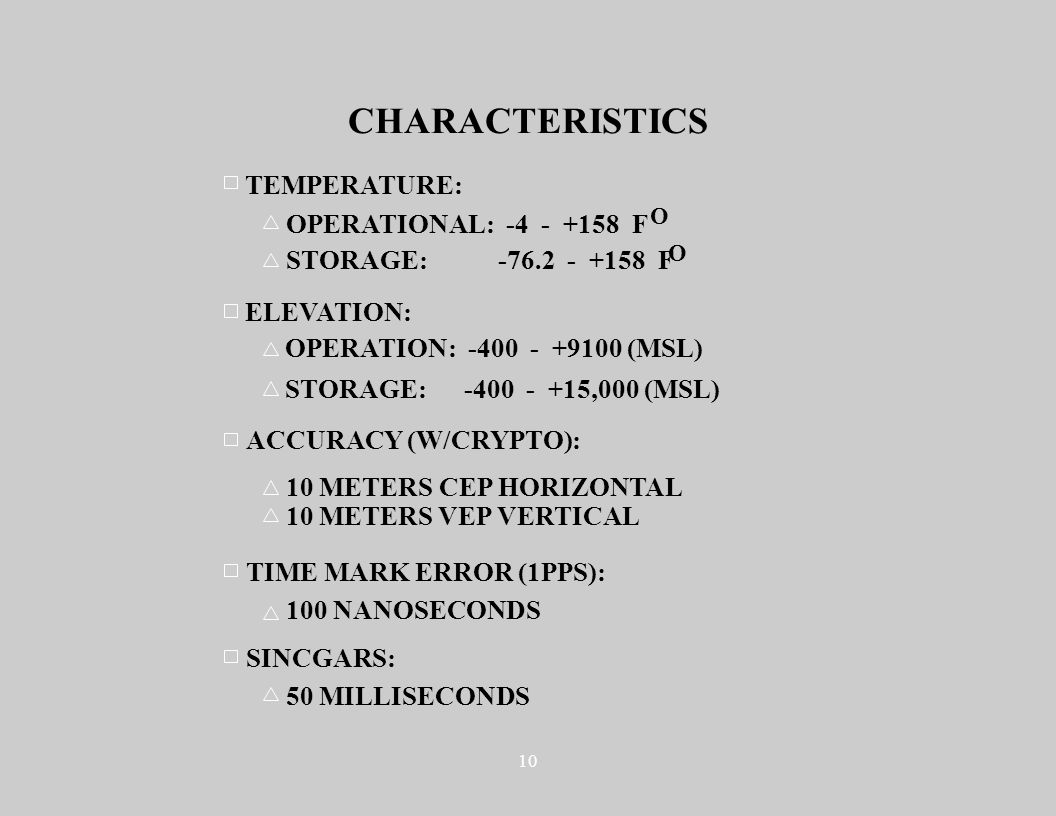

14. 10 CHARACTERISTICS ELEVATION: OPERATION: -400 - +9100 (MSL) STORAGE: -400 - +15,000 (MSL) TEMPERATURE: OPERATIONAL: -4 - +158 F STORAGE: -76.2 - +158 F O O ACCURACY (W/CRYPTO): 10 METERS CEP HORIZONTAL 10 METERS VEP VERTICAL TIME MARK ERROR (1PPS): 100 NANOSECONDS SINCGARS: 50 MILLISECONDS

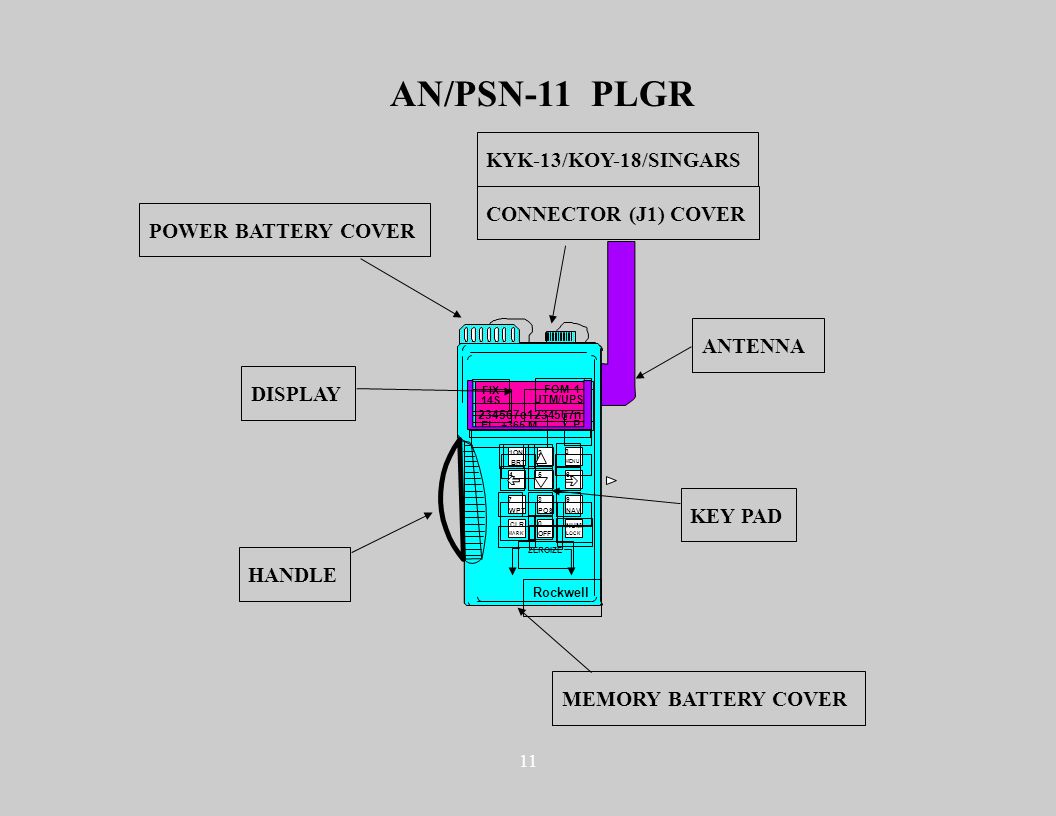

15. 11 AN/PSN-11 PLGR Rockwell 234567e1234567n FIX FOM 1 14S UTM/UPS EL +365 M P ZEROIZE 12 3 456 879 0 ON BRT CLR NAVPOSWPT MENU LOCK NUM OFF MARK POWER BATTERY COVER DISPLAY KYK-13/KOY-18/SINGARS CONNECTOR (J1) COVER ANTENNA MEMORY BATTERY COVER KEY PAD HANDLE

16. 12 BA-5800 LITHIUM NICKEL CADMIUM POWER SOURCES BATTERY TYPE MINIMUM LIFE (CONT MODE) AT 71 F o BA-5800/U NiCad LS6 BA (8) WB101 > 10 HOURS > 1.5 HOURS > 4.0 HOURS 1 YEAR (8) WB101 BA-5800/U NiCad ENHANCED PLGR (GREEN) > 20 HOURS > 3 HOURS > 8 OR MORE 1 YEAR

17. 13 Rockwell 234567e1234567n FIX FOM 1 14S UTM/UPS EL +365 M P ZEROIZE 1 2 3 4 5 6 8 7 9 0 ON BRT CLR NAV POS WPT MENU LOCK NUM OFF MARK + REPLACE MEMORY BATTERY CHANGED ANNUALLY

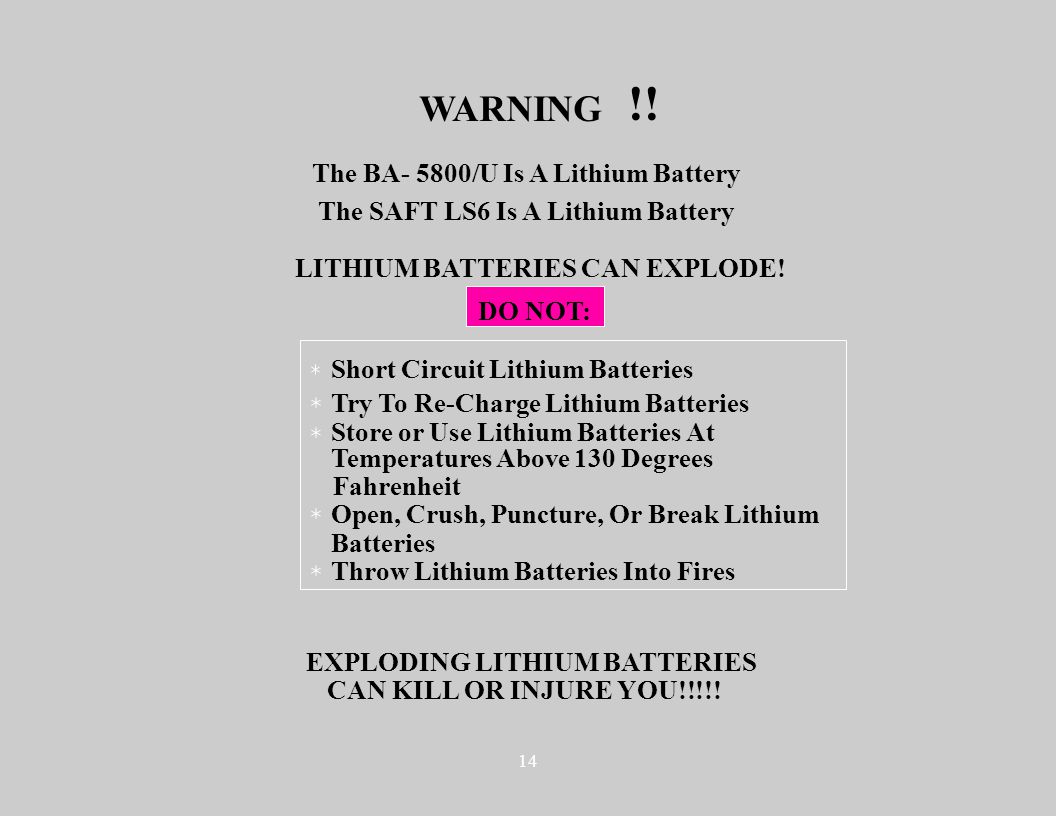

18. 14 WARNING The BA- 5800/U Is A Lithium Battery The SAFT LS6 Is A Lithium Battery LITHIUM BATTERIES CAN EXPLODE! DO NOT: Short Circuit Lithium Batteries Try To Re-Charge Lithium Batteries Store or Use Lithium Batteries At Temperatures Above 130 Degrees Fahrenheit Open, Crush, Puncture, Or Break Lithium Batteries Throw Lithium Batteries Into Fires EXPLODING LITHIUM BATTERIES CAN KILL OR INJURE YOU!!!!! !!

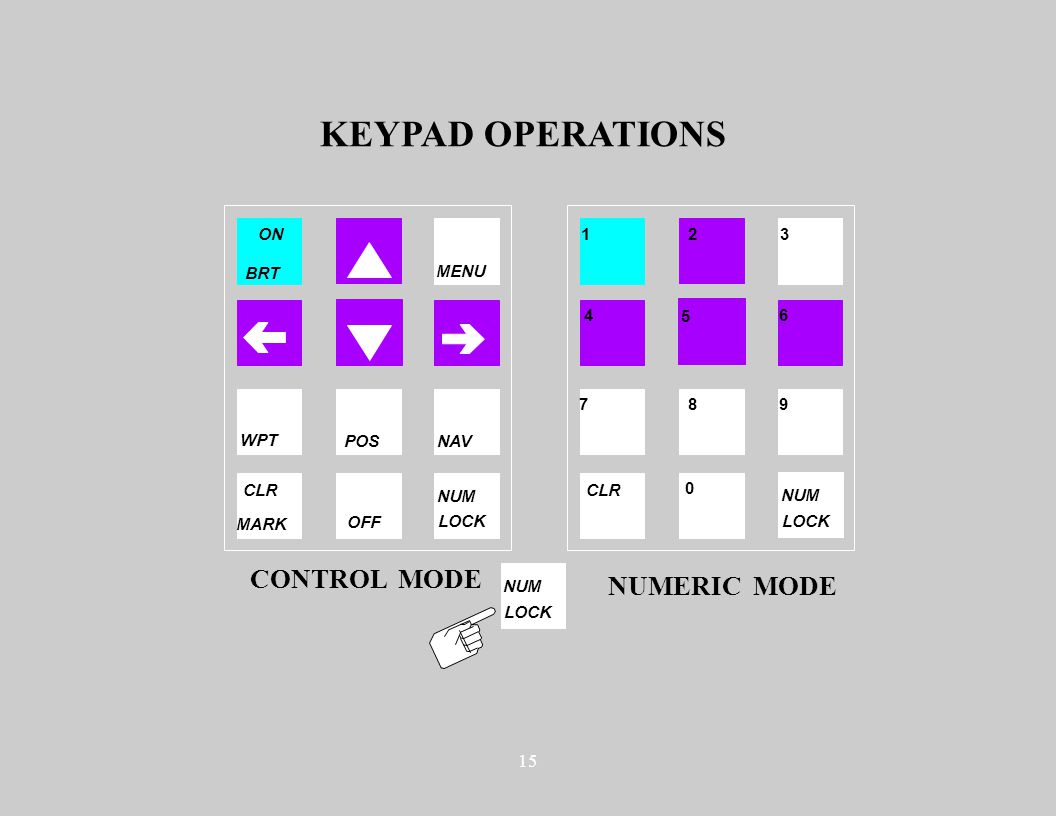

19. 15 KEYPAD OPERATIONS ON BRT CLR NAVPOS WPT MENU LOCK NUM OFF MARK CONTROL MODE 1 2 3 4 5 6 8 7 9 0 CLR 5 NUMERIC MODE LOCK NUM LOCK NUM

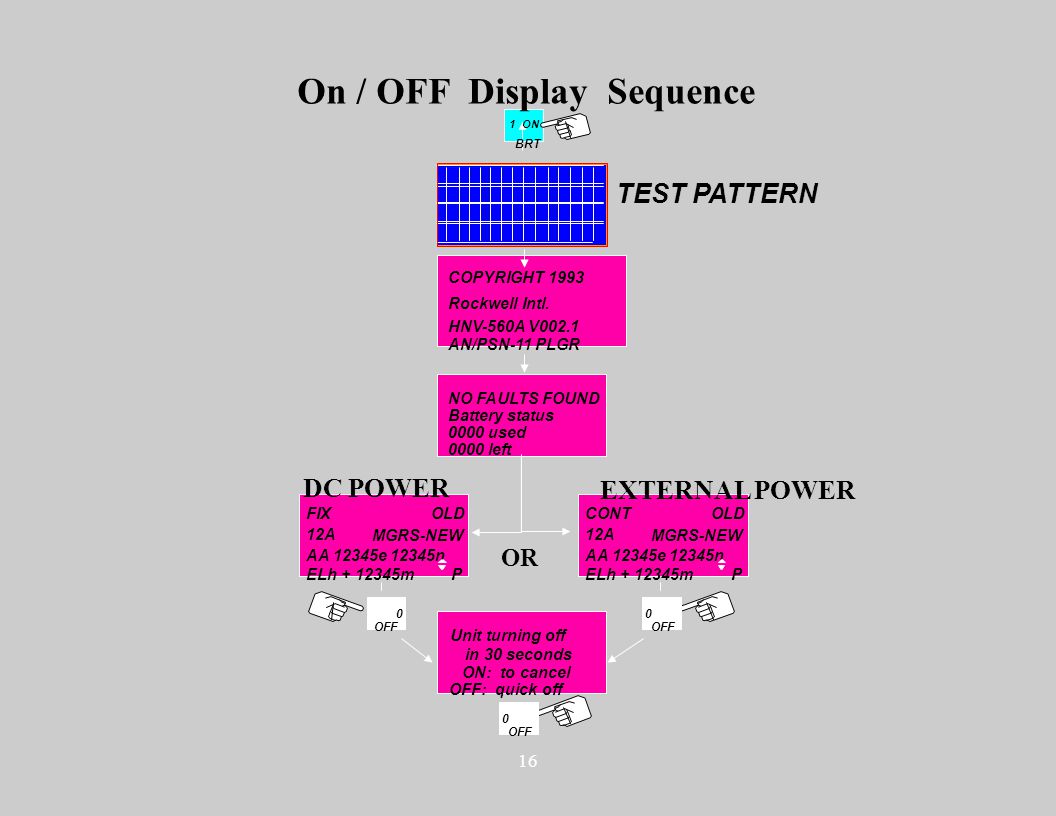

20. 16 COPYRIGHT 1993 Rockwell Intl. HNV-560A V002.1 AN/PSN-11 PLGR NO FAULTS FOUND Battery status 0000 used 0000 left TEST PATTERN On / OFF Display Sequence 1ON BRT FIX 12A AA 12345e 12345n ELh + 12345mP Unit turning off in 30 seconds ON: to cancel OFF: quick off MGRS-NEW OLDCONT 12A AA 12345e 12345n ELh + 12345mP MGRS-NEW OLD DC POWER EXTERNAL POWER 0 OFF 0 OR 0 OFF

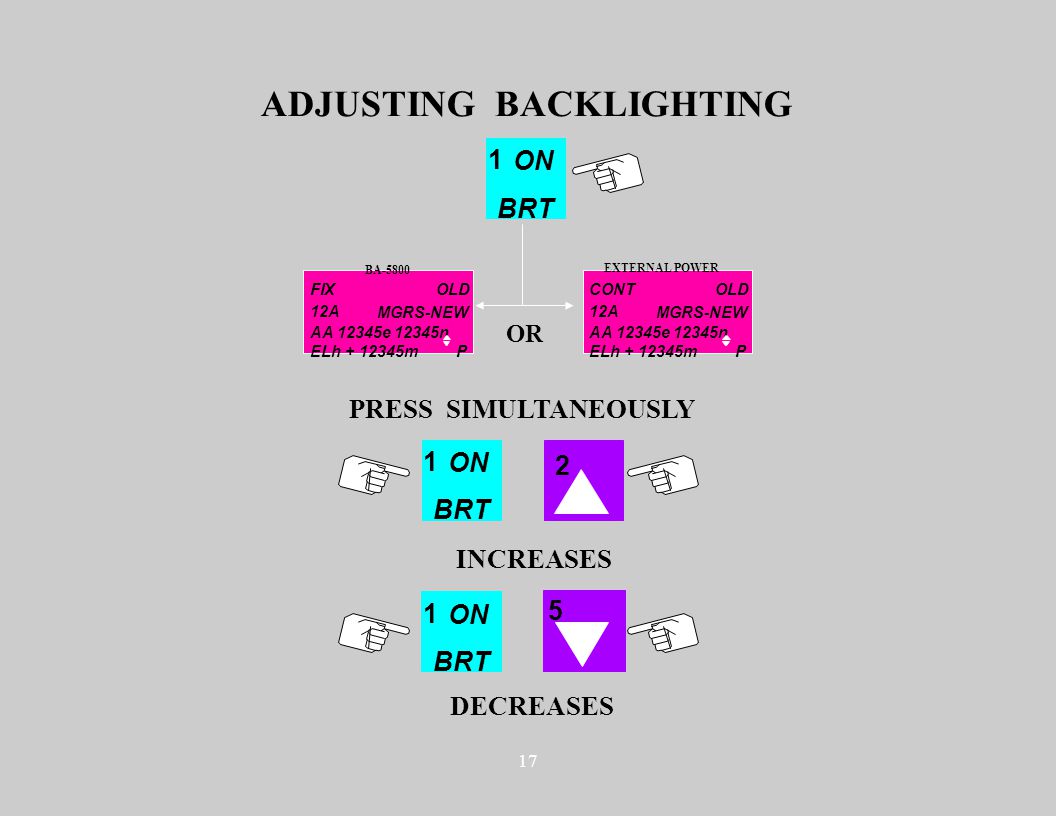

21. 17 ADJUSTING BACKLIGHTING FIX 12A AA 12345e 12345n ELh + 12345mP MGRS-NEW OLDCONT 12A AA 12345e 12345n ELh + 12345mP MGRS-NEW OLD BA-5800 EXTERNAL POWER OR 1 ON BRT 2 1 ON BRT PRESS SIMULTANEOUSLY 1 ON BRT 5 INCREASES DECREASES

22. 18 KEYPAD MAP BRT MENU 1 ON BRT PRESS SIMULTANEOUSLY 3 MENU DISPLAYS UP NAV MRK LOCK POS OFF

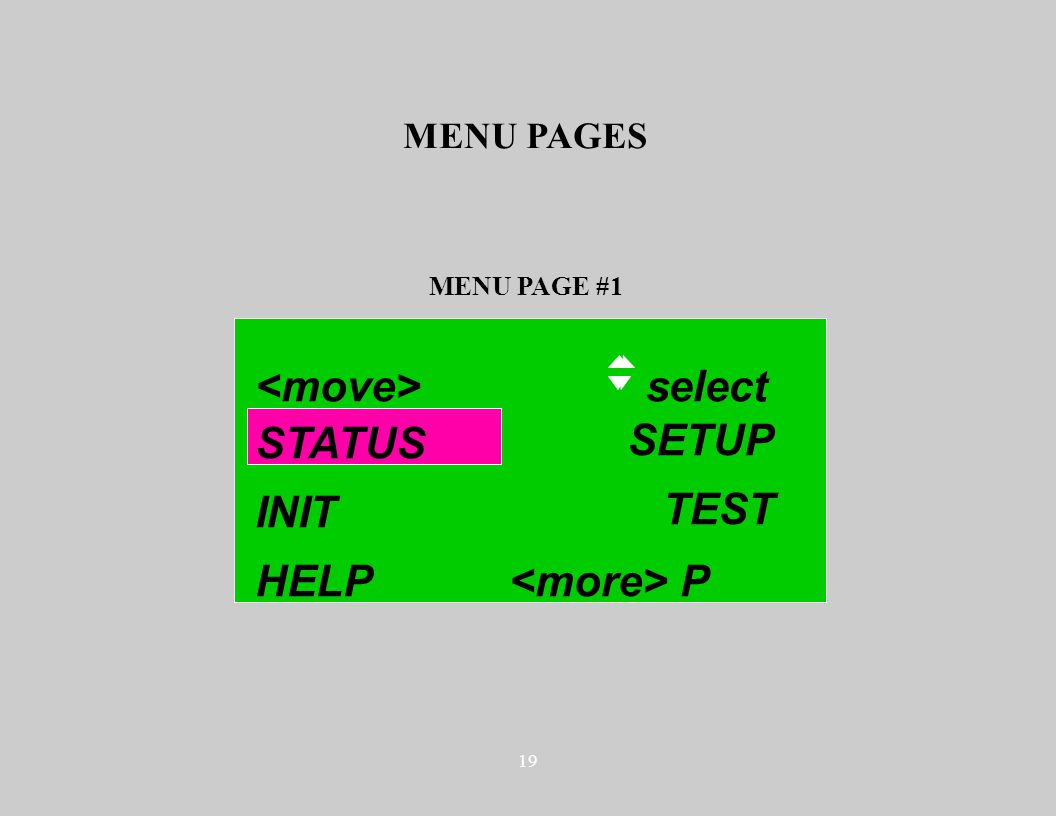

23. 19 MENU PAGE #1 STATUS INIT HELP P TEST SETUP select MENU PAGES

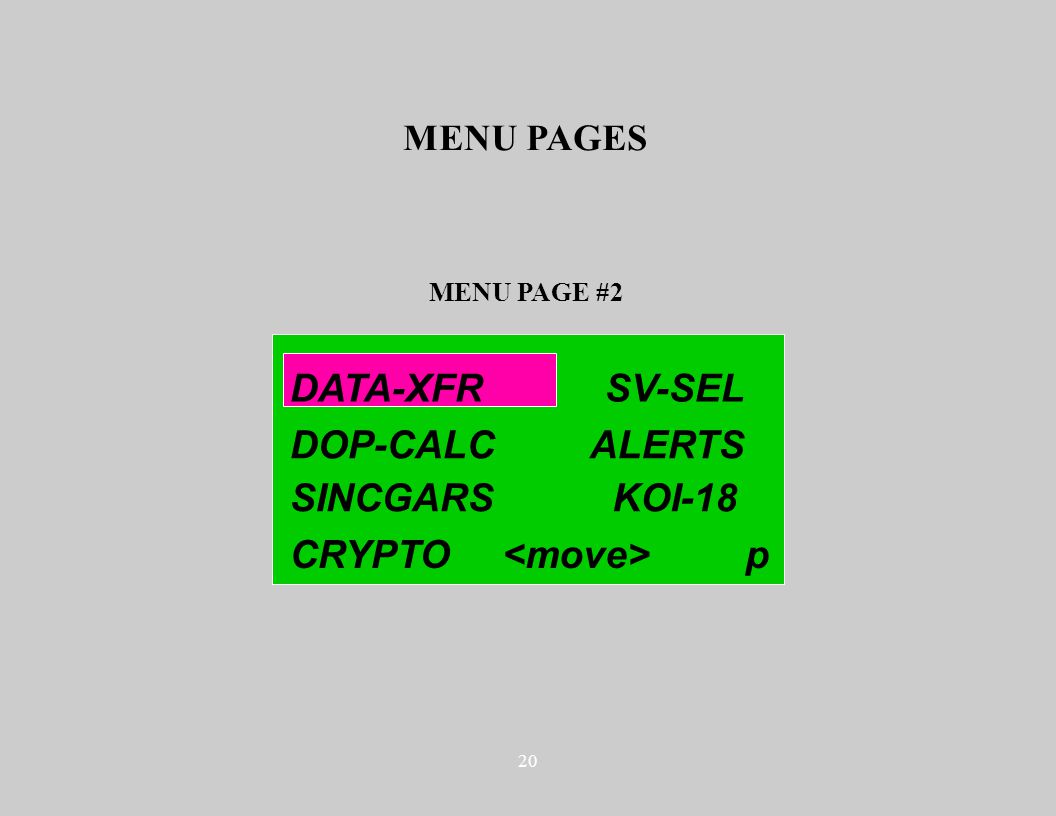

24. 20 MENU PAGE #2 MENU PAGES DATA-XFR CRYPTO DOP-CALC SINCGARSKOI-18 ALERTS SV-SEL p

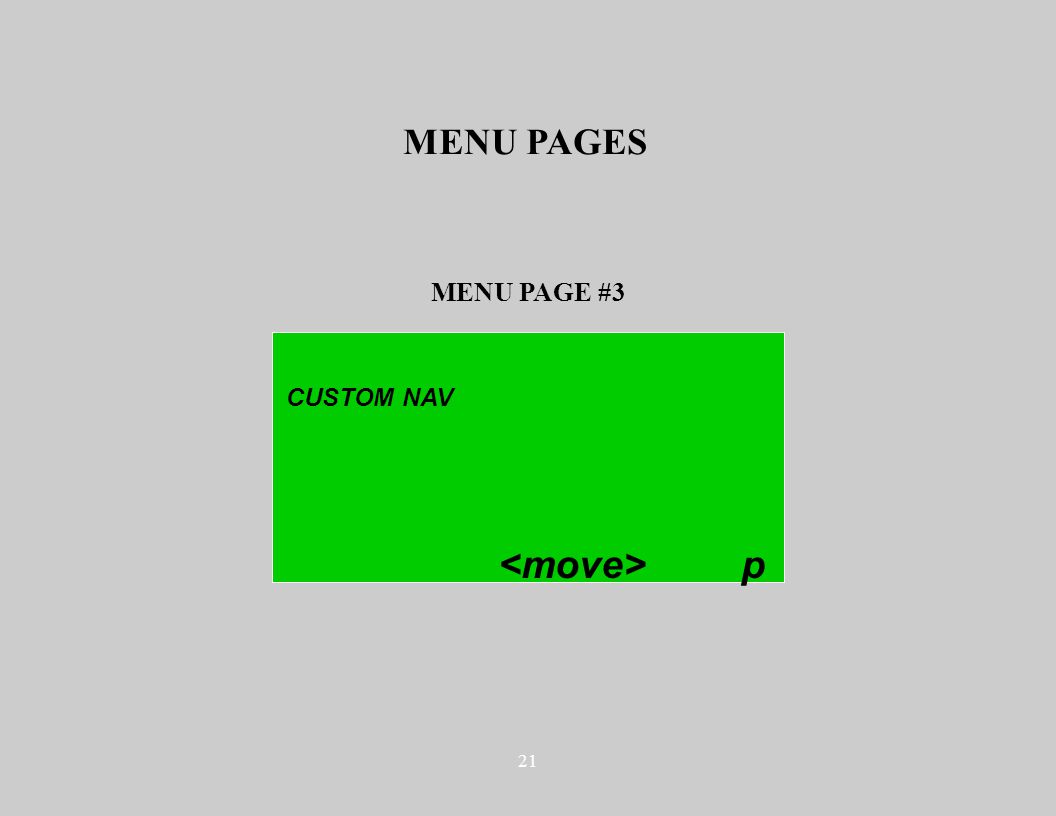

25. 21 MENU PAGE #3 MENU PAGES CUSTOM NAV p

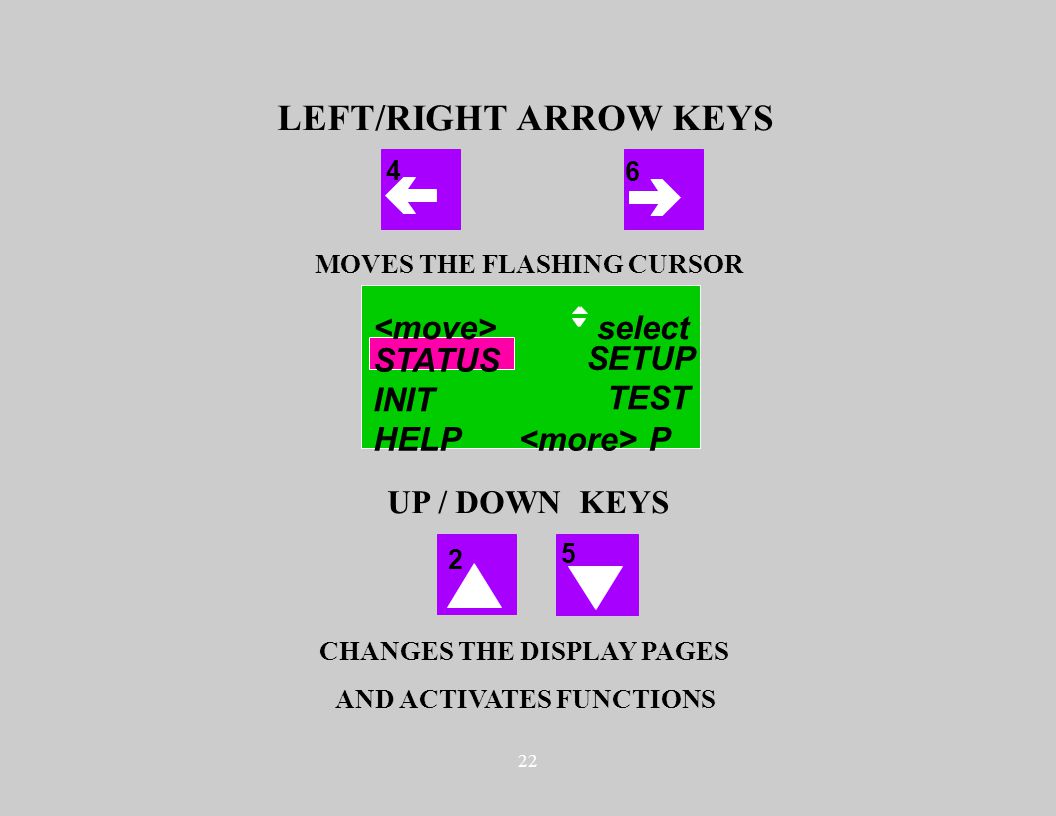

26. 22 UP / DOWN KEYS 2 4 5 6 LEFT/RIGHT ARROW KEYS MOVES THE FLASHING CURSOR CHANGES THE DISPLAY PAGES AND ACTIVATES FUNCTIONS STATUS INIT HELP P TEST SETUP select

27. 23 CONTROL MODE KEYS 3 MENU 3 7 WPT 8 POS 9 NAV CLR MARK MARK POS WP: 0 01 MARK: saves ON: cancels SLOW CRS TO WP: 01 MARK 01 CRS 007 G WP ENTER SR-CALC DISTCLEARROUTE COPY RNG-CALC movesel FIX 14S 0609623e ELh +00342 UTM/UPS 3946555n OLD NAV: ManOverbrd P EDIT

28. 24 ZEROIZE KEYS ZEROIZE 1 2 3 4 5 6 8 7 9 0 ON BRT CLR NAVPOS WPT MENU LOCK NUM OFF MARK To ZEROIZE all data press ON : to cancel OFF : to zeroize DESTROYS ALL DATA THAT IS MISSION SENSITIVE DO NOT PREFORM THIS TASK !!

29. 25 WARNING DISPLAYS WARNING Externalantenna lost to acknowledge Lowmemory battery Low battery primary Externalpower lost WARNING Externalantenna fault to acknowledge EMERGENCY zeroize passed EMERGENCY zeroize failed

30. 26 USER-DEFINED DATUM (PAGE 1) TRACK AND GROUND SPEED TIME AND DATE POSITION INITIALIZATION USER-DEFINED DATUM (PAGE2) CRYPTO KEY INIT CRPYPTO H _ D _ INITTRK/GS TRK GS 000 M 000 kph CLR P INIT DTM dX: +0000.0 USER 1 DY: +0000.0 DZ: +0000.0 Known, int is not required TIME P INIT dA: +0000.000 DTMUSER 1 -.00000001 dF*E4: MGRSadv: 00 INIT 14S 0123456e1234567n EL POS +12345m UTM/UPS CLR P 5 5 55 5 3 MENU STATUS INIT HELP P TEST SETUP select 5 A A

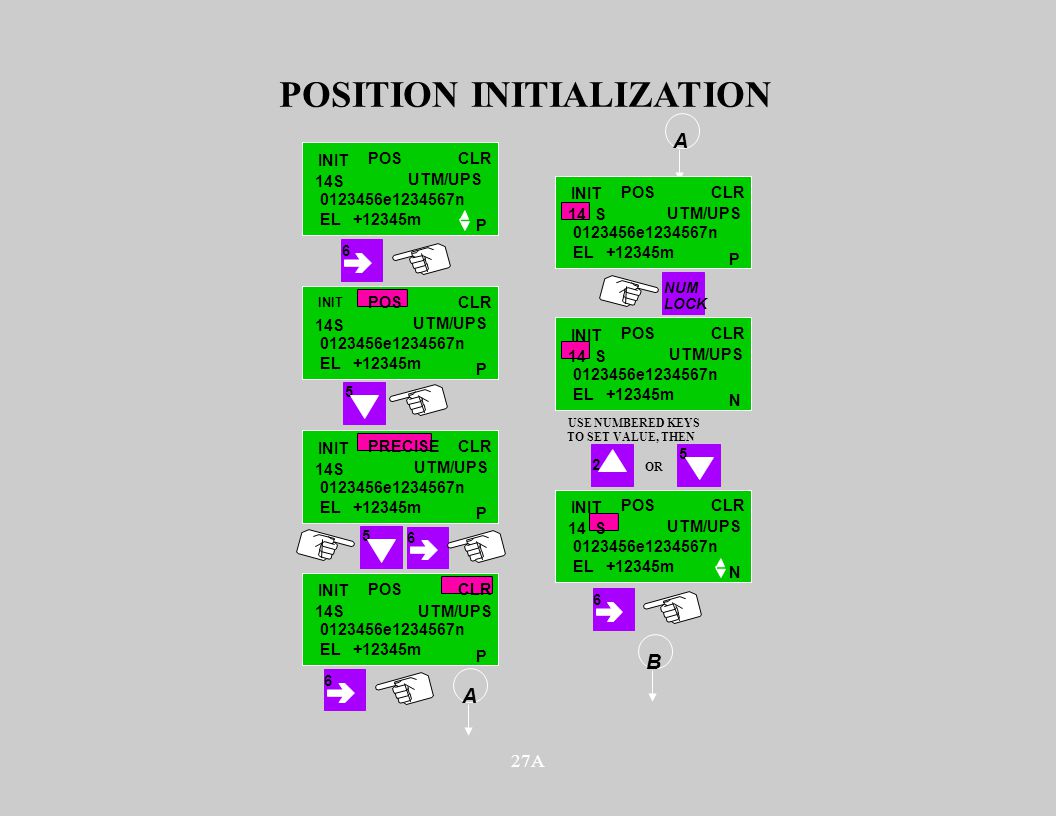

31. 27A POSITION INITIALIZATION 6 INIT 14S 0123456e1234567n EL+12345m UTM/UPS P POSCLR 5 6 A A INIT 0123456e1234567n EL+12345m UTM/UPS CLR P POS 14 S NUM LOCK INIT 0123456e1234567n EL+12345m UTM/UPS CLR N POS 14 S USE NUMBERED KEYS TO SET VALUE, THEN INIT 0123456e1234567n EL+12345m UTM/UPS CLR N POS 14 S 5 2 OR 6 B INIT 14S 0123456e1234567n EL POS +12345m UTM/UPS CLR P 5 6 INIT 14S 0123456e1234567n EL+12345m UTM/UPS CLR P PRECISE INIT 14S 0123456e1234567n EL+12345m UTM/UPS CLR P POS

32. 27B POSITION INITIALIZATION INIT 0123456e1234567n EL UTM/UPS CLR N POS 14S NUM LOCK INIT 0123456e1234567n EL UTM/UPS CLR N POS 14S USE NUMBERED KEYS TO SET VALUE B INIT EL+12345m UTM/UPS CLR N POS 14S 0 123456e1234567n USE NUMBERED KEYS TO SET VALUES FOR E AND N, THEN + 12345m 5 2 OR C 6 THEN + 1 2345m INIT 0123456e1234567n EL UTM/UPS CLR N POS 14S +12345m C INIT 0123456e1234567n EL UTM/UPS CLR P POS 14S +12345m

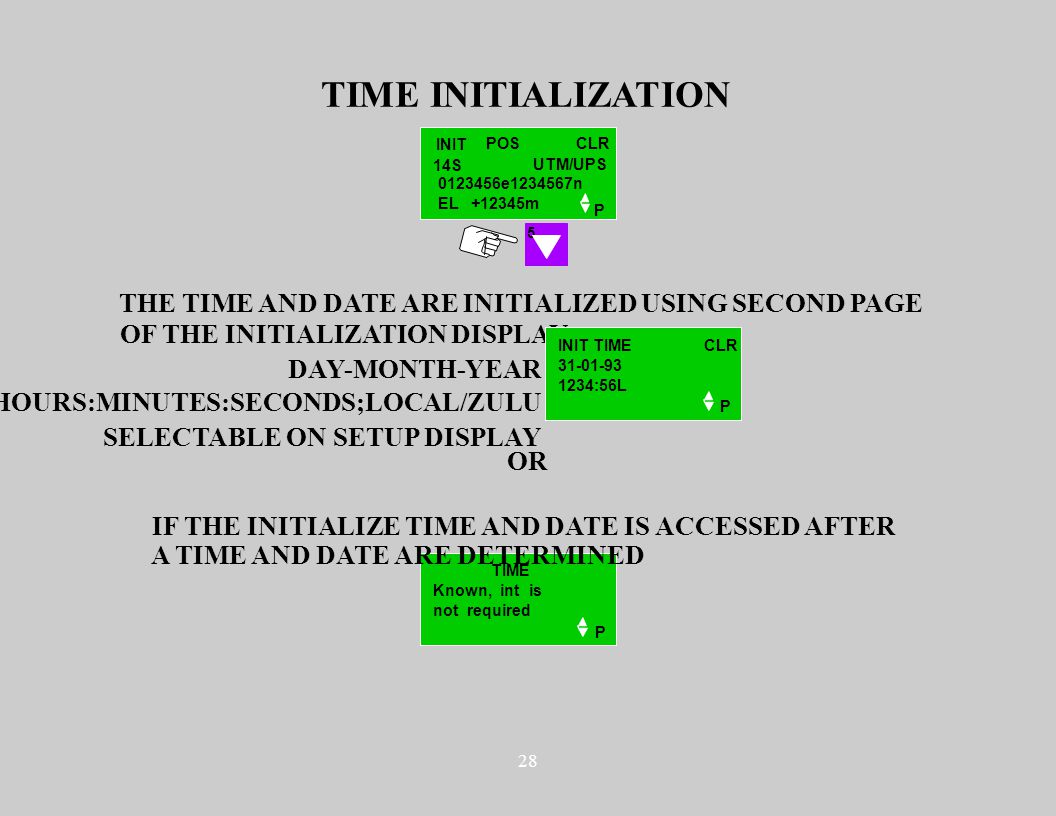

33. 28 TIME INITIALIZATION INIT 0123456e1234567n EL UTM/UPS CLR P POS 14S +12345m 5 Known, int is not required TIME P THE TIME AND DATE ARE INITIALIZED USING SECOND PAGE OF THE INITIALIZATION DISPLAY 31-01-93 1234:56L INIT TIME P CLR DAY-MONTH-YEAR HOURS:MINUTES:SECONDS;LOCAL/ZULU SELECTABLE ON SETUP DISPLAY OR IF THE INITIALIZE TIME AND DATE IS ACCESSED AFTER A TIME AND DATE ARE DETERMINED

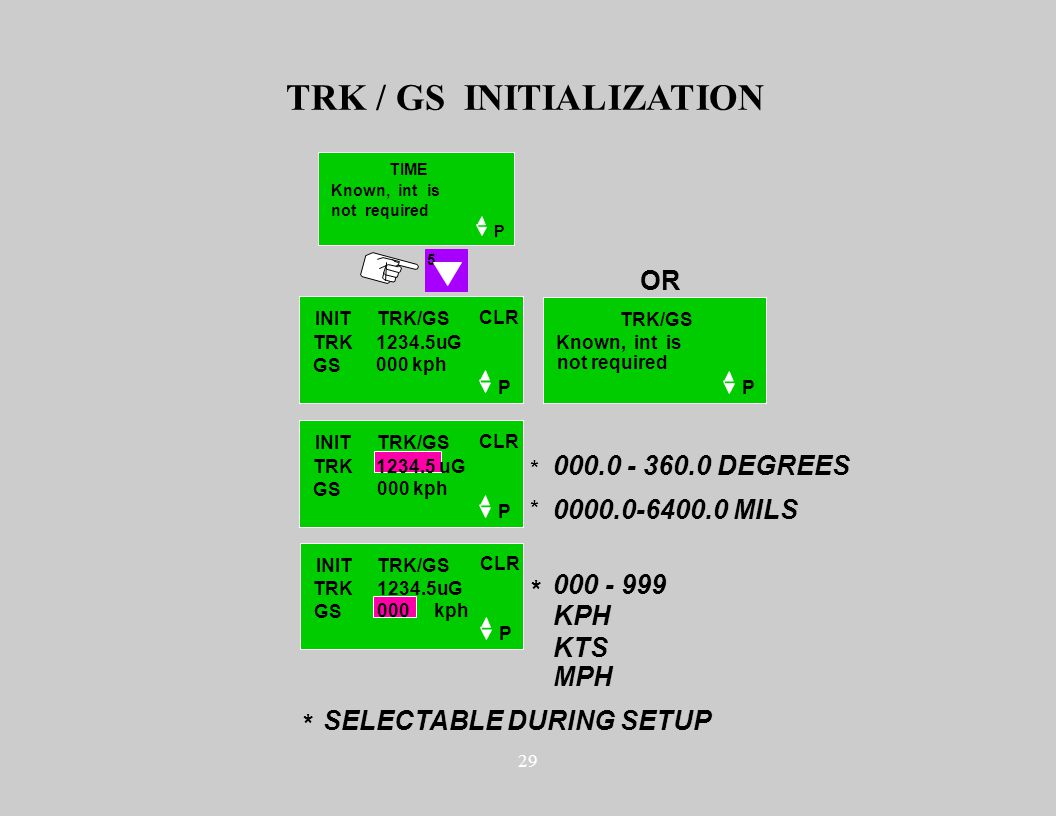

34. 29 5 Known, int is not required TIME P TRK / GS INITIALIZATION INITTRK/GS TRK GS 000 kph P CLR 1234.5 uG INITTRK/GS TRK GS P CLR 1234.5uG 000 kph 000.0 - 360.0 DEGREES 000 - 999 0000.0-6400.0 MILS KPH KTS MPH * * * INITTRK/GS TRK GS 1234.5uG 000 kph P CLR TRK/GS Known, int is P not required OR * SELECTABLE DURING SETUP

35. 30 5 DATUM INITIALIZATION INITTRK/GS TRK GS 1234.5uG 000 kph P CLR INIT DTM dX: +0000.0 USER 1 dY: +0000.0 dZ: +0000.0P INITIALIZE USER-DEFINED USER1/USER2 DELTA Y TRANSFORM PARAMETER DELTA Z TRANSFORM PARAMETER DELTA X TRANSFORM PARAMETER INIT DTM P USER1/USER2 dA: + 0000.000 df*e4: -.00000000 MGRS adv: 00 PLUGGER MUST BE SETUP IN METERS USER 1 5 DELTA A TRANSFORM PARAMETER DELTA F TRANSFORM PARAMETER AMOUNT TO ADVANCE DATUM (PAGE2)

36. 31 CRYPTO INITIALIZATION 5 INIT DTMUSER 1 P dX: +0000.0 dY: +0000.0 dZ: +0000.0 P HEX KEY DECIMAL KEY H _ D _ TITLE CRYPTO KEY ENTRY

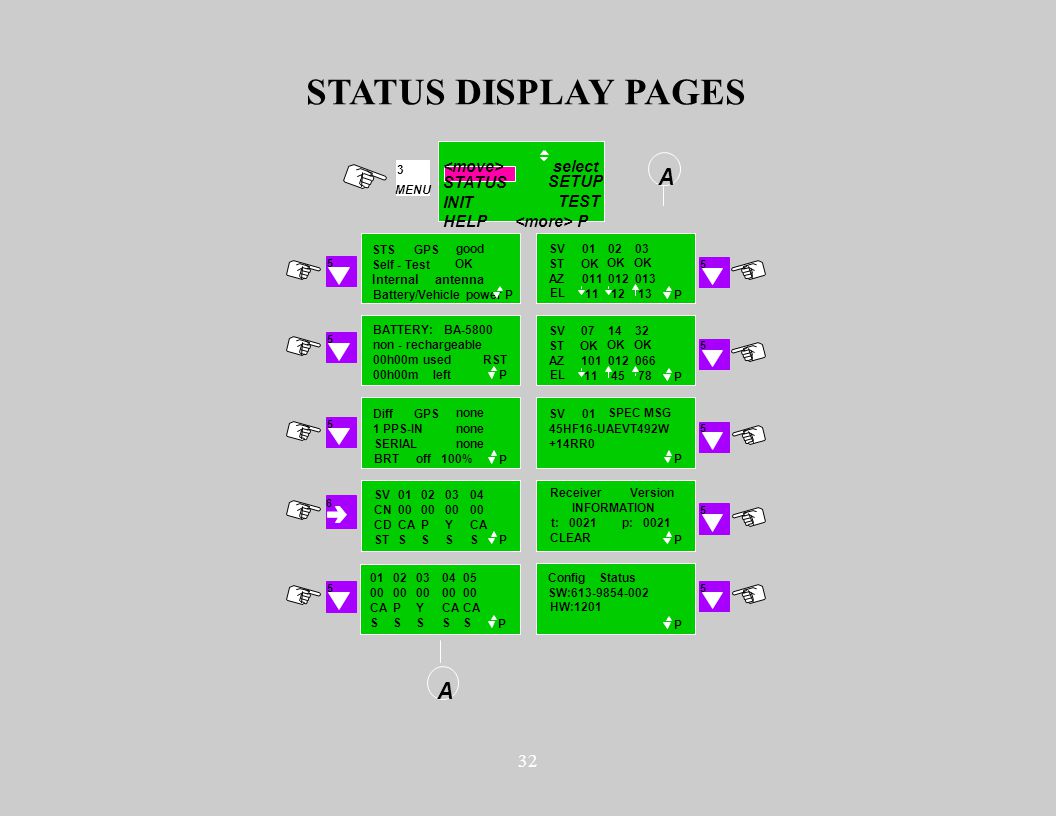

37. 32 STATUS DISPLAY PAGES STSGPS good Self - Test OK Internal antenna Battery/Vehicle power P BATTERY: BA-5800 non - rechargeable 00h00m used left P RST DiffGPS none 1 PPS-INnone SERIALnone BRToff 100% P SV CN CD ST 02030401 00 CA S 00 P S Y S CA S P P P P SV ST AZ 0203 01 OK 011 11 OK 012 12 OK 013 13 EL Receiver Version INFORMATION t: 0021p: 0021 CLEAR Config Status STATUS INIT HELP P TEST SETUP select 3 MENU 5 5 5 5 6 02030401 00 CA S 00 P S Y S CA S P 05 00 CA S 5 P SV ST AZ 1432 07 OK 101 11 OK 012 45 OK 066 78 EL 5 A 5 5 A P SV 45HF16-UAEVT492W +14RR0 SPEC MSG 01 5 SW:613-9854-002 HW:1201

38. 33A STATUS DISPLAY PAGES 1 - 4 STSGPS good Self - Test OK Internal antenna Battery powerP BATTERY: BA-5800 non - rechargeable 00h00mm used left P RST DiffGPS none 1 PPSINnone SERIAL none BRToff0% P SV CN CD ST 02030401 00 CA I 00 P R Y T CA S P GPS STATUS SELF-TEST RESULTS ANTENNA SOURCE POWER SOURCE ENTERABLE BATTERY TYPE RECHARGE STATUS TIME BATTERY USED TIME BATTERY LEFT DIFFERENTIAL STATUS 1 PULSE PER SEC IN STATUS SERIAL DATA PORT STATUS BACKLIGHTING STATUS TRACKING SVs SIGNAL STRENGTH CODE TYPE I = INTERFERENCE R = RECOVERY T = TRACKING PAGE 1 PAGE 2 PAGE 3 PAGE 4 STATUS INDICATORS S = SEARCH 1 ON BRT 2 PRESS SIMULTANEOUSLY 1 ON BRT 5 INCREASESDECREASES OR 00h00 mm

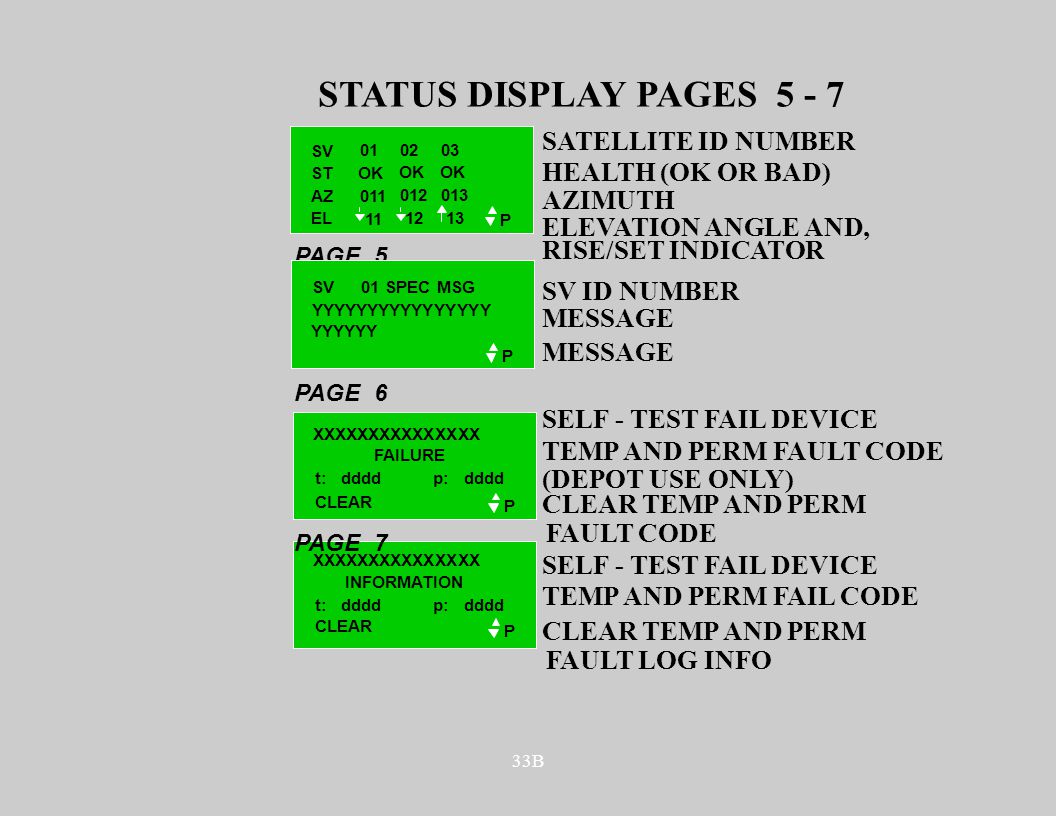

39. 33B STATUS DISPLAY PAGES 5 - 7 PAGE 5 P SV ST AZ 0203 01 OK 011 11 OK 012 12 OK 013 13 SATELLITE ID NUMBER HEALTH (OK OR BAD) AZIMUTH ELEVATION ANGLE AND, EL RISE/SET INDICATOR P SV YYYYYYYYYYYYYYYY 01 SPEC MSG SV ID NUMBER MESSAGE YYYYYY PAGE 6 P P XXXXXXXXXXXXXXX FAILURE INFORMATION t: dddd p: dddd CLEAR CLEAR TEMP AND PERM FAULT CODE SELF - TEST FAIL DEVICE (DEPOT USE ONLY) TEMP AND PERM FAULT CODE CLEAR SELF - TEST FAIL DEVICE TEMP AND PERM FAIL CODE CLEAR TEMP AND PERM FAULT LOG INFO PAGE 7

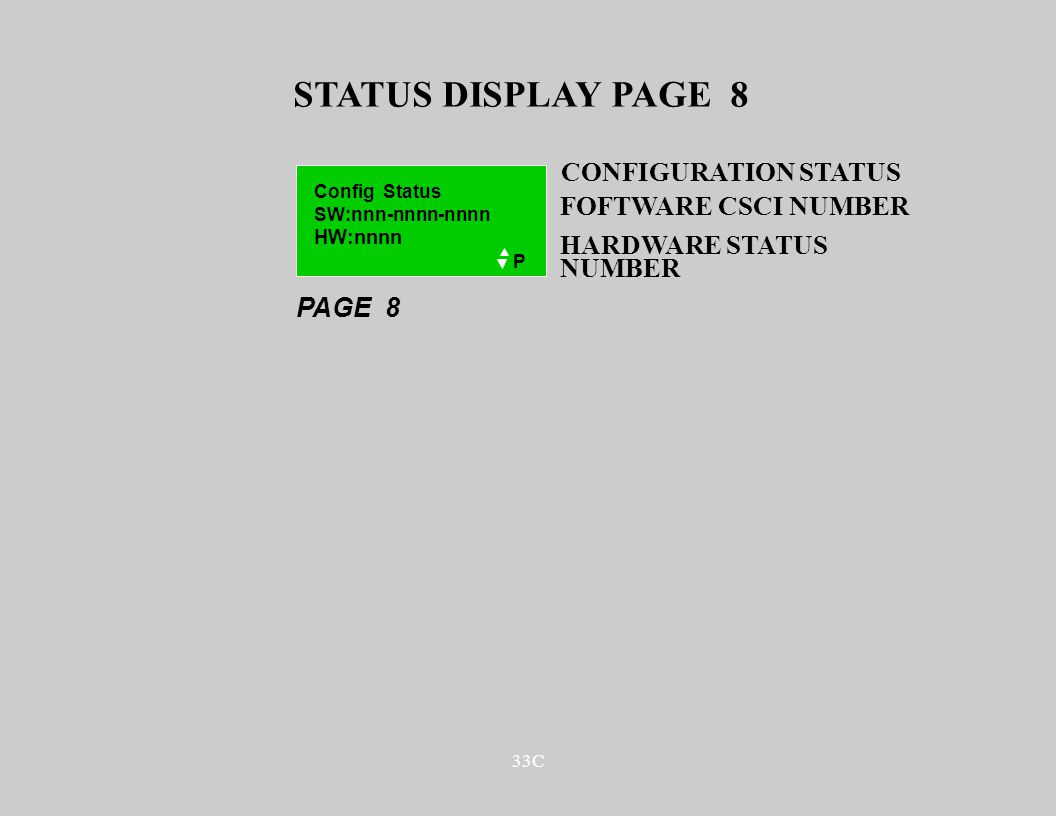

40. 33C STATUS DISPLAY PAGE 8 Config Status SW:nnn-nnnn-nnnn HW:nnnn P CONFIGURATION STATUS FOFTWARE CSCI NUMBER HARDWARE STATUS NUMBER PAGE 8

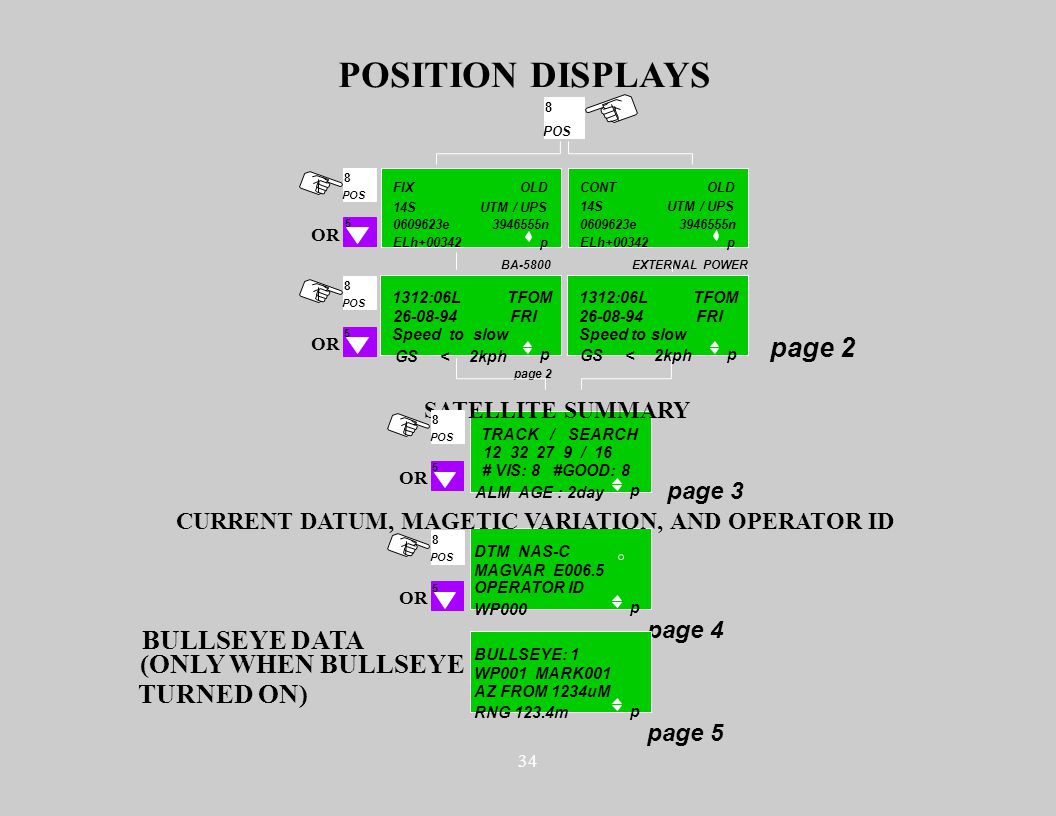

41. 34 POSITION DISPLAYS 8 POS 1312:06L Speed to slow 26-08-94 TFOM p BA-5800EXTERNAL POWER FIX 14S 0609623e ELh+00342 OLD UTM / UPS 3946555n p CONT 14S 0609623e ELh+00342 OLD UTM / UPS 3946555n p FRI GS<2kph 1312:06L Speed to slow 26-08-94 TFOM p FRI 8 POS 8 page 2 TRACK / SEARCH # VIS: 8 #GOOD: 8 p 12 32 27 9 / 16 page 3 ALM AGE : 2day GS<2kph DTM NAS-C OPERATOR ID p MAGVAR E006.5 page 4 WP000 BULLSEYE: 1 AZ FROM 1234uM p WP001 MARK001 page 5 RNG 123.4m BULLSEYE DATA (ONLY WHEN BULLSEYE TURNED ON) CURRENT DATUM, MAGETIC VARIATION, AND OPERATOR ID SATELLITE SUMMARY 5 5 OR 8 POS 5 OR 8 POS 5 OR

42. 35 NAVIGATION MODES AND METHODS METHOD 2D FAST - PLUGGER PERFORMS TWO-DIMENSIONAL NAV. USED FOR LAND OR SEA NAV WHEN USER CAN 3D FAST - PLUGGER PERFORMS THREE-DIMENSIONAL NAV. HAS A APPROACH SUB-MODE. USED FOR AIR NAV. CUSTOM - USER DEFINED NAVIGATION. SLOW - PLUGGER PERFORMS TWO-DIMENSIONAL NAV. USED FOR LAND OR SEA NAV WHEN USER CANNOT MAINTAIN MINIMUM SPEED FOR GPS TO COMPUTE NAVIGATIONAL PARAMETERS BASED ON VELOCITY. MAINTAIN MINIMUM SPEED FOR GPS TO COMPUTE NAVIGATIONAL PARAMETERS BASED ON VELOCITY. DIRECT - USED TO NAVIGATE FROM PRESENT POSITION DIRECTLY TO THE DESTINATION WAYPOINT. COURSE TO - USED TO NAVIGATE ALONG A DESIRED COURSE INTO A DESTINATION WAYPOINT. COURSE FROM - USED TO NAVIGATE ALONG A DESIRED COURSE AWAY FROM A DESTINATION WAYPOINT. ROUTE - USED TO NAVIGATE FROM ONE WAYPOINT TO THE NEXT ALONG A PRE-DEFINED ROUTE. APPROACH - USED TO NAVIGATE ALONG AN ENTERED GLIDE PATH TO THE DESTINATION WAYPOINT.

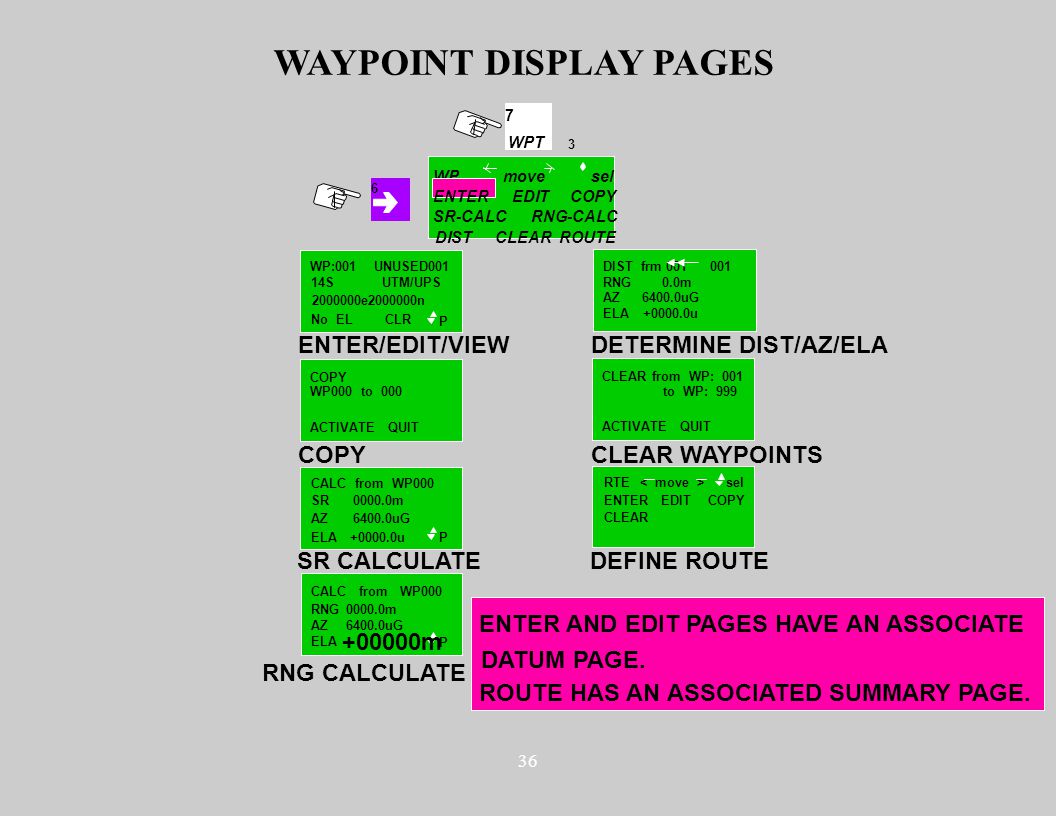

43. 36 3 7 WPT WP SR-CALC DISTCLEARROUTE COPY RNG-CALC movesel WAYPOINT DISPLAY PAGES ENTER/EDIT/VIEW COPY DETERMINE DIST/AZ/ELA SR CALCULATE WP:001UNUSED001 14S 2000000e2000000n No EL UTM/UPS CLR P COPY ACTIVATE P QUIT DIST frm 001 001 RNG AZ ELA 0.0m 6400.0uG +0000.0u CALC from WP000 SR AZ ELA 0000.0m 6400.0uG +0000.0u RNG CALCULATE CLEAR WAYPOINTS DEFINE ROUTE P CLEAR from WP: 001 ACTIVATEQUIT CALC from WP000 RNG AZ ELA 0000.0m 6400.0uG +00000m to WP: 999 RTE ENTER CLEAR EDIT sel 6 ENTEREDIT WP000 to 000 COPY ENTER AND EDIT PAGES HAVE AN ASSOCIATE DATUM PAGE. ROUTE HAS AN ASSOCIATED SUMMARY PAGE.

44. 37 3 7 WPT WP SR-CALC DISTCLEARROUTE COPY RNG-CALC movesel WAYPOINT POSITION PAGE ENTEREDIT WP:001UNUSED001 14S 2000000e2000000n No EL UTM/UPS CLR P 6 5 WAYPOINT NUMBER AND LABEL GRID ZONE AND DATUM COORDINATE DISPLAY ELE, ELE REF AND CLR 5 MAGNETIC VARIATION PAGE WP NUMBER AND DATUM DATUM NAME MAGNETIC VARIATION COORDINATE FORMAT NA27CONUS /Clk66 MAGVAR:E000.0 UTM/UPSCLR P WP001 DTM: NAS-C

45. 38 3 7 WPT WP SR-CALC DISTCLEARROUTE COPY RNG-CALC movesel 6 ENTEREDIT ENTER/EDIT WAYPOINTS UNUSED001 14S 2000000e2000000n No EL UTM/UPS CLR P WP: 001 ENTER MODE DEFAUALTS TO NEXT WP 001 - 999 SCP 1 14S 0123456e1234567n No EL UTM/UPS CLR WP: 001 P AFTER ALL DATA IS ENTERED/EDITED WP: 001 NA27CONUS /Clk66 MVAR:No magvar UTM/UPSCLR P WAYPOINT STORED NOTE: IF STORING A WAYPOINT IN ANOTHER DATUM OTHER THAN DATUM SELECTED FROM SETUP MENU SELECT DATUM ON PAGE #2 FIRST, THEN ENTER WAYPOINT COORDINATES. PAGE #2 DEFAULTS TO SETUP DATUM 5 DTM: NAS-C

46. 39 COPY WAYPOINTS COPY ACTIVATE 3 7 WPT WP SR-CALC DISTCLEARROUTE COPY RNG-CALC movesel ENTEREDIT COPY ACTIVATEQUIT COPY WP: ACTIVATEQUIT 01 TO 02 DEFAULTS TO NEXT AVAILIBLE WAYPOINT ORGIN AND DESTINATION OF COPY DATA ACTIVATE COPY QUIT TO WP MENU 6 5 WAYPOINT STORED WP001 to 002 QUIT WP 001 to 002 6 5

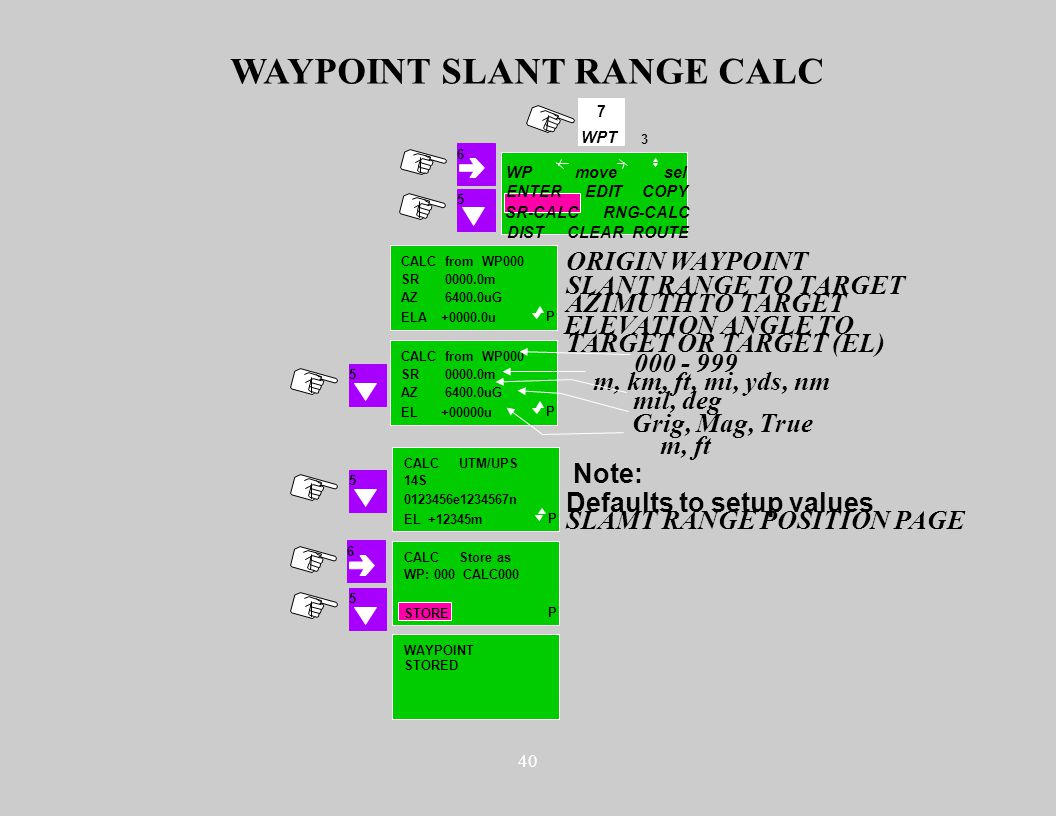

47. 40 WAYPOINT SLANT RANGE CALC P CALC from WP000 SR AZ ELA 0000.0m 6400.0uG +0000.0u ORIGIN WAYPOINT SLANT RANGE TO TARGET AZIMUTH TO TARGET ELEVATION ANGLE TO TARGET OR TARGET (EL) P CALC from WP000 SR AZ EL 0000.0m 6400.0uG +00000u 000 - 999 m, km, ft, mi, yds, nm mil, deg m, ft Grig, Mag, True Note: Defaults to setup values P CALC UTM/UPS 14S 0123456e1234567n EL +12345m P CALC Store as WP: 000 CALC000 STORE WAYPOINT STORED 3 7 WPT WP SR-CALC DISTCLEARROUTE COPY RNG-CALC movesel ENTEREDIT SLAMT RANGE POSITION PAGE 6 5 5 5 6 5

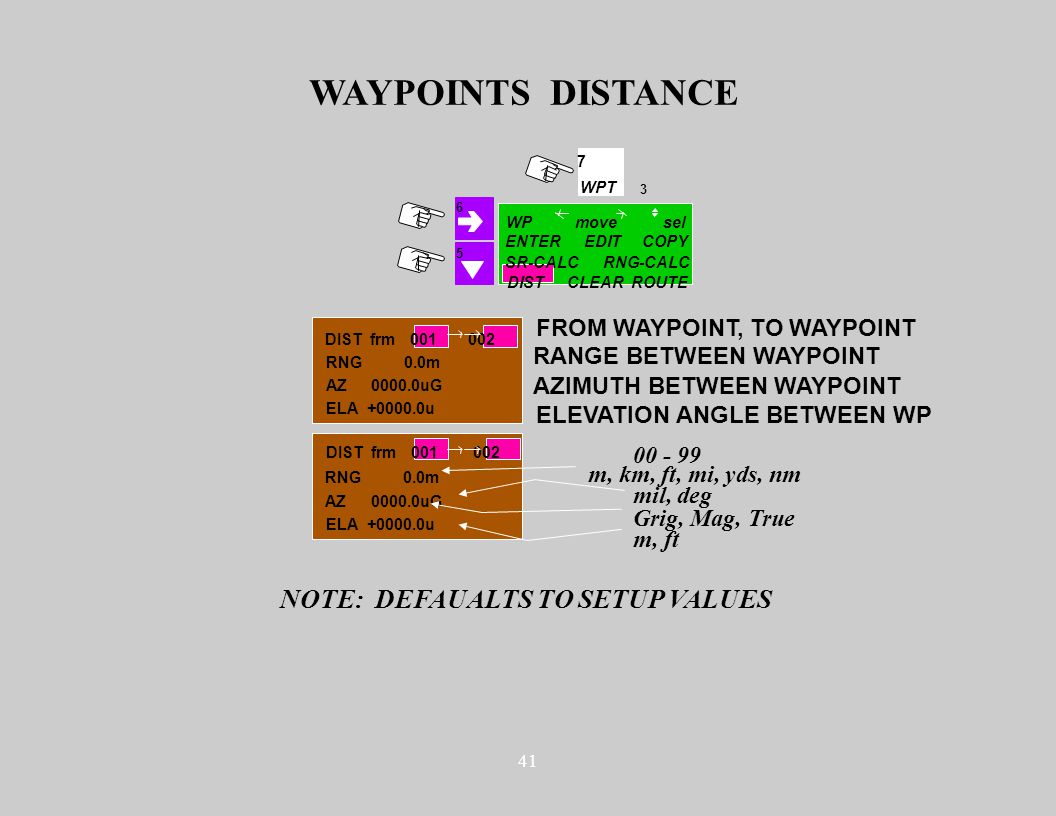

48. 41 WAYPOINTS DISTANCE 3 7 WPT WP SR-CALC DISTCLEARROUTE COPY RNG-CALC movesel 6 ENTEREDIT RNG AZ ELA 0.0m 0000.0uG +0000.0u FROM WAYPOINT, TO WAYPOINT RANGE BETWEEN WAYPOINT AZIMUTH BETWEEN WAYPOINT ELEVATION ANGLE BETWEEN WP RNG AZ ELA 0.0m 0000.0uG +0000.0u DIST frm 001 002 00 - 99 m, km, ft, mi, yds, nm mil, deg m, ft Grig, Mag, True NOTE: DEFAUALTS TO SETUP VALUES DIST frm 001 002 5

49. 42 CLEAR WAYPOINTS 3 7 WPT WP SR-CALC DISTCLEARROUTE COPY RNG-CALC movesel 6 ENTEREDIT CLEAR from WP: 001 ACTIVATEQUIT STARTING WAYPOINT ACTIVATE TO CLEAR WP, QUIT TO RETURN TO WP MENU to WP: 009 ENDING WAYPOINT 6 CLEAR from WP: 001 ACTIVATEQUIT LOCK NUM TO CLEAR SELECTED WAYPOINTS CLEAR from WP: 001 ACTIVATEQUIT to WP: 009 6 WP:001 to WP:009 Will Be Cleared! 5 5 P P to WP: 009 CLEAR from WP: 001 to WP: 009 WP:001 to 009 Have Been 5 CANCELCONFIRM 5 6 Cleared! to acknowledge CONFIRM OR CANCEL

50. 43A ENTERING A MISSION ROUTE 3 7 WPT WP SR-CALC DIST CLEAR ROUTE COPY RNG-CALC movesel 6 ENTEREDIT 5 Not enough waypoints: Press POS, MENU, WP OR MARK OR RTE CLEAR movesel EDIT COPY ENTER S 5 RTE 01 UNUSED 000 TO ENTER A NEW ROUTE ROUTE NAME AND NUMBER WP NUMBERS S RTE01 UNUSED 000 A 5 2 6 5

51. 43B ENTERING A MISSION ROUTE S RTE 01 UNUSED 000 A 6 5 CONT. Inst Del LEG00 ENTER OR DELETE WP S RTE 01 UNUSED 000 RTE START 2 S RTE 01 UNUSED 001000 MARK001 WP NAME 6 S RTE 01 UNUSED 001 000 Inst Del LEG01 6 B S RTE01 U NUSED_ _ _ _ 000 Inst Del LEG00 6 5 2

52. 43C ENTERING A MISSION ROUTE B 5 CONT. S RTE01 UNUSED 001000 RTE END UNTIL S RTE01 UNUSED 001000 4 SAVE S RTE01 UNUSED 001000 SAVE LEG01 - LEG07 5 RTE has been saved Incomplete RTE RTE 01 will NOT OR be saved THEN, S RTE 01 UNUSED 001000 RTE END 6 IF ONLY RTE UNTIL

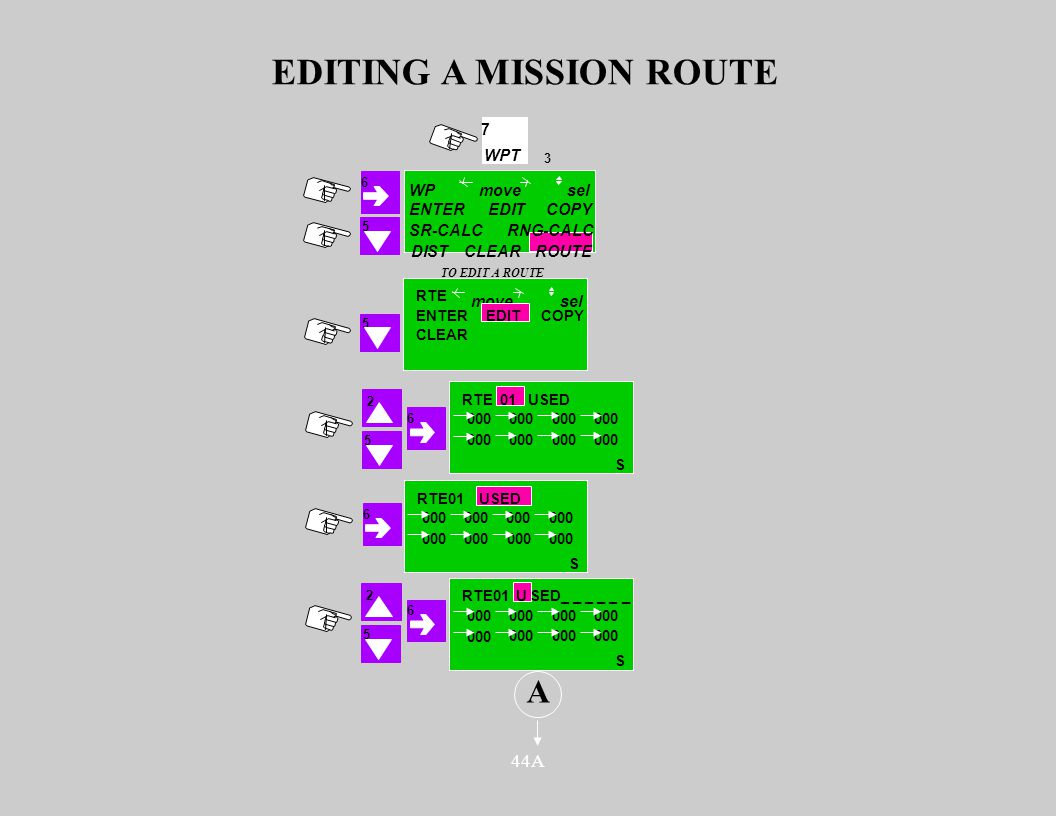

53. 44A EDITING A MISSION ROUTE 3 7 WPT WP SR-CALC DIST CLEAR ROUTE COPY RNG-CALC movesel 6 ENTEREDIT 5 RTE CLEAR movesel COPY ENTER S 5 RTE 01 USED 000 TO EDIT A ROUTE S RTE01 USED 000 A 6 EDIT 5 2 6 S RTE01 U SED_ _ _ _ _ _ 000 5 2 6

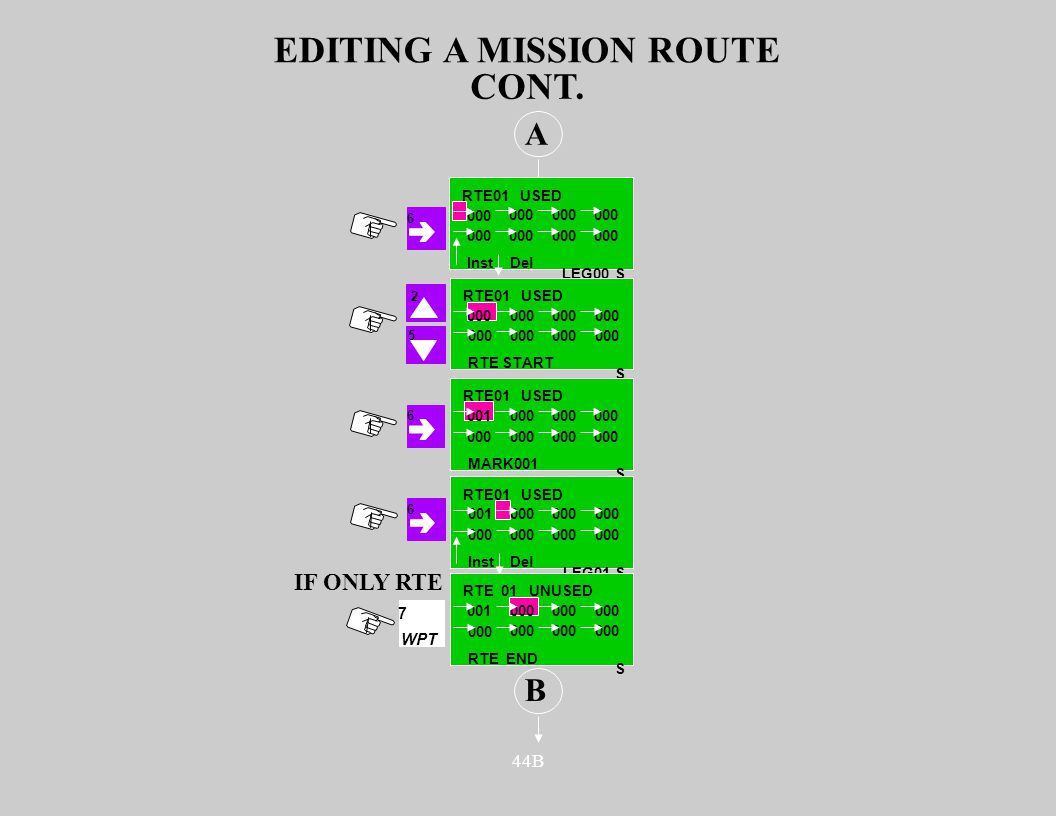

54. 44B EDITING A MISSION ROUTE A CONT. S RTE01 USED 000 6 5 Inst Del LEG00 S RTE01 USED 000 RTE START 2 S RTE01 USED 001000 MARK001 6 S RTE01 USED 001 000 Inst Del LEG01 6 S RTE 01 UNUSED 001000 RTE END IF ONLY RTE B 7 WPT

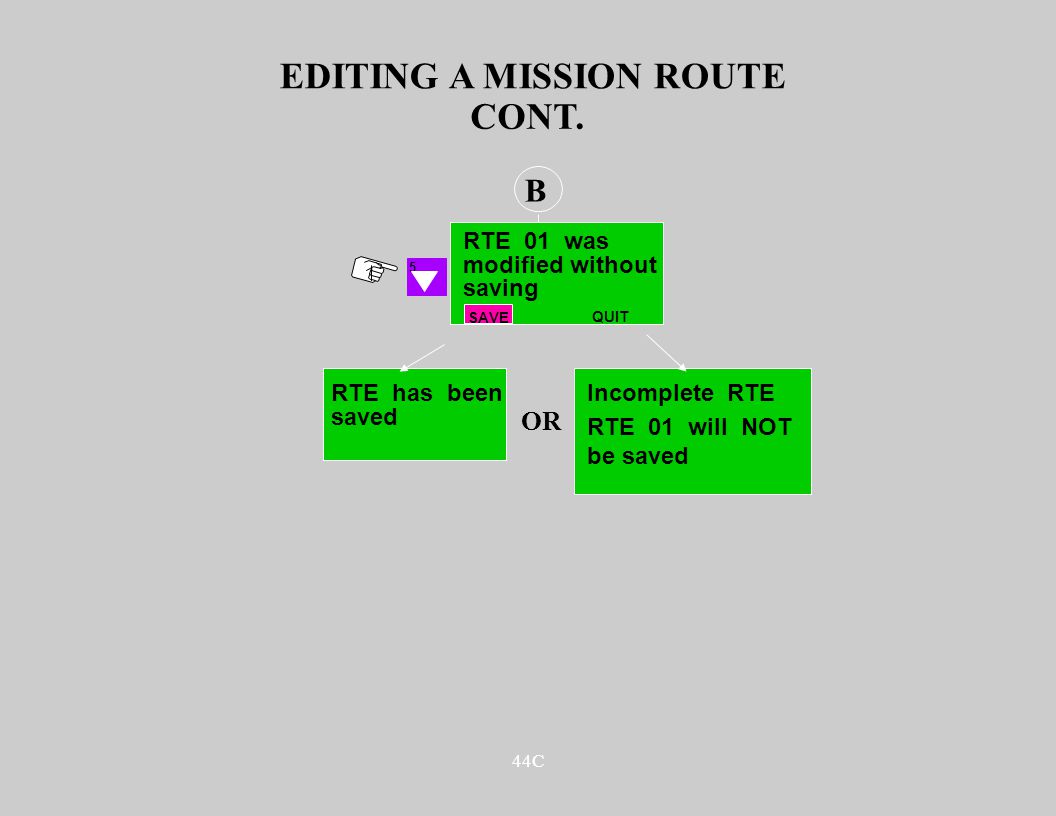

55. 44C EDITING A MISSION ROUTE B CONT. 5 RTE 01 was RTE has been saved Incomplete RTE RTE 01 will NOT OR be saved modified without saving QUIT SAVE

56. 45 CLEARING A MISSION ROUTE 3 7 WPT WP SR-CALC DIST CLEAR ROUTE COPY RNG-CALC movesel 6 ENTEREDIT 5 RTE movesel ENTER 5 TO COPY A ROUTE EDIT COPY CLEAR from: RTE 01 5 ACTIVATE 4 QUIT 5 ACTIVATE 6 OR CLEAR to : RTE 15 CLEAR from: RTE 01 to : RTE 15 QUIT RET:01 to RTE:15 Will Be Cleared! CONFIRM CANCEL 5 4 RET:01 to RTE:15 Have Been Cleared! to acknowledge 5

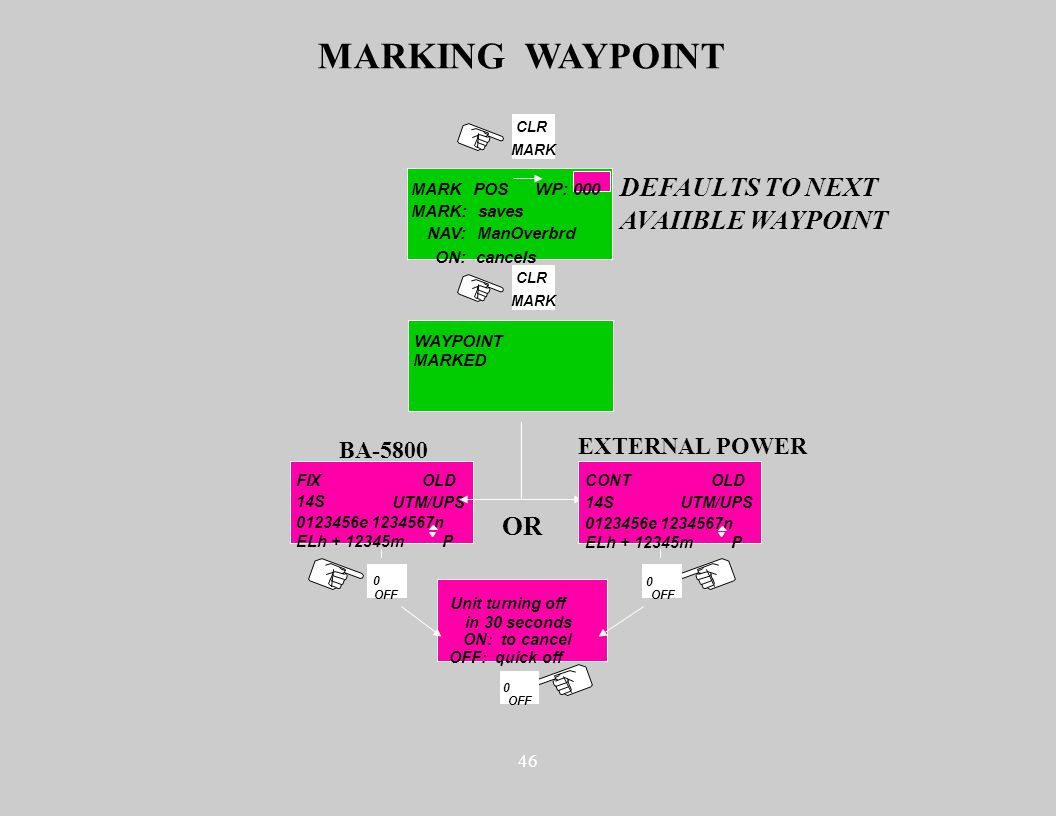

57. 46 CLR MARK MARKING WAYPOINT MARK POS NAV: ManOverbrd ON: cancels CLR MARK WAYPOINT MARKED DEFAULTS TO NEXT AVAIIBLE WAYPOINT FIX 14S 0123456e 1234567n ELh + 12345mP Unit turning off in 30 seconds ON: to cancel OFF: quick off UTM/UPS OLD BA-5800 EXTERNAL POWER 0 OFF 0 OR 0 OFF CONT 14S 0123456e 1234567n ELh + 12345mP UTM/UPS OLD MARK: saves WP: 000

58. 47 DATA-XFR CRYPTO DOP-CALC SINCGARSKOI-18 ALERTS SV-SEL p 3 MENU MENU PAGE #2 SELECT/DESELECT SATELITES 6 5 SV #'S SV #S CLEAR, EXIT 6 5 SV - SELect/DESEL CLR EXIT P SEL: 00 00 00 00 DESEL: 00 00 00
