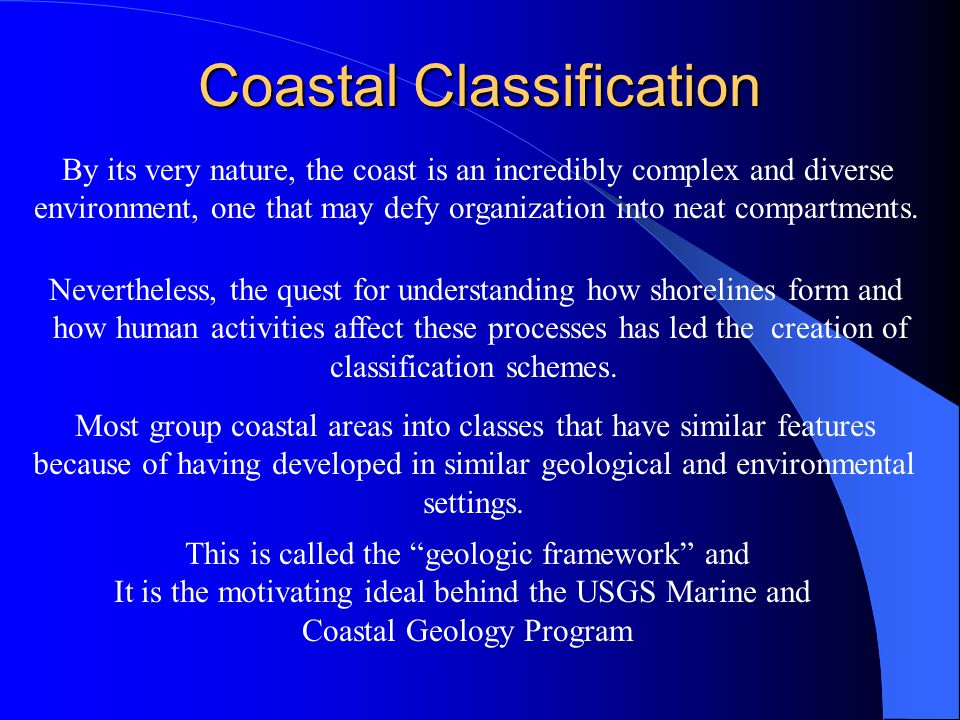

1. Coastal Classification Most group coastal areas into classes that have similar features because of having developed in similar geological and environmental settings. By its very nature, the coast is an incredibly complex and diverse environment, one that may defy organization into neat compartments. Nevertheless, the quest for understanding how shorelines form and how human activities affect these processes has led the creation of classification schemes. This is called the “geologic framework” and It is the motivating ideal behind the USGS Marine and Coastal Geology Program

2. Headlands, Embayments, Tombolos, Channel Mouths, Beaches, Tidal Flats, Estuaries

3. Shepard’s 1973 Classification Divides the world’s coasts into primary coasts – formed mostly by non-marine agents - and secondary coasts - shaped primarily by marine processes. Further subdivisions occur according to which specific agent, terrestrial or marine, had the greatest influence on coastal development. Although gradational shore types exist, which are difficult to classify, most coasts show only one dominant influence.

4. Primary coast – nonmarine agent Secondary coast – marine agent

5. Primary Coasts Land Erosion Coasts Land erosion coasts Shaped by subaerial erosion and partly drowned by postglacial rise of sea level. Ria Coasts (Chesapeake Bay) Dendritic (flooded drainage in horizontal beds) Trellis (glacial erosion, fjords, Gulf St. Lawrence) Drowned Karst Topography (northwest Florida)

6. Land Erosion Coast – Ria Coast

7. Florida, flooded karst erosion due to dissolution flooded by sea-level rise

8. Glacier Bay, flooded fjord erosion by glaciation flooded by sea-level rise

9. Primary Coasts Subaerial Deposition Coasts River deposition coasts Deltaic coasts (Mississippi Delta) Compound delta coasts (north slope - Pt. Barrow to MacKenzie River) Compound alluvial fan (straightened by erosion) Glacial deposition coasts (Cape Cod) Wind deposition coasts (Sleeping Bear St. Park) Landslide coasts (Martinique)

10. Cape Cod region glacial deposition

11. Mississippi delta subaerial deposition

12. Sleeping Bear, Michigan subaerial deposition, dune

13. Primary Coasts Volcanic Coasts Lava Flow Coasts (Big Island) Tephra Coasts Volcanic Collapse Coasts (Hanauma Bay)

14. Primary Volcanic Coast

15. Collapsed Volcanic Coast

16. Pyroclastic surge Montserrat

17. Primary Coasts Shaped by Diastrophic Movements Fault Coasts Fold Coasts Sedimentary Extrusions (salt domes, mud lumps, Red Sea) Diastrophism – movement of the crust

23. Primary Coasts Ice Coasts Glacial Ice and Sea Ice

24. Primary Ice Coast Collapsing Larson B ice shelf

26. Wave-straightened cliffs Made irregular by wave erosion Secondary Coasts Wave Erosion Coasts

27. Wave straightened cliffs

28. Maui lava flows – irregular erosion resistance

29. Secondary Coasts Marine Deposition Coasts Barrier Coasts Cuspate forelands Beach Plains Mud Flats/Salt Marshes

30. Primary Marine Deposition Cuspate Foreland Coast

31. Holocene beach Strand plain

33. Coral Reef Coast Serpulid Reef Coast Oyster Reef Coast Mangrove Coast Marsh Grass Coast Secondary Coasts Coasts Built by Organisms

41. Submergent Coasts Relative sea level is rising Estuaries formed in drowned river mouths Emergent Coasts Relative sea level is falling Tectonics or isostasy responsible for most types Depositional Coasts Wide sandy beaches, stream deltas, overabundance of sediment Erosional Coasts Irregular coastline, narrow beaches, eroding headlands Convergent Coasts Sea Cliffs common, narrow continental shelf, relatively straight and mountainous Other Classification Schemes Passive Margin Coasts Broad continental shelf Plate trailing edge

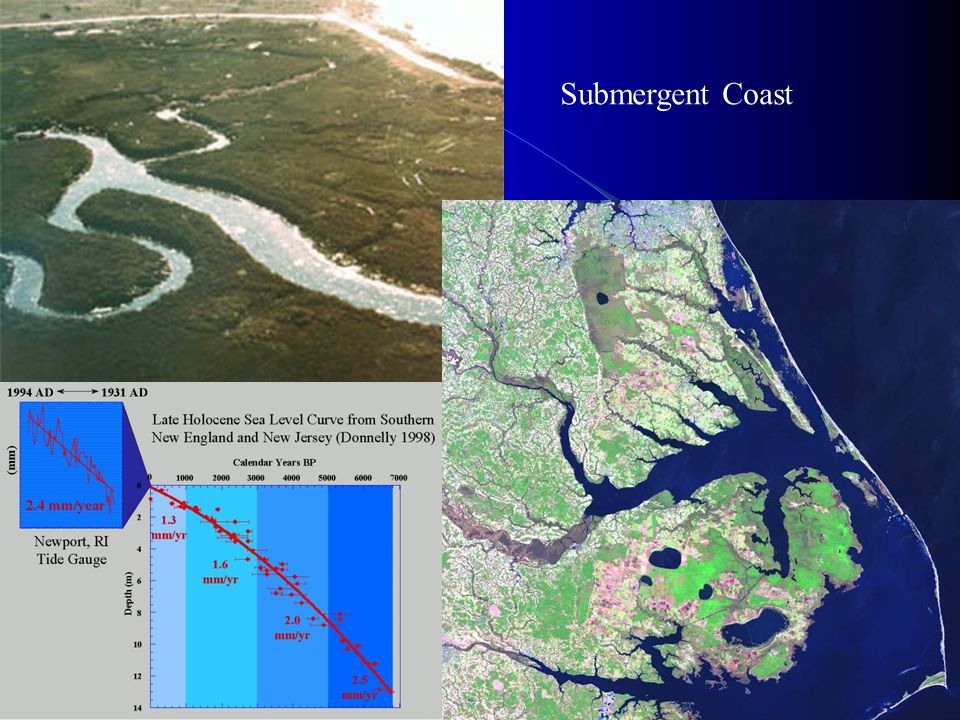

42. Submergent Coast

43. Emergent Coast

44. Depositional Coast – Mississippi River Delta

45. Erosional Coast – “12 Apostles”

46. Convergent Coast –

47. Trailing Coast –

48. Delta Classification -tide dominated -river dominated -wave dominated

49. Shorelines straighten with time
