Q R Flip Flops ATS 電子部製作 S Q For a NOR gate, the output would be logic 1 only when both the inputs are 0 : AB 0 0 0 1 10 F 1 0 0 011 A B F.

Published byHayley Vinal Modified over 9 years ago

Similar presentations

Presentation on theme: "Q R Flip Flops ATS 電子部製作 S Q For a NOR gate, the output would be logic 1 only when both the inputs are 0 : AB 0 0 0 1 10 F 1 0 0 011 A B F."— Presentation transcript:

1

2 Q R Flip Flops ATS 電子部製作 S Q

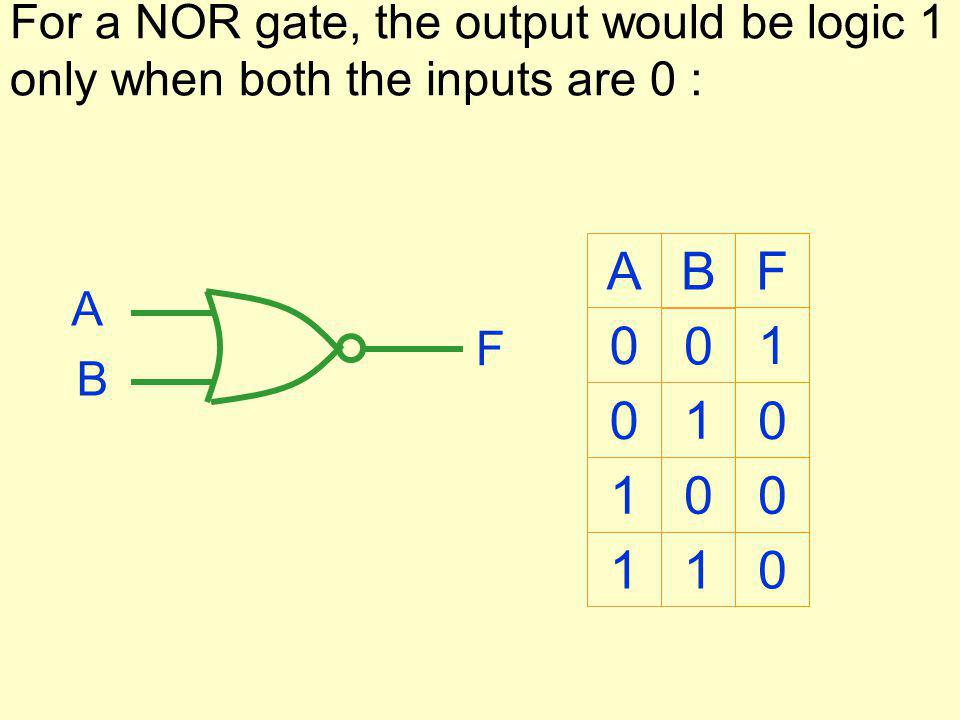

3 For a NOR gate, the output would be logic 1 only when both the inputs are 0 : AB 0 0 0 1 10 F 1 0 0 011 A B F

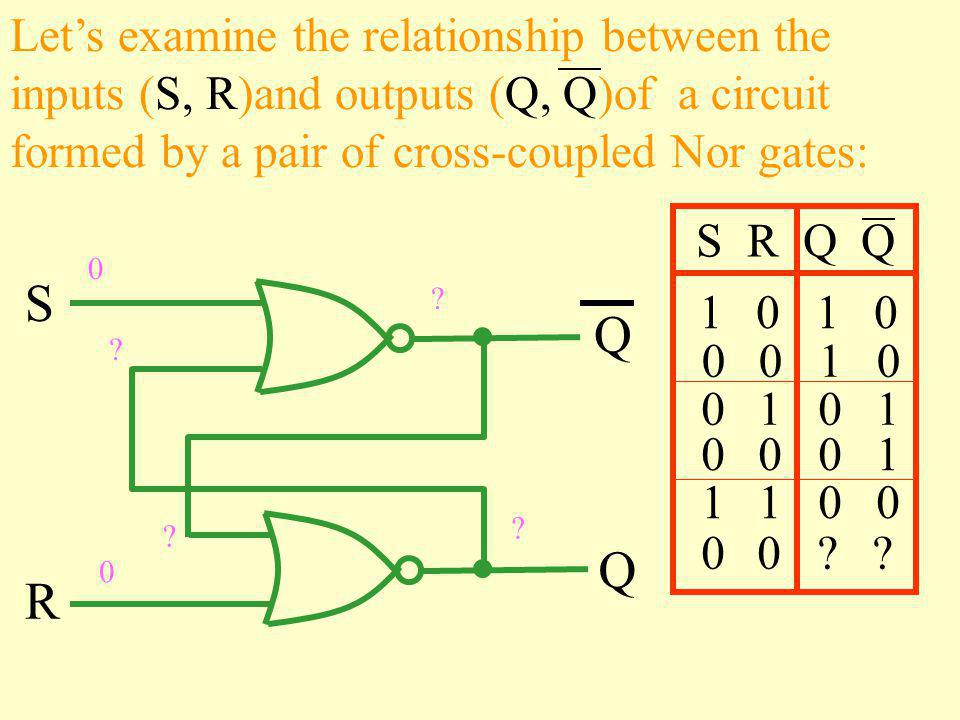

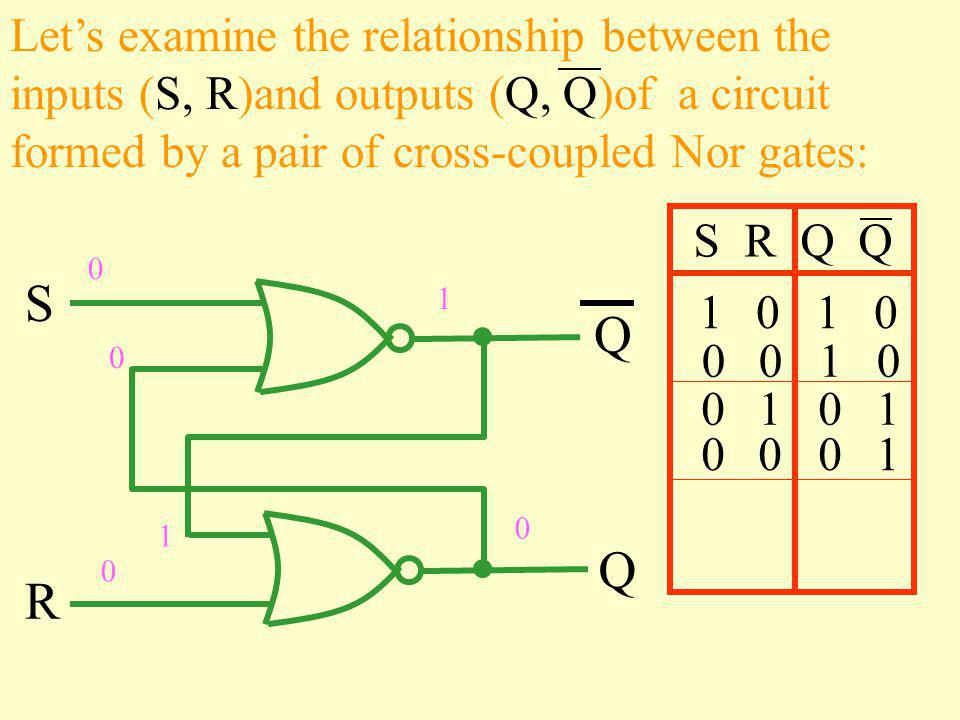

4 S R Q Q Let’s examine the relationship between the inputs (S, R)and outputs (Q, Q)of a circuit formed by a pair of cross-coupled Nor gates: 1 0 0 0 1 0 1 0 0 0 1 1 0 S R Q Q

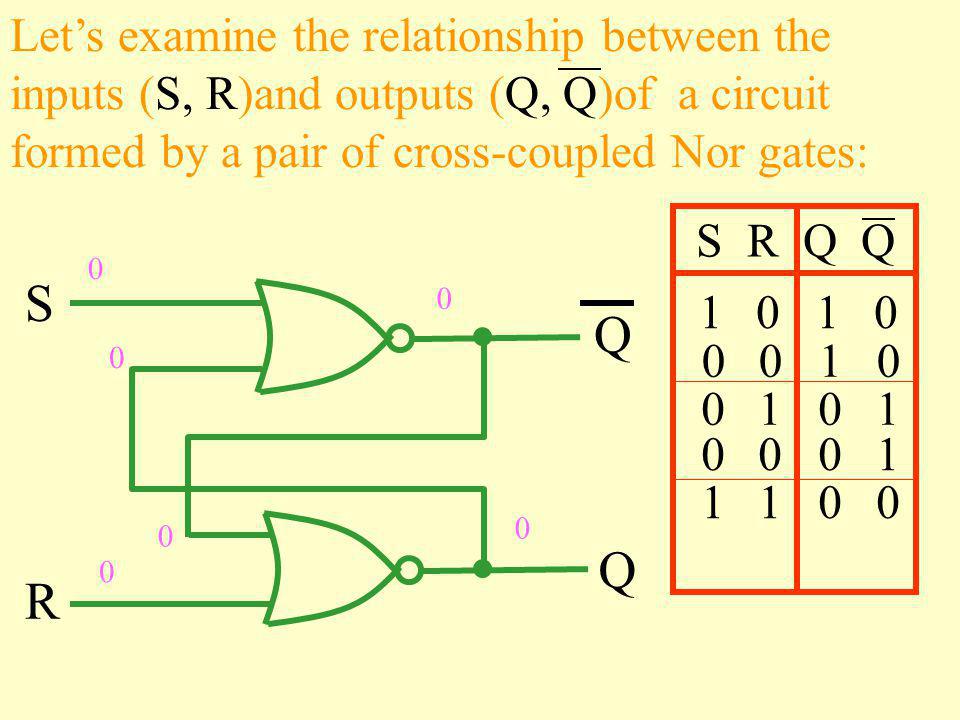

5 S R Q Q Let’s examine the relationship between the inputs (S, R)and outputs (Q, Q)of a circuit formed by a pair of cross-coupled Nor gates: S R Q Q 1 0 0 0 1 0 0 1 1 0 0 1 0 1 0 0 0 1 0

6 S R Q Q Let’s examine the relationship between the inputs (S, R)and outputs (Q, Q)of a circuit formed by a pair of cross-coupled Nor gates: S R Q Q 1 0 0 0 1 0 0 1 1 1 0 0 0 0 0 0 0 1 1 1 0 0 0 0

7 S R Q Q Let’s examine the relationship between the inputs (S, R)and outputs (Q, Q)of a circuit formed by a pair of cross-coupled Nor gates: S R Q Q 1 0 0 0 1 0 0 1 ? ? ? 0 0 0 1 1 1 0 0 0 0 ? 0 0 ? ?

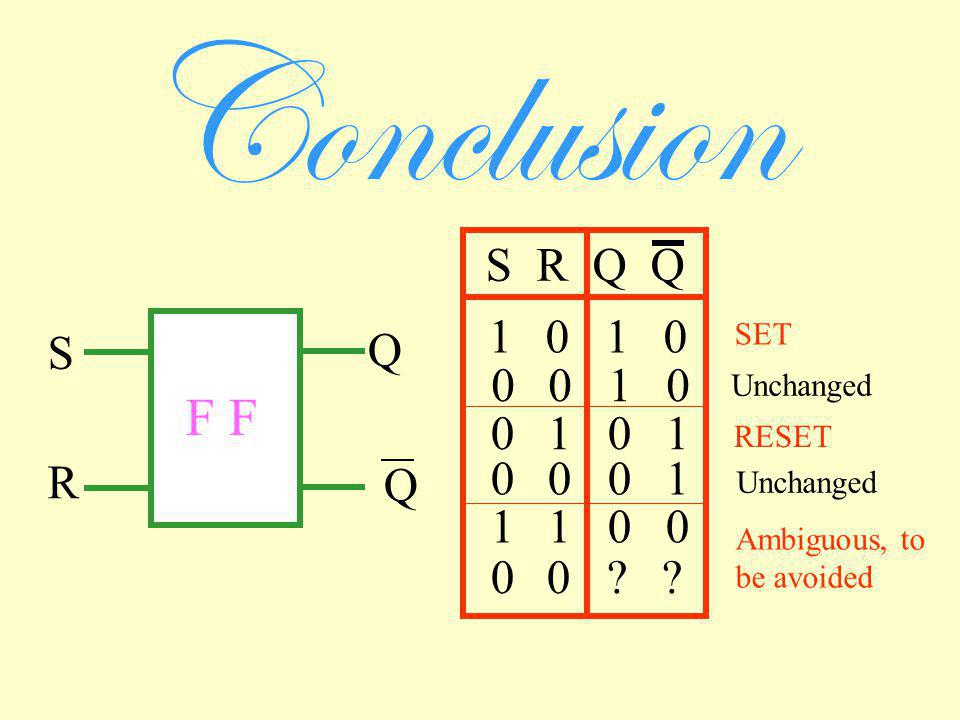

8 Conclusion S R Q Q 1 0 0 0 1 0 0 1 0 0 0 1 1 1 0 0 0 0 ? ? SET RESET Unchanged Ambiguous, to be avoided F S R Q Q

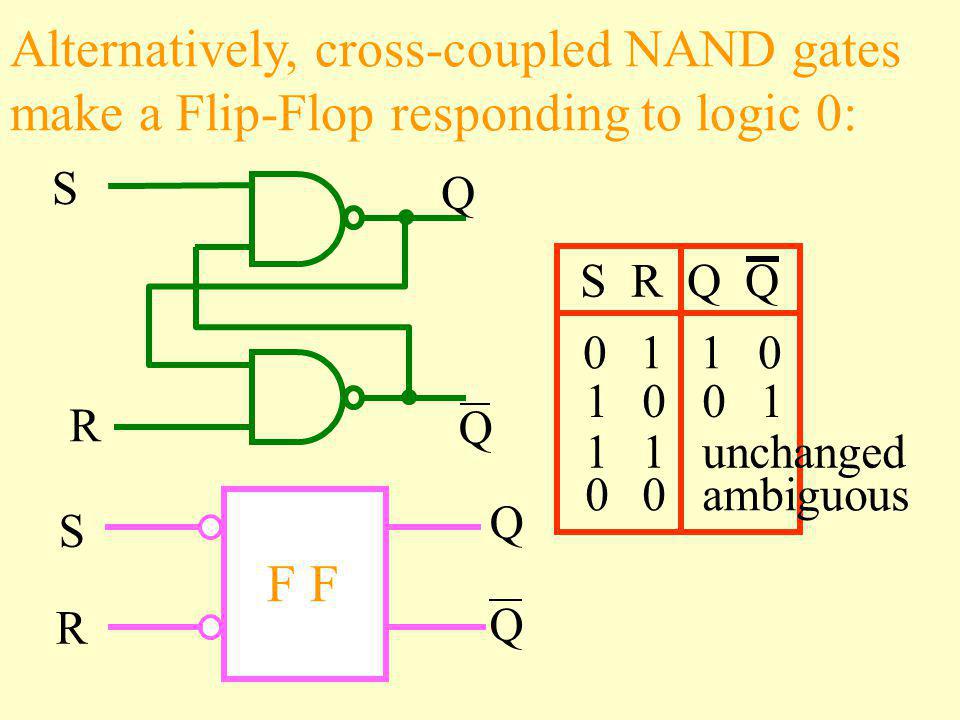

9 Alternatively, cross-coupled NAND gates make a Flip-Flop responding to logic 0: S R Q Q 0 1 1 0 1 0 0 1 0 0 ambiguous 1 1 unchanged F S R Q Q S R Q Q

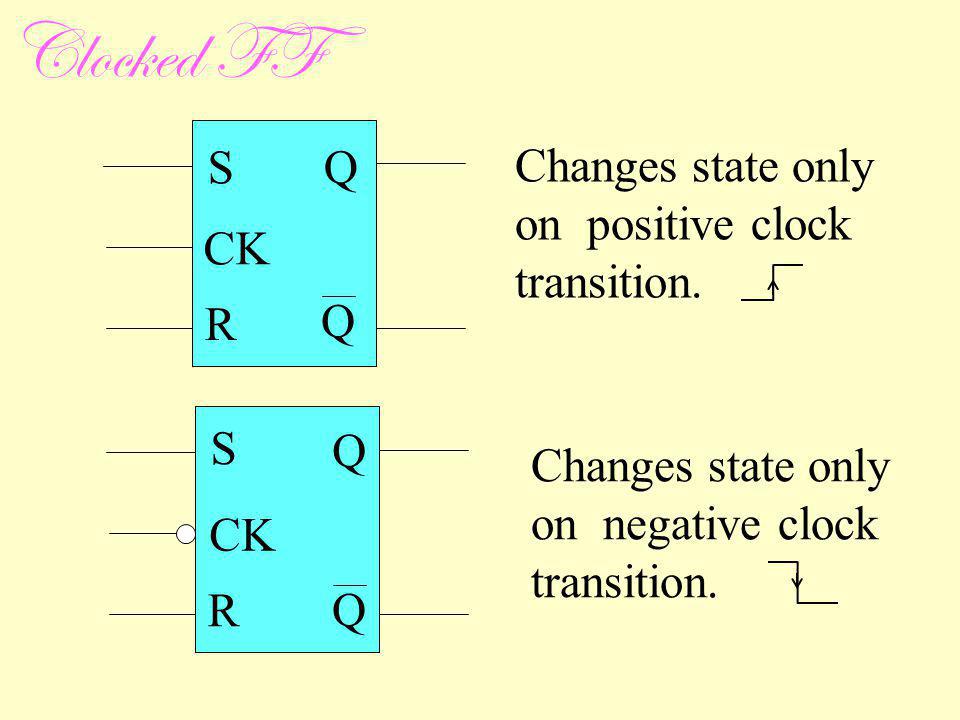

10 Clocked FF S R CK Q Q S R Q Q Changes state only on positive clock transition. Changes state only on negative clock transition.

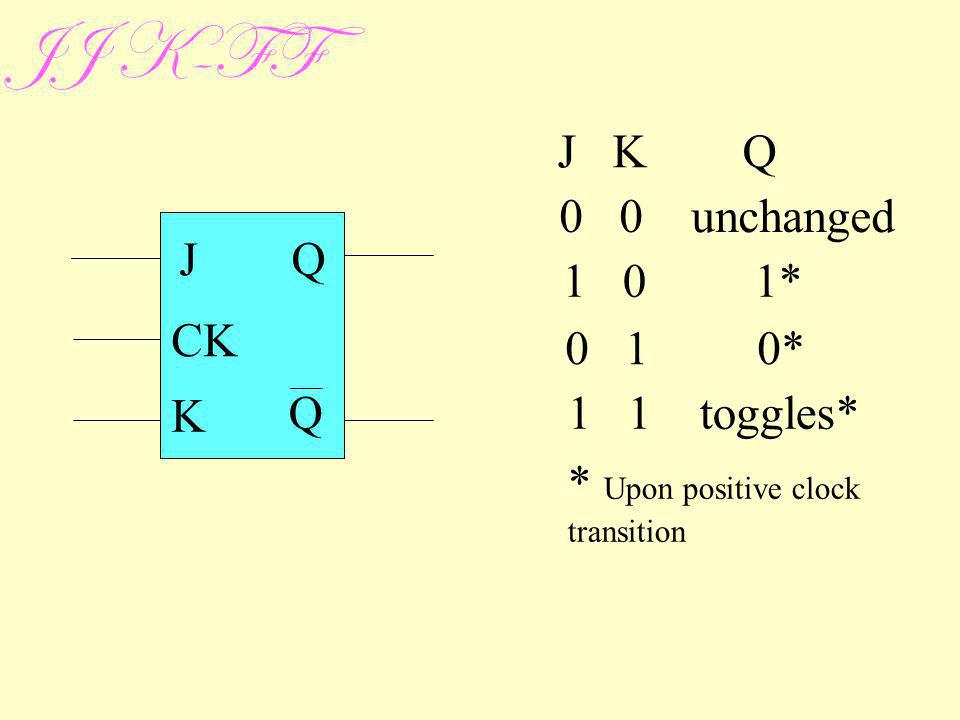

11 JJ K-FF J K CK Q Q J K Q 0 0 unchanged 1 0 1* 0 1 0* 1 1 toggles* * Upon positive clock transition

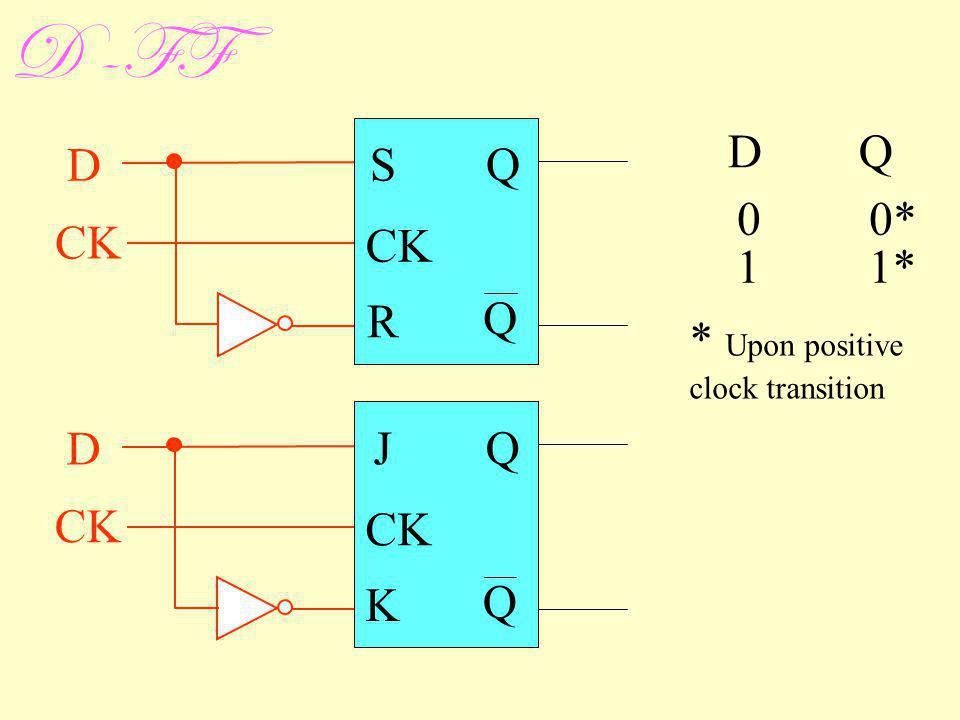

12 D -FF S R CK Q Q D J K Q Q D D Q 0 0* * Upon positive clock transition 1 1*
