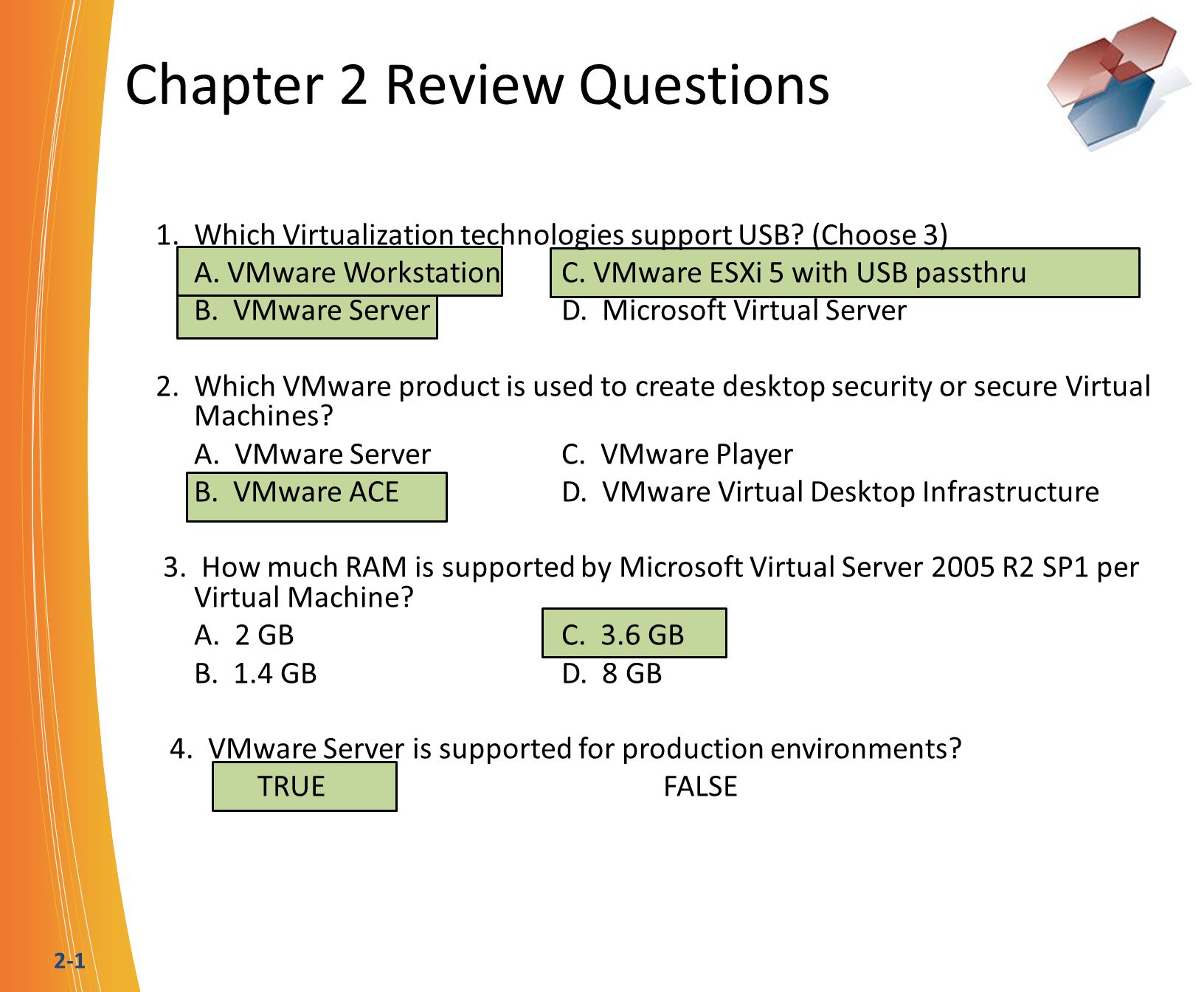

1. 2-1 Chapter 2 Review Questions 1. Which Virtualization technologies support USB? (Choose 3) A. VMware WorkstationC. VMware ESXi 5 with USB passthru B. VMware ServerD. Microsoft Virtual Server 2. Which VMware product is used to create desktop security or secure Virtual Machines? A. VMware ServerC. VMware Player B. VMware ACED. VMware Virtual Desktop Infrastructure 3. How much RAM is supported by Microsoft Virtual Server 2005 R2 SP1 per Virtual Machine? A. 2 GBC. 3.6 GB B. 1.4 GBD. 8 GB 4. VMware Server is supported for production environments? TRUE FALSE

2. 2-2 Chapter 3 Review Questions 1. During installation of ESXi 5, for which account do you create a password? A.User1 B.Admin C.Administrator D.root 2. Which two server resources would most influence the sizing of hardware for an ESXi host? A.Hard disk size B.Network card speed C.The amount of RAM D.The number of CPUs, Cores or Speed 3. A VLAN ID for the Management Network can be configured during the installation of ESXi 5.x? TrueFalse 4. What is the maximum number of vCPUs allowed per physical CPU core in ESXi? A.25 B.10 C.256 D.48 5. To configure an ESXi host to boot from a fibre channel LUN? (Choose two) A.Configure the server BIOS to designate the fibre channel HBA card as the boot controller B.Configure the fibre channel controller to initiate a connection to the target boot LUN C.Configure the fibre channel switch with the World Wide Name of the ESXi host D.In vCenter, configure a datastore and mark it as bootable

3. 2-3 Chapter 4 Review Questions 1.Which method can be used to manage a ESXi host securely over a remote connection via the command line? (Choose 1) A.Use WinSCP to connect to the Service Console B.Press Alt-F1 from the boot screen console C.Press Alt-F12 from the boot screen console D.Connect to the Service Console using an SSH client like PuTTY 2.Which text editor is included with ESXi 5? (Choose 1) A.vi B.pico C.nano D.Xi 3. The only VMware supported method of managing ESXi is from the vSphere Command Line Interface (vCLI). TrueFalse

4. 2-4 Chapter 5 Review Questions 1. vCenter Server 5.x cannot be installed on which of the following? A. Microsoft Windows XP Professional B. Microsoft Windows 2008 Server 64-Bit C. Red Hat Enterprise Linux 3 Update 6 D. Microsoft Windows Server 2003 64-bit 2. Which databases are supported by VMware to host the vCenter Server 5 database? (Choose 4) A. MySQLD. Microsoft SQL Server 2005 SP1 and above B. SQL Server Express 2008E. Oracle C. MSDEF. Microsoft SQL Server 2008 3. If a database server is not currently installed, vCenter Server 5.x installation will automatically install one for you. TrueFalse 4. Which of the following are installed on an ESXi 5 host as a result of joining the host to a vCenter 5 Server? (Choose 2) A. vpxaC. hostd B. vpxdD. vpxuser 5. A single vCenter Server 5 can support up to 1,000 hosts and 10,000 powered on virtual machines on a server with 8 CPUs, 16 GB of RAM and 10GB of free disk space on 64-bit Windows. TrueFalse

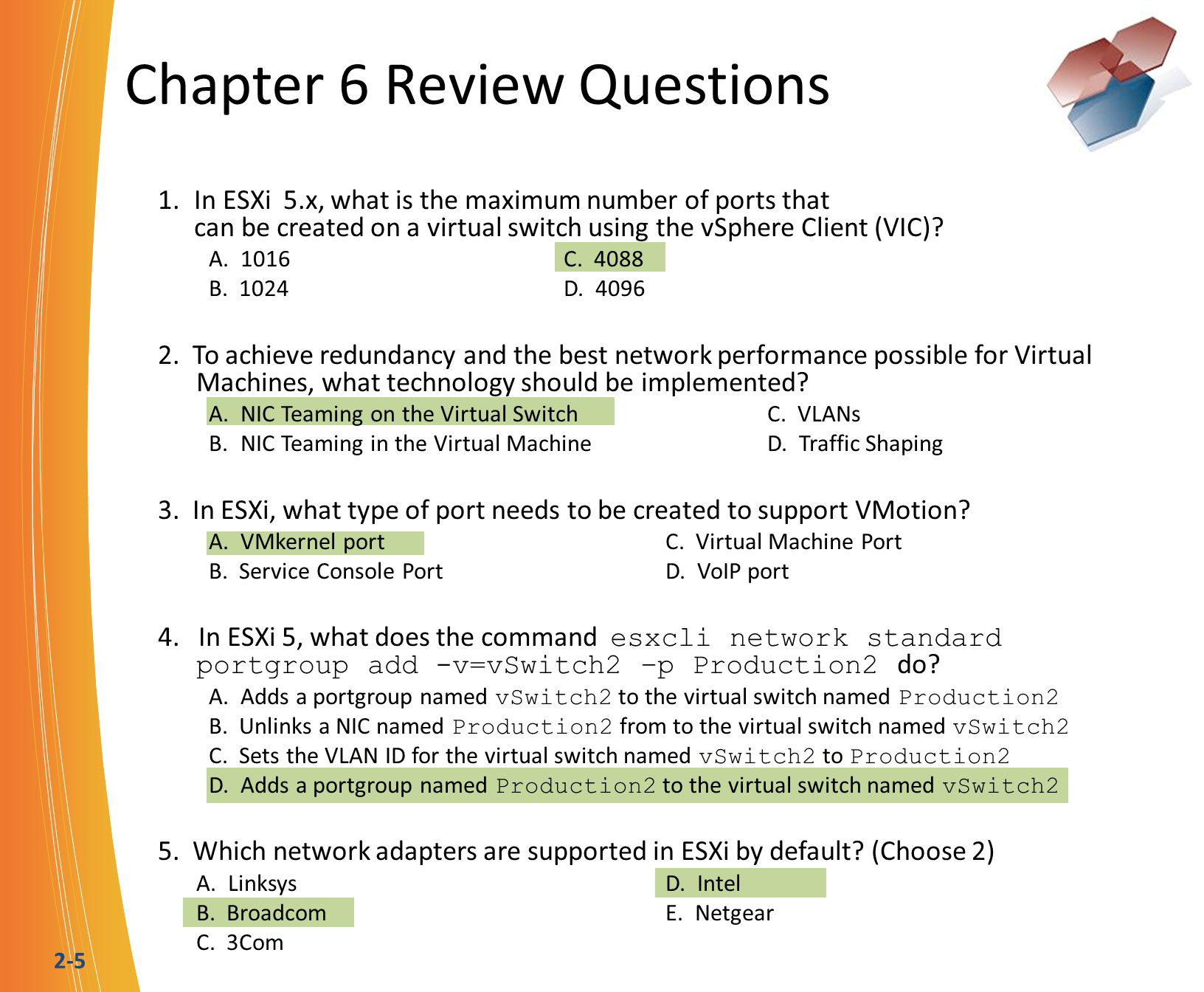

5. 2-5 Chapter 6 Review Questions 1.In ESXi 5.x, what is the maximum number of ports that can be created on a virtual switch using the vSphere Client (VIC)? A. 1016C. 4088 B. 1024D. 4096 2. To achieve redundancy and the best network performance possible for Virtual Machines, what technology should be implemented? A.NIC Teaming on the Virtual SwitchC. VLANs B.NIC Teaming in the Virtual MachineD. Traffic Shaping 3. In ESXi, what type of port needs to be created to support VMotion? A. VMkernel portC. Virtual Machine Port B. Service Console PortD. VoIP port 4. In ESXi 5, what does the command esxcli network standard portgroup add -v=vSwitch2 –p Production2 do? A. Adds a portgroup named vSwitch2 to the virtual switch named Production2 B. Unlinks a NIC named Production2 from to the virtual switch named vSwitch2 C. Sets the VLAN ID for the virtual switch named vSwitch2 to Production2 D. Adds a portgroup named Production2 to the virtual switch named vSwitch2 5. Which network adapters are supported in ESXi by default? (Choose 2) A. LinksysD. Intel B. BroadcomE. Netgear C. 3Com

6. 2-6 Chapter 7 Review Questions 1. In ESXi, if no NFS Server is available, where are Virtual Machine files stored? A. NTFSC. Ext3 B. FAT32D. VMFS 2. What port does iSCSI use by default? A. 3260 C. 5002 B. 3389 D. 902 3. An ESXi host can boot from a Fibre Channel SAN, an iSCSI SAN or an NFS share. TrueFalse 4. All iSCSI connections over the SAN network must be as secure as possible. What type of security can you implement with iSCSI SAN and the ESXi hosts? A. 802.11x authentication B. MS-CHAP2 authentication C. RSA token authentication D. CHAP authentication

7. 2-7 Chapter 7 Review Questions 5. In ESXi, VMFS volumes can only be created on iSCSI or Fibre Channel LUNs. A. True B. False 6. Prior to adding an NFS datastore, what must be done? A. Open the NFS firewall port B. Create a VMkernel port C. Check the box for vMotion D. Open the firewall for the SMB Client 7. An ESXi host can recognize up to 256 LUNS in a Fibre Channel SAN during boot up. A. True B. False

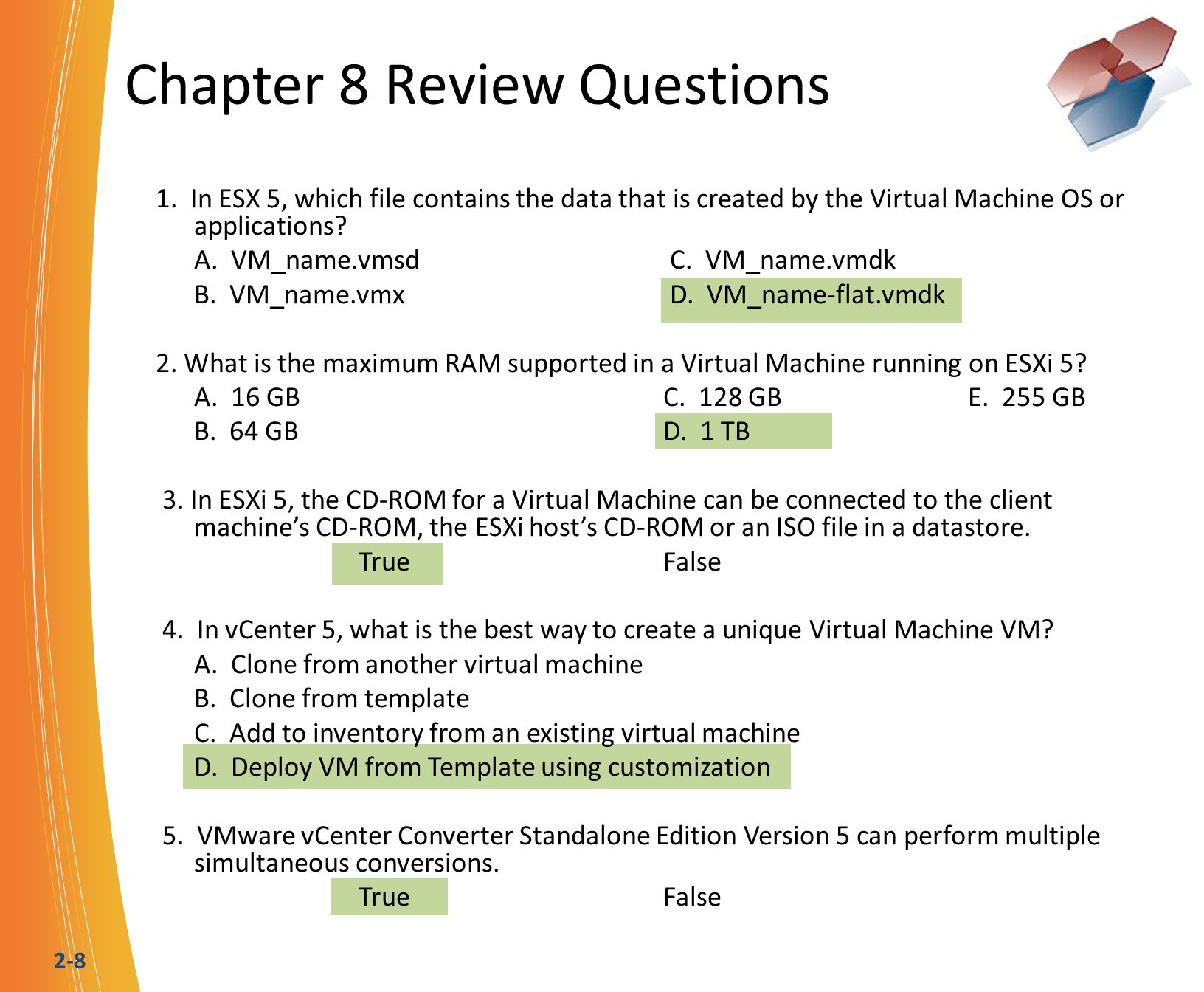

8. 2-8 Chapter 8 Review Questions 1. In ESX 5, which file contains the data that is created by the Virtual Machine OS or applications? A. VM_name.vmsd C. VM_name.vmdk B. VM_name.vmx D. VM_name-flat.vmdk 2. What is the maximum RAM supported in a Virtual Machine running on ESXi 5? A. 16 GBC. 128 GBE. 255 GB B. 64 GBD. 1 TB 3. In ESXi 5, the CD-ROM for a Virtual Machine can be connected to the client machine’s CD-ROM, the ESXi host’s CD-ROM or an ISO file in a datastore. TrueFalse 4. In vCenter 5, what is the best way to create a unique Virtual Machine VM? A. Clone from another virtual machine B. Clone from template C. Add to inventory from an existing virtual machine D. Deploy VM from Template using customization 5. VMware vCenter Converter Standalone Edition Version 5 can perform multiple simultaneous conversions. TrueFalse

9. 2-9 Chapter 9 Review Questions 1. What three default Roles exist under both an ESXi 5 host and a vCenter 5 server? (Choose 3) A. Datacenter AdministratorD. Virtual Machine Administrator B. No AccessE. Read Only C. AdministratorF. Resource Pool Administrator 2. A guest operating system can change its own storage access from iSCSI to Fibre Channel on an ESX host. TrueFalse 3. In vSphere 5, which firewall ports are needed to communicate between a vCenter 5 server, and an ESXi 5 host? (Choose 4) A. 27000D. 902 B. 443E. 80 C. 8080F. 903 4. In ESXi 5, the default is to allow remote root login through SSH. TrueFalse 5. The default configuration info for the ESXi 5 firewall is stored in /etc/vmware/firewall and the default configuration file is service.xml TrueFalse

10. 2-10 Chapter 10 Review Questions 1. A host running ESXi 5 has 2 Quad Core Xeon processors. Which core does the CIM Module use by default? A. Any core on the first CPU socket B. Core 0 C. The core with the least amount of usage D. The core scheduled by the VMkernel 2. The best practice is to create your virtual machines with a lower number of vCPUs than the number of cores in the host ESX host. TrueFalse 3. In ESXi 5, the VMkernel swap file is equal to which of the following? A. total number of shares allocated to the Virtual Machine for RAM B. the size of the balloon driver minus the reservation C. the available memory defined for the Virtual Machine minus the reservation D. the memory limit minus the reservation 4. In ESXi, different alarm triggers are available depending on which object in the inventory the alarm is set. TrueFalse 5. In ESXi, which of the following is not an Action that can be performed as a result of a Virtual Machine alarm being triggered? A. send an email notification B. shutdown the virtual machine C. send an SNMP notification D. shutdown the ESX host E. run a script

11. 2-11 Chapter 11 Review Questions 1. Which technology moves running Virtual Machines from one ESXi host to another? A. HAC. Cold Migration B. VMotionD. Update Manager 2. What defines the guaranteed minimum RAM for a Virtual Machine? A. Expandable ReservationC. Memory Limit B. Memory ReservationD. Shares 3. In vCenter 4.x, which of the following settings for DRS will most likely move a Virtual Machine? A. Moderately Conservative (1-2)D. Moderately Aggressive (1-4) B. Aggressive (1-5)E. Midpoint (1-3) C. Most Conservative (1 only)

12. 2-12 Chapter 11 Review Questions 4. The only VMware supported method of using Storage VMotion in vSphere 5 is from the vSphere Command Line Interface (vCLI). TrueFalse 5. Storage VMotion in vCenter 5 functions with a Virtual Machine that is either powered on or powered off. TrueFalse

13. 2-13 Chapter 12 Review Questions 1. Which method do you use when you want to perform an upgrade from ESX 4.0 to ESXi 5? A. single user modeC. Boot to DVD and choose Upgrade B. vCenter Update ManagerD. vSphere Host Update Utility 2. The command esxupdate supports rolling back an update? TrueFalse 3. What are the VMware supported options to perform an upgrade from VM Hardware Version 7 to Hardware Version 8? (Choose Two) A. using the upgrade tar file B. using the vSphere Client C. by performing a scripted install D. from a bootable VMware ESXi 5 CD-ROM E. using vCenter Update Manager

14. 2-14 Chapter 12 Review Questions 4. Update Manager in vSphere 5 can patch the operating system and some applications of a virtual machine running Windows. TrueFalse 5. The vCLI command vihostupdate.pl can patch ESXi 5 hosts. TrueFalse

15. 2-15 Chapter 13 Review Questions 1. In vCenter 5, HA requires which to function properly. A. VMotion between ESX hosts B. VMkernel port configured for VMotion C. Exactly matching CPUs D. VMware Tools E. A valid license file supporting HA 2. In vSphere Data Recover Virtual Appliance can backup up to 100 VMs per appliance and you can configure up to 10 Data Recovery Virtual Appliances per vSphere 5 vCenter Server. TrueFalse 3. Using VMware Consolidated backup (VCB) which of the following types of backups can be performed? (Choose 3) A. Windows Full Virtual Machine backups B. Linux Full Virtual Machine backup C. Windows File backups D. Linux File backups 4. In Site Recovery Manager 5 (SRM 5), SANs must be identical at both the protected site and the Recovery Site. TrueFalse

16. 2-16 Chapter 13 Review Questions 4. In vCenter 5, HA allows how many Failover Hosts maximum (Choose 1). A. One B. Two C. Eight D. Thirty-one E. Thirty-two 5. In vSphere 5, the HA feature of Fault Domain Manager ties High Availability to an Active Directory Domain for simplified security and management and to replicate the HA Protected State information. TrueFalse 6.Using vSphere 5 Fault Tolerant (FT) VMs which of the following are correct statements about either the technology or the prerequisites? (Choose 3) A. vSphere HA must be enabled B. Hosts must have Hardware Virtualization enabled in the BIOS C. All Disks must be Thick Provisioned Eager Zeroed D. Multiple vCPU VMs are supported 7. In the Data Recovery 2.0 appliance, daily email status reports can be sent. TrueFalse
