1
Basic Scales | Robust, Fast, Portable Simple scales for all your applications and store formats
2

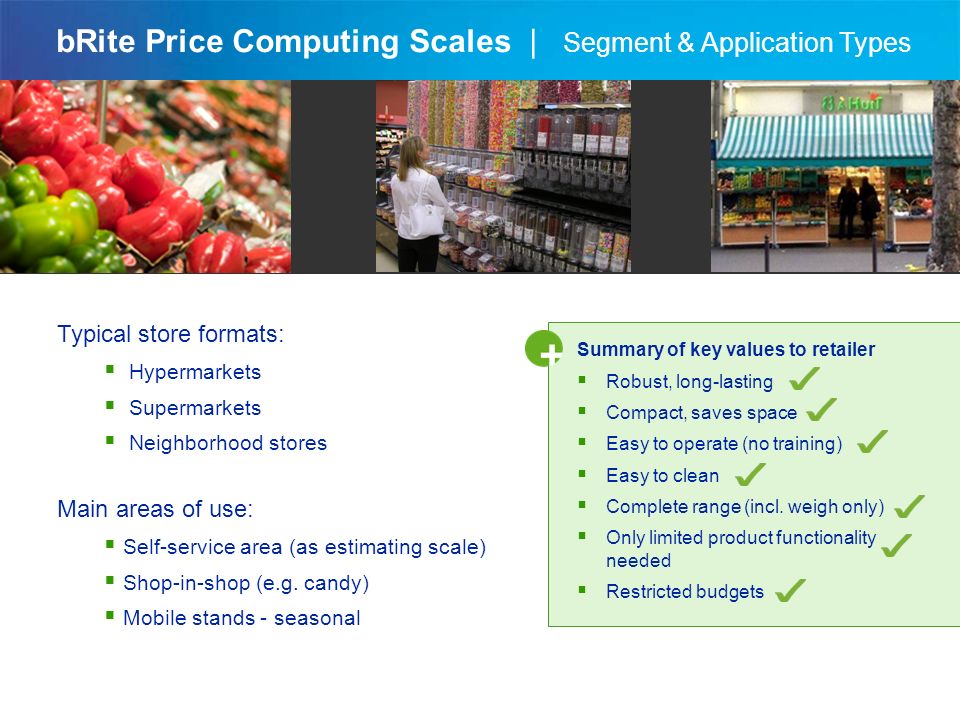

bRite Price Computing Scales | Segment & Application Types Summary of key values to retailer Robust, long-lasting Compact, saves space Easy to operate (no training) Easy to clean Complete range (incl. weigh only) Only limited product functionality needed Restricted budgets Main areas of use: Self-service area (as estimating scale) Shop-in-shop (e.g. candy) Mobile stands - seasonal Typical store formats: Hypermarkets Supermarkets Neighborhood stores
3
Light-touch technology keyboard Superior operation comfort bRite Advanced | Robust, Fast, Flexible – Mobile Performer Cable Case Power adapter storage Connectivity POS protocol support; ticket & report printing Absolute Mobility 6 NiMH rechargeable batteries High Quality & Robust Construction Load cell accuracy, stainless steel plate, spider stability, solid, detailed manufacture & electronics Bright, high contrast LCD Display Backlit, extra line for preset tare Ergo Grips Easy carrying support Fixed Positioning Soft rubber, non-slip material, easy adjustable feet
4
POS protocol support bRite Advanced vs. Tiger II (= Predecessor) | Comparison External printer support Cable Case Ergo Grips Easy carrying Modern state-of-the-art design Light-touch technology keyboard Separate tare display line Increased signal processing speed Energy saving power adapter High electro magnetic sensi- tivity standard (10V/m compatibility) Tiger II bRite Advanced
5

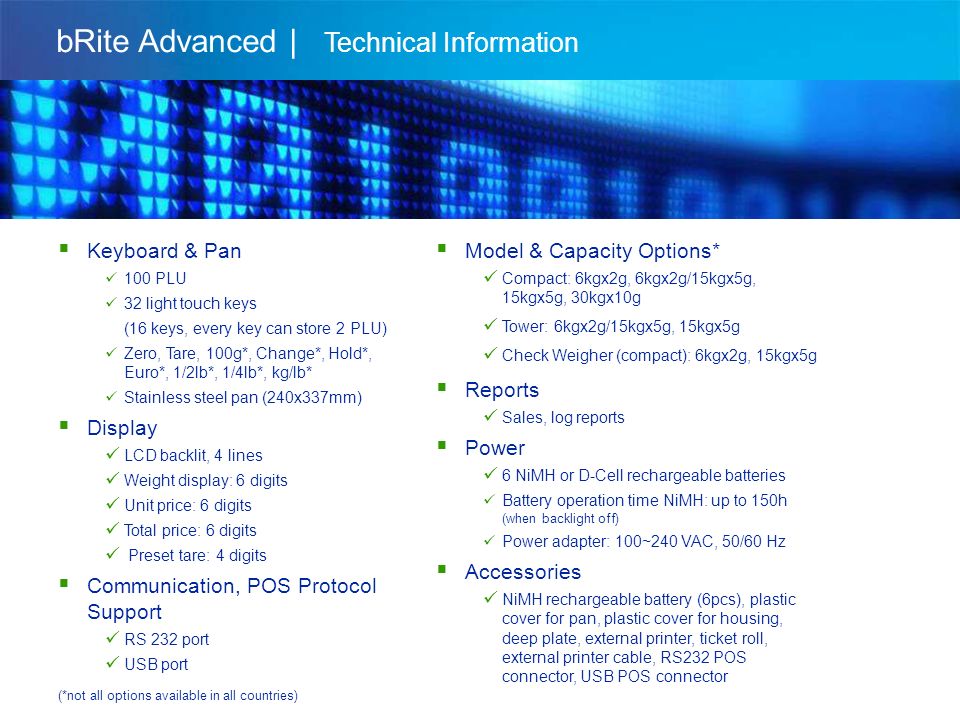

bRite Advanced | Technical Information Keyboard & Pan 100 PLU 32 light touch keys (16 keys, every key can store 2 PLU) Zero, Tare, 100g*, Change*, Hold*, Euro*, 1/2lb*, 1/4lb*, kg/lb* Stainless steel pan (240x337mm) Display LCD backlit, 4 lines Weight display: 6 digits Unit price: 6 digits Total price: 6 digits Preset tare: 4 digits Communication, POS Protocol Support RS 232 port USB port (*not all options available in all countries) Model & Capacity Options* Compact: 6kgx2g, 6kgx2g/15kgx5g, 15kgx5g, 30kgx10g Tower: 6kgx2g/15kgx5g, 15kgx5g Check Weigher (compact): 6kgx2g, 15kgx5g Reports Sales, log reports Power 6 NiMH or D-Cell rechargeable batteries Battery operation time NiMH: up to 150h (when backlight off) Power adapter: 100~240 VAC, 50/60 Hz Accessories NiMH rechargeable battery (6pcs), plastic cover for pan, plastic cover for housing, deep plate, external printer, ticket roll, external printer cable, RS232 POS connector, USB POS connector
6
bRite Standard | Quick and Handy – Mobile Smartness Advanced membrane keyboard Customizable, exchangeable preset card Cable Case Power adapter storage Full Mobility Scale order already includes rechargeable battery High Quality & Robust Construction Load cell accuracy, stainless steel plate, spider stability, solid, detailed manufacture & electronics Bright LCD Display 3 backlit lines Ergo Grips Easy carrying support Fixed Positioning Soft rubber, non-slip material, easy adjustable feet
7
Energy saving power adapter bRite Standard vs. Mini Tiger (= Predecessor) | Comparison Cable Case Ergo Grips Easy carrying 50 PLU Exchangeable PLU card Modern state-of-the-art design Plate size increased Standard LCD display Battery included Preset keys High electro magnetic sensi- tivity standard (10V/m compatibility) Mini Tiger bRite Standard
8
bRite Standard | Technical Information Keyboard & Pan 50 PLU 32 membrane keys (16 keys, one key can store one PLU) Zero, Tare, 100g*, Change*, Hold*, Euro*, 1/2lb*, 1/4lb*, kg/lb* Stainless steel pan (240x337mm) Power Lead-acid rechargeable battery, 6VDC/4.5 AH (included) Battery operation time: up to 140h (when backlight off) Power adapter: 100~240 VAC, 50/60 Hz (*not all options available in all countries) Model & Capacity Options* Compact: 6kgx2g, 6kgx2g/15kgx5g, 15kgx5g, 30kgx10g Display LCD, backlit Weight: 6 digits Unit price: 6 digits Total price: 6 digits Sleep mode Accessories Lead acid rechargeable battery, plastic cover for pan, plastic cover for housing, deep plate
9
bRite Standard & Advanced | Common Features Cable Case Ergo Grip Fixed Positioning Environmental- friendliness Common Features bRite Standard & Advanced
10

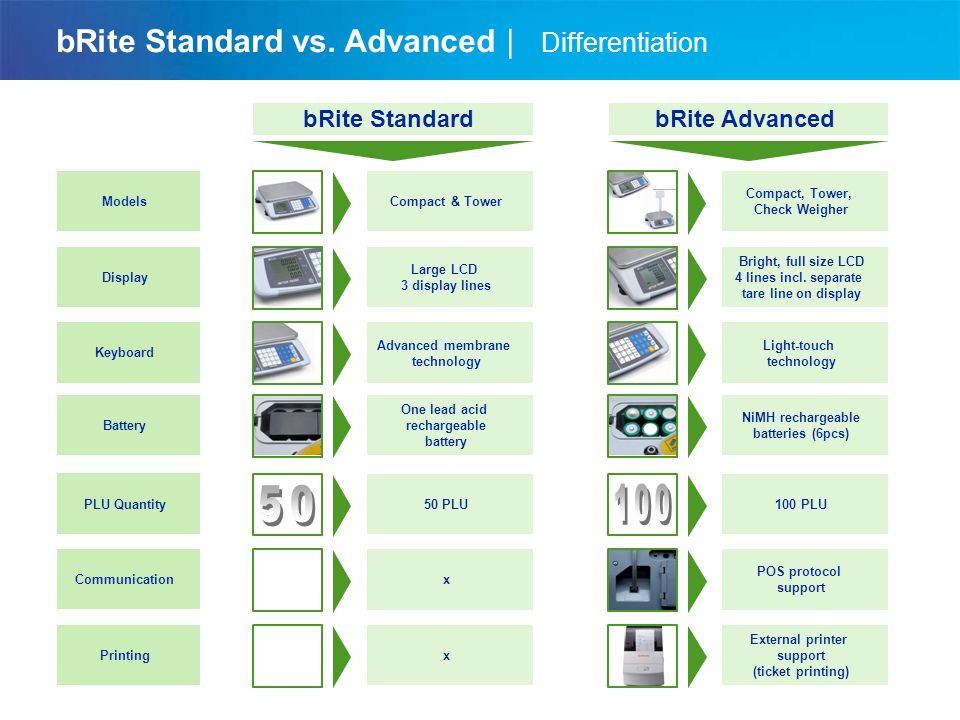

bRite Standard vs. Advanced | Differentiation Compact & Tower bRite StandardbRite Advanced Models Display Keyboard PLU Quantity Communication Printing Compact, Tower, Check Weigher Large LCD 3 display lines Bright, full size LCD 4 lines incl. separate tare line on display Advanced membrane technology Light-touch technology 50 PLU100 PLU x POS protocol support x External printer support (ticket printing) Battery One lead acid rechargeable battery NiMH rechargeable batteries (6pcs)
