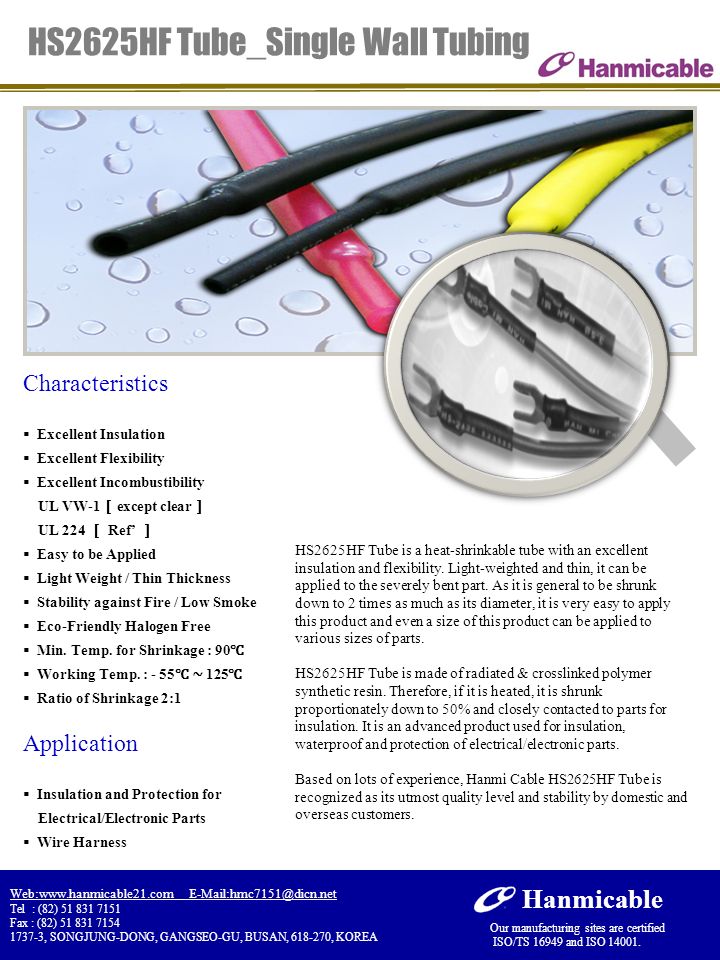

1. Web:www.hanmicable21.com E-Mail:hmc7151@dicn.net Tel : (82) 51 831 7151 Fax : (82) 51 831 7154 1737-3, SONGJUNG-DONG, GANGSEO-GU, BUSAN, 618-270, KOREA Hanmicable Our manufacturing sites are certified ISO/TS 16949 and ISO 14001. HS2625HF Tube is a heat-shrinkable tube with an excellent insulation and flexibility. Light-weighted and thin, it can be applied to the severely bent part. As it is general to be shrunk down to 2 times as much as its diameter, it is very easy to apply this product and even a size of this product can be applied to various sizes of parts. HS2625HF Tube is made of radiated & crosslinked polymer synthetic resin. Therefore, if it is heated, it is shrunk proportionately down to 50% and closely contacted to parts for insulation. It is an advanced product used for insulation, waterproof and protection of electrical/electronic parts. Based on lots of experience, Hanmi Cable HS2625HF Tube is recognized as its utmost quality level and stability by domestic and overseas customers. Characteristics Excellent Insulation Excellent Flexibility Excellent Incombustibility UL VW-1 except clear UL 224 Ref Easy to be Applied Light Weight / Thin Thickness Stability against Fire / Low Smoke Eco-Friendly Halogen Free Min. Temp. for Shrinkage : 90 Working Temp. : - 55 125 Ratio of Shrinkage 2:1 Application Insulation and Protection for Electrical/Electronic Parts Wire Harness HS2625HF Tube_Single Wall Tubing

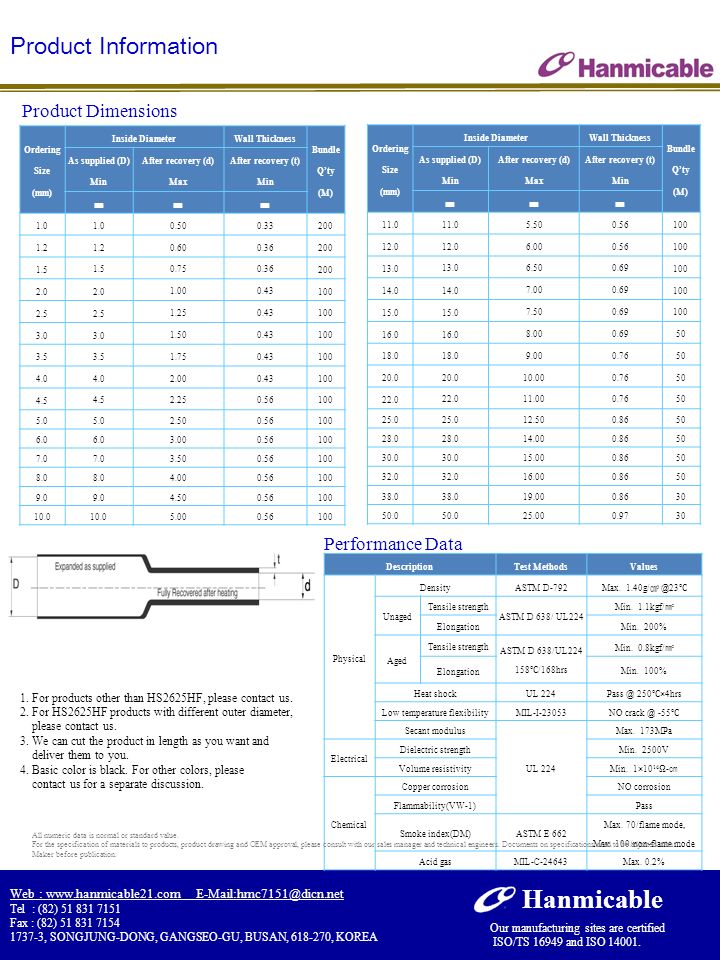

2. Web : www.hanmicable21.com E-Mail:hmc7151@dicn.net Tel : (82) 51 831 7151 Fax : (82) 51 831 7154 1737-3, SONGJUNG-DONG, GANGSEO-GU, BUSAN, 618-270, KOREA Hanmicable Our manufacturing sites are certified ISO/TS 16949 and ISO 14001. DescriptionTest MethodsValues Physical DensityASTM D-792 Max. 1.40g/ @23 Unaged Tensile strength ASTM D 638/ UL224 Min. 1.1kgf/ ElongationMin. 200% Aged Tensile strength ASTM D 638/UL224 158 /168hrs Min. 0.8kgf/ Elongation Min. 100% Heat shockUL 224 Pass @ 250 ×4hrs Low temperature flexibilityMIL-I-23053 NO crack @ -55 Secant modulus UL 224 Max. 173MPa Electrical Dielectric strengthMin. 2500V Volume resistivity Min. 1×10 14 - Chemical Copper corrosionNO corrosion Flammability(VW-1)Pass Smoke index(DM)ASTM E 662 Max. 70/flame mode, Max. 100/non-flame mode Acid gasMIL-C-24643Max. 0.2% Ordering Size (mm) Inside DiameterWall Thickness Bundle Qty (M) As supplied (D) Min After recovery (d) Max After recovery (t) Min 1.0 0.500.33200 1.2 0.600.36200 1.5 0.750.36 200 2.0 1.000.43 100 2.5 1.250.43100 3.0 1.500.43100 3.5 1.750.43100 4.0 2.000.43100 4.5 2.250.56100 5.0 2.500.56100 6.0 3.000.56100 7.0 3.500.56100 8.0 4.000.56100 9.0 4.500.56100 10.0 5.000.56100 Ordering Size (mm) Inside DiameterWall Thickness Bundle Qty (M) As supplied (D) Min After recovery (d) Max After recovery (t) Min 11.0 5.500.56100 12.0 6.000.56100 13.0 6.500.69 100 14.0 7.000.69 100 15.0 7.500.69100 16.0 8.000.6950 18.0 9.000.7650 20.0 10.000.7650 22.0 11.000.7650 25.0 12.500.8650 28.0 14.000.8650 30.0 15.000.8650 32.0 16.000.8650 38.0 19.000.8630 50.0 25.000.9730 1. For products other than HS2625HF, please contact us. 2. For HS2625HF products with different outer diameter, please contact us. 3. We can cut the product in length as you want and deliver them to you. 4. Basic color is black. For other colors, please contact us for a separate discussion. All numeric data is normal or standard value. For the specification of materials to products, product drawing and OEM approval, please consult with our sales manager and technical engineers. Documents on specifications need to be adjusted with Maker before publication. Product Dimensions Product Information Performance Data
