1 Brief Outline of IETM

2 IETM or Interactive Electronic Technical Manual as the name indicates, it is a Manual that is interactive and in the form of electronic/digital. The PDF file is also electronic/digital, will that be called IETM? Yes, undoubtedly PDF is also IETM. It’s Level 2 IETM.IETM I need to give an example so that u can understand better about Levels. Every one of us must have played digital games. In that, we need to cross various levels. The first level would be simple, the second a little difficult, 3rd level more challenging and 4th Level tough. The question is, why is this documentation required? Along with phones or vehicles or any household gadgets, we get a user manual because, in case we have any trouble while using, we can refer to the manual and resolve the issue, without connecting to OEM or service centers as might not be available 24 X7.

3 Hence, these documents should be in simple language easy to navigate, and easy to reach any point in a few clicks. IETM JSG 0852 | Code and Pixels

4 The bigger the system/device the more pages are required and more variety of manuals are required. i.e. User manual, Operator manual, Maintainer manual, Spare list, and so on. If some fault has occurred in the system, then the operator may need to refer to more than one manual and it is very difficult to refer to multiple hardcopies. Even it is not easy to refer to multiple PDFs and refer to the issue as there is no linkage between all PDFs.PDFs The purpose of the Manual is to guide the operator. If the manual is more dynamic it will be easy for the operator to refer and resolve the issue. Level 4 and to some extent, Level 3 will be very handy and very fast. All the documents are converted to a database, hence searching and inter-document referring will become easier. I.e. a user can search for a problem and easily reach that particular page in seconds and also can see all the related topics to that topic which is being displayed. The purpose of the Manual is to guide the operator. If the manual is more dynamic it will be easy for the operator to refer and resolve the issue.

5 Level 4 and to some extent, Level 3 will be very handy and very fast. All the documents are converted to a database, hence searching and inter- document referring will become easier. I.e. a user can search for a problem and easily reach that particular page in seconds and also can see all the related topics to that topic which is being displayed.

6 Simple is Level 1 and advanced is Level -4 LEVEL 1Normally scanned documentNormal PDF file LEVEL 2BasicPDF file with indexing, internal links between pages LEVEL 3IntermediateHTML/XML based Software LEVEL 4Advanced HTML/XML based software with advanced navigation features Indian Defense wants all the equipment to be delivered along with IETMs since 2014. Based on the complexity, Level 3 or Level 4 is asked in the RFQ document. Since 2018, mostly Level 4 is asked to deliver.

7 Simple is Level 1 and advanced is Level -4 IETM – Interactive electronic technical Manual – Level 3,4 and 5

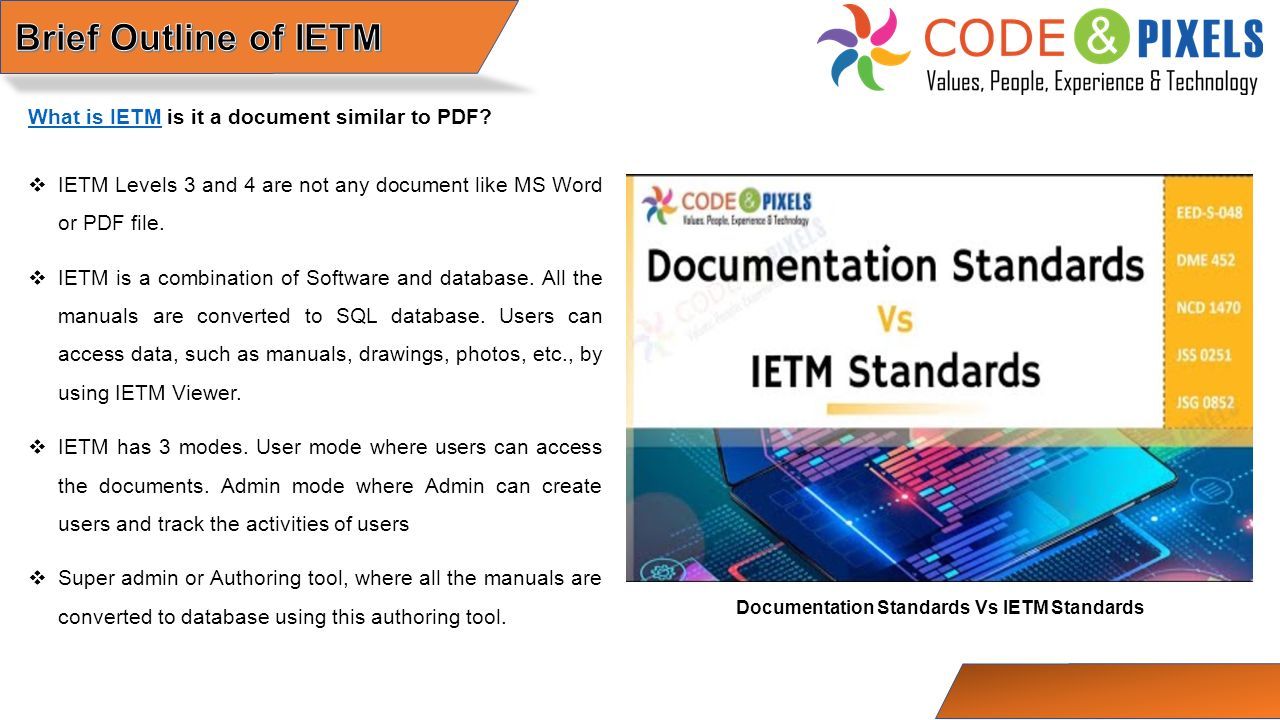

8 What is IETMWhat is IETM is it a document similar to PDF?  IETM Levels 3 and 4 are not any document like MS Word or PDF file.  IETM is a combination of Software and database. All the manuals are converted to SQL database. Users can access data, such as manuals, drawings, photos, etc., by using IETM Viewer.  IETM has 3 modes. User mode where users can access the documents. Admin mode where Admin can create users and track the activities of users  Super admin or Authoring tool, where all the manuals are converted to database using this authoring tool. Documentation Standards Vs IETM Standards

9 Standards : IETMs are available in 2 standards  INDIAN Defense Standard (JSG 0852:2001)  European Aviation standard (S1000D) INDIAN STANDARD : Government of India, Ministry of defense has framed few standards, Joint service Guide 0852:2001 and reframed in 2007. European Aviation standard : It is called S1000D, mainly used in the Aviation industry If the RFQ or tender documents say it is IETM means, it’s Indian standard only. If the end-user wants S1000D, then specifically “S1000D IETM LEVEL -4” is mentioned.

10 What is the difference in both the standard? Ultimately the purpose of both the standard is the same, easy accessibility to all the documents and key points in few clicks. Indian Standard uses SQL Database and IETM Viewer to see the database. IETM Viewer has tools to navigate faster and most effectively. Interactive electronic technical manualInteractive electronic technical manual (IETM) does not need any third-party software to run. OEM can edit using the authoring tool which is available in IETM software. S1000dS1000d is very costly than the Indian standard. S1000D IETM – Code And Pixels Indian Standard is SQL based and HTML based and s1000d is XML based

11 Few companies convert Documents to XML and call them S1000D. Simple XML is not an S1000D IETM. If the end-user /navy/shipowner does not have a CSDB studio then all these IETMs cannot be imported and made a single master IETM.S1000D IETM CSDB studio is very costly software and is mainly supplied by western counties. Indian version CSDBs is not compatible with original S1000d importing.

12 Until you see the software, you will not be able to understand it fully. Hence, we strongly recommend you have a virtual meeting for 15 minutes so that you will have a fair idea about the IETM software. Write an email to ietm@codeandpixels.net or call 9849527706 to fix up the quick demo on IETM.ietm@codeandpixels.net Want to see the IETM software?

13 Code and Pixels Interactive Technologies Pvt. Ltd. CNP Elite Tower,Plot Number 4, Door Number – 3-11-206/4 Road Number -5, Sri Shankar colony, Seris Road, L.B Nagar, Hyderabad 500074 Tel: 098495 27706 e-mail: gopikrishna@codeandpixels.net www.codeandpixels.net
