1. Moisture Curing PU Adhesives Basics & Technology Hank Chiang 20140110 1

2. 2 PU Adhesives Reactive PU PUR-HM 、 LPUR Solvent based 1K-PU PUM 、 PUD

3. 3 PU Synthesis Moisture curing PU: NCO/OH>1

4. 4 PU Synthesis  One Shot  Prepolymer

5. 5 Isocyanate Toluene diisocyanate (TDI) Methylene diphenyl 4,4'-diisocyanate (MDI)

6. 6 Solvent  Solvent base :Toluene 、 xylene 、 DMF 、 MEK 、 Acetone 、 EAC  Water base :H 2 O 、 MEK 、 Acetone

7. 7 Additives  Catalyst (organic Tin)  Anti-oxide agent (1010)  UV absorber

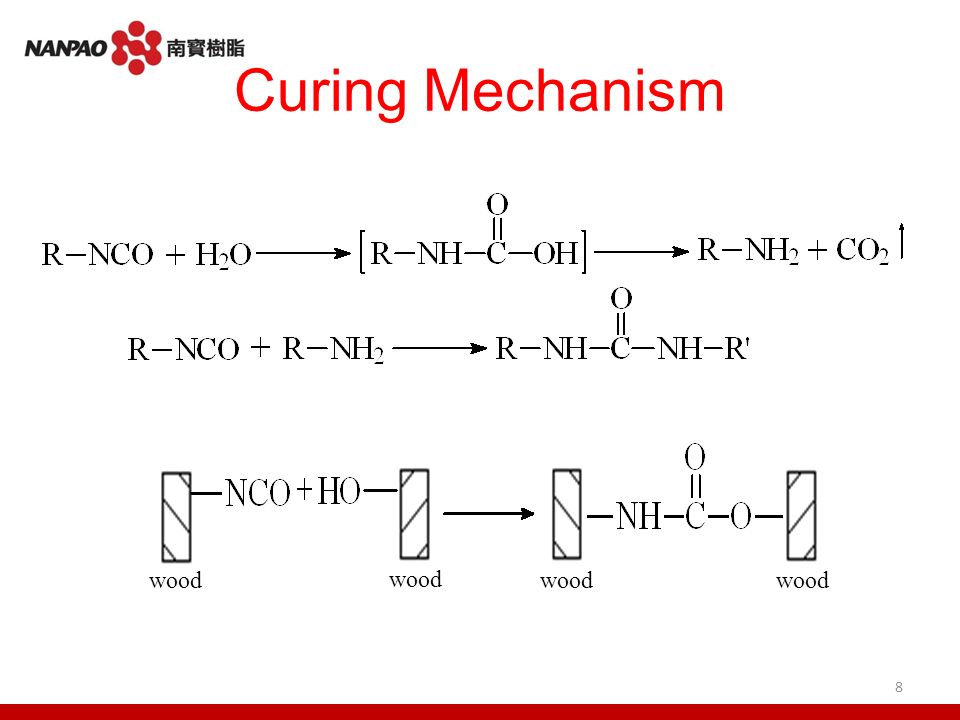

8. 8 Curing Mechanism wood

9. 9 NCO% 1 NCO (MEK) + Et 2 NH (l) ( 過量 )  n Et 2 NH (MEK) 2 HCl (aq) + Et 2 NH (MEK)  Et 2 NH 2 + Cl - (MEK) 3 Et 2 NH (l), HCl (aq) 已知濃度  計算 NCO

10. 10 NCO%

11. Property 2K PULPURHMPURWater PU Drying speed Medium HighSlow Smell Strong solvent odour No solvent odour Light solvent odour Cost Standard HighStandard OperationcomplexitySimplecomplexitySimple Resistanc e ( Weather 、 Chemical ) GoodVery good Good Image High VOCGreen Comparison among different systems

12. 12 Product Benefits LPUR Water PUR HM Solvent  Solvent free  Cross linking  One-component  Simple operation  Cheap equipment  Great weather resistance

13. 13  No formaldehyde

14. Woodworking Lamination PUR product map Wood/metal, Wood/stone, Wood/wood, Wood/ceramics, Wood/foam, Wood/glass Wood/wood, Wood/stone (Low Viscosity) Wood/wood, Wood/stone (High Viscosity) performance T-UR050 NANPA O T-UR049 T-UR046 T-UR046A GORILL A GORILL A GLUE KLEIBER IT 501.3 501.6 501.0 JOWAT 687.40 501.8 Titebond Polyurethane Glue T-UR090 T-UR054

15. Application Areas 15

16. Product No. T-UR046T-UR046AT-UR049T-UR049HT-UR050T-UR054 Viscosity (cps) 25 ℃ 9000-11000 4000-7000 700-900 Solid Content (%)100 Application Temp.( ℃ ) R.T. Open time (min)20-4010-1550-7030-5030-4030-50 Curing Time (hr)24-48 PropertiesD3(EN 204) D4(EN 204)D3(EN 204) Machine Type Spray Roller ╳╳╳╳╳╳ Application Wood/wood, Wood/stone Wood/metal, Wood/stone, Wood/wood, Wood/ceramics, Wood/foam, Wood/glass Wood/wood, Wood/stone

17. Product No. T-UR90 Viscosity (cps) 25 ℃ 3000-6000 Solid Content (%)100 Application Temp.( ℃ ) R.T. Open time (min)40-60 Curing Time (hr)24-48 Properties Machine Type Spray Roller ╳ Application Wood/stone, Wood/wood, Wood/ceramics, Wood/plastics, Wood/glass

18. Thank you 18
