How to Interpret Titration Curves find the equivalence point –it is the steepest part of the curve where the pH rises the fastest –the equivalence point can be used to determine the equivalent weight (molar mass) of the acid find the mid point –located in the center of the buffer region –geometrically halfway between the equivalence point and the beginning of the titration –sometimes it is a little more complicated than this - see the example –the midpoint determines the pKa of the acid
2
How to Interpret Titration Curves things to do first –graph your data as seen in the next slide –make sure you turn on the major and minor tick marks on both axes double click on the axis and click on the “patterns” tab) –there is enough precision in the tick marks you should have at least 1 mL or smaller for the minor tick mark on the x-axis you should have at least 0.2 pH units or smaller for the minor tick mark on the y-axis
3
Two Different Methods there are two methods of analysis that will be shown –geometric method requires a ruler, a pencil, and the titration graph –1st derivative method requires a spreadsheet and some formula entries gives you cool graphs with the 1st derivative pointing to the equivalence and mid points scores you brownie points with the instructors pick your method (either will work)
4
equivalence point mid point A Typical Titration Curve
5
equivalence point Find the Equivalence Point (Geometric method) 1) using a ruler, draw lines that follow the flat, more horizontal part of the curve 2) draw a line that follows the flat, more vertical part of the curve
6
equivalence point Find the Equivalence Point (Geometric method) 3) using a ruler, measure the distance between the top intersection and the bottom intersection 4) the geometric center of this line segment is the equivalence point
7
equivalence point Find the Equivalence Point (Geometric method) 5) draw a vertical line from the equivalence point to the x-axis 6) where the line crosses the x-axis is the volume at the equivalence point (28.7 mL in this case)
8

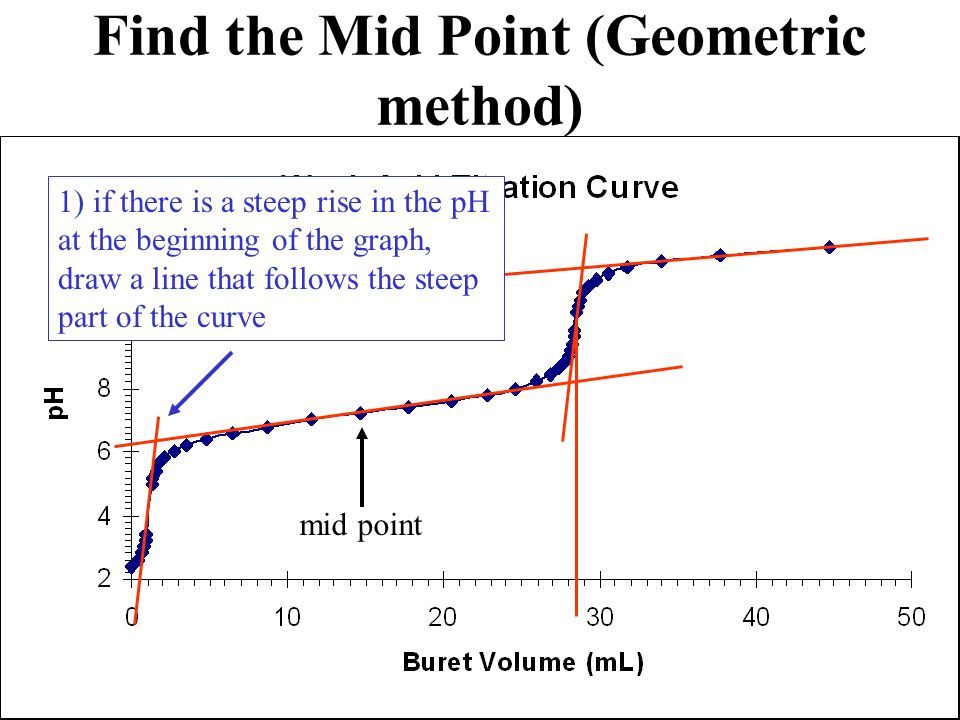

mid point Find the Mid Point (Geometric method) 1) if there is a steep rise in the pH at the beginning of the graph, draw a line that follows the steep part of the curve
9
equivalence point Find the Mid Point (Geometric method) 2) using a ruler, measure the distance between the far left and right intersections 3) the geometric center between these points is the mid point mid point
10
equivalence point Find the Mid Point (Geometric method) 4) draw a horizontal line from the mid point to the y-axis 5) where the line crosses the x-axis is the volume at the equivalence point (pH = 7.2 in this case) mid point
11
How to Interpret Titration Curves find the equivalence point –make sure you subtract the initial buret volume! –in this case, the initial buret volume was 1.07 mL –true equiv. pt. = 28.7 mL - 1.07 mL = 27.6 3 mL –the 3 is the indicate the limit of the significant figures calculate the equivalent weight (molar mass) –equiv. wt. = (acid mass)/[(NaOH conc)(equiv. pt.)] –equiv. wt. = (430.2 mg)/[(0.1139 M)(27.6 3 mL)] –equiv. wt. = 136.699 = 137 g/mol
12
How to Interpret Titration Curves find the mid point –mid pt = 7.2 = pKa of the acid
13
For you Excel Aficionados equivalence point –use the first derivative d pH / d Vol –the spike in the graph points to the equiv. pt. mid point –reverse the axes for the pH curve x axis = pH values; y-axis = Vol values –use the first derivative d Vol / d pH –the spike in the graph points to the mid point use extra columns in the spreadsheet to make these calcs –1st deriv. (d pH / d Vol) = (pH 2 - pH 1 )/(Vol 2 - Vol 1 ) –1st deriv. (d Vol / d pH) = (Vol 2 - Vol 1 )/ (pH 2 - pH 1 ) or just (the first 1st deriv) -1
14
Find the Equivalence Point (derivative method) 1) identify volume value at the peak (28.5 mL in this case)
15
Find the Mid Point (derivative method) 1) identify pH value at the peak (pH = 7.3 in this case)
