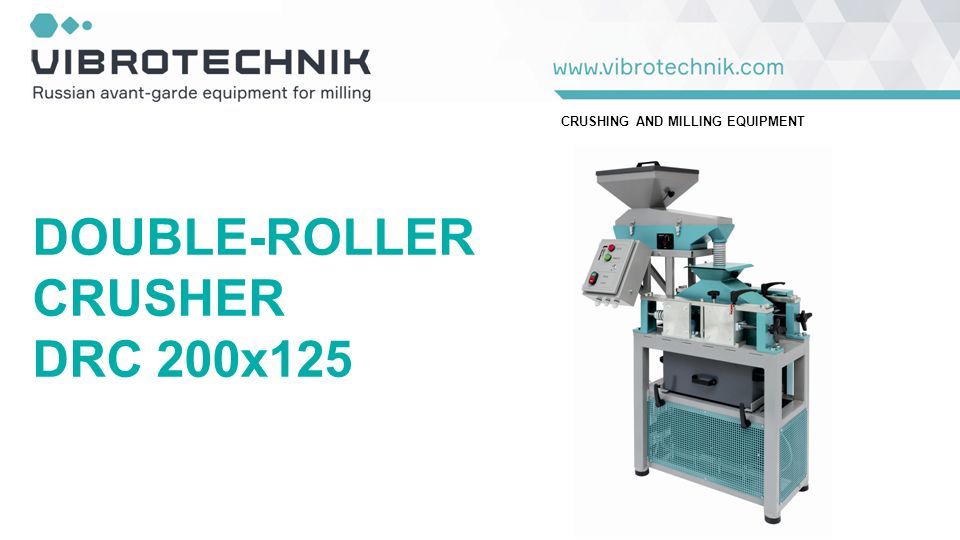

CRUSHING AND MILLING EQUIPMENT DOUBLE-ROLLER CRUSHER DRC 200х125
2

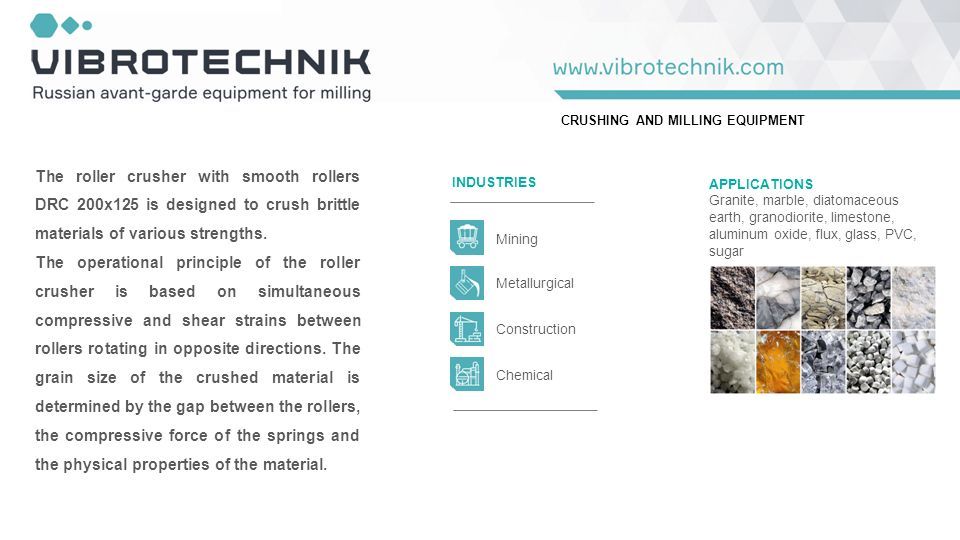

The roller crusher with smooth rollers DRC 200х125 is designed to crush brittle materials of various strengths. The operational principle of the roller crusher is based on simultaneous compressive and shear strains between rollers rotating in opposite directions. The grain size of the crushed material is determined by the gap between the rollers, the compressive force of the springs and the physical properties of the material. CRUSHING AND MILLING EQUIPMENT INDUSTRIES Metallurgical Chemical Construction Mining APPLICATIONS Granite, marble, diatomaceous earth, granodiorite, limestone, aluminum oxide, flux, glass, PVC, sugar
3

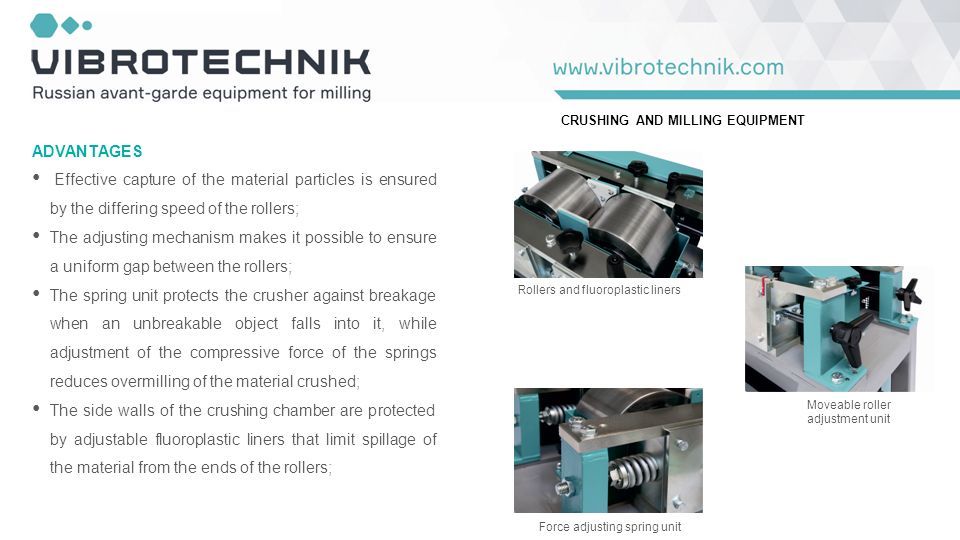

ADVANTAGES Effective capture of the material particles is ensured by the differing speed of the rollers; The adjusting mechanism makes it possible to ensure a uniform gap between the rollers; The spring unit protects the crusher against breakage when an unbreakable object falls into it, while adjustment of the compressive force of the springs reduces overmilling of the material crushed; The side walls of the crushing chamber are protected by adjustable fluoroplastic liners that limit spillage of the material from the ends of the rollers; CRUSHING AND MILLING EQUIPMENT Rollers and fluoroplastic liners Moveable roller adjustment unit Force adjusting spring unit
4

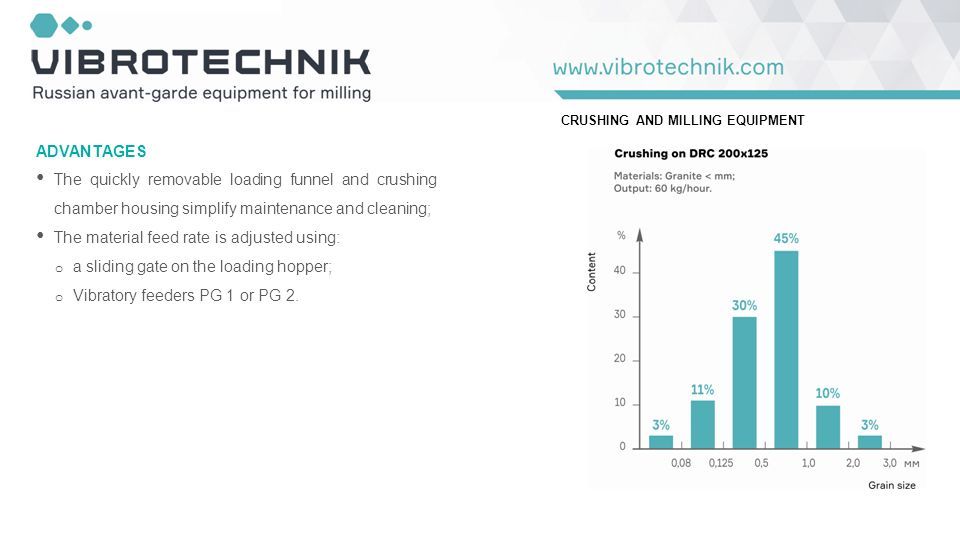

ADVANTAGES The quickly removable loading funnel and crushing chamber housing simplify maintenance and cleaning; The material feed rate is adjusted using: o a sliding gate on the loading hopper; o Vibratory feeders PG 1 or PG 2. CRUSHING AND MILLING EQUIPMENT
5

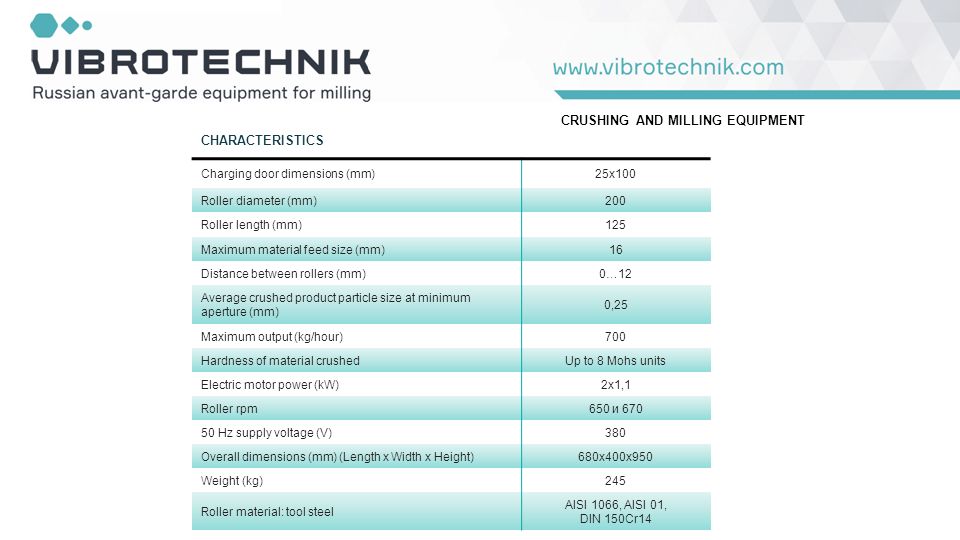

CHARACTERISTICS Charging door dimensions (mm)25х100 Roller diameter (mm)200 Roller length (mm)125 Maximum material feed size (mm)16 Distance between rollers (mm)0…12 Average crushed product particle size at minimum aperture (mm) 0,25 Maximum output (kg/hour)700 Hardness of material crushedUp to 8 Mohs units Electric motor power (kW)2х1,1 Roller rpm650 и 670 50 Hz supply voltage (V)380 Overall dimensions (mm) (Length х Width х Height)680х400х950 Weight (kg)245 Roller material: tool steel AISI 1066, AISI 01, DIN 150Cr14
6

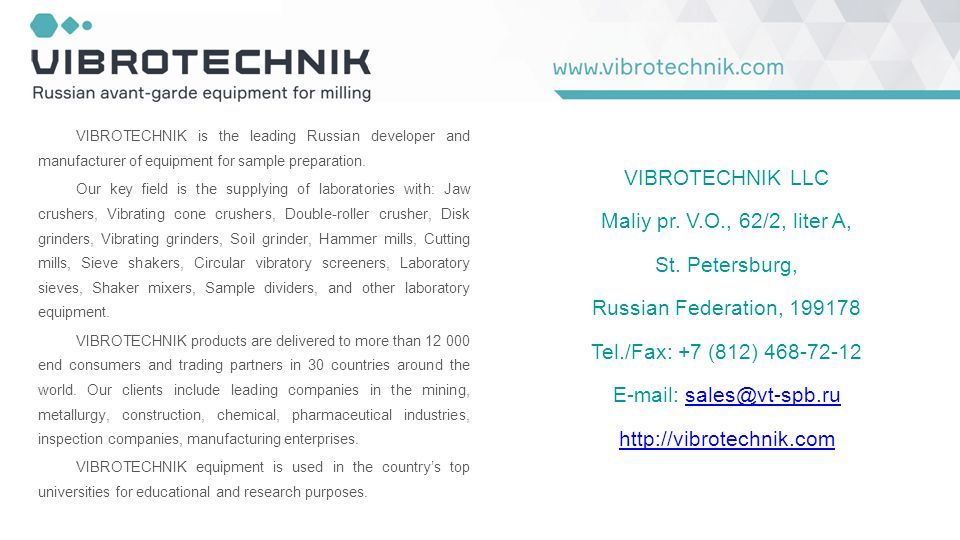

VIBROTECHNIK LLC Maliy pr. V.O., 62/2, liter A, St. Petersburg, Russian Federation, 199178 Tel./Fax: +7 (812) 468-72-12 E-mail: sales@vt-spb.rusales@vt-spb.ru http://vibrotechnik.com VIBROTECHNIK is the leading Russian developer and manufacturer of equipment for sample preparation. Our key field is the supplying of laboratories with: Jaw crushers, Vibrating cone crushers, Double-roller crusher, Disk grinders, Vibrating grinders, Soil grinder, Hammer mills, Cutting mills, Sieve shakers, Circular vibratory screeners, Laboratory sieves, Shaker mixers, Sample dividers, and other laboratory equipment. VIBROTECHNIK products are delivered to more than 12 000 end consumers and trading partners in 30 countries around the world. Our clients include leading companies in the mining, metallurgy, construction, chemical, pharmaceutical industries, inspection companies, manufacturing enterprises. VIBROTECHNIK equipment is used in the country’s top universities for educational and research purposes.
