1. © 2014 Autodesk MEP Fabrication Detailing in Autodesk® Revit® MEP 2016 Julien Drouet BIM Technical Specialist – MEP, Construction & MEP Fabrication

2. Strategy LOD 400 Features Hands on with features / functionality Agenda | MEP Detailing in Revit

3. MEP | Strategy

4. HVAC System Detailing + Fabrication  Ductwork + Equipment modeling  Hanger layout  Hydronic piping  HVAC | electrical coordination support  Improved content editor  Manufacturer engagement to supply key content Transition CAD to MEP Fabrication  North American + British Standard countrification Improve the quality of building MEP systems through scalable modeling of complex HVAC designs through detailing + fabrication Product Strategy | MEP

5.  North American trades  CADmep user migration to Revit  Part-by-part duct modeling in Revit  Connected experience with LOD 400 components MEP Fabrication | HVAC System Detailing + Fabrication

6. Provide confidence to the Detailer within Construction firms that what is modelled can be fabricated, procured, and installed. Autodesk Confidential Information – NDA Applies

7. MEP Fabrication | First Steps Focused on model creation, creating a new detail oriented foundation +

8. MEP | LOD 400 Features + Functionality

9. Detail oriented tools allow system optimization, reducing time and cost of installation Design 8 Fittings Construction 3 Fittings

10. Utilize Autodesk Fabrication MEP Content  Customers utilize investment in Autodesk Fabrication MEP Content (CADmep, CAMduct, ESTmep)  Use Fabrication Configuration data within Revit projects  Autodesk provided sample Configuration.  Model using Services and ITM based content* (* some exclusions) Extend investment in Autodesk Fabrication MEP solutions | MEP Fabrication Detailing Autodesk Confidential Information – NDA Applies

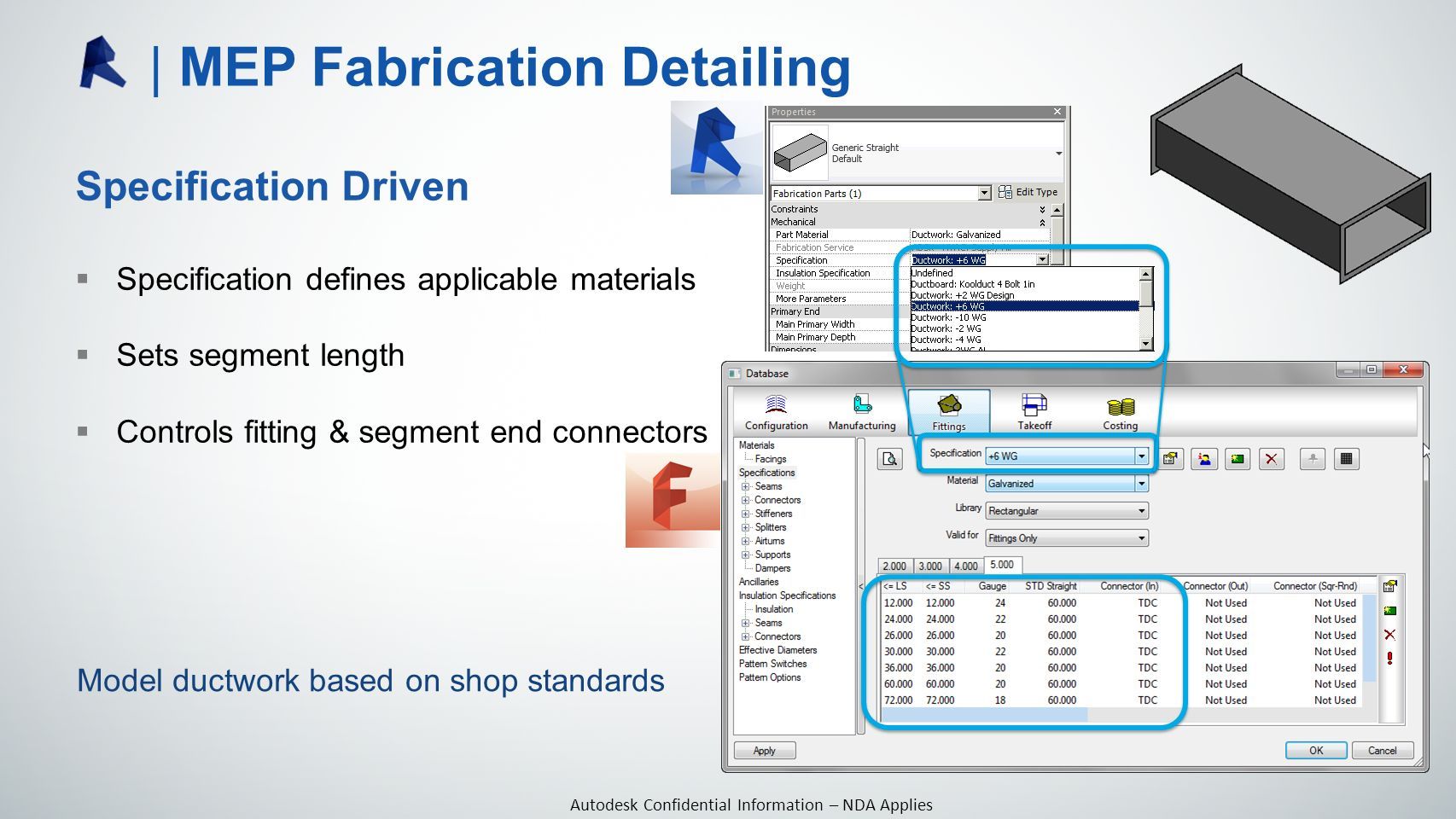

11. Specification Driven  Specification defines applicable materials  Sets segment length  Controls fitting & segment end connectors Model ductwork based on shop standards | MEP Fabrication Detailing Autodesk Confidential Information – NDA Applies

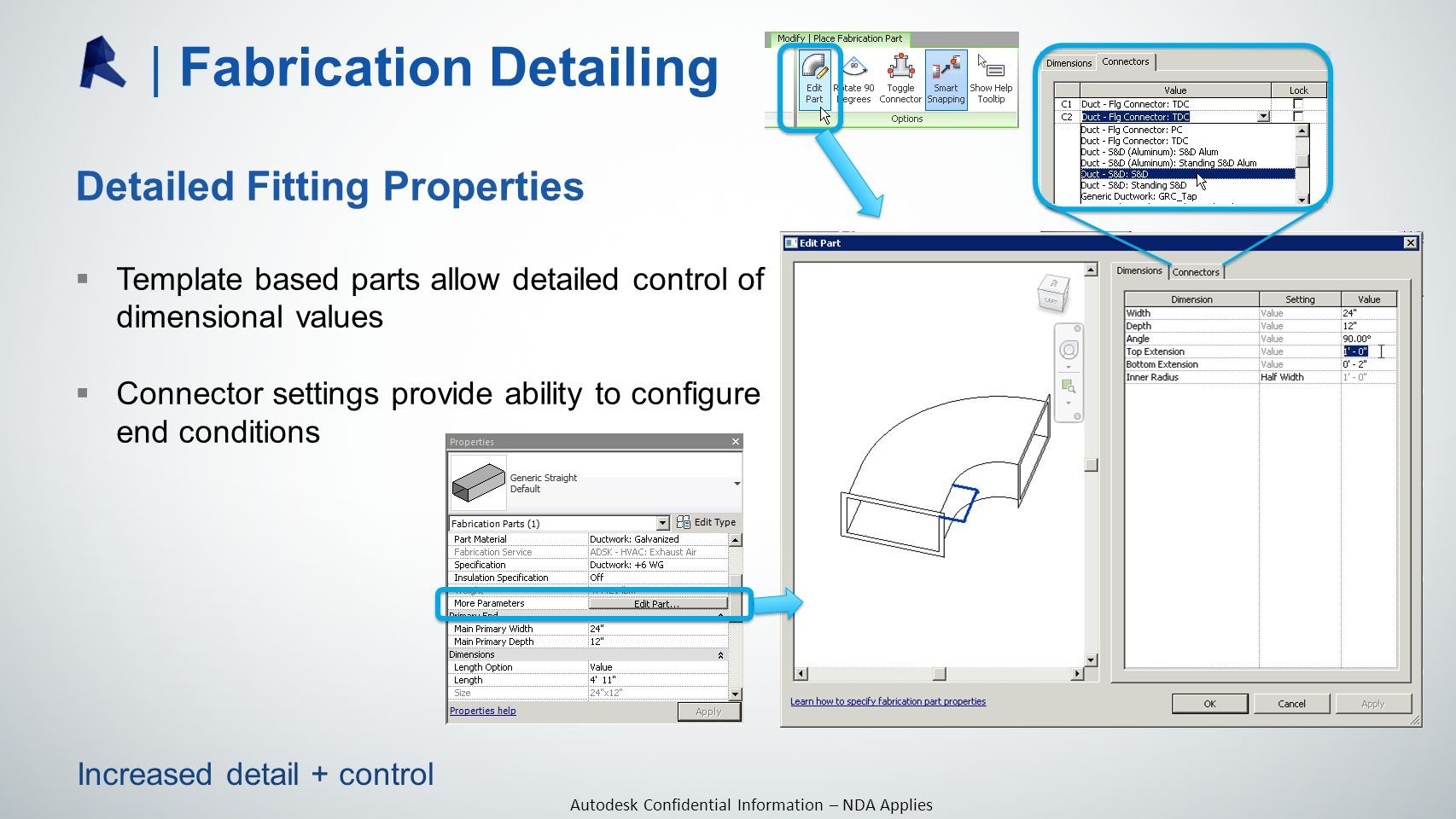

12. Detailed Fitting Properties  Template based parts allow detailed control of dimensional values  Connector settings provide ability to configure end conditions Increased detail + control | Fabrication Detailing Autodesk Confidential Information – NDA Applies

13. Catalog Part Lists  Product Entry lists product sizes ensure that modelled components reflect dimensionally realistic parts Defined parts conform to real sizes | MEP Fabrication Detailing Autodesk Confidential Information – NDA Applies

14. Insulation Specifications  Defines insulation thickness and material based on fitting / segment size  Insulation Specification inherits from connected element Simplifies application of insulation | MEP Fabrication Detailing Autodesk Confidential Information – NDA Applies

15. Specification Driven Straight Optimization  Breaks selected segments into standard lengths Edited segments updatable to match shop standards | MEP Fabrication Detailing

16. Fittings inserted based on size condition  Fittings insert based on size range conditions as defined within the Service Fitting application based on definable rules | MEP Fabrication Detailing

17. Smart Snapping and Help Tooltip  Smart Snapping makes it easier to place elements by increasing the snap diameter.  The help tooltip provides new user assistance with keyboard control details Simplified placement and tips for learnability | MEP Fabrication Detailing + =

18. Modification Controls  Rotate part to orient part 45 or 90 degrees  Toggle connector to reposition connected end of fitting In canvas manipulation or from ribbon | MEP Fabrication Detailing Autodesk Confidential Information – NDA Applies

19. Couplings and Welds  Couplings automatically insert as defined in the Service  Couplings are removed automatically when connected elements are removed Detailed connector definitions facilitate insertion | MEP Fabrication Detailing

20. Connect to Revit Families  Connect to equipment and air terminal families  Utilize Revit flex duct/pipe Create models utilizing design intent end of line components | MEP Fabrication Detailing

21. Tap Placement  Tap fittings may be placed along straight segments  Snap to the centreline of the main  Spacebar rotates the tap around the segment (left, top, bottom, right), SHIFT+Spacebar changes the tap orientation  To reposition on another segment, drag away, and re-snap to the centreline | MEP Fabrication Detailing + Tap placement and orientation during insertion

22. | MEP Fabrication Detailing Hanger Elements  Hanger placement along fabrication segments  Sized automatically  Attach and adjust to architectural and structural elements in linked models Coordinate detailed fabrication model with supporting elements Autodesk Confidential Information – NDA Applies

23. Electrical Component Support  Fabrication pattern support for  Cable Tray  Wire ways  Bus Multiple discipline to support detailed model coordination | MEP Fabrication Detailing

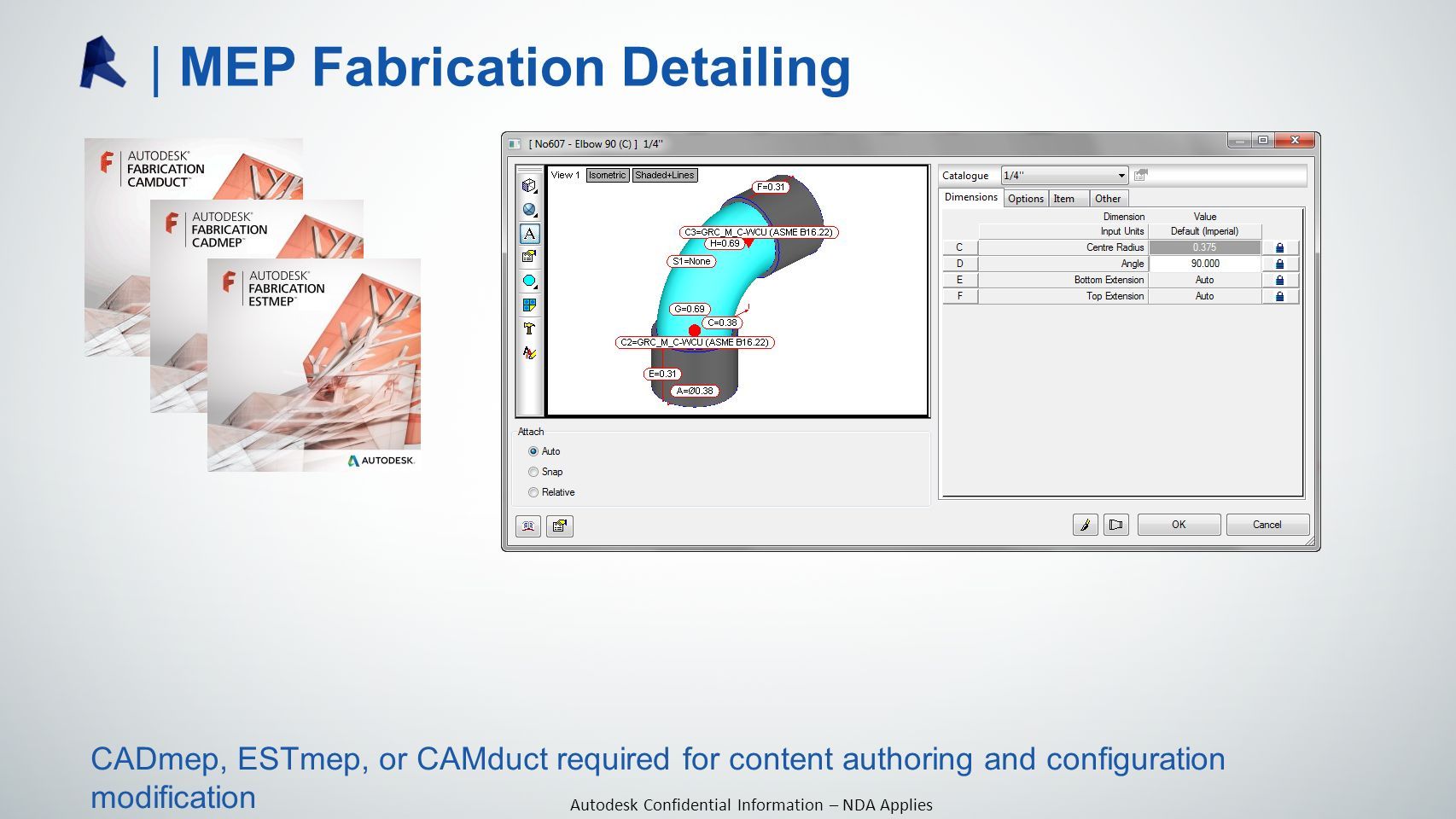

24. CADmep, ESTmep, or CAMduct required for content authoring and configuration modification | MEP Fabrication Detailing Autodesk Confidential Information – NDA Applies

25. Detailed modeling… … to EST + CAM output

26.  Demonstrating commitment to detailed needs of construction user  Fabrication (ITM) Content + Rules  Connected Experience with Fabrication products | MEP Fabrication Detailing | Positioning Autodesk Confidential Information – NDA Applies Detailed coordination modelling focus. + “Nothing matters if we can't model it. Other workarounds may not be ideal or efficient, but multiple modeling platforms are what we want to avoid the most.”

27. Hands On
